zoneMotion Class Reference

Intermediate class for handling "zonified" motion. Can select motion for the entire mesh, or restrict to a subset of points based on a specified cellSet or cellZone(s). More...

#include <zoneMotion.H>

Inheritance diagram for zoneMotion:

Public Member Functions
	zoneMotion (const dictionary &dict, const polyMesh &mesh)
	Construct from dictionary.
virtual	~zoneMotion ()=default
	Destructor.
const labelList &	pointIDs () const noexcept
	The point ids (for cell set/zone subset).
bool	moveAllCells () const noexcept
	Move all cells?

Detailed Description

Intermediate class for handling "zonified" motion. Can select motion for the entire mesh, or restrict to a subset of points based on a specified cellSet or cellZone(s).

Usage

{
    cellSet     <name>;

    // and/or
    cellZone    <name or regex>;
}

Note

The cellZone can be specified as a wordRe and will select by name or group. The special name "none" is treated as ignored.

Source files

• zoneMotion.H
• zoneMotion.C

Definition at line 66 of file zoneMotion.H.

Constructor & Destructor Documentation

zoneMotion()

zoneMotion	(	const dictionary &	dict,
		const polyMesh &	mesh )

Construct from dictionary.

Definition at line 31 of file zoneMotion.C.

References dict, if(), mesh, and zoneIDs.

Referenced by points0MotionSolver::points0MotionSolver(), and points0MotionSolver::points0MotionSolver().

Here is the call graph for this function:

Here is the caller graph for this function:

~zoneMotion()

virtual ~zoneMotion ( )

virtualdefault

Destructor.

Member Function Documentation

pointIDs()

const labelList & pointIDs ( ) const

inlinenoexcept

The point ids (for cell set/zone subset).

Definition at line 102 of file zoneMotion.H.

References Foam::noexcept.

Referenced by rigidBodyMeshMotion::curPoints(), sixDoFRigidBodyMotionSolver::curPoints(), and solidBodyMotionSolver::curPoints().

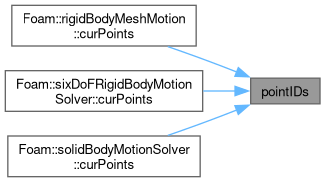

Here is the caller graph for this function:

moveAllCells()

bool moveAllCells ( ) const

inlinenoexcept

Move all cells?

Definition at line 110 of file zoneMotion.H.

References Foam::noexcept.

Referenced by rigidBodyMeshMotion::curPoints(), sixDoFRigidBodyMotionSolver::curPoints(), and solidBodyMotionSolver::curPoints().

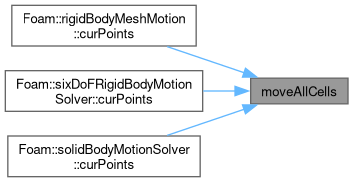

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• src/dynamicMesh/motionSolvers/displacement/displacement/zoneMotion.H
• src/dynamicMesh/motionSolvers/displacement/displacement/zoneMotion.C
