foamVtkTools.H File Reference

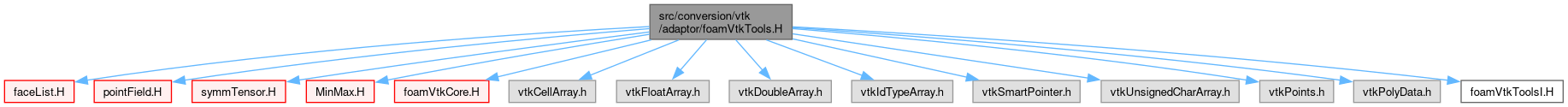

Include dependency graph for foamVtkTools.H:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	Caching< DataType >
	Bookkeeping for internal caching. More...
struct	Patch
	Convert OpenFOAM patch to vtkPolyData. More...

Namespaces
namespace	Foam::vtk::Tools
	A collection of static methods to assist converting OpenFOAM data structures into VTK internal data structures.
namespace	Foam
	Namespace for OpenFOAM.
namespace	Foam::vtk
	Namespace for handling VTK output. Contains classes and functions for writing VTK file content.

Functions
UList< uint8_t >	asUList (vtkUnsignedCharArray *array, const label size)
	Wrap vtkUnsignedCharArray as a UList.
UList< vtkIdType >	asUList (vtkIdTypeArray *array, const label size)
	Wrap vtkIdTypeArray as a UList.
vtkSmartPointer< vtkPoints >	NewPoints (vtkIdType count)
	Allocate vtkPoints.
vtkSmartPointer< vtkPoints >	Points (const UList< point > &pts)
	Return a list of points as vtkPoints.
vtkSmartPointer< vtkPoints >	Points (const UList< point > &pts, const labelUList &addr)
	Return an indirect list of points as vtkPoints.
template<class Face>
vtkSmartPointer< vtkCellArray >	Faces (const UList< Face > &faces)
	Convert a list of faces (or triFaces) to vtk polygon cells.
vtkSmartPointer< vtkPolyData >	Vertices (const UList< point > &pts)
	Return vtkPolyData of vertices for each point.
vtkSmartPointer< vtkPolyData >	Vertices (const UList< point > &pts, const labelUList &addr)
	Return vtkPolyData of vertices for each point.
scalarMinMax	rangeOf (vtkDataArray *data)
	Min/Max of scalar, or mag() of non-scalars. Includes nullptr check.
template<class Type>
void	foamToVtkTuple (float output[], const Type &value)
	Older name for copyTuple.
template<class Type>
void	foamToVtkTuple (double output[], const Type &value)
	Older name for copyTuple.
template<class Type>
label	transcribeFloatData (vtkDataArray *array, const UList< Type > &input, vtkIdType start=0)
	Copy list to pre-allocated vtk array.
template<class Type, class DataArrayType = vtkFloatArray>
vtkSmartPointer< DataArrayType >	zeroField (const word &name, const label size)
	Create named field initialized to zero.
template<class Type, class DataArrayType = vtkFloatArray>
vtkSmartPointer< DataArrayType >	convertFieldToVTK (const word &name, const UList< Type > &fld)
	Convert field data to a vtkFloatArray.
template<class Type, class DataArrayType = vtkFloatArray>
vtkSmartPointer< DataArrayType >	convertFieldToVTK (const word &name, const UList< Type > &fld, const labelUList &addr)
	Convert field data to a vtkFloatArray, using indirect addressing.
vtkSmartPointer< vtkCellArray >	identityVertices (const vtkIdType size)
	An identity list of VTK_VERTEX.

Detailed Description

Original source file foamVtkTools.H

Definition in file foamVtkTools.H.
