Namespace for handling VTK output. Contains classes and functions for writing VTK file content. More...

Namespaces
namespace	Tools
	A collection of static methods to assist converting OpenFOAM data structures into VTK internal data structures.
namespace	legacy
	Namespace for legacy VTK output constants and functions.

Classes
struct	Caching
	Bookkeeping for internal caching. More...
class	vtuAdaptor
	Bookkeeping for vtkUnstructuredGrid. More...
class	GenericPatchGeoFieldsWriter
	A Foam::vtk::GenericPatchWriter with support for geometric fields. More...
class	internalWriter
	Write an OpenFOAM volume (internal) geometry and internal fields as a vtu file or a legacy vtk file. More...
class	patchWriter
	Write OpenFOAM patches and patch fields in VTP or legacy vtk format. More...
class	surfaceFieldWriter
	Write surfaces fields (as PointData) in VTP format. Legacy VTK format is intentionally not supported. More...
class	fileWriter
	Base class for VTK output writers that handle geometry and fields (eg, vtp, vtu data). These output formats are structured as DECLARED, FIELD_DATA, PIECE followed by any CELL_DATA or POINT_DATA. More...
class	seriesWriter
	Provides a means of accumulating and generating VTK file series. More...
class	vtmWriter
	Provides a means of accumulating file entries for generating a vtkMultiBlockDataSet (.vtm) file. More...
class	appendBase64Formatter
	Appended base-64 encoded binary output. Uses an output filter layer to write base-64 encoded content. More...
class	appendRawFormatter
	Appended raw binary output. More...
class	asciiFormatter
	Inline ASCII output. Adds spaces between entries and a newline every 9 items (for consistency with what VTK itself outputs). More...
class	base64Formatter
	Inline base-64 encoded binary output. Uses an output filter layer to write base-64 encoded content. More...
class	foamVtkBase64Layer
	Base-64 encoded output layer - normally only used indirectly by formatters. More...
class	formatter
	Abstract class for a VTK output stream formatter. More...
class	legacyAsciiFormatter
	Formatting as per Foam::vtk::asciiFormatter, but with naming for legacy output. More...
class	legacyRawFormatter
	Binary output for the VTK legacy format, always written as big-endian and with 32-bit integers. More...
class	outputOptions
	Encapsulated combinations of output format options. This is primarily useful when defining the output type based on some command-line arguments or dictionary contents. However, it can also be a useful alternative to using the underlying enumeration directly, since this class provides additional methods not possible with an enum. More...
class	vtuCells
	A deep-copy description of an OpenFOAM volume mesh in data structures suitable for VTK UnstructuredGrid, including the possibility of decomposing polyhedral cells into primitive cell types. More...
class	vtuSizing
	Sizing descriptions and routines for transcribing an OpenFOAM volume mesh into a VTK unstructured grid, with possible decomposition of polyhedral cells into primitive cell types. More...
class	lineWriter
	Write edge/points (optionally with fields) as a vtp file or a legacy vtk file. More...
class	polyWriter
	Write faces/points (optionally with fields) as a vtp file or a legacy vtk file. More...
class	surfaceWriter
	Write faces/points (optionally with fields) as a vtp file or a legacy vtk file. More...
class	lagrangianWriter
	Write lagrangian (cloud) positions and fields (as PointData) in VTP format. Legacy VTK format is intentionally not supported since the VTP format provides much better field selection in ParaView, and for consistency with the Foam::functionObjects::vtkCloud function object. More...
class	coordSetWriter
	Write as points/lines, optionally with fields, as a vtp file or a legacy vtk file. More...
class	internalMeshWriter
	Write an OpenFOAM volume (internal) geometry and internal fields as a vtu file or a legacy vtk file. More...
class	GenericPatchWriter
	Write concrete PrimitivePatch faces/points (optionally with fields) as a vtp file or a legacy vtk file. The patch type is limited to representations of polygon faces and 3D points and must support the following methods: More...
class	patchMeshWriter
	Write OpenFOAM patches and patch fields in VTP or legacy vtk format. More...

Typedefs
typedef GenericPatchGeoFieldsWriter< indirectPrimitivePatch >	indirectPatchGeoFieldsWriter
	Write indirectPrimitivePatch faces/points as a vtp file or a legacy vtk file with support for geometric fields.
typedef GenericPatchGeoFieldsWriter< uindirectPrimitivePatch >	uindirectPatchGeoFieldsWriter
	Write uindirectPrimitivePatch faces/points as a vtp file or a legacy vtk file with support for geometric fields.
typedef indirectPatchGeoFieldsWriter	surfaceMeshWriter
typedef GenericPatchWriter< indirectPrimitivePatch >	indirectPatchWriter
	Write indirectPrimitivePatch faces/points (optionally with fields) as a vtp file or a legacy vtk file.
typedef GenericPatchWriter< uindirectPrimitivePatch >	uindirectPatchWriter
	Write uindirectPrimitivePatch faces/points (optionally with fields) as a vtp file or a legacy vtk file.
typedef GenericPatchWriter< primitivePatch >	primitivePatchWriter
	Write primitivePatch faces/points (optionally with fields) as a vtp file or a legacy vtk file.

Enumerations
enum	OutputContext : uint8_t { INLINE , HEADER , APPEND }
	The context when outputting a VTK file (XML or legacy). More...
enum class	formatType : uint8_t { INLINE_ASCII = 0 , INLINE_BASE64 = 0x01 , APPEND_BASE64 = 0x11 , APPEND_BINARY = 0x12 , LEGACY_ASCII = 0x20 , LEGACY_BINARY = 0x22 , HDF_FORMAT = 0x40 }
	The output format type for file contents. More...
enum	cellType : uint8_t { VTK_EMPTY_CELL = 0 , VTK_VERTEX = 1 , VTK_POLY_VERTEX = 2 , VTK_LINE = 3 , VTK_POLY_LINE = 4 , VTK_TRIANGLE = 5 , VTK_TRIANGLE_STRIP = 6 , VTK_POLYGON = 7 , VTK_PIXEL = 8 , VTK_QUAD = 9 , VTK_TETRA = 10 , VTK_VOXEL = 11 , VTK_HEXAHEDRON = 12 , VTK_WEDGE = 13 , VTK_PYRAMID = 14 , VTK_PENTAGONAL_PRISM = 15 , VTK_HEXAGONAL_PRISM = 16 , VTK_POLYHEDRON = 42 }
	Equivalent to enumeration in "vtkCellType.h" (should be uint8_t). More...
enum class	fileTag : uint8_t { UNKNOWN , VTK_FILE , DATA_ARRAY , BLOCK , PIECE , DATA_SET , POINTS , CELLS , POLYS , VERTS , LINES , CELL_DATA , POINT_DATA , FIELD_DATA , POLY_DATA , UNSTRUCTURED_GRID , MULTI_BLOCK , VTK_HDF }
	Some common XML tags for vtk files. More...
enum class	fileAttr : uint8_t { OFFSET , NUMBER_OF_COMPONENTS , NUMBER_OF_TUPLES , NUMBER_OF_POINTS , NUMBER_OF_CELLS , NUMBER_OF_POLYS , NUMBER_OF_VERTS , NUMBER_OF_LINES }
	Some common XML attributes for vtk files. More...
enum class	dataArrayAttr : uint8_t { POINTS , OFFSETS , CONNECTIVITY , TYPES , FACES , FACEOFFSETS }
	Some common names for XML DataArray entries. More...

Functions
bool	isAppend (enum formatType fmt) noexcept
	Test for vtk append format (xml).
bool	isLegacy (enum formatType fmt) noexcept
	Test for vtk legacy format.
bool	isHDF (enum formatType fmt) noexcept
	Test for HDF format.
template<class Type, direction nComp = 1>
uint64_t	sizeofData (label count)
	Commonly used calculation for header and payload sizes.
autoPtr< vtk::formatter >	newFormatter (std::ostream &os, unsigned prec=IOstream::defaultPrecision())
	Return a default asciiFormatter.
autoPtr< vtk::formatter >	newFormatter (std::ostream &os, const enum formatType fmtType, unsigned prec=IOstream::defaultPrecision())
	Return a new formatter based on the specified format type.
void	writeIdentity (vtk::formatter &fmt, const label len, label start=0)
	Write an identity list of labels.
void	writeList (vtk::formatter &fmt, const UList< uint8_t > &values)
	Write a list of uint8_t values.
template<class Type>
void	write (vtk::formatter &fmt, const Type &val, const label n=1)
	Component-wise write of a value (N times).
template<class Type>
void	writeValueParallel (vtk::formatter &fmt, const Type &val, const label count=1)
	Component-wise write of a value (N times) in parallel.
template<class Type>
void	writeList (vtk::formatter &fmt, const UList< Type > &values)
	Write a list of values.
template<class Type, unsigned N>
void	writeList (vtk::formatter &fmt, const FixedList< Type, N > &values)
	Write a list of values.
template<class Type>
void	writeList (vtk::formatter &fmt, const UList< Type > &values, const labelUList &addressing)
	Write a list of values via indirect addressing.
template<class Type>
void	writeList (vtk::formatter &fmt, const UList< Type > &values, const bitSet &selected)
	Write a list of values via indirect addressing.
template<class Type>
void	writeLists (vtk::formatter &fmt, const UList< Type > &values1, const UList< Type > &values2, const labelUList &addressing)
	Write a list of values and a list of values via indirect addressing.
template<class Type>
void	writeListParallel (vtk::formatter &fmt, const UList< Type > &values)
	Write a list of values.
void	writeListParallel (vtk::formatter &fmt, const UList< label > &values, const globalIndex &procOffset)
	Write a list of values, with constant per-processor offset.
template<class Type>
void	writeListParallel (vtk::formatter &fmt, const UList< Type > &values, const labelUList &addressing)
	Write a list of values via indirect addressing.
template<class Type>
void	writeListParallel (vtk::formatter &fmt, const UList< Type > &values, const bitSet &selected)
	Write a list of values via indirect addressing.
template<class Type>
void	writeListsParallel (vtk::formatter &fmt, const UList< Type > &values1, const UList< Type > &values2)
	Write a list of values and another list of values.
template<class Type>
void	writeListsParallel (vtk::formatter &fmt, const UList< Type > &values1, const UList< Type > &values2, const labelUList &addressing)
	Write a list of values and a list of values via indirect addressing.
bool	writeTopoSet (const polyMesh &mesh, const topoSet &set, const vtk::outputOptions opts, const fileName &file, bool parallel=UPstream::parRun())
	Dispatch to vtk::writeCellSetFaces, vtk::writeFaceSet, vtk::writePointSet.
bool	writeFaceSet (const polyMesh &mesh, const faceSet &set, const vtk::outputOptions opts, const fileName &file, bool parallel=UPstream::parRun())
	Write faceSet as VTK polydata file.
bool	writeCellSetFaces (const polyMesh &mesh, const cellSet &set, const vtk::outputOptions opts, const fileName &file, bool parallel=UPstream::parRun())
	Write perimeter faces of cellset to vtk polydata file.
bool	writePointSet (const polyMesh &mesh, const pointSet &set, const vtk::outputOptions opts, const fileName &file, bool parallel=UPstream::parRun())
	Write pointSet to VTK polydata file.

Variables
const Foam::Enum< fileTag >	fileExtension
	File extension (without ".") for some vtk XML file content types.
const Foam::Enum< fileTag >	fileContentVersions
	Version string for some vtk XML file content types.
const Foam::Enum< fileTag >	fileTagNames
	Strings corresponding to the vtk XML tags.
const Foam::Enum< fileAttr >	fileAttrNames
	Strings corresponding to the vtk XML attributes.
const Foam::Enum< dataArrayAttr >	dataArrayAttrNames
	Strings corresponding to the vtk XML DataArray attributes.

Detailed Description

Namespace for handling VTK output. Contains classes and functions for writing VTK file content.

Typedef Documentation

◆ indirectPatchGeoFieldsWriter

typedef GenericPatchGeoFieldsWriter<indirectPrimitivePatch> indirectPatchGeoFieldsWriter

Write indirectPrimitivePatch faces/points as a vtp file or a legacy vtk file with support for geometric fields.

Definition at line 59 of file foamVtkIndPatchGeoFieldsWriter.H.

◆ uindirectPatchGeoFieldsWriter

typedef GenericPatchGeoFieldsWriter<uindirectPrimitivePatch> uindirectPatchGeoFieldsWriter

Write uindirectPrimitivePatch faces/points as a vtp file or a legacy vtk file with support for geometric fields.

See also: Foam::vtk::GenericPatchWriter

Definition at line 63 of file foamVtkIndPatchGeoFieldsWriter.H.

◆ surfaceMeshWriter

typedef indirectPatchGeoFieldsWriter surfaceMeshWriter

Definition at line 37 of file foamVtkSurfaceMeshWriter.H.

◆ indirectPatchWriter

typedef GenericPatchWriter<indirectPrimitivePatch> indirectPatchWriter

Write indirectPrimitivePatch faces/points (optionally with fields) as a vtp file or a legacy vtk file.

Definition at line 57 of file foamVtkIndPatchWriter.H.

◆ uindirectPatchWriter

typedef GenericPatchWriter<uindirectPrimitivePatch> uindirectPatchWriter

Write uindirectPrimitivePatch faces/points (optionally with fields) as a vtp file or a legacy vtk file.

See also: Foam::vtk::GenericPatchWriter

Definition at line 61 of file foamVtkIndPatchWriter.H.

◆ primitivePatchWriter

typedef GenericPatchWriter<primitivePatch> primitivePatchWriter

Write primitivePatch faces/points (optionally with fields) as a vtp file or a legacy vtk file.

See also: Foam::vtk::GenericPatchWriter

Definition at line 49 of file foamVtkPrimitivePatchWriter.H.

Enumeration Type Documentation

◆ OutputContext

enum OutputContext : uint8_t

The context when outputting a VTK file (XML or legacy).

Enumerator
INLINE	Generate header and inline data.
HEADER	Generate header only.
APPEND	Generate append-data.

Definition at line 75 of file foamVtkCore.H.

◆ formatType

enum class formatType : uint8_t

strong

The output format type for file contents.

Upper bits for output type, lower bits for the format itself.

Enumerator
INLINE_ASCII	XML inline ASCII, asciiFormatter.
INLINE_BASE64	XML inline base64, base64Formatter.
APPEND_BASE64	XML append base64, appendBase64Formatter.
APPEND_BINARY	XML append raw binary, appendRawFormatter.
LEGACY_ASCII	Legacy ASCII, legacyAsciiFormatter.
LEGACY_BINARY	Legacy raw binary, legacyRawFormatter.
HDF_FORMAT	VTKHDF format.

Definition at line 88 of file foamVtkCore.H.

◆ cellType

enum cellType : uint8_t

Equivalent to enumeration in "vtkCellType.h" (should be uint8_t).

Enumerator
VTK_EMPTY_CELL
VTK_VERTEX
VTK_POLY_VERTEX
VTK_LINE
VTK_POLY_LINE
VTK_TRIANGLE
VTK_TRIANGLE_STRIP
VTK_POLYGON
VTK_PIXEL
VTK_QUAD
VTK_TETRA
VTK_VOXEL
VTK_HEXAHEDRON
VTK_WEDGE
VTK_PYRAMID
VTK_PENTAGONAL_PRISM
VTK_HEXAGONAL_PRISM
VTK_POLYHEDRON

Definition at line 127 of file foamVtkCore.H.

◆ fileTag

enum class fileTag : uint8_t

strong

Some common XML tags for vtk files.

Enumerator
UNKNOWN	placeholder
VTK_FILE	"VTKFile"
DATA_ARRAY	"DataArray"
BLOCK	"Block"
PIECE	"Piece"
DATA_SET	"DataSet"
POINTS	"Points"
CELLS	"Cells"
POLYS	"Polys"
VERTS	"Verts"
LINES	"Lines"
CELL_DATA	"CellData"
POINT_DATA	"PointData"
FIELD_DATA	"FieldData"
POLY_DATA	"PolyData"
UNSTRUCTURED_GRID	"UnstructuredGrid"
MULTI_BLOCK	"vtkMultiBlockDataSet"
VTK_HDF	"VTKHDF" - used for the extension

Definition at line 153 of file foamVtkCore.H.

◆ fileAttr

enum class fileAttr : uint8_t

strong

Some common XML attributes for vtk files.

Enumerator
OFFSET	"offset"
NUMBER_OF_COMPONENTS	"NumberOfComponents"
NUMBER_OF_TUPLES	"NumberOfTuples"
NUMBER_OF_POINTS	"NumberOfPoints"
NUMBER_OF_CELLS	"NumberOfCells"
NUMBER_OF_POLYS	"NumberOfPolys"
NUMBER_OF_VERTS	"NumberOfVerts"
NUMBER_OF_LINES	"NumberOfLines"

Definition at line 193 of file foamVtkCore.H.

◆ dataArrayAttr

enum class dataArrayAttr : uint8_t

strong

Some common names for XML DataArray entries.

Enumerator
POINTS	"Points"
OFFSETS	"offsets"
CONNECTIVITY	"connectivity"
TYPES	"types"
FACES	"faces"
FACEOFFSETS	"faceoffsets"

Definition at line 213 of file foamVtkCore.H.

Function Documentation

◆ isAppend()

bool isAppend ( enum formatType fmt )

inlinenoexcept

Test for vtk append format (xml).

Definition at line 102 of file foamVtkCore.H.

◆ isLegacy()

bool isLegacy ( enum formatType fmt )

inlinenoexcept

Test for vtk legacy format.

Definition at line 110 of file foamVtkCore.H.

◆ isHDF()

bool isHDF ( enum formatType fmt )

inlinenoexcept

Test for HDF format.

Definition at line 118 of file foamVtkCore.H.

References HDF_FORMAT.

◆ sizeofData()

template<class Type, direction nComp = 1>

uint64_t sizeofData ( label count )

inline

Commonly used calculation for header and payload sizes.

Definition at line 730 of file foamVtkFormatter.H.

Referenced by VTPsurfaceFormat< Face >::write(), VTPsurfaceFormatCore::writeCellData(), VTPsurfaceFormatCore::writeCellData(), lumpedPointMovement::writeForcesAndMomentsVTP(), VTPsurfaceFormatCore::writeHeader(), and lumpedPointState::writeVTP().

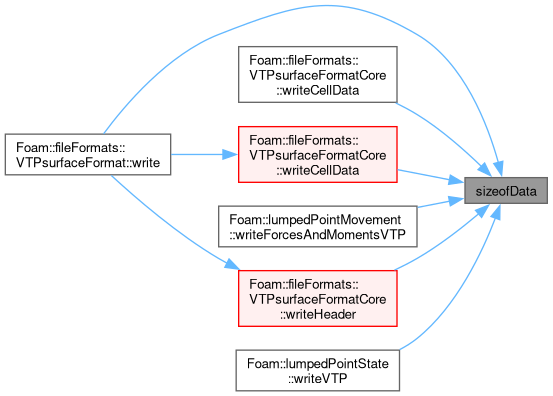

Here is the caller graph for this function:

◆ newFormatter() [1/2]

autoPtr< vtk::formatter > newFormatter	(	std::ostream &	os,
		unsigned	prec = IOstream::defaultPrecision() )

Return a default asciiFormatter.

References IOstream::defaultPrecision(), and os().

Referenced by outputOptions::newFormatter(), lumpedPointMovement::writeForcesAndMomentsVTP(), and lumpedPointState::writeVTP().

Here is the call graph for this function:

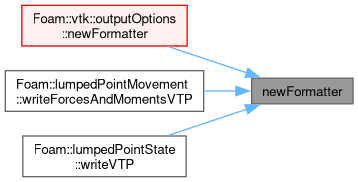

Here is the caller graph for this function:

◆ newFormatter() [2/2]

autoPtr< vtk::formatter > newFormatter	(	std::ostream &	os,
		const enum formatType	fmtType,
		unsigned	prec = IOstream::defaultPrecision() )

Return a new formatter based on the specified format type.

References IOstream::defaultPrecision(), and os().

Here is the call graph for this function:

◆ writeIdentity()

void writeIdentity	(	vtk::formatter &	fmt,
		const label	len,
		label	start = 0 )

Write an identity list of labels.

The output does not include the payload size.

Referenced by lumpedPointMovement::writeForcesAndMomentsVTP(), and lumpedPointState::writeVTP().

Here is the caller graph for this function:

◆ writeList() [1/5]

void writeList	(	vtk::formatter &	fmt,
		const UList< uint8_t > &	values )

Write a list of uint8_t values.

The output does not include the payload size.

Referenced by VTKsurfaceFormat< Face >::write(), VTPsurfaceFormat< Face >::write(), VTKsurfaceFormatCore::writeCellData(), VTPsurfaceFormatCore::writeCellData(), lumpedPointMovement::writeForcesAndMomentsVTP(), VTKsurfaceFormatCore::writeHeader(), VTPsurfaceFormatCore::writeHeader(), and lumpedPointState::writeVTP().

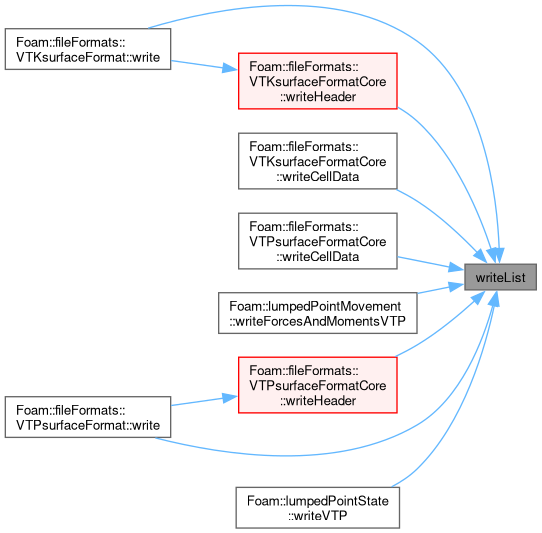

Here is the caller graph for this function:

◆ write()

template<class Type>

void write	(	vtk::formatter &	fmt,
		const Type &	val,
		const label	n = 1 )

inline

Component-wise write of a value (N times).

References n.

Referenced by VTKsurfaceFormatCore::writeCellData(), VTPsurfaceFormatCore::writeCellData(), and lumpedPointState::writeVTP().

Here is the caller graph for this function:

◆ writeValueParallel()

template<class Type>

void writeValueParallel	(	vtk::formatter &	fmt,
		const Type &	val,
		const label	count = 1 )

inline

Component-wise write of a value (N times) in parallel.

The value and count may differ on each processor

◆ writeList() [2/5]

template<class Type>

void writeList	(	vtk::formatter &	fmt,
		const UList< Type > &	values )

Write a list of values.

The output does not include the payload size.

◆ writeList() [3/5]

template<class Type, unsigned N>

void writeList	(	vtk::formatter &	fmt,
		const FixedList< Type, N > &	values )

Write a list of values.

The output does not include the payload size.

◆ writeList() [4/5]

template<class Type>

void writeList	(	vtk::formatter &	fmt,
		const UList< Type > &	values,
		const labelUList &	addressing )

Write a list of values via indirect addressing.

The output does not include the payload size.

◆ writeList() [5/5]

template<class Type>

void writeList	(	vtk::formatter &	fmt,
		const UList< Type > &	values,
		const bitSet &	selected )

Write a list of values via indirect addressing.

The output does not include the payload size.

◆ writeLists()

template<class Type>

void writeLists	(	vtk::formatter &	fmt,
		const UList< Type > &	values1,
		const UList< Type > &	values2,
		const labelUList &	addressing )

Write a list of values and a list of values via indirect addressing.

The output does not include the payload size.

◆ writeListParallel() [1/4]

template<class Type>

void writeListParallel	(	vtk::formatter &	fmt,
		const UList< Type > &	values )

Write a list of values.

The output does not include the payload size.

◆ writeListParallel() [2/4]

void writeListParallel	(	vtk::formatter &	fmt,
		const UList< label > &	values,
		const globalIndex &	procOffset )

Write a list of values, with constant per-processor offset.

The output does not include the payload size.

Parameters

procOffset The per-processor offset (needed on master only)

◆ writeListParallel() [3/4]

template<class Type>

void writeListParallel	(	vtk::formatter &	fmt,
		const UList< Type > &	values,
		const labelUList &	addressing )

Write a list of values via indirect addressing.

The output does not include the payload size.

◆ writeListParallel() [4/4]

template<class Type>

void writeListParallel	(	vtk::formatter &	fmt,
		const UList< Type > &	values,
		const bitSet &	selected )

Write a list of values via indirect addressing.

The output does not include the payload size.

◆ writeListsParallel() [1/2]

template<class Type>

void writeListsParallel	(	vtk::formatter &	fmt,
		const UList< Type > &	values1,
		const UList< Type > &	values2 )

Write a list of values and another list of values.

The output does not include the payload size.

◆ writeListsParallel() [2/2]

template<class Type>

void writeListsParallel	(	vtk::formatter &	fmt,
		const UList< Type > &	values1,
		const UList< Type > &	values2,
		const labelUList &	addressing )

Write a list of values and a list of values via indirect addressing.

The output does not include the payload size.

◆ writeTopoSet()

bool writeTopoSet	(	const polyMesh &	mesh,
		const topoSet &	set,
		const vtk::outputOptions	opts,
		const fileName &	file,
		bool	parallel = UPstream::parRun() )

Dispatch to vtk::writeCellSetFaces, vtk::writeFaceSet, vtk::writePointSet.

The file name is with/without an extension.

Returns: True on successful dispatch

References mesh, and UPstream::parRun().

Here is the call graph for this function:

◆ writeFaceSet()

bool writeFaceSet	(	const polyMesh &	mesh,
		const faceSet &	set,
		const vtk::outputOptions	opts,
		const fileName &	file,
		bool	parallel = UPstream::parRun() )

Write faceSet as VTK polydata file.

Only one CELL_DATA, which is the original faceID The file name is with/without an extension.

References mesh, and UPstream::parRun().

Here is the call graph for this function:

◆ writeCellSetFaces()

bool writeCellSetFaces	(	const polyMesh &	mesh,
		const cellSet &	set,
		const vtk::outputOptions	opts,
		const fileName &	file,
		bool	parallel = UPstream::parRun() )

Write perimeter faces of cellset to vtk polydata file.

The data are the original cell ids The file name is with/without an extension.

References mesh, and UPstream::parRun().

Here is the call graph for this function:

◆ writePointSet()

bool writePointSet	(	const polyMesh &	mesh,
		const pointSet &	set,
		const vtk::outputOptions	opts,
		const fileName &	file,
		bool	parallel = UPstream::parRun() )

Write pointSet to VTK polydata file.

Only one CELL_DATA, which is the original pointID The file name is with/without an extension.

References mesh, and UPstream::parRun().

Here is the call graph for this function:

Variable Documentation

◆ fileExtension

const Foam::Enum<fileTag> fileExtension

extern

File extension (without ".") for some vtk XML file content types.

Referenced by lagrangianWriter::ext(), outputOptions::ext(), surfaceFieldWriter::ext(), and vtmWriter::ext().

◆ fileContentVersions

const Foam::Enum<fileTag> fileContentVersions

extern

Version string for some vtk XML file content types.

Referenced by formatter::beginVTKFile(), and formatter::beginVTKFile().

◆ fileTagNames

const Foam::Enum<fileTag> fileTagNames

extern

Strings corresponding to the vtk XML tags.

Referenced by formatter::beginVTKFile(), formatter::beginVTKFile(), formatter::beginVTKFile(), formatter::endTag(), formatter::openTag(), and formatter::tag().

◆ fileAttrNames

const Foam::Enum<fileAttr> fileAttrNames

extern

Strings corresponding to the vtk XML attributes.

Referenced by formatter::xmlAttr(), formatter::xmlAttr(), formatter::xmlAttr(), formatter::xmlAttr(), and formatter::xmlAttr().

◆ dataArrayAttrNames

const Foam::Enum<dataArrayAttr> dataArrayAttrNames

extern

Strings corresponding to the vtk XML DataArray attributes.

Referenced by formatter::beginDataArray().

Namespaces

Classes

Typedefs

Enumerations

Functions

Variables

Detailed Description

Typedef Documentation

◆ indirectPatchGeoFieldsWriter

◆ uindirectPatchGeoFieldsWriter

◆ surfaceMeshWriter

◆ indirectPatchWriter

◆ uindirectPatchWriter

◆ primitivePatchWriter

Enumeration Type Documentation

◆ OutputContext

◆ formatType

◆ cellType

◆ fileTag

◆ fileAttr

◆ dataArrayAttr

Function Documentation

◆ isAppend()

◆ isLegacy()

◆ isHDF()

◆ sizeofData()

◆ newFormatter() [1/2]

◆ newFormatter() [2/2]

◆ writeIdentity()

◆ writeList() [1/5]

◆ write()

◆ writeValueParallel()

◆ writeList() [2/5]

◆ writeList() [3/5]

◆ writeList() [4/5]

◆ writeList() [5/5]

◆ writeLists()

◆ writeListParallel() [1/4]

◆ writeListParallel() [2/4]

◆ writeListParallel() [3/4]

◆ writeListParallel() [4/4]

◆ writeListsParallel() [1/2]

◆ writeListsParallel() [2/2]

◆ writeTopoSet()

◆ writeFaceSet()

◆ writeCellSetFaces()

◆ writePointSet()

Variable Documentation

◆ fileExtension

◆ fileContentVersions

◆ fileTagNames

◆ fileAttrNames

◆ dataArrayAttrNames
