Foam::vectorTools Namespace Reference

Collection of functions for testing relationships between two vectors. More...

Functions
template<class T>
bool	areParallel (const Vector< T > &a, const Vector< T > &b, const T &tolerance=SMALL)
	Test if a and b are parallel: a^b = 0.
template<class T>
bool	areOrthogonal (const Vector< T > &a, const Vector< T > &b, const T &tolerance=SMALL)
	Test if a and b are orthogonal: a.b = 0.
template<class T>
bool	areAcute (const Vector< T > &a, const Vector< T > &b)
	Test if angle between a and b is acute: a.b > 0.
template<class T>
bool	areObtuse (const Vector< T > &a, const Vector< T > &b)
	Test if angle between a and b is obtuse: a.b < 0.
template<class T>
T	cosPhi (const Vector< T > &a, const Vector< T > &b, const T &tolerance=SMALL)
	Calculate angle between a and b in radians.
template<class T>
T	radAngleBetween (const Vector< T > &a, const Vector< T > &b, const T &tolerance=SMALL)
	Calculate angle between a and b in radians.
template<class T>
T	degAngleBetween (const Vector< T > &a, const Vector< T > &b, const T &tolerance=SMALL)
	Calculate angle between a and b in degrees.

Detailed Description

Collection of functions for testing relationships between two vectors.

Function Documentation

areParallel()

template<class T>

bool areParallel	(	const Vector< T > &	a,
		const Vector< T > &	b,
		const T &	tolerance = SMALL )

Test if a and b are parallel: a^b = 0.

Uses the cross product, so the tolerance is proportional to the sine of the angle between a and b in radians

Definition at line 54 of file vectorTools.H.

References b, Foam::mag(), and Foam::T().

Referenced by indexedCell< Gt, Cb >::potentialCoplanarCell().

Here is the call graph for this function:

Here is the caller graph for this function:

areOrthogonal()

template<class T>

bool areOrthogonal	(	const Vector< T > &	a,
		const Vector< T > &	b,
		const T &	tolerance = SMALL )

Test if a and b are orthogonal: a.b = 0.

Uses the dot product, so the tolerance is proportional to the cosine of the angle between a and b in radians

Definition at line 74 of file vectorTools.H.

References b, Foam::mag(), and Foam::T().

Here is the call graph for this function:

areAcute()

template<class T>

bool areAcute	(	const Vector< T > &	a,
		const Vector< T > &	b )

Test if angle between a and b is acute: a.b > 0.

Definition at line 88 of file vectorTools.H.

References b.

areObtuse()

template<class T>

bool areObtuse	(	const Vector< T > &	a,
		const Vector< T > &	b )

Test if angle between a and b is obtuse: a.b < 0.

Definition at line 101 of file vectorTools.H.

References b.

cosPhi()

template<class T>

T cosPhi	(	const Vector< T > &	a,
		const Vector< T > &	b,
		const T &	tolerance = SMALL )

Calculate angle between a and b in radians.

Definition at line 114 of file vectorTools.H.

References b, Foam::clamp(), cosPhi(), Foam::mag(), and Foam::T().

Referenced by cosPhi(), and radAngleBetween().

Here is the call graph for this function:

Here is the caller graph for this function:

radAngleBetween()

template<class T>

T radAngleBetween	(	const Vector< T > &	a,
		const Vector< T > &	b,
		const T &	tolerance = SMALL )

Calculate angle between a and b in radians.

Definition at line 131 of file vectorTools.H.

References Foam::acos(), b, Foam::clamp(), cosPhi(), Foam::mag(), and Foam::T().

Referenced by degAngleBetween().

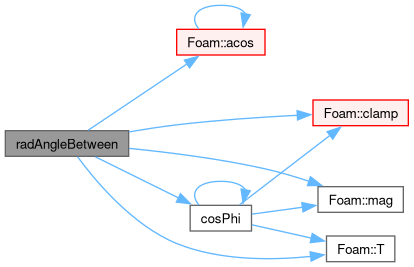

Here is the call graph for this function:

Here is the caller graph for this function:

degAngleBetween()

template<class T>

T degAngleBetween	(	const Vector< T > &	a,
		const Vector< T > &	b,
		const T &	tolerance = SMALL )

Calculate angle between a and b in degrees.

Definition at line 148 of file vectorTools.H.

References b, radAngleBetween(), Foam::radToDeg(), and Foam::T().

Here is the call graph for this function:
