Namespace for legacy VTK output constants and functions. More...

Functions
void	fileHeader (std::ostream &os, const std::string &title, bool binary)
	Emit header for legacy file (vtk DataFile Version 2.0).
void	fileHeader (vtk::formatter &fmt, const std::string &title, const std::string &contentType)
	Emit header for legacy file, with "ASCII" or "BINARY" depending on the formatter type.
void	fileHeader (vtk::formatter &fmt, const std::string &title, vtk::fileTag contentType)
	Emit header for legacy file, with "ASCII" or "BINARY" depending on the formatter type.
template<vtk::fileTag ContentType>
void	fileHeader (vtk::formatter &fmt, const std::string &title)
	Emit header for legacy file, with "ASCII" or "BINARY" depending on the formatter type.
void	beginPoints (std::ostream &os, label nPoints)
	Emit header for POINTS (with trailing newline).
void	beginVerts (std::ostream &os, label nVerts, label nConnectivity=0)
	Emit header for VERTICES (with trailing newline).
void	beginLines (std::ostream &os, label nLines, label nConnectivity=0)
	Emit header for LINES (with trailing newline).
void	beginPolys (std::ostream &os, label nPolys, label nConnectivity)
	Emit header for POLYGONS (with trailing newline).
void	fieldData (vtk::formatter &fmt, label nFields)
	Emit "FIELD FieldData <n>".
void	beginFieldData (vtk::formatter &fmt, label nFields)
	Emit legacy FIELD FieldData nFields.
void	beginCellData (vtk::formatter &fmt, label nCells, label nFields)
	Emit legacy CELL_DATA nCells, FIELD FieldData nFields.
void	beginPointData (vtk::formatter &fmt, label nPoints, label nFields)
	Emit legacy POINT_DATA nPoints, FIELD FieldData nFields.
void	writeTimeValue (vtk::formatter &fmt, scalar timeValue)
	Emit "TimeValue" for a FIELD entry (name as per Catalyst output).
template<direction nComp>
void	floatField (vtk::formatter &fmt, const word &name, const label nEntries)
	Start output of float field with the specified name.
template<direction nComp>
void	doubleField (vtk::formatter &fmt, const word &name, const label nEntries)
	Start output of double field with the specified name.
template<direction nComp>
void	intField (vtk::formatter &fmt, const word &name, const label nEntries)
	Start output of int field with the specified name.

Variables
const word	fileExtension
	Legacy file extension ("vtk").
const Foam::Enum< vtk::fileTag >	contentNames
	Legacy content names (POLYDATA, UNSTRUCTURED_GRID).
const Foam::Enum< vtk::fileTag >	fileTagNames
	Legacy file tags (eg, LINES, CELL_DATA, POINT_DATA, ...).
const Foam::Enum< dataArrayAttr >	dataArrayAttrNames
	Legacy attributes (eg, OFFSETS).

Detailed Description

Namespace for legacy VTK output constants and functions.

Source files

Function Documentation

◆ fileHeader() [1/4]

void fileHeader	(	std::ostream &	os,
		const std::string &	title,
		bool	binary )

Emit header for legacy file (vtk DataFile Version 2.0).

Writes "ASCII" or "BINARY" depending on specified type.

References os().

Referenced by fileHeader(), fileHeader(), and VTKsurfaceFormatCore::writeHeader().

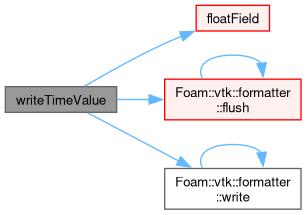

Here is the call graph for this function:

Here is the caller graph for this function:

◆ fileHeader() [2/4]

void fileHeader	(	vtk::formatter &	fmt,
		const std::string &	title,
		const std::string &	contentType )

Emit header for legacy file, with "ASCII" or "BINARY" depending on the formatter type.

If the contentType is non-empty, it is used for "DATASET" line.

References Foam::name(), nPoints, and os().

Here is the call graph for this function:

◆ fileHeader() [3/4]

void fileHeader	(	vtk::formatter &	fmt,
		const std::string &	title,
		vtk::fileTag	contentType )

inline

Emit header for legacy file, with "ASCII" or "BINARY" depending on the formatter type.

Includes "DATASET" with the specified dataset type.

Definition at line 23 of file foamVtkOutputI.H.

References contentNames, and fileHeader().

Here is the call graph for this function:

◆ fileHeader() [4/4]

template<vtk::fileTag ContentType>

void fileHeader	(	vtk::formatter &	fmt,
		const std::string &	title )

inline

Emit header for legacy file, with "ASCII" or "BINARY" depending on the formatter type.

Includes "DATASET" of the templated dataset type.

Definition at line 35 of file foamVtkOutputI.H.

References contentNames, and fileHeader().

Here is the call graph for this function:

◆ beginPoints()

void beginPoints	(	std::ostream &	os,
		label	nPoints )

inline

Emit header for POINTS (with trailing newline).

Definition at line 45 of file foamVtkOutputI.H.

References fileTagNames, Foam::nl, nPoints, os(), and Foam::vtk::POINTS.

Referenced by VTKsurfaceFormatCore::writeHeader().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ beginVerts()

void beginVerts	(	std::ostream &	os,
		label	nVerts,
		label	nConnectivity = 0 )

inline

Emit header for VERTICES (with trailing newline).

The nConnectivity is the sum of all connectivity points used, but without additional space for the size prefixes. The additional prefix sizes are added internally.

Note: With nConnectivity == 0, assume one point per element

Definition at line 54 of file foamVtkOutputI.H.

References fileTagNames, Foam::nl, os(), and Foam::vtk::VERTS.

Here is the call graph for this function:

◆ beginLines()

void beginLines	(	std::ostream &	os,
		label	nLines,
		label	nConnectivity = 0 )

inline

Emit header for LINES (with trailing newline).

The nConnectivity is the sum of all connectivity points used, but without additional space for the size prefixes. The additional prefix sizes are added internally.

Note: With nConnectivity == 0, assume two points per element

Definition at line 72 of file foamVtkOutputI.H.

References fileTagNames, Foam::vtk::LINES, Foam::nl, and os().

Here is the call graph for this function:

◆ beginPolys()

void beginPolys	(	std::ostream &	os,
		label	nPolys,
		label	nConnectivity )

inline

Emit header for POLYGONS (with trailing newline).

The nConnectivity is the sum of all connectivity points used, but without additional space for the size prefixes. The additional prefix sizes are added internally.

Definition at line 90 of file foamVtkOutputI.H.

References fileTagNames, Foam::nl, os(), and Foam::vtk::POLYS.

Referenced by VTKsurfaceFormat< Face >::write().

Here is the call graph for this function:
