symmTensor2D.H File Reference

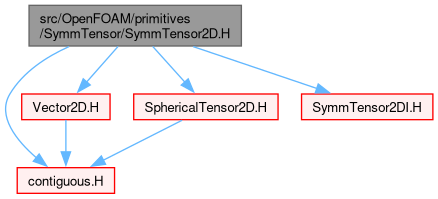

Include dependency graph for symmTensor2D.H:

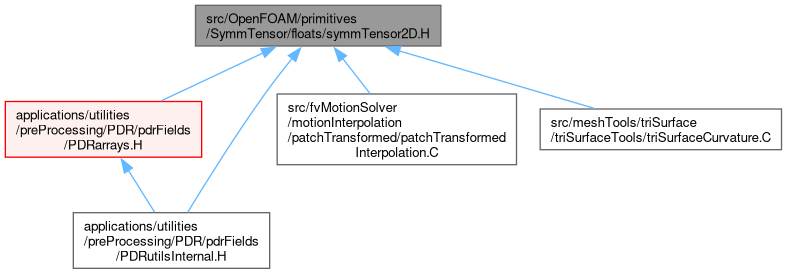

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Namespaces
namespace	Foam
	Namespace for OpenFOAM.

Typedefs
typedef SymmTensor2D< scalar >	symmTensor2D
	SymmTensor2D of scalars, i.e. SymmTensor2D<scalar>.
typedef Tensor2D< scalar >	tensor2D
	Tensor2D of scalars, i.e. Tensor2D<scalar>.

Functions
vector2D	eigenValues (const symmTensor2D &T)
	Return real arbitrary-order eigenvalues of a given symmTensor2D.
vector2D	eigenVector (const symmTensor2D &T, const scalar eVal, const vector2D &standardBasis)
	Return a real eigenvector corresponding to a given real eigenvalue of a given symmTensor2D.
tensor2D	eigenVectors (const symmTensor2D &T, const vector2D &eVals)
	Return real eigenvectors corresponding to given real eigenvalues of a given symmTensor2D.
tensor2D	eigenVectors (const symmTensor2D &T)
	Return real eigenvectors of a given symmTensor2D by computing the real eigenvalues of the symmTensor2D in the background.

Detailed Description

Original source file symmTensor2D.H

Definition in file symmTensor2D.H.
