PstreamGlobals.H File Reference

Include dependency graph for PstreamGlobals.H:

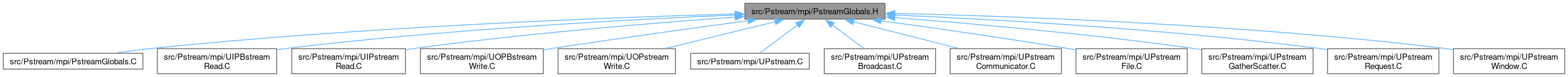

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Namespaces
namespace	Foam::PstreamGlobals
	Global functions and variables for working with parallel streams, but principally for MPI.
namespace	Foam
	Namespace for OpenFOAM.

Typedefs
typedef Foam::FixedList< int, 17 >	DataTypeCountLookupTable
typedef Foam::FixedList< MPI_Datatype, 17 >	DataTypeLookupTable
typedef Foam::FixedList< MPI_Op, 13 >	OpCodesLookupTable

Functions
void	initCommunicator (const label index)
	Initialize bookkeeping for MPI communicator index.
void	checkCommunicator (int comm, int rank)
	Fatal if communicator is outside the allocated range.
bool	warnCommunicator (int comm) noexcept
	True if warn communicator is active and not equal to given communicator.
void	initDataTypes ()
	Create mapping into MPIdataTypes_ and define user data types.
void	deinitDataTypes ()
	Free any user data types.
bool	checkDataTypes ()
	Debugging only: check if data type mappings are non-null.
void	printDataTypes (bool all=false)
	Debugging only: print data type names (all or just user-defined).
MPI_Datatype	getDataType (UPstream::dataTypes id)
	Lookup of dataTypes enumeration as an MPI_Datatype.
void	checkDataType (UPstream::dataTypes id)
	Fatal if data type is not valid.
std::string	dataType_name (MPI_Datatype datatype)
	Return MPI internal name for specified MPI_Datatype.
std::string	dataType_name (UPstream::dataTypes id)
	Return MPI internal name for dataTypes enumeration.
void	initOpCodes ()
	Create mapping into MPIopCodes_.
void	deinitOpCodes ()
	Free any user-defined op codes.
bool	checkOpCodes ()
	Debugging only: check if op code mappings are non-null.
MPI_Op	getOpCode (UPstream::opCodes id)
	Lookup of opCodes enumeration as an MPI_Op.
void	checkOpCode (UPstream::opCodes id)
	Fatal if opcode is not valid.
void	reset_request (UPstream::Request *req) noexcept
	Reset UPstream::Request to MPI_REQUEST_NULL.
void	push_request (MPI_Request request, UPstream::Request *req=nullptr)
	Transcribe MPI_Request to UPstream::Request (does not affect the stack of outstanding requests) or else push onto list of outstanding requests.
bool	broadcast_int64 (int64_t &value, int comm, int root=0)
	Broadcast a single int64 value.

Variables
DynamicList< bool >	pendingMPIFree_
DynamicList< MPI_Comm >	MPICommunicators_
DynamicList< MPI_Request >	outstandingRequests_
	Outstanding non-blocking operations.
DataTypeCountLookupTable	dataTypesCount_
	Fundamental count for each valid UPstream::dataTypes entry Indexed by UPstream::dataTypes enum.
DataTypeLookupTable	MPIdataTypes_
	MPI data types corresponding to fundamental and OpenFOAM types. Indexed by UPstream::dataTypes enum.
OpCodesLookupTable	MPIopCodes_
	MPI operation types, indexed by UPstream::opCodes enum.

Detailed Description

Original source file PstreamGlobals.H

Definition in file PstreamGlobals.H.
