Templated tree of axis-aligned bounding boxes (AABB). More...

#include <AABBTree.H>

Inheritance diagram for AABBTree< Type >:

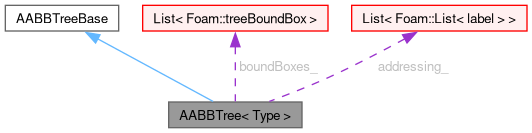

Collaboration diagram for AABBTree< Type >:

[legend]

Public Member Functions
	AABBTree ()
	Default construct.
	AABBTree (const UList< Type > &objects, const pointField &points, const bool equalBinSize=true, label maxLevel=3, label minBinSize=100)
	Construct from components.
const List< treeBoundBox > &	boundBoxes () const noexcept
	Return the bounding boxes making up the tree.
const List< labelList > &	addressing () const noexcept
	Return the contents addressing.
bool	pointInside (const point &pt) const
	Determine whether a point is inside the bounding boxes.
bool	overlaps (const boundBox &bbIn) const
	Determine whether a bounding box overlaps the tree bounding boxes.
void	writeOBJ (Ostream &os) const
	Write all tree boxes (leaves) in OBJ format.
Public Member Functions inherited from AABBTreeBase
	AABBTreeBase ()=default
	Default construct.

Protected Member Functions
void	writeOBJ (const bool leavesOnly, const bool writeLinesOnly, const treeBoundBox &bb, const label nodeI, const List< Pair< treeBoundBox > > &bbs, const List< Pair< label > > &nodes, label &vertI, Ostream &os) const
	Write OBJ for all bounding boxes.
void	createBoxes (const bool equalBinSize, const label level, const UList< Type > &objects, const pointField &points, const labelUList &objectIDs, const treeBoundBox &bb, const label nodeI, DynamicList< Pair< treeBoundBox > > &bbs, DynamicList< labelPair > &nodes, DynamicList< labelList > &addressing) const
	Create the bounding boxes by interrogating points.

Protected Attributes
label	maxLevel_
	Maximum tree level.
label	minLeafSize_
	Minimum points per leaf.
List< treeBoundBox >	boundBoxes_
	Bounding boxes making up the tree.
List< labelList >	addressing_
	Leaf addressing.

Friends
Istream &	operator>> (Istream &, AABBTree &)
Ostream &	operator<< (Ostream &, const AABBTree &)

Additional Inherited Members
Static Public Member Functions inherited from AABBTreeBase
static void	writeOBJ (Ostream &os, const treeBoundBox &bb, label &vertIndex, const bool writeLinesOnly=false)
	Write treeBoundBox in OBJ format.
Static Protected Attributes inherited from AABBTreeBase
static scalar	tolerance_ = 1e-4
	Relative tolerance.

Detailed Description

template<class Type>
class Foam::AABBTree< Type >

Templated tree of axis-aligned bounding boxes (AABB).

Designed to be templated on either faces or cells, the AABBTree will decompose the input into a tree of AABB's. The maximum number of tree levels and minimum number of objects per leaf are provided on construction, and the contents (addressing) is stored.

Source files

Definition at line 113 of file AABBTree.H.

Constructor & Destructor Documentation

◆ AABBTree() [1/2]

template<class Type>

AABBTree ( )

Default construct.

Definition at line 270 of file AABBTree.C.

References addressing_, boundBoxes_, maxLevel_, and minLeafSize_.

Referenced by operator<<, and operator>>.

Here is the caller graph for this function:

◆ AABBTree() [2/2]

template<class Type>

AABBTree	(	const UList< Type > &	objects,
		const pointField &	points,
		const bool	equalBinSize = true,
		label	maxLevel = 3,
		label	minBinSize = 100 )

Construct from components.

equalBinSize: divide into equal number of elements or equal span

Definition at line 280 of file AABBTree.C.

References addressing(), addressing_, boundBoxes(), boundBoxes_, bitSet::count(), createBoxes(), DynamicList< T, SizeMin >::emplace_back(), UList< T >::empty(), Foam::endl(), forAll, Foam::identity(), boundBox::inflate(), Foam::Info, maxLevel_, minLeafSize_, points, bitSet::set(), and UList< T >::size().

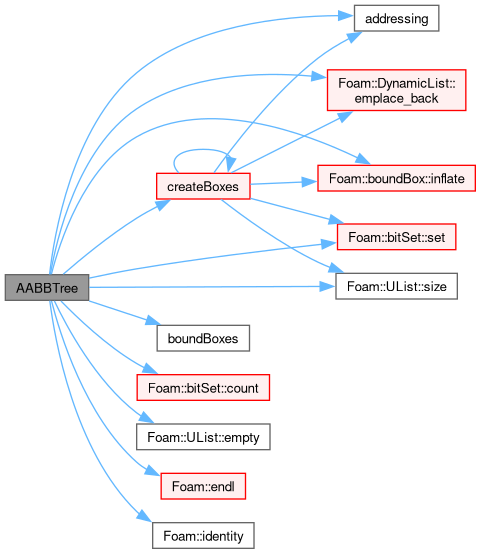

Here is the call graph for this function:

Member Function Documentation

◆ writeOBJ() [1/2]

template<class Type>

void writeOBJ	(	const bool	leavesOnly,
		const bool	writeLinesOnly,
		const treeBoundBox &	bb,
		const label	nodeI,
		const List< Pair< treeBoundBox > > &	bbs,
		const List< Pair< label > > &	nodes,
		label &	vertI,
		Ostream &	os ) const

protected

Write OBJ for all bounding boxes.

Definition at line 28 of file AABBTree.C.

References os(), writeOBJ(), and AABBTreeBase::writeOBJ().

Referenced by writeOBJ().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ createBoxes()

template<class Type>

void createBoxes	(	const bool	equalBinSize,
		const label	level,
		const UList< Type > &	objects,
		const pointField &	points,
		const labelUList &	objectIDs,
		const treeBoundBox &	bb,
		const label	nodeI,
		DynamicList< Pair< treeBoundBox > > &	bbs,
		DynamicList< labelPair > &	nodes,
		DynamicList< labelList > &	addressing ) const

protected

Create the bounding boxes by interrogating points.

Definition at line 75 of file AABBTree.C.

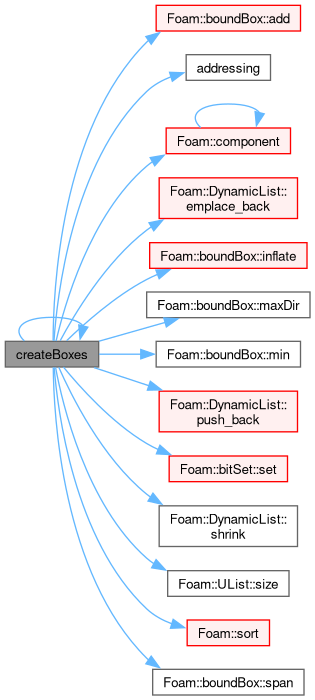

References boundBox::add(), addressing(), Foam::component(), createBoxes(), DynamicList< T, SizeMin >::emplace_back(), boundBox::inflate(), boundBox::maxDir(), maxLevel_, boundBox::min(), minLeafSize_, points, DynamicList< T, SizeMin >::push_back(), bitSet::set(), DynamicList< T, SizeMin >::shrink(), UList< T >::size(), Foam::sort(), boundBox::span(), and AABBTreeBase::tolerance_.

Referenced by AABBTree(), and createBoxes().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ boundBoxes()

template<class Type>

const List< treeBoundBox > & boundBoxes ( ) const

inlinenoexcept

Return the bounding boxes making up the tree.

Definition at line 209 of file AABBTree.H.

References boundBoxes_, and Foam::noexcept.

Referenced by AABBTree().

Here is the caller graph for this function:

◆ addressing()

template<class Type>

const List< labelList > & addressing ( ) const

inlinenoexcept

Return the contents addressing.

Definition at line 217 of file AABBTree.H.

References addressing_, and Foam::noexcept.

Referenced by AABBTree(), and createBoxes().

Here is the caller graph for this function:

◆ pointInside()

template<class Type>

bool pointInside ( const point & pt ) const

Determine whether a point is inside the bounding boxes.

Definition at line 403 of file AABBTree.C.

References boundBoxes_.

◆ overlaps()

template<class Type>

bool overlaps ( const boundBox & bbIn ) const

Determine whether a bounding box overlaps the tree bounding boxes.

Definition at line 418 of file AABBTree.C.

References boundBoxes_.

◆ writeOBJ() [2/2]

template<class Type>

void writeOBJ ( Ostream & os ) const

Write all tree boxes (leaves) in OBJ format.

Definition at line 390 of file AABBTree.C.

References boundBoxes_, os(), and AABBTreeBase::writeOBJ().

Here is the call graph for this function:

◆ operator>>

template<class Type>

Istream & operator>>	(	Istream &	,
		AABBTree< Type > &	)

friend

References AABBTree().

◆ operator<<

template<class Type>

Ostream & operator<<	(	Ostream &	,
		const AABBTree< Type > &	)

friend

References AABBTree().

Member Data Documentation

◆ maxLevel_

template<class Type>

label maxLevel_

protected

Maximum tree level.

Definition at line 124 of file AABBTree.H.

Referenced by AABBTree(), AABBTree(), and createBoxes().

◆ minLeafSize_

template<class Type>

label minLeafSize_

protected

Minimum points per leaf.

Definition at line 129 of file AABBTree.H.

Referenced by AABBTree(), AABBTree(), and createBoxes().

◆ boundBoxes_

template<class Type>

List<treeBoundBox> boundBoxes_

protected

Bounding boxes making up the tree.

Definition at line 134 of file AABBTree.H.

Referenced by AABBTree(), AABBTree(), boundBoxes(), overlaps(), pointInside(), and writeOBJ().

◆ addressing_

template<class Type>

List<labelList> addressing_

protected

Leaf addressing.

Definition at line 139 of file AABBTree.H.

Referenced by AABBTree(), AABBTree(), and addressing().

The documentation for this class was generated from the following files:
