treeBoundBox Class Reference

Standard boundBox with extra functionality for use in octree. More...

#include <treeBoundBox.H>

Inheritance diagram for treeBoundBox:

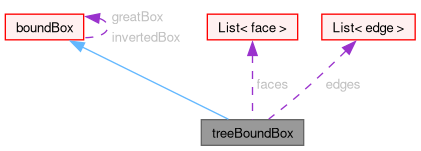

Collaboration diagram for treeBoundBox:

Public Types
enum	octantBit : direction { RIGHTHALF = 1 , TOPHALF = 2 , FRONTHALF = 4 }
	Bits used for octant/point directional encoding. More...
enum	faceId : direction {   LEFT = 0 , RIGHT = 1 , BOTTOM = 2 , TOP = 3 ,   BACK = 4 , FRONT = 5 }
	Face codes. Identical order and meaning as per hex cellmodel and boundBox, but have a different point ordering. More...
enum	faceBit : direction {   NOFACE = 0 , LEFTBIT = (1 << LEFT) , RIGHTBIT = (1 << RIGHT) , BOTTOMBIT = (1 << BOTTOM) ,   TOPBIT = (1 << TOP) , BACKBIT = (1 << BACK) , FRONTBIT = (1 << FRONT) }
	Bits used for face encoding. More...
enum	edgeId {   E01 = 0 , E13 = 1 , E23 = 2 , E02 = 3 ,   E45 = 4 , E57 = 5 , E67 = 6 , E46 = 7 ,   E04 = 8 , E15 = 9 , E37 = 10 , E26 = 11 }
	Edges codes. More...
Public Types inherited from boundBox
enum	directionBit : direction { XDIR = 1 , YDIR = 2 , ZDIR = 4 }
	Bits used for (x/y/z) directional encoding. More...

Public Member Functions
	treeBoundBox ()=default
	Default construct: an inverted bounding box.
	treeBoundBox (const treeBoundBox &)=default
	Copy construct.
treeBoundBox &	operator= (const treeBoundBox &)=default
	Copy assignment.
	treeBoundBox (const boundBox &bb)
	Copy construct from a boundBox.
void	operator= (const boundBox &bb)
	Copy assignment from a boundBox.
	treeBoundBox (Foam::zero_one)
	Construct a 0/1 unit bounding box.
	treeBoundBox (const point &p)
	Construct a bounding box containing a single initial point.
	treeBoundBox (const point &min, const point &max)
	Construct from bound box min/max points.
	treeBoundBox (const Pair< point > &bb)
	Construct from bound box min/max points.
	treeBoundBox (const UList< point > &points)
	Construct as the bounding box of the given pointField.
	treeBoundBox (const UList< point > &points, const labelUList &indices)
	Construct as subset of points.
template<unsigned N>
	treeBoundBox (const UList< point > &points, const FixedList< label, N > &indices)
	Construct as subset of points.
	treeBoundBox (Istream &is)
	Construct from Istream.
tmp< pointField >	points () const
	Vertex coordinates. In octant coding.
point	corner (const direction octant) const
	Corner point of given octant.
treeBoundBox	subBbox (const direction octant) const
	Sub-box of given octant. Midpoint calculated.
treeBoundBox	subBbox (const point &mid, const direction) const
	Sub-box given by octant number. Midpoint provided.
treeBoundBox	subHalf (const direction whichFace) const
	Sub-box half for given face.
treeBoundBox	subHalf (const scalar mid, const direction whichFace) const
	Sub-box half for given face with prescribed mid point value. Eg, subHalf(scalar, LEFT).
direction	subOctant (const point &pt) const
	Returns octant number given point and the calculated midpoint.
direction	subOctant (const point &pt, bool &onEdge) const
	Returns octant number given point and the calculated midpoint.
void	searchOrder (const point &pt, FixedList< direction, 8 > &octantOrder) const
	Calculates optimal order to look for nearest to point.
FixedList< direction, 8 >	searchOrder (const point &pt) const
	Return optimal search order to look for nearest to point.
bool	subOverlaps (const direction octant, const boundBox &bb) const
	Does sub-octant overlap/touch boundingBox?
bool	subOverlaps (const direction octant, const point &centre, const scalar radiusSqr) const
	Does sub-octant overlap boundingSphere (centre + sqr(radius))?
bool	intersects (const point &overallStart, const vector &overallVec, const point &start, const point &end, point &pt, direction &ptBits) const
	Intersects segment; set point to intersection position and face,.
bool	intersects (const point &start, const point &end, point &pt) const
	Like above but does not return faces point is on.
bool	intersects (const linePointRef &ln, point &pt) const
	Like above but does not return faces point is on.
bool	contains (const vector &dir, const point &) const
	Contains point (inside or on edge) and moving in direction.
direction	faceBits (const point &pt) const
	Code position of point on bounding box faces.
direction	posBits (const point &pt) const
	Position of point relative to bounding box.
void	calcExtremities (const point &pt, point &nearest, point &furthest) const
	Calculate nearest and furthest (to point) vertex coords of.
scalar	maxDist (const point &pt) const
	Returns distance point to furthest away corner.
label	distanceCmp (const point &pt, const treeBoundBox &other) const
	Compare distance to point with other bounding box.
treeBoundBox	extend (Random &rndGen, const scalar s) const
	Return slightly wider bounding box.
treeBoundBox	extend (Random &rndGen, const scalar s, const scalar delta) const
	As per two parameter version but with additional grow() by given amount in each dimension.
scalar	typDim () const
	Typical dimension length,height,width. Identical to avgDim().
bool	overlaps (const boundBox &bb) const
	Overlaps with other bounding box, sphere etc?
bool	overlaps (const point &centre, const scalar radiusSqr) const
	Overlaps with other bounding box, sphere etc?
bool	intersects (const plane &pln) const
	intersects other bounding box, sphere etc?
bool	intersects (const triPointRef &tri) const
	intersects other bounding box, sphere etc?
bool	contains (const point &pt) const
	Contains point or other bounding box?
bool	contains (const boundBox &bb) const
	Contains point or other bounding box?
bool	contains (const UList< point > &points) const
	Contains point or other bounding box?
template<unsigned N>
bool	contains (const UList< point > &points, const FixedList< label, N > &indices) const
	Contains point or other bounding box?
template<class IntContainer>
bool	contains (const UList< point > &points, const IntContainer &indices) const
	Contains point or other bounding box?
Public Member Functions inherited from boundBox
	boundBox ()
	Default construct: an inverted bounding box.
	boundBox (const boundBox &)=default
	Copy construct.
boundBox &	operator= (const boundBox &)=default
	Copy assignment.
	boundBox (const boundBox &bb, bool doReduce)
	Copy construct with specified global reduction.
	boundBox (const point &p)
	Construct a bounding box containing a single initial point.
	boundBox (Foam::zero_one)
	Construct a 0/1 unit bounding box.
	boundBox (const point &min, const point &max)
	Construct from bound box min/max points.
	boundBox (const Pair< point > &bb)
	Construct from bound box min/max points.
	boundBox (const UList< point > &points, bool doReduce=true)
	Construct as the bounding box of the given points.
	boundBox (const tmp< pointField > &tpoints, bool doReduce=true)
	Construct as the bounding box of the given temporary pointField.
	boundBox (const UList< point > &points, const labelUList &indices, bool doReduce=true)
	Construct bounding box as an indirect subset of the points.
template<unsigned N>
	boundBox (const UList< point > &points, const FixedList< label, N > &indices, bool doReduce=true)
	Construct bounding box as an indirect subset of the points.
	boundBox (Istream &is)
	Construct from Istream.
bool	empty () const
	Bounding box is inverted, contains no points.
bool	good () const
	Bounding box is non-inverted.
bool	valid () const
	Bounding box is non-inverted - same as good().
const point &	min () const noexcept
	Minimum describing the bounding box.
const point &	max () const noexcept
	Maximum describing the bounding box.
point &	min () noexcept
	Minimum describing the bounding box, non-const access.
point &	max () noexcept
	Maximum describing the bounding box, non-const access.
point	centre () const
	The centre (midpoint) of the bounding box.
vector	span () const
	The bounding box span (from minimum to maximum).
scalar	mag () const
	The magnitude/length of the bounding box diagonal.
scalar	magSqr () const
	The magnitude/length squared of bounding box diagonal.
scalar	volume () const
	The volume of the bound box.
scalar	minDim () const
	Smallest length/height/width dimension.
scalar	maxDim () const
	Largest length/height/width dimension.
scalar	avgDim () const
	Average length/height/width dimension.
direction	minDir () const
	Direction (X/Y/Z) of the smallest span (for empty box: 0).
direction	maxDir () const
	Direction (X/Y/Z) of the largest span (for empty box: 0).
int	nDim () const
	Count the number of positive, non-zero dimensions.
template<direction CornerNumber>
point	hexCorner () const
	Return corner point [0..7] corresponding to a 'hex' cell.
tmp< pointField >	hexCorners () const
	Corner points in an order corresponding to a 'hex' cell.
tmp< pointField >	points () const
	Corner points in an order corresponding to a 'hex' cell.
tmp< pointField >	faceCentres () const
	Face midpoints.
point	faceCentre (const direction facei) const
	Face centre of given face index.
void	reset ()
	Reset to an inverted box.
void	reset (Foam::zero_one)
	Reset to a 0/1 unit bounding box.
void	reset (const point &pt)
	Reset min/max to be identical to the specified point.
void	reset (const point &min, const point &max)
	Reset min/max to specified values.
void	clear ()
	Same as reset() - reset to an inverted box.
void	add (const boundBox &bb)
	Extend to include the second box.
void	add (const point &pt)
	Extend to include the point.
void	add (const point &pt0, const point &pt1)
	Extend to include two additional points.
void	add (const Pair< point > &points)
	Extend to include two additional points.
void	add (const UList< point > &points)
	Extend to include the points.
void	add (const tmp< pointField > &tpoints)
	Extend to include the points from the temporary point field.
template<unsigned N>
void	add (const FixedList< point, N > &points)
	Extend to include the points.
template<unsigned N>
void	add (const UList< point > &points, const FixedList< label, N > &indices)
	Extend to include a (subsetted) point field.
template<class IntContainer>
void	add (const UList< point > &points, const IntContainer &indices)
	Extend to include a (subsetted) point field.
void	grow (const scalar delta)
	Expand box by adjusting min/max by specified amount in each dimension.
void	grow (const vector &delta)
	Expand box by adjusting min/max by specified amounts.
void	inflate (const scalar factor)
	Expand box by factor*mag(span) in all dimensions.
void	inflate (Random &rndGen, const scalar factor)
	Expand box slightly by expanding all dimensions with factor*span*(random 0-1) and guarantees factor*mag(span) minimum width in any direction.
void	inflate (Random &r, const scalar factor, const scalar delta)
	As per two parameter version but with additional grow() by given amount in each dimension.
void	reduce ()
	Inplace parallel reduction of min/max values, using UPstream::worldComm.
void	reduce (int communicator)
	Inplace parallel reduction of min/max values, using the specified communicator.
bool	intersects (const plane &pln) const
	Does plane intersect this bounding box.
bool	intersects (const triPointRef &tri) const
	Does triangle intersect this bounding box or is contained within this bounding box.
bool	overlaps (const boundBox &bb) const
	Overlaps/touches boundingBox?
bool	overlaps (const point &centre, const scalar radiusSqr) const
	Overlaps boundingSphere (centre + sqr(radius))?
bool	contains (const point &pt) const
	Contains point? (inside or on edge).
bool	contains (const boundBox &bb) const
	Fully contains other boundingBox?
bool	containsInside (const point &pt) const
	Contains point? (inside only).
bool	contains (const UList< point > &points) const
	Contains all points? (inside or on edge).
template<unsigned N>
bool	contains (const UList< point > &points, const FixedList< label, N > &indices) const
	Contains all of the (subsetted) points? (inside or on edge).
template<class IntContainer>
bool	contains (const UList< point > &points, const IntContainer &indices) const
	Contains all of the (subsetted) points? (inside or on edge).
bool	containsAny (const UList< point > &points) const
	Contains any of the points? (inside or on edge).
template<unsigned N>
bool	containsAny (const UList< point > &points, const FixedList< label, N > &indices) const
	Contains any of the (subsetted) points? (inside or on edge).
template<class IntContainer>
bool	containsAny (const UList< point > &points, const IntContainer &indices) const
	Contains any of the (subsetted) points? (inside or on edge).
point	nearest (const point &p) const
	Return the nearest point on the boundBox to the supplied point.
void	operator&= (const boundBox &bb)
	Restrict min/max to union with other box.
void	operator+= (const boundBox &bb)
	Extend box to include the second box, as per the add() method.
bool	intersect (const boundBox &bb)
	Deprecated(2022-10) - use 'operator&=' to avoid confusion with other intersects() methods.
point	midpoint () const
	Identical to centre().
template<>
Foam::point	hexCorner () const
template<>
Foam::point	hexCorner () const
template<>
Foam::point	hexCorner () const
template<>
Foam::point	hexCorner () const
template<>
Foam::point	hexCorner () const
template<>
Foam::point	hexCorner () const
template<>
Foam::point	hexCorner () const
template<>
Foam::point	hexCorner () const
template<Foam::direction CornerNumber>
Foam::point	hexCorner () const

Static Public Member Functions
static const treeBoundBox &	null () noexcept
	The null treeBoundBox is the same as an inverted box.
static direction	subOctant (const point &mid, const point &pt)
	Returns octant number given point and midpoint.
static direction	subOctant (const point &mid, const point &pt, bool &onEdge)
	Returns octant number given point and midpoint.
static direction	subOctant (const point &mid, const vector &dir, const point &pt, bool &onEdge)
	Returns octant number given intersection and midpoint.
Static Public Member Functions inherited from boundBox
static const boundBox &	null () noexcept
	The null boundBox is the same as an inverted box.
static const Foam::faceList &	hexFaces ()
	The boundBox faces as a hexCell, using hexCorner points. Same as hexCell::modelFaces().
static constexpr label	nPoints () noexcept
	Number of points for boundBox and HEX.
static constexpr label	nEdges () noexcept
	Number of edges for boundBox and HEX.
static constexpr label	nFaces () noexcept
	Number of faces for boundBox and HEX.
static boundBox	returnReduce (const boundBox &bb)
	Perform a reduction on a copy and return the result, using UPstream::worldComm.
static boundBox	returnReduce (const boundBox &bb, int communicator)
	Perform a reduction on a copy and return the result, using the specified communicator.

Static Public Attributes
static const faceList	faces
	Face to point addressing, using octant corner points.
static const edgeList	edges
	Edge to point addressing, using octant corner points.
Static Public Attributes inherited from boundBox
static const boundBox	greatBox
	A large boundBox: min/max == -/+ ROOTVGREAT.
static const boundBox	invertedBox
	A large inverted boundBox: min/max == +/- ROOTVGREAT.
static const FixedList< vector, 6 >	faceNormals
	The unit normal per face.

Friends
Istream &	operator>> (Istream &is, treeBoundBox &bb)
Ostream &	operator<< (Ostream &os, const treeBoundBox &bb)

Additional Inherited Members
Static Protected Member Functions inherited from boundBox
static bool	box_box_overlaps (const point &minA, const point &maxA, const point &minB, const point &maxB)
	Test for overlap of box and box (inclusive check).
static bool	box_sphere_overlaps (const point &corner0, const point &corner1, const point &centre, const scalar radiusSqr)
	Test for overlap of box and boundingSphere (centre + sqr(radius)).

Detailed Description

Standard boundBox with extra functionality for use in octree.

Numbering of corner points is according to octant numbering as shown below. For vertex numbering in the sequence 0 to 7:

• faces 0 and 1 are x-min and x-max, respectively;
• faces 2 and 3 are y-min and y-max, respectively;
• faces 4 and 5 are z-min and z-max, respectively.

Octant vertex ordering               | Hex cell ordering
(treeBoundBox)                       | (boundBox, blockMesh, hexCell)
                                     |
                6 ---- 7             |         7 ---- 6
          f5    |\     :\    f3      |   f5    |\     :\    f3
           |    | 4 ---- 5    \      |    |    | 4 ---- 5    \
           |    2.|....3 |     \     |    |    3.|....2 |     \
           |     \|     \|     f2    |    |     \|     \|     f2
          f4      0 ---- 1           |   f4      0 ---- 1
  Y  Z                               |
   \ |          f0 ------ f1         |         f0 ------ f1
    \|                               |
     o--- X                          |

Note

When a bounding box is created without any points, it creates an inverted bounding box. Points can be added later and the bounding box will grow to include them.

See also

Foam::boundBox

Source files

• treeBoundBox.H
• treeBoundBoxI.H
• treeBoundBox.cxx
• treeBoundBox.txx

Definition at line 90 of file treeBoundBox.H.

Member Enumeration Documentation

octantBit

enum octantBit : direction

Bits used for octant/point directional encoding.

Every octant/corner point is the combination of three directions. Defined as (1 << vector::components).

Enumerator
RIGHTHALF	1: positive x-direction
TOPHALF	2: positive y-direction
FRONTHALF	4: positive z-direction

Definition at line 104 of file treeBoundBox.H.

faceId

enum faceId : direction

Face codes. Identical order and meaning as per hex cellmodel and boundBox, but have a different point ordering.

Defined as (2 * vector::components + positive).

Enumerator
LEFT	0: x-min face
RIGHT	1: x-max face
BOTTOM	2: y-min face
TOP	3: y-max face
BACK	4: z-min face
FRONT	5: z-max face

Definition at line 117 of file treeBoundBox.H.

faceBit

enum faceBit : direction

Bits used for face encoding.

Defined as (1 << (2 * vector::components + positive)). For example, the positive Z-face: (1 << (2 * vector::Z + 1))

Enumerator
NOFACE	0: none
LEFTBIT	1: x-min face
RIGHTBIT	2: x-max face
BOTTOMBIT	4: y-min face
TOPBIT	8: y-max face
BACKBIT	16: z-min face
FRONTBIT	32: z-max face

Definition at line 134 of file treeBoundBox.H.

edgeId

enum edgeId

Edges codes.

E01 = edge between 0 and 1.

Enumerator
E01
E13
E23
E02
E45
E57
E67
E46
E04
E15
E37
E26

Definition at line 150 of file treeBoundBox.H.

Constructor & Destructor Documentation

treeBoundBox() [1/11]

treeBoundBox ( )

default

Default construct: an inverted bounding box.

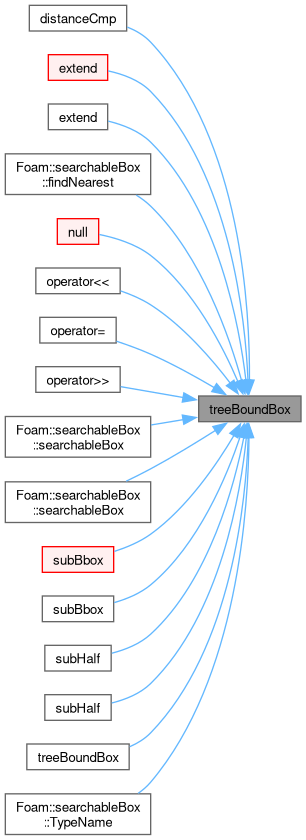

Referenced by distanceCmp(), extend(), extend(), searchableBox::findNearest(), null(), operator<<, operator=(), operator>>, searchableBox::searchableBox(), searchableBox::searchableBox(), subBbox(), subBbox(), subHalf(), subHalf(), treeBoundBox(), and searchableBox::TypeName().

Here is the caller graph for this function:

treeBoundBox() [2/11]

treeBoundBox ( const treeBoundBox & )

default

Copy construct.

References treeBoundBox().

Here is the call graph for this function:

treeBoundBox() [3/11]

treeBoundBox ( const boundBox & bb )

inlineexplicit

Copy construct from a boundBox.

Definition at line 214 of file treeBoundBox.H.

References boundBox::boundBox().

Here is the call graph for this function:

treeBoundBox() [4/11]

treeBoundBox ( Foam::zero_one )

inlineexplicit

Construct a 0/1 unit bounding box.

Definition at line 27 of file treeBoundBoxI.H.

References boundBox::boundBox().

Here is the call graph for this function:

treeBoundBox() [5/11]

treeBoundBox ( const point & p )

inlineexplicit

Construct a bounding box containing a single initial point.

Definition at line 33 of file treeBoundBoxI.H.

References boundBox::boundBox(), and p.

Here is the call graph for this function:

treeBoundBox() [6/11]

treeBoundBox ( const point & min, const point & max )

inline

Construct from bound box min/max points.

Definition at line 39 of file treeBoundBoxI.H.

References boundBox::boundBox(), boundBox::max(), and boundBox::min().

Here is the call graph for this function:

treeBoundBox() [7/11]

treeBoundBox ( const Pair< point > & bb )

inlineexplicit

Construct from bound box min/max points.

TBD: Construct from bound box min/max points inline explicit treeBoundBox(const MinMax<point>& bb);

Definition at line 45 of file treeBoundBoxI.H.

References boundBox::boundBox().

Here is the call graph for this function:

treeBoundBox() [8/11]

treeBoundBox ( const UList< point > & points )

explicit

Construct as the bounding box of the given pointField.

Local processor domain only (no reduce as in boundBox)

References points().

Here is the call graph for this function:

treeBoundBox() [9/11]

treeBoundBox	(	const UList< point > &	points,
		const labelUList &	indices )

Construct as subset of points.

Local processor domain only (no reduce as in boundBox)

References points().

Here is the call graph for this function:

treeBoundBox() [10/11]

template<unsigned N>

treeBoundBox	(	const UList< point > &	points,
		const FixedList< label, N > &	indices )

Construct as subset of points.

The indices could be from edge/triFace etc. Local processor domain only (no reduce as in boundBox)

References points().

Here is the call graph for this function:

treeBoundBox() [11/11]

treeBoundBox ( Istream & is )

inlineexplicit

Construct from Istream.

Definition at line 51 of file treeBoundBoxI.H.

References boundBox::boundBox().

Here is the call graph for this function:

Member Function Documentation

null()

const treeBoundBox & null ( )

inlinestaticnoexcept

The null treeBoundBox is the same as an inverted box.

Definition at line 187 of file treeBoundBox.H.

References boundBox::invertedBox, Foam::noexcept, and treeBoundBox().

Referenced by dynamicIndexedOctree< Type >::bb(), and indexedOctree< treeDataIndirectTriSurface >::bb().

Here is the call graph for this function:

Here is the caller graph for this function:

operator=() [1/2]

treeBoundBox & operator= ( const treeBoundBox & )

default

Copy assignment.

References treeBoundBox().

Here is the call graph for this function:

operator=() [2/2]

void operator= ( const boundBox & bb )

inline

Copy assignment from a boundBox.

Definition at line 219 of file treeBoundBox.H.

References boundBox::boundBox().

Here is the call graph for this function:

points()

tmp< pointField > points

(

)

const

Vertex coordinates. In octant coding.

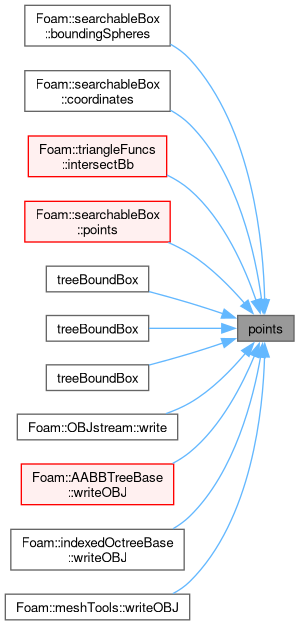

Referenced by searchableBox::boundingSpheres(), searchableBox::coordinates(), triangleFuncs::intersectBb(), searchableBox::points(), treeBoundBox(), treeBoundBox(), treeBoundBox(), OBJstream::write(), AABBTreeBase::writeOBJ(), indexedOctreeBase::writeOBJ(), and Foam::meshTools::writeOBJ().

Here is the caller graph for this function:

corner()

Foam::point corner ( const direction octant ) const

inline

Corner point of given octant.

Definition at line 59 of file treeBoundBoxI.H.

References FRONTHALF, Foam::max(), Foam::min(), RIGHTHALF, TOPHALF, x, and y.

Referenced by subOverlaps().

Here is the call graph for this function:

Here is the caller graph for this function:

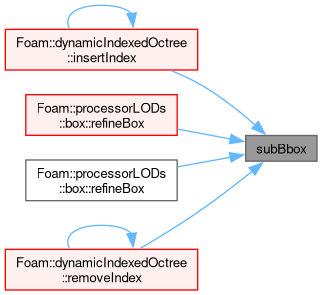

subBbox() [1/2]

treeBoundBox subBbox

(

const direction

octant

)

const

Sub-box of given octant. Midpoint calculated.

References treeBoundBox().

Referenced by dynamicIndexedOctree< Type >::insertIndex(), box::refineBox(), box::refineBox(), and dynamicIndexedOctree< Type >::removeIndex().

Here is the call graph for this function:

Here is the caller graph for this function:

subBbox() [2/2]

treeBoundBox subBbox	(	const point &	mid,
		const direction	) const

Sub-box given by octant number. Midpoint provided.

References treeBoundBox().

Here is the call graph for this function:

subHalf() [1/2]

treeBoundBox subHalf

(

const direction

whichFace

)

const

Sub-box half for given face.

References treeBoundBox().

Here is the call graph for this function:

subHalf() [2/2]

treeBoundBox subHalf	(	const scalar	mid,
		const direction	whichFace ) const

Sub-box half for given face with prescribed mid point value. Eg, subHalf(scalar, LEFT).

References boundBox::overlaps(), and treeBoundBox().

Here is the call graph for this function:

subOctant() [1/5]

Foam::direction subOctant ( const point & pt ) const

inline

Returns octant number given point and the calculated midpoint.

Definition at line 71 of file treeBoundBoxI.H.

References boundBox::centre(), and subOctant().

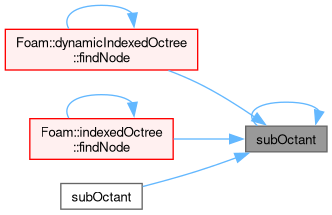

Referenced by dynamicIndexedOctree< Type >::findNode(), indexedOctree< Type >::findNode(), subOctant(), and subOctant().

Here is the call graph for this function:

Here is the caller graph for this function:

subOctant() [2/5]

Foam::direction subOctant ( const point & mid, const point & pt )

inlinestatic

Returns octant number given point and midpoint.

Definition at line 79 of file treeBoundBoxI.H.

References FRONTHALF, RIGHTHALF, TOPHALF, Vector< Cmpt >::x(), Vector< Cmpt >::y(), and Vector< Cmpt >::z().

Here is the call graph for this function:

subOctant() [3/5]

Foam::direction subOctant ( const point & pt, bool & onEdge ) const

inline

Returns octant number given point and the calculated midpoint.

onEdge set if the point is on edge of subOctant

Definition at line 108 of file treeBoundBoxI.H.

References boundBox::centre(), and subOctant().

Here is the call graph for this function:

subOctant() [4/5]

Foam::direction subOctant ( const point & mid, const point & pt, bool & onEdge )

inlinestatic

Returns octant number given point and midpoint.

onEdge set if the point is on edge of subOctant

Definition at line 120 of file treeBoundBoxI.H.

References FRONTHALF, RIGHTHALF, TOPHALF, Vector< Cmpt >::x(), Vector< Cmpt >::y(), and Vector< Cmpt >::z().

Here is the call graph for this function:

subOctant() [5/5]

Foam::direction subOctant ( const point & mid, const vector & dir, const point & pt, bool & onEdge )

inlinestatic

Returns octant number given intersection and midpoint.

onEdge set if the point is on edge of subOctant If onEdge, the direction vector determines which octant to use (acc. to which octant the point would be if it were moved along dir)

Definition at line 165 of file treeBoundBoxI.H.

References FRONTHALF, RIGHTHALF, TOPHALF, Vector< Cmpt >::x(), Vector< Cmpt >::y(), and Vector< Cmpt >::z().

Here is the call graph for this function:

searchOrder() [1/2]

void searchOrder ( const point & pt, FixedList< direction, 8 > & octantOrder ) const

inline

Calculates optimal order to look for nearest to point.

First will be the octant containing the point, second the octant with boundary nearest to the point etc.

Definition at line 219 of file treeBoundBoxI.H.

References boundBox::centre(), FRONTHALF, boundBox::max(), boundBox::min(), RIGHTHALF, TOPHALF, Vector< Cmpt >::x(), Vector< Cmpt >::y(), and Vector< Cmpt >::z().

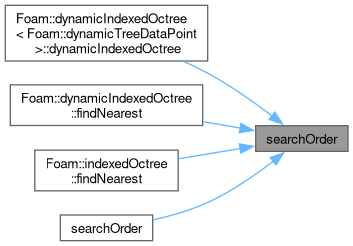

Referenced by dynamicIndexedOctree< Foam::dynamicTreeDataPoint >::dynamicIndexedOctree(), dynamicIndexedOctree< Type >::findNearest(), indexedOctree< Type >::findNearest(), and searchOrder().

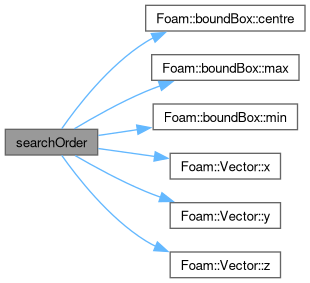

Here is the call graph for this function:

Here is the caller graph for this function:

searchOrder() [2/2]

Foam::FixedList< Foam::direction, 8 > searchOrder ( const point & pt ) const

inline

Return optimal search order to look for nearest to point.

Definition at line 310 of file treeBoundBoxI.H.

References searchOrder().

Here is the call graph for this function:

subOverlaps() [1/2]

bool subOverlaps	(	const direction	octant,
		const boundBox &	bb ) const

Does sub-octant overlap/touch boundingBox?

References boundBox::boundBox(), boundBox::centre(), and boundBox::intersects().

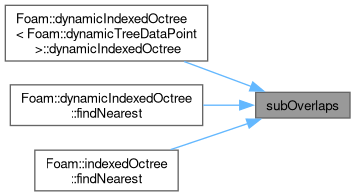

Referenced by dynamicIndexedOctree< Foam::dynamicTreeDataPoint >::dynamicIndexedOctree(), dynamicIndexedOctree< Type >::findNearest(), and indexedOctree< Type >::findNearest().

Here is the call graph for this function:

Here is the caller graph for this function:

subOverlaps() [2/2]

bool subOverlaps ( const direction octant, const point & centre, const scalar radiusSqr ) const

inline

Does sub-octant overlap boundingSphere (centre + sqr(radius))?

Definition at line 318 of file treeBoundBoxI.H.

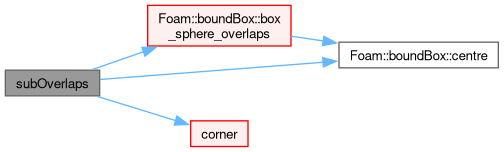

References boundBox::box_sphere_overlaps(), boundBox::centre(), and corner().

Here is the call graph for this function:

intersects() [1/5]

bool intersects	(	const point &	overallStart,
		const vector &	overallVec,
		const point &	start,
		const point &	end,
		point &	pt,
		direction &	ptBits ) const

Intersects segment; set point to intersection position and face,.

return true if intersection found. (pt argument used during calculation even if not intersecting). Calculates intersections from outside supplied vector (overallStart, overallVec). This is so when e.g. tracking through lots of consecutive boxes (typical octree) we're not accumulating truncation errors. Set to start, (end-start) if not used.

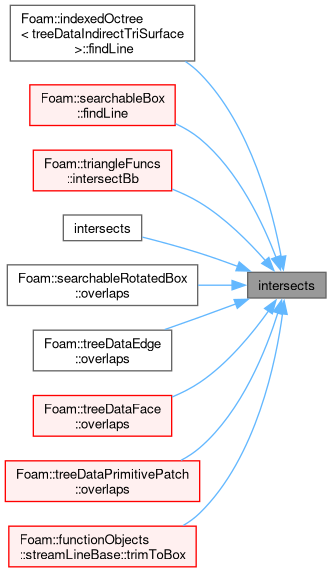

Referenced by indexedOctree< treeDataIndirectTriSurface >::findLine(), searchableBox::findLine(), triangleFuncs::intersectBb(), intersects(), searchableRotatedBox::overlaps(), treeDataEdge::overlaps(), treeDataFace::overlaps(), treeDataPrimitivePatch< PatchType >::overlaps(), and streamLineBase::trimToBox().

Here is the caller graph for this function:

intersects() [2/5]

bool intersects	(	const point &	start,
		const point &	end,
		point &	pt ) const

Like above but does not return faces point is on.

References boundBox::contains(), and Foam::ln().

Here is the call graph for this function:

intersects() [3/5]

bool intersects ( const linePointRef & ln, point & pt ) const

inline

Like above but does not return faces point is on.

Definition at line 339 of file treeBoundBoxI.H.

References intersects(), and Foam::ln().

Here is the call graph for this function:

contains() [1/6]

bool contains	(	const vector &	dir,
		const point &	) const

Contains point (inside or on edge) and moving in direction.

dir would cause it to go inside.

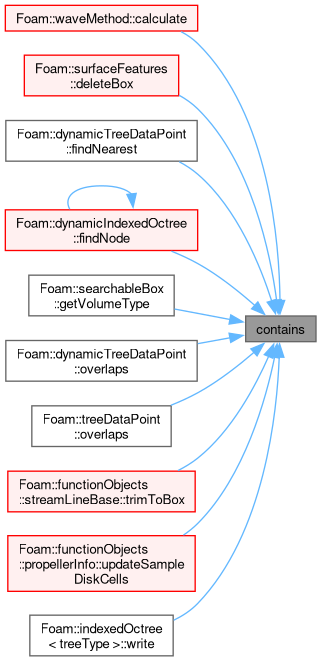

Referenced by waveMethod::calculate(), surfaceFeatures::deleteBox(), dynamicTreeDataPoint::findNearest(), dynamicIndexedOctree< Type >::findNode(), searchableBox::getVolumeType(), dynamicTreeDataPoint::overlaps(), treeDataPoint::overlaps(), streamLineBase::trimToBox(), propellerInfo::updateSampleDiskCells(), and indexedOctree< treeType >::write().

Here is the caller graph for this function:

faceBits()

direction faceBits

(

const point &

pt

)

const

Code position of point on bounding box faces.

Referenced by indexedOctree< treeDataIndirectTriSurface >::findLine().

Here is the caller graph for this function:

posBits()

direction posBits

(

const point &

pt

)

const

Position of point relative to bounding box.

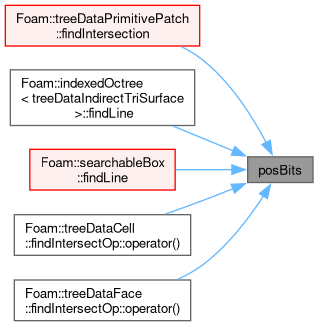

Referenced by treeDataPrimitivePatch< PatchType >::findIntersection(), indexedOctree< treeDataIndirectTriSurface >::findLine(), searchableBox::findLine(), treeDataCell::findIntersectOp::operator()(), and treeDataFace::findIntersectOp::operator()().

Here is the caller graph for this function:

calcExtremities()

void calcExtremities	(	const point &	pt,
		point &	nearest,
		point &	furthest ) const

Calculate nearest and furthest (to point) vertex coords of.

bounding box

References boundBox::nearest().

Here is the call graph for this function:

maxDist()

scalar maxDist

(

const point &

pt

)

const

Returns distance point to furthest away corner.

distanceCmp()

label distanceCmp	(	const point &	pt,
		const treeBoundBox &	other ) const

Compare distance to point with other bounding box.

return: -1 : all vertices of my bounding box are nearer than any of other +1 : all vertices of my bounding box are further away than any of other 0 : none of the above.

References delta, rndGen, s(), and treeBoundBox().

Here is the call graph for this function:

extend() [1/2]

Foam::treeBoundBox extend ( Random & rndGen, const scalar s ) const

inline

Return slightly wider bounding box.

Extends all dimensions with s*span*Random::sample01<scalar>() and guarantees in any direction s*mag(span) minimum width

Definition at line 349 of file treeBoundBoxI.H.

References boundBox::inflate(), rndGen, and treeBoundBox().

Referenced by meshRefinement::distribute(), and mappedPatchBase::findLocalSamples().

Here is the call graph for this function:

Here is the caller graph for this function:

extend() [2/2]

Foam::treeBoundBox extend ( Random & rndGen, const scalar s, const scalar delta ) const

inline

As per two parameter version but with additional grow() by given amount in each dimension.

Definition at line 363 of file treeBoundBoxI.H.

References delta, boundBox::inflate(), rndGen, and treeBoundBox().

Here is the call graph for this function:

typDim()

scalar typDim ( ) const

inline

Typical dimension length,height,width. Identical to avgDim().

Definition at line 548 of file treeBoundBox.H.

References boundBox::avgDim().

Here is the call graph for this function:

overlaps() [1/2]

bool overlaps ( const boundBox & bb ) const

inline

Overlaps with other bounding box, sphere etc?

Definition at line 563 of file boundBoxI.H.

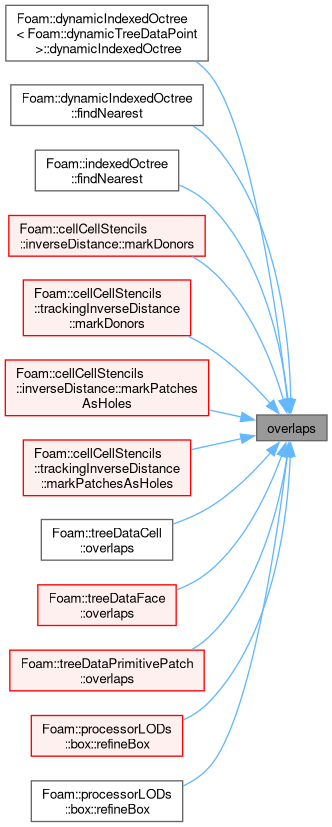

Referenced by dynamicIndexedOctree< Foam::dynamicTreeDataPoint >::dynamicIndexedOctree(), dynamicIndexedOctree< Type >::findNearest(), indexedOctree< Type >::findNearest(), inverseDistance::markDonors(), trackingInverseDistance::markDonors(), inverseDistance::markPatchesAsHoles(), trackingInverseDistance::markPatchesAsHoles(), treeDataCell::overlaps(), treeDataFace::overlaps(), treeDataPrimitivePatch< PatchType >::overlaps(), box::refineBox(), and box::refineBox().

Here is the caller graph for this function:

overlaps() [2/2]

bool overlaps ( const point & centre, const scalar radiusSqr ) const

inline

Overlaps with other bounding box, sphere etc?

Definition at line 568 of file boundBoxI.H.

intersects() [4/5]

bool intersects

(

const plane &

pln

)

const

intersects other bounding box, sphere etc?

intersects() [5/5]

bool intersects

(

const triPointRef &

tri

)

const

intersects other bounding box, sphere etc?

contains() [2/6]

bool contains ( const point & pt ) const

inline

Contains point or other bounding box?

Definition at line 577 of file boundBoxI.H.

contains() [3/6]

bool contains ( const boundBox & bb ) const

inline

Contains point or other bounding box?

Definition at line 582 of file boundBoxI.H.

contains() [4/6]

bool contains

(

const UList< point > &

points

)

const

Contains point or other bounding box?

contains() [5/6]

template<unsigned N>

bool contains	(	const UList< point > &	points,
		const FixedList< label, N > &	indices ) const

Contains point or other bounding box?

contains() [6/6]

template<class IntContainer>

bool contains	(	const UList< point > &	points,
		const IntContainer &	indices ) const

Contains point or other bounding box?

Friends And Related Symbol Documentation

operator>>

Istream & operator>> ( Istream & is, treeBoundBox & bb )

friend

References treeBoundBox().

operator<<

Ostream & operator<< ( Ostream & os, const treeBoundBox & bb )

friend

References os(), and treeBoundBox().

Member Data Documentation

faces

const faceList faces

static

Face to point addressing, using octant corner points.

Definition at line 174 of file treeBoundBox.H.

Referenced by searchableBox::boundingSpheres(), searchableBox::coordinates(), searchableRotatedBox::overlaps(), OBJstream::write(), box::writeBoxes(), AABBTreeBase::writeOBJ(), and indexedOctreeBase::writeOBJ().

edges

const edgeList edges

static

Edge to point addressing, using octant corner points.

Definition at line 179 of file treeBoundBox.H.

Referenced by triangleFuncs::intersectBb(), searchableRotatedBox::overlaps(), OBJstream::write(), AABBTreeBase::writeOBJ(), indexedOctreeBase::writeOBJ(), and Foam::meshTools::writeOBJ().

---

The documentation for this class was generated from the following files:

• src/OpenFOAM/meshes/treeBoundBox/treeBoundBox.H
• src/OpenFOAM/meshes/treeBoundBox/treeBoundBoxI.H
