A bounding box defined in terms of min/max extrema points. More...

#include <boundBox.H>

Inheritance diagram for boundBox:

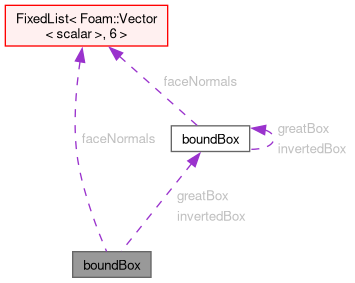

Collaboration diagram for boundBox:

[legend]

Public Types
enum	directionBit : direction { XDIR = 1 , YDIR = 2 , ZDIR = 4 }
	Bits used for (x/y/z) directional encoding. More...

Public Member Functions
	boundBox ()
	Default construct: an inverted bounding box.
	boundBox (const boundBox &)=default
	Copy construct.
boundBox &	operator= (const boundBox &)=default
	Copy assignment.
	boundBox (const boundBox &bb, bool doReduce)
	Copy construct with specified global reduction.
	boundBox (const point &p)
	Construct a bounding box containing a single initial point.
	boundBox (Foam::zero_one)
	Construct a 0/1 unit bounding box.
	boundBox (const point &min, const point &max)
	Construct from bound box min/max points.
	boundBox (const Pair< point > &bb)
	Construct from bound box min/max points.
	boundBox (const UList< point > &points, bool doReduce=true)
	Construct as the bounding box of the given points.
	boundBox (const tmp< pointField > &tpoints, bool doReduce=true)
	Construct as the bounding box of the given temporary pointField.
	boundBox (const UList< point > &points, const labelUList &indices, bool doReduce=true)
	Construct bounding box as an indirect subset of the points.
template<unsigned N>
	boundBox (const UList< point > &points, const FixedList< label, N > &indices, bool doReduce=true)
	Construct bounding box as an indirect subset of the points.
	boundBox (Istream &is)
	Construct from Istream.
bool	empty () const
	Bounding box is inverted, contains no points.

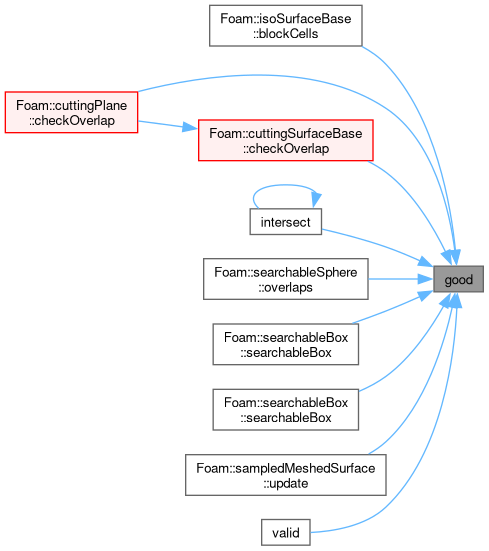

bool	good () const
	Bounding box is non-inverted.
bool	valid () const
	Bounding box is non-inverted - same as good().
const point &	min () const noexcept
	Minimum describing the bounding box.
const point &	max () const noexcept
	Maximum describing the bounding box.
point &	min () noexcept
	Minimum describing the bounding box, non-const access.
point &	max () noexcept
	Maximum describing the bounding box, non-const access.
point	centre () const
	The centre (midpoint) of the bounding box.

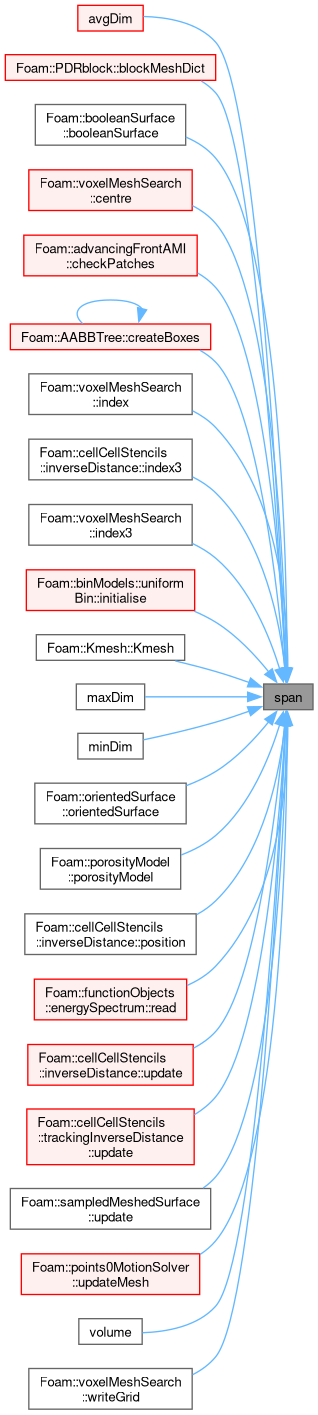

vector	span () const
	The bounding box span (from minimum to maximum).
scalar	mag () const
	The magnitude/length of the bounding box diagonal.

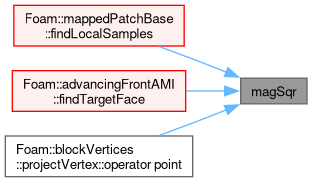

scalar	magSqr () const
	The magnitude/length squared of bounding box diagonal.
scalar	volume () const
	The volume of the bound box.
scalar	minDim () const
	Smallest length/height/width dimension.
scalar	maxDim () const
	Largest length/height/width dimension.
scalar	avgDim () const
	Average length/height/width dimension.
direction	minDir () const
	Direction (X/Y/Z) of the smallest span (for empty box: 0).
direction	maxDir () const
	Direction (X/Y/Z) of the largest span (for empty box: 0).
int	nDim () const
	Count the number of positive, non-zero dimensions.
template<direction CornerNumber>
point	hexCorner () const
	Return corner point [0..7] corresponding to a 'hex' cell.
tmp< pointField >	hexCorners () const
	Corner points in an order corresponding to a 'hex' cell.

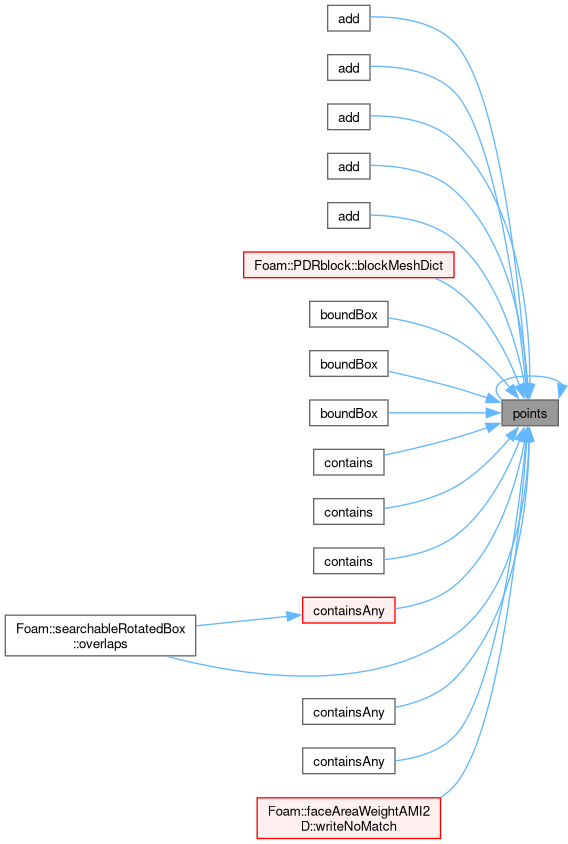

tmp< pointField >	points () const
	Corner points in an order corresponding to a 'hex' cell.
tmp< pointField >	faceCentres () const
	Face midpoints.
point	faceCentre (const direction facei) const
	Face centre of given face index.

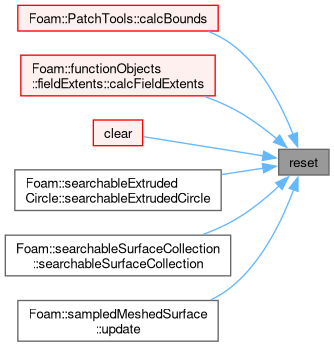

void	reset ()
	Reset to an inverted box.
void	reset (Foam::zero_one)
	Reset to a 0/1 unit bounding box.
void	reset (const point &pt)
	Reset min/max to be identical to the specified point.
void	reset (const point &min, const point &max)
	Reset min/max to specified values.
void	clear ()
	Same as reset() - reset to an inverted box.

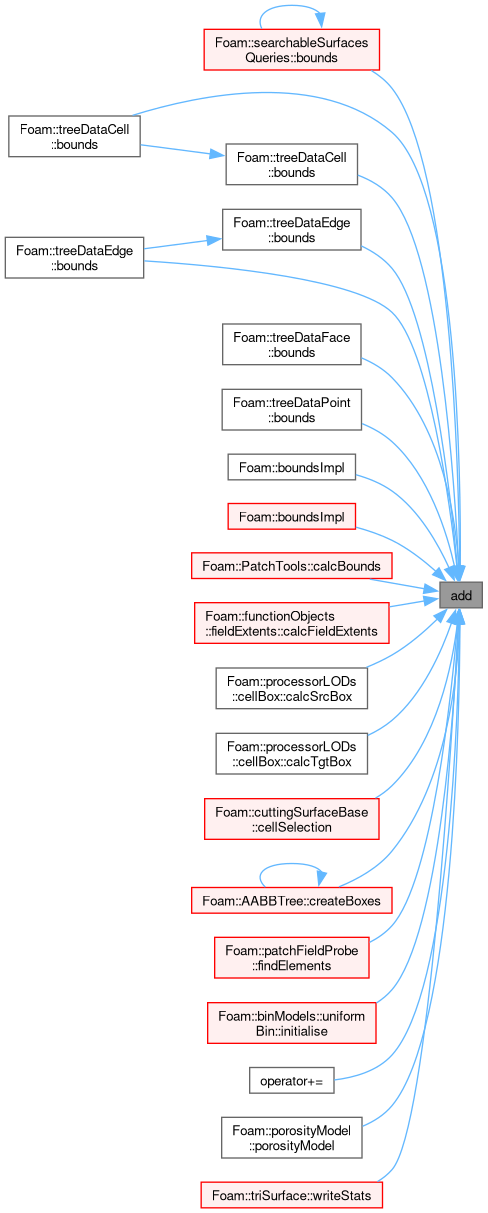

void	add (const boundBox &bb)
	Extend to include the second box.
void	add (const point &pt)
	Extend to include the point.
void	add (const point &pt0, const point &pt1)
	Extend to include two additional points.
void	add (const Pair< point > &points)
	Extend to include two additional points.
void	add (const UList< point > &points)
	Extend to include the points.
void	add (const tmp< pointField > &tpoints)
	Extend to include the points from the temporary point field.
template<unsigned N>
void	add (const FixedList< point, N > &points)
	Extend to include the points.
template<unsigned N>
void	add (const UList< point > &points, const FixedList< label, N > &indices)
	Extend to include a (subsetted) point field.
template<class IntContainer>
void	add (const UList< point > &points, const IntContainer &indices)
	Extend to include a (subsetted) point field.
void	grow (const scalar delta)
	Expand box by adjusting min/max by specified amount in each dimension.
void	grow (const vector &delta)
	Expand box by adjusting min/max by specified amounts.
void	inflate (const scalar factor)
	Expand box by factor*mag(span) in all dimensions.
void	inflate (Random &rndGen, const scalar factor)
	Expand box slightly by expanding all dimensions with factorspan(random 0-1) and guarantees factor*mag(span) minimum width in any direction.
void	inflate (Random &r, const scalar factor, const scalar delta)
	As per two parameter version but with additional grow() by given amount in each dimension.
void	reduce ()
	Inplace parallel reduction of min/max values, using UPstream::worldComm.
void	reduce (int communicator)
	Inplace parallel reduction of min/max values, using the specified communicator.
bool	intersects (const plane &pln) const
	Does plane intersect this bounding box.
bool	intersects (const triPointRef &tri) const
	Does triangle intersect this bounding box or is contained within this bounding box.

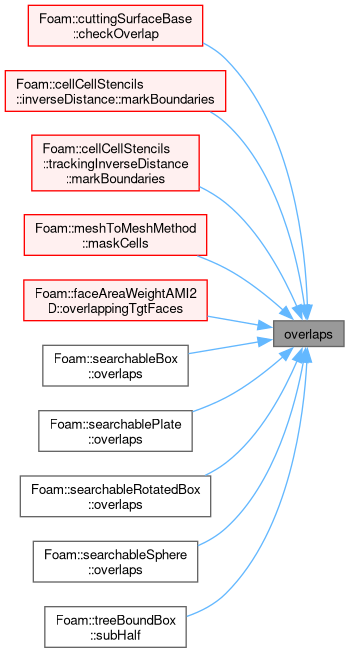

bool	overlaps (const boundBox &bb) const
	Overlaps/touches boundingBox?
bool	overlaps (const point &centre, const scalar radiusSqr) const
	Overlaps boundingSphere (centre + sqr(radius))?
bool	contains (const point &pt) const
	Contains point? (inside or on edge).
bool	contains (const boundBox &bb) const
	Fully contains other boundingBox?
bool	containsInside (const point &pt) const
	Contains point? (inside only).
bool	contains (const UList< point > &points) const
	Contains all points? (inside or on edge).
template<unsigned N>
bool	contains (const UList< point > &points, const FixedList< label, N > &indices) const
	Contains all of the (subsetted) points? (inside or on edge).
template<class IntContainer>
bool	contains (const UList< point > &points, const IntContainer &indices) const
	Contains all of the (subsetted) points? (inside or on edge).
bool	containsAny (const UList< point > &points) const
	Contains any of the points? (inside or on edge).
template<unsigned N>
bool	containsAny (const UList< point > &points, const FixedList< label, N > &indices) const
	Contains any of the (subsetted) points? (inside or on edge).
template<class IntContainer>
bool	containsAny (const UList< point > &points, const IntContainer &indices) const
	Contains any of the (subsetted) points? (inside or on edge).
point	nearest (const point &p) const
	Return the nearest point on the boundBox to the supplied point.
void	operator&= (const boundBox &bb)
	Restrict min/max to union with other box.
void	operator+= (const boundBox &bb)
	Extend box to include the second box, as per the add() method.
bool	intersect (const boundBox &bb)
	Deprecated(2022-10) - use 'operator&=' to avoid confusion with other intersects() methods.
point	midpoint () const
	Identical to centre().
template<>
Foam::point	hexCorner () const
template<>
Foam::point	hexCorner () const
template<>
Foam::point	hexCorner () const
template<>
Foam::point	hexCorner () const
template<>
Foam::point	hexCorner () const
template<>
Foam::point	hexCorner () const
template<>
Foam::point	hexCorner () const
template<>
Foam::point	hexCorner () const
template<Foam::direction CornerNumber>
Foam::point	hexCorner () const

Static Public Member Functions
static const boundBox &	null () noexcept
	The null boundBox is the same as an inverted box.
static const Foam::faceList &	hexFaces ()
	The boundBox faces as a hexCell, using hexCorner points. Same as hexCell::modelFaces().
static constexpr label	nPoints () noexcept
	Number of points for boundBox and HEX.
static constexpr label	nEdges () noexcept
	Number of edges for boundBox and HEX.
static constexpr label	nFaces () noexcept
	Number of faces for boundBox and HEX.
static boundBox	returnReduce (const boundBox &bb)
	Perform a reduction on a copy and return the result, using UPstream::worldComm.
static boundBox	returnReduce (const boundBox &bb, int communicator)
	Perform a reduction on a copy and return the result, using the specified communicator.

Static Public Attributes
static const boundBox	greatBox
	A large boundBox: min/max == -/+ ROOTVGREAT.
static const boundBox	invertedBox
	A large inverted boundBox: min/max == +/- ROOTVGREAT.
static const FixedList< vector, 6 >	faceNormals
	The unit normal per face.

Static Protected Member Functions
static bool	box_box_overlaps (const point &minA, const point &maxA, const point &minB, const point &maxB)
	Test for overlap of box and box (inclusive check).
static bool	box_sphere_overlaps (const point &corner0, const point &corner1, const point &centre, const scalar radiusSqr)
	Test for overlap of box and boundingSphere (centre + sqr(radius)).

Friends
Istream &	operator>> (Istream &is, boundBox &bb)
Ostream &	operator<< (Ostream &os, const boundBox &bb)

Detailed Description

A bounding box defined in terms of min/max extrema points.

Note: When a bounding box is created without any points, it creates an inverted bounding box. Points can be added later and the bounding box will grow to include them.

See also: Foam::treeBoundBox

Source files

Definition at line 70 of file boundBox.H.

Member Enumeration Documentation

◆ directionBit

enum directionBit : direction

Bits used for (x/y/z) directional encoding.

Enumerator
XDIR	1: x-direction. Same as (1 << vector::X)
YDIR	2: y-direction. Same as (1 << vector::Y)
ZDIR	4: z-direction. Same as (1 << vector::Z)

Definition at line 116 of file boundBox.H.

Constructor & Destructor Documentation

◆ boundBox() [1/12]

boundBox ( )

inline

Default construct: an inverted bounding box.

Definition at line 101 of file boundBoxI.H.

References invertedBox, max(), and min().

Referenced by add(), boundBox(), boundBox(), contains(), intersect(), intersects(), null(), operator&=(), operator+=(), operator<<, operator=(), treeBoundBox::operator=(), operator>>, overlaps(), returnReduce(), returnReduce(), treeBoundBox::subOverlaps(), treeBoundBox::treeBoundBox(), treeBoundBox::treeBoundBox(), treeBoundBox::treeBoundBox(), treeBoundBox::treeBoundBox(), treeBoundBox::treeBoundBox(), and treeBoundBox::treeBoundBox().

Here is the call graph for this function:

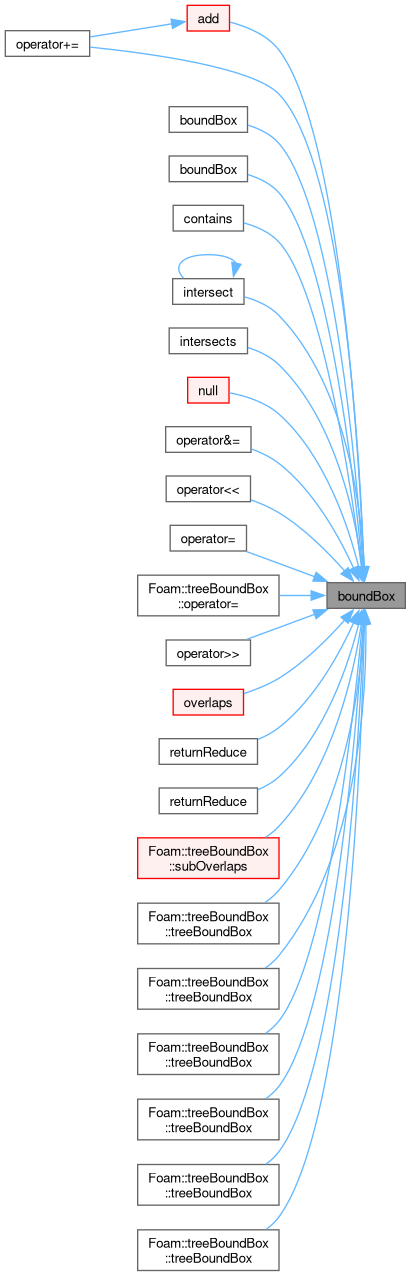

Here is the caller graph for this function:

◆ boundBox() [2/12]

boundBox ( const boundBox & )

default

Copy construct.

References boundBox().

Here is the call graph for this function:

◆ boundBox() [3/12]

boundBox	(	const boundBox &	bb,
		bool	doReduce )

Copy construct with specified global reduction.

References boundBox(), max(), min(), and p.

Here is the call graph for this function:

◆ boundBox() [4/12]

boundBox ( const point & p )

inlineexplicit

Construct a bounding box containing a single initial point.

Definition at line 115 of file boundBoxI.H.

References p.

◆ boundBox() [5/12]

boundBox ( Foam::zero_one )

inlineexplicit

Construct a 0/1 unit bounding box.

Definition at line 108 of file boundBoxI.H.

◆ boundBox() [6/12]

boundBox	(	const point &	min,
		const point &	max )

inline

Construct from bound box min/max points.

Definition at line 122 of file boundBoxI.H.

References max(), and min().

Here is the call graph for this function:

◆ boundBox() [7/12]

boundBox ( const Pair< point > & bb )

inlineexplicit

Construct from bound box min/max points.

TBD: Construct from bound box min/max points inline explicit boundBox(const MinMax<point>& bb);

Definition at line 129 of file boundBoxI.H.

◆ boundBox() [8/12]

boundBox	(	const UList< point > &	points,
		bool	doReduce = true )

explicit

Construct as the bounding box of the given points.

Does parallel communication (doReduce = true)

References points().

Here is the call graph for this function:

◆ boundBox() [9/12]

boundBox	(	const tmp< pointField > &	tpoints,
		bool	doReduce = true )

explicit

Construct as the bounding box of the given temporary pointField.

Does parallel communication (doReduce = true)

◆ boundBox() [10/12]

boundBox	(	const UList< point > &	points,
		const labelUList &	indices,
		bool	doReduce = true )

Construct bounding box as an indirect subset of the points.

The indices could be from cell/face etc. Does parallel communication (doReduce = true)

References points().

Here is the call graph for this function:

◆ boundBox() [11/12]

template<unsigned N>

boundBox	(	const UList< point > &	points,
		const FixedList< label, N > &	indices,
		bool	doReduce = true )

Construct bounding box as an indirect subset of the points.

The indices could be from edge/triFace etc. Does parallel communication (doReduce = true)

References points().

Here is the call graph for this function:

◆ boundBox() [12/12]

boundBox ( Istream & is )

inlineexplicit

Construct from Istream.

Definition at line 136 of file boundBoxI.H.

References Foam::operator>>().

Here is the call graph for this function:

Member Function Documentation

◆ box_box_overlaps()

bool box_box_overlaps	(	const point &	minA,
		const point &	maxA,
		const point &	minB,
		const point &	maxB )

inlinestaticprotected

Test for overlap of box and box (inclusive check).

Definition at line 387 of file boundBoxI.H.

References Vector< Cmpt >::x(), Vector< Cmpt >::y(), and Vector< Cmpt >::z().

Referenced by overlaps().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ box_sphere_overlaps()

bool box_sphere_overlaps	(	const point &	corner0,
		const point &	corner1,
		const point &	centre,
		const scalar	radiusSqr )

inlinestaticprotected

Test for overlap of box and boundingSphere (centre + sqr(radius)).

Note: ordering of corners is irrelevant

Definition at line 402 of file boundBoxI.H.

References centre(), Foam::magSqr(), Foam::min(), and VectorSpace< Form, Cmpt, Ncmpts >::nComponents.

Referenced by overlaps(), and treeBoundBox::subOverlaps().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ null()

const boundBox & null ( )

inlinestaticnoexcept

The null boundBox is the same as an inverted box.

Definition at line 144 of file boundBox.H.

References boundBox(), invertedBox, and Foam::noexcept.

Referenced by cellCentreSet::TypeName(), and sampledCuttingSurface::TypeName().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ hexFaces()

const Foam::faceList & hexFaces ( )

static

The boundBox faces as a hexCell, using hexCorner points. Same as hexCell::modelFaces().

◆ nPoints()

constexpr label nPoints ( )

inlinestaticconstexprnoexcept

Number of points for boundBox and HEX.

Definition at line 158 of file boundBox.H.

References Foam::noexcept.

◆ nEdges()

constexpr label nEdges ( )

inlinestaticconstexprnoexcept

Number of edges for boundBox and HEX.

Definition at line 163 of file boundBox.H.

References Foam::noexcept.

◆ nFaces()

constexpr label nFaces ( )

inlinestaticconstexprnoexcept

Number of faces for boundBox and HEX.

Definition at line 168 of file boundBox.H.

References Foam::noexcept.

◆ operator=()

boundBox & operator= ( const boundBox & )

default

Copy assignment.

References boundBox().

Here is the call graph for this function:

◆ empty()

bool empty ( ) const

inline

Bounding box is inverted, contains no points.

Definition at line 144 of file boundBoxI.H.

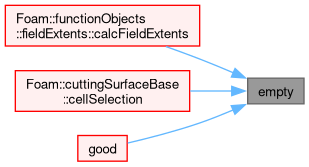

Referenced by fieldExtents::calcFieldExtents(), cuttingSurfaceBase::cellSelection(), and good().

Here is the caller graph for this function:

◆ good()

bool good ( ) const

inline

Bounding box is non-inverted.

Definition at line 156 of file boundBoxI.H.

References empty().

Referenced by isoSurfaceBase::blockCells(), cuttingPlane::checkOverlap(), cuttingSurfaceBase::checkOverlap(), intersect(), searchableSphere::overlaps(), searchableBox::searchableBox(), searchableBox::searchableBox(), sampledMeshedSurface::update(), and valid().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ valid()

bool valid ( ) const

inline

Bounding box is non-inverted - same as good().

Definition at line 283 of file boundBox.H.

References good().

Here is the call graph for this function:

◆ min() [1/2]

const Foam::point & min ( ) const

inlinenoexcept

Minimum describing the bounding box.

Definition at line 162 of file boundBoxI.H.

References Foam::noexcept.

Referenced by PDRblock::blockMeshDict(), boundBox(), boundBox(), boundBox(), eddy::bounds(), fieldExtents::calcFieldExtents(), voxelMeshSearch::centre(), advancingFrontAMI::checkPatches(), contains(), AABBTree< Type >::createBoxes(), faceCentre(), inverseDistance::fill(), voxelMeshSearch::fill(), voxelMeshSearch::fill(), boundaryMesh::getNearest(), voxelMeshSearch::index(), inverseDistance::index3(), voxelMeshSearch::index3(), uniformBin::initialise(), waveMakerPointPatchVectorField::initialiseGeometry(), waveModel::initialiseGeometry(), projectVertex::operator point(), Foam::operator<(), Foam::operator==(), overlaps(), inverseDistance::overlaps(), searchableSphere::overlaps(), voxelMeshSearch::overlaps(), inverseDistance::position(), powerLawLopesdaCostaZone::powerLawLopesdaCostaZone(), Foam::readBoxDim(), reset(), PDRblock::reset(), searchableDisk::searchableDisk(), searchableSphere::searchableSphere(), searchableSurfaceCollection::searchableSurfaceCollection(), treeBoundBox::searchOrder(), treeBoundBox::treeBoundBox(), inverseDistance::update(), trackingInverseDistance::update(), topoSet::writeDebug(), and voxelMeshSearch::writeGrid().

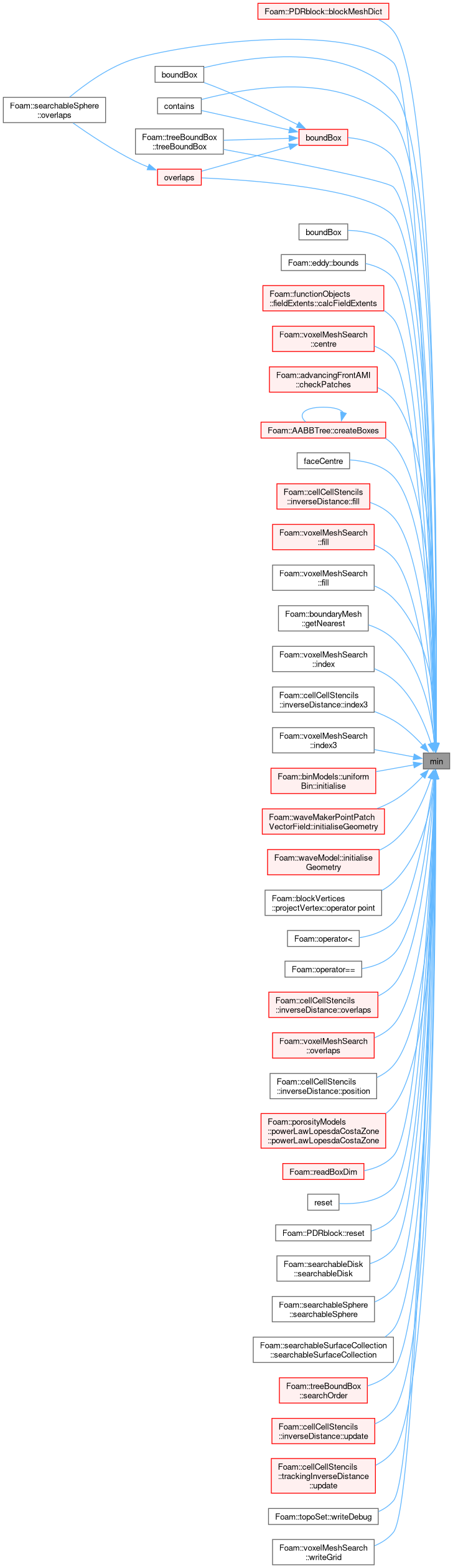

Here is the caller graph for this function:

◆ max() [1/2]

const Foam::point & max ( ) const

inlinenoexcept

Maximum describing the bounding box.

Definition at line 168 of file boundBoxI.H.

References Foam::noexcept.

Referenced by PDRblock::blockMeshDict(), boundBox(), boundBox(), boundBox(), eddy::bounds(), fieldExtents::calcFieldExtents(), advancingFrontAMI::checkPatches(), contains(), faceCentre(), inverseDistance::fill(), voxelMeshSearch::fill(), voxelMeshSearch::fill(), boundaryMesh::getNearest(), uniformBin::initialise(), waveMakerPointPatchVectorField::initialiseGeometry(), waveModel::initialiseGeometry(), Kmesh::Kmesh(), projectVertex::operator point(), Foam::operator<(), Foam::operator==(), orientedSurface::orientedSurface(), overlaps(), inverseDistance::overlaps(), searchableSphere::overlaps(), voxelMeshSearch::overlaps(), powerLawLopesdaCostaZone::powerLawLopesdaCostaZone(), Foam::readBoxDim(), reset(), PDRblock::reset(), searchableDisk::searchableDisk(), searchableSphere::searchableSphere(), searchableSurfaceCollection::searchableSurfaceCollection(), treeBoundBox::searchOrder(), treeBoundBox::treeBoundBox(), and topoSet::writeDebug().

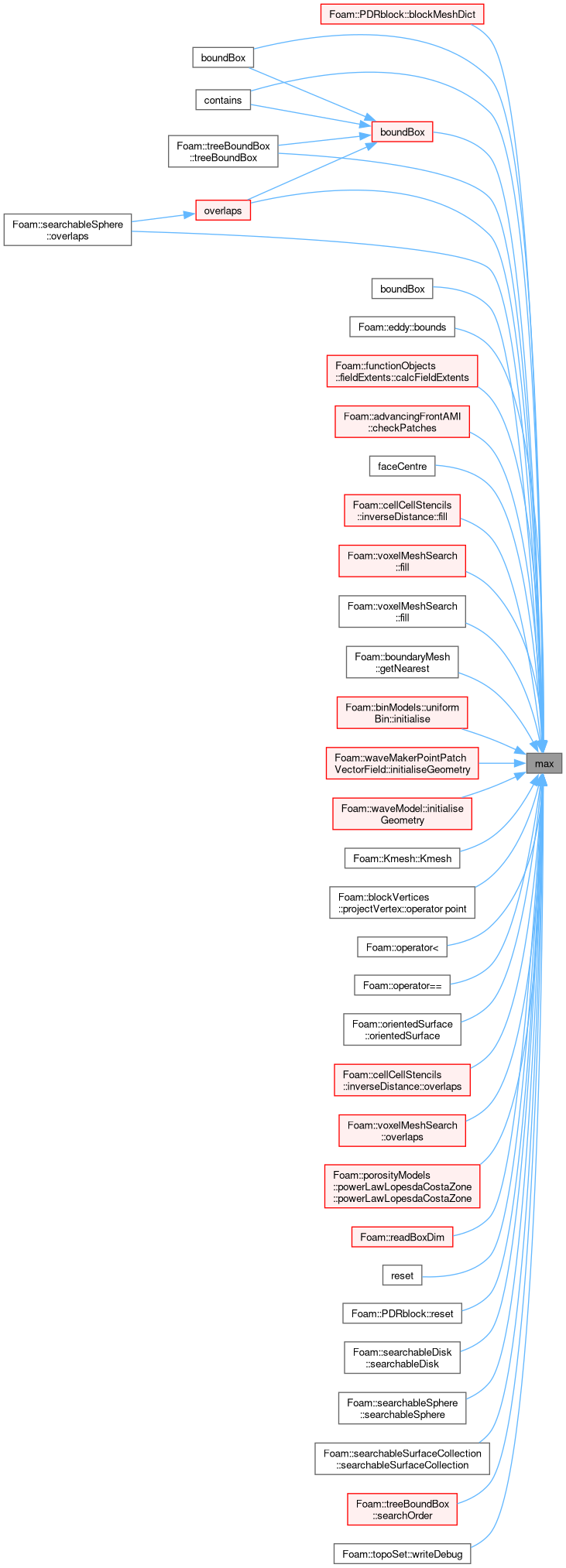

Here is the caller graph for this function:

◆ min() [2/2]

Foam::point & min ( )

inlinenoexcept

Minimum describing the bounding box, non-const access.

Definition at line 174 of file boundBoxI.H.

References Foam::noexcept.

◆ max() [2/2]

Foam::point & max ( )

inlinenoexcept

Maximum describing the bounding box, non-const access.

Definition at line 180 of file boundBoxI.H.

References Foam::noexcept.

◆ centre()

Foam::point centre ( ) const

inline

The centre (midpoint) of the bounding box.

Definition at line 186 of file boundBoxI.H.

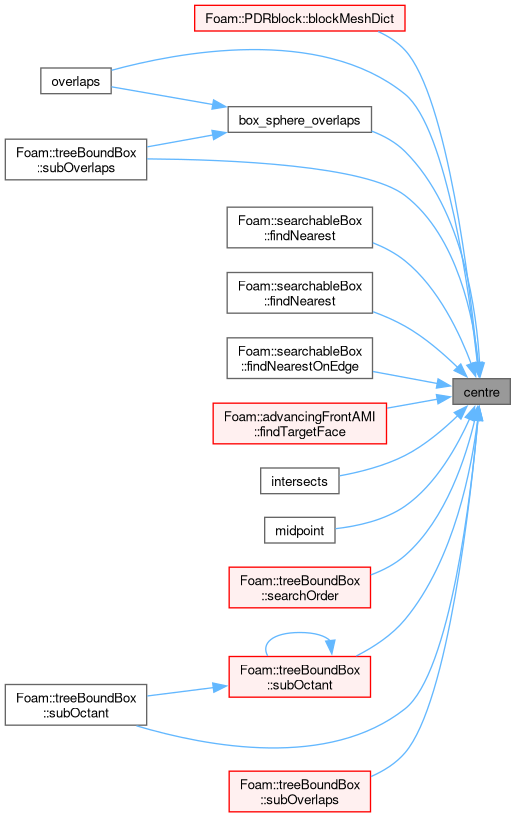

Referenced by PDRblock::blockMeshDict(), box_sphere_overlaps(), searchableBox::findNearest(), searchableBox::findNearest(), searchableBox::findNearestOnEdge(), advancingFrontAMI::findTargetFace(), intersects(), midpoint(), overlaps(), treeBoundBox::searchOrder(), treeBoundBox::subOctant(), treeBoundBox::subOctant(), treeBoundBox::subOverlaps(), and treeBoundBox::subOverlaps().

Here is the caller graph for this function:

◆ span()

Foam::vector span ( ) const

inline

The bounding box span (from minimum to maximum).

Definition at line 192 of file boundBoxI.H.

Referenced by avgDim(), PDRblock::blockMeshDict(), booleanSurface::booleanSurface(), voxelMeshSearch::centre(), advancingFrontAMI::checkPatches(), AABBTree< Type >::createBoxes(), voxelMeshSearch::index(), inverseDistance::index3(), voxelMeshSearch::index3(), uniformBin::initialise(), Kmesh::Kmesh(), maxDim(), minDim(), orientedSurface::orientedSurface(), porosityModel::porosityModel(), inverseDistance::position(), energySpectrum::read(), inverseDistance::update(), trackingInverseDistance::update(), sampledMeshedSurface::update(), points0MotionSolver::updateMesh(), volume(), and voxelMeshSearch::writeGrid().

Here is the caller graph for this function:

◆ mag()

Foam::scalar mag ( ) const

inline

The magnitude/length of the bounding box diagonal.

Definition at line 198 of file boundBoxI.H.

References Vector< Cmpt >::dist().

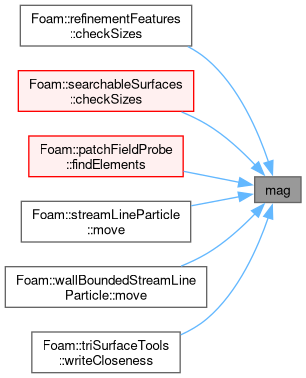

Referenced by refinementFeatures::checkSizes(), searchableSurfaces::checkSizes(), patchFieldProbe::findElements(), streamLineParticle::move(), wallBoundedStreamLineParticle::move(), and triSurfaceTools::writeCloseness().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ magSqr()

Foam::scalar magSqr ( ) const

inline

The magnitude/length squared of bounding box diagonal.

Definition at line 204 of file boundBoxI.H.

Referenced by mappedPatchBase::findLocalSamples(), advancingFrontAMI::findTargetFace(), and projectVertex::operator point().

Here is the caller graph for this function:

◆ volume()

Foam::scalar volume ( ) const

inline

The volume of the bound box.

Definition at line 210 of file boundBoxI.H.

References Foam::cmptProduct(), and span().

Here is the call graph for this function:

◆ minDim()

Foam::scalar minDim ( ) const

inline

Smallest length/height/width dimension.

Definition at line 216 of file boundBoxI.H.

References Foam::cmptMin(), and span().

Here is the call graph for this function:

◆ maxDim()

Foam::scalar maxDim ( ) const

inline

Largest length/height/width dimension.

Definition at line 222 of file boundBoxI.H.

References Foam::cmptMax(), and span().

Here is the call graph for this function:

◆ avgDim()

Foam::scalar avgDim ( ) const

inline

Average length/height/width dimension.

Definition at line 228 of file boundBoxI.H.

References Foam::cmptAv(), and span().

Referenced by boundaryMesh::getNearest(), and treeBoundBox::typDim().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ minDir()

Foam::direction minDir ( ) const

inline

Direction (X/Y/Z) of the smallest span (for empty box: 0).

Definition at line 234 of file boundBoxI.H.

References VectorSpace< Form, Cmpt, Ncmpts >::nComponents.

◆ maxDir()

Foam::direction maxDir ( ) const

inline

Direction (X/Y/Z) of the largest span (for empty box: 0).

Definition at line 254 of file boundBoxI.H.

References VectorSpace< Form, Cmpt, Ncmpts >::nComponents.

Referenced by AABBTree< Type >::createBoxes().

Here is the caller graph for this function:

◆ nDim()

int nDim ( ) const

inline

Count the number of positive, non-zero dimensions.

Returns

-1 : if any dimensions are negative
0 : 0D (point)
1 : 1D (line aligned with an axis)
2 : 2D (plane aligned with an axis)
3 : 3D (box)

Definition at line 274 of file boundBoxI.H.

References VectorSpace< Form, Cmpt, Ncmpts >::nComponents.

◆ hexCorner() [1/10]

template<direction CornerNumber>

point hexCorner ( ) const

inline

Return corner point [0..7] corresponding to a 'hex' cell.

References hexCorner().

Referenced by hexCorner().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ hexCorners()

tmp< pointField > hexCorners ( ) const

Corner points in an order corresponding to a 'hex' cell.

References hexCorners().

Referenced by hexCorners(), points(), and ensightCells::writeBox().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ points()

tmp< pointField > points ( ) const

inline

Corner points in an order corresponding to a 'hex' cell.

Definition at line 381 of file boundBox.H.

References hexCorners(), and points().

Referenced by add(), add(), add(), add(), add(), PDRblock::blockMeshDict(), boundBox(), boundBox(), boundBox(), contains(), contains(), contains(), containsAny(), containsAny(), containsAny(), searchableRotatedBox::overlaps(), points(), and faceAreaWeightAMI2D::writeNoMatch().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ faceCentres()

tmp< pointField > faceCentres ( ) const

Face midpoints.

◆ faceCentre()

point faceCentre ( const direction facei ) const

Face centre of given face index.

References max(), and min().

Here is the call graph for this function:

◆ reset() [1/4]

void reset ( )

inline

Reset to an inverted box.

Definition at line 295 of file boundBoxI.H.

References invertedBox.

Referenced by PatchTools::calcBounds(), fieldExtents::calcFieldExtents(), clear(), searchableExtrudedCircle::searchableExtrudedCircle(), searchableSurfaceCollection::searchableSurfaceCollection(), and sampledMeshedSurface::update().

Here is the caller graph for this function:

◆ reset() [2/4]

void reset ( Foam::zero_one )

inline

Reset to a 0/1 unit bounding box.

Definition at line 302 of file boundBoxI.H.

References VectorSpace< Form, Cmpt, Ncmpts >::one, and VectorSpace< Form, Cmpt, Ncmpts >::zero.

◆ reset() [3/4]

void reset ( const point & pt )

inline

Reset min/max to be identical to the specified point.

Definition at line 309 of file boundBoxI.H.

◆ reset() [4/4]

void reset	(	const point &	min,
		const point &	max )

inline

Reset min/max to specified values.

Definition at line 316 of file boundBoxI.H.

References max(), and min().

Here is the call graph for this function:

◆ clear()

void clear ( )

inline

Same as reset() - reset to an inverted box.

Definition at line 419 of file boundBox.H.

References reset().

Referenced by cuttingSurfaceBase::cellSelection().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ add() [1/9]

void add ( const boundBox & bb )

inline

Extend to include the second box.

Definition at line 323 of file boundBoxI.H.

References boundBox(), Foam::max(), and Foam::min().

Referenced by searchableSurfacesQueries::bounds(), treeDataCell::bounds(), treeDataCell::bounds(), treeDataEdge::bounds(), treeDataEdge::bounds(), treeDataFace::bounds(), treeDataPoint::bounds(), Foam::boundsImpl(), Foam::boundsImpl(), PatchTools::calcBounds(), fieldExtents::calcFieldExtents(), cellBox::calcSrcBox(), cellBox::calcTgtBox(), cuttingSurfaceBase::cellSelection(), AABBTree< Type >::createBoxes(), patchFieldProbe::findElements(), uniformBin::initialise(), operator+=(), porosityModel::porosityModel(), and triSurface::writeStats().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ add() [2/9]

void add ( const point & pt )

inline

Extend to include the point.

Definition at line 330 of file boundBoxI.H.

References Foam::max(), and Foam::min().

Here is the call graph for this function:

◆ add() [3/9]

void add	(	const point &	pt0,
		const point &	pt1 )

inline

Extend to include two additional points.

Definition at line 337 of file boundBoxI.H.

References Foam::add().

Here is the call graph for this function:

◆ add() [4/9]

void add ( const Pair< point > & points )

inline

Extend to include two additional points.

Definition at line 344 of file boundBoxI.H.

References Foam::add(), and points().

Here is the call graph for this function:

◆ add() [5/9]

void add ( const UList< point > & points )

inline

Extend to include the points.

Definition at line 351 of file boundBoxI.H.

References Foam::add(), p, and points().

Here is the call graph for this function:

◆ add() [6/9]

void add ( const tmp< pointField > & tpoints )

inline

Extend to include the points from the temporary point field.

Definition at line 360 of file boundBoxI.H.

References Foam::add(), and tmp< T >::clear().

Here is the call graph for this function:

◆ add() [7/9]

template<unsigned N>

void add ( const FixedList< point, N > & points )

Extend to include the points.

References points().

Here is the call graph for this function:

◆ add() [8/9]

template<unsigned N>

void add	(	const UList< point > &	points,
		const FixedList< label, N > &	indices )

Extend to include a (subsetted) point field.

The indices could be from edge/triFace etc.

References points().

Here is the call graph for this function:

◆ add() [9/9]

template<class IntContainer>

void add	(	const UList< point > &	points,
		const IntContainer &	indices )

Extend to include a (subsetted) point field.

Template Parameters

IntContainer A container with an iterator that dereferences to an label

References delta, and points().

Here is the call graph for this function:

◆ grow() [1/2]

void grow ( const scalar delta )

inline

Expand box by adjusting min/max by specified amount in each dimension.

Definition at line 367 of file boundBoxI.H.

References delta.

Referenced by faceAreaWeightAMI2D::calculate(), Foam::createTree(), dynamicTreeDataPoint::findNearest(), inflate(), inverseDistance::markBoundaries(), trackingInverseDistance::markBoundaries(), inverseDistance::markDonors(), trackingInverseDistance::markDonors(), inverseDistance::markPatchesAsHoles(), trackingInverseDistance::markPatchesAsHoles(), treeDataEdge::findNearestOp::operator()(), treeDataPoint::findNearestOp::operator()(), searchableExtrudedCircle::searchableExtrudedCircle(), and sampledMeshedSurface::update().

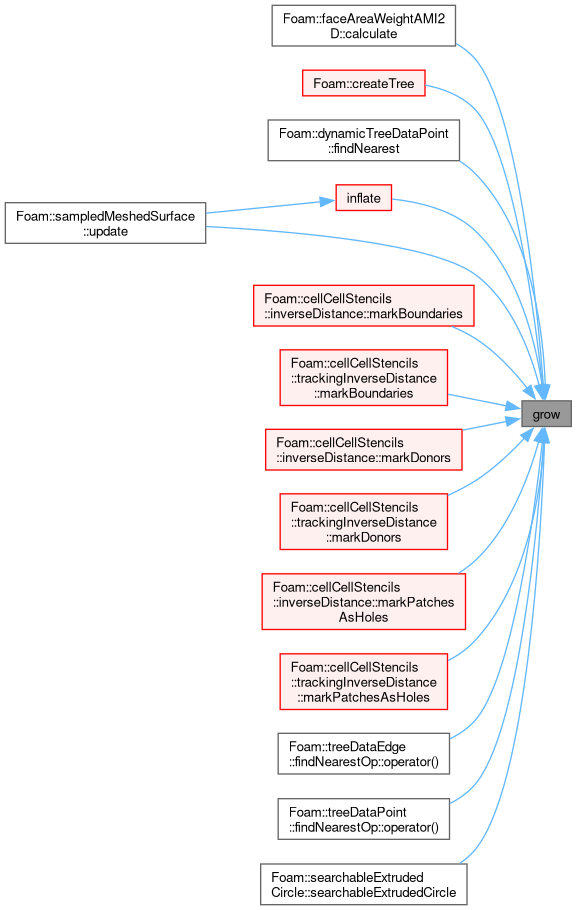

Here is the caller graph for this function:

◆ grow() [2/2]

void grow ( const vector & delta )

inline

Expand box by adjusting min/max by specified amounts.

Definition at line 374 of file boundBoxI.H.

References delta.

◆ inflate() [1/3]

void inflate ( const scalar factor )

inline

Expand box by factor*mag(span) in all dimensions.

Definition at line 381 of file boundBoxI.H.

References grow(), and Foam::mag().

Referenced by AABBTree< Type >::AABBTree(), polyMesh::cellTree(), advancingFrontAMI::checkPatches(), AABBTree< Type >::createBoxes(), AMIInterpolation::createTree(), edgeSlipDisplacementPointPatchVectorField::edgeTree(), triSurfaceMesh::edgeTree(), treeBoundBox::extend(), treeBoundBox::extend(), patchFieldProbe::findElements(), meshToMeshMethod::maskCells(), surfaceFeatures::nearestFeatEdge(), surfaceFeatures::nearestSurfEdge(), primitiveMesh::pointInCellBB(), pointAttractionDisplacementPointPatchVectorField::pointTree(), refinementFeatures::regionEdgeTrees(), Foam::simpleGeometricFilter(), triSurfaceSearch::tree(), triSurfaceRegionSearch::treeByRegion(), sampledMeshedSurface::update(), and propellerInfo::updateSampleDiskCells().

Here is the call graph for this function:

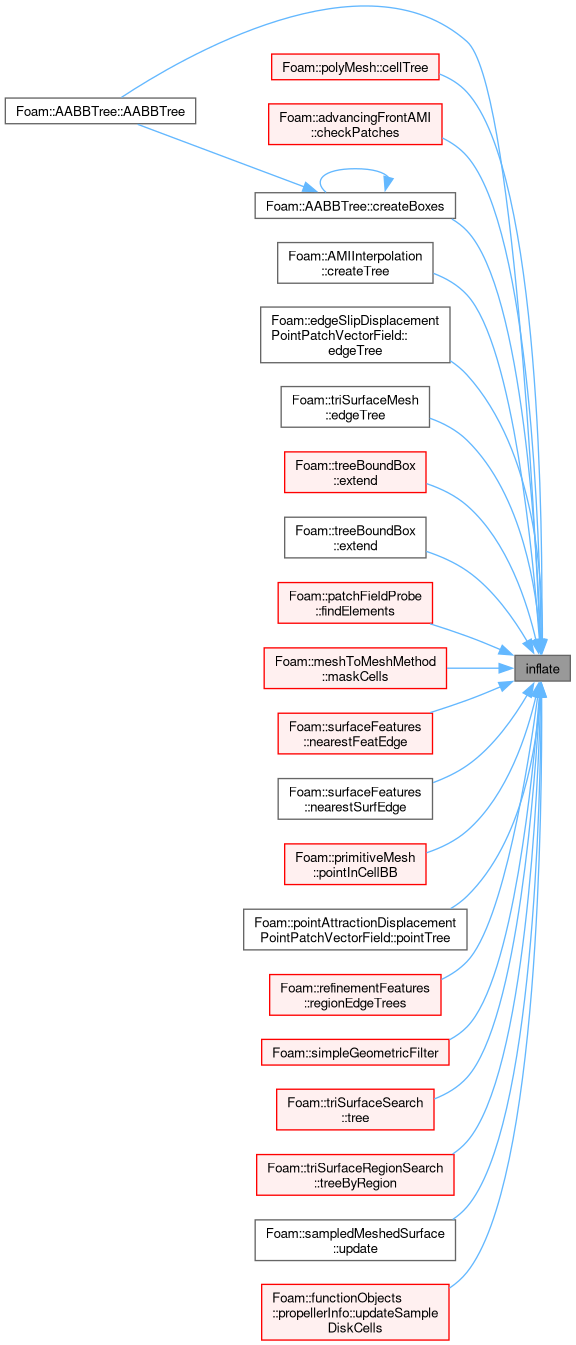

Here is the caller graph for this function:

◆ inflate() [2/3]

void inflate	(	Random &	rndGen,
		const scalar	factor )

Expand box slightly by expanding all dimensions with factor*span*(random 0-1) and guarantees factor*mag(span) minimum width in any direction.

References rndGen.

◆ inflate() [3/3]

void inflate	(	Random &	r,
		const scalar	factor,
		const scalar	delta )

As per two parameter version but with additional grow() by given amount in each dimension.

References delta.

◆ reduce() [1/2]

void reduce ( )

Inplace parallel reduction of min/max values, using UPstream::worldComm.

Referenced by fieldExtents::calcFieldExtents(), cuttingSurfaceBase::cellSelection(), uniformBin::initialise(), porosityModel::porosityModel(), and distributedTriSurfaceMesh::writeStats().

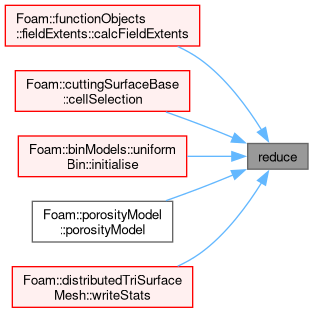

Here is the caller graph for this function:

◆ reduce() [2/2]

void reduce ( int communicator )

Inplace parallel reduction of min/max values, using the specified communicator.

◆ returnReduce() [1/2]

boundBox returnReduce ( const boundBox & bb )

static

Perform a reduction on a copy and return the result, using UPstream::worldComm.

References boundBox().

Here is the call graph for this function:

◆ returnReduce() [2/2]

boundBox returnReduce	(	const boundBox &	bb,
		int	communicator )

static

Perform a reduction on a copy and return the result, using the specified communicator.

References boundBox().

Here is the call graph for this function:

◆ intersects() [1/2]

bool intersects ( const plane & pln ) const

Does plane intersect this bounding box.

There is an intersection if the plane segments the corner points

Note: the results are unreliable when plane coincides almost exactly with a box face

Referenced by cuttingPlane::checkOverlap(), and treeBoundBox::subOverlaps().

Here is the caller graph for this function:

◆ intersects() [2/2]

bool intersects ( const triPointRef & tri ) const

Does triangle intersect this bounding box or is contained within this bounding box.

Note: results may be unreliable when it coincides almost exactly with a box face

References boundBox(), and centre().

Here is the call graph for this function:

◆ overlaps() [1/2]

bool overlaps ( const boundBox & bb ) const

inline

Overlaps/touches boundingBox?

Definition at line 439 of file boundBoxI.H.

References boundBox(), box_box_overlaps(), max(), and min().

Referenced by cuttingSurfaceBase::checkOverlap(), inverseDistance::markBoundaries(), trackingInverseDistance::markBoundaries(), meshToMeshMethod::maskCells(), faceAreaWeightAMI2D::overlappingTgtFaces(), searchableBox::overlaps(), searchablePlate::overlaps(), searchableRotatedBox::overlaps(), searchableSphere::overlaps(), and treeBoundBox::subHalf().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ overlaps() [2/2]

bool overlaps	(	const point &	centre,
		const scalar	radiusSqr ) const

inline

Overlaps boundingSphere (centre + sqr(radius))?

Definition at line 445 of file boundBoxI.H.

References box_sphere_overlaps(), and centre().

Here is the call graph for this function:

◆ contains() [1/5]

bool contains ( const point & pt ) const

inline

Contains point? (inside or on edge).

Definition at line 455 of file boundBoxI.H.

References Vector< Cmpt >::x(), Vector< Cmpt >::y(), and Vector< Cmpt >::z().

Referenced by isoSurfaceBase::blockCells(), cuttingSurfaceBase::cellSelection(), advancingFrontAMI::checkPatches(), contains(), treeBoundBox::intersects(), trackingInverseDistance::markBoundaries(), primitiveMesh::pointInCellBB(), powerLawLopesdaCostaZone::powerLawLopesdaCostaZone(), and Foam::simpleGeometricFilter().

Here is the call graph for this function:

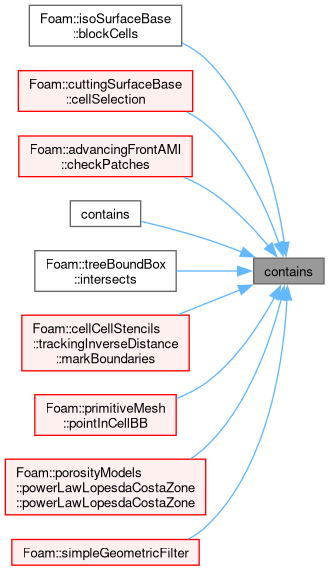

Here is the caller graph for this function:

◆ contains() [2/5]

bool contains ( const boundBox & bb ) const

inline

Fully contains other boundingBox?

Definition at line 466 of file boundBoxI.H.

References boundBox(), contains(), max(), and min().

Here is the call graph for this function:

◆ containsInside()

bool containsInside ( const point & pt ) const

inline

Contains point? (inside only).

Definition at line 472 of file boundBoxI.H.

References Vector< Cmpt >::x(), Vector< Cmpt >::y(), and Vector< Cmpt >::z().

Here is the call graph for this function:

◆ contains() [3/5]

bool contains ( const UList< point > & points ) const

Contains all points? (inside or on edge).

References points().

Here is the call graph for this function:

◆ contains() [4/5]

template<unsigned N>

bool contains	(	const UList< point > &	points,
		const FixedList< label, N > &	indices ) const

Contains all of the (subsetted) points? (inside or on edge).

References points().

Here is the call graph for this function:

◆ contains() [5/5]

template<class IntContainer>

bool contains	(	const UList< point > &	points,
		const IntContainer &	indices ) const

Contains all of the (subsetted) points? (inside or on edge).

Template Parameters

IntContainer A container with an iterator that dereferences to an label

References points().

Here is the call graph for this function:

◆ containsAny() [1/3]

bool containsAny ( const UList< point > & points ) const

Contains any of the points? (inside or on edge).

References points().

Referenced by searchableRotatedBox::overlaps(), treeDataFace::overlaps(), treeDataPrimitivePatch< PatchType >::overlaps(), and triSurfaceTools::triangulate().

Here is the call graph for this function:

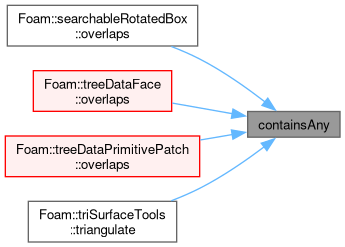

Here is the caller graph for this function:

◆ containsAny() [2/3]

template<unsigned N>

bool containsAny	(	const UList< point > &	points,
		const FixedList< label, N > &	indices ) const

Contains any of the (subsetted) points? (inside or on edge).

References points().

Here is the call graph for this function:

◆ containsAny() [3/3]

template<class IntContainer>

bool containsAny	(	const UList< point > &	points,
		const IntContainer &	indices ) const

Contains any of the (subsetted) points? (inside or on edge).

Template Parameters

IntContainer A container with an iterator that dereferences to an label

References points().

Here is the call graph for this function:

◆ nearest()

point nearest ( const point & p ) const

Return the nearest point on the boundBox to the supplied point.

If point is inside the boundBox then the point is returned unchanged.

References p.

Referenced by treeBoundBox::calcExtremities().

Here is the caller graph for this function:

◆ operator&=()

void operator&= ( const boundBox & bb )

Restrict min/max to union with other box.

References boundBox().

Here is the call graph for this function:

◆ operator+=()

void operator+= ( const boundBox & bb )

inline

Extend box to include the second box, as per the add() method.

Can be used in a reduction operation.

Definition at line 671 of file boundBox.H.

References add(), and boundBox().

Here is the call graph for this function:

◆ intersect()

bool intersect ( const boundBox & bb )

inline

Deprecated(2022-10) - use 'operator&=' to avoid confusion with other intersects() methods.

Deprecated: (2022-10) - use 'operator&='

Definition at line 689 of file boundBox.H.

References boundBox(), good(), and intersect().

Referenced by intersect().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ midpoint()

point midpoint ( ) const

inline

Identical to centre().

Istream & operator>>	(	Istream &	is,
		boundBox &	bb )

friend

References boundBox().

◆ operator<<

Ostream & operator<<	(	Ostream &	os,
		const boundBox &	bb )

Definition at line 136 of file boundBox.H.

Referenced by searchableBox::getNormal().

The documentation for this class was generated from the following files:

src/OpenFOAM/meshes/boundBox/boundBox.H
src/OpenFOAM/meshes/boundBox/boundBoxI.H

Public Types

Public Member Functions

Static Public Member Functions

Static Public Attributes

Static Protected Member Functions

Friends

Detailed Description

Member Enumeration Documentation

◆ directionBit

Constructor & Destructor Documentation

◆ boundBox() [1/12]

◆ boundBox() [2/12]

◆ boundBox() [3/12]

◆ boundBox() [4/12]

◆ boundBox() [5/12]

◆ boundBox() [6/12]

◆ boundBox() [7/12]

◆ boundBox() [8/12]

◆ boundBox() [9/12]

◆ boundBox() [10/12]

◆ boundBox() [11/12]

◆ boundBox() [12/12]

Member Function Documentation

◆ box_box_overlaps()

◆ box_sphere_overlaps()

◆ null()

◆ hexFaces()

◆ nPoints()

◆ nEdges()

◆ nFaces()

◆ operator=()

◆ empty()

◆ good()

◆ valid()

◆ min() [1/2]

◆ max() [1/2]

◆ min() [2/2]

◆ max() [2/2]

◆ centre()

◆ span()

◆ mag()

◆ magSqr()

◆ volume()

◆ minDim()

◆ maxDim()

◆ avgDim()

◆ minDir()

◆ maxDir()

◆ nDim()

◆ hexCorner() [1/10]

◆ hexCorners()

◆ points()

◆ faceCentres()

◆ faceCentre()

◆ reset() [1/4]

◆ reset() [2/4]

◆ reset() [3/4]

◆ reset() [4/4]

◆ clear()

◆ add() [1/9]

◆ add() [2/9]

◆ add() [3/9]

◆ add() [4/9]

◆ add() [5/9]

◆ add() [6/9]

◆ add() [7/9]

◆ add() [8/9]

◆ add() [9/9]

◆ grow() [1/2]

◆ grow() [2/2]

◆ inflate() [1/3]

◆ inflate() [2/3]

◆ inflate() [3/3]

◆ reduce() [1/2]

◆ reduce() [2/2]

◆ returnReduce() [1/2]

◆ returnReduce() [2/2]

◆ intersects() [1/2]

◆ intersects() [2/2]

◆ overlaps() [1/2]
