Wrapper around kinematic parcel types to add collision modelling. More...

#include <CollidingParcel.H>

Inheritance diagram for CollidingParcel< ParcelType >:

[legend]

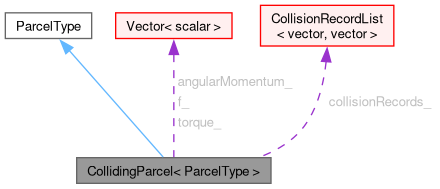

Collaboration diagram for CollidingParcel< ParcelType >:

[legend]

Classes
class	constantProperties
	Class to hold thermo particle constant properties. More...
class	iNew
	Factory class to read-construct particles (for parallel transfer). More...

Public Types
typedef ParcelType::trackingData	trackingData
	Use base tracking data.

Public Member Functions
	TypeName ("CollidingParcel")
	Runtime type information.
	AddToPropertyList (ParcelType, " (fx fy fz)"+" (angularMomentumx angularMomentumy angularMomentumz)"+" (torquex torquey torquez)"+" collisionRecordsPairAccessed"+" collisionRecordsPairOrigProcOfOther"+" collisionRecordsPairOrigIdOfOther"+" (collisionRecordsPairData)"+" collisionRecordsWallAccessed"+" collisionRecordsWallPRel"+" (collisionRecordsWallData)")
	String representation of properties.
	CollidingParcel (const polyMesh &mesh, const barycentric &coordinates, const label celli, const label tetFacei, const label tetPti)
	Construct from mesh, coordinates and topology.
	CollidingParcel (const polyMesh &mesh, const vector &position, const label celli)
	Construct from a position and a cell, searching for the rest of the.
	CollidingParcel (const polyMesh &mesh, const barycentric &coordinates, const label celli, const label tetFacei, const label tetPti, const label typeId, const scalar nParticle0, const scalar d0, const scalar dTarget0, const vector &U0, const vector &f0, const vector &angularMomentum0, const vector &torque0, const typename ParcelType::constantProperties &constProps)
	Construct from components.
	CollidingParcel (const polyMesh &mesh, Istream &is, bool readFields=true, bool newFormat=true)
	Construct from Istream.
	CollidingParcel (const CollidingParcel &p)
	Construct as a copy.
	CollidingParcel (const CollidingParcel &p, const polyMesh &mesh)
	Construct as a copy.
virtual autoPtr< particle >	clone () const
	Return a (basic particle) clone.
virtual autoPtr< particle >	clone (const polyMesh &mesh) const
	Return a (basic particle) clone.
const vector &	f () const
	Return const access to force.
const vector &	angularMomentum () const
	Return const access to angular momentum.
const vector &	torque () const
	Return const access to torque.
const collisionRecordList &	collisionRecords () const
	Return const access to the collision records.
vector &	f ()
	Return access to force.
vector &	angularMomentum ()
	Return access to angular momentum.
vector &	torque ()
	Return access to torque.
collisionRecordList &	collisionRecords ()
	Return access to collision records.
vector	omega () const
	Particle angular velocity.
template<class TrackCloudType>
bool	move (TrackCloudType &cloud, trackingData &td, const scalar trackTime)
	Move the parcel.
virtual void	transformProperties (const tensor &T)
	Transform the physical properties of the particle.
virtual void	transformProperties (const vector &separation)
	Transform the physical properties of the particle.
void	writeProperties (Ostream &os, const wordRes &filters, const word &delim, const bool namesOnly) const
	Write individual parcel properties to stream.

Static Public Member Functions
template<class CloudType>
static void	readFields (CloudType &c)
	Read.
template<class CloudType>
static void	writeFields (const CloudType &c)
	Write.
template<class CloudType>
static void	readObjects (CloudType &c, const objectRegistry &obr)
	Read particle fields as objects from the obr registry.
template<class CloudType>
static void	writeObjects (const CloudType &c, objectRegistry &obr)
	Write particle fields as objects into the obr registry.

Static Public Attributes
static const std::size_t	sizeofFields
	Size in bytes of the fields.

Protected Attributes
vector	f_
	Force on particle due to collisions [N].
vector	angularMomentum_
	Angular momentum of Parcel in global reference frame [kg m2/s].
vector	torque_
	Torque on particle due to collisions in global.
collisionRecordList	collisionRecords_
	Particle collision records.

Friends
Ostream &	operator<< (Ostream &, const CollidingParcel< ParcelType > &)

Detailed Description

template<class ParcelType>
class Foam::CollidingParcel< ParcelType >

Wrapper around kinematic parcel types to add collision modelling.

Source files

Definition at line 73 of file CollidingParcel.H.

Member Typedef Documentation

◆ trackingData

template<class ParcelType>

typedef ParcelType::trackingData trackingData

Use base tracking data.

Definition at line 143 of file CollidingParcel.H.

Constructor & Destructor Documentation

◆ CollidingParcel() [1/6]

template<class ParcelType>

CollidingParcel	(	const polyMesh &	mesh,
		const barycentric &	coordinates,
		const label	celli,
		const label	tetFacei,
		const label	tetPti )

inline

Construct from mesh, coordinates and topology.

Other properties initialised as null

Definition at line 58 of file CollidingParcelI.H.

References angularMomentum_, collisionRecords_, coordinates(), f_, torque_, and Foam::Zero.

Referenced by CollidingParcel< ParcelType >::iNew::operator()(), readFields(), readObjects(), writeFields(), and writeObjects().

Here is the call graph for this function:

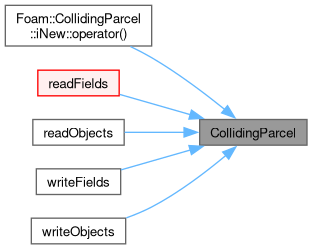

Here is the caller graph for this function:

◆ CollidingParcel() [2/6]

template<class ParcelType>

CollidingParcel	(	const polyMesh &	mesh,
		const vector &	position,
		const label	celli )

inline

Construct from a position and a cell, searching for the rest of the.

required topology. Other properties are initialised as null.

Definition at line 76 of file CollidingParcelI.H.

References angularMomentum_, collisionRecords_, f_, torque_, and Foam::Zero.

◆ CollidingParcel() [3/6]

template<class ParcelType>

CollidingParcel	(	const polyMesh &	mesh,
		const barycentric &	coordinates,
		const label	celli,
		const label	tetFacei,
		const label	tetPti,
		const label	typeId,
		const scalar	nParticle0,
		const scalar	d0,
		const scalar	dTarget0,
		const vector &	U0,
		const vector &	f0,
		const vector &	angularMomentum0,
		const vector &	torque0,
		const typename ParcelType::constantProperties &	constProps )

inline

Construct from components.

Definition at line 92 of file CollidingParcelI.H.

References coordinates().

Here is the call graph for this function:

◆ CollidingParcel() [4/6]

template<class ParcelType>

CollidingParcel	(	const polyMesh &	mesh,
		Istream &	is,
		bool	readFields = true,
		bool	newFormat = true )

Construct from Istream.

Definition at line 43 of file CollidingParcelIO.C.

References angularMomentum_, IOstreamOption::ASCII, IOstream::check(), collisionRecords_, f_, IOstream::fatalCheckNativeSizes(), IOstreamOption::format(), FUNCTION_NAME, mesh, Istream::read(), readFields(), sizeofFields, torque_, and Foam::Zero.

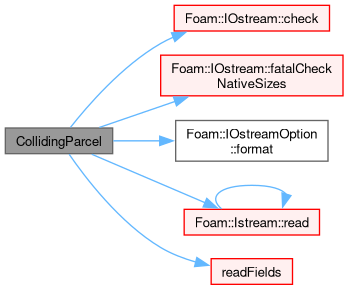

Here is the call graph for this function:

◆ CollidingParcel() [5/6]

template<class ParcelType>

CollidingParcel ( const CollidingParcel< ParcelType > & p )

Construct as a copy.

◆ CollidingParcel() [6/6]

template<class ParcelType>

CollidingParcel	(	const CollidingParcel< ParcelType > &	p,
		const polyMesh &	mesh )

Construct as a copy.

Member Function Documentation

◆ TypeName()

template<class ParcelType>

TypeName ( "CollidingParcel< ParcelType >" )

Runtime type information.

◆ AddToPropertyList()

template<class ParcelType>

AddToPropertyList	(	ParcelType	,
		" (fx fy fz)"+" (angularMomentumx angularMomentumy angularMomentumz)"+" (torquex torquey torquez)"+" collisionRecordsPairAccessed"+" collisionRecordsPairOrigProcOfOther"+" collisionRecordsPairOrigIdOfOther"+" (collisionRecordsPairData)"+" collisionRecordsWallAccessed"+" collisionRecordsWallPRel"+" (collisionRecordsWallData)"	)

String representation of properties.

◆ clone() [1/2]

template<class ParcelType>

virtual autoPtr< particle > clone ( ) const

inlinevirtual

Return a (basic particle) clone.

Definition at line 274 of file CollidingParcel.H.

◆ clone() [2/2]

template<class ParcelType>

virtual autoPtr< particle > clone ( const polyMesh & mesh ) const

inlinevirtual

Return a (basic particle) clone.

Definition at line 282 of file CollidingParcel.H.

◆ f() [1/2]

template<class ParcelType>

const Foam::vector & f ( ) const

inline

Return const access to force.

Definition at line 152 of file CollidingParcelI.H.

References f_.

Referenced by readFields(), readObjects(), writeFields(), and writeObjects().

Here is the caller graph for this function:

◆ angularMomentum() [1/2]

template<class ParcelType>

const Foam::vector & angularMomentum ( ) const

inline

Return const access to angular momentum.

Definition at line 160 of file CollidingParcelI.H.

References angularMomentum_.

Referenced by readFields().

Here is the caller graph for this function:

◆ torque() [1/2]

template<class ParcelType>

const Foam::vector & torque ( ) const

inline

Return const access to torque.

Definition at line 167 of file CollidingParcelI.H.

References torque_.

Referenced by readFields(), readObjects(), writeFields(), and writeObjects().

Here is the caller graph for this function:

◆ collisionRecords() [1/2]

template<class ParcelType>

const Foam::collisionRecordList & collisionRecords ( ) const

inline

Return const access to the collision records.

Definition at line 175 of file CollidingParcelI.H.

References collisionRecords_.

◆ f() [2/2]

template<class ParcelType>

Foam::vector & f ( )

inline

Return access to force.

Definition at line 182 of file CollidingParcelI.H.

References f_.

◆ angularMomentum() [2/2]

template<class ParcelType>

Foam::vector & angularMomentum ( )

inline

Return access to angular momentum.

Definition at line 189 of file CollidingParcelI.H.

References angularMomentum_.

◆ torque() [2/2]

template<class ParcelType>

Foam::vector & torque ( )

inline

Return access to torque.

Definition at line 196 of file CollidingParcelI.H.

References torque_.

◆ collisionRecords() [2/2]

template<class ParcelType>

Foam::collisionRecordList & collisionRecords ( )

inline

Return access to collision records.

Definition at line 204 of file CollidingParcelI.H.

References collisionRecords_.

◆ omega()

template<class ParcelType>

Foam::vector omega ( ) const

inline

Particle angular velocity.

Definition at line 211 of file CollidingParcelI.H.

References angularMomentum_.

◆ move()

template<class ParcelType>

template<class TrackCloudType>

bool move	(	TrackCloudType &	cloud,
		trackingData &	td,
		const scalar	trackTime )

Move the parcel.

Definition at line 58 of file CollidingParcel.C.

References Foam::abort(), Foam::FatalError, FatalErrorInFunction, NotImplemented, p, and td().

Here is the call graph for this function:

◆ transformProperties() [1/2]

template<class ParcelType>

void transformProperties ( const tensor & T )

virtual

Transform the physical properties of the particle.

according to the given transformation tensor

Definition at line 115 of file CollidingParcel.C.

References angularMomentum_, f_, Foam::T(), torque_, and Foam::transform().

Here is the call graph for this function:

◆ transformProperties() [2/2]

template<class ParcelType>

void transformProperties ( const vector & separation )

virtual

Transform the physical properties of the particle.

according to the given separation vector

Definition at line 128 of file CollidingParcel.C.

◆ readFields()

template<class ParcelType>

template<class CloudType>

void readFields ( CloudType & c )

static

Read.

Definition at line 82 of file CollidingParcelIO.C.

References angularMomentum(), CollidingParcel(), f(), f(), IOobjectOption::MUST_READ, p, and torque().

Referenced by CollidingParcel().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ writeFields()

template<class ParcelType>

template<class CloudType>

void writeFields ( const CloudType & c )

static

Write.

Definition at line 188 of file CollidingParcelIO.C.

References CollidingParcel(), f(), f(), IOobjectOption::NO_READ, p, torque(), and regIOobject::write().

Here is the call graph for this function:

◆ writeProperties()

template<class ParcelType>

void writeProperties	(	Ostream &	os,
		const wordRes &	filters,
		const word &	delim,
		const bool	namesOnly ) const

Write individual parcel properties to stream.

Definition at line 279 of file CollidingParcelIO.C.

References angularMomentum_, f_, os(), torque_, and writeProp.

Here is the call graph for this function:

◆ readObjects()

template<class ParcelType>

template<class CloudType>

void readObjects	(	CloudType &	c,
		const objectRegistry &	obr )

static

Read particle fields as objects from the obr registry.

Definition at line 304 of file CollidingParcelIO.C.

References CollidingParcel(), f(), cloud::lookupIOField(), p, and torque().

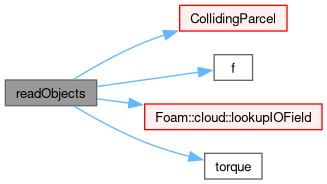

Here is the call graph for this function:

◆ writeObjects()

template<class ParcelType>

template<class CloudType>

void writeObjects	(	const CloudType &	c,
		objectRegistry &	obr )

static

Write particle fields as objects into the obr registry.

Definition at line 332 of file CollidingParcelIO.C.

References CollidingParcel(), cloud::createIOField(), f(), p, and torque().

Here is the call graph for this function:

◆ operator<<

template<class ParcelType>

Ostream & operator<<	(	Ostream &	,
		const CollidingParcel< ParcelType > &	)

friend

Member Data Documentation

◆ sizeofFields

template<class ParcelType>

const std::size_t sizeofFields

static

Size in bytes of the fields.

Definition at line 82 of file CollidingParcel.H.

Referenced by CollidingParcel().

◆ f_

template<class ParcelType>

vector f_

protected

Force on particle due to collisions [N].

Definition at line 153 of file CollidingParcel.H.

Referenced by CollidingParcel(), CollidingParcel(), CollidingParcel(), f(), f(), transformProperties(), and writeProperties().

◆ angularMomentum_

template<class ParcelType>

vector angularMomentum_

protected

Angular momentum of Parcel in global reference frame [kg m2/s].

Definition at line 158 of file CollidingParcel.H.

Referenced by angularMomentum(), angularMomentum(), CollidingParcel(), CollidingParcel(), CollidingParcel(), omega(), transformProperties(), and writeProperties().

◆ torque_

template<class ParcelType>

vector torque_

protected

Torque on particle due to collisions in global.

reference frame [Nm]

Definition at line 165 of file CollidingParcel.H.

Referenced by CollidingParcel(), CollidingParcel(), CollidingParcel(), torque(), torque(), transformProperties(), and writeProperties().

◆ collisionRecords_

template<class ParcelType>

collisionRecordList collisionRecords_

protected

Particle collision records.

Definition at line 170 of file CollidingParcel.H.

Referenced by CollidingParcel(), CollidingParcel(), CollidingParcel(), collisionRecords(), and collisionRecords().

The documentation for this class was generated from the following files:

src/lagrangian/intermediate/parcels/Templates/CollidingParcel/CollidingParcel.H
src/lagrangian/intermediate/parcels/Templates/CollidingParcel/CollidingParcel.C
src/lagrangian/intermediate/parcels/Templates/CollidingParcel/CollidingParcelI.H
src/lagrangian/intermediate/parcels/Templates/CollidingParcel/CollidingParcelIO.C

Classes

Public Types

Public Member Functions

Static Public Member Functions

Static Public Attributes

Protected Attributes

Friends

Detailed Description

Member Typedef Documentation

◆ trackingData

Constructor & Destructor Documentation

◆ CollidingParcel() [1/6]

◆ CollidingParcel() [2/6]

◆ CollidingParcel() [3/6]

◆ CollidingParcel() [4/6]

◆ CollidingParcel() [5/6]

◆ CollidingParcel() [6/6]

Member Function Documentation

◆ TypeName()

◆ AddToPropertyList()

◆ clone() [1/2]

◆ clone() [2/2]

◆ f() [1/2]

◆ angularMomentum() [1/2]

◆ torque() [1/2]

◆ collisionRecords() [1/2]

◆ f() [2/2]

◆ angularMomentum() [2/2]

◆ torque() [2/2]

◆ collisionRecords() [2/2]

◆ omega()

◆ move()

◆ transformProperties() [1/2]

◆ transformProperties() [2/2]

◆ readFields()

◆ writeFields()

◆ writeProperties()

◆ readObjects()

◆ writeObjects()

Friends And Related Symbol Documentation

◆ operator<<

Member Data Documentation

◆ sizeofFields

◆ f_

◆ angularMomentum_

◆ torque_

◆ collisionRecords_
