particle< Type > Class Template Reference

Base particle class. More...

#include <particle.H>

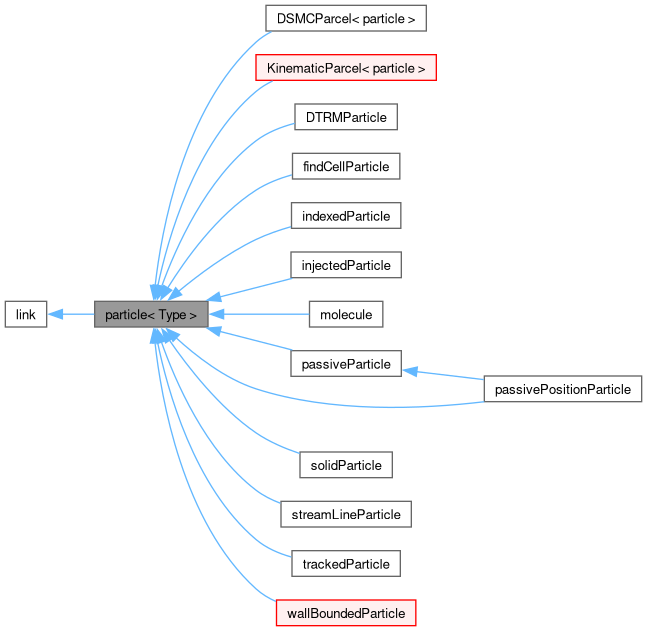

Inheritance diagram for particle< Type >:

Collaboration diagram for particle< Type >:

Classes
class	trackingData
struct	positionsCompat1706
	Old particle positions content for OpenFOAM-1706 and earlier. More...
class	iNew
	Factory class to read-construct particles (for parallel transfer). More...

Public Member Functions
	TypeName ("particle")
	Runtime type information.
	particle (const polyMesh &mesh, const barycentric &coordinates, const label celli, const label tetFacei, const label tetPti)
	Construct from components.
	particle (const polyMesh &mesh, const vector &position, const label celli=-1)
	Construct from a position and a cell.
	particle (const polyMesh &mesh, const vector &position, const label celli, const label tetFacei, const label tetPti, const bool doLocate=true)
	Construct from position components.
	particle (const polyMesh &mesh, Istream &, const bool readFields=true, const bool newFormat=true, const bool doLocate=true)
	Construct from Istream.
	particle (const particle &p, const polyMesh &mesh)
	Construct as a copy with reference to a mesh.
	particle (const particle &p)
	Copy construct.

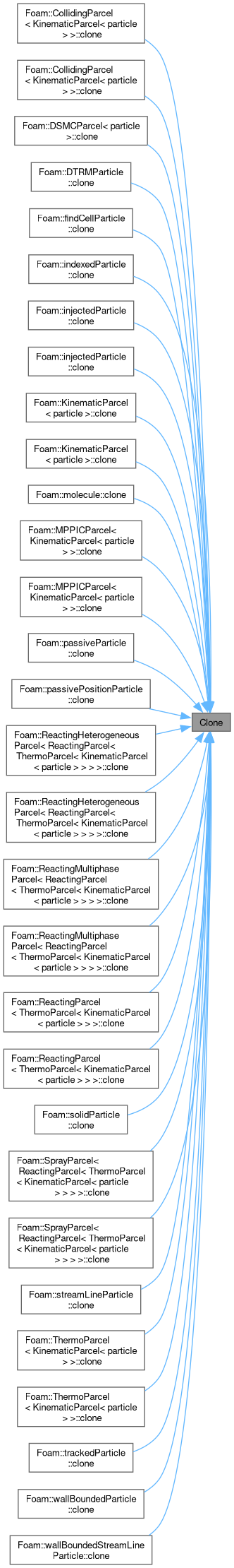

virtual autoPtr< particle >	clone () const
	Construct a clone.
virtual	~particle ()=default
	Destructor.

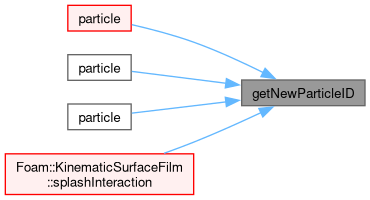

label	getNewParticleID () const
	Get unique particle creation id.
const polyMesh &	mesh () const noexcept
	Return the mesh database.
const barycentric &	coordinates () const noexcept
	Return current particle coordinates.

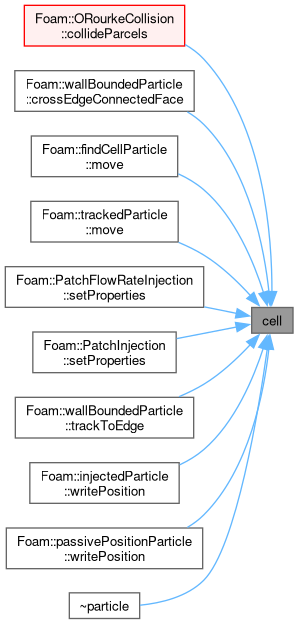

label	cell () const noexcept
	Return current cell particle is in.
label &	cell () noexcept
	Return current cell particle is in for manipulation.

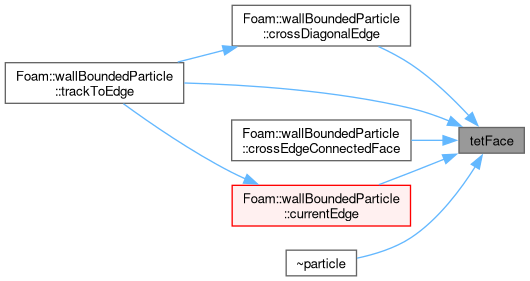

label	tetFace () const noexcept
	Return current tet face particle is in.
label &	tetFace () noexcept
	Return current tet face particle is in for manipulation.

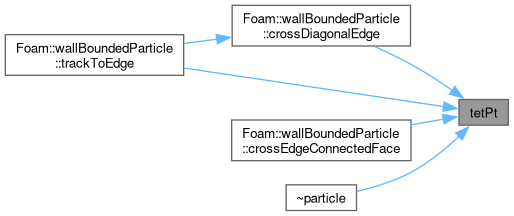

label	tetPt () const noexcept
	Return current tet face particle is in.
label &	tetPt () noexcept
	Return current tet face particle is in for manipulation.

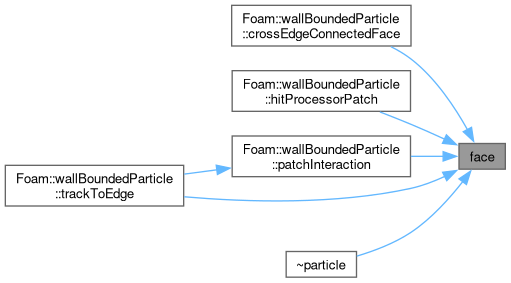

label	face () const noexcept
	Return current face particle is on otherwise -1.
label &	face () noexcept
	Return current face particle is on for manipulation.

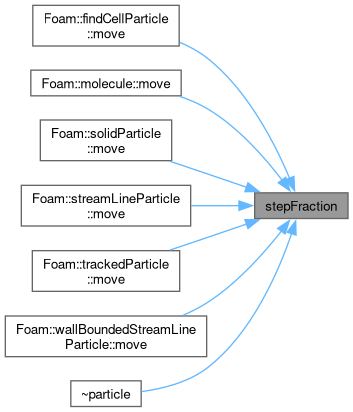

scalar	stepFraction () const noexcept
	Return the fraction of time-step completed.
scalar &	stepFraction () noexcept
	Return the fraction of time-step completed.

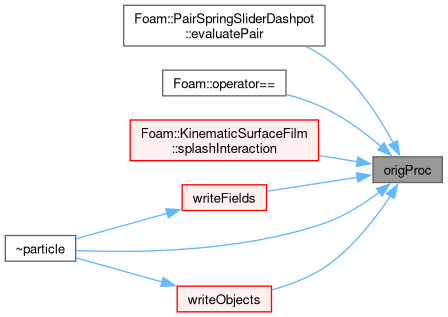

label	origProc () const noexcept
	Return the originating processor ID.
label &	origProc () noexcept
	Return the originating processor ID.

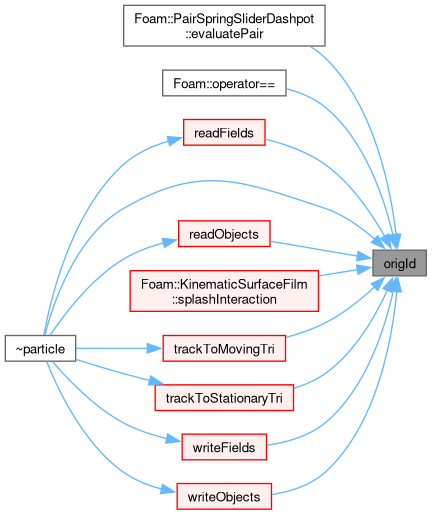

label	origId () const noexcept
	Return the particle ID on the originating processor.
label &	origId () noexcept
	Return the particle ID on the originating processor.
Pair< scalar >	stepFractionSpan () const
	Return the step fraction change within the overall time-step.
scalar	currentTimeFraction () const
	Return the current fraction within the timestep. This differs.

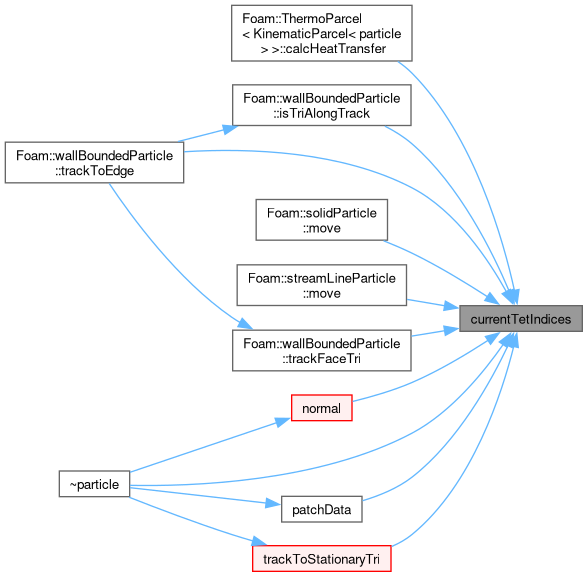

tetIndices	currentTetIndices () const noexcept
	Return indices of the current tet that the particle occupies.
barycentricTensor	currentTetTransform () const
	Return the current tet transformation tensor.

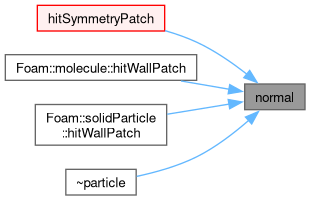

vector	normal () const
	The (unit) normal of the tri on tetFacei_ for the current tet.

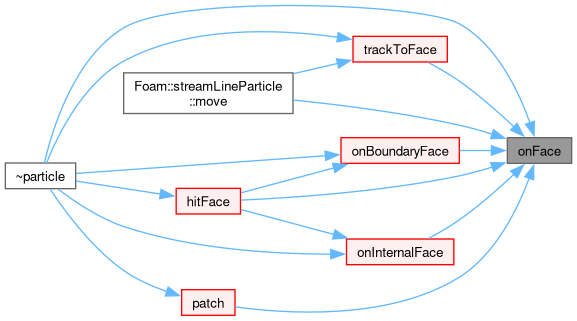

bool	onFace () const noexcept
	Is the particle on a face?
bool	onInternalFace () const noexcept
	Is the particle on an internal face?

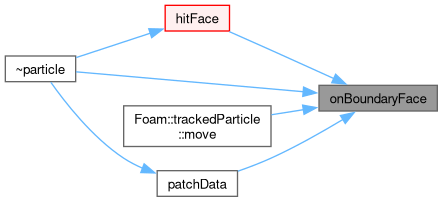

bool	onBoundaryFace () const noexcept
	Is the particle on a boundary face?

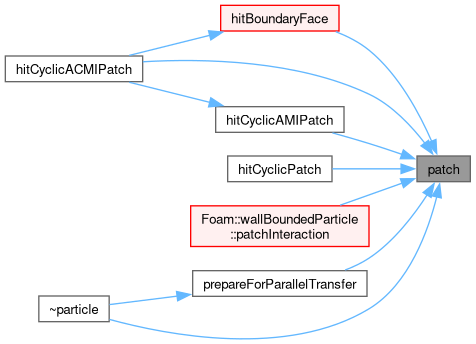

label	patch () const
	Return the index of patch that the particle is on.
vector	position () const
	Return current particle position.
void	reset ()
	Reset particle data.
scalar	track (const vector &displacement, const scalar fraction)
	Track along the displacement for a given fraction of the overall.

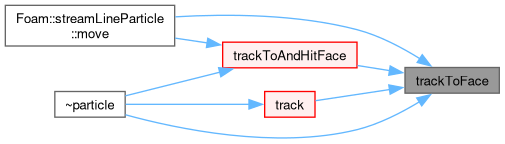

scalar	trackToFace (const vector &displacement, const scalar fraction)
	As particle::track, but also stops on internal faces.
scalar	trackToTri (const vector &displacement, const scalar fraction, label &tetTriI)
	As particle::trackToFace, but also stops on tet triangles. On.

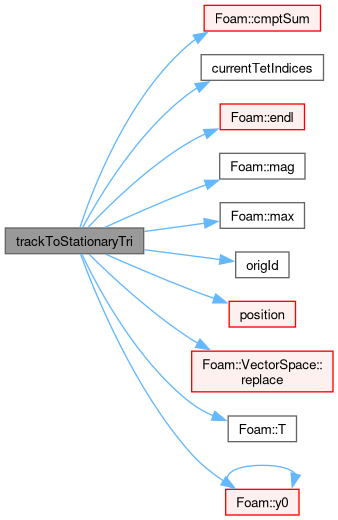

scalar	trackToStationaryTri (const vector &displacement, const scalar fraction, label &tetTriI)
	As particle::trackToTri, but for stationary meshes.

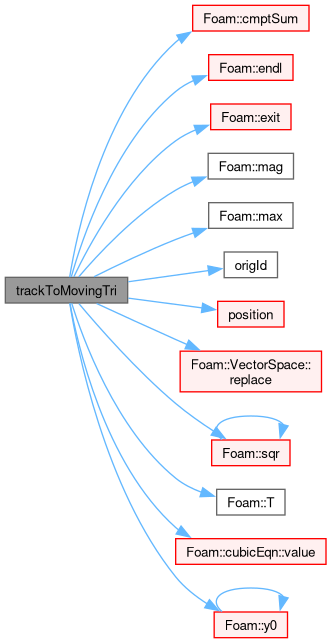

scalar	trackToMovingTri (const vector &displacement, const scalar fraction, label &tetTriI)
	As particle::trackToTri, but for moving meshes.
template<class TrackCloudType>

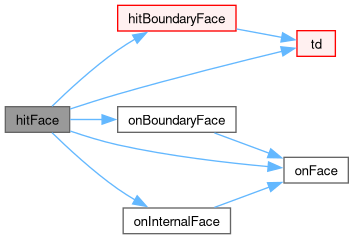

void	hitFace (const vector &direction, TrackCloudType &cloud, trackingData &td)
	Hit the current face. If the current face is internal than this.
template<class TrackCloudType>

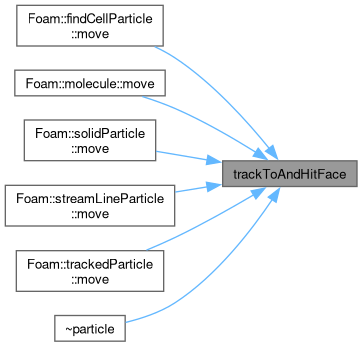

void	trackToAndHitFace (const vector &direction, const scalar fraction, TrackCloudType &cloud, trackingData &td)
	Convenience function. Combines trackToFace and hitFace.

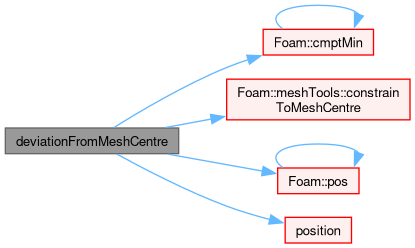

vector	deviationFromMeshCentre () const
	Get the displacement from the mesh centre. Used to correct the.

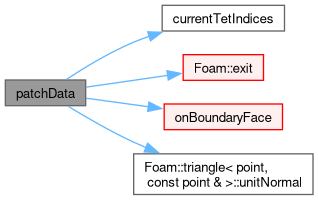

void	patchData (vector &n, vector &U) const
	Get the normal and velocity of the current patch location.

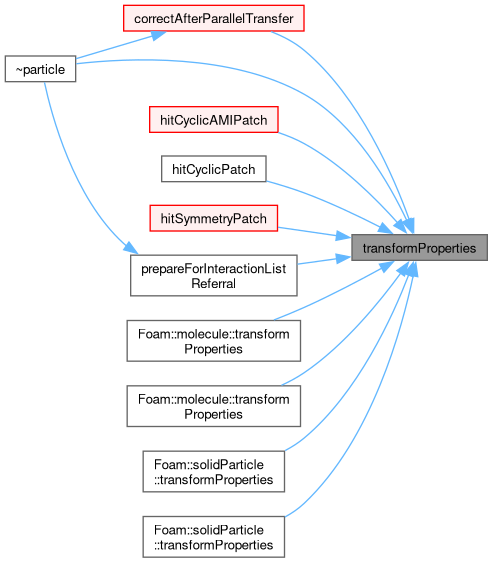

virtual void	transformProperties (const tensor &T)
	Transform the physical properties of the particle.
virtual void	transformProperties (const vector &separation)
	Transform the physical properties of the particle.
void	prepareForParallelTransfer ()
	Convert global addressing to the processor patch local equivalents.

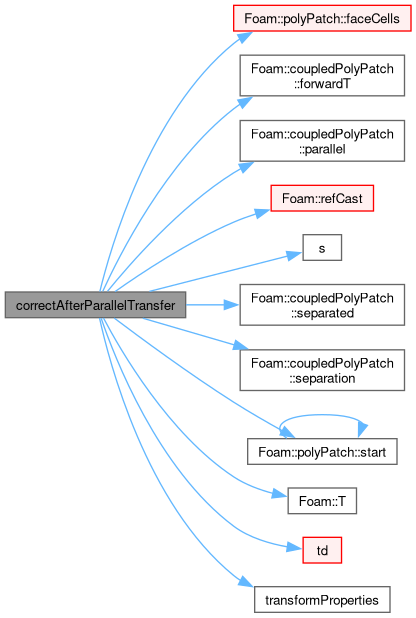

void	correctAfterParallelTransfer (const label patchi, trackingData &td)
	Convert processor patch addressing to the global equivalents.

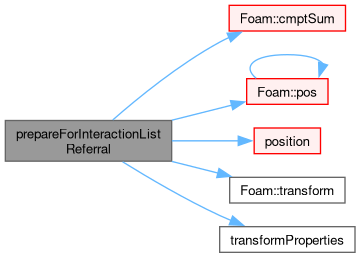

void	prepareForInteractionListReferral (const vectorTensorTransform &transform)
	Break the topology and store the particle position so that the.
void	correctAfterInteractionListReferral (const label celli)
	Correct the topology after referral. The particle may still be.
label	procTetPt (const polyMesh &procMesh, const label procCell, const label procTetFace) const
	Return the tet point appropriate for decomposition or reconstruction.
void	autoMap (const vector &position, const mapPolyMesh &mapper)
	Map after a topology change.
void	relocate (const point &position, const label celli=-1)
	Set the addressing based on the provided position.
void	writeProperties (Ostream &os, const wordRes &filters, const word &delim, const bool namesOnly) const
	Write individual particle properties to stream.
void	writeCoordinates (Ostream &os) const
	Write the particle barycentric coordinates and cell info.
virtual void	writePosition (Ostream &os) const
	Write the particle position and cell id.
Public Member Functions inherited from DLListBase::link
	link () noexcept=default
	Default construct.
bool	registered () const noexcept
	Node registered (linked) in a list?
void	deregister () noexcept
	Deregister the node (after removal).

Static Public Member Functions
static string	propertyList ()
template<class Derived>
static autoPtr< particle >	Clone (const Derived &p)
	Clone a particle.
template<class Derived>
static autoPtr< particle >	Clone (const Derived &p, const polyMesh &mesh)
	Clone a particle with a mesh reference.
template<class Type>
static void	writePropertyName (Ostream &os, const word &name, const word &delim)
	Write the name representation to stream.
template<class Type>

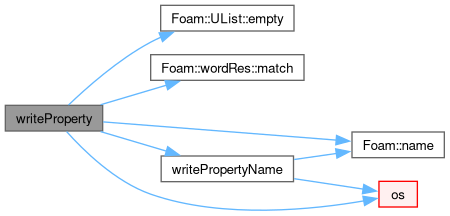

static void	writeProperty (Ostream &os, const word &name, const Type &value, const bool nameOnly, const word &delim, const wordRes &filters=wordRes::null())
	Write a named particle property to stream, optionally filtered based on its name.
template<class Type>
static void	writeProperty (Ostream &os, const word &name, const Field< Type > &values, const bool nameOnly, const word &delim, const wordRes &filters=wordRes::null())
	Write a named particle property list to stream, optionally filtered based on its name.
template<class TrackCloudType>

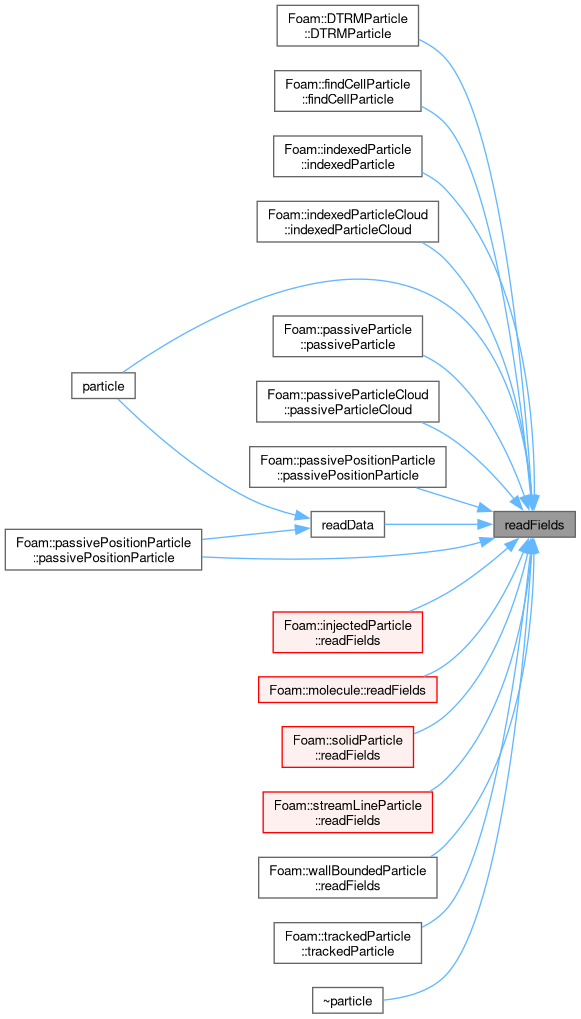

static void	readFields (TrackCloudType &c)
	Read the fields associated with the owner cloud.
template<class TrackCloudType>

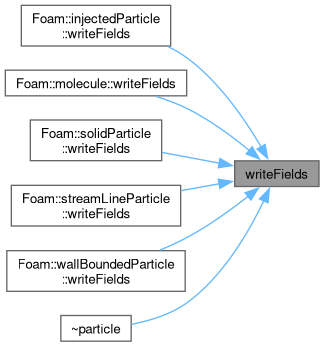

static void	writeFields (const TrackCloudType &c)
	Write the fields associated with the owner cloud.
template<class CloudType>

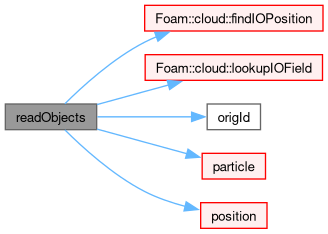

static void	readObjects (CloudType &c, const objectRegistry &obr)
	Read particle fields as objects from the obr registry.
template<class CloudType>

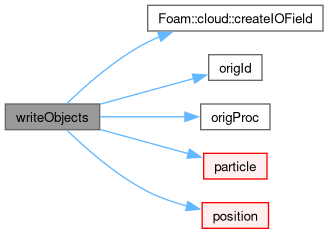

static void	writeObjects (const CloudType &c, objectRegistry &obr)
	Write particle fields as objects into the obr registry.

Static Public Attributes
static string	propertyList_ = Foam::particle::propertyList()
	String representation of properties.
static label	particleCount_ = 0
	Cumulative particle counter - used to provide unique ID.
static bool	writeLagrangianCoordinates = true
	Write particle coordinates file (v1712 and later) Default is true.
static bool	writeLagrangianPositions
	Write particle positions file (v1706 format and earlier) Default is true (disable in etc/controlDict).

Protected Member Functions

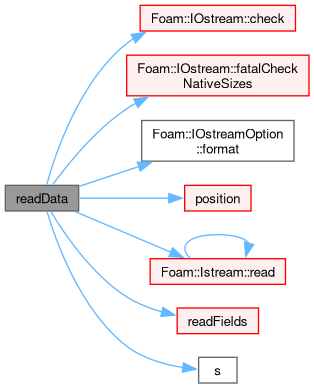

void	readData (Istream &is, point &position, const bool readFields, const bool newFormat, const bool doLocate)
	Read particle from stream. Optionally (for old format) return.
template<class TrackCloudType>
bool	hitPatch (TrackCloudType &, trackingData &)
	Overridable function to handle the particle hitting a patch.
template<class TrackCloudType>
void	hitWedgePatch (TrackCloudType &, trackingData &)
	Overridable function to handle the particle hitting a wedgePatch.
template<class TrackCloudType>
void	hitSymmetryPlanePatch (TrackCloudType &, trackingData &)
	Overridable function to handle the particle hitting a.
template<class TrackCloudType>
void	hitSymmetryPatch (TrackCloudType &, trackingData &)
	Overridable function to handle the particle hitting a symmetryPatch.
template<class TrackCloudType>

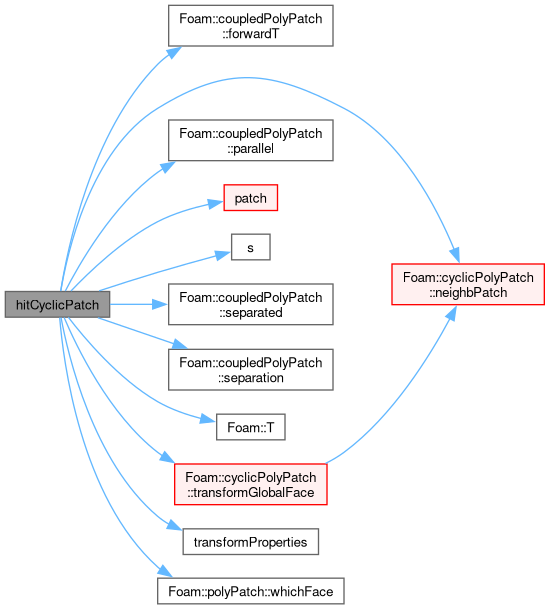

void	hitCyclicPatch (TrackCloudType &, trackingData &)
	Overridable function to handle the particle hitting a cyclicPatch.
template<class TrackCloudType>

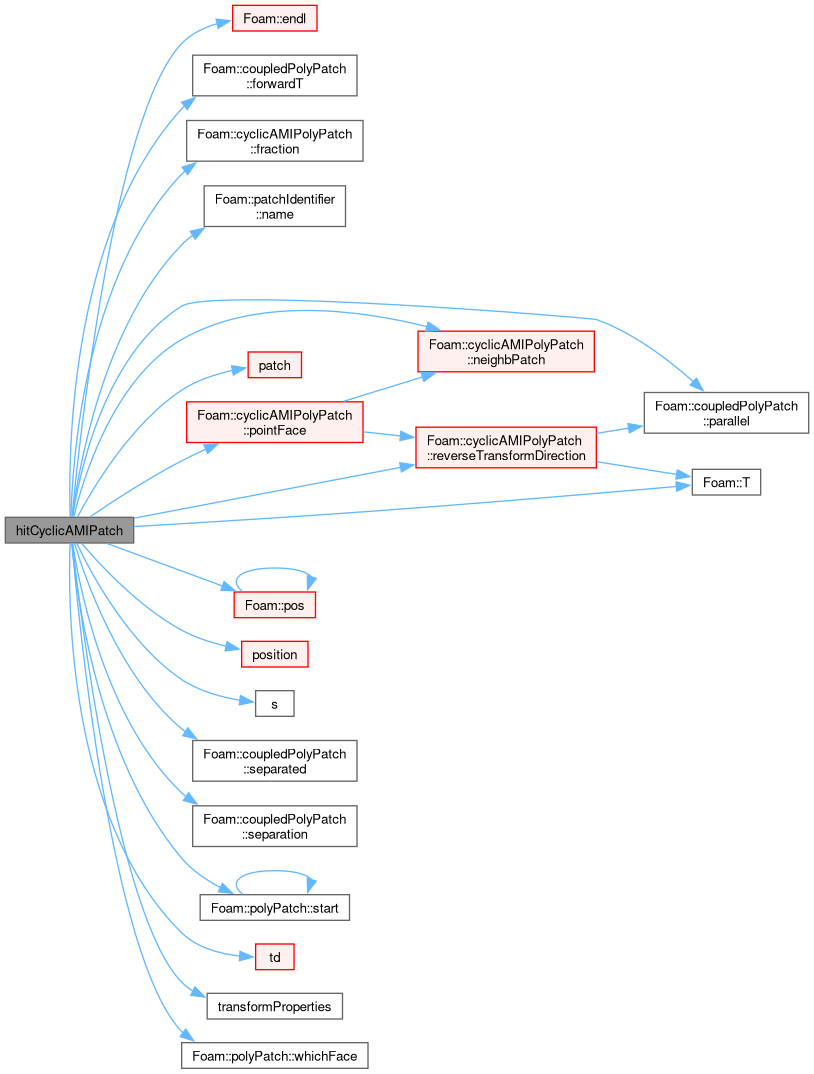

void	hitCyclicAMIPatch (TrackCloudType &, trackingData &, const vector &)
	Overridable function to handle the particle hitting a cyclicAMIPatch.
template<class TrackCloudType>

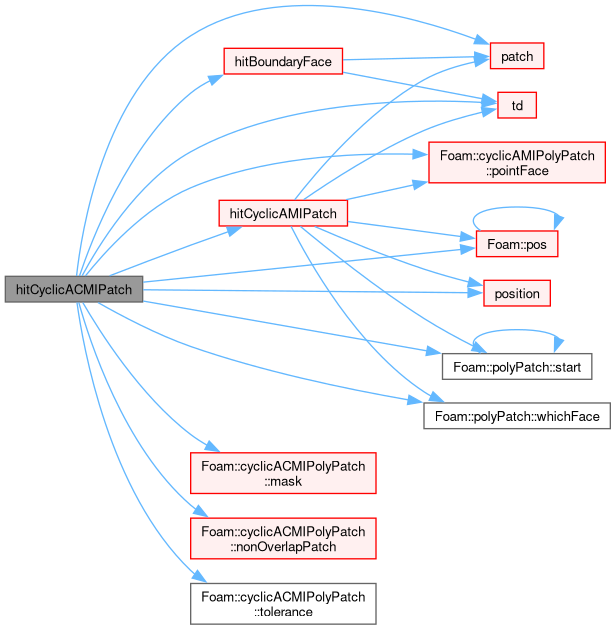

void	hitCyclicACMIPatch (TrackCloudType &, trackingData &, const vector &)
	Overridable function to handle the particle hitting a.
template<class TrackCloudType>
void	hitProcessorPatch (TrackCloudType &, trackingData &)
	Overridable function to handle the particle hitting a processorPatch.
template<class TrackCloudType>
void	hitWallPatch (TrackCloudType &, trackingData &)
	Overridable function to handle the particle hitting a wallPatch.
template<class TrackCloudType>
void	hitBoundaryFace (const vector &direction, TrackCloudType &cloud, trackingData &td)
	Dispatch function for boundary face interaction. Calls one of.

Friends
Ostream &	operator<< (Ostream &, const particle &)
bool	operator== (const particle &pA, const particle &pB)
bool	operator!= (const particle &pA, const particle &pB)

Additional Inherited Members
Public Attributes inherited from DLListBase::link
link *	prev_ = nullptr
	Pointer to prev entry in list.
link *	next_ = nullptr
	Pointer to next entry in list.

Detailed Description

template<class Type>
class Foam::particle< Type >

Base particle class.

Definition at line 69 of file particle.H.

Constructor & Destructor Documentation

particle() [1/6]

template<class Type>

particle	(	const polyMesh &	mesh,
		const barycentric &	coordinates,
		const label	celli,
		const label	tetFacei,
		const label	tetPti )

Construct from components.

Definition at line 506 of file particle.C.

References coordinates(), getNewParticleID(), and mesh().

Referenced by DTRMParticle::AddToPropertyList(), injectedParticle::AddToPropertyList(), findCellParticle::findCellParticle(), findCellParticle::findCellParticle(), findCellParticle::findCellParticle(), indexedParticle::indexedParticle(), indexedParticle::indexedParticle(), indexedParticle::indexedParticle(), indexedParticle::indexedParticle(), injectedParticle::injectedParticle(), injectedParticle::injectedParticle(), injectedParticle::injectedParticle(), injectedParticle::injectedParticle(), injectedParticle::injectedParticle(), molecule::molecule(), molecule::molecule(), molecule::molecule(), streamLineParticle::move(), operator!=, operator<<, operator==, particle(), particle(), passiveParticle::passiveParticle(), passiveParticle::passiveParticle(), passiveParticle::passiveParticle(), passiveParticle::passiveParticle(), passivePositionParticle::passivePositionParticle(), passivePositionParticle::passivePositionParticle(), passivePositionParticle::passivePositionParticle(), passivePositionParticle::passivePositionParticle(), readFields(), readObjects(), solidParticle::solidParticle(), solidParticle::solidParticle(), solidParticle::solidParticle(), streamLineParticle::streamLineParticle(), streamLineParticle::streamLineParticle(), streamLineParticle::streamLineParticle(), trackedParticle::trackedParticle(), trackedParticle::trackedParticle(), trackedParticle::trackedParticle(), DTRMParticle::trackingData::trackingData(), findCellParticle::trackingData::trackingData(), molecule::trackingData::trackingData(), solidParticle::trackingData::trackingData(), streamLineParticle::trackingData::trackingData(), trackedParticle::trackingData::trackingData(), wallBoundedParticle::trackingData::trackingData(), wallBoundedParticle::wallBoundedParticle(), wallBoundedParticle::wallBoundedParticle(), wallBoundedParticle::wallBoundedParticle(), writeFields(), and writeObjects().

Here is the call graph for this function:

particle() [2/6]

template<class Type>

particle	(	const polyMesh &	mesh,
		const vector &	position,
		const label	celli = -1 )

Construct from a position and a cell.

Searches for the rest of the required topology.

Definition at line 529 of file particle.C.

References getNewParticleID(), mesh(), and position().

Here is the call graph for this function:

particle() [3/6]

template<class Type>

particle	(	const polyMesh &	mesh,
		const vector &	position,
		const label	celli,
		const label	tetFacei,
		const label	tetPti,
		const bool	doLocate = true )

Construct from position components.

Definition at line 559 of file particle.C.

References getNewParticleID(), mesh(), and position().

Here is the call graph for this function:

particle() [4/6]

template<class Type>

particle	(	const polyMesh &	mesh,
		Istream &	is,
		const bool	readFields = true,
		const bool	newFormat = true,
		const bool	doLocate = true )

Construct from Istream.

Definition at line 42 of file particleIO.C.

References mesh(), position(), readData(), and readFields().

Here is the call graph for this function:

particle() [5/6]

template<class Type>

particle	(	const particle< Type > &	p,
		const polyMesh &	mesh )

Construct as a copy with reference to a mesh.

Definition at line 595 of file particle.C.

References mesh(), p, and particle().

Here is the call graph for this function:

particle() [6/6]

template<class Type>

particle

(

const particle< Type > &

p

)

Copy construct.

Definition at line 611 of file particle.C.

References mesh(), p, and particle().

Here is the call graph for this function:

~particle()

template<class Type>

virtual ~particle ( )

virtualdefault

Destructor.

References autoMap(), cell(), coordinates(), correctAfterInteractionListReferral(), correctAfterParallelTransfer(), currentTetIndices(), currentTetTransform(), currentTimeFraction(), deviationFromMeshCentre(), face(), hitFace(), n, Foam::name(), Foam::noexcept, normal(), onBoundaryFace(), onFace(), onInternalFace(), origId(), origProc(), os(), patch(), patchData(), position(), prepareForInteractionListReferral(), prepareForParallelTransfer(), procTetPt(), readFields(), readObjects(), relocate(), reset(), stepFraction(), stepFractionSpan(), Foam::T(), td(), tetFace(), tetPt(), track(), trackToAndHitFace(), trackToFace(), trackToMovingTri(), trackToStationaryTri(), trackToTri(), Foam::transform(), transformProperties(), U, writeCoordinates(), writeFields(), writeObjects(), writePosition(), writeProperties(), writeProperty(), and writePropertyName().

Member Function Documentation

readData()

template<class Type>

void readData ( Istream & is, point & position, const bool readFields, const bool newFormat, const bool doLocate )

protected

Read particle from stream. Optionally (for old format) return.

read position. Used by construct-from-Istream

Definition at line 68 of file particleIO.C.

References IOstreamOption::ASCII, IOstream::check(), IOstream::fatalCheckNativeSizes(), IOstreamOption::format(), FUNCTION_NAME, p, position(), Istream::read(), readFields(), and s().

Referenced by particle(), and passivePositionParticle::passivePositionParticle().

Here is the call graph for this function:

Here is the caller graph for this function:

hitPatch()

template<class Type>

template<class TrackCloudType>

bool hitPatch ( TrackCloudType & , trackingData &  )

protected

Overridable function to handle the particle hitting a patch.

Executed before other patch-hitting functions.

Definition at line 386 of file particleTemplates.C.

hitWedgePatch()

template<class Type>

template<class TrackCloudType>

void hitWedgePatch ( TrackCloudType & cloud, trackingData & td )

protected

Overridable function to handle the particle hitting a wedgePatch.

Definition at line 393 of file particleTemplates.C.

References Foam::abort(), Foam::FatalError, FatalErrorInFunction, hitSymmetryPatch(), and td().

Here is the call graph for this function:

hitSymmetryPlanePatch()

template<class Type>

template<class TrackCloudType>

void hitSymmetryPlanePatch ( TrackCloudType & cloud, trackingData & td )

protected

Overridable function to handle the particle hitting a.

symmetryPlanePatch

Definition at line 404 of file particleTemplates.C.

References hitSymmetryPatch(), and td().

Here is the call graph for this function:

hitSymmetryPatch()

template<class Type>

template<class TrackCloudType>

void hitSymmetryPatch ( TrackCloudType & , trackingData &  )

protected

Overridable function to handle the particle hitting a symmetryPatch.

Definition at line 415 of file particleTemplates.C.

References Foam::I, normal(), and transformProperties().

Referenced by hitSymmetryPlanePatch(), and hitWedgePatch().

Here is the call graph for this function:

Here is the caller graph for this function:

hitCyclicPatch()

template<class Type>

template<class TrackCloudType>

void hitCyclicPatch ( TrackCloudType & , trackingData &  )

protected

Overridable function to handle the particle hitting a cyclicPatch.

Definition at line 424 of file particleTemplates.C.

References coupledPolyPatch::forwardT(), cyclicPolyPatch::neighbPatch(), coupledPolyPatch::parallel(), patch(), s(), coupledPolyPatch::separated(), coupledPolyPatch::separation(), Foam::T(), cyclicPolyPatch::transformGlobalFace(), transformProperties(), and polyPatch::whichFace().

Here is the call graph for this function:

hitCyclicAMIPatch()

template<class Type>

template<class TrackCloudType>

void hitCyclicAMIPatch ( TrackCloudType & , trackingData & td, const vector & displacement )

protected

Overridable function to handle the particle hitting a cyclicAMIPatch.

Definition at line 465 of file particleTemplates.C.

References Foam::endl(), coupledPolyPatch::forwardT(), cyclicAMIPolyPatch::fraction(), patchIdentifier::name(), cyclicAMIPolyPatch::neighbPatch(), coupledPolyPatch::parallel(), patch(), cyclicAMIPolyPatch::pointFace(), Foam::pos(), position(), cyclicAMIPolyPatch::reverseTransformDirection(), s(), coupledPolyPatch::separated(), coupledPolyPatch::separation(), polyPatch::start(), Foam::T(), td(), transformProperties(), WarningInFunction, and polyPatch::whichFace().

Referenced by hitCyclicACMIPatch().

Here is the call graph for this function:

Here is the caller graph for this function:

hitCyclicACMIPatch()

template<class Type>

template<class TrackCloudType>

void hitCyclicACMIPatch ( TrackCloudType & cloud, trackingData & td, const vector & displacement )

protected

Overridable function to handle the particle hitting a.

cyclicACMIPatch

Definition at line 564 of file particleTemplates.C.

References hitBoundaryFace(), hitCyclicAMIPatch(), cyclicACMIPolyPatch::mask(), cyclicACMIPolyPatch::nonOverlapPatch(), patch(), cyclicAMIPolyPatch::pointFace(), Foam::pos(), position(), polyPatch::start(), td(), cyclicACMIPolyPatch::tolerance(), and polyPatch::whichFace().

Here is the call graph for this function:

hitProcessorPatch()

template<class Type>

template<class TrackCloudType>

void hitProcessorPatch ( TrackCloudType & , trackingData &  )

protected

Overridable function to handle the particle hitting a processorPatch.

Definition at line 609 of file particleTemplates.C.

hitWallPatch()

template<class Type>

template<class TrackCloudType>

void hitWallPatch ( TrackCloudType & , trackingData &  )

protected

Overridable function to handle the particle hitting a wallPatch.

Definition at line 614 of file particleTemplates.C.

hitBoundaryFace()

template<class Type>

template<class TrackCloudType>

void hitBoundaryFace ( const vector & direction, TrackCloudType & cloud, trackingData & td )

protected

Dispatch function for boundary face interaction. Calls one of.

the above (hitWedgePatch, hitCyclicPatch etc) depending on the patch type

Definition at line 287 of file particleTemplates.C.

References Foam::isA(), p, patch(), and td().

Referenced by hitCyclicACMIPatch(), and hitFace().

Here is the call graph for this function:

Here is the caller graph for this function:

TypeName()

template<class Type>

TypeName

(

"particle< Type >"

)

Runtime type information.

propertyList()

template<class Type>

string propertyList ( )

inlinestatic

Definition at line 455 of file particle.H.

clone()

template<class Type>

virtual autoPtr< particle > clone ( ) const

inlinevirtual

Construct a clone.

Reimplemented in CollidingParcel< KinematicParcel< particle > >, DSMCParcel< particle >, DTRMParticle, findCellParticle, indexedParticle, injectedParticle, KinematicParcel< particle >, molecule, MPPICParcel< KinematicParcel< particle > >, passiveParticle, passivePositionParticle, passivePositionParticle, ReactingHeterogeneousParcel< ReactingParcel< ThermoParcel< KinematicParcel< particle > > > >, ReactingMultiphaseParcel< ReactingParcel< ThermoParcel< KinematicParcel< particle > > > >, ReactingParcel< ThermoParcel< KinematicParcel< particle > > >, solidParticle, SprayParcel< ReactingParcel< ThermoParcel< KinematicParcel< particle > > > >, streamLineParticle, ThermoParcel< KinematicParcel< particle > >, trackedParticle, wallBoundedParticle, and wallBoundedStreamLineParticle.

Definition at line 540 of file particle.H.

References autoPtr< T >::New().

Here is the call graph for this function:

Clone() [1/2]

template<class Type>

template<class Derived>

autoPtr< particle > Clone ( const Derived & p )

inlinestatic

Clone a particle.

Definition at line 552 of file particle.H.

References p.

Referenced by CollidingParcel< KinematicParcel< particle > >::clone(), CollidingParcel< KinematicParcel< particle > >::clone(), DSMCParcel< particle >::clone(), DTRMParticle::clone(), findCellParticle::clone(), indexedParticle::clone(), injectedParticle::clone(), injectedParticle::clone(), KinematicParcel< particle >::clone(), KinematicParcel< particle >::clone(), molecule::clone(), MPPICParcel< KinematicParcel< particle > >::clone(), MPPICParcel< KinematicParcel< particle > >::clone(), passiveParticle::clone(), passivePositionParticle::clone(), ReactingHeterogeneousParcel< ReactingParcel< ThermoParcel< KinematicParcel< particle > > > >::clone(), ReactingHeterogeneousParcel< ReactingParcel< ThermoParcel< KinematicParcel< particle > > > >::clone(), ReactingMultiphaseParcel< ReactingParcel< ThermoParcel< KinematicParcel< particle > > > >::clone(), ReactingMultiphaseParcel< ReactingParcel< ThermoParcel< KinematicParcel< particle > > > >::clone(), ReactingParcel< ThermoParcel< KinematicParcel< particle > > >::clone(), ReactingParcel< ThermoParcel< KinematicParcel< particle > > >::clone(), solidParticle::clone(), SprayParcel< ReactingParcel< ThermoParcel< KinematicParcel< particle > > > >::clone(), SprayParcel< ReactingParcel< ThermoParcel< KinematicParcel< particle > > > >::clone(), streamLineParticle::clone(), ThermoParcel< KinematicParcel< particle > >::clone(), ThermoParcel< KinematicParcel< particle > >::clone(), trackedParticle::clone(), wallBoundedParticle::clone(), and wallBoundedStreamLineParticle::clone().

Here is the caller graph for this function:

Clone() [2/2]

template<class Type>

template<class Derived>

autoPtr< particle > Clone ( const Derived & p, const polyMesh & mesh )

inlinestatic

Clone a particle with a mesh reference.

Definition at line 561 of file particle.H.

References mesh(), and p.

Here is the call graph for this function:

getNewParticleID()

template<class Type>

Foam::label getNewParticleID ( ) const

inline

Get unique particle creation id.

Definition at line 96 of file particleI.H.

References Foam::endl(), Foam::labelMax, particleCount_, and WarningInFunction.

Referenced by particle(), particle(), particle(), and KinematicSurfaceFilm< CloudType >::splashInteraction().

Here is the call graph for this function:

Here is the caller graph for this function:

mesh()

template<class Type>

const Foam::polyMesh & mesh ( ) const

inlinenoexcept

Return the mesh database.

Definition at line 110 of file particleI.H.

References Foam::noexcept.

Referenced by injectedParticle::AddToPropertyList(), KinematicParcel< particle >::calcVelocity(), Clone(), CollidingParcel< KinematicParcel< particle > >::clone(), injectedParticle::clone(), KinematicParcel< particle >::clone(), MPPICParcel< KinematicParcel< particle > >::clone(), ReactingParcel< ThermoParcel< KinematicParcel< particle > > >::clone(), ThermoParcel< KinematicParcel< particle > >::clone(), molecule::Cloud< molecule >, CollidingParcel< KinematicParcel< particle > >::CollidingParcel(), CollidingParcel< KinematicParcel< particle > >::CollidingParcel(), CollidingParcel< KinematicParcel< particle > >::CollidingParcel(), CollidingParcel< KinematicParcel< particle > >::CollidingParcel(), CollidingParcel< KinematicParcel< particle > >::CollidingParcel(), ReactingParcel< ThermoParcel< KinematicParcel< particle > > >::constantProperties::constantProperties(), wallBoundedParticle::currentEdge(), DSMCParcel< particle >::DSMCParcel(), DSMCParcel< particle >::DSMCParcel(), DSMCParcel< particle >::DSMCParcel(), DTRMParticle::DTRMParticle(), DTRMParticle::DTRMParticle(), DTRMParticle::DTRMParticle(), findCellParticle::findCellParticle(), findCellParticle::findCellParticle(), findCellParticle::findCellParticle(), indexedParticle::indexedParticle(), indexedParticle::indexedParticle(), indexedParticle::indexedParticle(), DTRMParticle::iNew::iNew(), findCellParticle::iNew::iNew(), injectedParticle::iNew::iNew(), molecule::iNew::iNew(), particle< Type >::iNew::iNew(), passiveParticle::iNew::iNew(), passivePositionParticle::iNew::iNew(), solidParticle::iNew::iNew(), streamLineParticle::iNew::iNew(), trackedParticle::iNew::iNew(), wallBoundedParticle::iNew::iNew(), wallBoundedStreamLineParticle::iNew::iNew(), injectedParticle::injectedParticle(), injectedParticle::injectedParticle(), injectedParticle::injectedParticle(), injectedParticle::injectedParticle(), KinematicParcel< particle >::KinematicParcel(), KinematicParcel< particle >::KinematicParcel(), KinematicParcel< particle >::KinematicParcel(), KinematicParcel< particle >::KinematicParcel(), KinematicParcel< particle >::KinematicParcel(), molecule::molecule(), molecule::molecule(), molecule::molecule(), solidParticle::move(), wallBoundedStreamLineParticle::move(), MPPICParcel< KinematicParcel< particle > >::MPPICParcel(), MPPICParcel< KinematicParcel< particle > >::MPPICParcel(), MPPICParcel< KinematicParcel< particle > >::MPPICParcel(), MPPICParcel< KinematicParcel< particle > >::MPPICParcel(), MPPICParcel< KinematicParcel< particle > >::MPPICParcel(), particle(), particle(), particle(), particle(), particle(), particle(), passiveParticle::passiveParticle(), passiveParticle::passiveParticle(), passiveParticle::passiveParticle(), passivePositionParticle::passivePositionParticle(), passivePositionParticle::passivePositionParticle(), passivePositionParticle::passivePositionParticle(), passivePositionParticle::passivePositionParticle(), passivePositionParticle::passivePositionParticle(), wallBoundedParticle::patchInteraction(), ReactingParcel< ThermoParcel< KinematicParcel< particle > > >::constantProperties::pMin(), ReactingParcel< ThermoParcel< KinematicParcel< particle > > >::ReactingParcel(), ReactingParcel< ThermoParcel< KinematicParcel< particle > > >::ReactingParcel(), ReactingParcel< ThermoParcel< KinematicParcel< particle > > >::ReactingParcel(), ReactingParcel< ThermoParcel< KinematicParcel< particle > > >::ReactingParcel(), ReactingParcel< ThermoParcel< KinematicParcel< particle > > >::ReactingParcel(), solidParticle::solidParticle(), solidParticle::solidParticle(), solidParticle::solidParticle(), streamLineParticle::streamLineParticle(), streamLineParticle::streamLineParticle(), ThermoParcel< KinematicParcel< particle > >::ThermoParcel(), ThermoParcel< KinematicParcel< particle > >::ThermoParcel(), ThermoParcel< KinematicParcel< particle > >::ThermoParcel(), ThermoParcel< KinematicParcel< particle > >::ThermoParcel(), ThermoParcel< KinematicParcel< particle > >::ThermoParcel(), trackedParticle::trackedParticle(), trackedParticle::trackedParticle(), trackedParticle::trackedParticle(), wallBoundedParticle::trackToEdge(), wallBoundedParticle::wallBoundedParticle(), wallBoundedParticle::wallBoundedParticle(), wallBoundedStreamLineParticle::wallBoundedStreamLineParticle(), and wallBoundedStreamLineParticle::wallBoundedStreamLineParticle().

coordinates()

template<class Type>

const Foam::barycentric & coordinates ( ) const

inlinenoexcept

Return current particle coordinates.

Definition at line 116 of file particleI.H.

References Foam::noexcept.

Referenced by molecule::Cloud< molecule >, CollidingParcel< KinematicParcel< particle > >::CollidingParcel(), CollidingParcel< KinematicParcel< particle > >::CollidingParcel(), CollidingParcel< KinematicParcel< particle > >::constantProperties::constantProperties(), ReactingHeterogeneousParcel< ReactingParcel< ThermoParcel< KinematicParcel< particle > > > >::constantProperties::constantProperties(), ReactingMultiphaseParcel< ReactingParcel< ThermoParcel< KinematicParcel< particle > > > >::constantProperties::constantProperties(), ReactingParcel< ThermoParcel< KinematicParcel< particle > > >::constantProperties::constantProperties(), DSMCParcel< particle >::DSMCParcel(), DTRMParticle::DTRMParticle(), findCellParticle::findCellParticle(), indexedParticle::indexedParticle(), KinematicParcel< particle >::KinematicParcel(), KinematicParcel< particle >::KinematicParcel(), molecule::molecule(), solidParticle::move(), MPPICParcel< KinematicParcel< particle > >::MPPICParcel(), MPPICParcel< KinematicParcel< particle > >::MPPICParcel(), particle(), passiveParticle::passiveParticle(), passivePositionParticle::passivePositionParticle(), passivePositionParticle::passivePositionParticle(), ReactingParcel< ThermoParcel< KinematicParcel< particle > > >::constantProperties::pMin(), ReactingHeterogeneousParcel< ReactingParcel< ThermoParcel< KinematicParcel< particle > > > >::ReactingHeterogeneousParcel(), ReactingHeterogeneousParcel< ReactingParcel< ThermoParcel< KinematicParcel< particle > > > >::ReactingHeterogeneousParcel(), ReactingMultiphaseParcel< ReactingParcel< ThermoParcel< KinematicParcel< particle > > > >::ReactingMultiphaseParcel(), ReactingMultiphaseParcel< ReactingParcel< ThermoParcel< KinematicParcel< particle > > > >::ReactingMultiphaseParcel(), ReactingParcel< ThermoParcel< KinematicParcel< particle > > >::ReactingParcel(), ReactingParcel< ThermoParcel< KinematicParcel< particle > > >::ReactingParcel(), solidParticle::solidParticle(), SprayParcel< ReactingParcel< ThermoParcel< KinematicParcel< particle > > > >::SprayParcel(), SprayParcel< ReactingParcel< ThermoParcel< KinematicParcel< particle > > > >::SprayParcel(), ThermoParcel< KinematicParcel< particle > >::ThermoParcel(), ThermoParcel< KinematicParcel< particle > >::ThermoParcel(), trackedParticle::trackedParticle(), and ~particle().

Here is the caller graph for this function:

cell() [1/2]

template<class Type>

Foam::label cell ( ) const

inlinenoexcept

Return current cell particle is in.

Definition at line 122 of file particleI.H.

References Foam::noexcept.

Referenced by ORourkeCollision< CloudType >::collideParcels(), wallBoundedParticle::crossEdgeConnectedFace(), findCellParticle::move(), trackedParticle::move(), PatchFlowRateInjection< CloudType >::setProperties(), PatchInjection< CloudType >::setProperties(), wallBoundedParticle::trackToEdge(), injectedParticle::writePosition(), passivePositionParticle::writePosition(), and ~particle().

Here is the caller graph for this function:

cell() [2/2]

template<class Type>

Foam::label & cell ( )

inlinenoexcept

Return current cell particle is in for manipulation.

Definition at line 128 of file particleI.H.

References Foam::noexcept.

tetFace() [1/2]

template<class Type>

Foam::label tetFace ( ) const

inlinenoexcept

Return current tet face particle is in.

Definition at line 134 of file particleI.H.

References Foam::noexcept.

Referenced by wallBoundedParticle::crossDiagonalEdge(), wallBoundedParticle::crossEdgeConnectedFace(), wallBoundedParticle::currentEdge(), wallBoundedParticle::trackToEdge(), and ~particle().

Here is the caller graph for this function:

tetFace() [2/2]

template<class Type>

Foam::label & tetFace ( )

inlinenoexcept

Return current tet face particle is in for manipulation.

Definition at line 140 of file particleI.H.

References Foam::noexcept.

tetPt() [1/2]

template<class Type>

Foam::label tetPt ( ) const

inlinenoexcept

Return current tet face particle is in.

Definition at line 146 of file particleI.H.

References Foam::noexcept.

Referenced by wallBoundedParticle::crossDiagonalEdge(), wallBoundedParticle::crossEdgeConnectedFace(), wallBoundedParticle::trackToEdge(), and ~particle().

Here is the caller graph for this function:

tetPt() [2/2]

template<class Type>

Foam::label & tetPt ( )

inlinenoexcept

Return current tet face particle is in for manipulation.

Definition at line 152 of file particleI.H.

References Foam::noexcept.

face() [1/2]

template<class Type>

Foam::label face ( ) const

inlinenoexcept

Return current face particle is on otherwise -1.

Definition at line 158 of file particleI.H.

References Foam::noexcept.

Referenced by wallBoundedParticle::crossEdgeConnectedFace(), wallBoundedParticle::hitProcessorPatch(), wallBoundedParticle::patchInteraction(), wallBoundedParticle::trackToEdge(), and ~particle().

Here is the caller graph for this function:

face() [2/2]

template<class Type>

Foam::label & face ( )

inlinenoexcept

Return current face particle is on for manipulation.

Definition at line 164 of file particleI.H.

References Foam::noexcept.

stepFraction() [1/2]

template<class Type>

Foam::scalar stepFraction ( ) const

inlinenoexcept

Return the fraction of time-step completed.

Definition at line 170 of file particleI.H.

References Foam::noexcept.

Referenced by findCellParticle::move(), molecule::move(), solidParticle::move(), streamLineParticle::move(), trackedParticle::move(), wallBoundedStreamLineParticle::move(), and ~particle().

Here is the caller graph for this function:

stepFraction() [2/2]

template<class Type>

Foam::scalar & stepFraction ( )

inlinenoexcept

Return the fraction of time-step completed.

Definition at line 176 of file particleI.H.

References Foam::noexcept.

origProc() [1/2]

template<class Type>

Foam::label origProc ( ) const

inlinenoexcept

Return the originating processor ID.

Definition at line 182 of file particleI.H.

References Foam::noexcept.

Referenced by PairSpringSliderDashpot< CloudType >::evaluatePair(), Foam::operator==(), KinematicSurfaceFilm< CloudType >::splashInteraction(), writeFields(), writeObjects(), and ~particle().

Here is the caller graph for this function:

origProc() [2/2]

template<class Type>

Foam::label & origProc ( )

inlinenoexcept

Return the originating processor ID.

Definition at line 188 of file particleI.H.

References Foam::noexcept.

origId() [1/2]

template<class Type>

Foam::label origId ( ) const

inlinenoexcept

Return the particle ID on the originating processor.

Definition at line 194 of file particleI.H.

References Foam::noexcept.

Referenced by PairSpringSliderDashpot< CloudType >::evaluatePair(), Foam::operator==(), readFields(), readObjects(), KinematicSurfaceFilm< CloudType >::splashInteraction(), trackToMovingTri(), trackToStationaryTri(), writeFields(), writeObjects(), and ~particle().

Here is the caller graph for this function:

origId() [2/2]

template<class Type>

Foam::label & origId ( )

inlinenoexcept

Return the particle ID on the originating processor.

Definition at line 200 of file particleI.H.

References Foam::noexcept.

stepFractionSpan()

template<class Type>

Foam::Pair< Foam::scalar > stepFractionSpan ( ) const

inline

Return the step fraction change within the overall time-step.

Returns the start value and the change as a scalar pair. Always return Pair<scalar>(0, 1), unless sub-cycling is in effect, in which case the values will reflect the span of the sub-cycle within the time-step.

Definition at line 206 of file particleI.H.

References TimeState::deltaTValue(), and dimensioned< Type >::value().

Referenced by currentTimeFraction(), and ~particle().

Here is the call graph for this function:

Here is the caller graph for this function:

currentTimeFraction()

template<class Type>

Foam::scalar currentTimeFraction ( ) const

inline

Return the current fraction within the timestep. This differs.

from the stored step fraction due to sub-cycling.

Definition at line 228 of file particleI.H.

References s(), and stepFractionSpan().

Referenced by ~particle().

Here is the call graph for this function:

Here is the caller graph for this function:

currentTetIndices()

template<class Type>

Foam::tetIndices currentTetIndices ( ) const

inlinenoexcept

Return indices of the current tet that the particle occupies.

Definition at line 236 of file particleI.H.

References Foam::noexcept.

Referenced by ThermoParcel< KinematicParcel< particle > >::calcHeatTransfer(), wallBoundedParticle::isTriAlongTrack(), solidParticle::move(), streamLineParticle::move(), normal(), patchData(), wallBoundedParticle::trackFaceTri(), wallBoundedParticle::trackToEdge(), trackToStationaryTri(), and ~particle().

Here is the caller graph for this function:

currentTetTransform()

template<class Type>

Foam::barycentricTensor currentTetTransform ( ) const

inline

Return the current tet transformation tensor.

Definition at line 242 of file particleI.H.

Referenced by position(), and ~particle().

Here is the caller graph for this function:

normal()

template<class Type>

Foam::vector normal ( ) const

inline

The (unit) normal of the tri on tetFacei_ for the current tet.

Definition at line 253 of file particleI.H.

References currentTetIndices().

Referenced by hitSymmetryPatch(), molecule::hitWallPatch(), solidParticle::hitWallPatch(), and ~particle().

Here is the call graph for this function:

Here is the caller graph for this function:

onFace()

template<class Type>

bool onFace ( ) const

inlinenoexcept

Is the particle on a face?

Definition at line 259 of file particleI.H.

References Foam::noexcept.

Referenced by hitFace(), streamLineParticle::move(), onBoundaryFace(), onInternalFace(), patch(), trackToFace(), and ~particle().

Here is the caller graph for this function:

onInternalFace()

template<class Type>

bool onInternalFace ( ) const

inlinenoexcept

Is the particle on an internal face?

Definition at line 265 of file particleI.H.

References Foam::noexcept, and onFace().

Referenced by hitFace(), track(), and ~particle().

Here is the call graph for this function:

Here is the caller graph for this function:

onBoundaryFace()

template<class Type>

bool onBoundaryFace ( ) const

inlinenoexcept

Is the particle on a boundary face?

Definition at line 271 of file particleI.H.

References Foam::noexcept, and onFace().

Referenced by hitFace(), trackedParticle::move(), patchData(), and ~particle().

Here is the call graph for this function:

Here is the caller graph for this function:

patch()

template<class Type>

Foam::label patch ( ) const

inline

Return the index of patch that the particle is on.

Definition at line 277 of file particleI.H.

References onFace().

Referenced by hitBoundaryFace(), hitCyclicACMIPatch(), hitCyclicAMIPatch(), hitCyclicPatch(), wallBoundedParticle::patchInteraction(), prepareForParallelTransfer(), and ~particle().

Here is the call graph for this function:

Here is the caller graph for this function:

position()

template<class Type>

Foam::vector position ( ) const

inline

Return current particle position.

Definition at line 283 of file particleI.H.

References currentTetTransform().

Referenced by injectedParticle::AddToPropertyList(), autoMap(), molecule::Cloud< molecule >, TrajectoryCollision< CloudType >::collideParcels(), CollidingParcel< KinematicParcel< particle > >::CollidingParcel(), deviationFromMeshCentre(), DSMCParcel< particle >::DSMCParcel(), DTRMParticle::DTRMParticle(), DTRMParticle::DTRMParticle(), PairSpringSliderDashpot< CloudType >::evaluatePair(), findCellParticle::findCellParticle(), findCellParticle::findCellParticle(), hitCyclicACMIPatch(), hitCyclicAMIPatch(), indexedParticle::indexedParticle(), injectedParticle::injectedParticle(), injectedParticle::injectedParticle(), injectedParticle::injectedParticle(), wallBoundedStreamLineParticle::interpolateFields(), KinematicParcel< particle >::KinematicParcel(), molecule::molecule(), findCellParticle::move(), streamLineParticle::move(), MPPICParcel< KinematicParcel< particle > >::MPPICParcel(), SprayParcel< ReactingParcel< ThermoParcel< KinematicParcel< particle > > > >::constantProperties::mu0(), passivePositionParticle::operator<<, InflationInjection< CloudType >::parcelsToInject(), particle(), particle(), particle(), passiveParticle::passiveParticle(), passivePositionParticle::passivePositionParticle(), passivePositionParticle::passivePositionParticle(), passivePositionParticle::passivePositionParticle(), passivePositionParticle::passivePositionParticle(), prepareForInteractionListReferral(), ReactingHeterogeneousParcel< ReactingParcel< ThermoParcel< KinematicParcel< particle > > > >::ReactingHeterogeneousParcel(), ReactingMultiphaseParcel< ReactingParcel< ThermoParcel< KinematicParcel< particle > > > >::ReactingMultiphaseParcel(), ReactingParcel< ThermoParcel< KinematicParcel< particle > > >::ReactingParcel(), readData(), readObjects(), relocate(), ConeNozzleInjection< CloudType >::setProperties(), molecule::setSitePositions(), solidParticle::solidParticle(), SprayParcel< ReactingParcel< ThermoParcel< KinematicParcel< particle > > > >::SprayParcel(), streamLineParticle::streamLineParticle(), ThermoParcel< KinematicParcel< particle > >::ThermoParcel(), trackedParticle::trackedParticle(), trackedParticle::trackedParticle(), trackToFace(), trackToMovingTri(), trackToStationaryTri(), molecule::transformProperties(), wallBoundedParticle::wallBoundedParticle(), wallBoundedStreamLineParticle::wallBoundedStreamLineParticle(), writeObjects(), injectedParticle::writePosition(), writePosition(), passivePositionParticle::writePosition(), writeProperties(), and ~particle().

Here is the call graph for this function:

reset()

template<class Type>

void reset ( )

inline

Reset particle data.

Definition at line 289 of file particleI.H.

Referenced by ~particle().

Here is the caller graph for this function:

track()

template<class Type>

Foam::scalar track	(	const vector &	displacement,
		const scalar	fraction )

Track along the displacement for a given fraction of the overall.

step. End when the track is complete, or when a boundary is hit. On exit, stepFraction_ will have been incremented to the current position, and facei_ will be set to the index of the boundary face that was hit, or -1 if the track completed within a cell. The proportion of the displacement still to be completed is returned.

Definition at line 619 of file particle.C.

References f(), onInternalFace(), and trackToFace().

Referenced by KinematicSurfaceFilm< CloudType >::splashInteraction(), and ~particle().

Here is the call graph for this function:

Here is the caller graph for this function:

trackToFace()

template<class Type>

Foam::scalar trackToFace	(	const vector &	displacement,
		const scalar	fraction )

As particle::track, but also stops on internal faces.

Definition at line 638 of file particle.C.

References Foam::endl(), f(), onFace(), position(), trackToTri(), and WarningInFunction.

Referenced by streamLineParticle::move(), track(), trackToAndHitFace(), and ~particle().

Here is the call graph for this function:

Here is the caller graph for this function:

trackToTri()

template<class Type>

Foam::scalar trackToTri	(	const vector &	displacement,
		const scalar	fraction,
		label &	tetTriI )

As particle::trackToFace, but also stops on tet triangles. On.

exit, tetTriI is set to the index of the tet triangle that was hit, or -1 if the end position was reached.

Definition at line 1017 of file particle.C.

References trackToMovingTri(), and trackToStationaryTri().

Referenced by trackToFace(), and ~particle().

Here is the call graph for this function:

Here is the caller graph for this function:

trackToStationaryTri()

template<class Type>

Foam::scalar trackToStationaryTri	(	const vector &	displacement,
		const scalar	fraction,
		label &	tetTriI )

As particle::trackToTri, but for stationary meshes.

Definition at line 694 of file particle.C.

References Foam::cmptSum(), currentTetIndices(), Foam::endl(), Foam::mag(), Foam::max(), mu, origId(), position(), Foam::Pout, VectorSpace< Form, Cmpt, Ncmpts >::replace(), Foam::T(), and Foam::y0().

Referenced by trackToTri(), and ~particle().

Here is the call graph for this function:

Here is the caller graph for this function:

trackToMovingTri()

template<class Type>

Foam::scalar trackToMovingTri	(	const vector &	displacement,
		const scalar	fraction,
		label &	tetTriI )

As particle::trackToTri, but for moving meshes.

Definition at line 823 of file particle.C.

References b, Foam::cmptSum(), Foam::endl(), Foam::exit(), Foam::FatalError, FatalErrorInFunction, forAll, Foam::mag(), Foam::max(), mu, name, Foam::nl, origId(), position(), Foam::Pout, Foam::roots::real, VectorSpace< Form, Cmpt, Ncmpts >::replace(), Foam::sqr(), Foam::T(), cubicEqn::value(), and Foam::y0().

Referenced by trackToTri(), and ~particle().

Here is the call graph for this function:

Here is the caller graph for this function:

hitFace()

template<class Type>

template<class TrackCloudType>

void hitFace	(	const vector &	direction,
		TrackCloudType &	cloud,
		trackingData &	td )

Hit the current face. If the current face is internal than this.

crosses into the next cell. If it is a boundary face then this will interact the particle with the relevant patch.

Definition at line 344 of file particleTemplates.C.

References hitBoundaryFace(), onBoundaryFace(), onFace(), onInternalFace(), and td().

Referenced by trackToAndHitFace(), and ~particle().

Here is the call graph for this function:

Here is the caller graph for this function:

trackToAndHitFace()

template<class Type>

template<class TrackCloudType>

void trackToAndHitFace	(	const vector &	direction,
		const scalar	fraction,
		TrackCloudType &	cloud,
		trackingData &	td )

Convenience function. Combines trackToFace and hitFace.

Definition at line 371 of file particleTemplates.C.

References hitFace(), td(), and trackToFace().

Referenced by findCellParticle::move(), molecule::move(), solidParticle::move(), streamLineParticle::move(), trackedParticle::move(), and ~particle().

Here is the call graph for this function:

Here is the caller graph for this function:

deviationFromMeshCentre()

template<class Type>

Foam::vector deviationFromMeshCentre

(

)

const

Get the displacement from the mesh centre. Used to correct the.

particle position in cases with reduced dimensionality. Returns a zero vector for three-dimensional cases.

Definition at line 1035 of file particle.C.

References Foam::cmptMin(), Foam::meshTools::constrainToMeshCentre(), Foam::pos(), position(), and VectorSpace< Form, Cmpt, Ncmpts >::zero.

Referenced by ~particle().

Here is the call graph for this function:

Here is the caller graph for this function:

patchData()

template<class Type>

void patchData ( vector & n, vector & U ) const

inline

Get the normal and velocity of the current patch location.

Definition at line 297 of file particleI.H.

References currentTetIndices(), Foam::exit(), Foam::FatalError, FatalErrorInFunction, n, onBoundaryFace(), U, triangle< point, const point & >::unitNormal(), and Foam::Zero.

Referenced by ~particle().

Here is the call graph for this function:

Here is the caller graph for this function:

transformProperties() [1/2]

template<class Type>

void transformProperties ( const tensor & T )

virtual

Transform the physical properties of the particle.

according to the given transformation tensor

Reimplemented in CollidingParcel< KinematicParcel< particle > >, DSMCParcel< particle >, KinematicParcel< particle >, molecule, and solidParticle.

Definition at line 1050 of file particle.C.

Referenced by correctAfterParallelTransfer(), hitCyclicAMIPatch(), hitCyclicPatch(), hitSymmetryPatch(), prepareForInteractionListReferral(), molecule::transformProperties(), molecule::transformProperties(), solidParticle::transformProperties(), solidParticle::transformProperties(), and ~particle().

Here is the caller graph for this function:

transformProperties() [2/2]

template<class Type>

void transformProperties ( const vector & separation )

virtual

Transform the physical properties of the particle.

according to the given separation vector

Reimplemented in CollidingParcel< KinematicParcel< particle > >, DSMCParcel< particle >, KinematicParcel< particle >, molecule, and solidParticle.

Definition at line 1054 of file particle.C.

prepareForParallelTransfer()

template<class Type>

void prepareForParallelTransfer

(

)

Convert global addressing to the processor patch local equivalents.

Definition at line 1058 of file particle.C.

References patch().

Referenced by ~particle().

Here is the call graph for this function:

Here is the caller graph for this function:

correctAfterParallelTransfer()

template<class Type>

void correctAfterParallelTransfer	(	const label	patchi,
		trackingData &	td )

Convert processor patch addressing to the global equivalents.

and set the celli to the face-neighbour

Definition at line 1065 of file particle.C.

References polyPatch::faceCells(), coupledPolyPatch::forwardT(), coupledPolyPatch::parallel(), Foam::refCast(), s(), coupledPolyPatch::separated(), coupledPolyPatch::separation(), polyPatch::start(), Foam::T(), td(), and transformProperties().

Referenced by trackedParticle::correctAfterParallelTransfer(), and ~particle().

Here is the call graph for this function:

Here is the caller graph for this function:

prepareForInteractionListReferral()

template<class Type>

void prepareForInteractionListReferral

(

const vectorTensorTransform &

transform

)

Break the topology and store the particle position so that the.

particle can be referred.

Definition at line 1114 of file particle.C.

References Foam::cmptSum(), Foam::pos(), position(), Foam::transform(), and transformProperties().

Referenced by ~particle().

Here is the call graph for this function:

Here is the caller graph for this function:

correctAfterInteractionListReferral()

template<class Type>

void correctAfterInteractionListReferral

(

const label

celli

)

Correct the topology after referral. The particle may still be.

outside the stored tet and therefore not track-able.

Definition at line 1140 of file particle.C.

References Foam::pos(), and Foam::T().

Referenced by ~particle().

Here is the call graph for this function:

Here is the caller graph for this function:

procTetPt()

template<class Type>

Foam::label procTetPt	(	const polyMesh &	procMesh,
		const label	procCell,
		const label	procTetFace ) const

Return the tet point appropriate for decomposition or reconstruction.

to or from the given mesh.

Definition at line 1177 of file particle.C.

References polyMesh::faceOwner(), polyMesh::faces(), and UList< T >::size().

Referenced by ~particle().

Here is the call graph for this function:

Here is the caller graph for this function:

autoMap()

template<class Type>

void autoMap	(	const vector &	position,
		const mapPolyMesh &	mapper )

Map after a topology change.

Definition at line 1203 of file particle.C.

References position(), and mapPolyMesh::reverseCellMap().

Referenced by ~particle().

Here is the call graph for this function:

Here is the caller graph for this function:

relocate()

template<class Type>

void relocate	(	const point &	position,
		const label	celli = -1 )

Set the addressing based on the provided position.

Definition at line 1220 of file particle.C.

References position().

Referenced by RecycleInteraction< CloudType >::postEvolve(), and ~particle().

Here is the call graph for this function:

Here is the caller graph for this function:

writePropertyName()

template<class Type>

template<class Type>

void writePropertyName ( Ostream & os, const word & name, const word & delim )

static

Write the name representation to stream.

Definition at line 37 of file particleTemplates.C.

References Foam::name(), and os().

Referenced by writeProperty(), writeProperty(), and ~particle().

Here is the call graph for this function:

Here is the caller graph for this function:

writeProperty() [1/2]

template<class Type>

template<class Type>

void writeProperty ( Ostream & os, const word & name, const Type & value, const bool nameOnly, const word & delim, const wordRes & filters = wordRes::null() )

static

Write a named particle property to stream, optionally filtered based on its name.

Definition at line 63 of file particleTemplates.C.

References UList< T >::empty(), wordRes::match(), Foam::name(), os(), and writePropertyName().

Referenced by ~particle().

Here is the call graph for this function:

Here is the caller graph for this function:

writeProperty() [2/2]

template<class Type>

template<class Type>

void writeProperty ( Ostream & os, const word & name, const Field< Type > & values, const bool nameOnly, const word & delim, const wordRes & filters = wordRes::null() )

static

Write a named particle property list to stream, optionally filtered based on its name.

Definition at line 91 of file particleTemplates.C.

References UList< T >::empty(), forAll, wordRes::match(), Foam::name(), os(), and writePropertyName().

Here is the call graph for this function:

readFields()

template<class Type>

template<class TrackCloudType>

void readFields ( TrackCloudType & c )

static

Read the fields associated with the owner cloud.

Definition at line 133 of file particleTemplates.C.

References IOobjectOption::MUST_READ, origId(), p, particle(), and IOobject::typeHeaderOk().

Referenced by DTRMParticle::DTRMParticle(), findCellParticle::findCellParticle(), indexedParticle::indexedParticle(), indexedParticleCloud::indexedParticleCloud(), particle(), passiveParticle::passiveParticle(), passiveParticleCloud::passiveParticleCloud(), passivePositionParticle::passivePositionParticle(), passivePositionParticle::passivePositionParticle(), readData(), injectedParticle::readFields(), molecule::readFields(), solidParticle::readFields(), streamLineParticle::readFields(), wallBoundedParticle::readFields(), trackedParticle::trackedParticle(), and ~particle().

Here is the call graph for this function:

Here is the caller graph for this function:

writeFields()

template<class Type>

template<class TrackCloudType>

void writeFields ( const TrackCloudType & c )

static

Write the fields associated with the owner cloud.

Definition at line 163 of file particleTemplates.C.

References Foam::exit(), Foam::FatalError, FatalErrorInFunction, Foam::nl, IOobjectOption::NO_READ, origId(), origProc(), p, particle(), cloud::POSITIONS, IOPosition< CloudType >::write(), writeLagrangianCoordinates, and writeLagrangianPositions.

Referenced by injectedParticle::writeFields(), molecule::writeFields(), solidParticle::writeFields(), streamLineParticle::writeFields(), wallBoundedParticle::writeFields(), and ~particle().

Here is the call graph for this function:

Here is the caller graph for this function:

writeProperties()

template<class Type>

void writeProperties	(	Ostream &	os,
		const wordRes &	filters,
		const word &	delim,
		const bool	namesOnly ) const

Write individual particle properties to stream.

Definition at line 176 of file particleIO.C.

References os(), position(), and writeProp.

Referenced by injectedParticle::writeProperties(), and ~particle().

Here is the call graph for this function:

Here is the caller graph for this function:

readObjects()

template<class Type>

template<class CloudType>

void readObjects ( CloudType & c, const objectRegistry & obr )

static

Read particle fields as objects from the obr registry.

Definition at line 217 of file particleTemplates.C.

References cloud::findIOPosition(), cloud::lookupIOField(), origId(), p, particle(), and position().

Referenced by injectedParticle::readObjects(), and ~particle().

Here is the call graph for this function:

Here is the caller graph for this function:

writeObjects()

template<class Type>

template<class CloudType>

void writeObjects ( const CloudType & c, objectRegistry & obr )

static

Write particle fields as objects into the obr registry.

Always writes "position", not "coordinate"

Definition at line 266 of file particleTemplates.C.

References cloud::createIOField(), origId(), origProc(), p, particle(), and position().

Referenced by injectedParticle::writeObjects(), and ~particle().

Here is the call graph for this function:

Here is the caller graph for this function:

writeCoordinates()

template<class Type>

void writeCoordinates

(

Ostream &

os

)

const

Write the particle barycentric coordinates and cell info.

Definition at line 202 of file particleIO.C.

References IOstreamOption::ASCII, FUNCTION_NAME, os(), and token::SPACE.

Referenced by ~particle().

Here is the call graph for this function:

Here is the caller graph for this function:

writePosition()

template<class Type>

void writePosition ( Ostream & os ) const

virtual

Write the particle position and cell id.

Reimplemented in injectedParticle, and passivePositionParticle.

Definition at line 221 of file particleIO.C.

References IOstreamOption::ASCII, FUNCTION_NAME, os(), p, position(), s(), and token::SPACE.

Referenced by ~particle().

Here is the call graph for this function:

Here is the caller graph for this function:

Friends And Related Symbol Documentation

operator<<

template<class Type>

Ostream & operator<< ( Ostream & , const particle< Type > &  )

friend

References particle().

operator==

template<class Type>

bool operator== ( const particle< Type > & pA, const particle< Type > & pB )

friend

References particle().

operator!=

template<class Type>

bool operator!= ( const particle< Type > & pA, const particle< Type > & pB )

friend

References particle().

Member Data Documentation

propertyList_

template<class Type>

Foam::string propertyList_ = Foam::particle::propertyList()

static

String representation of properties.

Definition at line 455 of file particle.H.

particleCount_

template<class Type>

Foam::label particleCount_ = 0

static

Cumulative particle counter - used to provide unique ID.

Definition at line 460 of file particle.H.

Referenced by getNewParticleID().

writeLagrangianCoordinates

template<class Type>

bool writeLagrangianCoordinates = true

static

Write particle coordinates file (v1712 and later) Default is true.

Definition at line 466 of file particle.H.

Referenced by injectedParticle::writeFields(), and writeFields().

writeLagrangianPositions

template<class Type>

bool writeLagrangianPositions

static

Write particle positions file (v1706 format and earlier) Default is true (disable in etc/controlDict).

Definition at line 472 of file particle.H.

Referenced by registerInfoSwitch(), injectedParticle::writeFields(), and writeFields().

---

The documentation for this class was generated from the following files:

• src/lagrangian/basic/particle/particle.H
• src/lagrangian/basic/particle/particle.C
• src/lagrangian/basic/particle/particleI.H
• src/lagrangian/basic/particle/particleIO.C
• src/lagrangian/basic/particle/particleTemplates.C
