Particle electric force model involving the Coulomb force calculation. More...

#include <CoulombForce.H>

Inheritance diagram for CoulombForce< CloudType >:

Collaboration diagram for CoulombForce< CloudType >:

Public Member Functions
	TypeName ("Coulomb")
	Runtime type information.
	CoulombForce (CloudType &owner, const fvMesh &mesh, const dictionary &dict)
	Construct from mesh.
	CoulombForce (const CoulombForce &gf)
	Copy construct.
void	operator= (const CoulombForce< CloudType > &)=delete
	No copy assignment.
virtual autoPtr< ParticleForce< CloudType > >	clone () const
	Construct and return a clone.
virtual	~CoulombForce ()=default
	Destructor.
virtual void	cacheFields (const bool store)
	Cache fields.
virtual forceSuSp	calcNonCoupled (const typename CloudType::parcelType &p, const typename CloudType::parcelType::trackingData &td, const scalar dt, const scalar mass, const scalar Re, const scalar muc) const
	Calculate the non-coupled force.
Public Member Functions inherited from ParticleForce< CloudType >
	TypeName ("particleForce")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, ParticleForce, dictionary,(CloudType &owner, const fvMesh &mesh, const dictionary &dict),(owner, mesh, dict))
	Declare runtime constructor selection table.
	ParticleForce (CloudType &owner, const fvMesh &mesh, const dictionary &dict, const word &forceType, const bool readCoeffs)
	Construct from mesh.
	ParticleForce (const ParticleForce &pf)
	Construct copy.
virtual	~ParticleForce ()
	Destructor.
const CloudType &	owner () const noexcept
	Return const access to the cloud owner.
CloudType &	owner () noexcept
	Return reference to the cloud owner.
const fvMesh &	mesh () const noexcept
	Return the mesh database.
const dictionary &	coeffs () const noexcept
	Return the force coefficients dictionary.
virtual forceSuSp	calcCoupled (const typename CloudType::parcelType &p, const typename CloudType::parcelType::trackingData &td, const scalar dt, const scalar mass, const scalar Re, const scalar muc) const
	Calculate the coupled force.
virtual scalar	massAdd (const typename CloudType::parcelType &p, const typename CloudType::parcelType::trackingData &td, const scalar mass) const
	Return the added mass.

Additional Inherited Members
Public Types inherited from ParticleForce< CloudType >
typedef VectorSpace< Vector< vector >, vector, 2 >	returnType
	Convenience typedef for return type.
Static Public Member Functions inherited from ParticleForce< CloudType >
static autoPtr< ParticleForce< CloudType > >	New (CloudType &owner, const fvMesh &mesh, const dictionary &dict, const word &forceType)
	Selector.

Detailed Description

template<class CloudType>
class Foam::CoulombForce< CloudType >

Particle electric force model involving the Coulomb force calculation.

$\‍[ \vec{F}_\mathrm{E} = q \, \vec{E} \‍]$

where

$\vec{F}_\mathrm{E}$	=	Coulomb force [kg m s^{-2}]
	=	Electric charge of particle [A s]
$\vec{E}$	=	Electric field [kg m^2 A^{-1} s^{-3} m^{-1}]

References:

        Governing equations (tag:YSSD):
            Ye, Q., Steigleder, T., Scheibe, A., & Domnick, J. (2002).
            Numerical simulation of the electrostatic powder coating process
            with a corona spray gun. Journal of Electrostatics, 54(2), 189-205.
            DOI:10.1016/S0304-3886(01)00181-4

Usage

Minimal example by using constant/cloudProperties:

subModels
{
    solution
    {
        interpolationSchemes
        {
            <Ename>     <interpolationScheme>;
        }
    }

    particleForces
    {
        Coulomb
        {
            q       <Function1<scalar>>;
            E       <word>;
        }
    }
}

where the entries mean:

Property	Description	Type	Reqd	Deflt
`type`	Type name: Coulomb	word	yes	-
`q`	Electric charge of particles	<Function1<scalar>	yes	-
`E`	Name of electric field	word	no	E

Note

Particle electric charge can be input as a function of particle diameter:

    particleForces
    {
        Coulomb
        {
            q   table
            (
                // d [m]           q [C = A s]
                (1e-06             -5.0e-11)
                (1e-05             -1.0e-10)
            );
            E   electricPotential:E;
        }
    }

Source files

Definition at line 162 of file CoulombForce.H.

Constructor & Destructor Documentation

◆ CoulombForce() [1/2]

template<class CloudType>

CoulombForce	(	CloudType &	owner,
		const fvMesh &	mesh,
		const dictionary &	dict )

Construct from mesh.

Definition at line 59 of file CoulombForce.C.

References ParticleForce< CloudType >::coeffs(), dict, Foam::GlobalIOList< Tuple2< scalar, vector > >::typeName, ParticleForce< CloudType >::mesh(), ParticleForce< CloudType >::New(), ParticleForce< CloudType >::owner(), and ParticleForce< CloudType >::ParticleForce().

Referenced by clone(), CoulombForce(), operator=(), and TypeName().

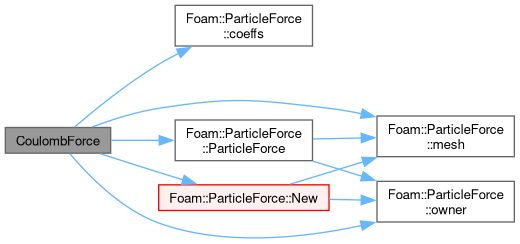

Here is the call graph for this function:

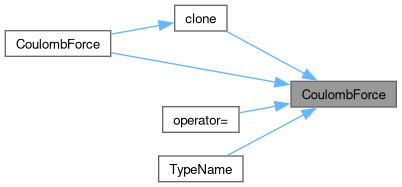

Here is the caller graph for this function:

◆ CoulombForce() [2/2]

template<class CloudType>

CoulombForce ( const CoulombForce< CloudType > & gf )

Copy construct.

Definition at line 77 of file CoulombForce.C.

References clone(), CoulombForce(), and ParticleForce< CloudType >::ParticleForce().

Here is the call graph for this function:

◆ ~CoulombForce()

template<class CloudType>

virtual ~CoulombForce ( )

virtualdefault

Destructor.

References p, Foam::Re(), and td().

Here is the call graph for this function:

Member Function Documentation

◆ TypeName()

template<class CloudType>

TypeName ( "Coulomb" )

Runtime type information.

References CoulombForce(), dict, ParticleForce< CloudType >::mesh(), and ParticleForce< CloudType >::owner().

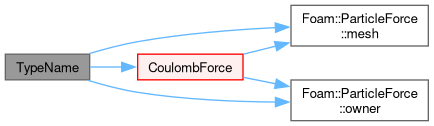

Here is the call graph for this function:

◆ operator=()

template<class CloudType>

void operator= ( const CoulombForce< CloudType > & )

delete

No copy assignment.

References CoulombForce().

Here is the call graph for this function:

◆ clone()

template<class CloudType>

virtual autoPtr< ParticleForce< CloudType > > clone ( ) const

inlinevirtual

Construct and return a clone.

Reimplemented from ParticleForce< CloudType >.

Definition at line 226 of file CoulombForce.H.

References CoulombForce().

Referenced by CoulombForce().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ cacheFields()

template<class CloudType>

void cacheFields ( const bool store )

virtual

Cache fields.

Reimplemented from ParticleForce< CloudType >.

Definition at line 92 of file CoulombForce.C.

References interpolation< Type >::New(), and ParticleForce< CloudType >::owner().

Here is the call graph for this function:

◆ calcNonCoupled()

template<class CloudType>

Foam::forceSuSp calcNonCoupled	(	const typename CloudType::parcelType &	p,
		const typename CloudType::parcelType::trackingData &	td,
		const scalar	dt,
		const scalar	mass,
		const scalar	Re,
		const scalar	muc ) const

virtual

Calculate the non-coupled force.

Reimplemented from ParticleForce< CloudType >.

Definition at line 115 of file CoulombForce.C.

References interpolation< Type >::interpolate(), p, Foam::Re(), td(), and Foam::Zero.

Here is the call graph for this function:

The documentation for this class was generated from the following files:

src/lagrangian/intermediate/submodels/Kinematic/ParticleForces/Coulomb/CoulombForce.H
src/lagrangian/intermediate/submodels/Kinematic/ParticleForces/Coulomb/CoulombForce.C
