ParticleForce< CloudType > Class Template Reference

Abstract base class for particle forces. More...

#include <ParticleForce.H>

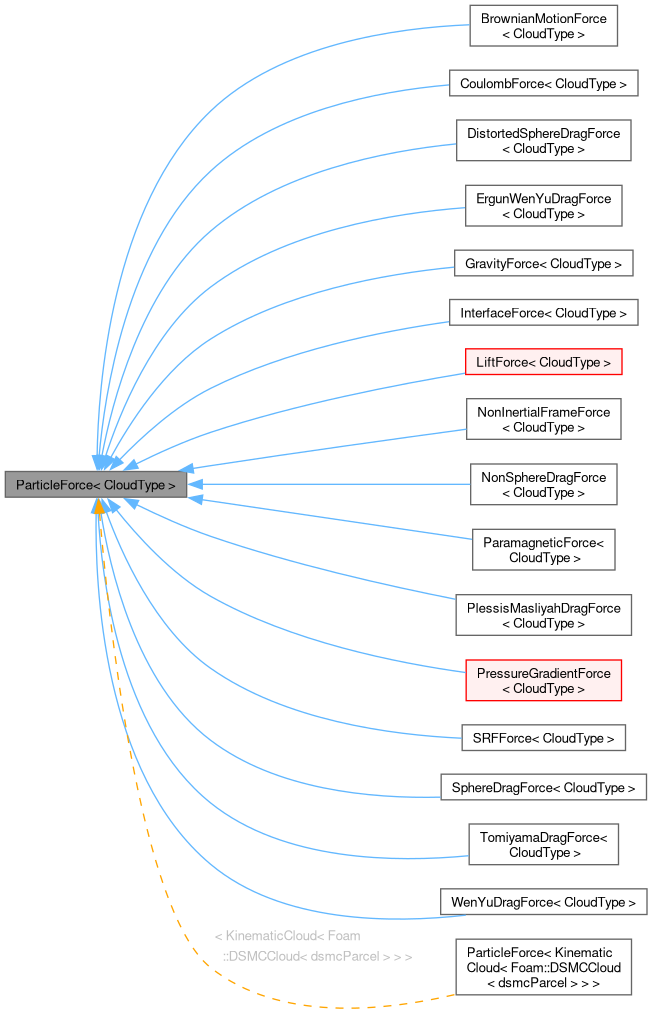

Inheritance diagram for ParticleForce< CloudType >:

Public Types
typedef VectorSpace< Vector< vector >, vector, 2 >	returnType
	Convenience typedef for return type.

Public Member Functions
	TypeName ("particleForce")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, ParticleForce, dictionary,(CloudType &owner, const fvMesh &mesh, const dictionary &dict),(owner, mesh, dict))
	Declare runtime constructor selection table.
	ParticleForce (CloudType &owner, const fvMesh &mesh, const dictionary &dict, const word &forceType, const bool readCoeffs)
	Construct from mesh.
	ParticleForce (const ParticleForce &pf)
	Construct copy.
virtual autoPtr< ParticleForce< CloudType > >	clone () const
	Construct and return a clone.
virtual	~ParticleForce ()
	Destructor.
const CloudType &	owner () const noexcept
	Return const access to the cloud owner.
CloudType &	owner () noexcept
	Return reference to the cloud owner.
const fvMesh &	mesh () const noexcept
	Return the mesh database.
const dictionary &	coeffs () const noexcept
	Return the force coefficients dictionary.
virtual void	cacheFields (const bool store)
	Cache fields.
virtual forceSuSp	calcCoupled (const typename CloudType::parcelType &p, const typename CloudType::parcelType::trackingData &td, const scalar dt, const scalar mass, const scalar Re, const scalar muc) const
	Calculate the coupled force.
virtual forceSuSp	calcNonCoupled (const typename CloudType::parcelType &p, const typename CloudType::parcelType::trackingData &td, const scalar dt, const scalar mass, const scalar Re, const scalar muc) const
	Calculate the non-coupled force.
virtual scalar	massAdd (const typename CloudType::parcelType &p, const typename CloudType::parcelType::trackingData &td, const scalar mass) const
	Return the added mass.

Static Public Member Functions
static autoPtr< ParticleForce< CloudType > >	New (CloudType &owner, const fvMesh &mesh, const dictionary &dict, const word &forceType)
	Selector.

Detailed Description

template<class CloudType>
class Foam::ParticleForce< CloudType >

Abstract base class for particle forces.

Source files

• ParticleForce.H
• ParticleForce.C
• ParticleForceNew.C

Definition at line 54 of file ParticleForce.H.

Member Typedef Documentation

returnType

template<class CloudType>

typedef VectorSpace<Vector<vector>, vector, 2> returnType

Convenience typedef for return type.

Definition at line 101 of file ParticleForce.H.

Constructor & Destructor Documentation

ParticleForce() [1/2]

template<class CloudType>

ParticleForce	(	CloudType &	owner,
		const fvMesh &	mesh,
		const dictionary &	dict,
		const word &	forceType,
		const bool	readCoeffs )

Construct from mesh.

Definition at line 26 of file ParticleForce.C.

References dict, mesh(), and owner().

Referenced by BrownianMotionForce< CloudType >::BrownianMotionForce(), BrownianMotionForce< CloudType >::BrownianMotionForce(), NonInertialFrameForce< CloudType >::clone(), clone(), SRFForce< CloudType >::clone(), CoulombForce< CloudType >::CoulombForce(), CoulombForce< CloudType >::CoulombForce(), declareRunTimeSelectionTable(), DistortedSphereDragForce< CloudType >::DistortedSphereDragForce(), DistortedSphereDragForce< CloudType >::DistortedSphereDragForce(), ErgunWenYuDragForce< CloudType >::ErgunWenYuDragForce(), ErgunWenYuDragForce< CloudType >::ErgunWenYuDragForce(), GravityForce< CloudType >::GravityForce(), GravityForce< CloudType >::GravityForce(), InterfaceForce< CloudType >::InterfaceForce(), InterfaceForce< CloudType >::InterfaceForce(), LiftForce< CloudType >::LiftForce(), LiftForce< CloudType >::LiftForce(), NonInertialFrameForce< CloudType >::NonInertialFrameForce(), NonInertialFrameForce< CloudType >::NonInertialFrameForce(), NonSphereDragForce< CloudType >::NonSphereDragForce(), NonSphereDragForce< CloudType >::NonSphereDragForce(), ParamagneticForce< CloudType >::ParamagneticForce(), ParamagneticForce< CloudType >::ParamagneticForce(), ParticleForce(), PlessisMasliyahDragForce< CloudType >::PlessisMasliyahDragForce(), PlessisMasliyahDragForce< CloudType >::PlessisMasliyahDragForce(), PressureGradientForce< CloudType >::PressureGradientForce(), PressureGradientForce< CloudType >::PressureGradientForce(), SphereDragForce< CloudType >::SphereDragForce(), SphereDragForce< CloudType >::SphereDragForce(), SRFForce< CloudType >::SRFForce(), SRFForce< CloudType >::SRFForce(), TomiyamaDragForce< CloudType >::TomiyamaDragForce(), TomiyamaDragForce< CloudType >::TomiyamaDragForce(), WenYuDragForce< CloudType >::WenYuDragForce(), and WenYuDragForce< CloudType >::WenYuDragForce().

Here is the call graph for this function:

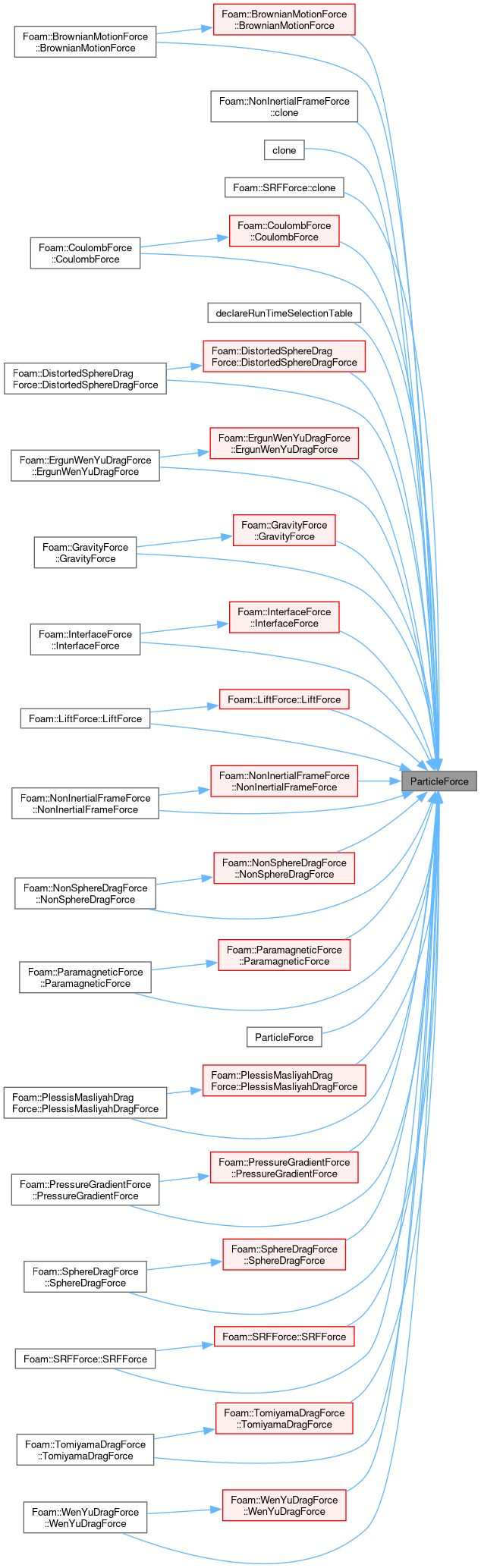

Here is the caller graph for this function:

ParticleForce() [2/2]

template<class CloudType>

ParticleForce

(

const ParticleForce< CloudType > &

pf

)

Construct copy.

Definition at line 49 of file ParticleForce.C.

References ParticleForce().

Here is the call graph for this function:

~ParticleForce()

template<class CloudType>

~ParticleForce ( )

virtual

Destructor.

Definition at line 60 of file ParticleForce.C.

Member Function Documentation

TypeName()

template<class CloudType>

TypeName

(

"particleForce"

)

Runtime type information.

declareRunTimeSelectionTable()

template<class CloudType>

declareRunTimeSelectionTable	(	autoPtr	,
		ParticleForce< CloudType >	,
		dictionary	,
		(CloudType &owner, const fvMesh &mesh, const dictionary &dict)	,
		(owner, mesh, dict)	)

Declare runtime constructor selection table.

References dict, mesh(), owner(), and ParticleForce().

Here is the call graph for this function:

clone()

template<class CloudType>

virtual autoPtr< ParticleForce< CloudType > > clone ( ) const

inlinevirtual

Construct and return a clone.

Reimplemented in BrownianMotionForce< CloudType >, CoulombForce< CloudType >, DistortedSphereDragForce< CloudType >, ErgunWenYuDragForce< CloudType >, GravityForce< CloudType >, InterfaceForce< CloudType >, LiftForce< CloudType >, NonInertialFrameForce< CloudType >, NonSphereDragForce< CloudType >, ParamagneticForce< CloudType >, PlessisMasliyahDragForce< CloudType >, PressureGradientForce< CloudType >, SaffmanMeiLiftForce< CloudType >, SphereDragForce< CloudType >, SRFForce< CloudType >, TomiyamaDragForce< CloudType >, TomiyamaLiftForce< CloudType >, VirtualMassForce< CloudType >, and WenYuDragForce< CloudType >.

Definition at line 126 of file ParticleForce.H.

References ParticleForce().

Here is the call graph for this function:

New()

template<class CloudType>

Foam::autoPtr< Foam::ParticleForce< CloudType > > New ( CloudType & owner, const fvMesh & mesh, const dictionary & dict, const word & forceType )

static

Selector.

Definition at line 28 of file ParticleForceNew.C.

References Foam::abort(), dict, Foam::endl(), Foam::FatalIOError, FatalIOErrorInLookup, Foam::Info, mesh(), and owner().

Referenced by CoulombForce< CloudType >::CoulombForce(), ParticleForceList< CloudType >::ParticleForceList(), and ParticleForceList< KinematicCloud< Foam::DSMCCloud< dsmcParcel > > >::ParticleForceList().

Here is the call graph for this function:

Here is the caller graph for this function:

owner() [1/2]

template<class CloudType>

const CloudType & owner ( ) const

inlinenoexcept

Return const access to the cloud owner.

Definition at line 160 of file ParticleForce.H.

References Foam::noexcept.

Referenced by BrownianMotionForce< CloudType >::BrownianMotionForce(), CoulombForce< CloudType >::cacheFields(), InterfaceForce< CloudType >::cacheFields(), LiftForce< CloudType >::cacheFields(), ParamagneticForce< CloudType >::cacheFields(), PressureGradientForce< CloudType >::cacheFields(), BrownianMotionForce< CloudType >::calcCoupled(), LiftForce< CloudType >::Cl(), CoulombForce< CloudType >::CoulombForce(), declareRunTimeSelectionTable(), DistortedSphereDragForce< CloudType >::DistortedSphereDragForce(), ErgunWenYuDragForce< CloudType >::ErgunWenYuDragForce(), GravityForce< CloudType >::GravityForce(), InterfaceForce< CloudType >::InterfaceForce(), LiftForce< CloudType >::LiftForce(), New(), NonInertialFrameForce< CloudType >::NonInertialFrameForce(), NonSphereDragForce< CloudType >::NonSphereDragForce(), ParamagneticForce< CloudType >::ParamagneticForce(), ParticleForce(), PlessisMasliyahDragForce< CloudType >::PlessisMasliyahDragForce(), PressureGradientForce< CloudType >::PressureGradientForce(), SaffmanMeiLiftForce< CloudType >::SaffmanMeiLiftForce(), SphereDragForce< CloudType >::SphereDragForce(), SRFForce< CloudType >::SRFForce(), TomiyamaDragForce< CloudType >::TomiyamaDragForce(), TomiyamaLiftForce< CloudType >::TomiyamaLiftForce(), BrownianMotionForce< CloudType >::TypeName(), CoulombForce< CloudType >::TypeName(), DistortedSphereDragForce< CloudType >::TypeName(), ErgunWenYuDragForce< CloudType >::TypeName(), GravityForce< CloudType >::TypeName(), InterfaceForce< CloudType >::TypeName(), NonInertialFrameForce< CloudType >::TypeName(), NonSphereDragForce< CloudType >::TypeName(), ParamagneticForce< CloudType >::TypeName(), PlessisMasliyahDragForce< CloudType >::TypeName(), PressureGradientForce< CloudType >::TypeName(), SaffmanMeiLiftForce< CloudType >::TypeName(), SphereDragForce< CloudType >::TypeName(), SRFForce< CloudType >::TypeName(), TomiyamaDragForce< CloudType >::TypeName(), TomiyamaLiftForce< CloudType >::TypeName(), VirtualMassForce< CloudType >::TypeName(), WenYuDragForce< CloudType >::TypeName(), VirtualMassForce< CloudType >::VirtualMassForce(), and WenYuDragForce< CloudType >::WenYuDragForce().

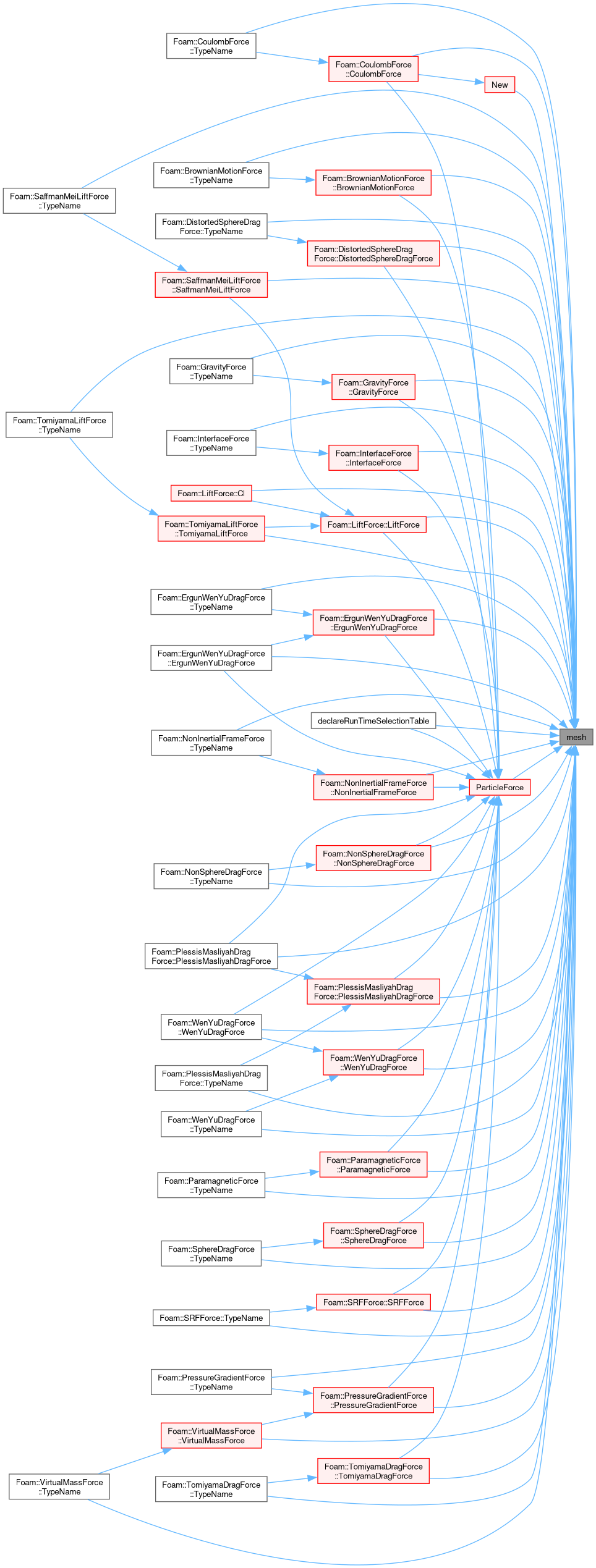

Here is the caller graph for this function:

owner() [2/2]

template<class CloudType>

CloudType & owner ( )

inlinenoexcept

Return reference to the cloud owner.

Definition at line 165 of file ParticleForce.H.

References Foam::noexcept.

mesh()

template<class CloudType>

const fvMesh & mesh ( ) const

inlinenoexcept

Return the mesh database.

Definition at line 170 of file ParticleForce.H.

References Foam::noexcept.

Referenced by BrownianMotionForce< CloudType >::BrownianMotionForce(), LiftForce< CloudType >::Cl(), CoulombForce< CloudType >::CoulombForce(), declareRunTimeSelectionTable(), DistortedSphereDragForce< CloudType >::DistortedSphereDragForce(), ErgunWenYuDragForce< CloudType >::ErgunWenYuDragForce(), ErgunWenYuDragForce< CloudType >::ErgunWenYuDragForce(), GravityForce< CloudType >::GravityForce(), InterfaceForce< CloudType >::InterfaceForce(), LiftForce< CloudType >::LiftForce(), New(), NonInertialFrameForce< CloudType >::NonInertialFrameForce(), NonSphereDragForce< CloudType >::NonSphereDragForce(), ParamagneticForce< CloudType >::ParamagneticForce(), ParticleForce(), PlessisMasliyahDragForce< CloudType >::PlessisMasliyahDragForce(), PlessisMasliyahDragForce< CloudType >::PlessisMasliyahDragForce(), PressureGradientForce< CloudType >::PressureGradientForce(), SaffmanMeiLiftForce< CloudType >::SaffmanMeiLiftForce(), SphereDragForce< CloudType >::SphereDragForce(), SRFForce< CloudType >::SRFForce(), TomiyamaDragForce< CloudType >::TomiyamaDragForce(), TomiyamaLiftForce< CloudType >::TomiyamaLiftForce(), BrownianMotionForce< CloudType >::TypeName(), CoulombForce< CloudType >::TypeName(), DistortedSphereDragForce< CloudType >::TypeName(), ErgunWenYuDragForce< CloudType >::TypeName(), GravityForce< CloudType >::TypeName(), InterfaceForce< CloudType >::TypeName(), NonInertialFrameForce< CloudType >::TypeName(), NonSphereDragForce< CloudType >::TypeName(), ParamagneticForce< CloudType >::TypeName(), PlessisMasliyahDragForce< CloudType >::TypeName(), PressureGradientForce< CloudType >::TypeName(), SaffmanMeiLiftForce< CloudType >::TypeName(), SphereDragForce< CloudType >::TypeName(), SRFForce< CloudType >::TypeName(), TomiyamaDragForce< CloudType >::TypeName(), TomiyamaLiftForce< CloudType >::TypeName(), VirtualMassForce< CloudType >::TypeName(), WenYuDragForce< CloudType >::TypeName(), VirtualMassForce< CloudType >::VirtualMassForce(), WenYuDragForce< CloudType >::WenYuDragForce(), and WenYuDragForce< CloudType >::WenYuDragForce().

Here is the caller graph for this function:

coeffs()

template<class CloudType>

const dictionary & coeffs ( ) const

inlinenoexcept

Return the force coefficients dictionary.

Definition at line 175 of file ParticleForce.H.

References Foam::noexcept.

Referenced by BrownianMotionForce< CloudType >::BrownianMotionForce(), CoulombForce< CloudType >::CoulombForce(), ErgunWenYuDragForce< CloudType >::ErgunWenYuDragForce(), ErgunWenYuDragForce< CloudType >::ErgunWenYuDragForce(), InterfaceForce< CloudType >::InterfaceForce(), LiftForce< CloudType >::LiftForce(), NonInertialFrameForce< CloudType >::NonInertialFrameForce(), NonSphereDragForce< CloudType >::NonSphereDragForce(), ParamagneticForce< CloudType >::ParamagneticForce(), PlessisMasliyahDragForce< CloudType >::PlessisMasliyahDragForce(), PlessisMasliyahDragForce< CloudType >::PlessisMasliyahDragForce(), PressureGradientForce< CloudType >::PressureGradientForce(), TomiyamaDragForce< CloudType >::TomiyamaDragForce(), TomiyamaLiftForce< CloudType >::TomiyamaLiftForce(), VirtualMassForce< CloudType >::VirtualMassForce(), WenYuDragForce< CloudType >::WenYuDragForce(), and WenYuDragForce< CloudType >::WenYuDragForce().

Here is the caller graph for this function:

cacheFields()

template<class CloudType>

void cacheFields ( const bool store )

virtual

Cache fields.

Reimplemented in BrownianMotionForce< CloudType >, CoulombForce< CloudType >, InterfaceForce< CloudType >, LiftForce< CloudType >, NonInertialFrameForce< CloudType >, ParamagneticForce< CloudType >, PressureGradientForce< CloudType >, SRFForce< CloudType >, and VirtualMassForce< CloudType >.

Definition at line 67 of file ParticleForce.C.

calcCoupled()

template<class CloudType>

Foam::forceSuSp calcCoupled ( const typename CloudType::parcelType & p, const typename CloudType::parcelType::trackingData & td, const scalar dt, const scalar mass, const scalar Re, const scalar muc ) const

virtual

Calculate the coupled force.

Reimplemented in BrownianMotionForce< CloudType >, DistortedSphereDragForce< CloudType >, ErgunWenYuDragForce< CloudType >, LiftForce< CloudType >, NonSphereDragForce< CloudType >, PlessisMasliyahDragForce< CloudType >, PressureGradientForce< CloudType >, SphereDragForce< CloudType >, TomiyamaDragForce< CloudType >, VirtualMassForce< CloudType >, and WenYuDragForce< CloudType >.

Definition at line 72 of file ParticleForce.C.

References Foam::Re(), forceSuSp::Sp(), forceSuSp::Su(), td(), and Foam::Zero.

Here is the call graph for this function:

calcNonCoupled()

template<class CloudType>

Foam::forceSuSp calcNonCoupled ( const typename CloudType::parcelType & p, const typename CloudType::parcelType::trackingData & td, const scalar dt, const scalar mass, const scalar Re, const scalar muc ) const

virtual

Calculate the non-coupled force.

Reimplemented in CoulombForce< CloudType >, GravityForce< CloudType >, InterfaceForce< CloudType >, NonInertialFrameForce< CloudType >, ParamagneticForce< CloudType >, and SRFForce< CloudType >.

Definition at line 91 of file ParticleForce.C.

References Foam::Re(), forceSuSp::Sp(), forceSuSp::Su(), td(), and Foam::Zero.

Here is the call graph for this function:

massAdd()

template<class CloudType>

Foam::scalar massAdd ( const typename CloudType::parcelType & p, const typename CloudType::parcelType::trackingData & td, const scalar mass ) const

virtual

Return the added mass.

Reimplemented in PressureGradientForce< CloudType >, and VirtualMassForce< CloudType >.

Definition at line 110 of file ParticleForce.C.

References p, and td().

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• src/lagrangian/intermediate/submodels/Kinematic/ParticleForces/ParticleForce/ParticleForce.H
• src/lagrangian/intermediate/submodels/Kinematic/ParticleForces/ParticleForce/ParticleForce.C
• src/lagrangian/intermediate/submodels/Kinematic/ParticleForces/ParticleForce/ParticleForceNew.C
