A templated (3 x 3) diagonal tensor of objects of <T>, effectively containing 3 elements, derived from VectorSpace. More...

#include <DiagTensor.H>

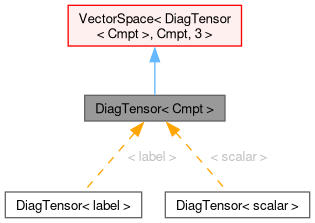

Inheritance diagram for DiagTensor< Cmpt >:

[legend]

Collaboration diagram for DiagTensor< Cmpt >:

[legend]

Public Types
enum	components { XX , YY , ZZ }
	Component labeling enumeration. More...
typedef DiagTensor< label >	labelType
	Equivalent type of labels used for valid component indexing.
Public Types inherited from VectorSpace< DiagTensor< Cmpt >, Cmpt, 3 >
typedef VectorSpace< DiagTensor< Cmpt >, Cmpt, Ncmpts >	vsType
	VectorSpace type.
typedef Cmpt	cmptType
	Component type.
typedef Cmpt	magType
	Magnitude type.
typedef direction	size_type
	The type to represent the size of a VectorSpace.
typedef Cmpt *	iterator
	Random access iterator for traversing VectorSpace.
typedef const Cmpt *	const_iterator
	Random access iterator for traversing VectorSpace.

Public Member Functions
	DiagTensor ()=default
	Default construct.
	DiagTensor (const DiagTensor &)=default
	Copy construct.
DiagTensor &	operator= (const DiagTensor &)=default
	Copy assignment.
	DiagTensor (Foam::zero)
	Construct initialized to zero.
template<class Cmpt2>
	DiagTensor (const VectorSpace< DiagTensor< Cmpt2 >, Cmpt2, 3 > &)
	Construct given VectorSpace.
	DiagTensor (const SphericalTensor< Cmpt > &)
	Construct given SphericalTensor.
	DiagTensor (const Cmpt &txx, const Cmpt &tyy, const Cmpt &tzz)
	Construct given three components.
	DiagTensor (Istream &is)
	Construct from Istream.
const Cmpt &	xx () const noexcept
const Cmpt &	yy () const noexcept
const Cmpt &	zz () const noexcept
Cmpt &	xx () noexcept
Cmpt &	yy () noexcept
Cmpt &	zz () noexcept
Vector< Cmpt >	diag () const
	Extract the diagonal as a vector.
scalar	diagSqr () const
	The L2-norm squared of the diagonal.
Public Member Functions inherited from VectorSpace< DiagTensor< Cmpt >, Cmpt, 3 >
const Foam::VectorSpace< DiagTensor< Cmpt >, Cmpt, Ncmpts >::template ConstBlock< SubVector, BStart >	block () const
	VectorSpace ()=default
	Default construct.
const Cmpt &	component (const direction) const
void	replace (const direction, const Cmpt &)
const Cmpt *	cdata () const noexcept
	Return const pointer to the first data element.
Cmpt *	data () noexcept
	Return pointer to the first data element.
void	fill (const Cmpt &s)
	Assign all components to given value.
const Cmpt &	operator[] (const direction) const
void	operator= (const VectorSpace< DiagTensor< Cmpt >, Cmpt, Ncmpts > &)
void	operator+= (const VectorSpace< DiagTensor< Cmpt >, Cmpt, Ncmpts > &)
void	operator-= (const VectorSpace< DiagTensor< Cmpt >, Cmpt, Ncmpts > &)
void	operator*= (const scalar)
void	operator/= (const scalar)
iterator	begin () noexcept
	Return an iterator (pointer) to begin of VectorSpace.
const_iterator	cbegin () const noexcept
	Return const_iterator (const pointer) to begin of VectorSpace.
iterator	end () noexcept
	Return an iterator (pointer) to end of VectorSpace.
const_iterator	cend () const noexcept
	Return const_iterator (const pointer) to end of VectorSpace.

Static Public Attributes
static constexpr direction	rank = 2
	Rank of DiagTensor is 2.
Static Public Attributes inherited from VectorSpace< DiagTensor< Cmpt >, Cmpt, 3 >
static constexpr direction	dim
	Dimensionality of space.
static constexpr direction	nComponents
	Number of components in this vector space.
static constexpr direction	mRows
static constexpr direction	nCols
static const char *const	typeName
static const char *const	componentNames []
static const DiagTensor< Cmpt >	zero
static const DiagTensor< Cmpt >	one
static const DiagTensor< Cmpt >	max
static const DiagTensor< Cmpt >	min
static const DiagTensor< Cmpt >	rootMax
static const DiagTensor< Cmpt >	rootMin

Additional Inherited Members
Static Public Member Functions inherited from VectorSpace< DiagTensor< Cmpt >, Cmpt, 3 >
static constexpr direction	size () noexcept
	The number of elements in the VectorSpace = Ncmpts.
static DiagTensor< Cmpt >	uniform (const Cmpt &s)
	Return a VectorSpace with all elements = s.
Public Attributes inherited from VectorSpace< DiagTensor< Cmpt >, Cmpt, 3 >
Cmpt	v_ [Ncmpts]
	The components of this vector space.

Detailed Description

template<class Cmpt>
class Foam::DiagTensor< Cmpt >

A templated (3 x 3) diagonal tensor of objects of <T>, effectively containing 3 elements, derived from VectorSpace.

See also: Test-DiagTensor.C

Source files

Definition at line 53 of file DiagTensor.H.

Member Typedef Documentation

◆ labelType

template<class Cmpt>

typedef DiagTensor<label> labelType

Equivalent type of labels used for valid component indexing.

Definition at line 64 of file DiagTensor.H.

Member Enumeration Documentation

◆ components

template<class Cmpt>

enum components

Component labeling enumeration.

Enumerator
XX
YY
ZZ

Definition at line 78 of file DiagTensor.H.

Constructor & Destructor Documentation

◆ DiagTensor() [1/7]

template<class Cmpt>

DiagTensor ( )

default

Default construct.

Referenced by DiagTensor(), DiagTensor(), and DiagTensor().

Here is the caller graph for this function:

◆ DiagTensor() [2/7]

template<class Cmpt>

DiagTensor ( const DiagTensor< Cmpt > & )

default

Copy construct.

◆ DiagTensor() [3/7]

template<class Cmpt>

DiagTensor ( Foam::zero )

inline

Construct initialized to zero.

Definition at line 28 of file DiagTensorI.H.

References DiagTensor(), VectorSpace< DiagTensor< Cmpt >, Cmpt, 3 >::VectorSpace(), and VectorSpace< DiagTensor< Cmpt >, Cmpt, 3 >::zero.

Here is the call graph for this function:

◆ DiagTensor() [4/7]

template<class Cmpt>

template<class Cmpt2>

DiagTensor ( const VectorSpace< DiagTensor< Cmpt2 >, Cmpt2, 3 > & vs )

inline

Construct given VectorSpace.

Definition at line 36 of file DiagTensorI.H.

References DiagTensor(), and VectorSpace< DiagTensor< Cmpt >, Cmpt, 3 >::VectorSpace().

Here is the call graph for this function:

◆ DiagTensor() [5/7]

template<class Cmpt>

DiagTensor ( const SphericalTensor< Cmpt > & st )

inline

Construct given SphericalTensor.

Definition at line 46 of file DiagTensorI.H.

References SphericalTensor< Cmpt >::ii(), VectorSpace< DiagTensor< Cmpt >, Cmpt, 3 >::v_, XX, YY, and ZZ.

Here is the call graph for this function:

◆ DiagTensor() [6/7]

template<class Cmpt>

DiagTensor	(	const Cmpt &	txx,
		const Cmpt &	tyy,
		const Cmpt &	tzz )

inline

Construct given three components.

Definition at line 55 of file DiagTensorI.H.

References VectorSpace< DiagTensor< Cmpt >, Cmpt, 3 >::v_, XX, YY, and ZZ.

◆ DiagTensor() [7/7]

template<class Cmpt>

DiagTensor ( Istream & is )

inlineexplicit

Construct from Istream.

Definition at line 69 of file DiagTensorI.H.

References DiagTensor(), and VectorSpace< DiagTensor< Cmpt >, Cmpt, 3 >::VectorSpace().

Here is the call graph for this function:

Member Function Documentation

◆ operator=()

template<class Cmpt>

DiagTensor & operator= ( const DiagTensor< Cmpt > & )

default

Copy assignment.

◆ xx() [1/2]

template<class Cmpt>

const Cmpt & xx ( ) const

inlinenoexcept

Definition at line 132 of file DiagTensor.H.

Referenced by Foam::det(), diag(), diagSqr(), Foam::inv(), Foam::lerp(), Foam::operator&(), Foam::operator&(), Foam::operator&(), Foam::operator&(), Foam::operator&(), Foam::operator+(), Foam::operator+(), Foam::operator-(), Foam::operator-(), Foam::operator/(), Foam::operator/(), Foam::operator/(), and Foam::tr().

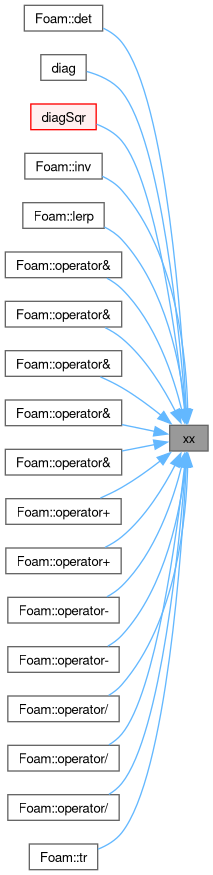

Here is the caller graph for this function:

◆ yy() [1/2]

template<class Cmpt>

const Cmpt & yy ( ) const

inlinenoexcept

Definition at line 133 of file DiagTensor.H.

Referenced by molecule::constantProperties::constantProperties(), Foam::det(), diag(), diagSqr(), Foam::inv(), Foam::lerp(), Foam::operator&(), Foam::operator&(), Foam::operator&(), Foam::operator&(), Foam::operator&(), Foam::operator+(), Foam::operator+(), Foam::operator-(), Foam::operator-(), Foam::operator/(), Foam::operator/(), Foam::operator/(), and Foam::tr().

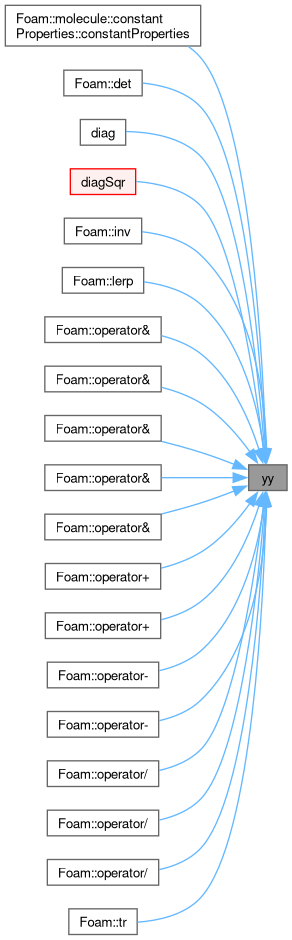

Here is the caller graph for this function:

◆ zz() [1/2]

template<class Cmpt>

const Cmpt & zz ( ) const

inlinenoexcept

Definition at line 134 of file DiagTensor.H.

Referenced by molecule::constantProperties::constantProperties(), Foam::det(), diag(), diagSqr(), Foam::inv(), Foam::lerp(), Foam::operator&(), Foam::operator&(), Foam::operator&(), Foam::operator&(), Foam::operator&(), Foam::operator+(), Foam::operator+(), Foam::operator-(), Foam::operator-(), Foam::operator/(), Foam::operator/(), Foam::operator/(), and Foam::tr().

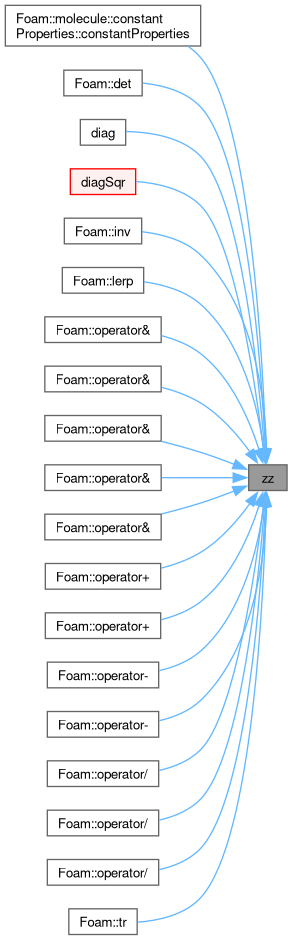

Here is the caller graph for this function:

◆ xx() [2/2]

template<class Cmpt>

Cmpt & xx ( )

inlinenoexcept

Definition at line 136 of file DiagTensor.H.

◆ yy() [2/2]

template<class Cmpt>

Cmpt & yy ( )

inlinenoexcept

Definition at line 137 of file DiagTensor.H.

◆ zz() [2/2]

template<class Cmpt>

Cmpt & zz ( )

inlinenoexcept

Definition at line 138 of file DiagTensor.H.

◆ diag()

template<class Cmpt>

Foam::Vector< Cmpt > diag ( ) const

inline

Extract the diagonal as a vector.

Definition at line 78 of file DiagTensorI.H.

References xx(), yy(), and zz().

Here is the call graph for this function:

◆ diagSqr()

template<class Cmpt>

Foam::scalar diagSqr ( ) const

inline

The L2-norm squared of the diagonal.

Definition at line 85 of file DiagTensorI.H.

References Foam::magSqr(), xx(), yy(), and zz().

Referenced by Foam::magSqr().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ rank

template<class Cmpt>

direction rank = 2

staticconstexpr

Rank of DiagTensor is 2.

Definition at line 72 of file DiagTensor.H.

The documentation for this class was generated from the following files:

src/OpenFOAM/primitives/DiagTensor/DiagTensor.H
src/OpenFOAM/primitives/DiagTensor/DiagTensorI.H
