#include <DistributedDelaunayMesh.H>

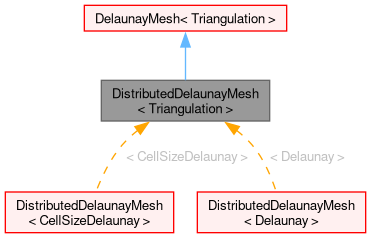

Inheritance diagram for DistributedDelaunayMesh< Triangulation >:

[legend]

Collaboration diagram for DistributedDelaunayMesh< Triangulation >:

Public Types
typedef Triangulation::Vertex_handle	Vertex_handle
typedef Triangulation::Cell_handle	Cell_handle
typedef Triangulation::Point	Point
typedef Triangulation::Finite_vertices_iterator	Finite_vertices_iterator
typedef Triangulation::Finite_cells_iterator	Finite_cells_iterator
typedef Triangulation::All_cells_iterator	All_cells_iterator
Public Types inherited from DelaunayMesh< Triangulation >
typedef Triangulation::Cell_handle	Cell_handle
typedef Triangulation::Vertex_handle	Vertex_handle
typedef Triangulation::Edge	Edge
typedef Triangulation::Point	Point
typedef Triangulation::Facet	Facet
typedef Triangulation::Finite_vertices_iterator	Finite_vertices_iterator
typedef Triangulation::Finite_cells_iterator	Finite_cells_iterator
typedef Triangulation::Finite_facets_iterator	Finite_facets_iterator

Public Member Functions
	DistributedDelaunayMesh (const Time &runTime)
	Construct from components.
	DistributedDelaunayMesh (const Time &runTime, const word &meshName)
	~DistributedDelaunayMesh ()=default
	Destructor.
scalar	calculateLoadUnbalance () const
bool	distribute (const boundBox &bb)
autoPtr< mapDistribute >	distribute (const backgroundMeshDecomposition &decomposition, List< Foam::point > &points)
void	sync (const boundBox &bb)
	Refer vertices so that the processor interfaces are consistent.
void	sync (const boundBox &bb, PtrList< labelPairHashSet > &referralVertices, labelPairHashSet &receivedVertices, bool iterateReferral=true)
	Refer vertices so that the processor interfaces are consistent.
template<class PointIterator>
labelPairHashSet	rangeInsertReferredWithInfo (PointIterator begin, PointIterator end, bool printErrors=true)
	Inserts points into the triangulation if the point is within.
Public Member Functions inherited from DelaunayMesh< Triangulation >
	DelaunayMesh (const Time &runTime)
	Construct from components.
	DelaunayMesh (const Time &runTime, const word &meshName)
	~DelaunayMesh ()
	Destructor.
const Time &	time () const
	Return a reference to the Time object.
void	timeCheck (const string &description, const bool check=true) const
	Write the cpuTime to screen.
label	getNewCellIndex () const
	Create a new unique cell index and return.
label	getNewVertexIndex () const
	Create a new unique vertex index and return.
label	cellCount () const
	Return the cell count (the next unique cell index).
label	vertexCount () const
	Return the vertex count (the next unique vertex index).
void	resetCellCount ()
	Set the cell count to zero.
void	resetVertexCount ()
	Set the vertex count to zero.
void	reset ()
	Clear the entire triangulation.
Map< label >	insertPoints (const List< Vb > &vertices, const bool reIndex)
	Insert the list of vertices (calls rangeInsertWithInfo).
template<class PointIterator>
Map< label >	rangeInsertWithInfo (PointIterator begin, PointIterator end, bool printErrors=false, bool reIndex=true)
	Function inserting points into a triangulation and setting the.
void	printInfo (Ostream &os) const
	Write mesh statistics to stream.
void	printVertexInfo (Ostream &os) const
	Write vertex statistics in the form of a table to stream.
autoPtr< polyMesh >	createMesh (const fileName &name, labelPairLookup &vertexMap, labelList &cellMap, const bool writeDelaunayData=true) const
	Create an fvMesh from the triangulation.

Static Public Member Functions
static autoPtr< mapDistribute >	buildMap (const labelUList &toProc)
	Build a mapDistribute for the supplied destination processor data.

Detailed Description

template<class Triangulation>
class Foam::DistributedDelaunayMesh< Triangulation >

Source files

Definition at line 54 of file DistributedDelaunayMesh.H.

Member Typedef Documentation

◆ Vertex_handle

template<class Triangulation>

typedef Triangulation::Vertex_handle Vertex_handle

Definition at line 60 of file DistributedDelaunayMesh.H.

◆ Cell_handle

template<class Triangulation>

typedef Triangulation::Cell_handle Cell_handle

Definition at line 61 of file DistributedDelaunayMesh.H.

◆ Point

template<class Triangulation>

typedef Triangulation::Point Point

Definition at line 62 of file DistributedDelaunayMesh.H.

◆ Finite_vertices_iterator

template<class Triangulation>

typedef Triangulation::Finite_vertices_iterator Finite_vertices_iterator

Definition at line 65 of file DistributedDelaunayMesh.H.

◆ Finite_cells_iterator

template<class Triangulation>

typedef Triangulation::Finite_cells_iterator Finite_cells_iterator

Definition at line 67 of file DistributedDelaunayMesh.H.

◆ All_cells_iterator

template<class Triangulation>

typedef Triangulation::All_cells_iterator All_cells_iterator

Definition at line 69 of file DistributedDelaunayMesh.H.

Constructor & Destructor Documentation

◆ DistributedDelaunayMesh() [1/2]

template<class Triangulation>

DistributedDelaunayMesh ( const Time & runTime )

explicit

Construct from components.

References runTime.

◆ DistributedDelaunayMesh() [2/2]

template<class Triangulation>

DistributedDelaunayMesh	(	const Time &	runTime,
		const word &	meshName )

References runTime.

◆ ~DistributedDelaunayMesh()

template<class Triangulation>

~DistributedDelaunayMesh ( )

default

Destructor.

References DelaunayMesh< Triangulation >::timeCheck().

Here is the call graph for this function:

Member Function Documentation

◆ calculateLoadUnbalance()

template<class Triangulation>

scalar calculateLoadUnbalance ( ) const

◆ buildMap()

template<class Triangulation>

autoPtr< mapDistribute > buildMap ( const labelUList & toProc )

static

Build a mapDistribute for the supplied destination processor data.

◆ distribute() [1/2]

template<class Triangulation>

bool distribute ( const boundBox & bb )

◆ distribute() [2/2]

template<class Triangulation>

autoPtr< mapDistribute > distribute	(	const backgroundMeshDecomposition &	decomposition,
		List< Foam::point > &	points )

References points.

◆ sync() [1/2]

template<class Triangulation>

void sync ( const boundBox & bb )

Refer vertices so that the processor interfaces are consistent.

◆ sync() [2/2]

template<class Triangulation>

void sync	(	const boundBox &	bb,
		PtrList< labelPairHashSet > &	referralVertices,
		labelPairHashSet &	receivedVertices,
		bool	iterateReferral = true )

Refer vertices so that the processor interfaces are consistent.

◆ rangeInsertReferredWithInfo()

template<class Triangulation>

template<class PointIterator>

labelPairHashSet rangeInsertReferredWithInfo	(	PointIterator	begin,
		PointIterator	end,
		bool	printErrors = true )

Inserts points into the triangulation if the point is within.

the circumsphere of another cell. Returns HashSet of failed point insertions

The documentation for this class was generated from the following file:

applications/utilities/mesh/generation/foamyMesh/conformalVoronoiMesh/DelaunayMesh/DistributedDelaunayMesh.H
