Geometric agglomerated algebraic multigrid preconditioner. More...

#include <GAMGPreconditioner.H>

Inheritance diagram for GAMGPreconditioner:

[legend]

Collaboration diagram for GAMGPreconditioner:

[legend]

Public Member Functions
	TypeName ("GAMG")
	Runtime type information.
	GAMGPreconditioner (const lduMatrix::solver &, const dictionary &solverControls)
	Construct from matrix components and preconditioner solver controls.
virtual	~GAMGPreconditioner ()=default
	Destructor.
virtual void	precondition (solveScalarField &wA, const solveScalarField &rA, const direction cmpt=0) const
	Return wA the preconditioned form of residual rA.
Public Member Functions inherited from GAMGSolver
	TypeName ("GAMG")
	Runtime type information.
	GAMGSolver (const word &fieldName, const lduMatrix &matrix, const FieldField< Field, scalar > &interfaceBouCoeffs, const FieldField< Field, scalar > &interfaceIntCoeffs, const lduInterfaceFieldPtrsList &interfaces, const dictionary &solverControls)
	Construct from lduMatrix and solver controls.
virtual	~GAMGSolver ()
	Destructor.
virtual solverPerformance	solve (scalarField &psi, const scalarField &source, const direction cmpt=0) const
	Solve.
Public Member Functions inherited from lduMatrix::solver
virtual const word &	type () const =0
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, solver, symMatrix,(const word &fieldName, const lduMatrix &matrix, const FieldField< Field, scalar > &interfaceBouCoeffs, const FieldField< Field, scalar > &interfaceIntCoeffs, const lduInterfaceFieldPtrsList &interfaces, const dictionary &solverControls),(fieldName, matrix, interfaceBouCoeffs, interfaceIntCoeffs, interfaces, solverControls))
	declareRunTimeSelectionTable (autoPtr, solver, asymMatrix,(const word &fieldName, const lduMatrix &matrix, const FieldField< Field, scalar > &interfaceBouCoeffs, const FieldField< Field, scalar > &interfaceIntCoeffs, const lduInterfaceFieldPtrsList &interfaces, const dictionary &solverControls),(fieldName, matrix, interfaceBouCoeffs, interfaceIntCoeffs, interfaces, solverControls))
	solver (const word &fieldName, const lduMatrix &matrix, const FieldField< Field, scalar > &interfaceBouCoeffs, const FieldField< Field, scalar > &interfaceIntCoeffs, const lduInterfaceFieldPtrsList &interfaces, const dictionary &solverControls)
	Construct solver for given field name, matrix etc.
virtual	~solver ()=default
	Destructor.
const word &	fieldName () const noexcept
const lduMatrix &	matrix () const noexcept
const FieldField< Field, scalar > &	interfaceBouCoeffs () const noexcept
const FieldField< Field, scalar > &	interfaceIntCoeffs () const noexcept
const lduInterfaceFieldPtrsList &	interfaces () const noexcept
virtual void	read (const dictionary &)
	Read and reset the solver parameters from the given stream.
virtual solverPerformance	scalarSolve (solveScalarField &psi, const solveScalarField &source, const direction cmpt=0) const
	Solve with given field and rhs (in solveScalar precision).
solveScalarField::cmptType	normFactor (const solveScalarField &psi, const solveScalarField &source, const solveScalarField &Apsi, solveScalarField &tmpField, const lduMatrix::normTypes normType) const
	Return the matrix norm using the specified norm method.
solveScalarField::cmptType	normFactor (const solveScalarField &psi, const solveScalarField &source, const solveScalarField &Apsi, solveScalarField &tmpField) const
	Return the matrix norm used to normalise the residual for the stopping criterion.
Public Member Functions inherited from lduMatrix::preconditioner
virtual const word &	type () const =0
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, preconditioner, symMatrix,(const solver &sol, const dictionary &solverControls),(sol, solverControls))
	declareRunTimeSelectionTable (autoPtr, preconditioner, asymMatrix,(const solver &sol, const dictionary &solverControls),(sol, solverControls))
	preconditioner (const solver &sol)
	Construct for given solver.
virtual	~preconditioner ()=default
	Destructor.
virtual void	read (const dictionary &)
	Read and reset the preconditioner parameters from the given stream.
virtual void	preconditionT (solveScalarField &wT, const solveScalarField &rT, const direction cmpt=0) const
	Return wT the transpose-matrix preconditioned form of residual rT.
virtual void	setFinished (const solverPerformance &perf) const
	Signal end of solver.

Protected Member Functions
virtual void	readControls ()
	Read the control parameters from the controlDict_.

Protected Attributes
label	nVcycles_
	Number of V-cycles to perform.
Protected Attributes inherited from lduMatrix::solver
word	fieldName_
const lduMatrix &	matrix_
const FieldField< Field, scalar > &	interfaceBouCoeffs_
const FieldField< Field, scalar > &	interfaceIntCoeffs_
lduInterfaceFieldPtrsList	interfaces_
dictionary	controlDict_
	Dictionary of solution controls.
int	log_
	Verbosity level for solver output statements.
label	minIter_
	Minimum number of iterations in the solver.
label	maxIter_
	Maximum number of iterations in the solver.
lduMatrix::normTypes	normType_
	The normalisation type.
scalar	tolerance_
	Final convergence tolerance.
scalar	relTol_
	Convergence tolerance relative to the initial.
profilingTrigger	profiling_
	Profiling instrumentation.
Protected Attributes inherited from lduMatrix::preconditioner
const solver &	solver_
	Reference to the base-solver this preconditioner is used with.

Additional Inherited Members
Static Public Member Functions inherited from lduMatrix::solver
static autoPtr< solver >	New (const word &solverName, const word &fieldName, const lduMatrix &matrix, const FieldField< Field, scalar > &interfaceBouCoeffs, const FieldField< Field, scalar > &interfaceIntCoeffs, const lduInterfaceFieldPtrsList &interfaces, const dictionary &solverControls)
	Return a new solver of given type.
static autoPtr< solver >	New (const word &fieldName, const lduMatrix &matrix, const FieldField< Field, scalar > &interfaceBouCoeffs, const FieldField< Field, scalar > &interfaceIntCoeffs, const lduInterfaceFieldPtrsList &interfaces, const dictionary &solverControls)
	Return a new solver given dictionary.
Static Public Member Functions inherited from lduMatrix::preconditioner
static word	getName (const dictionary &)
	Find the preconditioner name (directly or from a sub-dictionary).
static autoPtr< preconditioner >	New (const solver &sol, const dictionary &solverControls)
	Return a new preconditioner.

Detailed Description

Geometric agglomerated algebraic multigrid preconditioner.

See also: GAMGSolver for more details.

Source files

Definition at line 53 of file GAMGPreconditioner.H.

Constructor & Destructor Documentation

◆ GAMGPreconditioner()

GAMGPreconditioner	(	const lduMatrix::solver &	sol,
		const dictionary &	solverControls )

Construct from matrix components and preconditioner solver controls.

Definition at line 41 of file GAMGPreconditioner.C.

References lduMatrix::solver::fieldName(), GAMGSolver::GAMGSolver(), lduMatrix::solver::interfaceBouCoeffs(), lduMatrix::solver::interfaceIntCoeffs(), lduMatrix::solver::interfaces(), lduMatrix::solver::matrix(), nVcycles_, lduMatrix::preconditioner::preconditioner(), and readControls().

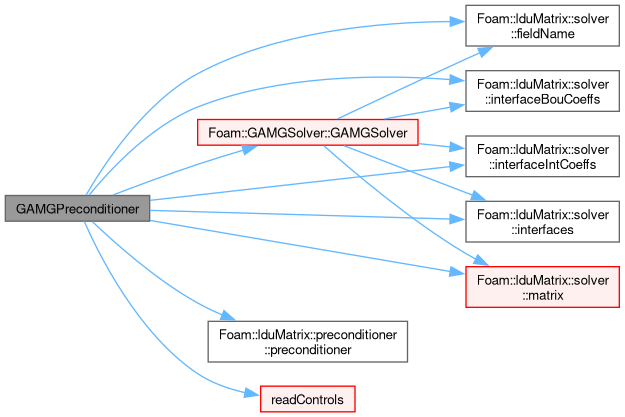

Here is the call graph for this function:

◆ ~GAMGPreconditioner()

virtual ~GAMGPreconditioner ( )

virtualdefault

Destructor.

Member Function Documentation

◆ readControls()

void readControls ( )

protectedvirtual

Read the control parameters from the controlDict_.

Reimplemented from GAMGSolver.

Definition at line 65 of file GAMGPreconditioner.C.

References lduMatrix::solver::controlDict_, nVcycles_, and lduMatrix::solver::readControls().

Referenced by GAMGPreconditioner().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ TypeName()

TypeName ( "GAMG" )

Runtime type information.

◆ precondition()

void precondition	(	solveScalarField &	wA,
		const solveScalarField &	rA,
		const direction	cmpt = 0 ) const

virtual

Return wA the preconditioned form of residual rA.

Implements lduMatrix::preconditioner.

Definition at line 72 of file GAMGPreconditioner.C.

References refPtr< T >::cref(), lduMatrix::solver::interfaceBouCoeffs_, lduMatrix::solver::interfaces_, lduMatrix::solver::matrix_, nVcycles_, UList< T >::size(), and Foam::Zero.

Here is the call graph for this function:

Member Data Documentation

◆ nVcycles_

label nVcycles_

protected

Number of V-cycles to perform.

Definition at line 65 of file GAMGPreconditioner.H.

Referenced by GAMGPreconditioner(), precondition(), and readControls().

The documentation for this class was generated from the following files:

src/OpenFOAM/matrices/lduMatrix/preconditioners/GAMGPreconditioner/GAMGPreconditioner.H
src/OpenFOAM/matrices/lduMatrix/preconditioners/GAMGPreconditioner/GAMGPreconditioner.C
