Abstract base-class for lduMatrix solvers. More...

#include <lduMatrix.H>

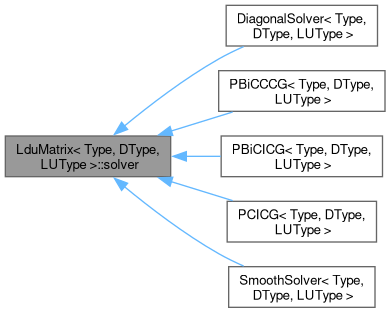

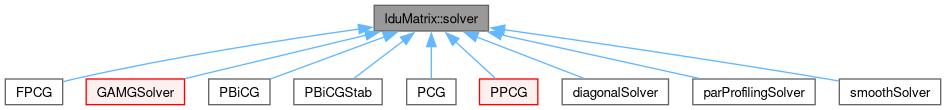

Inheritance diagram for lduMatrix::solver:

[legend]

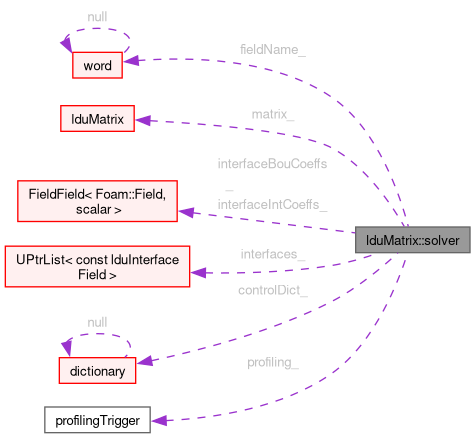

Collaboration diagram for lduMatrix::solver:

[legend]

Public Member Functions
virtual const word &	type () const =0
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, solver, symMatrix,(const word &fieldName, const lduMatrix &matrix, const FieldField< Field, scalar > &interfaceBouCoeffs, const FieldField< Field, scalar > &interfaceIntCoeffs, const lduInterfaceFieldPtrsList &interfaces, const dictionary &solverControls),(fieldName, matrix, interfaceBouCoeffs, interfaceIntCoeffs, interfaces, solverControls))
	declareRunTimeSelectionTable (autoPtr, solver, asymMatrix,(const word &fieldName, const lduMatrix &matrix, const FieldField< Field, scalar > &interfaceBouCoeffs, const FieldField< Field, scalar > &interfaceIntCoeffs, const lduInterfaceFieldPtrsList &interfaces, const dictionary &solverControls),(fieldName, matrix, interfaceBouCoeffs, interfaceIntCoeffs, interfaces, solverControls))
	solver (const word &fieldName, const lduMatrix &matrix, const FieldField< Field, scalar > &interfaceBouCoeffs, const FieldField< Field, scalar > &interfaceIntCoeffs, const lduInterfaceFieldPtrsList &interfaces, const dictionary &solverControls)
	Construct solver for given field name, matrix etc.
virtual	~solver ()=default
	Destructor.
const word &	fieldName () const noexcept
const lduMatrix &	matrix () const noexcept
const FieldField< Field, scalar > &	interfaceBouCoeffs () const noexcept
const FieldField< Field, scalar > &	interfaceIntCoeffs () const noexcept
const lduInterfaceFieldPtrsList &	interfaces () const noexcept
virtual void	read (const dictionary &)
	Read and reset the solver parameters from the given stream.
virtual solverPerformance	solve (scalarField &psi, const scalarField &source, const direction cmpt=0) const =0
	Solve with given field and rhs.
virtual solverPerformance	scalarSolve (solveScalarField &psi, const solveScalarField &source, const direction cmpt=0) const
	Solve with given field and rhs (in solveScalar precision).
solveScalarField::cmptType	normFactor (const solveScalarField &psi, const solveScalarField &source, const solveScalarField &Apsi, solveScalarField &tmpField, const lduMatrix::normTypes normType) const
	Return the matrix norm using the specified norm method.
solveScalarField::cmptType	normFactor (const solveScalarField &psi, const solveScalarField &source, const solveScalarField &Apsi, solveScalarField &tmpField) const
	Return the matrix norm used to normalise the residual for the stopping criterion.

Static Public Member Functions
static autoPtr< solver >	New (const word &solverName, const word &fieldName, const lduMatrix &matrix, const FieldField< Field, scalar > &interfaceBouCoeffs, const FieldField< Field, scalar > &interfaceIntCoeffs, const lduInterfaceFieldPtrsList &interfaces, const dictionary &solverControls)
	Return a new solver of given type.
static autoPtr< solver >	New (const word &fieldName, const lduMatrix &matrix, const FieldField< Field, scalar > &interfaceBouCoeffs, const FieldField< Field, scalar > &interfaceIntCoeffs, const lduInterfaceFieldPtrsList &interfaces, const dictionary &solverControls)
	Return a new solver given dictionary.

Protected Member Functions
virtual void	readControls ()
	Read the control parameters from controlDict_.

Protected Attributes
word	fieldName_
const lduMatrix &	matrix_
const FieldField< Field, scalar > &	interfaceBouCoeffs_
const FieldField< Field, scalar > &	interfaceIntCoeffs_
lduInterfaceFieldPtrsList	interfaces_
dictionary	controlDict_
	Dictionary of solution controls.
int	log_
	Verbosity level for solver output statements.
label	minIter_
	Minimum number of iterations in the solver.
label	maxIter_
	Maximum number of iterations in the solver.
lduMatrix::normTypes	normType_
	The normalisation type.
scalar	tolerance_
	Final convergence tolerance.
scalar	relTol_
	Convergence tolerance relative to the initial.
profilingTrigger	profiling_
	Profiling instrumentation.

Detailed Description

Abstract base-class for lduMatrix solvers.

Definition at line 151 of file lduMatrix.H.

Constructor & Destructor Documentation

◆ solver()

solver	(	const word &	fieldName,
		const lduMatrix &	matrix,
		const FieldField< Field, scalar > &	interfaceBouCoeffs,
		const FieldField< Field, scalar > &	interfaceIntCoeffs,
		const lduInterfaceFieldPtrsList &	interfaces,
		const dictionary &	solverControls )

Construct solver for given field name, matrix etc.

Definition at line 154 of file lduMatrixSolver.C.

References controlDict_, lduMatrix::defaultMaxIter, lduMatrix::defaultTolerance, fieldName(), fieldName_, interfaceBouCoeffs(), interfaceBouCoeffs_, interfaceIntCoeffs(), interfaceIntCoeffs_, interfaces(), interfaces_, lduMatrix::lduMatrix(), log_, matrix(), matrix_, maxIter_, minIter_, normType_, profiling_, readControls(), relTol_, tolerance_, and Foam::Zero.

Referenced by declareRunTimeSelectionTable(), declareRunTimeSelectionTable(), diagonalSolver::diagonalSolver(), FPCG::FPCG(), GAMGSolver::GAMGSolver(), parProfilingSolver::parProfilingSolver(), PBiCG::PBiCG(), PBiCGStab::PBiCGStab(), PCG::PCG(), PPCG::PPCG(), and smoothSolver::smoothSolver().

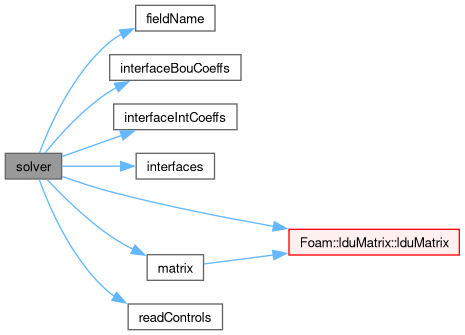

Here is the call graph for this function:

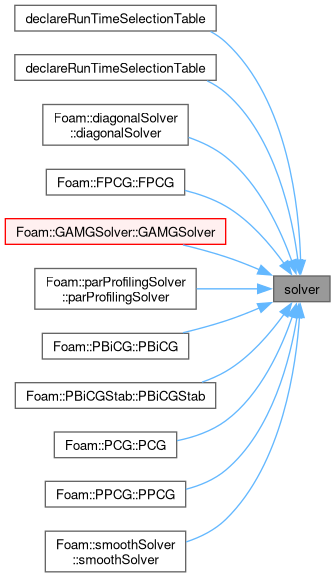

Here is the caller graph for this function:

◆ ~solver()

virtual ~solver ( )

virtualdefault

Destructor.

Member Function Documentation

◆ readControls()

void readControls ( )

protectedvirtual

Read the control parameters from controlDict_.

Reimplemented in GAMGPreconditioner, and smoothSolver.

Definition at line 186 of file lduMatrixSolver.C.

References controlDict_, lduMatrix::DEFAULT_NORM, lduMatrix::defaultMaxIter, lduMatrix::defaultTolerance, log_, maxIter_, minIter_, normType_, lduMatrix::normTypesNames_, relTol_, and tolerance_.

Referenced by GAMGSolver::GAMGSolver(), read(), GAMGPreconditioner::readControls(), smoothSolver::readControls(), and solver().

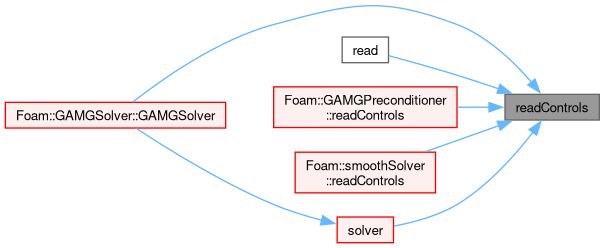

Here is the caller graph for this function:

◆ type()

virtual const word & type ( ) const

pure virtual

Runtime type information.

Referenced by GAMGSolver::GAMGSolver().

Here is the caller graph for this function:

◆ declareRunTimeSelectionTable() [1/2]

declareRunTimeSelectionTable	(	autoPtr	,
		solver	,
		symMatrix	,
		(const word &fieldName, const lduMatrix &matrix, const FieldField< Field, scalar > &interfaceBouCoeffs, const FieldField< Field, scalar > &interfaceIntCoeffs, const lduInterfaceFieldPtrsList &interfaces, const dictionary &solverControls)	,
		(fieldName, matrix, interfaceBouCoeffs, interfaceIntCoeffs, interfaces, solverControls)	)

References fieldName(), interfaceBouCoeffs(), interfaceIntCoeffs(), interfaces(), lduMatrix::lduMatrix(), matrix(), and solver().

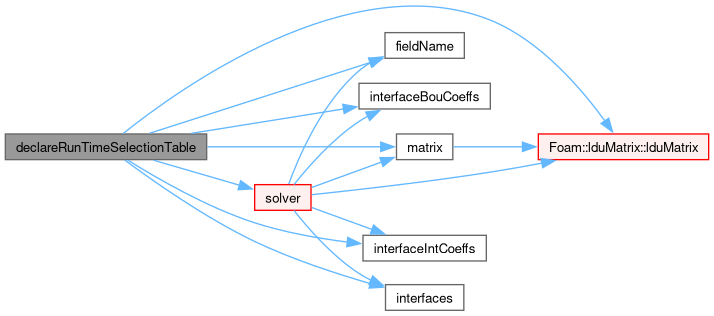

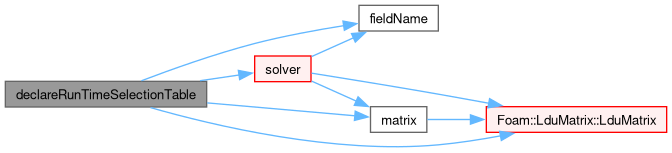

Here is the call graph for this function:

◆ declareRunTimeSelectionTable() [2/2]

declareRunTimeSelectionTable	(	autoPtr	,
		solver	,
		asymMatrix	,
		(const word &fieldName, const lduMatrix &matrix, const FieldField< Field, scalar > &interfaceBouCoeffs, const FieldField< Field, scalar > &interfaceIntCoeffs, const lduInterfaceFieldPtrsList &interfaces, const dictionary &solverControls)	,
		(fieldName, matrix, interfaceBouCoeffs, interfaceIntCoeffs, interfaces, solverControls)	)

References fieldName(), interfaceBouCoeffs(), interfaceIntCoeffs(), interfaces(), lduMatrix::lduMatrix(), matrix(), and solver().

Here is the call graph for this function:

◆ New() [1/2]

Foam::autoPtr< Foam::lduMatrix::solver > New	(	const word &	solverName,
		const word &	fieldName,
		const lduMatrix &	matrix,
		const FieldField< Field, scalar > &	interfaceBouCoeffs,
		const FieldField< Field, scalar > &	interfaceIntCoeffs,
		const lduInterfaceFieldPtrsList &	interfaces,
		const dictionary &	solverControls )

static

Return a new solver of given type.

Definition at line 37 of file lduMatrixSolver.C.

References Foam::exit(), Foam::FatalIOError, FatalIOErrorInFunction, FatalIOErrorInLookup, fieldName(), interfaceBouCoeffs(), interfaceIntCoeffs(), interfaces(), lduMatrix::lduMatrix(), and matrix().

Referenced by viewFactor::calculate(), GAMGSolver::GAMGSolver(), parProfilingSolver::parProfilingSolver(), faMatrix< Type >::solve(), faMatrix< scalar >::solve(), fvMatrix< scalar >::solver(), fvMatrix< Type >::solveSegregated(), and fvMatrix< scalar >::solveSegregated().

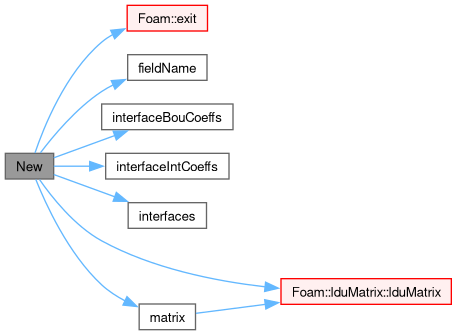

Here is the call graph for this function:

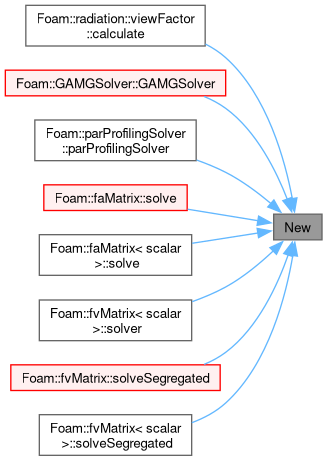

Here is the caller graph for this function:

◆ New() [2/2]

Foam::autoPtr< Foam::lduMatrix::solver > New	(	const word &	fieldName,
		const lduMatrix &	matrix,
		const FieldField< Field, scalar > &	interfaceBouCoeffs,
		const FieldField< Field, scalar > &	interfaceIntCoeffs,
		const lduInterfaceFieldPtrsList &	interfaces,
		const dictionary &	solverControls )

static

Return a new solver given dictionary.

Definition at line 129 of file lduMatrixSolver.C.

References fieldName(), dictionary::get(), interfaceBouCoeffs(), interfaceIntCoeffs(), interfaces(), lduMatrix::lduMatrix(), matrix(), and Foam::New().

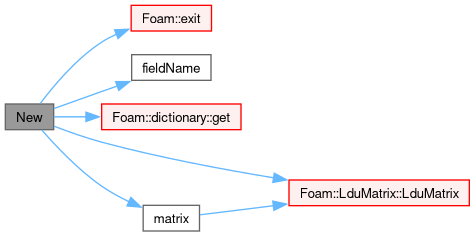

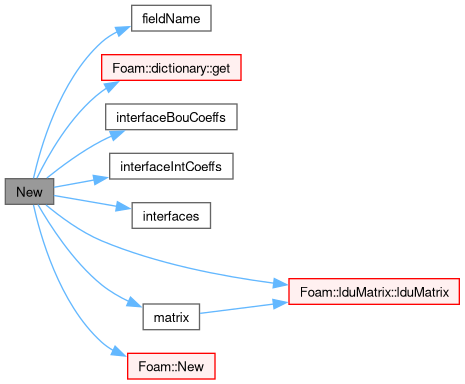

Here is the call graph for this function:

◆ fieldName()

const word & fieldName ( ) const

inlinenoexcept

Definition at line 323 of file lduMatrix.H.

References fieldName_, and Foam::noexcept.

Referenced by declareRunTimeSelectionTable(), declareRunTimeSelectionTable(), diagonalSolver::diagonalSolver(), FPCG::FPCG(), GAMGPreconditioner::GAMGPreconditioner(), GAMGSolver::GAMGSolver(), New(), New(), parProfilingSolver::parProfilingSolver(), PBiCG::PBiCG(), PBiCGStab::PBiCGStab(), PCG::PCG(), PPCG::PPCG(), PPCR::PPCR(), smoothSolver::smoothSolver(), solver(), diagonalSolver::TypeName(), FPCG::TypeName(), GAMGSolver::TypeName(), parProfilingSolver::TypeName(), PBiCG::TypeName(), PBiCGStab::TypeName(), PCG::TypeName(), PPCG::TypeName(), PPCR::TypeName(), and smoothSolver::TypeName().

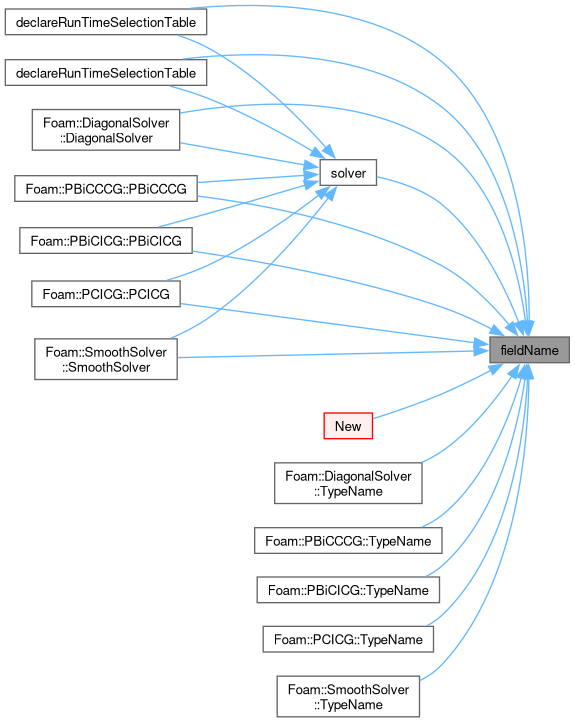

Here is the caller graph for this function:

◆ matrix()

const lduMatrix & matrix ( ) const

inlinenoexcept

Definition at line 328 of file lduMatrix.H.

References lduMatrix::lduMatrix(), matrix_, and Foam::noexcept.

Referenced by declareRunTimeSelectionTable(), declareRunTimeSelectionTable(), diagonalSolver::diagonalSolver(), DICPreconditioner::DICPreconditioner(), DILUPreconditioner::DILUPreconditioner(), distributedDILUPreconditioner::distributedDILUPreconditioner(), FDICPreconditioner::FDICPreconditioner(), FPCG::FPCG(), GAMGPreconditioner::GAMGPreconditioner(), GAMGSolver::GAMGSolver(), lduMatrix::preconditioner::New(), New(), New(), parProfilingSolver::parProfilingSolver(), PBiCG::PBiCG(), PBiCGStab::PBiCGStab(), PCG::PCG(), PPCG::PPCG(), PPCR::PPCR(), FPCG::scalarSolve(), PBiCGStab::scalarSolve(), PCG::scalarSolve(), PPCG::scalarSolveCG(), smoothSolver::smoothSolver(), GAMGSolver::solve(), PBiCG::solve(), smoothSolver::solve(), solver(), diagonalSolver::TypeName(), FPCG::TypeName(), GAMGSolver::TypeName(), parProfilingSolver::TypeName(), PBiCG::TypeName(), PBiCGStab::TypeName(), PCG::TypeName(), PPCG::TypeName(), PPCR::TypeName(), and smoothSolver::TypeName().

Here is the call graph for this function:

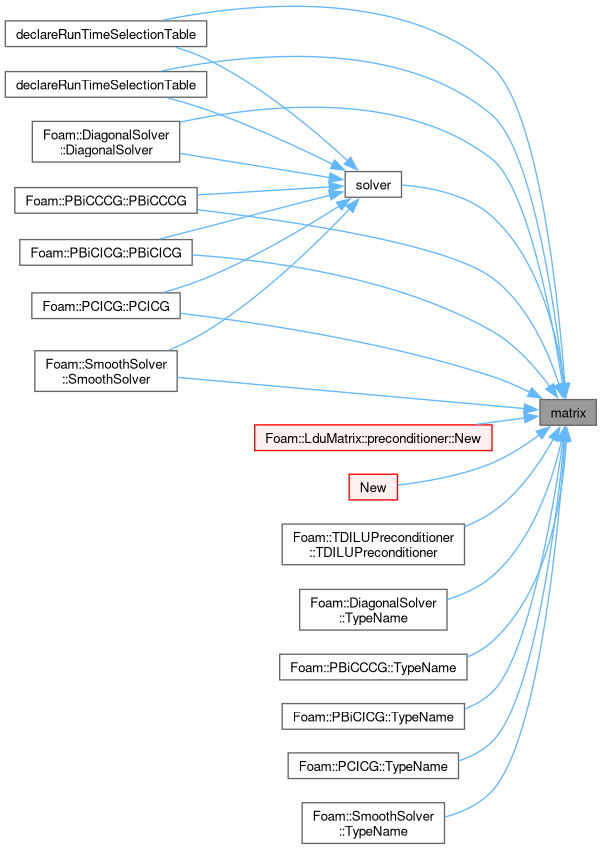

Here is the caller graph for this function:

◆ interfaceBouCoeffs()

const FieldField< Field, scalar > & interfaceBouCoeffs ( ) const

inlinenoexcept

Definition at line 333 of file lduMatrix.H.

References interfaceBouCoeffs_, and Foam::noexcept.

Referenced by declareRunTimeSelectionTable(), declareRunTimeSelectionTable(), diagonalSolver::diagonalSolver(), distributedDILUPreconditioner::distributedDILUPreconditioner(), FPCG::FPCG(), GAMGPreconditioner::GAMGPreconditioner(), GAMGSolver::GAMGSolver(), New(), New(), parProfilingSolver::parProfilingSolver(), PBiCG::PBiCG(), PBiCGStab::PBiCGStab(), PCG::PCG(), PPCG::PPCG(), PPCR::PPCR(), smoothSolver::smoothSolver(), solver(), diagonalSolver::TypeName(), FPCG::TypeName(), GAMGSolver::TypeName(), parProfilingSolver::TypeName(), PBiCG::TypeName(), PBiCGStab::TypeName(), PCG::TypeName(), PPCG::TypeName(), PPCR::TypeName(), and smoothSolver::TypeName().

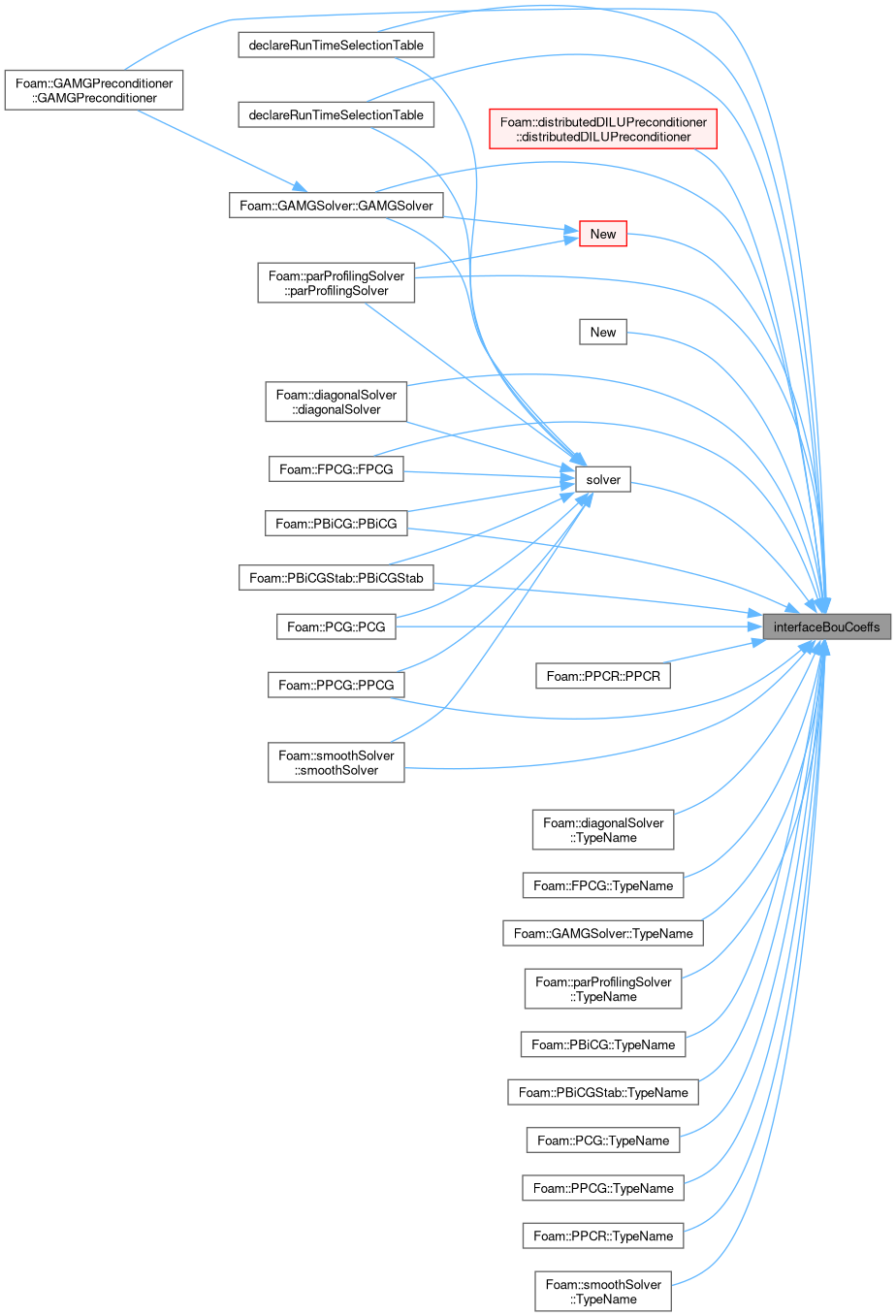

Here is the caller graph for this function:

◆ interfaceIntCoeffs()

const FieldField< Field, scalar > & interfaceIntCoeffs ( ) const

inlinenoexcept

Definition at line 338 of file lduMatrix.H.

References interfaceIntCoeffs_, and Foam::noexcept.

Referenced by declareRunTimeSelectionTable(), declareRunTimeSelectionTable(), diagonalSolver::diagonalSolver(), FPCG::FPCG(), GAMGPreconditioner::GAMGPreconditioner(), GAMGSolver::GAMGSolver(), New(), New(), parProfilingSolver::parProfilingSolver(), PBiCG::PBiCG(), PBiCGStab::PBiCGStab(), PCG::PCG(), PPCG::PPCG(), PPCR::PPCR(), smoothSolver::smoothSolver(), solver(), diagonalSolver::TypeName(), FPCG::TypeName(), GAMGSolver::TypeName(), parProfilingSolver::TypeName(), PBiCG::TypeName(), PBiCGStab::TypeName(), PCG::TypeName(), PPCG::TypeName(), PPCR::TypeName(), and smoothSolver::TypeName().

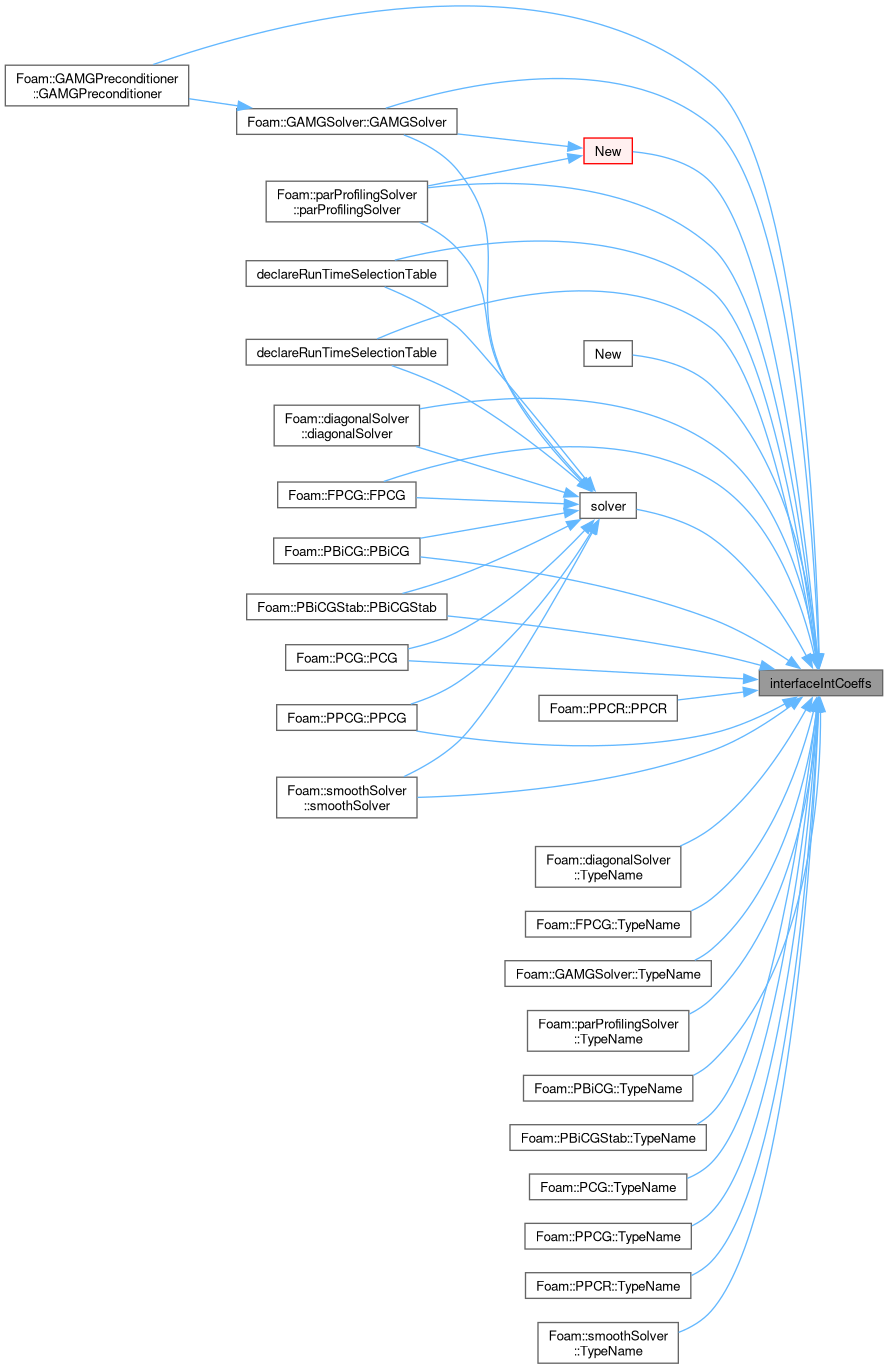

Here is the caller graph for this function:

◆ interfaces()

const lduInterfaceFieldPtrsList & interfaces ( ) const

inlinenoexcept

Definition at line 343 of file lduMatrix.H.

References interfaces_, and Foam::noexcept.

Referenced by declareRunTimeSelectionTable(), declareRunTimeSelectionTable(), diagonalSolver::diagonalSolver(), distributedDILUPreconditioner::distributedDILUPreconditioner(), FPCG::FPCG(), GAMGPreconditioner::GAMGPreconditioner(), GAMGSolver::GAMGSolver(), New(), New(), parProfilingSolver::parProfilingSolver(), PBiCG::PBiCG(), PBiCGStab::PBiCGStab(), PCG::PCG(), PPCG::PPCG(), PPCR::PPCR(), smoothSolver::smoothSolver(), solver(), diagonalSolver::TypeName(), FPCG::TypeName(), GAMGSolver::TypeName(), parProfilingSolver::TypeName(), PBiCG::TypeName(), PBiCGStab::TypeName(), PCG::TypeName(), PPCG::TypeName(), PPCR::TypeName(), and smoothSolver::TypeName().

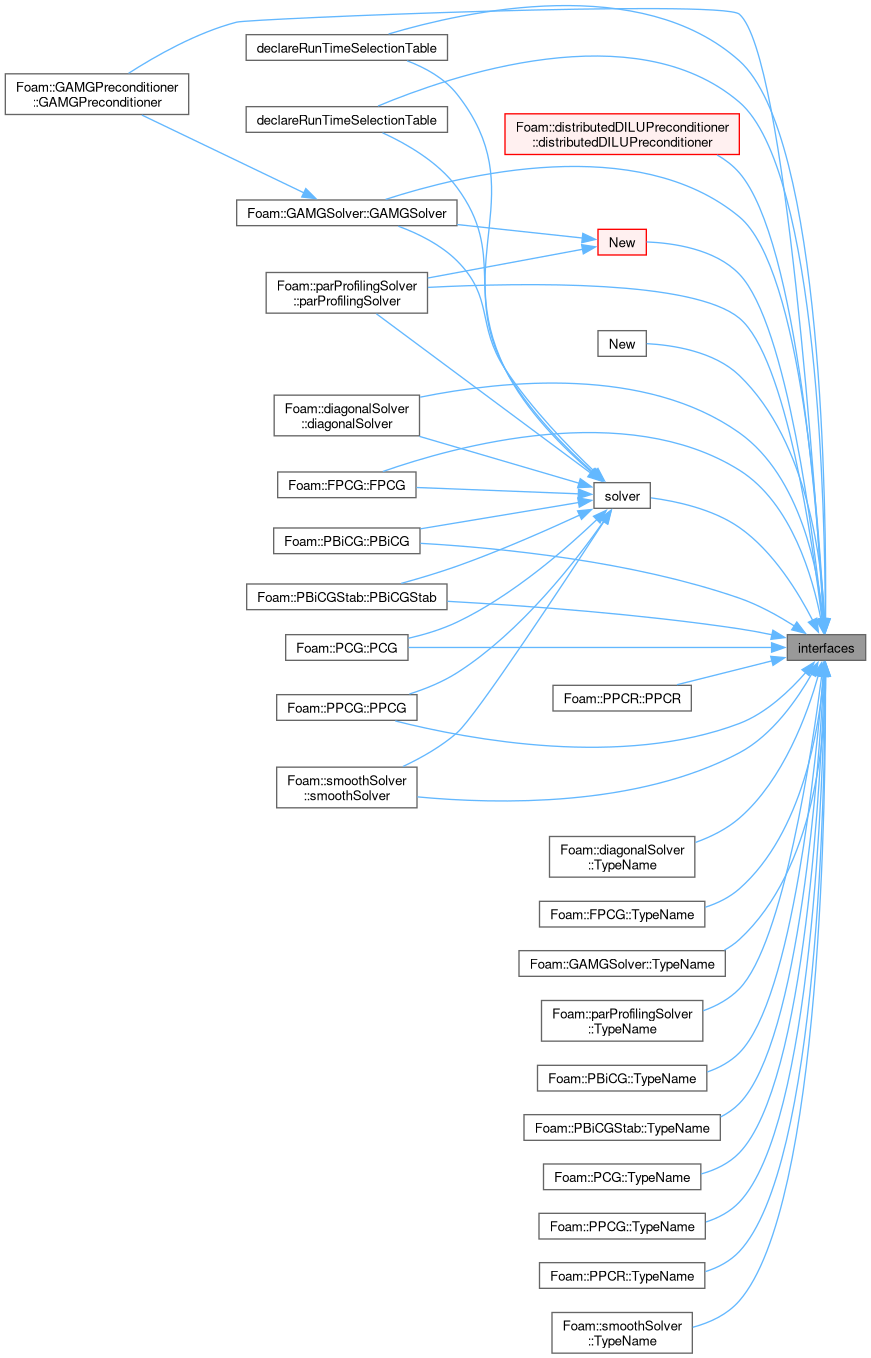

Here is the caller graph for this function:

◆ read()

void read ( const dictionary & solverControls )

virtual

Read and reset the solver parameters from the given stream.

Reimplemented in diagonalSolver.

Definition at line 204 of file lduMatrixSolver.C.

References controlDict_, and readControls().

Here is the call graph for this function:

◆ solve()

virtual solverPerformance solve	(	scalarField &	psi,
		const scalarField &	source,
		const direction	cmpt = 0 ) const

pure virtual

Solve with given field and rhs.

Implemented in diagonalSolver, FPCG, GAMGSolver, parProfilingSolver, PBiCG, PBiCGStab, PCG, PPCG, PPCR, and smoothSolver.

References psi.

◆ scalarSolve()

Foam::solverPerformance scalarSolve	(	solveScalarField &	psi,
		const solveScalarField &	source,
		const direction	cmpt = 0 ) const

virtual

Solve with given field and rhs (in solveScalar precision).

Default is to call solve routine

Reimplemented in FPCG, PBiCGStab, and PCG.

Definition at line 211 of file lduMatrixSolver.C.

References psi, refPtr< T >::ref(), and solve().

Here is the call graph for this function:

◆ normFactor() [1/2]

Foam::solveScalarField::cmptType normFactor	(	const solveScalarField &	psi,
		const solveScalarField &	source,
		const solveScalarField &	Apsi,
		solveScalarField &	tmpField,
		const lduMatrix::normTypes	normType ) const

Return the matrix norm using the specified norm method.

Definition at line 228 of file lduMatrixSolver.C.

References lduMatrix::DEFAULT_NORM, Foam::gAverage(), Foam::gSum(), interfaceBouCoeffs_, interfaces_, lduMatrix::L1_SCALED_NORM, Foam::mag(), matrix_, lduMatrix::NO_NORM, psi, and SolverPerformance< scalar >::small_.

Referenced by normFactor(), FPCG::scalarSolve(), PBiCGStab::scalarSolve(), PCG::scalarSolve(), PPCG::scalarSolveCG(), GAMGSolver::solve(), PBiCG::solve(), and smoothSolver::solve().

Here is the call graph for this function:

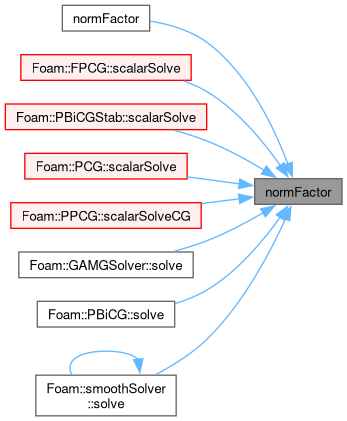

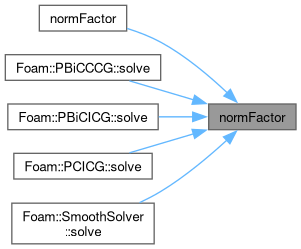

Here is the caller graph for this function:

◆ normFactor() [2/2]

solveScalarField::cmptType normFactor	(	const solveScalarField &	psi,
		const solveScalarField &	source,
		const solveScalarField &	Apsi,
		solveScalarField &	tmpField ) const

inline

Return the matrix norm used to normalise the residual for the stopping criterion.

Definition at line 392 of file lduMatrix.H.

References normFactor(), normType_, and psi.

Here is the call graph for this function:

Member Data Documentation

◆ fieldName_

word fieldName_

protected

Definition at line 157 of file lduMatrix.H.

Referenced by fieldName(), FPCG::scalarSolve(), PBiCGStab::scalarSolve(), PCG::scalarSolve(), PPCG::scalarSolveCG(), diagonalSolver::solve(), GAMGSolver::solve(), PBiCG::solve(), smoothSolver::solve(), and solver().

◆ matrix_

const lduMatrix& matrix_

protected

Definition at line 158 of file lduMatrix.H.

Referenced by GAMGSolver::GAMGSolver(), matrix(), normFactor(), GAMGPreconditioner::precondition(), FPCG::scalarSolve(), PBiCGStab::scalarSolve(), PCG::scalarSolve(), PPCG::scalarSolveCG(), diagonalSolver::solve(), GAMGSolver::solve(), PBiCG::solve(), smoothSolver::solve(), and solver().

◆ interfaceBouCoeffs_

const FieldField<Field, scalar>& interfaceBouCoeffs_

protected

Definition at line 159 of file lduMatrix.H.

Referenced by interfaceBouCoeffs(), normFactor(), GAMGPreconditioner::precondition(), FPCG::scalarSolve(), PBiCGStab::scalarSolve(), PCG::scalarSolve(), PPCG::scalarSolveCG(), GAMGSolver::solve(), PBiCG::solve(), smoothSolver::solve(), and solver().

◆ interfaceIntCoeffs_

const FieldField<Field, scalar>& interfaceIntCoeffs_

protected

Definition at line 160 of file lduMatrix.H.

Referenced by interfaceIntCoeffs(), PBiCG::solve(), smoothSolver::solve(), and solver().

◆ interfaces_

lduInterfaceFieldPtrsList interfaces_

protected

Definition at line 161 of file lduMatrix.H.

Referenced by interfaces(), normFactor(), GAMGPreconditioner::precondition(), FPCG::scalarSolve(), PBiCGStab::scalarSolve(), PCG::scalarSolve(), PPCG::scalarSolveCG(), GAMGSolver::solve(), PBiCG::solve(), smoothSolver::solve(), and solver().

◆ controlDict_

dictionary controlDict_

protected

Dictionary of solution controls.

Definition at line 166 of file lduMatrix.H.

Referenced by GAMGSolver::GAMGSolver(), read(), GAMGPreconditioner::readControls(), readControls(), smoothSolver::readControls(), FPCG::scalarSolve(), PBiCGStab::scalarSolve(), PCG::scalarSolve(), PPCG::scalarSolveCG(), PBiCG::solve(), smoothSolver::solve(), and solver().

◆ log_

int log_

protected

Verbosity level for solver output statements.

Definition at line 171 of file lduMatrix.H.

Referenced by GAMGSolver::GAMGSolver(), readControls(), FPCG::scalarSolve(), PBiCGStab::scalarSolve(), PCG::scalarSolve(), PPCG::scalarSolveCG(), GAMGSolver::solve(), PBiCG::solve(), smoothSolver::solve(), and solver().

◆ minIter_

label minIter_

protected

Minimum number of iterations in the solver.

Definition at line 176 of file lduMatrix.H.

Referenced by readControls(), FPCG::scalarSolve(), PBiCGStab::scalarSolve(), PCG::scalarSolve(), PPCG::scalarSolveCG(), GAMGSolver::solve(), PBiCG::solve(), smoothSolver::solve(), and solver().

◆ maxIter_

label maxIter_

protected

Maximum number of iterations in the solver.

Definition at line 181 of file lduMatrix.H.

Referenced by readControls(), FPCG::scalarSolve(), PBiCGStab::scalarSolve(), PCG::scalarSolve(), PPCG::scalarSolveCG(), GAMGSolver::solve(), PBiCG::solve(), smoothSolver::solve(), and solver().

◆ normType_

lduMatrix::normTypes normType_

protected

The normalisation type.

Definition at line 186 of file lduMatrix.H.

Referenced by normFactor(), readControls(), and solver().

◆ tolerance_

scalar tolerance_

protected

Final convergence tolerance.

Definition at line 191 of file lduMatrix.H.

Referenced by GAMGSolver::GAMGSolver(), readControls(), FPCG::scalarSolve(), PBiCGStab::scalarSolve(), PCG::scalarSolve(), PPCG::scalarSolveCG(), GAMGSolver::solve(), PBiCG::solve(), smoothSolver::solve(), and solver().

◆ relTol_

scalar relTol_

protected

Convergence tolerance relative to the initial.

Definition at line 196 of file lduMatrix.H.

Referenced by GAMGSolver::GAMGSolver(), readControls(), FPCG::scalarSolve(), PBiCGStab::scalarSolve(), PCG::scalarSolve(), PPCG::scalarSolveCG(), GAMGSolver::solve(), PBiCG::solve(), smoothSolver::solve(), and solver().

◆ profiling_

profilingTrigger profiling_

protected

Profiling instrumentation.

Definition at line 201 of file lduMatrix.H.

Referenced by solver().

The documentation for this class was generated from the following files:

src/OpenFOAM/matrices/lduMatrix/lduMatrix/lduMatrix.H
src/OpenFOAM/matrices/lduMatrix/lduMatrix/lduMatrixSolver.C

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ solver()

◆ ~solver()

Member Function Documentation

◆ readControls()

◆ type()

◆ declareRunTimeSelectionTable() [1/2]

◆ declareRunTimeSelectionTable() [2/2]

◆ New() [1/2]

◆ New() [2/2]

◆ fieldName()

◆ matrix()

◆ interfaceBouCoeffs()

◆ interfaceIntCoeffs()

◆ interfaces()

◆ read()

◆ solve()

◆ scalarSolve()

◆ normFactor() [1/2]

◆ normFactor() [2/2]

Member Data Documentation

◆ fieldName_

◆ matrix_

◆ interfaceBouCoeffs_

◆ interfaceIntCoeffs_

◆ interfaces_

◆ controlDict_

◆ log_

◆ minIter_

◆ maxIter_

◆ normType_

◆ tolerance_

◆ relTol_

◆ profiling_
