Vector force apply to particles to avoid the crossing of particles from one phase to the other. The magnitude is calculated as C*mass*grad(alpha). More...

#include <InterfaceForce.H>

Inheritance diagram for InterfaceForce< CloudType >:

[legend]

Collaboration diagram for InterfaceForce< CloudType >:

[legend]

Public Member Functions
	TypeName ("interface")
	Runtime type information.
	InterfaceForce (CloudType &owner, const fvMesh &mesh, const dictionary &dict)
	Construct from mesh.
	InterfaceForce (const InterfaceForce &gf)
	Construct copy.
virtual autoPtr< ParticleForce< CloudType > >	clone () const
	Construct and return a clone.
virtual	~InterfaceForce ()
	Destructor.
virtual void	cacheFields (const bool store)
	Cache fields.
virtual forceSuSp	calcNonCoupled (const typename CloudType::parcelType &p, const typename CloudType::parcelType::trackingData &td, const scalar dt, const scalar mass, const scalar Re, const scalar muc) const
	Calculate the non-coupled force.
Public Member Functions inherited from ParticleForce< CloudType >
	TypeName ("particleForce")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, ParticleForce, dictionary,(CloudType &owner, const fvMesh &mesh, const dictionary &dict),(owner, mesh, dict))
	Declare runtime constructor selection table.
	ParticleForce (CloudType &owner, const fvMesh &mesh, const dictionary &dict, const word &forceType, const bool readCoeffs)
	Construct from mesh.
	ParticleForce (const ParticleForce &pf)
	Construct copy.
virtual	~ParticleForce ()
	Destructor.
const CloudType &	owner () const noexcept
	Return const access to the cloud owner.
CloudType &	owner () noexcept
	Return reference to the cloud owner.
const fvMesh &	mesh () const noexcept
	Return the mesh database.
const dictionary &	coeffs () const noexcept
	Return the force coefficients dictionary.
virtual forceSuSp	calcCoupled (const typename CloudType::parcelType &p, const typename CloudType::parcelType::trackingData &td, const scalar dt, const scalar mass, const scalar Re, const scalar muc) const
	Calculate the coupled force.
virtual scalar	massAdd (const typename CloudType::parcelType &p, const typename CloudType::parcelType::trackingData &td, const scalar mass) const
	Return the added mass.

Additional Inherited Members
Public Types inherited from ParticleForce< CloudType >
typedef VectorSpace< Vector< vector >, vector, 2 >	returnType
	Convenience typedef for return type.
Static Public Member Functions inherited from ParticleForce< CloudType >
static autoPtr< ParticleForce< CloudType > >	New (CloudType &owner, const fvMesh &mesh, const dictionary &dict, const word &forceType)
	Selector.

Detailed Description

template<class CloudType>
class Foam::InterfaceForce< CloudType >

Vector force apply to particles to avoid the crossing of particles from one phase to the other. The magnitude is calculated as C*mass*grad(alpha).

Source files

Definition at line 51 of file InterfaceForce.H.

Constructor & Destructor Documentation

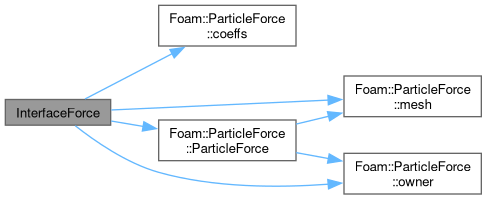

◆ InterfaceForce() [1/2]

template<class CloudType>

InterfaceForce	(	CloudType &	owner,
		const fvMesh &	mesh,
		const dictionary &	dict )

Construct from mesh.

Definition at line 27 of file InterfaceForce.C.

References ParticleForce< CloudType >::coeffs(), dict, Foam::GlobalIOList< Tuple2< scalar, vector > >::typeName, ParticleForce< CloudType >::mesh(), ParticleForce< CloudType >::owner(), and ParticleForce< CloudType >::ParticleForce().

Referenced by clone(), InterfaceForce(), and TypeName().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ InterfaceForce() [2/2]

template<class CloudType>

InterfaceForce ( const InterfaceForce< CloudType > & gf )

Construct copy.

Definition at line 42 of file InterfaceForce.C.

References InterfaceForce(), and ParticleForce< CloudType >::ParticleForce().

Here is the call graph for this function:

◆ ~InterfaceForce()

template<class CloudType>

~InterfaceForce ( )

virtual

Destructor.

Definition at line 54 of file InterfaceForce.C.

Member Function Documentation

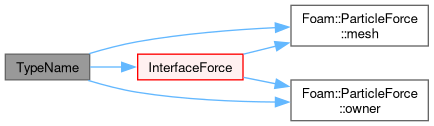

◆ TypeName()

template<class CloudType>

TypeName ( "interface" )

Runtime type information.

References dict, InterfaceForce(), ParticleForce< CloudType >::mesh(), and ParticleForce< CloudType >::owner().

Here is the call graph for this function:

◆ clone()

template<class CloudType>

virtual autoPtr< ParticleForce< CloudType > > clone ( ) const

inlinevirtual

Construct and return a clone.

Reimplemented from ParticleForce< CloudType >.

Definition at line 101 of file InterfaceForce.H.

References InterfaceForce().

Here is the call graph for this function:

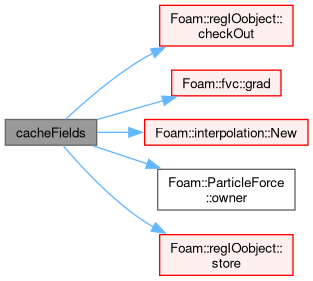

◆ cacheFields()

template<class CloudType>

void cacheFields ( const bool store )

virtual

Cache fields.

Reimplemented from ParticleForce< CloudType >.

Definition at line 61 of file InterfaceForce.C.

References alpha, regIOobject::checkOut(), Foam::fvc::grad(), mesh, interpolation< Type >::New(), ParticleForce< CloudType >::owner(), and regIOobject::store().

Here is the call graph for this function:

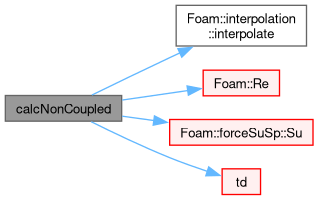

◆ calcNonCoupled()

template<class CloudType>

Foam::forceSuSp calcNonCoupled	(	const typename CloudType::parcelType &	p,
		const typename CloudType::parcelType::trackingData &	td,
		const scalar	dt,
		const scalar	mass,
		const scalar	Re,
		const scalar	muc ) const

virtual

Calculate the non-coupled force.

Reimplemented from ParticleForce< CloudType >.

Definition at line 108 of file InterfaceForce.C.

References interpolation< Type >::interpolate(), p, Foam::Re(), forceSuSp::Su(), td(), and Foam::Zero.

Here is the call graph for this function:

The documentation for this class was generated from the following files:

src/lagrangian/intermediate/submodels/Kinematic/ParticleForces/Interface/InterfaceForce.H
src/lagrangian/intermediate/submodels/Kinematic/ParticleForces/Interface/InterfaceForce.C
