One-equation SGS model for the gas-phase in a two-phase system supporting phase-inversion. More...

#include <continuousGasKEqn.H>

Inheritance diagram for continuousGasKEqn< BasicTurbulenceModel >:

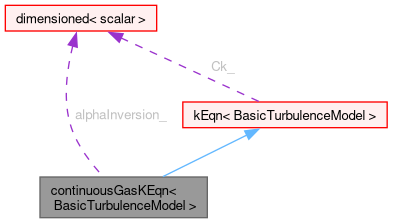

Collaboration diagram for continuousGasKEqn< BasicTurbulenceModel >:

[legend]

Public Types
typedef BasicTurbulenceModel::alphaField	alphaField
typedef BasicTurbulenceModel::rhoField	rhoField
typedef BasicTurbulenceModel::transportModel	transportModel
Public Types inherited from kEqn< BasicTurbulenceModel >
typedef BasicTurbulenceModel::alphaField	alphaField
typedef BasicTurbulenceModel::rhoField	rhoField
typedef BasicTurbulenceModel::transportModel	transportModel
Public Types inherited from LESeddyViscosity< BasicTurbulenceModel >
typedef BasicTurbulenceModel::alphaField	alphaField
typedef BasicTurbulenceModel::rhoField	rhoField
typedef BasicTurbulenceModel::transportModel	transportModel
Public Types inherited from eddyViscosity< LESModel< BasicTurbulenceModel > >
typedef BasicTurbulenceModel::alphaField	alphaField
typedef BasicTurbulenceModel::rhoField	rhoField
typedef BasicTurbulenceModel::transportModel	transportModel
Public Types inherited from linearViscousStress< BasicTurbulenceModel >
typedef BasicTurbulenceModel::alphaField	alphaField
typedef BasicTurbulenceModel::rhoField	rhoField
typedef BasicTurbulenceModel::transportModel	transportModel

Public Member Functions
	TypeName ("continuousGasKEqn")
	Runtime type information.
	continuousGasKEqn (const alphaField &alpha, const rhoField &rho, const volVectorField &U, const surfaceScalarField &alphaRhoPhi, const surfaceScalarField &phi, const transportModel &transport, const word &propertiesName=turbulenceModel::propertiesName, const word &type=typeName)
	Construct from components.
virtual	~continuousGasKEqn ()=default
	Destructor.
virtual bool	read ()
	Read model coefficients if they have changed.
Public Member Functions inherited from kEqn< BasicTurbulenceModel >
	TypeName ("kEqn")
	Runtime type information.
	kEqn (const alphaField &alpha, const rhoField &rho, const volVectorField &U, const surfaceScalarField &alphaRhoPhi, const surfaceScalarField &phi, const transportModel &transport, const word &propertiesName=turbulenceModel::propertiesName, const word &type=typeName)
	Constructor from components.
virtual	~kEqn ()=default
	Destructor.
virtual tmp< volScalarField >	k () const
	Return SGS kinetic energy.
tmp< volScalarField >	DkEff () const
	Return the effective diffusivity for k.
virtual void	correct ()
	Correct eddy-Viscosity and related properties.
Public Member Functions inherited from LESeddyViscosity< BasicTurbulenceModel >
	LESeddyViscosity (const word &type, const alphaField &alpha, const rhoField &rho, const volVectorField &U, const surfaceScalarField &alphaRhoPhi, const surfaceScalarField &phi, const transportModel &transport, const word &propertiesName=turbulenceModel::propertiesName)
	Construct from components.
virtual	~LESeddyViscosity ()=default
	Destructor.
Public Member Functions inherited from eddyViscosity< LESModel< BasicTurbulenceModel > >
	eddyViscosity (const word &modelName, const alphaField &alpha, const rhoField &rho, const volVectorField &U, const surfaceScalarField &alphaRhoPhi, const surfaceScalarField &phi, const transportModel &transport, const word &propertiesName)
	Construct from components.
virtual	~eddyViscosity ()=default
	Destructor.
virtual tmp< volScalarField >	nut () const
	Return the turbulence viscosity.
virtual tmp< volSymmTensorField >	R () const
	Return the Reynolds stress tensor.
virtual void	validate ()
	Validate the turbulence fields after construction.
Public Member Functions inherited from linearViscousStress< BasicTurbulenceModel >
	linearViscousStress (const word &modelName, const alphaField &alpha, const rhoField &rho, const volVectorField &U, const surfaceScalarField &alphaRhoPhi, const surfaceScalarField &phi, const transportModel &transport, const word &propertiesName)
	Construct from components.
virtual	~linearViscousStress ()=default
	Destructor.
virtual tmp< volSymmTensorField >	devRhoReff () const
	Return the effective stress tensor.
virtual tmp< volSymmTensorField >	devRhoReff (const volVectorField &U) const
	Return the effective stress tensor based on a given velocity field.
virtual tmp< fvVectorMatrix >	divDevRhoReff (volVectorField &U) const
	Return the source term for the momentum equation.
virtual tmp< fvVectorMatrix >	divDevRhoReff (const volScalarField &rho, volVectorField &U) const
	Return the source term for the momentum equation.

Protected Member Functions
const turbulenceModel &	liquidTurbulence () const
	Return the turbulence model for the liquid phase.
tmp< volScalarField >	phaseTransferCoeff () const
virtual tmp< fvScalarMatrix >	kSource () const
Protected Member Functions inherited from kEqn< BasicTurbulenceModel >
	kEqn (const kEqn &)=delete
	No copy construct.
void	operator= (const kEqn &)=delete
	No copy assignment.
virtual void	correctNut ()

Protected Attributes
dimensionedScalar	alphaInversion_
Protected Attributes inherited from kEqn< BasicTurbulenceModel >
volScalarField	k_
dimensionedScalar	Ck_
Protected Attributes inherited from eddyViscosity< LESModel< BasicTurbulenceModel > >
volScalarField	nut_

Detailed Description

template<class BasicTurbulenceModel>
class Foam::LESModels::continuousGasKEqn< BasicTurbulenceModel >

One-equation SGS model for the gas-phase in a two-phase system supporting phase-inversion.

In the limit that the gas-phase fraction approaches zero a contribution from the other phase is blended into the k-equation up to the phase-fraction of alphaInversion at which point phase-inversion is considered to have occurred and the model reverts to the pure single-phase form.

This model is unpublished and is provided as a stable numerical framework on which a more physical model may be built.

The default model coefficients are

    continuousKEqnCoeffs
    {
        Ck              0.094;
        Ce              1.048;
        alphaInversion  0.7;
    }

Source files

Definition at line 72 of file continuousGasKEqn.H.

Member Typedef Documentation

◆ alphaField

template<class BasicTurbulenceModel>

typedef BasicTurbulenceModel::alphaField alphaField

Definition at line 116 of file continuousGasKEqn.H.

◆ rhoField

template<class BasicTurbulenceModel>

typedef BasicTurbulenceModel::rhoField rhoField

Definition at line 117 of file continuousGasKEqn.H.

◆ transportModel

template<class BasicTurbulenceModel>

typedef BasicTurbulenceModel::transportModel transportModel

Definition at line 118 of file continuousGasKEqn.H.

Constructor & Destructor Documentation

◆ continuousGasKEqn()

template<class BasicTurbulenceModel>

continuousGasKEqn	(	const alphaField &	alpha,
		const rhoField &	rho,
		const volVectorField &	U,
		const surfaceScalarField &	alphaRhoPhi,
		const surfaceScalarField &	phi,
		const transportModel &	transport,
		const word &	propertiesName = turbulenceModel::propertiesName,
		const word &	type = typeName )

Construct from components.

Definition at line 35 of file continuousGasKEqn.C.

References alpha, alphaInversion_, Foam::GlobalIOList< Tuple2< scalar, vector > >::typeName, kEqn< BasicTurbulenceModel >::kEqn(), phi, rho, and U.

Here is the call graph for this function:

◆ ~continuousGasKEqn()

template<class BasicTurbulenceModel>

virtual ~continuousGasKEqn ( )

virtualdefault

Destructor.

Member Function Documentation

◆ liquidTurbulence()

template<class BasicTurbulenceModel>

const turbulenceModel & liquidTurbulence ( ) const

protected

Return the turbulence model for the liquid phase.

Definition at line 96 of file continuousGasKEqn.C.

References fluid, IOobject::groupName(), turbulenceModel::propertiesName, Foam::refCast(), and U.

Referenced by kSource(), and phaseTransferCoeff().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ phaseTransferCoeff()

template<class BasicTurbulenceModel>

tmp< volScalarField > phaseTransferCoeff ( ) const

protected

Definition at line 124 of file continuousGasKEqn.C.

References alpha, alphaInversion_, liquidTurbulence(), Foam::max(), Foam::min(), rho, Foam::sqrt(), and U.

Referenced by kSource().

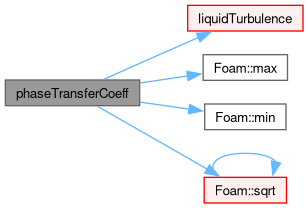

Here is the call graph for this function:

Here is the caller graph for this function:

◆ kSource()

template<class BasicTurbulenceModel>

tmp< fvScalarMatrix > kSource ( ) const

protectedvirtual

Reimplemented from kEqn< BasicTurbulenceModel >.

Definition at line 147 of file continuousGasKEqn.C.

References kEqn< BasicTurbulenceModel >::k_, liquidTurbulence(), phaseTransferCoeff(), and Foam::fvm::Sp().

Here is the call graph for this function:

◆ TypeName()

template<class BasicTurbulenceModel>

TypeName ( "continuousGasKEqn< BasicTurbulenceModel >" )

Runtime type information.

References alpha, Foam::GlobalIOList< Tuple2< scalar, vector > >::typeName, phi, turbulenceModel::propertiesName, rho, and U.

◆ read()

template<class BasicTurbulenceModel>

bool read ( )

virtual

Read model coefficients if they have changed.

Reimplemented from kEqn< BasicTurbulenceModel >.

Definition at line 81 of file continuousGasKEqn.C.

References alphaInversion_, and kEqn< BasicTurbulenceModel >::read().

Here is the call graph for this function:

Member Data Documentation

◆ alphaInversion_

template<class BasicTurbulenceModel>

dimensionedScalar alphaInversion_

protected

Definition at line 100 of file continuousGasKEqn.H.

Referenced by continuousGasKEqn(), phaseTransferCoeff(), and read().

The documentation for this class was generated from the following files:

src/TurbulenceModels/phaseCompressible/LES/continuousGasKEqn/continuousGasKEqn.H
src/TurbulenceModels/phaseCompressible/LES/continuousGasKEqn/continuousGasKEqn.C
