OpenFOAM/PDRblock addressing information. More...

#include <PDRmeshArrays.H>

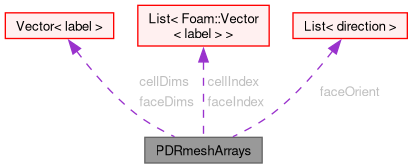

Collaboration diagram for PDRmeshArrays:

[legend]

Public Member Functions
	PDRmeshArrays ()=default
	Default construct.
	~PDRmeshArrays ()=default
	Destructor.
label	nCells () const
	The number of cells.
label	nFaces () const
	The number of faces.
void	classify (const polyMesh &mesh, const PDRblock &pdrBlock)
	Determine i-j-k indices for faces/cells.
void	read (const Time &runTime, const PDRblock &pdrBlock)
	Read OpenFOAM mesh and determine i-j-k indices for faces/cells.

Public Attributes
labelVector	cellDims
	The cell i-j-k addressing range.
labelVector	faceDims
	The face i-j-k addressing range.
List< labelVector >	cellIndex
	For each cell, the corresponding i-j-k address.
List< labelVector >	faceIndex
	For each face, the corresponding i-j-k address.
List< direction >	faceOrient
	For each face, the x/y/z orientation.

Static Public Attributes
static scalar	gridPointRelTol
	Relative tolerance when matching grid points. Default = 0.02.

Detailed Description

OpenFOAM/PDRblock addressing information.

Provides mapping for a rectilinear OpenFOAM mesh in terms of i-j-k indices for faces and cells.

The mesh points are first binned according to their i-j-k locations. Next the faces are classified according to their lowest x/y/z coordinates and the face orientation as x/y/z. Orientation in the sense +x or -x is not noted. The cell faces are then examined to determine the appropriate i-j-k location.

Source files

Definition at line 61 of file PDRmeshArrays.H.

Constructor & Destructor Documentation

◆ PDRmeshArrays()

PDRmeshArrays ( )

default

Default construct.

◆ ~PDRmeshArrays()

~PDRmeshArrays ( )

default

Destructor.

Member Function Documentation

◆ nCells()

label nCells ( ) const

inline

The number of cells.

Definition at line 115 of file PDRmeshArrays.H.

References cellIndex.

◆ nFaces()

label nFaces ( ) const

inline

The number of faces.

Definition at line 123 of file PDRmeshArrays.H.

References faceIndex.

◆ classify()

void classify	(	const polyMesh &	mesh,
		const PDRblock &	pdrBlock )

Determine i-j-k indices for faces/cells.

References mesh.

◆ read()

void read	(	const Time &	runTime,
		const PDRblock &	pdrBlock )

Read OpenFOAM mesh and determine i-j-k indices for faces/cells.

References runTime.

Member Data Documentation

◆ gridPointRelTol

scalar gridPointRelTol

static

Relative tolerance when matching grid points. Default = 0.02.

Definition at line 68 of file PDRmeshArrays.H.

◆ cellDims

labelVector cellDims

The cell i-j-k addressing range.

Definition at line 73 of file PDRmeshArrays.H.

◆ faceDims

labelVector faceDims

The face i-j-k addressing range.

Definition at line 78 of file PDRmeshArrays.H.

◆ cellIndex

List<labelVector> cellIndex

For each cell, the corresponding i-j-k address.

Definition at line 83 of file PDRmeshArrays.H.

Referenced by nCells().

◆ faceIndex

List<labelVector> faceIndex

For each face, the corresponding i-j-k address.

Definition at line 88 of file PDRmeshArrays.H.

Referenced by nFaces().

◆ faceOrient

List<direction> faceOrient

For each face, the x/y/z orientation.

Definition at line 93 of file PDRmeshArrays.H.

The documentation for this class was generated from the following file:

applications/utilities/preProcessing/PDR/pdrFields/PDRmeshArrays.H
