A single block x-y-z rectilinear mesh addressable as i,j,k with simplified creation. Some of the input is similar to blockMeshDict, but since this specialization is for a single-block that is aligned with the x-y-z directions, it provides a different means of specifying the mesh. More...

#include <PDRblock.H>

Inheritance diagram for PDRblock:

[legend]

Collaboration diagram for PDRblock:

[legend]

Classes
class	location
	Grid locations in an axis direction. More...
struct	gridControl
	The begin/end nodes for each segment, with divisions and expansion for each segment. More...

Public Types
enum	expansionType : uint8_t { EXPAND_UNIFORM , EXPAND_RATIO , EXPAND_RELATIVE }
	The expansion type. More...

Public Member Functions
	PDRblock ()
	Default construct, zero-size, inverted bounds etc.
	PDRblock (const UList< scalar > &xgrid, const UList< scalar > &ygrid, const UList< scalar > &zgrid)
	Construct from components.
	PDRblock (const boundBox &box, const labelVector &nCells)
	Construct from cube with specified griding.
	PDRblock (const dictionary &dict, bool verboseOutput=false)
	Construct from dictionary.
bool	read (const dictionary &dict)
	Read dictionary.
void	reset (const UList< scalar > &xgrid, const UList< scalar > &ygrid, const UList< scalar > &zgrid)
	Reset grid locations and mesh i-j-k sizing.
void	reset (const boundBox &box, const labelVector &nCells)
	Reset cube and mesh i-j-k sizing.
const Vector< location > &	grid () const noexcept
	The grid point locations in the i,j,k (x,y,z) directions.
Vector< gradingDescriptors >	grading () const
	Equivalent edge grading descriptors in (x,y,z) directions.
gradingDescriptors	grading (const direction cmpt) const
	Equivalent edge grading descriptors in specified (x,y,z) direction.
const boundBox &	bounds () const noexcept
	The mesh bounding box.
const scalarMinMax &	edgeLimits () const noexcept
	The min/max edge length.
scalar	dx (const label i) const
	Cell size in x-direction at i position.
scalar	dx (const labelVector &ijk) const
	Cell size in x-direction at i position.
scalar	dy (const label j) const
	Cell size in y-direction at j position.
scalar	dy (const labelVector &ijk) const
	Cell size in y-direction at j position.
scalar	dz (const label k) const
	Cell size in z-direction at k position.
scalar	dz (const labelVector &ijk) const
	Cell size in z-direction at k position.
vector	span (const label i, const label j, const label k) const
	Cell dimensions at i,j,k position.
vector	span (const labelVector &ijk) const
	Cell dimensions at i,j,k position.
point	grid (const label i, const label j, const label k) const
	Grid point at i,j,k position.
point	grid (const labelVector &ijk) const
	Grid point at i,j,k position.
point	C (const label i, const label j, const label k) const
	Cell centre at i,j,k position.
point	C (const labelVector &ijk) const
	Cell centre at i,j,k position.
scalar	V (const label i, const label j, const label k) const
	Cell volume at i,j,k position.
scalar	V (const labelVector &ijk) const
	Cell volume at i,j,k position.
scalar	width (const label i, const label j, const label k) const
	Characteristic cell size at i,j,k position.
scalar	width (const labelVector &ijk) const
	Characteristic cell size at i,j,k position.
labelVector	findCell (const point &pt) const
	Return i,j,k index for cell enclosing this location.
labelVector	gridIndex (const point &pt, const scalar relTol=0.01) const
	Obtain i,j,k grid index for point location within specified.
Ostream &	blockMeshDict (Ostream &os, const bool withHeader=false) const
	Output content for an equivalent blockMeshDict.
dictionary	blockMeshDict () const
	Content for an equivalent blockMeshDict.
void	writeBlockMeshDict (const IOobject &io) const
	Write an equivalent blockMeshDict.
autoPtr< polyMesh >	mesh (const IOobject &io) const
	Create polyMesh for grid definition and patch information.
autoPtr< polyMesh >	innerMesh (const IOobject &io) const
	Create polyMesh for inner-mesh only, ignore any outer block definitions.
Public Member Functions inherited from ijkMesh
	ijkMesh ()
	Construct zero-sized.
	ijkMesh (const labelVector &ijk)
	Construct with addressing.
	ijkMesh (const label nx, const label ny, const label nz)
	Construct with addressing.
label	nPoints () const
	The number of mesh points (nx+1)(ny+1)(nz+1) in the i-j-k mesh.
label	nCells () const
	The number of mesh cells (nxnynz) in the i-j-k mesh.
label	nFaces () const
	The total number of mesh faces in the i-j-k mesh.
label	nInternalFaces () const
	The number of internal faces in the i-j-k mesh.
label	nBoundaryFaces () const
	The number of boundary faces in the i-j-k mesh.
label	nBoundaryFaces (const direction shapeFacei) const
	The number of boundary faces on the box face.
label	cellLabel (const label i, const label j, const label k) const
	The linear cell index for an i-j-k position - same as index().
label	cellLabel (const labelVector &ijk) const
	The linear cell index for an i-j-k position - same as index().
label	pointLabel (const label i, const label j, const label k) const
	The linear point index for an i-j-k position.
label	pointLabel (const labelVector &ijk) const
	The linear point index for an i-j-k position.
hexCell	vertLabels (const label i, const label j, const label k) const
	The hex cell vertices for an i-j-k position.
hexCell	vertLabels (const labelVector &ijk) const
	The hex cell vertices for an i-j-k position.
Public Member Functions inherited from ijkAddressing
	ijkAddressing ()
	Construct zero-size addressing.
	ijkAddressing (const labelVector &ijk)
	Construct with addressing.
	ijkAddressing (const label ni, const label nj, const label nk)
	Construct with addressing components.
bool	empty () const noexcept
	Addressing is considered empty if any component is zero.
const labelVector &	sizes () const noexcept
	The (i,j,k) addressing dimensions.
labelVector &	sizes () noexcept
	Return the (i,j,k) dimensions for modification.
label	size () const noexcept
	Return the total ijk size.
label	size (const vector::components cmpt) const
	The addressing dimension in the given direction.
void	clear ()
	Reset to (0,0,0) sizing.
void	reset (const label ni, const label nj, const label nk)
	Change the sizing parameters.
void	reset (const labelVector &newSizes)
	Change the sizing parameters.
label	index (const label i, const label j, const label k) const
	Linear addressing index (offset) for an (i,j,k) position.
label	index (const labelVector &ijk) const
	Linear addressing index (offset) for an (i,j,k) position.
labelVector	index (const label idx) const
	The (i,j,k) indexing from linear addressing.
void	checkIndex (const label i, const label j, const label k, const bool allowExtra=false) const
	Check indices are within ni,nj,nk range.
void	checkIndex (const labelVector &ijk, const bool allowExtra=false) const
	Check indices are within ni,nj,nk range.
void	checkSizes () const
	Check that all components of sizes() are non-negative.
void	checkSizes (const labelVector &other) const
	Check that all components of sizes() match.
void	checkSizes (const label nTotal) const
	Check that the total size matches.

Static Public Member Functions
static const PDRblock &	null () noexcept
	Return a null PDRblock (reference to a nullObject).

Static Public Attributes
static const Enum< expansionType >	expansionNames_
	Named enumerations for the expansion type.

Detailed Description

A single block x-y-z rectilinear mesh addressable as i,j,k with simplified creation. Some of the input is similar to blockMeshDict, but since this specialization is for a single-block that is aligned with the x-y-z directions, it provides a different means of specifying the mesh.

Dictionary controls

Property	Description	Required	Default
`x`	X-direction grid specification	yes
`y`	Y-direction grid specification	yes
`z`	Z-direction grid specification	yes
`scale`	Point scaling	no	1.0
`expansion`	Type of expansion (ratio/relative)	no	ratio
`boundary`	Boundary patches	yes
`defaultPatch`	Default patch specification	no

Grid coordinate controls

Property	Description	Required
`points`	Locations defining the mesh segment	yes
`nCells`	Divisions per mesh segment	yes
`ratios`	Expansion values per segment	no

A negative expansion value is trapped and treated as its reciprocal. by default, the expansion is as per blockMesh and represents the ratio of end-size / start-size for the section. Alternatively, the relative size can be given.

Source files

Definition at line 149 of file PDRblock.H.

Member Enumeration Documentation

◆ expansionType

enum expansionType : uint8_t

The expansion type.

Enumerator
EXPAND_UNIFORM	Uniform expansion (ie, no expansion).
EXPAND_RATIO	End/start ratio.
EXPAND_RELATIVE	Relative expansion ratio.

Definition at line 160 of file PDRblock.H.

Constructor & Destructor Documentation

◆ PDRblock() [1/4]

PDRblock ( )

Default construct, zero-size, inverted bounds etc.

Definition at line 514 of file PDRblock.C.

References null(), and PDRblock().

Referenced by null(), PDRblock(), PDRblock(), and PDRblock().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ PDRblock() [2/4]

PDRblock	(	const UList< scalar > &	xgrid,
		const UList< scalar > &	ygrid,
		const UList< scalar > &	zgrid )

Construct from components.

Definition at line 520 of file PDRblock.C.

References null(), PDRblock(), and reset().

Here is the call graph for this function:

◆ PDRblock() [3/4]

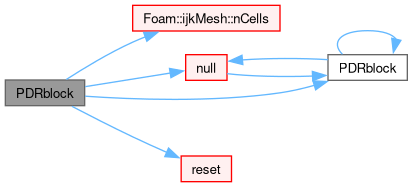

PDRblock	(	const boundBox &	box,
		const labelVector &	nCells )

Construct from cube with specified griding.

Definition at line 534 of file PDRblock.C.

References ijkMesh::nCells(), null(), PDRblock(), and reset().

Here is the call graph for this function:

◆ PDRblock() [4/4]

PDRblock	(	const dictionary &	dict,
		bool	verboseOutput = false )

explicit

Construct from dictionary.

Definition at line 543 of file PDRblock.C.

References dict, and ijkMesh::ijkMesh().

Here is the call graph for this function:

Member Function Documentation

◆ null()

const PDRblock & null ( )

inlinestaticnoexcept

Return a null PDRblock (reference to a nullObject).

Definition at line 656 of file PDRblock.H.

References Foam::noexcept, Foam::NullObjectRef(), and PDRblock().

Referenced by PDRblock(), PDRblock(), and PDRblock().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ read()

bool read ( const dictionary & dict )

Read dictionary.

Definition at line 563 of file PDRblock.C.

References dict, EXPAND_RATIO, expansionNames_, and Foam::Info.

◆ reset() [1/2]

void reset	(	const UList< scalar > &	xgrid,
		const UList< scalar > &	ygrid,
		const UList< scalar > &	zgrid )

Reset grid locations and mesh i-j-k sizing.

Definition at line 599 of file PDRblock.C.

References ijkMesh::nBoundaryFaces(), and VectorSpace< Form, Cmpt, Ncmpts >::nComponents.

Referenced by PDRblock(), and PDRblock().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ reset() [2/2]

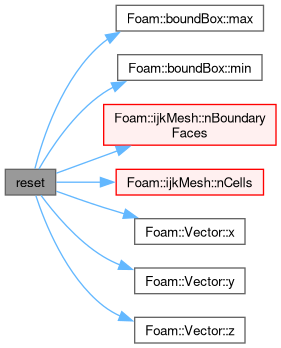

void reset	(	const boundBox &	box,
		const labelVector &	nCells )

Reset cube and mesh i-j-k sizing.

Definition at line 633 of file PDRblock.C.

References boundBox::max(), boundBox::min(), ijkMesh::nBoundaryFaces(), ijkMesh::nCells(), Vector< Cmpt >::x(), Vector< Cmpt >::y(), and Vector< Cmpt >::z().

Here is the call graph for this function:

◆ grid() [1/3]

const Vector< location > & grid ( ) const

inlinenoexcept

The grid point locations in the i,j,k (x,y,z) directions.

Definition at line 718 of file PDRblock.H.

References Foam::noexcept.

Referenced by PDRblock::location::reset().

Here is the caller graph for this function:

◆ grading() [1/2]

Foam::Vector< Foam::gradingDescriptors > grading ( ) const

Equivalent edge grading descriptors in (x,y,z) directions.

Definition at line 730 of file PDRblock.C.

Referenced by blockMeshDict().

Here is the caller graph for this function:

◆ grading() [2/2]

Foam::gradingDescriptors grading ( const direction cmpt ) const

Equivalent edge grading descriptors in specified (x,y,z) direction.

Definition at line 736 of file PDRblock.C.

References Foam::endl(), Foam::exit(), Foam::FatalError, FatalErrorInFunction, Vector< scalar >::X, Vector< scalar >::Y, and Vector< scalar >::Z.

Here is the call graph for this function:

◆ bounds()

const boundBox & bounds ( ) const

inlinenoexcept

The mesh bounding box.

Definition at line 741 of file PDRblock.H.

References Foam::noexcept.

Referenced by blockMeshDict().

Here is the caller graph for this function:

◆ edgeLimits()

const scalarMinMax & edgeLimits ( ) const

inlinenoexcept

The min/max edge length.

Definition at line 746 of file PDRblock.H.

References Foam::noexcept.

◆ dx() [1/2]

Foam::scalar dx ( const label i ) const

inline

Cell size in x-direction at i position.

Definition at line 140 of file PDRblockI.H.

Referenced by span(), span(), V(), and V().

Here is the caller graph for this function:

◆ dx() [2/2]

Foam::scalar dx ( const labelVector & ijk ) const

inline

Cell size in x-direction at i position.

Definition at line 146 of file PDRblockI.H.

References Vector< Cmpt >::x().

Here is the call graph for this function:

◆ dy() [1/2]

Foam::scalar dy ( const label j ) const

inline

Cell size in y-direction at j position.

Definition at line 152 of file PDRblockI.H.

Referenced by span(), span(), V(), and V().

Here is the caller graph for this function:

◆ dy() [2/2]

Foam::scalar dy ( const labelVector & ijk ) const

inline

Cell size in y-direction at j position.

Definition at line 158 of file PDRblockI.H.

References Vector< Cmpt >::y().

Here is the call graph for this function:

◆ dz() [1/2]

Foam::scalar dz ( const label k ) const

inline

Cell size in z-direction at k position.

Definition at line 164 of file PDRblockI.H.

References k.

Referenced by span(), span(), V(), and V().

Here is the caller graph for this function:

◆ dz() [2/2]

Foam::scalar dz ( const labelVector & ijk ) const

inline

Cell size in z-direction at k position.

Definition at line 170 of file PDRblockI.H.

References Vector< Cmpt >::z().

Here is the call graph for this function:

◆ span() [1/2]

Foam::vector span	(	const label	i,
		const label	j,
		const label	k ) const

inline

Cell dimensions at i,j,k position.

Definition at line 176 of file PDRblockI.H.

References dx(), dy(), dz(), and k.

Referenced by PDRblock::location::reset().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ span() [2/2]

Foam::vector span ( const labelVector & ijk ) const

inline

Cell dimensions at i,j,k position.

Definition at line 187 of file PDRblockI.H.

References dx(), dy(), and dz().

Here is the call graph for this function:

◆ grid() [2/3]

Foam::point grid	(	const label	i,
		const label	j,
		const label	k ) const

inline

Grid point at i,j,k position.

Definition at line 193 of file PDRblockI.H.

References k.

◆ grid() [3/3]

Foam::point grid ( const labelVector & ijk ) const

inline

Grid point at i,j,k position.

Definition at line 204 of file PDRblockI.H.

References Vector< Cmpt >::x(), Vector< Cmpt >::y(), and Vector< Cmpt >::z().

Here is the call graph for this function:

◆ C() [1/2]

Foam::point C	(	const label	i,
		const label	j,
		const label	k ) const

inline

Cell centre at i,j,k position.

Definition at line 216 of file PDRblockI.H.

References k.

◆ C() [2/2]

Foam::point C ( const labelVector & ijk ) const

inline

Cell centre at i,j,k position.

Definition at line 227 of file PDRblockI.H.

References Vector< Cmpt >::x(), Vector< Cmpt >::y(), and Vector< Cmpt >::z().

Here is the call graph for this function:

◆ V() [1/2]

Foam::scalar V	(	const label	i,
		const label	j,
		const label	k ) const

inline

Cell volume at i,j,k position.

Definition at line 239 of file PDRblockI.H.

References dx(), dy(), dz(), and k.

Referenced by width(), and width().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ V() [2/2]

Foam::scalar V ( const labelVector & ijk ) const

inline

Cell volume at i,j,k position.

Definition at line 250 of file PDRblockI.H.

References dx(), dy(), dz(), Vector< Cmpt >::x(), Vector< Cmpt >::y(), and Vector< Cmpt >::z().

Here is the call graph for this function:

◆ width() [1/2]

Foam::scalar width	(	const label	i,
		const label	j,
		const label	k ) const

inline

Characteristic cell size at i,j,k position.

This is the cubic root of the volume

Definition at line 256 of file PDRblockI.H.

References Foam::cbrt(), k, and V().

Here is the call graph for this function:

◆ width() [2/2]

Foam::scalar width ( const labelVector & ijk ) const

inline

Characteristic cell size at i,j,k position.

This is the cubic root of the volume

Definition at line 267 of file PDRblockI.H.

References Foam::cbrt(), and V().

Here is the call graph for this function:

◆ findCell()

Foam::labelVector findCell ( const point & pt ) const

Return i,j,k index for cell enclosing this location.

The value (-1,-1,-1) is returned for out-of-bounds (not found).

Definition at line 700 of file PDRblock.C.

References Foam::pos().

Here is the call graph for this function:

◆ gridIndex()

Foam::labelVector gridIndex	(	const point &	pt,
		const scalar	relTol = 0.01 ) const

Obtain i,j,k grid index for point location within specified.

relative tolerance of the min edge length The value (-1,-1,-1) is returned for out-of-bounds (not found). and off-grid

Definition at line 713 of file PDRblock.C.

References Foam::pos().

Here is the call graph for this function:

◆ blockMeshDict() [1/2]

Foam::Ostream & blockMeshDict	(	Ostream &	os,
		const bool	withHeader = false ) const

Output content for an equivalent blockMeshDict.

Optionally generate header/footer content

Definition at line 230 of file PDRblockBlockMesh.C.

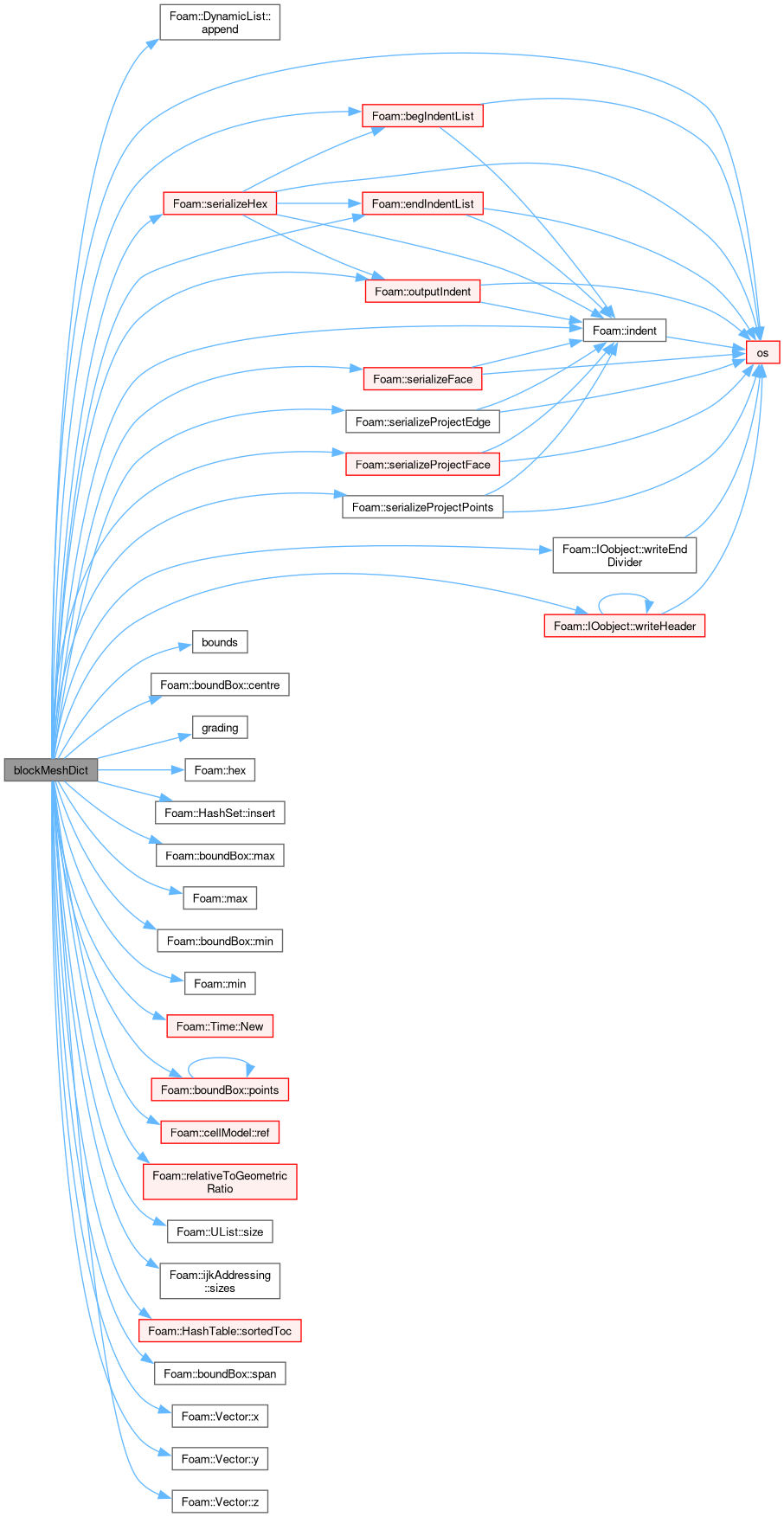

References DynamicList< T, SizeMin >::append(), Foam::begIndentList(), bounds(), boundBox::centre(), e, Foam::endIndentList(), EXPAND_RATIO, grading(), cellModel::HEX, Foam::hex(), Foam::indent(), HashSet< Key, Hash >::insert(), io, boundBox::max(), Foam::max(), boundBox::min(), Foam::min(), Time::New(), Foam::nl, IOobjectOption::NO_READ, IOobjectOption::NO_REGISTER, IOobjectOption::NO_WRITE, os(), Foam::outputIndent(), boundBox::points(), Foam::projGeomName, cellModel::ref(), Foam::relativeToGeometricRatio(), Foam::serializeFace(), Foam::serializeHex(), Foam::serializeProjectEdge(), Foam::serializeProjectFace(), Foam::serializeProjectPoints(), UList< T >::size(), ijkAddressing::sizes(), HashTable< T, Key, Hash >::sortedToc(), boundBox::span(), IOobject::writeEndDivider(), IOobject::writeHeader(), Vector< Cmpt >::x(), Vector< Cmpt >::y(), and Vector< Cmpt >::z().

Referenced by blockMeshDict(), and writeBlockMeshDict().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ blockMeshDict() [2/2]

Foam::dictionary blockMeshDict ( ) const

Content for an equivalent blockMeshDict.

Definition at line 778 of file PDRblockBlockMesh.C.

References blockMeshDict(), dictionary, os(), and List< T >::transfer().

Here is the call graph for this function:

◆ writeBlockMeshDict()

void writeBlockMeshDict ( const IOobject & io ) const

Write an equivalent blockMeshDict.

Definition at line 790 of file PDRblockBlockMesh.C.

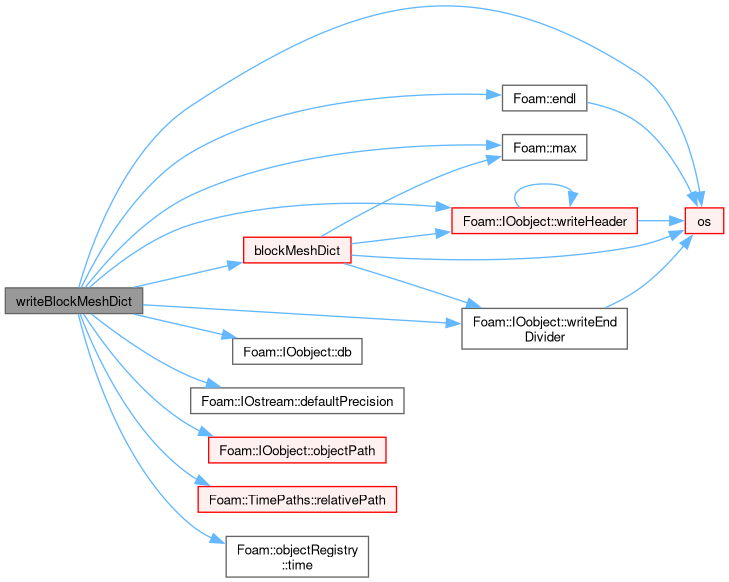

References blockMeshDict(), IOobject::db(), IOstream::defaultPrecision(), Foam::endl(), Foam::Info, io, Foam::max(), Foam::nl, IOobjectOption::NO_READ, IOobjectOption::NO_REGISTER, IOobjectOption::NO_WRITE, IOobject::objectPath(), os(), TimePaths::relativePath(), objectRegistry::time(), IOobject::writeEndDivider(), and IOobject::writeHeader().

Here is the call graph for this function:

◆ mesh()

Foam::autoPtr< Foam::polyMesh > mesh ( const IOobject & io ) const

Create polyMesh for grid definition and patch information.

Definition at line 374 of file PDRblockCreate.C.

References Foam::Info, innerMesh(), io, and Foam::nl.

Here is the call graph for this function:

◆ innerMesh()

Foam::autoPtr< Foam::polyMesh > innerMesh ( const IOobject & io ) const

Create polyMesh for inner-mesh only, ignore any outer block definitions.

Definition at line 297 of file PDRblockCreate.C.

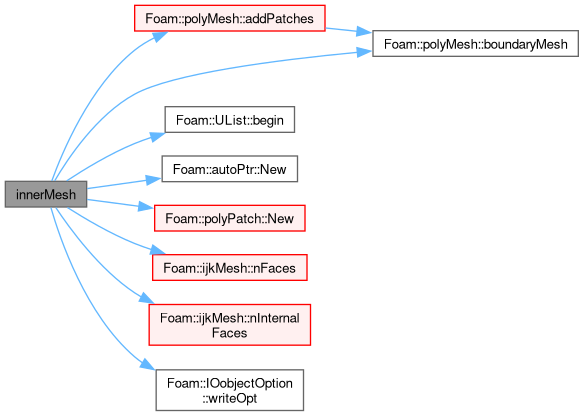

References polyMesh::addPatches(), IOobjectOption::AUTO_WRITE, UList< T >::begin(), polyMesh::boundaryMesh(), io, meshPtr, autoPtr< T >::New(), polyPatch::New(), ijkMesh::nFaces(), ijkMesh::nInternalFaces(), nPoints, patches, pts, and IOobjectOption::writeOpt().

Referenced by mesh().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ expansionNames_

const Foam::Enum< Foam::PDRblock::expansionType > expansionNames_

static

Named enumerations for the expansion type.

Definition at line 170 of file PDRblock.H.

Referenced by read().

The documentation for this class was generated from the following files:

src/mesh/blockMesh/PDRblockMesh/PDRblock.H
src/mesh/blockMesh/PDRblockMesh/PDRblock.C
src/mesh/blockMesh/PDRblockMesh/PDRblockBlockMesh.C
src/mesh/blockMesh/PDRblockMesh/PDRblockCreate.C
src/mesh/blockMesh/PDRblockMesh/PDRblockI.H
src/mesh/blockMesh/PDRblockMesh/PDRblockLocation.C

Classes

Public Types

Public Member Functions

Static Public Member Functions

Static Public Attributes

Detailed Description

Member Enumeration Documentation

◆ expansionType

Constructor & Destructor Documentation

◆ PDRblock() [1/4]

◆ PDRblock() [2/4]

◆ PDRblock() [3/4]

◆ PDRblock() [4/4]

Member Function Documentation

◆ null()

◆ read()

◆ reset() [1/2]

◆ reset() [2/2]

◆ grid() [1/3]

◆ grading() [1/2]

◆ grading() [2/2]

◆ bounds()

◆ edgeLimits()

◆ dx() [1/2]

◆ dx() [2/2]

◆ dy() [1/2]

◆ dy() [2/2]

◆ dz() [1/2]

◆ dz() [2/2]

◆ span() [1/2]

◆ span() [2/2]

◆ grid() [2/3]

◆ grid() [3/3]

◆ C() [1/2]

◆ C() [2/2]

◆ V() [1/2]

◆ V() [2/2]

◆ width() [1/2]

◆ width() [2/2]

◆ findCell()

◆ gridIndex()

◆ blockMeshDict() [1/2]

◆ blockMeshDict() [2/2]

◆ writeBlockMeshDict()

◆ mesh()

◆ innerMesh()

Member Data Documentation

◆ expansionNames_
