Preconditioned pipelined conjugate residuals solver for symmetric lduMatrices using a run-time selectable preconditioner. More...

#include <PPCR.H>

Inheritance diagram for PPCR:

[legend]

Collaboration diagram for PPCR:

[legend]

Public Member Functions

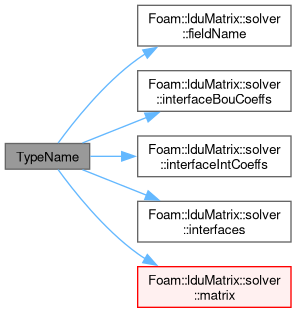

	TypeName ("PPCR")
	Runtime type information.
	PPCR (const word &fieldName, const lduMatrix &matrix, const FieldField< Field, scalar > &interfaceBouCoeffs, const FieldField< Field, scalar > &interfaceIntCoeffs, const lduInterfaceFieldPtrsList &interfaces, const dictionary &solverControls)
	Construct from matrix components and solver controls.
virtual	~PPCR ()=default
	Destructor.
virtual solverPerformance	solve (scalarField &psi, const scalarField &source, const direction cmpt=0) const
	Solve the matrix with this solver.
Public Member Functions inherited from PPCG
	TypeName ("PPCG")
	Runtime type information.
	PPCG (const word &fieldName, const lduMatrix &matrix, const FieldField< Field, scalar > &interfaceBouCoeffs, const FieldField< Field, scalar > &interfaceIntCoeffs, const lduInterfaceFieldPtrsList &interfaces, const dictionary &solverControls)
	Construct from matrix components and solver controls.
virtual	~PPCG ()=default
	Destructor.
Public Member Functions inherited from lduMatrix::solver
virtual const word &	type () const =0
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, solver, symMatrix,(const word &fieldName, const lduMatrix &matrix, const FieldField< Field, scalar > &interfaceBouCoeffs, const FieldField< Field, scalar > &interfaceIntCoeffs, const lduInterfaceFieldPtrsList &interfaces, const dictionary &solverControls),(fieldName, matrix, interfaceBouCoeffs, interfaceIntCoeffs, interfaces, solverControls))
	declareRunTimeSelectionTable (autoPtr, solver, asymMatrix,(const word &fieldName, const lduMatrix &matrix, const FieldField< Field, scalar > &interfaceBouCoeffs, const FieldField< Field, scalar > &interfaceIntCoeffs, const lduInterfaceFieldPtrsList &interfaces, const dictionary &solverControls),(fieldName, matrix, interfaceBouCoeffs, interfaceIntCoeffs, interfaces, solverControls))
	solver (const word &fieldName, const lduMatrix &matrix, const FieldField< Field, scalar > &interfaceBouCoeffs, const FieldField< Field, scalar > &interfaceIntCoeffs, const lduInterfaceFieldPtrsList &interfaces, const dictionary &solverControls)
	Construct solver for given field name, matrix etc.
virtual	~solver ()=default
	Destructor.
const word &	fieldName () const noexcept
const lduMatrix &	matrix () const noexcept
const FieldField< Field, scalar > &	interfaceBouCoeffs () const noexcept
const FieldField< Field, scalar > &	interfaceIntCoeffs () const noexcept
const lduInterfaceFieldPtrsList &	interfaces () const noexcept
virtual void	read (const dictionary &)
	Read and reset the solver parameters from the given stream.
virtual solverPerformance	scalarSolve (solveScalarField &psi, const solveScalarField &source, const direction cmpt=0) const
	Solve with given field and rhs (in solveScalar precision).
solveScalarField::cmptType	normFactor (const solveScalarField &psi, const solveScalarField &source, const solveScalarField &Apsi, solveScalarField &tmpField, const lduMatrix::normTypes normType) const
	Return the matrix norm using the specified norm method.
solveScalarField::cmptType	normFactor (const solveScalarField &psi, const solveScalarField &source, const solveScalarField &Apsi, solveScalarField &tmpField) const
	Return the matrix norm used to normalise the residual for the stopping criterion.

Additional Inherited Members
Static Public Member Functions inherited from lduMatrix::solver
static autoPtr< solver >	New (const word &solverName, const word &fieldName, const lduMatrix &matrix, const FieldField< Field, scalar > &interfaceBouCoeffs, const FieldField< Field, scalar > &interfaceIntCoeffs, const lduInterfaceFieldPtrsList &interfaces, const dictionary &solverControls)
	Return a new solver of given type.
static autoPtr< solver >	New (const word &fieldName, const lduMatrix &matrix, const FieldField< Field, scalar > &interfaceBouCoeffs, const FieldField< Field, scalar > &interfaceIntCoeffs, const lduInterfaceFieldPtrsList &interfaces, const dictionary &solverControls)
	Return a new solver given dictionary.
Protected Member Functions inherited from PPCG
solverPerformance	scalarSolveCG (solveScalarField &psi, const solveScalarField &source, const direction cmpt, const bool cgMode) const
	CG solver. Operates either in conjugate-gradient mode or conjugate residual.
Protected Member Functions inherited from lduMatrix::solver
virtual void	readControls ()
	Read the control parameters from controlDict_.
Protected Attributes inherited from lduMatrix::solver
word	fieldName_
const lduMatrix &	matrix_
const FieldField< Field, scalar > &	interfaceBouCoeffs_
const FieldField< Field, scalar > &	interfaceIntCoeffs_
lduInterfaceFieldPtrsList	interfaces_
dictionary	controlDict_
	Dictionary of solution controls.
int	log_
	Verbosity level for solver output statements.
label	minIter_
	Minimum number of iterations in the solver.
label	maxIter_
	Maximum number of iterations in the solver.
lduMatrix::normTypes	normType_
	The normalisation type.
scalar	tolerance_
	Final convergence tolerance.
scalar	relTol_
	Convergence tolerance relative to the initial.
profilingTrigger	profiling_
	Profiling instrumentation.

Detailed Description

Preconditioned pipelined conjugate residuals solver for symmetric lduMatrices using a run-time selectable preconditioner.

Reference:

    P. Ghysels, W. Vanroose.
    "Hiding global synchronization latency in the
     preconditioned Conjugate Gradient algorithm"

and implementation details from

    Paul Eller, William Gropp
    "Scalable Non-blocking Preconditioned Conjugate Gradient Methods"

See also: PPCG

Source files

Definition at line 62 of file PPCR.H.

Constructor & Destructor Documentation

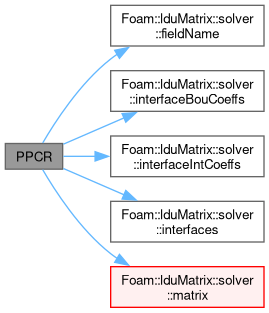

◆ PPCR()

PPCR	(	const word &	fieldName,
		const lduMatrix &	matrix,
		const FieldField< Field, scalar > &	interfaceBouCoeffs,
		const FieldField< Field, scalar > &	interfaceIntCoeffs,
		const lduInterfaceFieldPtrsList &	interfaces,
		const dictionary &	solverControls )
