Particle secondary breakup model based on Pilch-Erdman total droplet breakup model. More...

#include <PilchErdman.H>

Inheritance diagram for PilchErdman< CloudType >:

Collaboration diagram for PilchErdman< CloudType >:

Public Member Functions
	TypeName ("PilchErdman")
	Runtime type information.
	PilchErdman (const dictionary &, CloudType &)
	Construct from dictionary.
	PilchErdman (const PilchErdman< CloudType > &bum)
	Construct copy.
virtual autoPtr< BreakupModel< CloudType > >	clone () const
	Construct and return a clone.
void	operator= (const PilchErdman< CloudType > &)=delete
	No copy assignment.
virtual	~PilchErdman ()=default
	Destructor.
virtual bool	update (const scalar dt, const vector &g, scalar &d, scalar &tc, scalar &ms, scalar &nParticle, scalar &KHindex, scalar &y, scalar &yDot, const scalar d0, const scalar rho, const scalar mu, const scalar sigma, const vector &U, const scalar rhoc, const scalar muc, const vector &Urel, const scalar Urmag, const scalar tMom, scalar &dChild, scalar &massChild)
	Update the parcel properties.
Public Member Functions inherited from BreakupModel< CloudType >
	TypeName ("breakupModel")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, BreakupModel, dictionary,(const dictionary &dict, CloudType &owner),(dict, owner))
	Declare runtime constructor selection table.
	BreakupModel (CloudType &owner)
	Construct null from owner.
	BreakupModel (const dictionary &dict, CloudType &owner, const word &type, bool solveOscillationEq=false)
	Construct from dictionary.
	BreakupModel (const BreakupModel< CloudType > &bum)
	Construct copy.
virtual	~BreakupModel ()
	Destructor.
bool	solveOscillationEq () const
const scalar &	y0 () const
const scalar &	yDot0 () const
const scalar &	TABComega () const
const scalar &	TABCmu () const
const scalar &	TABtwoWeCrit () const
Public Member Functions inherited from CloudSubModelBase< CloudType >
	CloudSubModelBase (CloudType &owner)
	Construct null from owner cloud.
	CloudSubModelBase (CloudType &owner, const dictionary &dict, const word &baseName, const word &modelType, const word &dictExt="Coeffs")
	Construct from owner cloud without name.
	CloudSubModelBase (const word &modelName, CloudType &owner, const dictionary &dict, const word &baseName, const word &modelType)
	Construct from owner cloud with name.
	CloudSubModelBase (const CloudSubModelBase< CloudType > &smb)
	Construct as copy.
virtual	~CloudSubModelBase ()=default
	Destructor.
const CloudType &	owner () const
	Return const access to the owner cloud.
virtual bool	writeTime () const
	Flag to indicate when to write a property.
virtual fileName	localPath () const
	Output directory.
CloudType &	owner ()
	Return non-const access to the owner cloud for manipulation.
virtual void	info ()
	Write to info.
virtual void	write (Ostream &os) const
	Write to os.
Public Member Functions inherited from subModelBase
	subModelBase (dictionary &properties)
	Construct null.
	subModelBase (dictionary &properties, const dictionary &dict, const word &baseName, const word &modelType, const word &dictExt="Coeffs")
	Construct from components without name.
	subModelBase (const word &modelName, dictionary &properties, const dictionary &dict, const word &baseName, const word &modelType)
	Construct from components with name.
	subModelBase (const subModelBase &smb)
	Construct as copy.
virtual	~subModelBase ()=default
	Destructor.
const word &	modelName () const
	Return const access to the name of the sub-model.
const dictionary &	dict () const
	Return const access to the cloud dictionary.
const word &	baseName () const
	Return const access to the base name of the sub-model.
const word &	modelType () const
	Return const access to the sub-model type.
const dictionary &	coeffDict () const
	Return const access to the coefficients dictionary.
const dictionary &	properties () const
	Return const access to the properties dictionary.
virtual bool	defaultCoeffs (const bool printMsg) const
	Returns true if defaultCoeffs is true and outputs on printMsg.
virtual bool	active () const
	Return the model 'active' status - default active = true.
virtual void	cacheFields (const bool store)
	Cache dependent sub-model fields.
template<class Type>
Type	getBaseProperty (const word &entryName, const Type &defaultValue=Type(Zero)) const
	Retrieve generic property from the base model.
template<class Type>
void	getBaseProperty (const word &entryName, Type &value) const
	Retrieve generic property from the base model.
template<class Type>
void	setBaseProperty (const word &entryName, const Type &value)
	Add generic property to the base model.
bool	getModelDict (const word &entryName, dictionary &dict) const
	Retrieve dictionary, return true if set.
template<class Type>
bool	getModelProperty (const word &entryName, Type &value) const
	Retrieve generic property from the sub-model.
template<class Type>
Type	getModelProperty (const word &entryName, const Type &defaultValue=Type(Zero)) const
	Retrieve generic property from the sub-model.
template<class Type>
void	setModelProperty (const word &entryName, const Type &value)
	Add generic property to the sub-model.

Additional Inherited Members
Public Types inherited from CloudSubModelBase< CloudType >
typedef CloudType	cloudType
	Type of cloud this model was instantiated for.
Static Public Member Functions inherited from BreakupModel< CloudType >
static autoPtr< BreakupModel< CloudType > >	New (const dictionary &dict, CloudType &owner)
	Selector.
Public Attributes inherited from subModelBase
bool	log
	Flag to write log into Info.
Protected Member Functions inherited from subModelBase
bool	inLine () const
	Flag to indicate whether data is/was read in-line.
Protected Attributes inherited from BreakupModel< CloudType >
bool	solveOscillationEq_
scalar	y0_
scalar	yDot0_
scalar	TABComega_
scalar	TABCmu_
scalar	TABtwoWeCrit_
Protected Attributes inherited from CloudSubModelBase< CloudType >
CloudType &	owner_
	Reference to the cloud.
Protected Attributes inherited from subModelBase
const word	modelName_
	Name of the sub-model.
dictionary &	properties_
	Reference to properties dictionary e.g. for restart.
const dictionary	dict_
	Copy of dictionary used during construction.
const word	baseName_
	Name of the sub-model base class.
const word	modelType_
	Type of the sub-model.
const dictionary	coeffDict_
	Coefficients dictionary.

Detailed Description

template<class CloudType>
class Foam::PilchErdman< CloudType >

Particle secondary breakup model based on Pilch-Erdman total droplet breakup model.

Reference:

    Pilch, M., & Erdman, C. A. (1987).
    Use of breakup time data and velocity history data
    to predict the maximum size of stable fragments for
    acceleration-induced breakup of a liquid drop.
    International journal of multiphase flow, 13(6), 741-757.
    DOI:10.1016/0301-9322(87)90063-2

The droplet fragment velocity is described by the equation:

$\‍[ V_d = V \sqrt(\epsilon)(B_1 T + B_2 T^2) \‍]$

where

	=	Fragment velocity
	=	Magnitude of the relative velocity
$\epsilon$	=	Density ratio (rho_carrier/rho_droplet)
	=	characteristic break-up time
	=	Model coefficient
	=	Model coefficient

Where:

The authors suggest that: compressible flow : B1 = 0.75*1.0; B2 = 3*0.116 incompressible flow : B1 = 0.75*0.5; B2 = 3*0.0758

Source files

Definition at line 107 of file PilchErdman.H.

Constructor & Destructor Documentation

◆ PilchErdman() [1/2]

template<class CloudType>

PilchErdman	(	const dictionary &	dict,
		CloudType &	owner )

Construct from dictionary.

Definition at line 27 of file PilchErdman.C.

References BreakupModel< CloudType >::BreakupModel(), subModelBase::coeffDict(), subModelBase::defaultCoeffs(), subModelBase::dict(), Foam::GlobalIOList< Tuple2< scalar, vector > >::typeName, CloudSubModelBase< CloudType >::owner(), and dictionary::readEntry().

Referenced by clone(), operator=(), PilchErdman(), and TypeName().

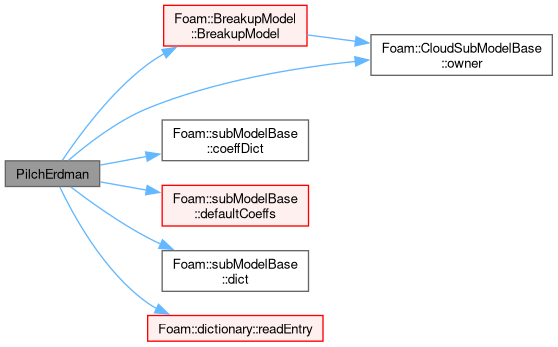

Here is the call graph for this function:

Here is the caller graph for this function:

◆ PilchErdman() [2/2]

template<class CloudType>

PilchErdman ( const PilchErdman< CloudType > & bum )

Construct copy.

Definition at line 46 of file PilchErdman.C.

References BreakupModel< CloudType >::BreakupModel(), and PilchErdman().

Here is the call graph for this function:

◆ ~PilchErdman()

template<class CloudType>

virtual ~PilchErdman ( )

virtualdefault

Destructor.

References g, mu, rho, sigma(), U, Urel, and y.

Here is the call graph for this function:

Member Function Documentation

◆ TypeName()

template<class CloudType>

TypeName ( "PilchErdman< CloudType >" )

Runtime type information.

References PilchErdman().

Here is the call graph for this function:

◆ clone()

template<class CloudType>

virtual autoPtr< BreakupModel< CloudType > > clone ( ) const

inlinevirtual

Construct and return a clone.

Implements BreakupModel< CloudType >.

Definition at line 147 of file PilchErdman.H.

References PilchErdman().

Here is the call graph for this function:

◆ operator=()

template<class CloudType>

void operator= ( const PilchErdman< CloudType > & )

delete

No copy assignment.

References PilchErdman().

Here is the call graph for this function:

◆ update()

template<class CloudType>

bool update	(	const scalar	dt,
		const vector &	g,
		scalar &	d,
		scalar &	tc,
		scalar &	ms,
		scalar &	nParticle,
		scalar &	KHindex,
		scalar &	y,
		scalar &	yDot,
		const scalar	d0,
		const scalar	rho,
		const scalar	mu,
		const scalar	sigma,
		const vector &	U,
		const scalar	rhoc,
		const scalar	muc,
		const vector &	Urel,
		const scalar	Urmag,
		const scalar	tMom,
		scalar &	dChild,
		scalar &	massChild )

virtual

Update the parcel properties.

Implements BreakupModel< CloudType >.

Definition at line 57 of file PilchErdman.C.

References g, Foam::max(), mu, Foam::pow(), Foam::pow3(), rho, sigma(), Foam::sqr(), Foam::sqrt(), U, Urel, and y.

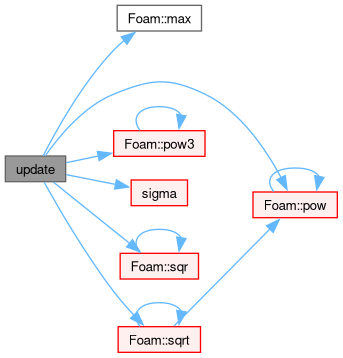

Here is the call graph for this function:

The documentation for this class was generated from the following files:

src/lagrangian/spray/submodels/BreakupModel/PilchErdman/PilchErdman.H
src/lagrangian/spray/submodels/BreakupModel/PilchErdman/PilchErdman.C
