Calculates particle pressure gradient force. More...

#include <PressureGradientForce.H>

Inheritance diagram for PressureGradientForce< CloudType >:

[legend]

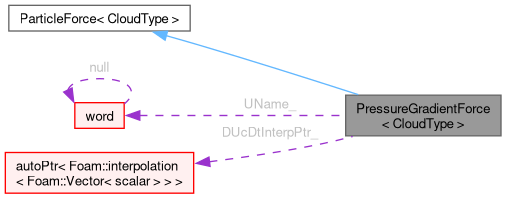

Collaboration diagram for PressureGradientForce< CloudType >:

[legend]

Public Member Functions
	TypeName ("pressureGradient")
	Runtime type information.
	PressureGradientForce (CloudType &owner, const fvMesh &mesh, const dictionary &dict, const word &forceType=typeName)
	Construct from mesh.
	PressureGradientForce (const PressureGradientForce &pgf)
	Construct copy.
virtual autoPtr< ParticleForce< CloudType > >	clone () const
	Construct and return a clone.
virtual	~PressureGradientForce ()
	Destructor.
const interpolation< vector > &	DUcDtInterp () const
	Return the rate of change of carrier phase velocity interpolator.
virtual void	cacheFields (const bool store)
	Cache fields.
virtual forceSuSp	calcCoupled (const typename CloudType::parcelType &p, const typename CloudType::parcelType::trackingData &td, const scalar dt, const scalar mass, const scalar Re, const scalar muc) const
	Calculate the non-coupled force.
virtual scalar	massAdd (const typename CloudType::parcelType &p, const typename CloudType::parcelType::trackingData &td, const scalar mass) const
	Return the added mass.
Public Member Functions inherited from ParticleForce< CloudType >
	TypeName ("particleForce")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, ParticleForce, dictionary,(CloudType &owner, const fvMesh &mesh, const dictionary &dict),(owner, mesh, dict))
	Declare runtime constructor selection table.
	ParticleForce (CloudType &owner, const fvMesh &mesh, const dictionary &dict, const word &forceType, const bool readCoeffs)
	Construct from mesh.
	ParticleForce (const ParticleForce &pf)
	Construct copy.
virtual	~ParticleForce ()
	Destructor.
const CloudType &	owner () const noexcept
	Return const access to the cloud owner.
CloudType &	owner () noexcept
	Return reference to the cloud owner.
const fvMesh &	mesh () const noexcept
	Return the mesh database.
const dictionary &	coeffs () const noexcept
	Return the force coefficients dictionary.
virtual forceSuSp	calcNonCoupled (const typename CloudType::parcelType &p, const typename CloudType::parcelType::trackingData &td, const scalar dt, const scalar mass, const scalar Re, const scalar muc) const
	Calculate the non-coupled force.

Protected Attributes
const word	UName_
	Name of velocity field.
autoPtr< interpolation< vector > >	DUcDtInterpPtr_
	Rate of change of carrier phase velocity interpolator.

Additional Inherited Members
Public Types inherited from ParticleForce< CloudType >
typedef VectorSpace< Vector< vector >, vector, 2 >	returnType
	Convenience typedef for return type.
Static Public Member Functions inherited from ParticleForce< CloudType >
static autoPtr< ParticleForce< CloudType > >	New (CloudType &owner, const fvMesh &mesh, const dictionary &dict, const word &forceType)
	Selector.

Detailed Description

template<class CloudType>
class Foam::PressureGradientForce< CloudType >

Calculates particle pressure gradient force.

Source files

Definition at line 53 of file PressureGradientForce.H.

Constructor & Destructor Documentation

◆ PressureGradientForce() [1/2]

template<class CloudType>

PressureGradientForce	(	CloudType &	owner,
		const fvMesh &	mesh,
		const dictionary &	dict,
		const word &	forceType = typeName )

Construct from mesh.

Definition at line 29 of file PressureGradientForce.C.

References ParticleForce< CloudType >::coeffs(), dict, DUcDtInterpPtr_, ParticleForce< CloudType >::mesh(), ParticleForce< CloudType >::owner(), ParticleForce< CloudType >::ParticleForce(), and UName_.

Referenced by clone(), PressureGradientForce(), TypeName(), VirtualMassForce< CloudType >::VirtualMassForce(), and VirtualMassForce< CloudType >::VirtualMassForce().

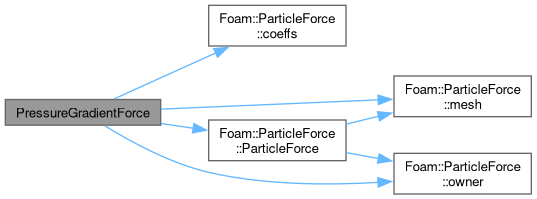

Here is the call graph for this function:

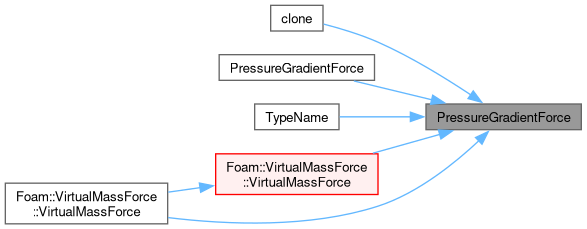

Here is the caller graph for this function:

◆ PressureGradientForce() [2/2]

template<class CloudType>

PressureGradientForce ( const PressureGradientForce< CloudType > & pgf )

Construct copy.

Definition at line 44 of file PressureGradientForce.C.

References DUcDtInterpPtr_, ParticleForce< CloudType >::ParticleForce(), PressureGradientForce(), and UName_.

Here is the call graph for this function:

◆ ~PressureGradientForce()

template<class CloudType>

~PressureGradientForce ( )

virtual

Destructor.

Definition at line 58 of file PressureGradientForce.C.

Member Function Documentation

◆ TypeName()

template<class CloudType>

TypeName ( "pressureGradient" )

Runtime type information.

References dict, Foam::GlobalIOList< Tuple2< scalar, vector > >::typeName, ParticleForce< CloudType >::mesh(), ParticleForce< CloudType >::owner(), and PressureGradientForce().

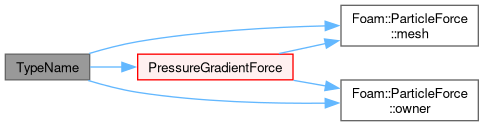

Here is the call graph for this function:

◆ clone()

template<class CloudType>

virtual autoPtr< ParticleForce< CloudType > > clone ( ) const

inlinevirtual

Construct and return a clone.

Reimplemented from ParticleForce< CloudType >.

Reimplemented in VirtualMassForce< CloudType >.

Definition at line 101 of file PressureGradientForce.H.

References PressureGradientForce().

Here is the call graph for this function:

◆ DUcDtInterp()

template<class CloudType>

const Foam::interpolation< Foam::vector > & DUcDtInterp ( ) const

inline

Return the rate of change of carrier phase velocity interpolator.

Definition at line 26 of file PressureGradientForceI.H.

References Foam::abort(), DUcDtInterpPtr_, Foam::FatalError, and FatalErrorInFunction.

Referenced by calcCoupled().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ cacheFields()

template<class CloudType>

void cacheFields ( const bool store )

virtual

Cache fields.

Reimplemented from ParticleForce< CloudType >.

Reimplemented in VirtualMassForce< CloudType >.

Definition at line 65 of file PressureGradientForce.C.

References regIOobject::checkOut(), Foam::fvc::ddt(), DUcDtInterpPtr_, Foam::fvc::grad(), mesh, interpolation< Type >::New(), ParticleForce< CloudType >::owner(), regIOobject::store(), and UName_.

Referenced by VirtualMassForce< CloudType >::cacheFields().

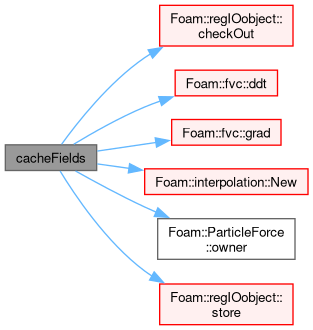

Here is the call graph for this function:

Here is the caller graph for this function:

◆ calcCoupled()

template<class CloudType>

Foam::forceSuSp calcCoupled	(	const typename CloudType::parcelType &	p,
		const typename CloudType::parcelType::trackingData &	td,
		const scalar	dt,
		const scalar	mass,
		const scalar	Re,
		const scalar	muc ) const

virtual

Calculate the non-coupled force.

Reimplemented from ParticleForce< CloudType >.

Reimplemented in VirtualMassForce< CloudType >.

Definition at line 111 of file PressureGradientForce.C.

References DUcDtInterp(), p, Foam::Re(), forceSuSp::Su(), td(), and Foam::Zero.

Referenced by VirtualMassForce< CloudType >::calcCoupled().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ massAdd()

template<class CloudType>

Foam::scalar massAdd	(	const typename CloudType::parcelType &	p,
		const typename CloudType::parcelType::trackingData &	td,
		const scalar	mass ) const

virtual

Return the added mass.

Reimplemented from ParticleForce< CloudType >.

Reimplemented in VirtualMassForce< CloudType >.

Definition at line 133 of file PressureGradientForce.C.

References td().

Here is the call graph for this function:

Member Data Documentation

◆ UName_

template<class CloudType>

const word UName_

protected

Name of velocity field.

Definition at line 64 of file PressureGradientForce.H.

Referenced by cacheFields(), PressureGradientForce(), and PressureGradientForce().

◆ DUcDtInterpPtr_

template<class CloudType>

autoPtr<interpolation<vector> > DUcDtInterpPtr_

protected

Rate of change of carrier phase velocity interpolator.

Definition at line 69 of file PressureGradientForce.H.

Referenced by cacheFields(), DUcDtInterp(), PressureGradientForce(), and PressureGradientForce().

The documentation for this class was generated from the following files:

src/lagrangian/intermediate/submodels/Kinematic/ParticleForces/PressureGradient/PressureGradientForce.H
src/lagrangian/intermediate/submodels/Kinematic/ParticleForces/PressureGradient/PressureGradientForce.C
src/lagrangian/intermediate/submodels/Kinematic/ParticleForces/PressureGradient/PressureGradientForceI.H
