Templated abstract base class for RAS turbulence models. More...

#include <RASModel.H>

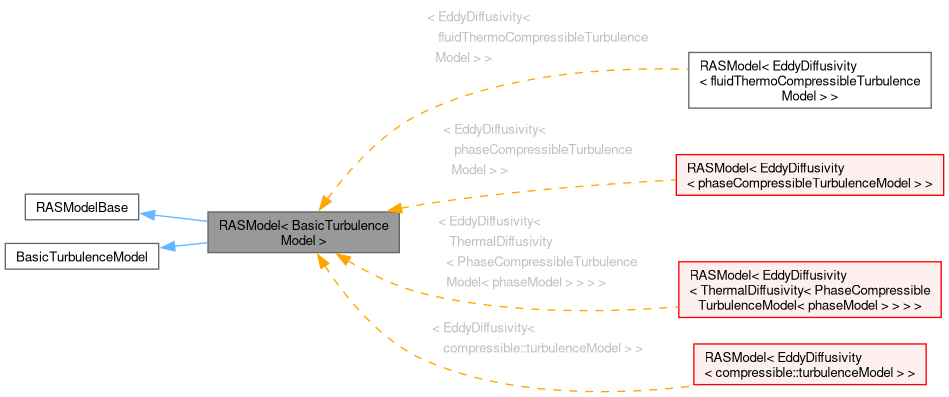

Inheritance diagram for RASModel< BasicTurbulenceModel >:

[legend]

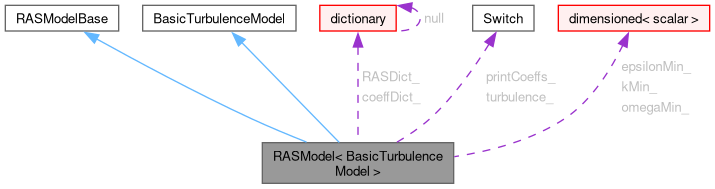

Collaboration diagram for RASModel< BasicTurbulenceModel >:

[legend]

Public Types
typedef BasicTurbulenceModel::alphaField	alphaField
typedef BasicTurbulenceModel::rhoField	rhoField
typedef BasicTurbulenceModel::transportModel	transportModel

Public Member Functions
	TypeName ("RAS")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, RASModel, dictionary,(const alphaField &alpha, const rhoField &rho, const volVectorField &U, const surfaceScalarField &alphaRhoPhi, const surfaceScalarField &phi, const transportModel &transport, const word &propertiesName),(alpha, rho, U, alphaRhoPhi, phi, transport, propertiesName))
	RASModel (const word &type, const alphaField &alpha, const rhoField &rho, const volVectorField &U, const surfaceScalarField &alphaRhoPhi, const surfaceScalarField &phi, const transportModel &transport, const word &propertiesName)
	Construct from components.
virtual	~RASModel ()=default
	Destructor.
virtual bool	read ()
	Read model coefficients if they have changed.
const dimensionedScalar &	kMin () const noexcept
	Return the lower allowable limit for k (default: SMALL).
const dimensionedScalar &	epsilonMin () const noexcept
	Return the lower allowable limit for epsilon (default: SMALL).
const dimensionedScalar &	omegaMin () const noexcept
	Return the lower allowable limit for omega (default: SMALL).
dimensionedScalar &	kMin () noexcept
	Allow kMin to be changed.
dimensionedScalar &	epsilonMin () noexcept
	Allow epsilonMin to be changed.
dimensionedScalar &	omegaMin () noexcept
	Allow omegaMin to be changed.
virtual const dictionary &	coeffDict () const
	Const access to the coefficients dictionary.
virtual tmp< volScalarField >	nuEff () const
	Return the effective viscosity.
virtual tmp< scalarField >	nuEff (const label patchi) const
	Return the effective viscosity on patch.
virtual tmp< volScalarField >	epsilon () const
	Return the turbulence kinetic energy dissipation rate.
virtual tmp< volScalarField >	omega () const
	Return the specific dissipation rate.
virtual void	correct ()
	Solve the turbulence equations and correct the turbulence viscosity.
Public Member Functions inherited from RASModelBase
	ClassName ("RASModelBase")
	Runtime type information.
	RASModelBase () noexcept=default
	Constructor.
virtual	~RASModelBase ()=default
	Destructor.

Static Public Member Functions
static autoPtr< RASModel >	New (const alphaField &alpha, const rhoField &rho, const volVectorField &U, const surfaceScalarField &alphaRhoPhi, const surfaceScalarField &phi, const transportModel &transport, const word &propertiesName=turbulenceModel::propertiesName)
	Return a reference to the selected RAS model.

Protected Member Functions
virtual void	printCoeffs (const word &type)
	Print model coefficients.
	RASModel (const RASModel &)=delete
	No copy construct.
void	operator= (const RASModel &)=delete
	No copy assignment.

Protected Attributes
dictionary	RASDict_
	RAS coefficients dictionary.
Switch	turbulence_
	Turbulence on/off flag.
Switch	printCoeffs_
	Flag to print the model coeffs at run-time.
dictionary	coeffDict_
	Model coefficients dictionary.
dimensionedScalar	kMin_
	Lower limit of k.
dimensionedScalar	epsilonMin_
	Lower limit of epsilon.
dimensionedScalar	omegaMin_
	Lower limit for omega.

Detailed Description

template<class BasicTurbulenceModel>
class Foam::RASModel< BasicTurbulenceModel >

Templated abstract base class for RAS turbulence models.

Source files

Definition at line 77 of file RASModel.H.

Member Typedef Documentation

◆ alphaField

template<class BasicTurbulenceModel>

typedef BasicTurbulenceModel::alphaField alphaField

Definition at line 142 of file RASModel.H.

◆ rhoField

template<class BasicTurbulenceModel>

typedef BasicTurbulenceModel::rhoField rhoField

Definition at line 143 of file RASModel.H.

◆ transportModel

template<class BasicTurbulenceModel>

typedef BasicTurbulenceModel::transportModel transportModel

Definition at line 144 of file RASModel.H.

Constructor & Destructor Documentation

◆ RASModel() [1/2]

template<class BasicTurbulenceModel>

RASModel ( const RASModel< BasicTurbulenceModel > & )

protecteddelete

No copy construct.

◆ RASModel() [2/2]

template<class BasicTurbulenceModel>

RASModel	(	const word &	type,
		const alphaField &	alpha,
		const rhoField &	rho,
		const volVectorField &	U,
		const surfaceScalarField &	alphaRhoPhi,
		const surfaceScalarField &	phi,
		const transportModel &	transport,
		const word &	propertiesName )

Construct from components.

Definition at line 39 of file RASModel.C.

References alpha, coeffDict_, Foam::dimless, Foam::dimTime, Foam::dimVelocity, epsilonMin_, kMin_, omegaMin_, phi, printCoeffs_, RASDict_, rho, Foam::sqr(), turbulence_, and U.

Here is the call graph for this function:

◆ ~RASModel()

template<class BasicTurbulenceModel>

virtual ~RASModel ( )

virtualdefault

Destructor.

Member Function Documentation

◆ printCoeffs()

template<class BasicTurbulenceModel>

void printCoeffs ( const word & type )

protectedvirtual

Print model coefficients.

Definition at line 27 of file RASModel.C.

References coeffDict_, Foam::endl(), Foam::Info, and printCoeffs_.

Here is the call graph for this function:

◆ operator=()

template<class BasicTurbulenceModel>

void operator= ( const RASModel< BasicTurbulenceModel > & )

protecteddelete

No copy assignment.

◆ TypeName()

template<class BasicTurbulenceModel>

TypeName ( "RAS" )

Runtime type information.

◆ declareRunTimeSelectionTable()

template<class BasicTurbulenceModel>

declareRunTimeSelectionTable	(	autoPtr	,
		RASModel< BasicTurbulenceModel >	,
		dictionary	,
		(const alphaField &alpha, const rhoField &rho, const volVectorField &U, const surfaceScalarField &alphaRhoPhi, const surfaceScalarField &phi, const transportModel &transport, const word &propertiesName)	,
		(alpha, rho, U, alphaRhoPhi, phi, transport, propertiesName)	)

◆ New()

template<class BasicTurbulenceModel>

Foam::autoPtr< Foam::RASModel< BasicTurbulenceModel > > New	(	const alphaField &	alpha,
		const rhoField &	rho,
		const volVectorField &	U,
		const surfaceScalarField &	alphaRhoPhi,
		const surfaceScalarField &	phi,
		const transportModel &	transport,
		const word &	propertiesName = turbulenceModel::propertiesName )

static

Return a reference to the selected RAS model.

Definition at line 107 of file RASModel.C.

References alpha, IOobject::group(), IOobject::groupName(), IOobjectOption::MUST_READ, IOobjectOption::NO_WRITE, phi, rho, and U.

Here is the call graph for this function:

◆ read()

template<class BasicTurbulenceModel>

bool read ( )

virtual

Read model coefficients if they have changed.

Reimplemented in PDRkEpsilon, eddyViscosity< RASModel< EddyDiffusivity< compressible::turbulenceModel > > >, eddyViscosity< RASModel< EddyDiffusivity< phaseCompressibleTurbulenceModel > > >, eddyViscosity< RASModel< EddyDiffusivity< ThermalDiffusivity< PhaseCompressibleTurbulenceModel< phaseModel > > > > >, linearViscousStress< RASModel< EddyDiffusivity< compressible::turbulenceModel > > >, linearViscousStress< RASModel< EddyDiffusivity< phaseCompressibleTurbulenceModel > > >, linearViscousStress< RASModel< EddyDiffusivity< ThermalDiffusivity< PhaseCompressibleTurbulenceModel< phaseModel > > > > >, kEpsilon< EddyDiffusivity< compressible::turbulenceModel > >, kineticTheoryModel, kineticTheoryModel, phasePressureModel, and phasePressureModel.

Definition at line 164 of file RASModel.C.

References coeffDict_, epsilonMin_, kMin_, omegaMin_, RASDict_, turbulence_, and Foam::type().

Here is the call graph for this function:

◆ kMin() [1/2]

template<class BasicTurbulenceModel>

const dimensionedScalar & kMin ( ) const

inlinenoexcept

Return the lower allowable limit for k (default: SMALL).

Definition at line 227 of file RASModel.H.

◆ epsilonMin() [1/2]

template<class BasicTurbulenceModel>

const dimensionedScalar & epsilonMin ( ) const

inlinenoexcept

Return the lower allowable limit for epsilon (default: SMALL).

Definition at line 235 of file RASModel.H.

◆ omegaMin() [1/2]

template<class BasicTurbulenceModel>

const dimensionedScalar & omegaMin ( ) const

inlinenoexcept

Return the lower allowable limit for omega (default: SMALL).

Definition at line 243 of file RASModel.H.

◆ kMin() [2/2]

template<class BasicTurbulenceModel>

dimensionedScalar & kMin ( )

inlinenoexcept

Allow kMin to be changed.

Definition at line 251 of file RASModel.H.

◆ epsilonMin() [2/2]

template<class BasicTurbulenceModel>

dimensionedScalar & epsilonMin ( )

inlinenoexcept

Allow epsilonMin to be changed.

Definition at line 259 of file RASModel.H.

◆ omegaMin() [2/2]

template<class BasicTurbulenceModel>

dimensionedScalar & omegaMin ( )

inlinenoexcept

Allow omegaMin to be changed.

Definition at line 267 of file RASModel.H.

◆ coeffDict()

template<class BasicTurbulenceModel>

virtual const dictionary & coeffDict ( ) const

inlinevirtual

Const access to the coefficients dictionary.

Definition at line 275 of file RASModel.H.

◆ nuEff() [1/2]

template<class BasicTurbulenceModel>

virtual tmp< volScalarField > nuEff ( ) const

inlinevirtual

Return the effective viscosity.

Reimplemented in kineticTheoryModel, kineticTheoryModel, phasePressureModel, and phasePressureModel.

Definition at line 284 of file RASModel.H.

◆ nuEff() [2/2]

template<class BasicTurbulenceModel>

virtual tmp< scalarField > nuEff ( const label patchi ) const

inlinevirtual

Return the effective viscosity on patch.

Definition at line 299 of file RASModel.H.

◆ epsilon()

template<class BasicTurbulenceModel>

Foam::tmp< Foam::volScalarField > epsilon ( ) const

virtual

Return the turbulence kinetic energy dissipation rate.

Reimplemented in kEpsilon< EddyDiffusivity< compressible::turbulenceModel > >, kineticTheoryModel, kineticTheoryModel, phasePressureModel, and phasePressureModel.

Definition at line 185 of file RASModel.C.

References IOobject::groupName(), GeometricField< scalar, fvPatchField, volMesh >::New(), and IOobjectOption::NO_REGISTER.

Here is the call graph for this function:

◆ omega()

template<class BasicTurbulenceModel>

Foam::tmp< Foam::volScalarField > omega ( ) const

virtual

Return the specific dissipation rate.

Reimplemented in kineticTheoryModel, kineticTheoryModel, phasePressureModel, and phasePressureModel.

Definition at line 200 of file RASModel.C.

References Foam::dimLength, Foam::dimTime, IOobject::groupName(), GeometricField< scalar, fvPatchField, volMesh >::New(), IOobjectOption::NO_REGISTER, and Foam::sqr().

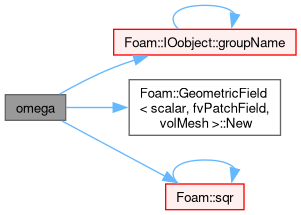

Here is the call graph for this function:

◆ correct()

template<class BasicTurbulenceModel>

void correct ( )

virtual

Solve the turbulence equations and correct the turbulence viscosity.

Reimplemented in PDRkEpsilon, eddyViscosity< RASModel< EddyDiffusivity< compressible::turbulenceModel > > >, eddyViscosity< RASModel< EddyDiffusivity< phaseCompressibleTurbulenceModel > > >, eddyViscosity< RASModel< EddyDiffusivity< ThermalDiffusivity< PhaseCompressibleTurbulenceModel< phaseModel > > > > >, linearViscousStress< RASModel< EddyDiffusivity< compressible::turbulenceModel > > >, linearViscousStress< RASModel< EddyDiffusivity< phaseCompressibleTurbulenceModel > > >, linearViscousStress< RASModel< EddyDiffusivity< ThermalDiffusivity< PhaseCompressibleTurbulenceModel< phaseModel > > > > >, kEpsilon< EddyDiffusivity< compressible::turbulenceModel > >, kineticTheoryModel, kineticTheoryModel, phasePressureModel, and phasePressureModel.

Definition at line 215 of file RASModel.C.

Member Data Documentation

◆ RASDict_

template<class BasicTurbulenceModel>

dictionary RASDict_

protected

RAS coefficients dictionary.

Definition at line 89 of file RASModel.H.

Referenced by RASModel(), and read().

◆ turbulence_

template<class BasicTurbulenceModel>

Switch turbulence_

protected

Turbulence on/off flag.

Definition at line 94 of file RASModel.H.

Referenced by RASModel(), and read().

◆ printCoeffs_

template<class BasicTurbulenceModel>

Switch printCoeffs_

protected

Flag to print the model coeffs at run-time.

Definition at line 99 of file RASModel.H.

Referenced by printCoeffs(), and RASModel().

◆ coeffDict_

template<class BasicTurbulenceModel>

dictionary coeffDict_

protected

Model coefficients dictionary.

Definition at line 104 of file RASModel.H.

Referenced by printCoeffs(), RASModel(), and read().

◆ kMin_

template<class BasicTurbulenceModel>

dimensionedScalar kMin_

protected

Lower limit of k.

Definition at line 109 of file RASModel.H.

Referenced by RASModel(), and read().

◆ epsilonMin_

template<class BasicTurbulenceModel>

dimensionedScalar epsilonMin_

protected

Lower limit of epsilon.

Definition at line 114 of file RASModel.H.

Referenced by RASModel(), and read().

◆ omegaMin_

template<class BasicTurbulenceModel>

dimensionedScalar omegaMin_

protected

Lower limit for omega.

Definition at line 119 of file RASModel.H.

Referenced by RASModel(), and read().

The documentation for this class was generated from the following files:

src/TurbulenceModels/turbulenceModels/RAS/RASModel/RASModel.H
src/TurbulenceModels/turbulenceModels/RAS/RASModel/RASModel.C

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Member Typedef Documentation

◆ alphaField

◆ rhoField

◆ transportModel

Constructor & Destructor Documentation

◆ RASModel() [1/2]

◆ RASModel() [2/2]

◆ ~RASModel()

Member Function Documentation

◆ printCoeffs()

◆ operator=()

◆ TypeName()

◆ declareRunTimeSelectionTable()

◆ New()

◆ read()

◆ kMin() [1/2]

◆ epsilonMin() [1/2]

◆ omegaMin() [1/2]

◆ kMin() [2/2]

◆ epsilonMin() [2/2]

◆ omegaMin() [2/2]

◆ coeffDict()

◆ nuEff() [1/2]

◆ nuEff() [2/2]

◆ epsilon()

◆ omega()

◆ correct()

Member Data Documentation

◆ RASDict_

◆ turbulence_

◆ printCoeffs_

◆ coeffDict_

◆ kMin_

◆ epsilonMin_

◆ omegaMin_
