k-epsilon model for the gas-phase in a two-phase system supporting phase-inversion. More...

#include <continuousGasKEpsilon.H>

Inheritance diagram for continuousGasKEpsilon< BasicTurbulenceModel >:

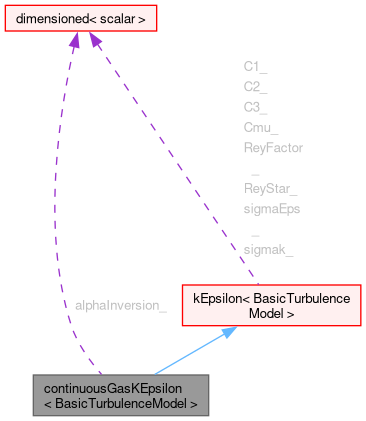

Collaboration diagram for continuousGasKEpsilon< BasicTurbulenceModel >:

[legend]

Public Types
typedef BasicTurbulenceModel::alphaField	alphaField
typedef BasicTurbulenceModel::rhoField	rhoField
typedef BasicTurbulenceModel::transportModel	transportModel
Public Types inherited from kEpsilon< BasicTurbulenceModel >
typedef BasicTurbulenceModel::alphaField	alphaField
typedef BasicTurbulenceModel::rhoField	rhoField
typedef BasicTurbulenceModel::transportModel	transportModel
Public Types inherited from eddyViscosity< RASModel< BasicTurbulenceModel > >
typedef BasicTurbulenceModel::alphaField	alphaField
typedef BasicTurbulenceModel::rhoField	rhoField
typedef BasicTurbulenceModel::transportModel	transportModel
Public Types inherited from linearViscousStress< BasicTurbulenceModel >
typedef BasicTurbulenceModel::alphaField	alphaField
typedef BasicTurbulenceModel::rhoField	rhoField
typedef BasicTurbulenceModel::transportModel	transportModel

Public Member Functions
	TypeName ("continuousGasKEpsilon")
	Runtime type information.
	continuousGasKEpsilon (const alphaField &alpha, const rhoField &rho, const volVectorField &U, const surfaceScalarField &alphaRhoPhi, const surfaceScalarField &phi, const transportModel &transport, const word &propertiesName=turbulenceModel::propertiesName, const word &type=typeName)
	Construct from components.
virtual	~continuousGasKEpsilon ()=default
	Destructor.
virtual bool	read ()
	Re-read model coefficients if they have changed.
const turbulenceModel &	liquidTurbulence () const
	Return the turbulence model for the liquid phase.
virtual tmp< volScalarField >	nuEff () const
	Return the effective viscosity.
virtual tmp< volScalarField >	rhoEff () const
	Return the effective density for the stress.
virtual tmp< volSymmTensorField >	R () const
	Return the Reynolds stress tensor.
Public Member Functions inherited from kEpsilon< BasicTurbulenceModel >
	TypeName ("kEpsilon")
	Runtime type information.
	kEpsilon (const alphaField &alpha, const rhoField &rho, const volVectorField &U, const surfaceScalarField &alphaRhoPhi, const surfaceScalarField &phi, const transportModel &transport, const word &propertiesName=turbulenceModel::propertiesName, const word &type=typeName)
	Construct from components.
virtual	~kEpsilon ()=default
	Destructor.
tmp< volScalarField >	DkEff () const
	Return the effective diffusivity for k.
tmp< volScalarField >	DepsilonEff () const
	Return the effective diffusivity for epsilon.
virtual tmp< volScalarField >	k () const
	Return the turbulence kinetic energy.
virtual tmp< volScalarField >	epsilon () const
	Return the turbulence kinetic energy dissipation rate.
virtual void	correct ()
	Solve the turbulence equations and correct the turbulence viscosity.
Public Member Functions inherited from eddyViscosity< RASModel< BasicTurbulenceModel > >
	eddyViscosity (const word &modelName, const alphaField &alpha, const rhoField &rho, const volVectorField &U, const surfaceScalarField &alphaRhoPhi, const surfaceScalarField &phi, const transportModel &transport, const word &propertiesName)
	Construct from components.
virtual	~eddyViscosity ()=default
	Destructor.
virtual tmp< volScalarField >	nut () const
	Return the turbulence viscosity.
virtual void	validate ()
	Validate the turbulence fields after construction.
Public Member Functions inherited from linearViscousStress< BasicTurbulenceModel >
	linearViscousStress (const word &modelName, const alphaField &alpha, const rhoField &rho, const volVectorField &U, const surfaceScalarField &alphaRhoPhi, const surfaceScalarField &phi, const transportModel &transport, const word &propertiesName)
	Construct from components.
virtual	~linearViscousStress ()=default
	Destructor.
virtual tmp< volSymmTensorField >	devRhoReff () const
	Return the effective stress tensor.
virtual tmp< volSymmTensorField >	devRhoReff (const volVectorField &U) const
	Return the effective stress tensor based on a given velocity field.
virtual tmp< fvVectorMatrix >	divDevRhoReff (volVectorField &U) const
	Return the source term for the momentum equation.
virtual tmp< fvVectorMatrix >	divDevRhoReff (const volScalarField &rho, volVectorField &U) const
	Return the source term for the momentum equation.

Protected Member Functions
virtual void	correctNut ()
tmp< volScalarField >	phaseTransferCoeff () const
virtual tmp< fvScalarMatrix >	kSource () const
virtual tmp< fvScalarMatrix >	epsilonSource () const

Protected Attributes
dimensionedScalar	alphaInversion_
Protected Attributes inherited from kEpsilon< BasicTurbulenceModel >
dimensionedScalar	Cmu_
dimensionedScalar	C1_
dimensionedScalar	C2_
dimensionedScalar	C3_
dimensionedScalar	sigmak_
dimensionedScalar	sigmaEps_
volScalarField	k_
volScalarField	epsilon_
bool	twoLayerTreatment_
dimensionedScalar	ReyStar_
dimensionedScalar	ReyFactor_
std::unique_ptr< volScalarField::Internal >	lEpsPtr_
std::unique_ptr< volScalarField >	lambdaEpsPtr_
Protected Attributes inherited from eddyViscosity< RASModel< BasicTurbulenceModel > >
volScalarField	nut_

Detailed Description

template<class BasicTurbulenceModel>
class Foam::RASModels::continuousGasKEpsilon< BasicTurbulenceModel >

k-epsilon model for the gas-phase in a two-phase system supporting phase-inversion.

In the limit that the gas-phase fraction approaches zero a contribution from the other phase is blended into the k and epsilon equations up to the phase-fraction of alphaInversion at which point phase-inversion is considered to have occurred and the model reverts to the pure single-phase form.

This model is unpublished and is provided as a stable numerical framework on which a more physical model may be built.

The default model coefficients are

    continuousGasKEpsilonCoeffs
    {
        Cmu             0.09;
        C1              1.44;
        C2              1.92;
        C3              -0.33;
        sigmak          1.0;
        sigmaEps        1.3;
        alphaInversion  0.7;
    }

Source files

Definition at line 77 of file continuousGasKEpsilon.H.

Member Typedef Documentation

◆ alphaField

template<class BasicTurbulenceModel>

typedef BasicTurbulenceModel::alphaField alphaField

Definition at line 120 of file continuousGasKEpsilon.H.

◆ rhoField

template<class BasicTurbulenceModel>

typedef BasicTurbulenceModel::rhoField rhoField

Definition at line 121 of file continuousGasKEpsilon.H.

◆ transportModel

template<class BasicTurbulenceModel>

typedef BasicTurbulenceModel::transportModel transportModel

Definition at line 122 of file continuousGasKEpsilon.H.

Constructor & Destructor Documentation

◆ continuousGasKEpsilon()

template<class BasicTurbulenceModel>

continuousGasKEpsilon	(	const alphaField &	alpha,
		const rhoField &	rho,
		const volVectorField &	U,
		const surfaceScalarField &	alphaRhoPhi,
		const surfaceScalarField &	phi,
		const transportModel &	transport,
		const word &	propertiesName = turbulenceModel::propertiesName,
		const word &	type = typeName )

Construct from components.

Definition at line 38 of file continuousGasKEpsilon.C.

References alpha, alphaInversion_, Foam::GlobalIOList< Tuple2< scalar, vector > >::typeName, eddyViscosity< RASModel< BasicTurbulenceModel > >::nut_, phi, rho, timeName, and U.

◆ ~continuousGasKEpsilon()

template<class BasicTurbulenceModel>

virtual ~continuousGasKEpsilon ( )

virtualdefault

Destructor.

Member Function Documentation

◆ correctNut()

template<class BasicTurbulenceModel>

void correctNut ( )

protectedvirtual

Reimplemented from kEpsilon< BasicTurbulenceModel >.

Definition at line 111 of file continuousGasKEpsilon.C.

References optionList::correct(), kEpsilon< BasicTurbulenceModel >::correctNut(), virtualMassModel::Cvm(), Foam::exp(), fluid, liquidTurbulence(), Foam::min(), options::New(), Foam::refCast(), liquid::rho(), and Foam::sqr().

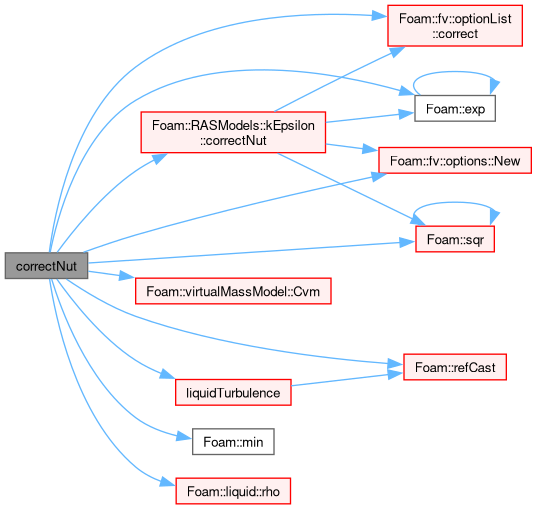

Here is the call graph for this function:

◆ phaseTransferCoeff()

template<class BasicTurbulenceModel>

tmp< volScalarField > phaseTransferCoeff ( ) const

protected

Definition at line 223 of file continuousGasKEpsilon.C.

References alpha, alphaInversion_, liquidTurbulence(), Foam::max(), Foam::min(), rho, and U.

Referenced by epsilonSource(), and kSource().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ kSource()

template<class BasicTurbulenceModel>

tmp< fvScalarMatrix > kSource ( ) const

protectedvirtual

Reimplemented from kEpsilon< BasicTurbulenceModel >.

Definition at line 246 of file continuousGasKEpsilon.C.

References kEpsilon< BasicTurbulenceModel >::k_, liquidTurbulence(), phaseTransferCoeff(), and Foam::fvm::Sp().

Here is the call graph for this function:

◆ epsilonSource()

template<class BasicTurbulenceModel>

tmp< fvScalarMatrix > epsilonSource ( ) const

protectedvirtual

Reimplemented from kEpsilon< BasicTurbulenceModel >.

Definition at line 259 of file continuousGasKEpsilon.C.

References kEpsilon< BasicTurbulenceModel >::epsilon_, liquidTurbulence(), phaseTransferCoeff(), and Foam::fvm::Sp().

Here is the call graph for this function:

◆ TypeName()

template<class BasicTurbulenceModel>

TypeName ( "continuousGasKEpsilon< BasicTurbulenceModel >" )

Runtime type information.

References alpha, Foam::GlobalIOList< Tuple2< scalar, vector > >::typeName, phi, turbulenceModel::propertiesName, rho, and U.

◆ read()

template<class BasicTurbulenceModel>

bool read ( )

virtual

Re-read model coefficients if they have changed.

Reimplemented from kEpsilon< BasicTurbulenceModel >.

Definition at line 97 of file continuousGasKEpsilon.C.

References alphaInversion_, and kEpsilon< BasicTurbulenceModel >::read().

Here is the call graph for this function:

◆ liquidTurbulence()

template<class BasicTurbulenceModel>

const turbulenceModel & liquidTurbulence ( ) const

Return the turbulence model for the liquid phase.

Definition at line 143 of file continuousGasKEpsilon.C.

References fluid, IOobject::groupName(), turbulenceModel::propertiesName, Foam::refCast(), and U.

Referenced by correctNut(), epsilonSource(), kSource(), and phaseTransferCoeff().

Here is the call graph for this function:

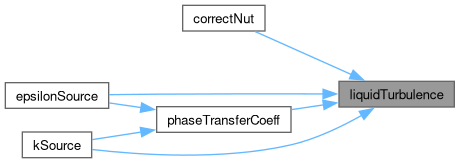

Here is the caller graph for this function:

◆ nuEff()

template<class BasicTurbulenceModel>

tmp< Foam::volScalarField > nuEff ( ) const

virtual

Return the effective viscosity.

Definition at line 171 of file continuousGasKEpsilon.C.

References alphaInversion_, IOobject::groupName(), Foam::max(), Foam::min(), nu, rho, and rhoEff().

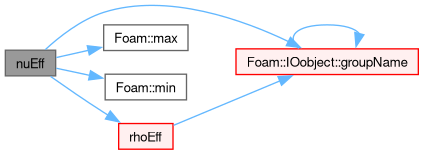

Here is the call graph for this function:

◆ rhoEff()

template<class BasicTurbulenceModel>

tmp< Foam::volScalarField > rhoEff ( ) const

virtual

Return the effective density for the stress.

Definition at line 201 of file continuousGasKEpsilon.C.

References virtualMassModel::Cvm(), fluid, IOobject::groupName(), Foam::refCast(), and liquid::rho().

Referenced by nuEff().

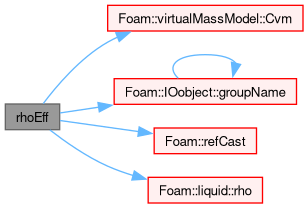

Here is the call graph for this function:

Here is the caller graph for this function:

◆ R()

template<class BasicTurbulenceModel>

tmp< volSymmTensorField > R ( ) const

virtual

Return the Reynolds stress tensor.

Reimplemented from eddyViscosity< RASModel< BasicTurbulenceModel > >.

Definition at line 272 of file continuousGasKEpsilon.C.

References Foam::devTwoSymm(), Foam::fvc::grad(), IOobject::groupName(), Foam::I, k, IOobjectOption::NO_READ, and IOobjectOption::NO_WRITE.

Here is the call graph for this function:

Member Data Documentation

◆ alphaInversion_

template<class BasicTurbulenceModel>

dimensionedScalar alphaInversion_

protected

Definition at line 107 of file continuousGasKEpsilon.H.

Referenced by continuousGasKEpsilon(), nuEff(), phaseTransferCoeff(), and read().

The documentation for this class was generated from the following files:

src/TurbulenceModels/phaseCompressible/RAS/continuousGasKEpsilon/continuousGasKEpsilon.H
src/TurbulenceModels/phaseCompressible/RAS/continuousGasKEpsilon/continuousGasKEpsilon.C
