A one-equation (turbulent kinetic energy k) turbulence closure model for incompressible and compressible geophysical applications. More...

#include <kL.H>

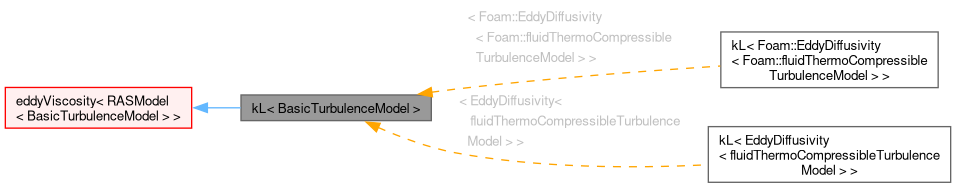

Inheritance diagram for kL< BasicTurbulenceModel >:

[legend]

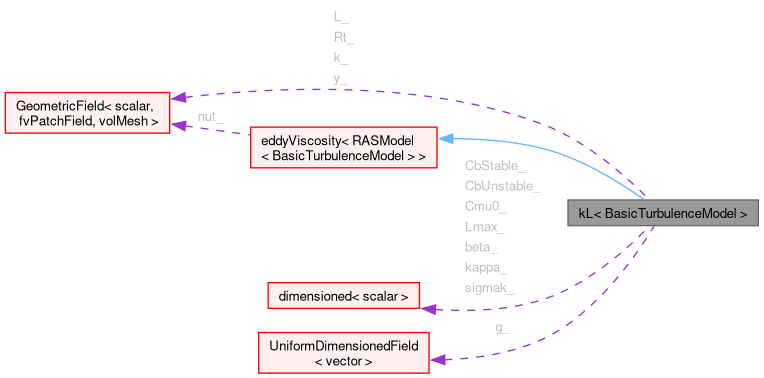

Collaboration diagram for kL< BasicTurbulenceModel >:

[legend]

Public Types
typedef BasicTurbulenceModel::alphaField	alphaField
typedef BasicTurbulenceModel::rhoField	rhoField
typedef BasicTurbulenceModel::transportModel	transportModel
Public Types inherited from eddyViscosity< RASModel< BasicTurbulenceModel > >
typedef BasicTurbulenceModel::alphaField	alphaField
typedef BasicTurbulenceModel::rhoField	rhoField
typedef BasicTurbulenceModel::transportModel	transportModel
Public Types inherited from linearViscousStress< BasicTurbulenceModel >
typedef BasicTurbulenceModel::alphaField	alphaField
typedef BasicTurbulenceModel::rhoField	rhoField
typedef BasicTurbulenceModel::transportModel	transportModel

Public Member Functions
	TypeName ("kL")
	Runtime type information.
	kL (const alphaField &alpha, const rhoField &rho, const volVectorField &U, const surfaceScalarField &alphaRhoPhi, const surfaceScalarField &phi, const transportModel &transport, const word &propertiesName=turbulenceModel::propertiesName, const word &type=typeName)
	Construct from components.
virtual	~kL ()=default
	Destructor.
virtual bool	read ()
	Re-read model coefficients if they have changed.
tmp< volScalarField >	DkEff () const
	Return the effective diffusivity for k.
virtual tmp< volScalarField >	k () const
	Return the turbulent kinetic energy field.
virtual void	correct ()
	Solve the turbulence equations and correct the turbulence viscosity.
Public Member Functions inherited from eddyViscosity< RASModel< BasicTurbulenceModel > >
	eddyViscosity (const word &modelName, const alphaField &alpha, const rhoField &rho, const volVectorField &U, const surfaceScalarField &alphaRhoPhi, const surfaceScalarField &phi, const transportModel &transport, const word &propertiesName)
	Construct from components.
virtual	~eddyViscosity ()=default
	Destructor.
virtual tmp< volScalarField >	nut () const
	Return the turbulence viscosity.
virtual tmp< volSymmTensorField >	R () const
	Return the Reynolds stress tensor.
virtual void	validate ()
	Validate the turbulence fields after construction.
Public Member Functions inherited from linearViscousStress< BasicTurbulenceModel >
	linearViscousStress (const word &modelName, const alphaField &alpha, const rhoField &rho, const volVectorField &U, const surfaceScalarField &alphaRhoPhi, const surfaceScalarField &phi, const transportModel &transport, const word &propertiesName)
	Construct from components.
virtual	~linearViscousStress ()=default
	Destructor.
virtual tmp< volSymmTensorField >	devRhoReff () const
	Return the effective stress tensor.
virtual tmp< volSymmTensorField >	devRhoReff (const volVectorField &U) const
	Return the effective stress tensor based on a given velocity field.
virtual tmp< fvVectorMatrix >	divDevRhoReff (volVectorField &U) const
	Return the source term for the momentum equation.
virtual tmp< fvVectorMatrix >	divDevRhoReff (const volScalarField &rho, volVectorField &U) const
	Return the source term for the momentum equation.

Protected Member Functions
virtual void	correctNut ()
	Correct the turbulence viscosity.
virtual tmp< fvScalarMatrix >	kSource () const
	Add explicit source for turbulent kinetic energy.

Protected Attributes
dimensionedScalar	kappa_
	von Karman constant
dimensionedScalar	sigmak_
	Empirical model coefficient.
dimensionedScalar	beta_
	Thermal expansion coefficient [1/K].
dimensionedScalar	Cmu0_
	Empirical model coefficient.
dimensionedScalar	Lmax_
	Maximum mixing-length scalar [m].
dimensionedScalar	CbStable_
	Stable stratification constant.
dimensionedScalar	CbUnstable_
	Unstable stratification constant.
volScalarField	k_
	Turbulent kinetic energy [m2/s2].
volScalarField	L_
	Characteristic length scale [m].
volScalarField	Rt_
	Turbulent Richardson number [-].
const uniformDimensionedVectorField &	g_
	Gravitational acceleration [m2/s2].
const volScalarField &	y_
	Wall distance.
Protected Attributes inherited from eddyViscosity< RASModel< BasicTurbulenceModel > >
volScalarField	nut_

Detailed Description

template<class BasicTurbulenceModel>
class Foam::RASModels::kL< BasicTurbulenceModel >

A one-equation (turbulent kinetic energy k) turbulence closure model for incompressible and compressible geophysical applications.

Turbulent kinetic energy (k) is computed with a transport equation and the turbulent length scale (L) is computed with an algebraic expression which depends on the local stratification.

References:

    Standard model (tag:A):
        Axell, L. B., & Liungman, O. (2001).
        A one-equation turbulence model for geophysical applications:
        comparison with data and the k−ε model.
        Environmental Fluid Mechanics, 1(1), 71-106.
        DOI:10.1023/A:1011560202388

    Canopy-related models (tag:W):
        Wilson, J. D., & Flesch, T. K. (1999).
        Wind and remnant tree sway in forest cutblocks.
        III. A windflow model to diagnose spatial variation.
        Agricultural and Forest Meteorology, 93(4), 259-282.
        DOI:10.1016/S0168-1923(98)00121-X

Usage

Example by using constant/turbulenceProperties:

RAS
{
    // Mandatory entries
    RASModel        kL;

    // Optional entries
    kLCoeffs
    {
        kappa       <scalar>;
        sigmak      <scalar>;
        beta        <scalar>;
        Cmu0        <scalar>;
        Lmax        <scalar>;
        CbStable    <scalar>;
        CbUnstable  <scalar>;
    }

    // Inherited entries
    ...
}

where the entries mean:

Property	Description	Type	Reqd	Deflt
`RASModel`	Type name: kL	word	yes	-
`kappa`	von Karman constant	scalar	no	0.41
`sigmak`	Empirical model coefficient	scalar	no	1.0
`beta`	Thermal expansion coefficient [1/K]	scalar	no	3.3e-3
`Cmu0`	Empirical model coefficient	scalar	no	0.556
`Lmax`	Maximum mixing-length scale [m]	scalar	no	GREAT
`CbStable`	Stable stratification constant	scalar	no	0.25
`CbUnstable`	Unstable stratification constant	scalar	no	0.35

The inherited entries are elaborated in:

eddyViscosity.H

Input fields (mandatory)

k	:	Turbulent kinetic energy [m2/s2]
T	:	Potential temperature [K]

Input fields (optional)

canopyHeight	:	Canopy height [m]
Cd	:	Plant canopy drag coefficient [-]
LAD	:	Leaf area density [1/m]
Rt	:	Turbulent Richardson number [-]
L	:	Characteristic length scale [m]

Note

Optional input fields can/should be input by using readFields function object.

Source files

kL.H
kL.C

Definition at line 218 of file kL.H.

Member Typedef Documentation

◆ alphaField

template<class BasicTurbulenceModel>

typedef BasicTurbulenceModel::alphaField alphaField

Definition at line 369 of file kL.H.

◆ rhoField

template<class BasicTurbulenceModel>

typedef BasicTurbulenceModel::rhoField rhoField

Definition at line 370 of file kL.H.

◆ transportModel

template<class BasicTurbulenceModel>

typedef BasicTurbulenceModel::transportModel transportModel

Definition at line 371 of file kL.H.

Constructor & Destructor Documentation

◆ kL()

template<class BasicTurbulenceModel>

kL	(	const alphaField &	alpha,
		const rhoField &	rho,
		const volVectorField &	U,
		const surfaceScalarField &	alphaRhoPhi,
		const surfaceScalarField &	phi,
		const transportModel &	transport,
		const word &	propertiesName = turbulenceModel::propertiesName,
		const word &	type = typeName )

Construct from components.

Definition at line 229 of file kL.C.

References alpha, beta_, Foam::bound(), CbStable_, CbUnstable_, Cmu0_, Foam::dimLength, Foam::dimless, Foam::dimTemperature, eddyViscosity< RASModel< BasicTurbulenceModel > >::eddyViscosity(), g_, Foam::GlobalIOList< Tuple2< scalar, vector > >::typeName, k_, kappa_, L_, Lmax_, Foam::New(), phi, rho, Rt_, sigmak_, timeName, U, y, y_, and Foam::Zero.

Here is the call graph for this function:

◆ ~kL()

template<class BasicTurbulenceModel>

virtual ~kL ( )

virtualdefault

Destructor.

Member Function Documentation

◆ correctNut()

template<class BasicTurbulenceModel>

void correctNut ( )

protectedvirtual

Correct the turbulence viscosity.

Implements eddyViscosity< RASModel< BasicTurbulenceModel > >.

Definition at line 205 of file kL.C.

References optionList::correct(), k_, L_, options::New(), eddyViscosity< RASModel< BasicTurbulenceModel > >::nut_, and Foam::sqrt().

Referenced by correct().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ kSource()

template<class BasicTurbulenceModel>

tmp< fvScalarMatrix > kSource ( ) const

protectedvirtual

Add explicit source for turbulent kinetic energy.

Definition at line 216 of file kL.C.

References Foam::dimTime, Foam::dimVolume, k_, and tmp< T >::New().

Referenced by correct().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ TypeName()

template<class BasicTurbulenceModel>

TypeName ( "kL< BasicTurbulenceModel >" )

Runtime type information.

◆ read()

template<class BasicTurbulenceModel>

bool read ( )

virtual

Re-read model coefficients if they have changed.

Implements eddyViscosity< RASModel< BasicTurbulenceModel > >.

Definition at line 372 of file kL.C.

References beta_, CbStable_, CbUnstable_, Cmu0_, eddyViscosity< RASModel< BasicTurbulenceModel > >::eddyViscosity(), kappa_, Lmax_, read(), and sigmak_.

Referenced by read().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DkEff()

template<class BasicTurbulenceModel>

tmp< volScalarField > DkEff ( ) const

inline

Return the effective diffusivity for k.

Definition at line 414 of file kL.H.

Referenced by correct().

Here is the caller graph for this function:

◆ k()

template<class BasicTurbulenceModel>

virtual tmp< volScalarField > k ( ) const

inlinevirtual

Return the turbulent kinetic energy field.

Implements eddyViscosity< RASModel< BasicTurbulenceModel > >.

Definition at line 426 of file kL.H.

◆ correct()

template<class BasicTurbulenceModel>

void correct ( )

virtual

Solve the turbulence equations and correct the turbulence viscosity.

Implements eddyViscosity< RASModel< BasicTurbulenceModel > >.

Definition at line 392 of file kL.C.

References Foam::fvc::absolute(), alpha, beta_, Foam::bound(), tmp< T >::clear(), correct(), correctNut(), tmp< T >::cref(), Foam::fvm::ddt(), Foam::devSymm(), Foam::fvc::div(), Foam::fvm::div(), divU, DkEff(), eddyViscosity< RASModel< BasicTurbulenceModel > >::eddyViscosity(), epsilon, fvOptions, g_, Foam::fvc::grad(), k_, kSource(), Foam::fvm::laplacian(), Foam::magSqr(), options::New(), eddyViscosity< RASModel< BasicTurbulenceModel > >::nut(), eddyViscosity< RASModel< BasicTurbulenceModel > >::nut_, phi, tmp< T >::ref(), rho, Rt_, solve(), Foam::sqr(), Foam::fvm::SuSp(), Foam::T(), and U.

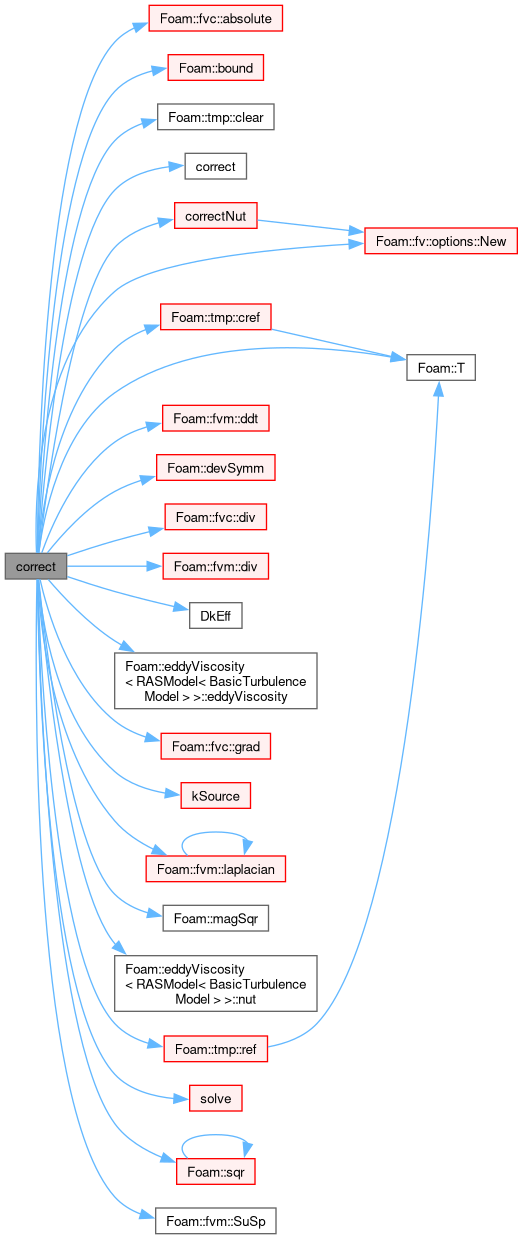

Here is the call graph for this function:

Member Data Documentation

◆ kappa_

template<class BasicTurbulenceModel>

dimensionedScalar kappa_

protected

von Karman constant

Definition at line 290 of file kL.H.

Referenced by kL(), and read().

◆ sigmak_

template<class BasicTurbulenceModel>

dimensionedScalar sigmak_

protected

Empirical model coefficient.

Definition at line 295 of file kL.H.

Referenced by kL(), and read().

◆ beta_

template<class BasicTurbulenceModel>

dimensionedScalar beta_

protected

Thermal expansion coefficient [1/K].

Definition at line 300 of file kL.H.

Referenced by correct(), kL(), and read().

◆ Cmu0_

template<class BasicTurbulenceModel>

dimensionedScalar Cmu0_

protected

Empirical model coefficient.

Definition at line 305 of file kL.H.

Referenced by kL(), and read().

◆ Lmax_

template<class BasicTurbulenceModel>

dimensionedScalar Lmax_

protected

Maximum mixing-length scalar [m].

Definition at line 310 of file kL.H.

Referenced by kL(), and read().

◆ CbStable_

template<class BasicTurbulenceModel>

dimensionedScalar CbStable_

protected

Stable stratification constant.

Definition at line 315 of file kL.H.

Referenced by kL(), and read().

◆ CbUnstable_

template<class BasicTurbulenceModel>

dimensionedScalar CbUnstable_

protected

Unstable stratification constant.

Definition at line 320 of file kL.H.

Referenced by kL(), and read().

◆ k_

template<class BasicTurbulenceModel>

volScalarField k_

protected

Turbulent kinetic energy [m2/s2].

Definition at line 328 of file kL.H.

Referenced by correct(), correctNut(), kL(), and kSource().

◆ L_

template<class BasicTurbulenceModel>

volScalarField L_

protected

Characteristic length scale [m].

Definition at line 333 of file kL.H.

Referenced by correctNut(), and kL().

◆ Rt_

template<class BasicTurbulenceModel>

volScalarField Rt_

protected

Turbulent Richardson number [-].

Definition at line 338 of file kL.H.

Referenced by correct(), and kL().

◆ g_

template<class BasicTurbulenceModel>

const uniformDimensionedVectorField& g_

protected

Gravitational acceleration [m2/s2].

Definition at line 343 of file kL.H.

Referenced by correct(), and kL().

◆ y_

template<class BasicTurbulenceModel>

const volScalarField& y_

protected

Wall distance.

Note: different to wall distance in parent RASModel which is for near-wall cells only

Definition at line 351 of file kL.H.

Referenced by kL().

The documentation for this class was generated from the following files:

src/atmosphericModels/turbulenceModels/RAS/kL/kL.H
src/atmosphericModels/turbulenceModels/RAS/kL/kL.C

Public Types

Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Member Typedef Documentation

◆ alphaField

◆ rhoField

◆ transportModel

Constructor & Destructor Documentation

◆ kL()

◆ ~kL()

Member Function Documentation

◆ correctNut()

◆ kSource()

◆ TypeName()

◆ read()

◆ DkEff()

◆ k()

◆ correct()

Member Data Documentation

◆ kappa_

◆ sigmak_

◆ beta_

◆ Cmu0_

◆ Lmax_

◆ CbStable_

◆ CbUnstable_

◆ k_

◆ L_

◆ Rt_

◆ g_

◆ y_
