Implementation of the k-omega-SST turbulence model for dispersed bubbly flows with Sato (1981) bubble induced turbulent viscosity model. More...

#include <kOmegaSSTSato.H>

Inheritance diagram for kOmegaSSTSato< BasicTurbulenceModel >:

[legend]

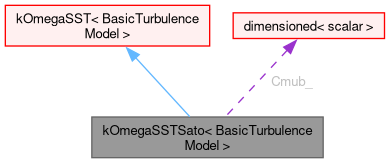

Collaboration diagram for kOmegaSSTSato< BasicTurbulenceModel >:

[legend]

Public Types
typedef BasicTurbulenceModel::alphaField	alphaField
typedef BasicTurbulenceModel::rhoField	rhoField
typedef BasicTurbulenceModel::transportModel	transportModel
Public Types inherited from kOmegaSST< BasicTurbulenceModel >
typedef BasicTurbulenceModel::alphaField	alphaField
typedef BasicTurbulenceModel::rhoField	rhoField
typedef BasicTurbulenceModel::transportModel	transportModel
Public Types inherited from kOmegaSSTBase< eddyViscosity< RASModel< BasicTurbulenceModel > > >
typedef eddyViscosity< RASModel< BasicTurbulenceModel > >::alphaField	alphaField
typedef eddyViscosity< RASModel< BasicTurbulenceModel > >::rhoField	rhoField
typedef eddyViscosity< RASModel< BasicTurbulenceModel > >::transportModel	transportModel
Public Types inherited from eddyViscosity< RASModel< BasicTurbulenceModel > >
typedef BasicTurbulenceModel::alphaField	alphaField
typedef BasicTurbulenceModel::rhoField	rhoField
typedef BasicTurbulenceModel::transportModel	transportModel
Public Types inherited from linearViscousStress< BasicTurbulenceModel >
typedef BasicTurbulenceModel::alphaField	alphaField
typedef BasicTurbulenceModel::rhoField	rhoField
typedef BasicTurbulenceModel::transportModel	transportModel

Public Member Functions
	TypeName ("kOmegaSSTSato")
	Runtime type information.
	kOmegaSSTSato (const alphaField &alpha, const rhoField &rho, const volVectorField &U, const surfaceScalarField &alphaRhoPhi, const surfaceScalarField &phi, const transportModel &transport, const word &propertiesName=turbulenceModel::propertiesName, const word &type=typeName)
	Construct from components.
virtual	~kOmegaSSTSato ()=default
	Destructor.
virtual bool	read ()
	Read model coefficients if they have changed.
virtual void	correct ()
	Solve the turbulence equations and correct the turbulence viscosity.
Public Member Functions inherited from kOmegaSST< BasicTurbulenceModel >
	TypeName ("kOmegaSST")
	Runtime type information.
	kOmegaSST (const alphaField &alpha, const rhoField &rho, const volVectorField &U, const surfaceScalarField &alphaRhoPhi, const surfaceScalarField &phi, const transportModel &transport, const word &propertiesName=turbulenceModel::propertiesName, const word &type=typeName)
	Construct from components.
virtual	~kOmegaSST ()=default
	Destructor.
Public Member Functions inherited from kOmegaSSTBase< eddyViscosity< RASModel< BasicTurbulenceModel > > >
	kOmegaSSTBase (const kOmegaSSTBase &)=delete
	No copy construct.
void	operator= (const kOmegaSSTBase &)=delete
	No copy assignment.
virtual	~kOmegaSSTBase ()=default
	Destructor.
tmp< volScalarField >	DkEff (const volScalarField &F1) const
	Return the effective diffusivity for k.
tmp< volScalarField >	DomegaEff (const volScalarField &F1) const
	Return the effective diffusivity for omega.
virtual tmp< volScalarField >	k () const
	Return the turbulence kinetic energy.
virtual tmp< volScalarField >	omega () const
	Return the turbulence kinetic energy dissipation rate.
Public Member Functions inherited from eddyViscosity< RASModel< BasicTurbulenceModel > >
	eddyViscosity (const word &modelName, const alphaField &alpha, const rhoField &rho, const volVectorField &U, const surfaceScalarField &alphaRhoPhi, const surfaceScalarField &phi, const transportModel &transport, const word &propertiesName)
	Construct from components.
virtual	~eddyViscosity ()=default
	Destructor.
virtual tmp< volScalarField >	nut () const
	Return the turbulence viscosity.
virtual tmp< volSymmTensorField >	R () const
	Return the Reynolds stress tensor.
virtual void	validate ()
	Validate the turbulence fields after construction.
Public Member Functions inherited from linearViscousStress< BasicTurbulenceModel >
	linearViscousStress (const word &modelName, const alphaField &alpha, const rhoField &rho, const volVectorField &U, const surfaceScalarField &alphaRhoPhi, const surfaceScalarField &phi, const transportModel &transport, const word &propertiesName)
	Construct from components.
virtual	~linearViscousStress ()=default
	Destructor.
virtual tmp< volSymmTensorField >	devRhoReff () const
	Return the effective stress tensor.
virtual tmp< volSymmTensorField >	devRhoReff (const volVectorField &U) const
	Return the effective stress tensor based on a given velocity field.
virtual tmp< fvVectorMatrix >	divDevRhoReff (volVectorField &U) const
	Return the source term for the momentum equation.
virtual tmp< fvVectorMatrix >	divDevRhoReff (const volScalarField &rho, volVectorField &U) const
	Return the source term for the momentum equation.

Protected Member Functions

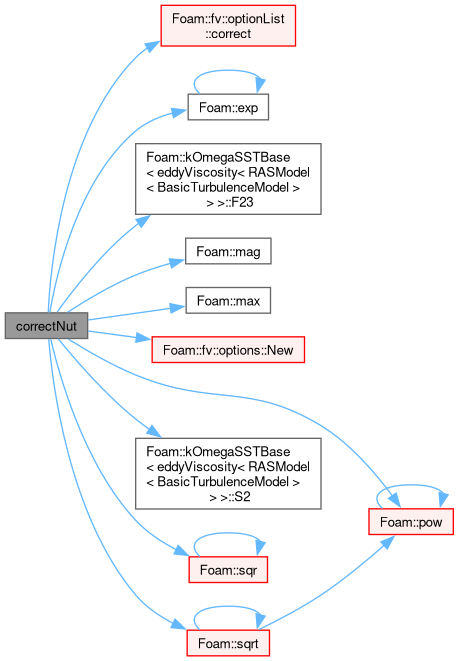

virtual void	correctNut (const volScalarField &S2)
Protected Member Functions inherited from kOmegaSST< BasicTurbulenceModel >
virtual void	correctNut ()
Protected Member Functions inherited from kOmegaSSTBase< eddyViscosity< RASModel< BasicTurbulenceModel > > >
void	setDecayControl (const dictionary &dict)
	Set decay control with kInf and omegaInf.
virtual tmp< volScalarField >	F1 (const volScalarField &CDkOmega) const
virtual tmp< volScalarField >	F2 () const
virtual tmp< volScalarField >	F3 () const
virtual tmp< volScalarField >	F23 () const
tmp< volScalarField >	blend (const volScalarField &F1, const dimensionedScalar &psi1, const dimensionedScalar &psi2) const
	Return the blended field.
tmp< volScalarField >	alphaK (const volScalarField &F1) const
tmp< volScalarField >	alphaOmega (const volScalarField &F1) const
tmp< volScalarField::Internal >	beta (const volScalarField::Internal &F1) const
tmp< volScalarField::Internal >	gamma (const volScalarField::Internal &F1) const
virtual tmp< volScalarField >	S2 (const volTensorField &gradU) const
	Return square of strain rate.
virtual tmp< volScalarField::Internal >	Pk (const volScalarField::Internal &G) const
	Return k production rate.
virtual tmp< volScalarField::Internal >	epsilonByk (const volScalarField &F1, const volTensorField &gradU) const
	Return epsilon/k which for standard RAS is betaStar*omega.
virtual tmp< volScalarField::Internal >	GbyNu0 (const volTensorField &gradU, const volScalarField &S2) const
	Return (G/nu)_0.
virtual tmp< volScalarField::Internal >	GbyNu (const volScalarField::Internal &GbyNu0, const volScalarField::Internal &F2, const volScalarField::Internal &S2) const
	Return G/nu.
virtual tmp< fvScalarMatrix >	kSource () const
virtual tmp< fvScalarMatrix >	omegaSource () const
virtual tmp< fvScalarMatrix >	Qsas (const volScalarField::Internal &S2, const volScalarField::Internal &gamma, const volScalarField::Internal &beta) const

Protected Attributes
dimensionedScalar	Cmub_
Protected Attributes inherited from kOmegaSSTBase< eddyViscosity< RASModel< BasicTurbulenceModel > > >
dimensionedScalar	alphaK1_
dimensionedScalar	alphaK2_
dimensionedScalar	alphaOmega1_
dimensionedScalar	alphaOmega2_
dimensionedScalar	gamma1_
dimensionedScalar	gamma2_
dimensionedScalar	beta1_
dimensionedScalar	beta2_
dimensionedScalar	betaStar_
dimensionedScalar	a1_
dimensionedScalar	b1_
dimensionedScalar	c1_
Switch	F3_
	Flag to include the F3 term.
const volScalarField &	y_
	Wall distance.
volScalarField	k_
	Turbulent kinetic energy field [m^2/s^2].
volScalarField	omega_
	Specific dissipation rate field [1/s].
Switch	decayControl_
	Flag to include the decay control.
dimensionedScalar	kInf_
dimensionedScalar	omegaInf_
Protected Attributes inherited from eddyViscosity< RASModel< BasicTurbulenceModel > >
volScalarField	nut_

Detailed Description

template<class BasicTurbulenceModel>
class Foam::RASModels::kOmegaSSTSato< BasicTurbulenceModel >

Implementation of the k-omega-SST turbulence model for dispersed bubbly flows with Sato (1981) bubble induced turbulent viscosity model.

Bubble induced turbulent viscosity model described in:

    Sato, Y., Sadatomi, M.
    "Momentum and heat transfer in two-phase bubble flow - I, Theory"
    International Journal of Multiphase FLow 7, pp. 167-177, 1981.

Turbulence model described in:

    Menter, F., Esch, T.
    "Elements of Industrial Heat Transfer Prediction"
    16th Brazilian Congress of Mechanical Engineering (COBEM),
    Nov. 2001

with the addition of the optional F3 term for rough walls from

    Hellsten, A.
    "Some Improvements in Menter’s k-omega-SST turbulence model"
    29th AIAA Fluid Dynamics Conference,
    AIAA-98-2554,
    June 1998.

Note that this implementation is written in terms of alpha diffusion coefficients rather than the more traditional sigma (alpha = 1/sigma) so that the blending can be applied to all coefficuients in a consistent manner. The paper suggests that sigma is blended but this would not be consistent with the blending of the k-epsilon and k-omega models.

Also note that the error in the last term of equation (2) relating to sigma has been corrected.

Wall-functions are applied in this implementation by using equations (14) to specify the near-wall omega as appropriate.

The blending functions (15) and (16) are not currently used because of the uncertainty in their origin, range of applicability and that as y+ becomes sufficiently small blending u_tau in this manner is clearly nonsense.

The default model coefficients correspond to the following:

    kOmegaSSTCoeffs
    {
        alphaK1     0.85034;
        alphaK2     1.0;
        alphaOmega1 0.5;
        alphaOmega2 0.85616;
        Prt         1.0;    // only for compressible
        beta1       0.075;
        beta2       0.0828;
        betaStar    0.09;
        gamma1      0.5532;
        gamma2      0.4403;
        a1          0.31;
        b1          1.0;
        c1          10.0;
        F3          no;
        Cmub        0.6;
    }

Source files

Definition at line 121 of file kOmegaSSTSato.H.

Member Typedef Documentation

◆ alphaField

template<class BasicTurbulenceModel>

typedef BasicTurbulenceModel::alphaField alphaField

Definition at line 172 of file kOmegaSSTSato.H.

◆ rhoField

template<class BasicTurbulenceModel>

typedef BasicTurbulenceModel::rhoField rhoField

Definition at line 173 of file kOmegaSSTSato.H.

◆ transportModel

template<class BasicTurbulenceModel>

typedef BasicTurbulenceModel::transportModel transportModel

Definition at line 174 of file kOmegaSSTSato.H.

Constructor & Destructor Documentation

◆ kOmegaSSTSato()

template<class BasicTurbulenceModel>

kOmegaSSTSato	(	const alphaField &	alpha,
		const rhoField &	rho,
		const volVectorField &	U,
		const surfaceScalarField &	alphaRhoPhi,
		const surfaceScalarField &	phi,
		const transportModel &	transport,
		const word &	propertiesName = turbulenceModel::propertiesName,
		const word &	type = typeName )
