sphere Class Reference

#include <sphere.H>

Inheritance diagram for sphere:

Collaboration diagram for sphere:

Public Member Functions
	TypeName ("sphere")
	Runtime type information.
	sphere (const word &name, const scalar m, const vector &c, const scalar r)
	Construct from name, mass, centre of mass and radius.
	sphere (const word &name, const dictionary &dict)
	Construct from dictionary.
virtual autoPtr< rigidBody >	clone () const
	Return clone of this sphere.
virtual	~sphere ()
	Destructor.
scalar	r () const
	Return the radius of the sphere.
virtual void	write (Ostream &) const
	Write.
Public Member Functions inherited from rigidBody
	TypeName ("rigidBody")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, rigidBody, dictionary,(const word &name, const dictionary &dict),(name, dict))
	rigidBody (const word &name, const scalar &m, const vector &c, const symmTensor &Ic)
	Construct from mass, centre of mass and moment of inertia tensor.
	rigidBody (const word &name, const rigidBodyInertia &rbi)
	Construct from with the given rigidBodyInertia.
	rigidBody (const word &name, const dictionary &dict)
	Construct from dictionary.
virtual	~rigidBody ()
	Destructor.
const word &	name () const
	Return name.
virtual bool	massless () const
	Return false as this body is not massless.
void	merge (const subBody &)
	Merge a body into this parent body.
Public Member Functions inherited from rigidBodyInertia
	rigidBodyInertia ()
	Null constructor, initializes to zero.
	rigidBodyInertia (const scalar m, const vector &c, const symmTensor &Ic)
	Construct from mass, centre of mass and moment of inertia tensor.
	rigidBodyInertia (const dictionary &dict)
	Construct from dictionary.
	rigidBodyInertia (const spatialTensor &st)
	Construct from the components of a spatial tensor.
	rigidBodyInertia (Istream &is)
	Construct from Istream.
scalar	m () const
	Return the mass of the rigid-body.
const vector &	c () const
	Return the centre of mass of the rigid-body.
const symmTensor &	Ic () const
	Return the inertia tensor of the rigid-body about the centre of mass.
symmTensor	Ioc () const
	Return the difference between the inertia tensor of the rigid-body.
symmTensor	Icc (const vector &c) const
	Return the difference between the inertia tensor of the rigid-body.
symmTensor	Io () const
	Return the inertia tensor of the rigid-body about the origin.
scalar	kineticEnergy (const spatialVector &v)
	Return the kinetic energy of the body with the given velocity.
	operator spatialTensor () const
	Conversion to spatial tensor.
void	operator+= (const rigidBodyInertia &)

Additional Inherited Members
Static Public Member Functions inherited from rigidBody
static autoPtr< rigidBody >	New (const word &name, const scalar &m, const vector &c, const symmTensor &Ic)
	Select constructed from components.
static autoPtr< rigidBody >	New (const word &name, const dictionary &dict)
	Select constructed from name and dictionary.
Static Public Member Functions inherited from rigidBodyInertia
static symmTensor	Ioc (const scalar m, const vector &c)
	Return the difference between the inertia tensor of the rigid-body.

Detailed Description

Definition at line 52 of file sphere.H.

Constructor & Destructor Documentation

sphere() [1/2]

sphere ( const word & name, const scalar m, const vector & c, const scalar r )

inline

Construct from name, mass, centre of mass and radius.

Definition at line 35 of file sphereI.H.

References rigidBodyInertia::c(), rigidBodyInertia::m(), rigidBody::name(), r(), and rigidBody::rigidBody().

Referenced by clone().

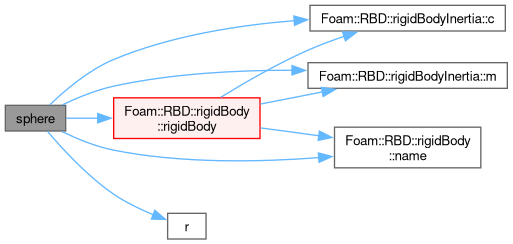

Here is the call graph for this function:

Here is the caller graph for this function:

sphere() [2/2]

sphere ( const word & name, const dictionary & dict )

inline

Construct from dictionary.

Definition at line 48 of file sphereI.H.

References rigidBodyInertia::c(), dict, Foam::I, rigidBodyInertia::m(), rigidBody::name(), rigidBody::rigidBody(), and rigidBodyInertia::rigidBodyInertia().

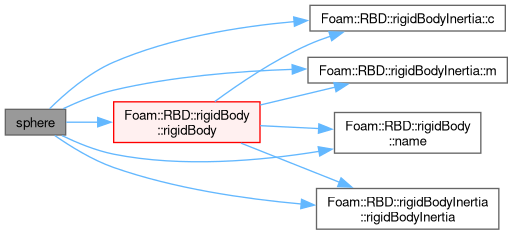

Here is the call graph for this function:

~sphere()

~sphere ( )

virtual

Destructor.

Definition at line 52 of file sphere.C.

Member Function Documentation

TypeName()

TypeName

(

"sphere"

)

Runtime type information.

References rigidBodyInertia::c(), dict, rigidBodyInertia::m(), rigidBody::name(), and r().

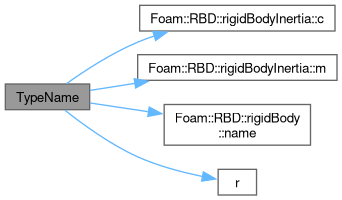

Here is the call graph for this function:

clone()

Foam::autoPtr< Foam::RBD::rigidBody > clone ( ) const

virtual

Return clone of this sphere.

Reimplemented from rigidBody.

Definition at line 44 of file sphere.C.

References sphere().

Here is the call graph for this function:

r()

Foam::scalar r ( ) const

inline

Return the radius of the sphere.

Definition at line 65 of file sphereI.H.

Referenced by sphere(), TypeName(), and write().

Here is the caller graph for this function:

write()

void write ( Ostream & os ) const

virtual

Write.

Reimplemented from rigidBody.

Definition at line 58 of file sphere.C.

References rigidBodyInertia::m(), os(), r(), and Foam::type().

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• src/rigidBodyDynamics/bodies/sphere/sphere.H
• src/rigidBodyDynamics/bodies/sphere/sphere.C
• src/rigidBodyDynamics/bodies/sphere/sphereI.H
