Freestream velocity condition to be used in conjunction with the single rotating frame (SRF) model (see: SRFModel class). More...

#include <SRFFreestreamVelocityFvPatchVectorField.H>

Inheritance diagram for SRFFreestreamVelocityFvPatchVectorField:

[legend]

Collaboration diagram for SRFFreestreamVelocityFvPatchVectorField:

[legend]

Public Member Functions
	TypeName ("SRFFreestreamVelocity")
	Runtime type information.
	SRFFreestreamVelocityFvPatchVectorField (const fvPatch &, const DimensionedField< vector, volMesh > &)
	Construct from patch and internal field.
	SRFFreestreamVelocityFvPatchVectorField (const fvPatch &, const DimensionedField< vector, volMesh > &, const dictionary &)
	Construct from patch, internal field and dictionary.
	SRFFreestreamVelocityFvPatchVectorField (const SRFFreestreamVelocityFvPatchVectorField &, const fvPatch &, const DimensionedField< vector, volMesh > &, const fvPatchFieldMapper &)
	Construct by mapping given SRFFreestreamVelocityFvPatchVectorField.
	SRFFreestreamVelocityFvPatchVectorField (const SRFFreestreamVelocityFvPatchVectorField &)
	Construct as copy.
	SRFFreestreamVelocityFvPatchVectorField (const SRFFreestreamVelocityFvPatchVectorField &, const DimensionedField< vector, volMesh > &)
	Construct as copy setting internal field reference.
virtual tmp< fvPatchField< vector > >	clone () const
	Return a clone.
virtual tmp< fvPatchField< vector > >	clone (const DimensionedField< vector, volMesh > &iF) const
	Clone with an internal field reference.
const vector &	UInf () const
	Return the velocity at infinity.
vector &	UInf ()
	Return reference to the velocity at infinity to allow adjustment.
virtual void	updateCoeffs ()
	Update the coefficients associated with the patch field.
virtual void	write (Ostream &) const
	Write.

Detailed Description

Freestream velocity condition to be used in conjunction with the single rotating frame (SRF) model (see: SRFModel class).

Given the free stream velocity in the absolute frame, the condition applies the appropriate rotation transformation in time and space to determine the local velocity using:

$\‍[ U_p = cos(\theta) U_{Inf} + sin(\theta) (n \times U_{Inf}) - U_{p,srf} \‍]$

where

	=	patch velocity [m/s]
$U_{Inf}$	=	free stream velocity in the absolute frame [m/s]
$\theta$	=	swept angle [rad]
	=	axis direction of the SRF
$U_{p,srf}$	=	SRF velocity of the patch [m/s]

Usage

Property	Description	Required	Default value
`UInf`	freestream velocity	yes
`relative`	UInf relative to the SRF?	no

Example of the boundary condition specification:

    <patchName>
    {
        type            SRFFreestreamVelocity;
        UInf            uniform (0 0 0);
        relative        no;
        value           uniform (0 0 0);    // initial value
    }

See also: Foam::freestreamFvPatchField Foam::SRFVelocityFvPatchVectorField

Source files

Definition at line 124 of file SRFFreestreamVelocityFvPatchVectorField.H.

Constructor & Destructor Documentation

◆ SRFFreestreamVelocityFvPatchVectorField() [1/5]

SRFFreestreamVelocityFvPatchVectorField	(	const fvPatch &	p,
		const DimensionedField< vector, volMesh > &	iF )

Construct from patch and internal field.

Definition at line 32 of file SRFFreestreamVelocityFvPatchVectorField.C.

References p, and Foam::Zero.

Referenced by SRFFreestreamVelocityFvPatchVectorField(), SRFFreestreamVelocityFvPatchVectorField(), SRFFreestreamVelocityFvPatchVectorField(), and TypeName().

Here is the caller graph for this function:

◆ SRFFreestreamVelocityFvPatchVectorField() [2/5]

SRFFreestreamVelocityFvPatchVectorField	(	const fvPatch &	p,
		const DimensionedField< vector, volMesh > &	iF,
		const dictionary &	dict )

Construct from patch, internal field and dictionary.

Definition at line 60 of file SRFFreestreamVelocityFvPatchVectorField.C.

References dict, IOobjectOption::MUST_READ, and p.

◆ SRFFreestreamVelocityFvPatchVectorField() [3/5]

SRFFreestreamVelocityFvPatchVectorField	(	const SRFFreestreamVelocityFvPatchVectorField &	ptf,
		const fvPatch &	p,
		const DimensionedField< vector, volMesh > &	iF,
		const fvPatchFieldMapper &	mapper )

Construct by mapping given SRFFreestreamVelocityFvPatchVectorField.

onto a new patch

Definition at line 45 of file SRFFreestreamVelocityFvPatchVectorField.C.

References p, and SRFFreestreamVelocityFvPatchVectorField().

Here is the call graph for this function:

◆ SRFFreestreamVelocityFvPatchVectorField() [4/5]

SRFFreestreamVelocityFvPatchVectorField ( const SRFFreestreamVelocityFvPatchVectorField & srfvpvf )

Construct as copy.

Definition at line 77 of file SRFFreestreamVelocityFvPatchVectorField.C.

References SRFFreestreamVelocityFvPatchVectorField().

Here is the call graph for this function:

◆ SRFFreestreamVelocityFvPatchVectorField() [5/5]

SRFFreestreamVelocityFvPatchVectorField	(	const SRFFreestreamVelocityFvPatchVectorField &	srfvpvf,
		const DimensionedField< vector, volMesh > &	iF )

Construct as copy setting internal field reference.

Definition at line 89 of file SRFFreestreamVelocityFvPatchVectorField.C.

References SRFFreestreamVelocityFvPatchVectorField().

Here is the call graph for this function:

Member Function Documentation

◆ TypeName()

TypeName ( "SRFFreestreamVelocity" )

Runtime type information.

References SRFFreestreamVelocityFvPatchVectorField().

Here is the call graph for this function:

◆ clone() [1/2]

virtual tmp< fvPatchField< vector > > clone ( ) const

inlinevirtual

Return a clone.

Definition at line 203 of file SRFFreestreamVelocityFvPatchVectorField.H.

References fvPatchField< Type >::Clone().

Here is the call graph for this function:

◆ clone() [2/2]

virtual tmp< fvPatchField< vector > > clone ( const DimensionedField< vector, volMesh > & iF ) const

inlinevirtual

Clone with an internal field reference.

Definition at line 211 of file SRFFreestreamVelocityFvPatchVectorField.H.

References fvPatchField< Type >::Clone().

Here is the call graph for this function:

◆ UInf() [1/2]

const vector & UInf ( ) const

inline

Return the velocity at infinity.

Definition at line 227 of file SRFFreestreamVelocityFvPatchVectorField.H.

◆ UInf() [2/2]

vector & UInf ( )

inline

Return reference to the velocity at infinity to allow adjustment.

Definition at line 235 of file SRFFreestreamVelocityFvPatchVectorField.H.

◆ updateCoeffs()

void updateCoeffs ( )

virtual

Update the coefficients associated with the patch field.

Definition at line 104 of file SRFFreestreamVelocityFvPatchVectorField.C.

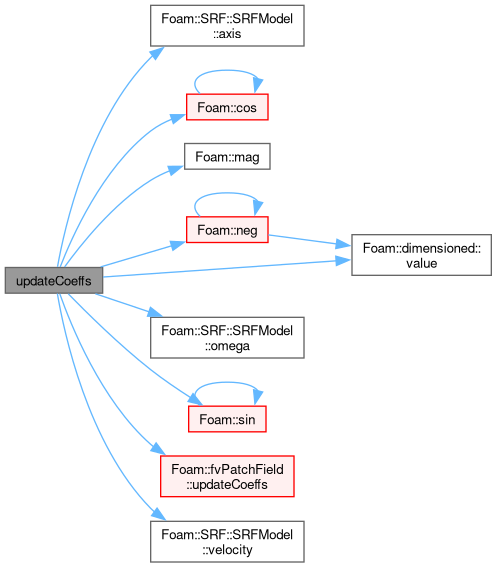

References SRFModel::axis(), Foam::cos(), Foam::mag(), mesh, name, Foam::neg(), SRFModel::omega(), Foam::sin(), fvPatchField< Type >::updateCoeffs(), dimensioned< Type >::value(), and SRFModel::velocity().

Here is the call graph for this function:

◆ write()

void write ( Ostream & os ) const

virtual

Write.

Definition at line 153 of file SRFFreestreamVelocityFvPatchVectorField.C.

References os(), fvPatchField< Type >::write(), and fvPatchField< Type >::writeValueEntry().

Here is the call graph for this function:

The documentation for this class was generated from the following files:

src/finiteVolume/cfdTools/general/SRF/derivedFvPatchFields/SRFFreestreamVelocityFvPatchVectorField/SRFFreestreamVelocityFvPatchVectorField.H
src/finiteVolume/cfdTools/general/SRF/derivedFvPatchFields/SRFFreestreamVelocityFvPatchVectorField/SRFFreestreamVelocityFvPatchVectorField.C
