Reacting spray parcel, with added functionality for atomization and breakup. More...

#include <SprayParcel.H>

Inheritance diagram for SprayParcel< ParcelType >:

[legend]

Collaboration diagram for SprayParcel< ParcelType >:

[legend]

Classes
class	constantProperties
	Class to hold reacting particle constant properties. More...
class	iNew
	Factory class to read-construct particles (for parallel transfer). More...

Public Types
typedef ParcelType::trackingData	trackingData
	Use base tracking data.

Public Member Functions
	TypeName ("SprayParcel")
	Runtime type information.
	AddToPropertyList (ParcelType, " d0"+" position0"+" sigma"+" mu"+" liquidCore"+" KHindex"+" y"+" yDot"+" tc"+" ms"+" injector"+" tMom"+" user")
	String representation of properties.
	SprayParcel (const polyMesh &mesh, const barycentric &coordinates, const label celli, const label tetFacei, const label tetPti)
	Construct from mesh, coordinates and topology.
	SprayParcel (const polyMesh &mesh, const vector &position, const label celli)
	Construct from a position and a cell, searching for the rest of the.
	SprayParcel (const polyMesh &mesh, const barycentric &coordinates, const label celli, const label tetFacei, const label tetPti, const label typeId, const scalar nParticle0, const scalar d0, const scalar dTarget0, const vector &U0, const vector &f0, const vector &angularMomentum0, const vector &torque0, const scalarField &Y0, const scalar liquidCore, const scalar KHindex, const scalar y, const scalar yDot, const scalar tc, const scalar ms, const scalar injector, const scalar tMom, const scalar user, const typename ParcelType::constantProperties &constProps)
	Construct from components.
	SprayParcel (const polyMesh &mesh, Istream &is, bool readFields=true, bool newFormat=true)
	Construct from Istream.
	SprayParcel (const SprayParcel &p, const polyMesh &mesh)
	Construct as a copy.
	SprayParcel (const SprayParcel &p)
	Construct as a copy.
virtual autoPtr< particle >	clone () const
	Return a (basic particle) clone.
virtual autoPtr< particle >	clone (const polyMesh &mesh) const
	Return a (basic particle) clone.
scalar	d0 () const
	Return const access to initial droplet diameter.
const vector &	position0 () const
	Return const access to initial droplet position.
scalar	sigma () const
	Return const access to the liquid surface tension.
scalar	mu () const
	Return const access to the liquid dynamic viscosity.
scalar	liquidCore () const
	Return const access to liquid core.
scalar	KHindex () const
	Return const access to Kelvin-Helmholtz breakup index.
scalar	y () const
	Return const access to spherical deviation.
scalar	yDot () const
	Return const access to rate of change of spherical deviation.
scalar	tc () const
	Return const access to atomization characteristic time.
scalar	ms () const
	Return const access to stripped parcel mass.
scalar	injector () const
	Return const access to injector id.
scalar	tMom () const
	Return const access to momentum relaxation time.
scalar	user () const
	Return const access to passive user scalar.
scalar &	d0 ()
	Return access to initial droplet diameter.
vector &	position0 ()
	Return access to initial droplet position.
scalar &	sigma ()
	Return access to the liquid surface tension.
scalar &	mu ()
	Return access to the liquid dynamic viscosity.
scalar &	liquidCore ()
	Return access to liquid core.
scalar &	KHindex ()
	Return access to Kelvin-Helmholtz breakup index.
scalar &	y ()
	Return access to spherical deviation.
scalar &	yDot ()
	Return access to rate of change of spherical deviation.
scalar &	tc ()
	Return access to atomization characteristic time.
scalar &	ms ()
	Return access to stripped parcel mass.
scalar &	injector ()
	Return access to injector id.
scalar &	tMom ()
	Return access to momentum relaxation time.
scalar &	user ()
	Return access to passive user scalar.
template<class TrackCloudType>
void	setCellValues (TrackCloudType &cloud, trackingData &td)
	Set cell values.
template<class TrackCloudType>
void	calcAtomization (TrackCloudType &cloud, trackingData &td, const scalar dt)
	Correct parcel properties according to atomization model.
template<class TrackCloudType>
void	calcBreakup (TrackCloudType &cloud, trackingData &td, const scalar dt)
	Correct parcel properties according to breakup model.
template<class TrackCloudType>
void	cellValueSourceCorrection (TrackCloudType &cloud, trackingData &td, const scalar dt)
	Correct cell values using latest transfer information.
template<class TrackCloudType>
void	correctSurfaceValues (TrackCloudType &cloud, trackingData &td, const scalar T, const scalarField &Cs, scalar &rhos, scalar &mus, scalar &Pr, scalar &kappa)
	Correct surface values due to emitted species.
template<class TrackCloudType>
void	calc (TrackCloudType &cloud, trackingData &td, const scalar dt)
	Update parcel properties over the time interval.
template<class TrackCloudType>
scalar	chi (TrackCloudType &cloud, trackingData &td, const scalarField &X) const
	Calculate the chi-factor for flash-boiling for the.
template<class TrackCloudType>
void	solveTABEq (TrackCloudType &cloud, trackingData &td, const scalar dt)
	Solve the TAB equation.
void	writeProperties (Ostream &os, const wordRes &filters, const word &delim, const bool namesOnly) const
	Write individual parcel properties to stream.
template<class TrackCloudType>
Foam::scalar	chi (TrackCloudType &cloud, trackingData &td, const scalarField &X) const

Static Public Member Functions
template<class CloudType, class CompositionType>
static void	readFields (CloudType &c, const CompositionType &compModel)
	Read.
template<class CloudType>
static void	readFields (CloudType &c)
	Read - no composition.
template<class CloudType, class CompositionType>
static void	writeFields (const CloudType &c, const CompositionType &compModel)
	Write.
template<class CloudType>
static void	writeFields (const CloudType &c)
	Write - composition supplied.
template<class CloudType>
static void	readObjects (CloudType &c, const objectRegistry &obr)
	Read particle fields as objects from the obr registry.
template<class CloudType, class CompositionType>
static void	readObjects (CloudType &c, const CompositionType &compModel, const objectRegistry &obr)
	Read particle fields as objects from the obr registry.
template<class CloudType>
static void	writeObjects (const CloudType &c, objectRegistry &obr)
	Write particle fields as objects into the obr registry.
template<class CloudType, class CompositionType>
static void	writeObjects (const CloudType &c, const CompositionType &compModel, objectRegistry &obr)
	Write particle fields as objects into the obr registry.

Static Public Attributes
static const std::size_t	sizeofFields
	Size in bytes of the fields.

Protected Attributes
scalar	d0_
	Initial droplet diameter.
vector	position0_
	Injection position.
scalar	sigma_
	Liquid surface tension [N/m].
scalar	mu_
	Liquid dynamic viscosity [Pa.s].
scalar	liquidCore_
	Part of liquid core ( >0.5=liquid, <0.5=droplet ).
scalar	KHindex_
	Index for KH Breakup.
scalar	y_
	Spherical deviation.
scalar	yDot_
	Rate of change of spherical deviation.
scalar	tc_
	Characteristic time (used in atomization and/or breakup model).
scalar	ms_
	Stripped parcel mass due to breakup.
scalar	injector_
	Injected from injector (needed e.g. for calculating distance.
scalar	tMom_
	Momentum relaxation time (needed for calculating parcel acc.).
scalar	user_
	Passive scalar (extra variable to be defined by user).

Friends
Ostream &	operator<< (Ostream &, const SprayParcel< ParcelType > &)

Detailed Description

template<class ParcelType>
class Foam::SprayParcel< ParcelType >

Reacting spray parcel, with added functionality for atomization and breakup.

Definition at line 54 of file SprayParcel.H.

Member Typedef Documentation

◆ trackingData

template<class ParcelType>

typedef ParcelType::trackingData trackingData

Use base tracking data.

Definition at line 141 of file SprayParcel.H.

Constructor & Destructor Documentation

◆ SprayParcel() [1/6]

template<class ParcelType>

SprayParcel	(	const polyMesh &	mesh,
		const barycentric &	coordinates,
		const label	celli,
		const label	tetFacei,
		const label	tetPti )

inline

Construct from mesh, coordinates and topology.

Other properties initialised as null

Definition at line 103 of file SprayParcelI.H.

References coordinates(), d0_, injector_, KHindex_, liquidCore_, mesh, ms_, mu_, position0_, sigma_, tc_, tMom_, user_, y_, and yDot_.

Referenced by calcBreakup(), SprayParcel< ParcelType >::iNew::operator()(), readFields(), readObjects(), writeFields(), and writeObjects().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SprayParcel() [2/6]

template<class ParcelType>

SprayParcel	(	const polyMesh &	mesh,
		const vector &	position,
		const label	celli )

inline

Construct from a position and a cell, searching for the rest of the.

required topology. Other properties are initialised as null.

Definition at line 130 of file SprayParcelI.H.

References mesh.

◆ SprayParcel() [3/6]

template<class ParcelType>

SprayParcel	(	const polyMesh &	mesh,
		const barycentric &	coordinates,
		const label	celli,
		const label	tetFacei,
		const label	tetPti,
		const label	typeId,
		const scalar	nParticle0,
		const scalar	d0,
		const scalar	dTarget0,
		const vector &	U0,
		const vector &	f0,
		const vector &	angularMomentum0,
		const vector &	torque0,
		const scalarField &	Y0,
		const scalar	liquidCore,
		const scalar	KHindex,
		const scalar	y,
		const scalar	yDot,
		const scalar	tc,
		const scalar	ms,
		const scalar	injector,
		const scalar	tMom,
		const scalar	user,
		const typename ParcelType::constantProperties &	constProps )

inline

Construct from components.

Definition at line 155 of file SprayParcelI.H.

References coordinates(), d0(), d0_, injector(), injector_, KHindex(), KHindex_, liquidCore(), liquidCore_, mesh, ms(), ms_, mu_, position0_, sigma_, tc(), tc_, tMom(), tMom_, user(), user_, y(), Y0(), y_, yDot(), and yDot_.

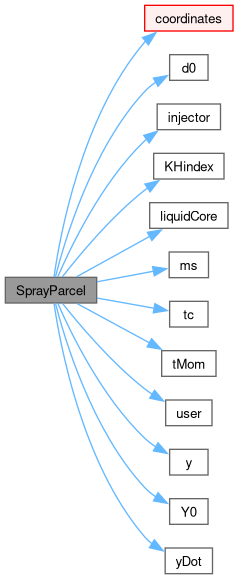

Here is the call graph for this function:

◆ SprayParcel() [4/6]

template<class ParcelType>

SprayParcel	(	const polyMesh &	mesh,
		Istream &	is,
		bool	readFields = true,
		bool	newFormat = true )

Construct from Istream.

Definition at line 42 of file SprayParcelIO.C.

References IOstreamOption::ASCII, IOstream::check(), d0_, IOstream::fatalCheckNativeSizes(), IOstreamOption::format(), FUNCTION_NAME, injector_, KHindex_, liquidCore_, mesh, ms_, mu_, position0_, Istream::read(), readFields(), sigma_, sizeofFields, tc_, tMom_, user_, y_, yDot_, and Foam::Zero.

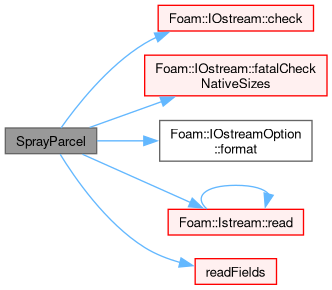

Here is the call graph for this function:

◆ SprayParcel() [5/6]

template<class ParcelType>

SprayParcel	(	const SprayParcel< ParcelType > &	p,
		const polyMesh &	mesh )

Construct as a copy.

◆ SprayParcel() [6/6]

template<class ParcelType>

SprayParcel ( const SprayParcel< ParcelType > & p )

Construct as a copy.

Member Function Documentation

◆ TypeName()

template<class ParcelType>

TypeName ( "SprayParcel< ParcelType >" )

Runtime type information.

◆ AddToPropertyList()

template<class ParcelType>

AddToPropertyList	(	ParcelType	,
		" d0"+" position0"+" sigma"+" mu"+" liquidCore"+" KHindex"+" y"+" yDot"+" tc"+" ms"+" injector"+" tMom"+" user"	)

String representation of properties.

◆ clone() [1/2]

template<class ParcelType>

virtual autoPtr< particle > clone ( ) const

inlinevirtual

Return a (basic particle) clone.

Definition at line 341 of file SprayParcel.H.

◆ clone() [2/2]

template<class ParcelType>

virtual autoPtr< particle > clone ( const polyMesh & mesh ) const

inlinevirtual

Return a (basic particle) clone.

Definition at line 349 of file SprayParcel.H.

◆ d0() [1/2]

template<class ParcelType>

Foam::scalar d0 ( ) const

inline

Return const access to initial droplet diameter.

Definition at line 238 of file SprayParcelI.H.

References d0_.

Referenced by calcBreakup(), readFields(), readObjects(), SprayParcel(), writeFields(), and writeObjects().

Here is the caller graph for this function:

◆ position0() [1/2]

template<class ParcelType>

const Foam::vector & position0 ( ) const

inline

Return const access to initial droplet position.

Definition at line 245 of file SprayParcelI.H.

References position0_.

Referenced by calcAtomization(), readFields(), readObjects(), writeFields(), and writeObjects().

Here is the caller graph for this function:

◆ sigma() [1/2]

template<class ParcelType>

Foam::scalar sigma ( ) const

inline

Return const access to the liquid surface tension.

Definition at line 252 of file SprayParcelI.H.

References sigma_.

Referenced by readFields(), readObjects(), writeFields(), and writeObjects().

Here is the caller graph for this function:

◆ mu() [1/2]

template<class ParcelType>

Foam::scalar mu ( ) const

inline

Return const access to the liquid dynamic viscosity.

Definition at line 259 of file SprayParcelI.H.

References mu_.

Referenced by readFields(), readObjects(), writeFields(), and writeObjects().

Here is the caller graph for this function:

◆ liquidCore() [1/2]

template<class ParcelType>

Foam::scalar liquidCore ( ) const

inline

Return const access to liquid core.

Definition at line 266 of file SprayParcelI.H.

References liquidCore_.

Referenced by calc(), calcAtomization(), calcBreakup(), readFields(), readObjects(), SprayParcel(), writeFields(), and writeObjects().

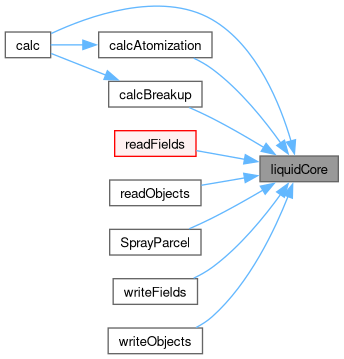

Here is the caller graph for this function:

◆ KHindex() [1/2]

template<class ParcelType>

Foam::scalar KHindex ( ) const

inline

Return const access to Kelvin-Helmholtz breakup index.

Definition at line 273 of file SprayParcelI.H.

References KHindex_.

Referenced by calcBreakup(), readFields(), readObjects(), SprayParcel(), writeFields(), and writeObjects().

Here is the caller graph for this function:

◆ y() [1/2]

template<class ParcelType>

Foam::scalar y ( ) const

inline

Return const access to spherical deviation.

Definition at line 280 of file SprayParcelI.H.

References y_.

Referenced by calcBreakup(), readFields(), readObjects(), SprayParcel(), writeFields(), and writeObjects().

Here is the caller graph for this function:

◆ yDot() [1/2]

template<class ParcelType>

Foam::scalar yDot ( ) const

inline

Return const access to rate of change of spherical deviation.

Definition at line 287 of file SprayParcelI.H.

References yDot_.

Referenced by calcBreakup(), readFields(), readObjects(), solveTABEq(), SprayParcel(), writeFields(), and writeObjects().

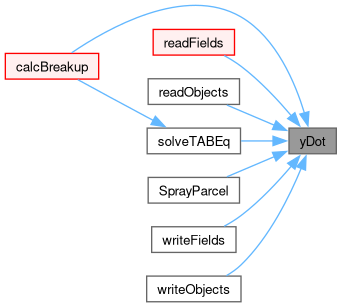

Here is the caller graph for this function:

◆ tc() [1/2]

template<class ParcelType>

Foam::scalar tc ( ) const

inline

Return const access to atomization characteristic time.

Definition at line 294 of file SprayParcelI.H.

References tc_.

Referenced by calcAtomization(), calcBreakup(), readFields(), readObjects(), SprayParcel(), writeFields(), and writeObjects().

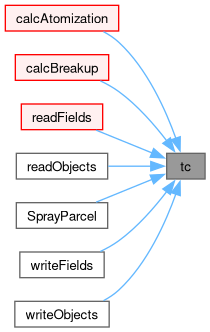

Here is the caller graph for this function:

◆ ms() [1/2]

template<class ParcelType>

Foam::scalar ms ( ) const

inline

Return const access to stripped parcel mass.

Definition at line 301 of file SprayParcelI.H.

References ms_.

Referenced by calc(), calcBreakup(), readFields(), readObjects(), SprayParcel(), writeFields(), and writeObjects().

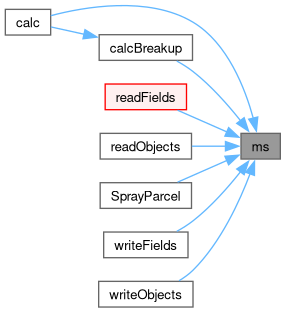

Here is the caller graph for this function:

◆ injector() [1/2]

template<class ParcelType>

Foam::scalar injector ( ) const

inline

Return const access to injector id.

Definition at line 308 of file SprayParcelI.H.

References injector_.

Referenced by calcBreakup(), readFields(), readObjects(), SprayParcel(), writeFields(), and writeObjects().

Here is the caller graph for this function:

◆ tMom() [1/2]

template<class ParcelType>

Foam::scalar tMom ( ) const

inline

Return const access to momentum relaxation time.

Definition at line 315 of file SprayParcelI.H.

References tMom_.

Referenced by calcBreakup(), readFields(), readObjects(), SprayParcel(), writeFields(), and writeObjects().

Here is the caller graph for this function:

◆ user() [1/2]

template<class ParcelType>

Foam::scalar user ( ) const

inline

Return const access to passive user scalar.

Definition at line 322 of file SprayParcelI.H.

References user_.

Referenced by calcBreakup(), readFields(), readObjects(), SprayParcel(), writeFields(), and writeObjects().

Here is the caller graph for this function:

◆ d0() [2/2]

template<class ParcelType>

Foam::scalar & d0 ( )

inline

Return access to initial droplet diameter.

Definition at line 329 of file SprayParcelI.H.

References d0_.

◆ position0() [2/2]

template<class ParcelType>

Foam::vector & position0 ( )

inline

Return access to initial droplet position.

Definition at line 336 of file SprayParcelI.H.

References position0_.

◆ sigma() [2/2]

template<class ParcelType>

Foam::scalar & sigma ( )

inline

Return access to the liquid surface tension.

Definition at line 343 of file SprayParcelI.H.

References sigma_.

◆ mu() [2/2]

template<class ParcelType>

Foam::scalar & mu ( )

inline

Return access to the liquid dynamic viscosity.

Definition at line 350 of file SprayParcelI.H.

References mu_.

◆ liquidCore() [2/2]

template<class ParcelType>

Foam::scalar & liquidCore ( )

inline

Return access to liquid core.

Definition at line 357 of file SprayParcelI.H.

References liquidCore_.

◆ KHindex() [2/2]

template<class ParcelType>

Foam::scalar & KHindex ( )

inline

Return access to Kelvin-Helmholtz breakup index.

Definition at line 364 of file SprayParcelI.H.

References KHindex_.

◆ y() [2/2]

template<class ParcelType>

Foam::scalar & y ( )

inline

Return access to spherical deviation.

Definition at line 371 of file SprayParcelI.H.

References y_.

◆ yDot() [2/2]

template<class ParcelType>

Foam::scalar & yDot ( )

inline

Return access to rate of change of spherical deviation.

Definition at line 378 of file SprayParcelI.H.

References yDot_.

◆ tc() [2/2]

template<class ParcelType>

Foam::scalar & tc ( )

inline

Return access to atomization characteristic time.

Definition at line 385 of file SprayParcelI.H.

References tc_.

◆ ms() [2/2]

template<class ParcelType>

Foam::scalar & ms ( )

inline

Return access to stripped parcel mass.

Definition at line 392 of file SprayParcelI.H.

References ms_.

◆ injector() [2/2]

template<class ParcelType>

Foam::scalar & injector ( )

inline

Return access to injector id.

Definition at line 399 of file SprayParcelI.H.

References injector_.

◆ tMom() [2/2]

template<class ParcelType>

Foam::scalar & tMom ( )

inline

Return access to momentum relaxation time.

Definition at line 406 of file SprayParcelI.H.

References tMom_.

◆ user() [2/2]

template<class ParcelType>

Foam::scalar & user ( )

inline

Return access to passive user scalar.

Definition at line 413 of file SprayParcelI.H.

References user_.

◆ setCellValues()

template<class ParcelType>

template<class TrackCloudType>

void setCellValues	(	TrackCloudType &	cloud,
		trackingData &	td )

Set cell values.

Definition at line 30 of file SprayParcel.C.

References td().

Here is the call graph for this function:

◆ calcAtomization()

template<class ParcelType>

template<class TrackCloudType>

void calcAtomization	(	TrackCloudType &	cloud,
		trackingData &	td,
		const scalar	dt )

Correct parcel properties according to atomization model.

Definition at line 143 of file SprayParcel.C.

References chi(), composition, IOobject::db(), liquidCore(), Foam::mag(), Foam::max(), Foam::min(), mu_, Foam::pos(), position0(), R, rho, Foam::constant::thermodynamic::RR, sigma_, T, tc(), td(), objectRegistry::time(), U, Urel, and dimensioned< Type >::value().

Referenced by calc().

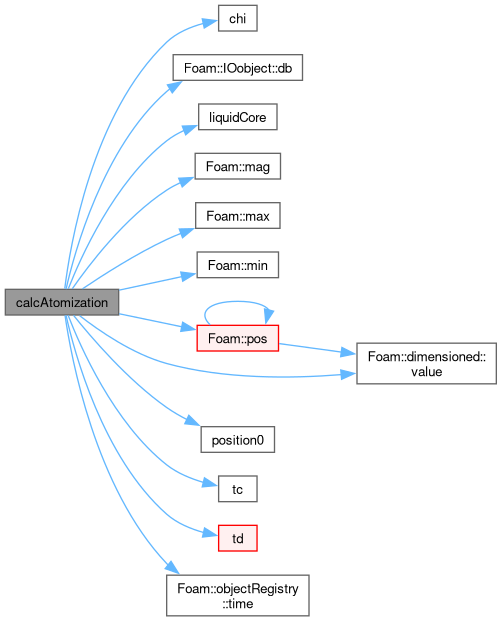

Here is the call graph for this function:

Here is the caller graph for this function:

◆ calcBreakup()

template<class ParcelType>

template<class TrackCloudType>

void calcBreakup	(	TrackCloudType &	cloud,
		trackingData &	td,
		const scalar	dt )

Correct parcel properties according to breakup model.

Definition at line 212 of file SprayParcel.C.

References d0(), g, injector(), KHindex(), liquidCore(), Foam::mag(), ms(), mu_, UPstream::myProcNo(), p, R, Foam::Re(), Foam::constant::thermodynamic::RR, sigma_, solveTABEq(), forceSuSp::Sp(), SprayParcel(), T, tc(), td(), tMom(), U, Urel, user(), y(), and yDot().

Referenced by calc().

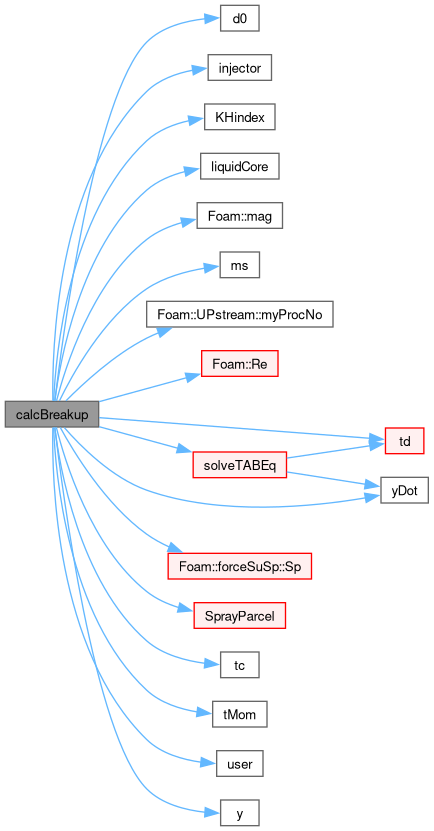

Here is the call graph for this function:

Here is the caller graph for this function:

◆ cellValueSourceCorrection()

template<class ParcelType>

template<class TrackCloudType>

void cellValueSourceCorrection	(	TrackCloudType &	cloud,
		trackingData &	td,
		const scalar	dt )

Correct cell values using latest transfer information.

Definition at line 42 of file SprayParcel.C.

References td().

Here is the call graph for this function:

◆ correctSurfaceValues()

template<class ParcelType>

template<class TrackCloudType>

void correctSurfaceValues	(	TrackCloudType &	cloud,
		trackingData &	td,
		const scalar	T,
		const scalarField &	Cs,
		scalar &	rhos,
		scalar &	mus,
		scalar &	Pr,
		scalar &	kappa )

Correct surface values due to emitted species.

◆ calc()

template<class ParcelType>

template<class TrackCloudType>

void calc	(	TrackCloudType &	cloud,
		trackingData &	td,
		const scalar	dt )

Update parcel properties over the time interval.

Definition at line 55 of file SprayParcel.C.

References calcAtomization(), calcBreakup(), Foam::cbrt(), composition, Cp, liquidCore(), ms(), mu_, Foam::pow3(), rho, rho0, rho1, sigma_, T, T0, td(), and X0().

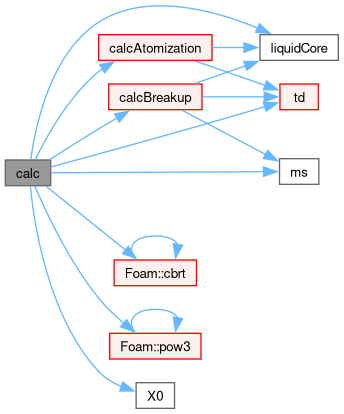

Here is the call graph for this function:

◆ chi() [1/2]

template<class ParcelType>

template<class TrackCloudType>

scalar chi	(	TrackCloudType &	cloud,
		trackingData &	td,
		const scalarField &	X ) const

Calculate the chi-factor for flash-boiling for the.

atomization model

Referenced by calcAtomization().

Here is the caller graph for this function:

◆ solveTABEq()

template<class ParcelType>

template<class TrackCloudType>

void solveTABEq	(	TrackCloudType &	cloud,
		trackingData &	td,
		const scalar	dt )

Solve the TAB equation.

Definition at line 363 of file SprayParcel.C.

References Foam::cos(), e, Foam::exp(), mu_, rho, s(), sigma_, Foam::sin(), Foam::sqrt(), td(), y, Foam::y0(), and yDot().

Referenced by calcBreakup().

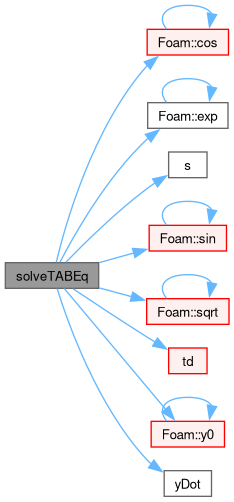

Here is the call graph for this function:

Here is the caller graph for this function:

◆ readFields() [1/2]

template<class ParcelType>

template<class CloudType, class CompositionType>

void readFields	(	CloudType &	c,
		const CompositionType &	compModel )

static

Read.

Definition at line 106 of file SprayParcelIO.C.

References d0(), injector(), KHindex(), liquidCore(), ms(), mu(), mu, IOobjectOption::MUST_READ, p, position0(), sigma(), sigma(), SprayParcel(), tc(), tMom(), user(), y(), y, and yDot().

Referenced by SprayParcel().

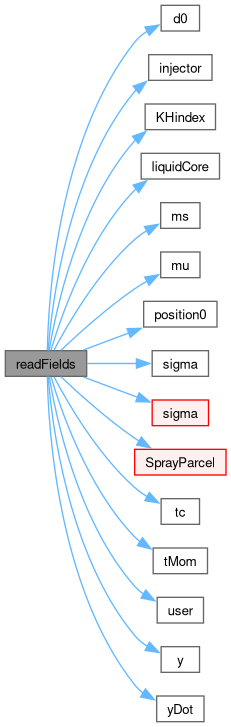

Here is the call graph for this function:

Here is the caller graph for this function:

◆ readFields() [2/2]

template<class ParcelType>

template<class CloudType>

void readFields ( CloudType & c )

static

Read - no composition.

Definition at line 98 of file SprayParcelIO.C.

◆ writeFields() [1/2]

template<class ParcelType>

template<class CloudType, class CompositionType>

void writeFields	(	const CloudType &	c,
		const CompositionType &	compModel )

static

Write.

Definition at line 231 of file SprayParcelIO.C.

References d0(), injector(), KHindex(), liquidCore(), ms(), mu(), mu, IOobjectOption::NO_READ, p, position0(), sigma(), sigma(), SprayParcel(), tc(), tMom(), user(), y(), y, and yDot().

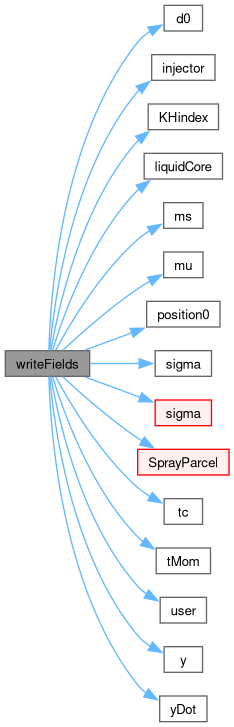

Here is the call graph for this function:

◆ writeFields() [2/2]

template<class ParcelType>

template<class CloudType>

void writeFields ( const CloudType & c )

static

Write - composition supplied.

Definition at line 223 of file SprayParcelIO.C.

◆ writeProperties()

template<class ParcelType>

void writeProperties	(	Ostream &	os,
		const wordRes &	filters,
		const word &	delim,
		const bool	namesOnly ) const

Write individual parcel properties to stream.

Definition at line 304 of file SprayParcelIO.C.

References d0_, injector_, KHindex_, liquidCore_, ms_, mu_, os(), position0_, sigma_, tc_, tMom_, user_, writeProp, y_, and yDot_.

Here is the call graph for this function:

◆ readObjects() [1/2]

template<class ParcelType>

template<class CloudType>

void readObjects	(	CloudType &	c,
		const objectRegistry &	obr )

static

Read particle fields as objects from the obr registry.

no composition

Definition at line 338 of file SprayParcelIO.C.

◆ readObjects() [2/2]

template<class ParcelType>

template<class CloudType, class CompositionType>

void readObjects	(	CloudType &	c,
		const CompositionType &	compModel,
		const objectRegistry &	obr )

static

Read particle fields as objects from the obr registry.

Definition at line 362 of file SprayParcelIO.C.

References d0(), injector(), KHindex(), liquidCore(), cloud::lookupIOField(), ms(), mu(), p, position0(), sigma(), SprayParcel(), tc(), tMom(), user(), y(), and yDot().

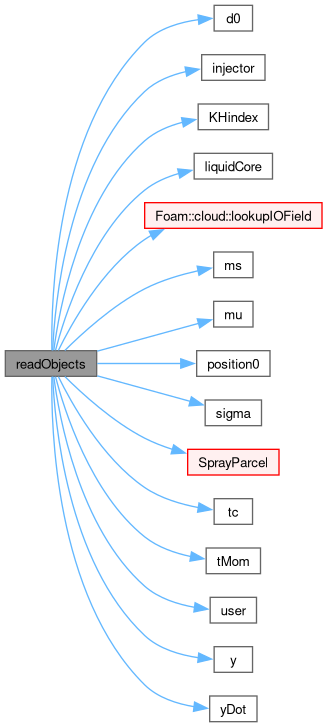

Here is the call graph for this function:

◆ writeObjects() [1/2]

template<class ParcelType>

template<class CloudType>

void writeObjects	(	const CloudType &	c,
		objectRegistry &	obr )

static

Write particle fields as objects into the obr registry.

no composition

Definition at line 350 of file SprayParcelIO.C.

◆ writeObjects() [2/2]

template<class ParcelType>

template<class CloudType, class CompositionType>

void writeObjects	(	const CloudType &	c,
		const CompositionType &	compModel,
		objectRegistry &	obr )

static

Write particle fields as objects into the obr registry.

Definition at line 411 of file SprayParcelIO.C.

References cloud::createIOField(), d0(), injector(), KHindex(), liquidCore(), ms(), mu(), p, position0(), sigma(), SprayParcel(), tc(), tMom(), user(), y(), and yDot().

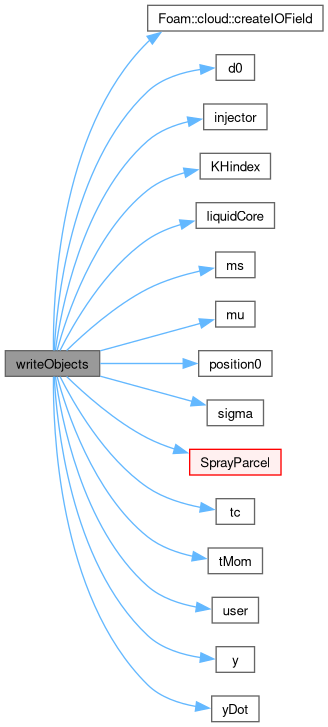

Here is the call graph for this function:

◆ chi() [2/2]

template<class ParcelType>

template<class TrackCloudType>

Foam::scalar chi	(	TrackCloudType &	cloud,
		trackingData &	td,
		const scalarField &	X ) const

Definition at line 321 of file SprayParcel.C.

◆ operator<<

template<class ParcelType>

Ostream & operator<<	(	Ostream &	,
		const SprayParcel< ParcelType > &	)

friend

Member Data Documentation

◆ d0_

template<class ParcelType>

scalar d0_

protected

Initial droplet diameter.

Definition at line 153 of file SprayParcel.H.

Referenced by d0(), d0(), SprayParcel(), SprayParcel(), SprayParcel(), and writeProperties().

◆ position0_

template<class ParcelType>

vector position0_

protected

Injection position.

Definition at line 158 of file SprayParcel.H.

Referenced by position0(), position0(), SprayParcel(), SprayParcel(), SprayParcel(), and writeProperties().

◆ sigma_

template<class ParcelType>

scalar sigma_

protected

Liquid surface tension [N/m].

Definition at line 163 of file SprayParcel.H.

Referenced by calc(), calcAtomization(), calcBreakup(), sigma(), sigma(), solveTABEq(), SprayParcel(), SprayParcel(), SprayParcel(), and writeProperties().

◆ mu_

template<class ParcelType>

scalar mu_

protected

Liquid dynamic viscosity [Pa.s].

Definition at line 168 of file SprayParcel.H.

Referenced by calc(), calcAtomization(), calcBreakup(), mu(), mu(), solveTABEq(), SprayParcel(), SprayParcel(), SprayParcel(), and writeProperties().

◆ liquidCore_

template<class ParcelType>

scalar liquidCore_

protected

Part of liquid core ( >0.5=liquid, <0.5=droplet ).

Definition at line 173 of file SprayParcel.H.

Referenced by liquidCore(), liquidCore(), SprayParcel(), SprayParcel(), SprayParcel(), and writeProperties().

◆ KHindex_

template<class ParcelType>

scalar KHindex_

protected

Index for KH Breakup.

Definition at line 178 of file SprayParcel.H.

Referenced by KHindex(), KHindex(), SprayParcel(), SprayParcel(), SprayParcel(), and writeProperties().

◆ y_

template<class ParcelType>

scalar y_

protected

Spherical deviation.

Definition at line 183 of file SprayParcel.H.

Referenced by SprayParcel(), SprayParcel(), SprayParcel(), writeProperties(), y(), and y().

◆ yDot_

template<class ParcelType>

scalar yDot_

protected

Rate of change of spherical deviation.

Definition at line 188 of file SprayParcel.H.

Referenced by SprayParcel(), SprayParcel(), SprayParcel(), writeProperties(), yDot(), and yDot().

◆ tc_

template<class ParcelType>

scalar tc_

protected

Characteristic time (used in atomization and/or breakup model).

Definition at line 193 of file SprayParcel.H.

Referenced by SprayParcel(), SprayParcel(), SprayParcel(), tc(), tc(), and writeProperties().

◆ ms_

template<class ParcelType>

scalar ms_

protected

Stripped parcel mass due to breakup.

Definition at line 198 of file SprayParcel.H.

Referenced by ms(), ms(), SprayParcel(), SprayParcel(), SprayParcel(), and writeProperties().

◆ injector_

template<class ParcelType>

scalar injector_

protected

Injected from injector (needed e.g. for calculating distance.

from injector)

Definition at line 205 of file SprayParcel.H.

Referenced by injector(), injector(), SprayParcel(), SprayParcel(), SprayParcel(), and writeProperties().

◆ tMom_

template<class ParcelType>

scalar tMom_

protected

Momentum relaxation time (needed for calculating parcel acc.).

Definition at line 210 of file SprayParcel.H.

Referenced by SprayParcel(), SprayParcel(), SprayParcel(), tMom(), tMom(), and writeProperties().

◆ user_

template<class ParcelType>

scalar user_

protected

Passive scalar (extra variable to be defined by user).

Definition at line 215 of file SprayParcel.H.

Referenced by SprayParcel(), SprayParcel(), SprayParcel(), user(), user(), and writeProperties().

◆ sizeofFields

template<class ParcelType>

const std::size_t sizeofFields

static

Size in bytes of the fields.

Definition at line 225 of file SprayParcel.H.

Referenced by SprayParcel().

The documentation for this class was generated from the following files:

src/lagrangian/spray/parcels/Templates/SprayParcel/SprayParcel.H
src/lagrangian/spray/parcels/Templates/SprayParcel/SprayParcel.C
src/lagrangian/spray/parcels/Templates/SprayParcel/SprayParcelI.H
src/lagrangian/spray/parcels/Templates/SprayParcel/SprayParcelIO.C

Classes

Public Types

Public Member Functions

Static Public Member Functions

Static Public Attributes

Protected Attributes

Friends

Detailed Description

Member Typedef Documentation

◆ trackingData

Constructor & Destructor Documentation

◆ SprayParcel() [1/6]

◆ SprayParcel() [2/6]

◆ SprayParcel() [3/6]

◆ SprayParcel() [4/6]

◆ SprayParcel() [5/6]

◆ SprayParcel() [6/6]

Member Function Documentation

◆ TypeName()

◆ AddToPropertyList()

◆ clone() [1/2]

◆ clone() [2/2]

◆ d0() [1/2]

◆ position0() [1/2]

◆ sigma() [1/2]

◆ mu() [1/2]

◆ liquidCore() [1/2]

◆ KHindex() [1/2]

◆ y() [1/2]

◆ yDot() [1/2]

◆ tc() [1/2]

◆ ms() [1/2]

◆ injector() [1/2]

◆ tMom() [1/2]

◆ user() [1/2]

◆ d0() [2/2]

◆ position0() [2/2]

◆ sigma() [2/2]

◆ mu() [2/2]

◆ liquidCore() [2/2]

◆ KHindex() [2/2]

◆ y() [2/2]

◆ yDot() [2/2]

◆ tc() [2/2]

◆ ms() [2/2]

◆ injector() [2/2]

◆ tMom() [2/2]

◆ user() [2/2]

◆ setCellValues()

◆ calcAtomization()

◆ calcBreakup()

◆ cellValueSourceCorrection()

◆ correctSurfaceValues()

◆ calc()

◆ chi() [1/2]

◆ solveTABEq()

◆ readFields() [1/2]

◆ readFields() [2/2]

◆ writeFields() [1/2]

◆ writeFields() [2/2]

◆ writeProperties()

◆ readObjects() [1/2]

◆ readObjects() [2/2]

◆ writeObjects() [1/2]

◆ writeObjects() [2/2]

◆ chi() [2/2]

Friends And Related Symbol Documentation

◆ operator<<

Member Data Documentation

◆ d0_

◆ position0_

◆ sigma_

◆ mu_

◆ liquidCore_

◆ KHindex_

◆ y_

◆ yDot_

◆ tc_

◆ ms_

◆ injector_
