Trajectory collision model by N. Nordin, based on O'Rourke's collision model. More...

#include <TrajectoryCollision.H>

Inheritance diagram for TrajectoryCollision< CloudType >:

Collaboration diagram for TrajectoryCollision< CloudType >:

Public Member Functions
	TypeName ("trajectory")
	Runtime type information.
	TrajectoryCollision (const dictionary &dict, CloudType &cloud)
	Construct from dictionary.
	TrajectoryCollision (const TrajectoryCollision< CloudType > &cm)
	Construct copy.
virtual autoPtr< StochasticCollisionModel< CloudType > >	clone () const
	Construct and return a clone.
virtual	~TrajectoryCollision ()
	Destructor.
Public Member Functions inherited from ORourkeCollision< CloudType >
	TypeName ("ORourke")
	Runtime type information.
	ORourkeCollision (const dictionary &dict, CloudType &cloud, const word &modelName=typeName)
	Construct from dictionary.
	ORourkeCollision (const ORourkeCollision< CloudType > &cm)
	Construct copy.
virtual	~ORourkeCollision ()
	Destructor.
Public Member Functions inherited from StochasticCollisionModel< CloudType >
	TypeName ("collisionModel")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, StochasticCollisionModel, dictionary,(const dictionary &dict, CloudType &owner),(dict, owner))
	Declare runtime constructor selection table.
	StochasticCollisionModel (CloudType &owner)
	Construct null from owner.
	StochasticCollisionModel (const dictionary &dict, CloudType &owner, const word &type)
	Construct from dictionary.
	StochasticCollisionModel (const StochasticCollisionModel< CloudType > &cm)
	Construct copy.
virtual	~StochasticCollisionModel ()
	Destructor.
void	update (typename CloudType::parcelType::trackingData &td, const scalar dt)
	Update the model.
Public Member Functions inherited from CloudSubModelBase< CloudType >
	CloudSubModelBase (CloudType &owner)
	Construct null from owner cloud.
	CloudSubModelBase (CloudType &owner, const dictionary &dict, const word &baseName, const word &modelType, const word &dictExt="Coeffs")
	Construct from owner cloud without name.
	CloudSubModelBase (const word &modelName, CloudType &owner, const dictionary &dict, const word &baseName, const word &modelType)
	Construct from owner cloud with name.
	CloudSubModelBase (const CloudSubModelBase< CloudType > &smb)
	Construct as copy.
virtual	~CloudSubModelBase ()=default
	Destructor.
const CloudType &	owner () const
	Return const access to the owner cloud.
virtual bool	writeTime () const
	Flag to indicate when to write a property.
virtual fileName	localPath () const
	Output directory.
CloudType &	owner ()
	Return non-const access to the owner cloud for manipulation.
virtual void	info ()
	Write to info.
virtual void	write (Ostream &os) const
	Write to os.
Public Member Functions inherited from subModelBase
	subModelBase (dictionary &properties)
	Construct null.
	subModelBase (dictionary &properties, const dictionary &dict, const word &baseName, const word &modelType, const word &dictExt="Coeffs")
	Construct from components without name.
	subModelBase (const word &modelName, dictionary &properties, const dictionary &dict, const word &baseName, const word &modelType)
	Construct from components with name.
	subModelBase (const subModelBase &smb)
	Construct as copy.
virtual	~subModelBase ()=default
	Destructor.
const word &	modelName () const
	Return const access to the name of the sub-model.
const dictionary &	dict () const
	Return const access to the cloud dictionary.
const word &	baseName () const
	Return const access to the base name of the sub-model.
const word &	modelType () const
	Return const access to the sub-model type.
const dictionary &	coeffDict () const
	Return const access to the coefficients dictionary.
const dictionary &	properties () const
	Return const access to the properties dictionary.
virtual bool	defaultCoeffs (const bool printMsg) const
	Returns true if defaultCoeffs is true and outputs on printMsg.
virtual bool	active () const
	Return the model 'active' status - default active = true.
virtual void	cacheFields (const bool store)
	Cache dependent sub-model fields.
template<class Type>
Type	getBaseProperty (const word &entryName, const Type &defaultValue=Type(Zero)) const
	Retrieve generic property from the base model.
template<class Type>
void	getBaseProperty (const word &entryName, Type &value) const
	Retrieve generic property from the base model.
template<class Type>
void	setBaseProperty (const word &entryName, const Type &value)
	Add generic property to the base model.
bool	getModelDict (const word &entryName, dictionary &dict) const
	Retrieve dictionary, return true if set.
template<class Type>
bool	getModelProperty (const word &entryName, Type &value) const
	Retrieve generic property from the sub-model.
template<class Type>
Type	getModelProperty (const word &entryName, const Type &defaultValue=Type(Zero)) const
	Retrieve generic property from the sub-model.
template<class Type>
void	setModelProperty (const word &entryName, const Type &value)
	Add generic property to the sub-model.

Protected Types
typedef CloudType::parcelType	parcelType
	Convenience typedef to the cloud's parcel type.
Protected Types inherited from ORourkeCollision< CloudType >
typedef CloudType::parcelType	parcelType
	Convenience typedef to the cloud's parcel type.

Protected Member Functions
virtual void	collide (typename CloudType::parcelType::trackingData &td, const scalar dt)
	Main collision routine.
virtual bool	collideParcels (const scalar dt, parcelType &p1, parcelType &p2, scalar &m1, scalar &m2)
	Collide parcels and return true if mass has changed.
Protected Member Functions inherited from ORourkeCollision< CloudType >
virtual bool	collideSorted (const scalar dt, parcelType &p1, parcelType &p2, scalar &m1, scalar &m2)
Protected Member Functions inherited from subModelBase
bool	inLine () const
	Flag to indicate whether data is/was read in-line.

Protected Attributes
scalar	cSpace_
	Space coefficient.
scalar	cTime_
	Time coefficient.
Protected Attributes inherited from ORourkeCollision< CloudType >
const liquidMixtureProperties &	liquids_
bool	coalescence_
	Coalescence activated?
Protected Attributes inherited from CloudSubModelBase< CloudType >
CloudType &	owner_
	Reference to the cloud.
Protected Attributes inherited from subModelBase
const word	modelName_
	Name of the sub-model.
dictionary &	properties_
	Reference to properties dictionary e.g. for restart.
const dictionary	dict_
	Copy of dictionary used during construction.
const word	baseName_
	Name of the sub-model base class.
const word	modelType_
	Type of the sub-model.
const dictionary	coeffDict_
	Coefficients dictionary.

Additional Inherited Members
Public Types inherited from CloudSubModelBase< CloudType >
typedef CloudType	cloudType
	Type of cloud this model was instantiated for.
Static Public Member Functions inherited from StochasticCollisionModel< CloudType >
static autoPtr< StochasticCollisionModel< CloudType > >	New (const dictionary &dict, CloudType &owner)
	Selector.
Public Attributes inherited from subModelBase
bool	log
	Flag to write log into Info.

Detailed Description

template<class CloudType>
class Foam::TrajectoryCollision< CloudType >

Trajectory collision model by N. Nordin, based on O'Rourke's collision model.

Definition at line 42 of file TrajectoryCollision.H.

Member Typedef Documentation

◆ parcelType

template<class CloudType>

typedef CloudType::parcelType parcelType

protected

Convenience typedef to the cloud's parcel type.

Definition at line 53 of file TrajectoryCollision.H.

Constructor & Destructor Documentation

◆ TrajectoryCollision() [1/2]

template<class CloudType>

TrajectoryCollision	(	const dictionary &	dict,
		CloudType &	cloud )

Construct from dictionary.

Definition at line 130 of file TrajectoryCollision.C.

References subModelBase::coeffDict(), cSpace_, cTime_, dict, Foam::GlobalIOList< Tuple2< scalar, vector > >::typeName, ORourkeCollision< CloudType >::ORourkeCollision(), and CloudSubModelBase< CloudType >::owner().

Referenced by clone(), TrajectoryCollision(), and TypeName().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ TrajectoryCollision() [2/2]

template<class CloudType>

TrajectoryCollision ( const TrajectoryCollision< CloudType > & cm )

Construct copy.

Definition at line 143 of file TrajectoryCollision.C.

References cSpace_, cTime_, ORourkeCollision< CloudType >::ORourkeCollision(), and TrajectoryCollision().

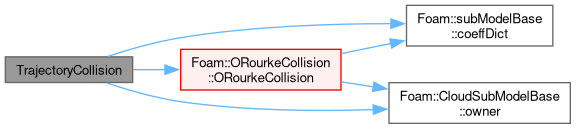

Here is the call graph for this function:

◆ ~TrajectoryCollision()

template<class CloudType>

~TrajectoryCollision ( )

virtual

Destructor.

Definition at line 157 of file TrajectoryCollision.C.

Member Function Documentation

◆ collide()

template<class CloudType>

void collide	(	typename CloudType::parcelType::trackingData &	td,
		const scalar	dt )

protectedvirtual

Main collision routine.

Reimplemented from ORourkeCollision< CloudType >.

Definition at line 26 of file TrajectoryCollision.C.

References ORourkeCollision< CloudType >::collide(), and td().

Here is the call graph for this function:

◆ collideParcels()

template<class CloudType>

bool collideParcels	(	const scalar	dt,
		parcelType &	p1,
		parcelType &	p2,
		scalar &	m1,
		scalar &	m2 )

protectedvirtual

Collide parcels and return true if mass has changed.

Reimplemented from ORourkeCollision< CloudType >.

Definition at line 37 of file TrajectoryCollision.C.

References alpha, beta(), ORourkeCollision< CloudType >::collideSorted(), cSpace_, cTime_, Foam::det(), Foam::exp(), Foam::mag(), Foam::max(), CloudSubModelBase< CloudType >::owner(), particle< Type >::position(), Foam::pow(), Foam::sqr(), DSMCParcel< ParcelType >::U(), U1, and U2.

Here is the call graph for this function:

◆ TypeName()

template<class CloudType>

TypeName ( "trajectory" )

Runtime type information.

References dict, and TrajectoryCollision().

Here is the call graph for this function:

◆ clone()

template<class CloudType>

virtual autoPtr< StochasticCollisionModel< CloudType > > clone ( ) const

inlinevirtual

Construct and return a clone.

Reimplemented from ORourkeCollision< CloudType >.

Definition at line 113 of file TrajectoryCollision.H.

References TrajectoryCollision().

Here is the call graph for this function:

Member Data Documentation

◆ cSpace_

template<class CloudType>

scalar cSpace_

protected

Space coefficient.

Definition at line 58 of file TrajectoryCollision.H.

Referenced by collideParcels(), TrajectoryCollision(), and TrajectoryCollision().

◆ cTime_

template<class CloudType>

scalar cTime_

protected

Time coefficient.

Definition at line 63 of file TrajectoryCollision.H.

Referenced by collideParcels(), TrajectoryCollision(), and TrajectoryCollision().

The documentation for this class was generated from the following files:

src/lagrangian/spray/submodels/StochasticCollision/TrajectoryCollision/TrajectoryCollision.H
src/lagrangian/spray/submodels/StochasticCollision/TrajectoryCollision/TrajectoryCollision.C
