An opaque wrapper for MPI_Win with a vendor-independent representation and without any <mpi.h> header dependency. More...

#include <UPstreamWindow.H>

Public Types
typedef std::intptr_t	value_type
	Storage for MPI_Win (as integer or pointer).

Public Member Functions
	Window (const Window &) noexcept=default
	Copy construct.
	Window (Window &&) noexcept=default
	Move construct.
Window &	operator= (const Window &) noexcept=default
	Copy assignment.
Window &	operator= (Window &&) noexcept=default
	Move assignment.
bool	operator== (const Window &rhs) const noexcept
	Test for equality.
bool	operator!= (const Window &rhs) const noexcept
	Test for inequality.
	Window () noexcept
	Default construct as MPI_WIN_NULL.
	Window (const void *p) noexcept
	Construct from MPI_Win (as pointer type).
	Window (value_type val) noexcept
	Construct from MPI_Win (as integer type).
value_type	value () const noexcept
	Return raw value.
const void *	pointer () const noexcept
	Return as pointer value.
bool	good () const noexcept
	True if not equal to MPI_WIN_NULL.
void	reset () noexcept
	Reset to default constructed value (MPI_WIN_NULL).
int	size () const
	The number of ranks associated with the window group.
template<class Type>
UList< Type >	allocate (std::streamsize count, UPstream::Communicator communicator, const bool shared=false)
	Allocate a local memory region and create window onto it.
template<class Type>
UList< Type >	allocate (std::streamsize count, const int communicator, const bool shared=false)
	Allocate a local memory region and create window onto it.
template<class Type>
UList< Type >	allocate_shared (std::streamsize count, UPstream::Communicator communicator)
	Allocate a shared memory region and create window onto it.
template<class Type>
UList< Type >	allocate_shared (std::streamsize count, const int communicator)
	Create a window by allocating a new shared memory region.
template<class Type = void>
bool	create (std::nullptr_t, UPstream::Communicator comm)
	A window exposing a zero-sized memory region.
template<class Type = void>
bool	create (std::nullptr_t, const int comm)
	A window exposing a zero-sized memory region.
template<class Type>
bool	create (const Type *buffer, std::streamsize count, UPstream::Communicator communicator)
	A window exposing an existing memory region.
template<class Type>
bool	create (const Type *buffer, std::streamsize count, const int communicator)
	A window exposing an existing memory region.
template<class Type>
bool	create (const UList< Type > &buffer, UPstream::Communicator comm)
	A window exposing the specified buffer contents.
template<class Type>
bool	create (const UList< Type > &buffer, int communicator)
	A window exposing the specified buffer contents.
template<class Type>
bool	create (SubList< Type > buffer, UPstream::Communicator communicator)
	A window exposing the specified buffer contents.
template<class Type>
bool	create (SubList< Type > buffer, int communicator)
	A window exposing the specified buffer contents.
void	lock (int rank, bool exclusive=false)
	MPI_Win_lock() for given target rank (no assertions), optionally as exclusive lock.
void	unlock (int rank)
	MPI_Win_unlock() for given target rank.
void	lock_all (bool exclusive=false)
	MPI_Win_lock_all(), optionally as exclusive lock.
void	unlock_all ()
	MPI_Win_unlock_all().
void	flush (int rank)
	MPI_Win_flush() for given target rank.
void	flush_all ()
	MPI_Win_flush_all().
void	flush_local (int rank)
	MPI_Win_flush_local().
void	flush_local_all ()
	MPI_Win_flush_local_all().
void	sync ()
	MPI_Win_sync() - ignored if the window is not active.
void	close ()
	MPI_Win_free(). Closes the window view and frees any associated memory,.
bool	is_shared (const bool failNonShared=false) const
	Test if the window is a shared memory window.
template<class Type>
UList< Type >	view () const
	Return view of the currently exposed window content. No restriction on the type of memory associated with the window.
template<class Type>
UList< Type >	view_shared (int target_rank) const
	Return view of shared memory window content.
template<class Type>
bool	get (Type *buffer, std::streamsize count, int fromProcNo, int target_disp=0) const
	Get buffer contents from given rank. A no-op for an empty or null buffer, or if not running in parallel.
template<class Type>
bool	put (const Type *buffer, std::streamsize count, int toProcNo, int target_disp=0) const
	Put buffer contents to given rank.
template<class Type>
bool	put (const UPstream::opCodes opCodeId, const Type *buffer, std::streamsize count, int toProcNo, int target_disp=0) const
	Put accumulate buffer contents to given rank.
template<class Type>
bool	get_value (Type &value, int fromProcNo, int target_disp=0) const
	Get a single value from given rank.
template<class Type>
bool	put_value (const Type &value, int toProcNo, int target_disp=0) const
	Put a single value to given rank.
template<class Type>
bool	put_value (const UPstream::opCodes opCodeId, const Type &value, int toProcNo, int target_disp=0) const
	Put and accumulate a single value to given rank.
template<class Type>
bool	get (UList< Type > &buffer, int fromProcNo, int target_disp=0) const
	Get into List storage (contiguous data only) from window location on given processor. A no-op for an empty or null buffer, or if not running in parallel.
template<class Type>
bool	put (const UList< Type > &buffer, int toProcNo, int target_disp=0) const
	Put from List storage (contiguous data only) to window location on given processor.
template<class Type>
bool	put (const UPstream::opCodes opCodeId, const UList< Type > &buffer, int toProcNo, int target_disp=0) const
	Put and accumulate from List storage (contiguous data only) to window location on given processor. A no-op for an empty or null buffer, or if not running in parallel.
template<class Type>
bool	get (SubList< Type > buffer, int fromProcNo, int target_disp=0) const
	Get into SubList storage (contiguous data only) from window location on given processor. A no-op for an empty or null buffer, or if not running in parallel.
template<class Type>
bool	fetch_and_op (const UPstream::opCodes opCodeId, const Type &origin, Type &result, int target_rank, int target_disp=0) const
	Combine the value of origin into the target and return the resulting value (MPI_Fetch_and_op).
template<class Type>
bool	put (const SubList< Type > buffer, int toProcNo, int target_disp=0) const
	Put from SubList storage (contiguous data only) to window location on given processor. A no-op for an empty or null buffer, or if not running in parallel.
template<class Type>
bool	put (const UPstream::opCodes opCodeId, const SubList< Type > buffer, int toProcNo, int target_disp=0) const
	Put and accumulate from SubList storage (contiguous data only) to window location on given processor. A no-op for an empty or null buffer, or if not running in parallel.

Protected Member Functions
std::pair< void *, int64_t >	mpi_win_allocate (std::streamsize num_elements, int disp_unit, UPstream::Communicator communicator, const bool shared=false)
	Allocate a local or shared memory window. Uses MPI_Win_allocate() or MPI_Win_allocate_shared(), respectively.
std::pair< void *, int64_t >	mpi_win_allocate (std::streamsize num_elements, int disp_unit, int communicator, const bool shared=false)
	Allocate a local or shared memory window. Uses MPI_Win_allocate() or MPI_Win_allocate_shared(), respectively.
bool	mpi_win_create (void *baseptr, std::streamsize num_elements, int disp_unit, UPstream::Communicator communicator)
	Create window onto existing memory with MPI_Win_create().
bool	mpi_win_create (void *baseptr, std::streamsize num_elements, int disp_unit, int communicator)
	Create window onto existing memory with MPI_Win_create().
bool	get_data (void *origin, std::streamsize count, const UPstream::dataTypes dataTypeId, int target_rank, int target_disp=0) const
	Get buffer contents from given rank.
bool	put_data (const void *origin, std::streamsize count, const UPstream::dataTypes dataTypeId, int target_rank, int target_disp=0) const
	Put buffer contents to given rank.
bool	put_data (const UPstream::opCodes opCodeId, const void *origin, std::streamsize count, const UPstream::dataTypes dataTypeId, int target_rank, int target_disp=0) const
	Put accumulate buffer contents to given rank.
bool	mpi_fetch_and_op (const UPstream::opCodes opCodeId, const void origin, void result, const UPstream::dataTypes dataTypeId, int target_rank, int target_disp=0) const
	Retrieve the remote content (a single value) and then combine in new content.
void	mpi_win_flushing (int rank, bool local=false)
	Entry point to MPI_Win_flush(), MPI_Win_flush_all(), MPI_Win_flush_local(), MPI_Win_flush_local_all().
void	mpi_win_locking (int rank, bool exclusive=false)
	Entry point to MPI_Win_lock(), MPI_Win_lock_all(), optionally as exclusive lock.
void	mpi_win_unlocking (int rank)
	Entry point to MPI_Win_unlock(), MPI_Win_unlock_all().

Static Protected Member Functions
template<class Type>
static constexpr auto	element_width () noexcept
	Sizing helper for disp_unit.
static std::pair< void *, int64_t >	mpi_win_query (UPstream::Window window, const int expected_disp_unit)
	Retrieve window sizing information as address/count tuple. The expected sizeof(Type) is supplied as an assertion parameter.
static std::pair< void *, int64_t >	mpi_win_query_shared (UPstream::Window window, int target_rank, const int expected_disp_unit)
	Retrieve shared window information as address/count tuple. The expected sizeof(Type) is supplied as an assertion parameter.

Detailed Description

An opaque wrapper for MPI_Win with a vendor-independent representation and without any <mpi.h> header dependency.

The handling for window declaration is very generous - it does not distinguish between readonly and read/write windows. This may become more restrictive in the future.

Note: The MPI standard states that MPI_Win is always an opaque object. Generally it is either an integer (eg, mpich) or a pointer (eg, openmpi).

Source files

Definition at line 55 of file UPstreamWindow.H.

Member Typedef Documentation

◆ value_type

typedef std::intptr_t value_type

Storage for MPI_Win (as integer or pointer).

Definition at line 64 of file UPstreamWindow.H.

Constructor & Destructor Documentation

◆ Window() [1/5]

Window ( const Window & )

defaultnoexcept

Copy construct.

References Window().

Referenced by operator!=(), operator=(), operator=(), operator==(), Window(), Window(), Window(), and Window().

Here is the call graph for this function:

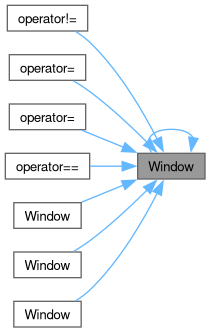

Here is the caller graph for this function:

◆ Window() [2/5]

Window ( Window && )

defaultnoexcept

Move construct.

References Foam::noexcept, and Window().

Here is the call graph for this function:

◆ Window() [3/5]

Window ( )

noexcept

Default construct as MPI_WIN_NULL.

Definition at line 25 of file UPstreamWindow.C.

References Foam::noexcept, UPstream::UPstream(), and Window().

Here is the call graph for this function:

◆ Window() [4/5]

Window ( const void * p )

inlineexplicitnoexcept

Construct from MPI_Win (as pointer type).

Definition at line 358 of file UPstreamWindow.H.

References Foam::noexcept, p, and Window().

Here is the call graph for this function:

◆ Window() [5/5]

Window ( value_type val )

inlineexplicitnoexcept

Construct from MPI_Win (as integer type).

Definition at line 366 of file UPstreamWindow.H.

References Foam::noexcept.

Member Function Documentation

◆ element_width()

template<class Type>

constexpr auto element_width ( )

inlinestaticconstexprprotectednoexcept

Sizing helper for disp_unit.

Definition at line 85 of file UPstreamWindow.H.

References Foam::noexcept.

Referenced by create(), and create().

Here is the caller graph for this function:

◆ mpi_win_allocate() [1/2]

std::pair< void *, int64_t > mpi_win_allocate	(	std::streamsize	num_elements,
		int	disp_unit,
		UPstream::Communicator	communicator,
		const bool	shared = false )

protected

Allocate a local or shared memory window. Uses MPI_Win_allocate() or MPI_Win_allocate_shared(), respectively.

A no-op if not running in parallel. This is a collective call.

Returns: (address, size) tuple

Parameters

num_elements	Number of elements in the window (non-negative integer)
disp_unit	Local unit size for displacements (positive integer) == sizeof(Type)
communicator	Communicator (wrapped)
shared	Create shared memory

Definition at line 52 of file UPstreamWindow.C.

References NotImplemented.

◆ mpi_win_allocate() [2/2]

std::pair< void *, int64_t > mpi_win_allocate	(	std::streamsize	num_elements,
		int	disp_unit,
		int	communicator,
		const bool	shared = false )

protected

Allocate a local or shared memory window. Uses MPI_Win_allocate() or MPI_Win_allocate_shared(), respectively.

A no-op if not running in parallel. This is a collective call.

Returns: (address, size) tuple

Parameters

num_elements	Number of elements in the window (non-negative integer)
disp_unit	Local unit size for displacements (positive integer) == sizeof(Type)
communicator	Communicator (internally indexed)
shared	Create shared memory

Definition at line 66 of file UPstreamWindow.C.

References NotImplemented.

◆ mpi_win_create() [1/2]

bool mpi_win_create	(	void *	baseptr,
		std::streamsize	num_elements,
		int	disp_unit,
		UPstream::Communicator	communicator )

protected

Create window onto existing memory with MPI_Win_create().

A no-op if not running in parallel. This is a collective call.

Parameters

baseptr	Address of window
num_elements	Number of elements in the window (non-negative integer)
disp_unit	Local unit size for displacements (positive integer) == sizeof(Type)
communicator	Communicator (wrapped)

Definition at line 79 of file UPstreamWindow.C.

References NotImplemented.

Referenced by create(), and create().

Here is the caller graph for this function:

◆ mpi_win_create() [2/2]

bool mpi_win_create	(	void *	baseptr,
		std::streamsize	num_elements,
		int	disp_unit,
		int	communicator )

protected

Create window onto existing memory with MPI_Win_create().

A no-op if not running in parallel. This is a collective call.

Parameters

baseptr	Address of window
num_elements	Number of elements in the window (non-negative integer)
disp_unit	Local unit size for displacements (positive integer) == sizeof(Type)
communicator	Communicator (internally indexed)

Definition at line 92 of file UPstreamWindow.C.

References NotImplemented.

◆ mpi_win_query()

std::pair< void *, int64_t > mpi_win_query	(	UPstream::Window	window,
		const int	expected_disp_unit )

staticprotected

Retrieve window sizing information as address/count tuple. The expected sizeof(Type) is supplied as an assertion parameter.

Returns: (nullptr, 0) if not running in parallel or if either the address or count are zero

Parameters

expected_disp_unit Expected element size (fatal for mismatch with queried value)

Definition at line 198 of file UPstreamWindow.C.

References NotImplemented.

◆ mpi_win_query_shared()

std::pair< void *, int64_t > mpi_win_query_shared	(	UPstream::Window	window,
		int	target_rank,
		const int	expected_disp_unit )

staticprotected

Retrieve shared window information as address/count tuple. The expected sizeof(Type) is supplied as an assertion parameter.

Returns: (nullptr, 0) if not running in parallel or if either the address or count are zero

Parameters

target_rank	The rank to query
expected_disp_unit	Expected element size (fatal for mismatch with queried value)

Definition at line 211 of file UPstreamWindow.C.

References NotImplemented.

◆ get_data()

bool get_data	(	void *	origin,
		std::streamsize	count,
		const UPstream::dataTypes	dataTypeId,
		int	target_rank,
		int	target_disp = 0 ) const

protected

Get buffer contents from given rank.

A no-op if not running in parallel and for empty or null buffer.

Note: The method uses a void pointer and the required data type (as per MPI). This means it should almost never be called directly but always via a compile-time checked caller.

Returns: True on success

Parameters

origin	Destination buffer
count	The data count - number of elements. Identical on both sides.
target_disp	Window displacement on target

Definition at line 131 of file UPstreamWindow.C.

References NotImplemented.

◆ put_data() [1/2]

bool put_data	(	const void *	origin,
		std::streamsize	count,
		const UPstream::dataTypes	dataTypeId,
		int	target_rank,
		int	target_disp = 0 ) const

protected

Put buffer contents to given rank.

A no-op if not running in parallel and for empty or null buffer.

Parameters

origin	Source buffer
count	The data count - number of elements. Identical on both sides.
target_disp	Window displacement on target

Definition at line 145 of file UPstreamWindow.C.

References NotImplemented.

◆ put_data() [2/2]

bool put_data	(	const UPstream::opCodes	opCodeId,
		const void *	origin,
		std::streamsize	count,
		const UPstream::dataTypes	dataTypeId,
		int	target_rank,
		int	target_disp = 0 ) const

protected

Put accumulate buffer contents to given rank.

A no-op if not running in parallel and for empty or null buffer.

Parameters

opCodeId	The op-code for accumulate
origin	Source buffer
count	The data count - number of elements. Identical on both sides.
target_disp	Window displacement on target

Definition at line 159 of file UPstreamWindow.C.

References NotImplemented.

◆ mpi_fetch_and_op()

bool mpi_fetch_and_op	(	const UPstream::opCodes	opCodeId,
		const void *	origin,
		void *	result,
		const UPstream::dataTypes	dataTypeId,
		int	target_rank,
		int	target_disp = 0 ) const

protected

Retrieve the remote content (a single value) and then combine in new content.

A no-op if not running in parallel and for empty or null buffer.

Parameters

	opCodeId	The op-code for accumulate
[in]	origin	the content to combine with target
[out]	result	target content before the operation
	target_disp	Window displacement on target

Definition at line 174 of file UPstreamWindow.C.

References NotImplemented.

◆ mpi_win_flushing()

void mpi_win_flushing	(	int	rank,
		bool	local = false )

protected

Entry point to MPI_Win_flush(), MPI_Win_flush_all(), MPI_Win_flush_local(), MPI_Win_flush_local_all().

Uses rank == -1 to signal 'all'

Definition at line 113 of file UPstreamWindow.C.

References local.

Referenced by flush(), flush_all(), flush_local(), and flush_local_all().

Here is the caller graph for this function:

◆ mpi_win_locking()

void mpi_win_locking	(	int	rank,
		bool	exclusive = false )

protected

Entry point to MPI_Win_lock(), MPI_Win_lock_all(), optionally as exclusive lock.

Uses rank == -1 to signal 'all'

Definition at line 121 of file UPstreamWindow.C.

Referenced by lock(), and lock_all().

Here is the caller graph for this function:

◆ mpi_win_unlocking()

void mpi_win_unlocking ( int rank )

protected

Entry point to MPI_Win_unlock(), MPI_Win_unlock_all().

Uses rank == -1 to signal 'all'

Definition at line 125 of file UPstreamWindow.C.

Referenced by unlock(), and unlock_all().

Here is the caller graph for this function:

◆ operator=() [1/2]

Window & operator= ( const Window & )

defaultnoexcept

Copy assignment.

References Foam::noexcept, and Window().

Here is the call graph for this function:

◆ operator=() [2/2]

Window & operator= ( Window && )

defaultnoexcept

Move assignment.

References Foam::noexcept, and Window().

Here is the call graph for this function:

◆ operator==()

bool operator== ( const Window & rhs ) const

inlinenoexcept

Test for equality.

Definition at line 334 of file UPstreamWindow.H.

References Foam::noexcept, Foam::rhs(), and Window().

Here is the call graph for this function:

◆ operator!=()

bool operator!= ( const Window & rhs ) const

inlinenoexcept

Test for inequality.

Definition at line 342 of file UPstreamWindow.H.

References Foam::rhs(), and Window().

Here is the call graph for this function:

◆ value()

value_type value ( ) const

inlinenoexcept

Return raw value.

Definition at line 379 of file UPstreamWindow.H.

References Foam::noexcept.

Referenced by get_value(), put_value(), and put_value().

Here is the caller graph for this function:

◆ pointer()

const void * pointer ( ) const

inlinenoexcept

Return as pointer value.

Definition at line 384 of file UPstreamWindow.H.

References Foam::noexcept.

◆ good()

bool good ( ) const

noexcept

True if not equal to MPI_WIN_NULL.

Definition at line 33 of file UPstreamWindow.C.

References Foam::noexcept.

◆ reset()

void reset ( )

noexcept

Reset to default constructed value (MPI_WIN_NULL).

Definition at line 39 of file UPstreamWindow.C.

References Foam::noexcept.

◆ size()

int size ( ) const

The number of ranks associated with the window group.

The same as querying the original communicator, assuming the communicator is available within the current code scope.

Definition at line 43 of file UPstreamWindow.C.

◆ allocate() [1/2]

template<class Type>

UList< Type > allocate	(	std::streamsize	count,
		UPstream::Communicator	communicator,
		const bool	shared = false )

inline

Allocate a local memory region and create window onto it.

A no-op if not running in parallel. This is a collective call.

Parameters

count	Number of elements to allocate
shared	Create shared memory region

References allocate(), and UPstream::UPstream().

Referenced by allocate(), and allocate().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ allocate() [2/2]

template<class Type>

UList< Type > allocate	(	std::streamsize	count,
		const int	communicator,
		const bool	shared = false )

inline

Allocate a local memory region and create window onto it.

A no-op if not running in parallel. This is a collective call.

Parameters

count	Number of elements to allocate
shared	Create shared memory region

References allocate().

Here is the call graph for this function:

◆ allocate_shared() [1/2]

template<class Type>

UList< Type > allocate_shared	(	std::streamsize	count,
		UPstream::Communicator	communicator )

inline

Allocate a shared memory region and create window onto it.

A no-op if not running in parallel. This is a collective call.

Parameters

count Number of elements to allocate

References allocate_shared(), and UPstream::UPstream().

Referenced by allocate_shared(), and allocate_shared().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ allocate_shared() [2/2]

template<class Type>

UList< Type > allocate_shared	(	std::streamsize	count,
		const int	communicator )

inline

Create a window by allocating a new shared memory region.

A no-op if not running in parallel. This is a collective call.

Parameters

count Number of elements to allocate

References allocate_shared().

Here is the call graph for this function:

◆ create() [1/8]

template<class Type = void>

bool create	(	std::nullptr_t	,
		UPstream::Communicator	comm )

inline

A window exposing a zero-sized memory region.

A no-op if not running in parallel. This is a collective call.

Definition at line 480 of file UPstreamWindow.H.

References create(), element_width(), mpi_win_create(), and UPstream::UPstream().

Referenced by create(), create(), create(), create(), and create().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ create() [2/8]

template<class Type = void>

bool create	(	std::nullptr_t	,
		const int	comm )

inline

A window exposing a zero-sized memory region.

A no-op if not running in parallel. This is a collective call.

Definition at line 492 of file UPstreamWindow.H.

References element_width(), and mpi_win_create().

Here is the call graph for this function:

◆ create() [3/8]

template<class Type>

bool create	(	const Type *	buffer,
		std::streamsize	count,
		UPstream::Communicator	communicator )

inline

A window exposing an existing memory region.

A no-op if not running in parallel. This is a collective call.

Note: Ignores constness since we can't specify a priori if this should be a read/write or read only buffer.

Parameters

count Number of elements in the window

◆ create() [4/8]

template<class Type>

bool create	(	const Type *	buffer,
		std::streamsize	count,
		const int	communicator )

inline

A window exposing an existing memory region.

A no-op if not running in parallel. This is a collective call.

Parameters

count Number of elements in the window

◆ create() [5/8]

template<class Type>

bool create	(	const UList< Type > &	buffer,
		UPstream::Communicator	comm )

inline

A window exposing the specified buffer contents.

A no-op if not running in parallel. This is a collective call.

Definition at line 536 of file UPstreamWindow.H.

References UList< T >::cdata(), create(), and UList< T >::size().

Here is the call graph for this function:

◆ create() [6/8]

template<class Type>

bool create	(	const UList< Type > &	buffer,
		int	communicator )

inline

A window exposing the specified buffer contents.

A no-op if not running in parallel. This is a collective call.

Definition at line 548 of file UPstreamWindow.H.

References UList< T >::cdata(), create(), and UList< T >::size().

Here is the call graph for this function:

◆ create() [7/8]

template<class Type>

bool create	(	SubList< Type >	buffer,
		UPstream::Communicator	communicator )

inline

A window exposing the specified buffer contents.

A no-op if not running in parallel. This is a collective call.

Definition at line 560 of file UPstreamWindow.H.

References UList< T >::cdata(), create(), and UList< T >::size().

Here is the call graph for this function:

◆ create() [8/8]

template<class Type>

bool create	(	SubList< Type >	buffer,
		int	communicator )

inline

A window exposing the specified buffer contents.

A no-op if not running in parallel. This is a collective call.

Definition at line 572 of file UPstreamWindow.H.

References UList< T >::cdata(), create(), and UList< T >::size().

Here is the call graph for this function:

◆ lock()

void lock	(	int	rank,
		bool	exclusive = false )

inline

MPI_Win_lock() for given target rank (no assertions), optionally as exclusive lock.

Definition at line 584 of file UPstreamWindow.H.

References mpi_win_locking().

Here is the call graph for this function:

◆ unlock()

void unlock ( int rank )

inline

MPI_Win_unlock() for given target rank.

Definition at line 592 of file UPstreamWindow.H.

References mpi_win_unlocking().

Here is the call graph for this function:

◆ lock_all()

void lock_all ( bool exclusive = false )

inline

MPI_Win_lock_all(), optionally as exclusive lock.

Definition at line 597 of file UPstreamWindow.H.

References mpi_win_locking().

Here is the call graph for this function:

void sync ( )

MPI_Win_sync() - ignored if the window is not active.

Definition at line 117 of file UPstreamWindow.C.

◆ close()

void close ( )

MPI_Win_free(). Closes the window view and frees any associated memory,.

eg, from allocate() or allocate_shared(). Ignored if the window is not active. This is a collective call.

Definition at line 107 of file UPstreamWindow.C.

◆ is_shared()

bool is_shared ( const bool failNonShared = false ) const

Test if the window is a shared memory window.

Definition at line 191 of file UPstreamWindow.C.

◆ view()

template<class Type>

UList< Type > view ( ) const

inline

Return view of the currently exposed window content. No restriction on the type of memory associated with the window.

A no-op (empty list) if not running in parallel or the window is not active.

◆ view_shared()

template<class Type>

UList< Type > view_shared ( int target_rank ) const

inline

Return view of shared memory window content.

A no-op (empty list) if not running in parallel. Undefined behaviour (likely Fatal) if a shared memory window has not been allocated.

◆ get() [1/3]

template<class Type>

bool get	(	Type *	buffer,
		std::streamsize	count,
		int	fromProcNo,
		int	target_disp = 0 ) const

inline

Get buffer contents from given rank. A no-op for an empty or null buffer, or if not running in parallel.

Parameters

buffer	Destination buffer
count	The data count - number of elements. Identical on both sides.
target_disp	Window displacement on target

Referenced by get_value().

Here is the caller graph for this function:

◆ put() [1/6]

template<class Type>

bool put	(	const Type *	buffer,
		std::streamsize	count,
		int	toProcNo,
		int	target_disp = 0 ) const

inline

Put buffer contents to given rank.

A no-op for an empty/null buffer, or if not running in parallel.

Parameters

buffer	Source buffer
count	The data count - number of elements. Identical on both sides.
target_disp	Window displacement on target

Referenced by put_value(), and put_value().

Here is the caller graph for this function:

◆ put() [2/6]

template<class Type>

bool put	(	const UPstream::opCodes	opCodeId,
		const Type *	buffer,
		std::streamsize	count,
		int	toProcNo,
		int	target_disp = 0 ) const

inline

Put accumulate buffer contents to given rank.

A no-op for an empty/null buffer, or if not running in parallel.

Note: Must correspond to basic data types!

Parameters

buffer	Source buffer
count	The data count - number of elements. Identical on both sides.
target_disp	Window displacement on target

◆ get_value()

template<class Type>

bool get_value	(	Type &	value,
		int	fromProcNo,
		int	target_disp = 0 ) const

inline

Get a single value from given rank.

Note: Use persistent data (not temporary) for value

Parameters

target_disp Window displacement on target

Definition at line 738 of file UPstreamWindow.H.

References get(), and value().

Here is the call graph for this function:

◆ put_value() [1/2]

template<class Type>

bool put_value	(	const Type &	value,
		int	toProcNo,
		int	target_disp = 0 ) const

inline

Put a single value to given rank.

Note: Use persistent data (not temporary) for value

Parameters

target_disp Window displacement on target

Definition at line 754 of file UPstreamWindow.H.

References put(), and value().

Here is the call graph for this function:

◆ put_value() [2/2]

template<class Type>

bool put_value	(	const UPstream::opCodes	opCodeId,
		const Type &	value,
		int	toProcNo,
		int	target_disp = 0 ) const

inline

Put and accumulate a single value to given rank.

Note: Use persistent data (not temporary) for value

Parameters

target_disp Window displacement on target

Definition at line 770 of file UPstreamWindow.H.

References put(), and value().

Here is the call graph for this function:

◆ get() [2/3]

template<class Type>

bool get	(	UList< Type > &	buffer,
		int	fromProcNo,
		int	target_disp = 0 ) const

inline

Get into List storage (contiguous data only) from window location on given processor. A no-op for an empty or null buffer, or if not running in parallel.

Note: Only valid for contiguous data types.

Parameters

fromProcNo	Offset number of elements on the toProcNo rank
target_disp	Window displacement on target

◆ put() [3/6]

template<class Type>

bool put	(	const UList< Type > &	buffer,
		int	toProcNo,
		int	target_disp = 0 ) const

inline

Put from List storage (contiguous data only) to window location on given processor.

Note: Only valid for contiguous data types.

Parameters

target_disp Window displacement on target

◆ put() [4/6]

template<class Type>

bool put	(	const UPstream::opCodes	opCodeId,
		const UList< Type > &	buffer,
		int	toProcNo,
		int	target_disp = 0 ) const

inline

Put and accumulate from List storage (contiguous data only) to window location on given processor. A no-op for an empty or null buffer, or if not running in parallel.

Note: Only valid for contiguous data types.

Parameters

target_disp Window displacement on target

◆ get() [3/3]

template<class Type>

bool get	(	SubList< Type >	buffer,
		int	fromProcNo,
		int	target_disp = 0 ) const

inline

Get into SubList storage (contiguous data only) from window location on given processor. A no-op for an empty or null buffer, or if not running in parallel.

Note: Only valid for contiguous data types.

Parameters

target_disp Window displacement on target

◆ fetch_and_op()

template<class Type>

bool fetch_and_op	(	const UPstream::opCodes	opCodeId,
		const Type &	origin,
		Type &	result,
		int	target_rank,
		int	target_disp = 0 ) const

inline

Combine the value of origin into the target and return the resulting value (MPI_Fetch_and_op).

Note: Use persistent data (not temporary) for origin and result, which must also be disjoint locations. Only valid for single element (no aggregates).

Returns: the old target value (before the operation)

Parameters

	origin	the content to combine with target
[out]	result	the old target value before the operation
	target_rank	The target rank
	target_disp	Window displacement on target

◆ put() [5/6]

template<class Type>

bool put	(	const SubList< Type >	buffer,
		int	toProcNo,
		int	target_disp = 0 ) const

inline

Put from SubList storage (contiguous data only) to window location on given processor. A no-op for an empty or null buffer, or if not running in parallel.

Note: Only valid for contiguous data types.

Parameters

target_disp Window displacement on target

◆ put() [6/6]

template<class Type>

bool put	(	const UPstream::opCodes	opCodeId,
		const SubList< Type >	buffer,
		int	toProcNo,
		int	target_disp = 0 ) const

inline

Put and accumulate from SubList storage (contiguous data only) to window location on given processor. A no-op for an empty or null buffer, or if not running in parallel.

Note: Only valid for contiguous data types.

Parameters

target_disp Window displacement on target

The documentation for this class was generated from the following files:

src/OpenFOAM/db/IOstreams/Pstreams/UPstreamWindow.H
src/Pstream/dummy/UPstreamWindow.C
src/Pstream/mpi/UPstreamWindow.C

Public Types

Public Member Functions

Protected Member Functions

Static Protected Member Functions

Detailed Description

Member Typedef Documentation

◆ value_type

Constructor & Destructor Documentation

◆ Window() [1/5]

◆ Window() [2/5]

◆ Window() [3/5]

◆ Window() [4/5]

◆ Window() [5/5]

Member Function Documentation

◆ element_width()

◆ mpi_win_allocate() [1/2]

◆ mpi_win_allocate() [2/2]

◆ mpi_win_create() [1/2]

◆ mpi_win_create() [2/2]

◆ mpi_win_query()

◆ mpi_win_query_shared()

◆ get_data()

◆ put_data() [1/2]

◆ put_data() [2/2]

◆ mpi_fetch_and_op()

◆ mpi_win_flushing()

◆ mpi_win_locking()

◆ mpi_win_unlocking()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ operator==()

◆ operator!=()

◆ value()

◆ pointer()

◆ good()

◆ reset()

◆ size()

◆ allocate() [1/2]

◆ allocate() [2/2]

◆ allocate_shared() [1/2]

◆ allocate_shared() [2/2]

◆ create() [1/8]

◆ create() [2/8]

◆ create() [3/8]

◆ create() [4/8]

◆ create() [5/8]

◆ create() [6/8]

◆ create() [7/8]

◆ create() [8/8]

◆ lock()

◆ unlock()

◆ lock_all()

◆ unlock_all()

◆ flush()

◆ flush_all()

◆ flush_local()

◆ flush_local_all()

◆ sync()

◆ close()

◆ is_shared()

◆ view()

◆ view_shared()

◆ get() [1/3]

◆ put() [1/6]

◆ put() [2/6]

◆ get_value()

◆ put_value() [1/2]

◆ put_value() [2/2]

◆ get() [2/3]

◆ put() [3/6]

◆ put() [4/6]

◆ get() [3/3]

◆ fetch_and_op()

◆ put() [5/6]

◆ put() [6/6]
