#include <adjointFarFieldNuaTildaFvPatchScalarField.H>

Inheritance diagram for adjointFarFieldNuaTildaFvPatchScalarField:

[legend]

Collaboration diagram for adjointFarFieldNuaTildaFvPatchScalarField:

[legend]

Public Member Functions
	TypeName ("adjointFarFieldNuaTilda")
	Runtime type information.
	adjointFarFieldNuaTildaFvPatchScalarField (const fvPatch &, const DimensionedField< scalar, volMesh > &)
	Construct from patch and internal field.
	adjointFarFieldNuaTildaFvPatchScalarField (const fvPatch &, const DimensionedField< scalar, volMesh > &, const dictionary &)
	Construct from patch, internal field and dictionary.
	adjointFarFieldNuaTildaFvPatchScalarField (const adjointFarFieldNuaTildaFvPatchScalarField &, const fvPatch &, const DimensionedField< scalar, volMesh > &, const fvPatchFieldMapper &)
	Construct by mapping given adjointFarFieldNuaTildaFvPatchScalarField onto a new patch.
	adjointFarFieldNuaTildaFvPatchScalarField (const adjointFarFieldNuaTildaFvPatchScalarField &, const DimensionedField< scalar, volMesh > &)
	Construct as copy setting internal field reference.
virtual tmp< fvPatchField< scalar > >	clone () const
	Return a clone.
virtual tmp< fvPatchField< scalar > >	clone (const DimensionedField< scalar, volMesh > &iF) const
	Clone with an internal field reference.
virtual void	updateCoeffs ()
	Update the coefficients associated with the patch field.
virtual tmp< Field< scalar > >	valueInternalCoeffs (const tmp< scalarField > &) const
	Return the matrix diagonal coefficients corresponding to the evaluation of the value of this patchField with given weights.
virtual tmp< Field< scalar > >	valueBoundaryCoeffs (const tmp< scalarField > &) const
	Return the matrix source coefficients corresponding to the evaluation of the value of this patchField with given weights.
virtual void	write (Ostream &) const
	Write.
Public Member Functions inherited from adjointBoundaryCondition< scalar >
	TypeName ("adjointBoundaryCondition")
	Run-time type information.
	adjointBoundaryCondition (const fvPatch &p, const DimensionedField< scalar, volMesh > &iF, const word &solverName)
	Construct from field and base name.
	adjointBoundaryCondition (const adjointBoundaryCondition< scalar > &)
	Construct as copy.
virtual	~adjointBoundaryCondition ()=default
	Destructor.
const word &	objectiveManagerName () const
	Return objectiveManager name.
const word &	adjointSolverName () const
	Return adjointSolverName.
const word &	simulationType () const
	Return the simulationType.
void	setBoundaryContributionPtr ()
	Set the ptr to the correct boundaryAdjointContribution.
boundaryAdjointContribution &	getBoundaryAdjContribution ()
	Get boundaryContribution.
const ATCModel &	getATC () const
	ATC type might be useful for a number of BCs. Return here.
virtual tmp< Field< typename Foam::outerProduct< Foam::vector, scalar >::type > >	dxdbMult () const
	Return contribution to sensitivity derivatives.
virtual void	updatePrimalBasedQuantities ()
	Update the primal based quantities related to the adjoint boundary conditions.

Additional Inherited Members
Protected Member Functions inherited from adjointBoundaryCondition< scalar >
tmp< Field< typename Foam::outerProduct< Foam::vector, Type2 >::type > >	computePatchGrad (word name)
	Get gradient of field on a specific boundary.
bool	addATCUaGradUTerm ()
	Whether to add the extra term from the UaGradU formulation.
Protected Attributes inherited from adjointBoundaryCondition< scalar >
const fvPatch &	patch_
	Reference to patch.
word	managerName_
	objectiveManager name corresponding to field
word	adjointSolverName_
	adjointSolver name corresponding to field
word	simulationType_
	simulationType corresponding to field.
autoPtr< boundaryAdjointContribution >	boundaryContrPtr_
	Engine to manage contributions of the objective functions to the adjoint boundary conditions.
Switch	addATCUaGradUTerm_
	Whether to add the extra term from the UaGradU formulation.

Detailed Description

Source files

Definition at line 49 of file adjointFarFieldNuaTildaFvPatchScalarField.H.

Constructor & Destructor Documentation

◆ adjointFarFieldNuaTildaFvPatchScalarField() [1/4]

adjointFarFieldNuaTildaFvPatchScalarField	(	const fvPatch &	p,
		const DimensionedField< scalar, volMesh > &	iF )

Construct from patch and internal field.

Definition at line 36 of file adjointFarFieldNuaTildaFvPatchScalarField.C.

References p.

Referenced by adjointFarFieldNuaTildaFvPatchScalarField(), adjointFarFieldNuaTildaFvPatchScalarField(), and TypeName().

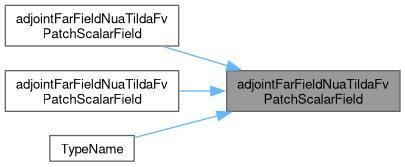

Here is the caller graph for this function:

◆ adjointFarFieldNuaTildaFvPatchScalarField() [2/4]

adjointFarFieldNuaTildaFvPatchScalarField	(	const fvPatch &	p,
		const DimensionedField< scalar, volMesh > &	iF,
		const dictionary &	dict )

Construct from patch, internal field and dictionary.

Definition at line 62 of file adjointFarFieldNuaTildaFvPatchScalarField.C.

References dict, IOobjectOption::MUST_READ, and p.

◆ adjointFarFieldNuaTildaFvPatchScalarField() [3/4]

adjointFarFieldNuaTildaFvPatchScalarField	(	const adjointFarFieldNuaTildaFvPatchScalarField &	ptf,
		const fvPatch &	p,
		const DimensionedField< scalar, volMesh > &	iF,
		const fvPatchFieldMapper &	mapper )

Construct by mapping given adjointFarFieldNuaTildaFvPatchScalarField onto a new patch.

Definition at line 48 of file adjointFarFieldNuaTildaFvPatchScalarField.C.

References adjointFarFieldNuaTildaFvPatchScalarField(), adjointBoundaryCondition< scalar >::adjointSolverName_, and p.

Here is the call graph for this function:

◆ adjointFarFieldNuaTildaFvPatchScalarField() [4/4]

adjointFarFieldNuaTildaFvPatchScalarField	(	const adjointFarFieldNuaTildaFvPatchScalarField &	tppsf,
		const DimensionedField< scalar, volMesh > &	iF )

Construct as copy setting internal field reference.

Definition at line 77 of file adjointFarFieldNuaTildaFvPatchScalarField.C.

References adjointFarFieldNuaTildaFvPatchScalarField().

Here is the call graph for this function:

Member Function Documentation

◆ TypeName()

TypeName ( "adjointFarFieldNuaTilda" )

Runtime type information.

References adjointFarFieldNuaTildaFvPatchScalarField().

Here is the call graph for this function:

◆ clone() [1/2]

virtual tmp< fvPatchField< scalar > > clone ( ) const

inlinevirtual

Return a clone.

Definition at line 107 of file adjointFarFieldNuaTildaFvPatchScalarField.H.

References fvPatchField< Type >::Clone().

Here is the call graph for this function:

◆ clone() [2/2]

virtual tmp< fvPatchField< scalar > > clone ( const DimensionedField< scalar, volMesh > & iF ) const

inlinevirtual

Clone with an internal field reference.

Definition at line 115 of file adjointFarFieldNuaTildaFvPatchScalarField.H.

References fvPatchField< Type >::Clone().

Here is the call graph for this function:

◆ updateCoeffs()

void updateCoeffs ( )

virtual

Update the coefficients associated with the patch field.

Definition at line 91 of file adjointFarFieldNuaTildaFvPatchScalarField.C.

References adjointBoundaryCondition< scalar >::boundaryContrPtr_, delta, and Foam::pos().

Here is the call graph for this function:

◆ valueInternalCoeffs()

tmp< Field< scalar > > valueInternalCoeffs ( const tmp< scalarField > & ) const

virtual

Return the matrix diagonal coefficients corresponding to the evaluation of the value of this patchField with given weights.

Definition at line 124 of file adjointFarFieldNuaTildaFvPatchScalarField.C.

References adjointBoundaryCondition< scalar >::boundaryContrPtr_, Foam::neg(), and Foam::New().

Here is the call graph for this function:

◆ valueBoundaryCoeffs()

tmp< Field< scalar > > valueBoundaryCoeffs ( const tmp< scalarField > & ) const

virtual

Return the matrix source coefficients corresponding to the evaluation of the value of this patchField with given weights.

Definition at line 137 of file adjointFarFieldNuaTildaFvPatchScalarField.C.

References adjointBoundaryCondition< scalar >::boundaryContrPtr_, Foam::New(), and Foam::pos().

Here is the call graph for this function:

◆ write()

void write ( Ostream & os ) const

virtual

Write.

Definition at line 150 of file adjointFarFieldNuaTildaFvPatchScalarField.C.

References adjointBoundaryCondition< scalar >::adjointSolverName_, os(), fvPatchField< Type >::write(), and fvPatchField< Type >::writeValueEntry().

Here is the call graph for this function:

The documentation for this class was generated from the following files:

src/optimisation/adjointOptimisation/adjoint/turbulenceModels/incompressibleAdjoint/adjointRAS/derivedFvPatchFields/adjointFarFieldNuaTilda/adjointFarFieldNuaTildaFvPatchScalarField.H
src/optimisation/adjointOptimisation/adjoint/turbulenceModels/incompressibleAdjoint/adjointRAS/derivedFvPatchFields/adjointFarFieldNuaTilda/adjointFarFieldNuaTildaFvPatchScalarField.C
