An outlet boundary condition for patches in which the primal flow exhibits recirculation. Adds the contribution of the objective as an adjoint momentum flux directly to the PDEs, without the need to first compute an adjoint outlet velocity, circumventing thus the division with (almost) zero that manifests in case of primal flow recirculation. More...

#include <adjointOutletVelocityFluxFvPatchVectorField.H>

Inheritance diagram for adjointOutletVelocityFluxFvPatchVectorField:

[legend]

Collaboration diagram for adjointOutletVelocityFluxFvPatchVectorField:

[legend]

Public Member Functions
	TypeName ("adjointOutletVelocityFlux")
	Runtime type information.
	adjointOutletVelocityFluxFvPatchVectorField (const fvPatch &, const DimensionedField< vector, volMesh > &)
	Construct from patch and internal field.
	adjointOutletVelocityFluxFvPatchVectorField (const fvPatch &, const DimensionedField< vector, volMesh > &, const dictionary &)
	Construct from patch, internal field and dictionary.
	adjointOutletVelocityFluxFvPatchVectorField (const adjointOutletVelocityFluxFvPatchVectorField &, const fvPatch &, const DimensionedField< vector, volMesh > &, const fvPatchFieldMapper &)
	Construct by mapping given adjointOutletVelocityFluxFvPatchVectorField onto a new patch.
	adjointOutletVelocityFluxFvPatchVectorField (const adjointOutletVelocityFluxFvPatchVectorField &, const DimensionedField< vector, volMesh > &)
	Construct as copy setting internal field reference.
virtual tmp< fvPatchField< vector > >	clone () const
	Return a clone.
virtual tmp< fvPatchField< vector > >	clone (const DimensionedField< vector, volMesh > &iF) const
	Clone with an internal field reference.
virtual bool	assignable () const
	Return true: Allow adjoint solvers to obtain the outlet phia.
virtual void	manipulateMatrix (fvMatrix< vector > &matrix)
	add source term in the first cells off the wall due to adjoint WF
virtual void	updateCoeffs ()
	Update the coefficients associated with the patch field.
virtual tmp< Field< vector > >	valueInternalCoeffs (const tmp< scalarField > &) const
	Return the matrix diagonal coefficients corresponding to the evaluation of the value of this patchField with given weights.
virtual tmp< Field< vector > >	valueBoundaryCoeffs (const tmp< scalarField > &) const
	Return the matrix source coefficients corresponding to the evaluation of the value of this patchField with given weights.
virtual tmp< Field< vector > >	gradientBoundaryCoeffs () const
	Return the matrix source coefficients corresponding to the evaluation of the gradient of this patchField.
virtual tmp< Field< vector > >	gradientInternalCoeffs () const
	Return the matrix diagonal coefficients corresponding to the evaluation of the gradient of this patchField.
virtual void	write (Ostream &) const
	Write.
virtual void	operator= (const fvPatchField< vector > &pvf)
Public Member Functions inherited from adjointBoundaryCondition< vector >
	TypeName ("adjointBoundaryCondition")
	Run-time type information.
	adjointBoundaryCondition (const fvPatch &p, const DimensionedField< vector, volMesh > &iF, const word &solverName)
	Construct from field and base name.
	adjointBoundaryCondition (const adjointBoundaryCondition< vector > &)
	Construct as copy.
virtual	~adjointBoundaryCondition ()=default
	Destructor.
const word &	objectiveManagerName () const
	Return objectiveManager name.
const word &	adjointSolverName () const
	Return adjointSolverName.
const word &	simulationType () const
	Return the simulationType.
void	setBoundaryContributionPtr ()
	Set the ptr to the correct boundaryAdjointContribution.
boundaryAdjointContribution &	getBoundaryAdjContribution ()
	Get boundaryContribution.
const ATCModel &	getATC () const
	ATC type might be useful for a number of BCs. Return here.
virtual tmp< Field< typename Foam::outerProduct< Foam::vector, vector >::type > >	dxdbMult () const
	Return contribution to sensitivity derivatives.
virtual void	updatePrimalBasedQuantities ()
	Update the primal based quantities related to the adjoint boundary conditions.

Additional Inherited Members
Protected Member Functions inherited from adjointBoundaryCondition< vector >
tmp< Field< typename Foam::outerProduct< Foam::vector, Type2 >::type > >	computePatchGrad (word name)
	Get gradient of field on a specific boundary.
bool	addATCUaGradUTerm ()
	Whether to add the extra term from the UaGradU formulation.
Protected Attributes inherited from adjointBoundaryCondition< vector >
const fvPatch &	patch_
	Reference to patch.
word	managerName_
	objectiveManager name corresponding to field
word	adjointSolverName_
	adjointSolver name corresponding to field
word	simulationType_
	simulationType corresponding to field.
autoPtr< boundaryAdjointContribution >	boundaryContrPtr_
	Engine to manage contributions of the objective functions to the adjoint boundary conditions.
Switch	addATCUaGradUTerm_
	Whether to add the extra term from the UaGradU formulation.

Detailed Description

An outlet boundary condition for patches in which the primal flow exhibits recirculation. Adds the contribution of the objective as an adjoint momentum flux directly to the PDEs, without the need to first compute an adjoint outlet velocity, circumventing thus the division with (almost) zero that manifests in case of primal flow recirculation.

Source files

Definition at line 55 of file adjointOutletVelocityFluxFvPatchVectorField.H.

Constructor & Destructor Documentation

◆ adjointOutletVelocityFluxFvPatchVectorField() [1/4]

adjointOutletVelocityFluxFvPatchVectorField	(	const fvPatch &	p,
		const DimensionedField< vector, volMesh > &	iF )

Construct from patch and internal field.

Definition at line 30 of file adjointOutletVelocityFluxFvPatchVectorField.C.

References p.

Referenced by adjointOutletVelocityFluxFvPatchVectorField(), adjointOutletVelocityFluxFvPatchVectorField(), manipulateMatrix(), and TypeName().

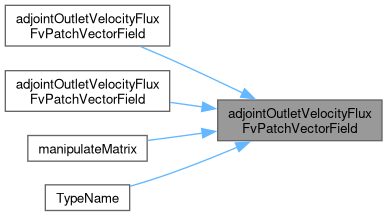

Here is the caller graph for this function:

◆ adjointOutletVelocityFluxFvPatchVectorField() [2/4]

adjointOutletVelocityFluxFvPatchVectorField	(	const fvPatch &	p,
		const DimensionedField< vector, volMesh > &	iF,
		const dictionary &	dict )

Construct from patch, internal field and dictionary.

Definition at line 56 of file adjointOutletVelocityFluxFvPatchVectorField.C.

References dict, IOobjectOption::MUST_READ, and p.

◆ adjointOutletVelocityFluxFvPatchVectorField() [3/4]

adjointOutletVelocityFluxFvPatchVectorField	(	const adjointOutletVelocityFluxFvPatchVectorField &	ptf,
		const fvPatch &	p,
		const DimensionedField< vector, volMesh > &	iF,
		const fvPatchFieldMapper &	mapper )

Construct by mapping given adjointOutletVelocityFluxFvPatchVectorField onto a new patch.

Definition at line 42 of file adjointOutletVelocityFluxFvPatchVectorField.C.

References adjointOutletVelocityFluxFvPatchVectorField(), adjointBoundaryCondition< vector >::adjointSolverName_, and p.

Here is the call graph for this function:

◆ adjointOutletVelocityFluxFvPatchVectorField() [4/4]

adjointOutletVelocityFluxFvPatchVectorField	(	const adjointOutletVelocityFluxFvPatchVectorField &	pivpvf,
		const DimensionedField< vector, volMesh > &	iF )

Construct as copy setting internal field reference.

Definition at line 71 of file adjointOutletVelocityFluxFvPatchVectorField.C.

References adjointOutletVelocityFluxFvPatchVectorField().

Here is the call graph for this function:

Member Function Documentation

◆ TypeName()

TypeName ( "adjointOutletVelocityFlux" )

Runtime type information.

References adjointOutletVelocityFluxFvPatchVectorField().

Here is the call graph for this function:

◆ clone() [1/2]

virtual tmp< fvPatchField< vector > > clone ( ) const

inlinevirtual

Return a clone.

Definition at line 115 of file adjointOutletVelocityFluxFvPatchVectorField.H.

References fvPatchField< Type >::Clone().

Here is the call graph for this function:

◆ clone() [2/2]

virtual tmp< fvPatchField< vector > > clone ( const DimensionedField< vector, volMesh > & iF ) const

inlinevirtual

Clone with an internal field reference.

Definition at line 123 of file adjointOutletVelocityFluxFvPatchVectorField.H.

References fvPatchField< Type >::Clone().

Here is the call graph for this function:

◆ assignable()

virtual bool assignable ( ) const

inlinevirtual

Return true: Allow adjoint solvers to obtain the outlet phia.

value through HbyA

Definition at line 139 of file adjointOutletVelocityFluxFvPatchVectorField.H.

◆ manipulateMatrix()

void manipulateMatrix ( fvMatrix< vector > & matrix )

virtual

add source term in the first cells off the wall due to adjoint WF

Definition at line 85 of file adjointOutletVelocityFluxFvPatchVectorField.C.

References addProfiling, adjointOutletVelocityFluxFvPatchVectorField(), adjointBoundaryCondition< vector >::boundaryContrPtr_, adjointBoundaryCondition< vector >::computePatchGrad(), forAll, SphericalTensor< scalar >::oneThirdI, fvMatrix< Type >::source(), and Foam::tr().

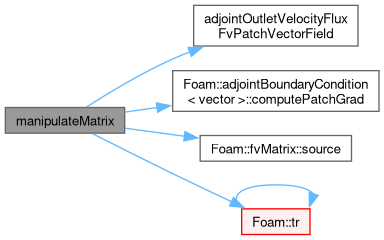

Here is the call graph for this function:

◆ updateCoeffs()

void updateCoeffs ( )

virtual

Update the coefficients associated with the patch field.

Definition at line 139 of file adjointOutletVelocityFluxFvPatchVectorField.C.

References adjointBoundaryCondition< vector >::boundaryContrPtr_, and Foam::operator==().

Here is the call graph for this function:

◆ valueInternalCoeffs()

Foam::tmp< Foam::Field< Foam::vector > > valueInternalCoeffs ( const tmp< scalarField > & ) const

virtual

Return the matrix diagonal coefficients corresponding to the evaluation of the value of this patchField with given weights.

Definition at line 160 of file adjointOutletVelocityFluxFvPatchVectorField.C.

References Foam::New(), and Foam::Zero.

Here is the call graph for this function:

◆ valueBoundaryCoeffs()

Foam::tmp< Foam::Field< Foam::vector > > valueBoundaryCoeffs ( const tmp< scalarField > & ) const

virtual

Return the matrix source coefficients corresponding to the evaluation of the value of this patchField with given weights.

Definition at line 170 of file adjointOutletVelocityFluxFvPatchVectorField.C.

References Foam::New(), and Foam::Zero.

Here is the call graph for this function:

◆ gradientBoundaryCoeffs()

Foam::tmp< Foam::Field< Foam::vector > > gradientBoundaryCoeffs ( ) const

virtual

Return the matrix source coefficients corresponding to the evaluation of the gradient of this patchField.

Definition at line 180 of file adjointOutletVelocityFluxFvPatchVectorField.C.

References Foam::New(), and Foam::Zero.

Here is the call graph for this function:

◆ gradientInternalCoeffs()

Foam::tmp< Foam::Field< Foam::vector > > gradientInternalCoeffs ( ) const

virtual

Return the matrix diagonal coefficients corresponding to the evaluation of the gradient of this patchField.

Definition at line 188 of file adjointOutletVelocityFluxFvPatchVectorField.C.

References Foam::New(), and Foam::Zero.

Here is the call graph for this function:

◆ write()

void write ( Ostream & os ) const

virtual

Write.

Definition at line 195 of file adjointOutletVelocityFluxFvPatchVectorField.C.

References adjointBoundaryCondition< vector >::adjointSolverName_, os(), fvPatchField< Type >::write(), and fvPatchField< Type >::writeValueEntry().

Here is the call graph for this function:

◆ operator=()

void operator= ( const fvPatchField< vector > & pvf )

virtual

Definition at line 208 of file adjointOutletVelocityFluxFvPatchVectorField.C.

References fvPatchField< Type >::operator=().

Here is the call graph for this function:

The documentation for this class was generated from the following files:

src/optimisation/adjointOptimisation/adjoint/adjointBoundaryConditions/adjointOutletVelocityFlux/adjointOutletVelocityFluxFvPatchVectorField.H
src/optimisation/adjointOptimisation/adjoint/adjointBoundaryConditions/adjointOutletVelocityFlux/adjointOutletVelocityFluxFvPatchVectorField.C
