This boundary condition provides a log-law type ground-normal inlet boundary condition for the turbulent kinetic energy dissipation rate (i.e. epsilon) for homogeneous, two-dimensional, dry-air, equilibrium and neutral atmospheric boundary layer modelling. More...

#include <atmBoundaryLayerInletEpsilonFvPatchScalarField.H>

Inheritance diagram for atmBoundaryLayerInletEpsilonFvPatchScalarField:

[legend]

Collaboration diagram for atmBoundaryLayerInletEpsilonFvPatchScalarField:

[legend]

Public Member Functions
	TypeName ("atmBoundaryLayerInletEpsilon")
	Runtime type information.
	atmBoundaryLayerInletEpsilonFvPatchScalarField (const fvPatch &, const DimensionedField< scalar, volMesh > &)
	Construct from patch and internal field.
	atmBoundaryLayerInletEpsilonFvPatchScalarField (const fvPatch &, const DimensionedField< scalar, volMesh > &, const dictionary &)
	Construct from patch, internal field and dictionary.
	atmBoundaryLayerInletEpsilonFvPatchScalarField (const atmBoundaryLayerInletEpsilonFvPatchScalarField &, const fvPatch &, const DimensionedField< scalar, volMesh > &, const fvPatchFieldMapper &)
	Construct by mapping given atmBoundaryLayerInletEpsilonFvPatchScalarField onto a new patch.
	atmBoundaryLayerInletEpsilonFvPatchScalarField (const atmBoundaryLayerInletEpsilonFvPatchScalarField &, const DimensionedField< scalar, volMesh > &)
	Construct as copy setting internal field reference.
virtual tmp< fvPatchField< scalar > >	clone () const
	Return a clone.
virtual tmp< fvPatchField< scalar > >	clone (const DimensionedField< scalar, volMesh > &iF) const
	Clone with an internal field reference.
virtual void	updateCoeffs ()
	Update the coefficients associated with the patch field.
virtual void	autoMap (const fvPatchFieldMapper &)
	Map (and resize as needed) from self given a mapping object.
virtual void	rmap (const fvPatchScalarField &, const labelList &)
	Reverse map the given fvPatchField onto this fvPatchField.
virtual void	write (Ostream &) const
	Write.
Public Member Functions inherited from atmBoundaryLayer
	atmBoundaryLayer (const Time &time, const polyPatch &pp)
	Construct null from time.
	atmBoundaryLayer (const Time &time, const polyPatch &pp, const dictionary &dict)
	Construct from the time database and dictionary.
	atmBoundaryLayer (const atmBoundaryLayer &abl, const fvPatch &patch, const fvPatchFieldMapper &mapper)
	Construct by mapping given atmBoundaryLayer onto a new patch.
	atmBoundaryLayer (const atmBoundaryLayer &)
	Construct as copy.
vector	flowDir () const
	Return flow direction.
vector	zDir () const
	Return the ground-normal direction.
tmp< scalarField >	Ustar (const scalarField &z0) const
	Return friction velocity.
void	autoMap (const fvPatchFieldMapper &)
	Map (and resize as needed) from self given a mapping object.
void	rmap (const atmBoundaryLayer &, const labelList &)
	Reverse map the given fvPatchField onto this fvPatchField.
tmp< vectorField >	U (const vectorField &pCf) const
	Return the velocity distribution for the ATM.
tmp< scalarField >	k (const vectorField &pCf) const
	Return the turbulent kinetic energy distribution for the ATM.
tmp< scalarField >	epsilon (const vectorField &pCf) const
	Return the turbulent dissipation rate distribution for the ATM.
tmp< scalarField >	omega (const vectorField &pCf) const
	Return the specific dissipation rate distribution for the ATM.
void	write (Ostream &) const
	Write.

Additional Inherited Members
Protected Attributes inherited from atmBoundaryLayer
bool	initABL_
	Flag to initialise profiles with the theoretical ABL expressions, otherwise initialises by using "value" entry content.

Detailed Description

This boundary condition provides a log-law type ground-normal inlet boundary condition for the turbulent kinetic energy dissipation rate (i.e. epsilon) for homogeneous, two-dimensional, dry-air, equilibrium and neutral atmospheric boundary layer modelling.

The ground-normal epsilon profile expression:

$\‍[ \epsilon = \frac{(u^*)^3}{\kappa (z - d + z_0)} \sqrt{C_1 \ln \left( \frac{z - d + z_0}{z_0} \right) + C_2} \‍]$

where

$\epsilon$	=	Ground-normal TKE dissipation rate profile [m^2/s^3]
	=	Friction velocity [m/s]
$\kappa$	=	von Kármán constant [-]
	=	Ground-normal coordinate component [m]
	=	Aerodynamic roughness length [m]
	=	Ground-normal displacement height [m]
	=	Curve-fitting coefficient for `YGCJ` profiles [-]
	=	Curve-fitting coefficient for `YGCJ` profiles [-]

Required fields:

        epsilon   | Turbulent kinetic energy dissipation rate   [m2/s3]

Usage

Example of the boundary condition specification:

inlet
{
    // Mandatory entries (unmodifiable)
    type            atmBoundaryLayerInletEpsilon;

    // Mandatory/Optional (inherited) entries (unmodifiable)
    ...
}

where the entries mean:

Property	Description	Type	Reqd	Deflt
`type`	Type name: atmBoundaryLayerInletEpsilon	word	yes	-

The inherited entries are elaborated in:

See also

Source files

Definition at line 152 of file atmBoundaryLayerInletEpsilonFvPatchScalarField.H.

Constructor & Destructor Documentation

◆ atmBoundaryLayerInletEpsilonFvPatchScalarField() [1/4]

atmBoundaryLayerInletEpsilonFvPatchScalarField	(	const fvPatch &	p,
		const DimensionedField< scalar, volMesh > &	iF )

Construct from patch and internal field.

Definition at line 36 of file atmBoundaryLayerInletEpsilonFvPatchScalarField.C.

References atmBoundaryLayer::atmBoundaryLayer(), and p.

Referenced by atmBoundaryLayerInletEpsilonFvPatchScalarField(), atmBoundaryLayerInletEpsilonFvPatchScalarField(), rmap(), and TypeName().

Here is the call graph for this function:

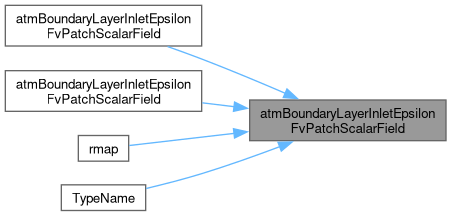

Here is the caller graph for this function:

◆ atmBoundaryLayerInletEpsilonFvPatchScalarField() [2/4]

atmBoundaryLayerInletEpsilonFvPatchScalarField	(	const fvPatch &	p,
		const DimensionedField< scalar, volMesh > &	iF,
		const dictionary &	dict )

Construct from patch, internal field and dictionary.

Definition at line 48 of file atmBoundaryLayerInletEpsilonFvPatchScalarField.C.

References atmBoundaryLayer::atmBoundaryLayer(), dict, epsilon, atmBoundaryLayer::initABL_, IOobjectOption::MUST_READ, Field< scalar >::operator=(), and p.

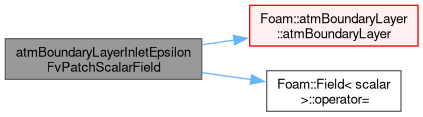

Here is the call graph for this function:

◆ atmBoundaryLayerInletEpsilonFvPatchScalarField() [3/4]

atmBoundaryLayerInletEpsilonFvPatchScalarField	(	const atmBoundaryLayerInletEpsilonFvPatchScalarField &	psf,
		const fvPatch &	p,
		const DimensionedField< scalar, volMesh > &	iF,
		const fvPatchFieldMapper &	mapper )

Construct by mapping given atmBoundaryLayerInletEpsilonFvPatchScalarField onto a new patch.

Definition at line 77 of file atmBoundaryLayerInletEpsilonFvPatchScalarField.C.

References atmBoundaryLayer::atmBoundaryLayer(), atmBoundaryLayerInletEpsilonFvPatchScalarField(), and p.

Here is the call graph for this function:

◆ atmBoundaryLayerInletEpsilonFvPatchScalarField() [4/4]

atmBoundaryLayerInletEpsilonFvPatchScalarField	(	const atmBoundaryLayerInletEpsilonFvPatchScalarField &	psf,
		const DimensionedField< scalar, volMesh > &	iF )

Construct as copy setting internal field reference.

Definition at line 91 of file atmBoundaryLayerInletEpsilonFvPatchScalarField.C.

References atmBoundaryLayer::atmBoundaryLayer(), and atmBoundaryLayerInletEpsilonFvPatchScalarField().

Here is the call graph for this function:

Member Function Documentation

◆ TypeName()

TypeName ( "atmBoundaryLayerInletEpsilon" )

Runtime type information.

References atmBoundaryLayerInletEpsilonFvPatchScalarField().

Here is the call graph for this function:

◆ clone() [1/2]

virtual tmp< fvPatchField< scalar > > clone ( ) const

inlinevirtual

Return a clone.

Definition at line 211 of file atmBoundaryLayerInletEpsilonFvPatchScalarField.H.

References fvPatchField< Type >::Clone().

Here is the call graph for this function:

◆ clone() [2/2]

virtual tmp< fvPatchField< scalar > > clone ( const DimensionedField< scalar, volMesh > & iF ) const

inlinevirtual

Clone with an internal field reference.

Definition at line 219 of file atmBoundaryLayerInletEpsilonFvPatchScalarField.H.

References fvPatchField< Type >::Clone().

Here is the call graph for this function:

◆ updateCoeffs()

void updateCoeffs ( )

virtual

Update the coefficients associated with the patch field.

Definition at line 105 of file atmBoundaryLayerInletEpsilonFvPatchScalarField.C.

References epsilon.

◆ autoMap()

void autoMap ( const fvPatchFieldMapper & m )

virtual

Map (and resize as needed) from self given a mapping object.

Definition at line 118 of file atmBoundaryLayerInletEpsilonFvPatchScalarField.C.

References atmBoundaryLayer::autoMap().

Here is the call graph for this function:

◆ rmap()

void rmap	(	const fvPatchScalarField &	psf,
		const labelList &	addr )

virtual

Reverse map the given fvPatchField onto this fvPatchField.

Definition at line 128 of file atmBoundaryLayerInletEpsilonFvPatchScalarField.C.

References atmBoundaryLayerInletEpsilonFvPatchScalarField(), Foam::refCast(), and atmBoundaryLayer::rmap().

Here is the call graph for this function:

◆ write()

void write ( Ostream & os ) const

virtual

Write.

Definition at line 143 of file atmBoundaryLayerInletEpsilonFvPatchScalarField.C.

References os(), atmBoundaryLayer::write(), fvPatchField< Type >::write(), and fvPatchField< Type >::writeValueEntry().

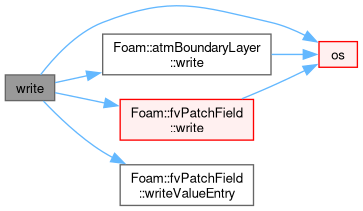

Here is the call graph for this function:

The documentation for this class was generated from the following files:

src/atmosphericModels/derivedFvPatchFields/atmBoundaryLayerInletEpsilon/atmBoundaryLayerInletEpsilonFvPatchScalarField.H
src/atmosphericModels/derivedFvPatchFields/atmBoundaryLayerInletEpsilon/atmBoundaryLayerInletEpsilonFvPatchScalarField.C
