Geometry calculation scheme to minimise non-orthogonality/. More...

#include <averageNeighbourFvGeometryScheme.H>

Inheritance diagram for averageNeighbourFvGeometryScheme:

Collaboration diagram for averageNeighbourFvGeometryScheme:

Public Member Functions
	TypeName ("averageNeighbour")
	Runtime type information.
	averageNeighbourFvGeometryScheme (const fvMesh &mesh, const dictionary &dict)
	Construct from mesh.
virtual	~averageNeighbourFvGeometryScheme ()=default
	Destructor.
virtual void	movePoints ()
	Do what is necessary if the mesh has moved.
virtual bool	updateGeom (const pointField &points, const refPtr< pointField > &oldPoints, pointField &faceCentres, vectorField &faceAreas, pointField &cellCentres, scalarField &cellVolumes) const
	Calculate geometry quantities using mesh topology and provided points. If oldPoints provided only does local update. Returns true if anything changed, false otherwise.
Public Member Functions inherited from highAspectRatioFvGeometryScheme
	TypeName ("highAspectRatio")
	Runtime type information.
	highAspectRatioFvGeometryScheme (const fvMesh &mesh, const dictionary &dict)
	Construct from mesh.
virtual	~highAspectRatioFvGeometryScheme ()=default
	Destructor.
Public Member Functions inherited from basicFvGeometryScheme
	TypeName ("basic")
	Runtime type information.
	basicFvGeometryScheme (const fvMesh &mesh, const dictionary &dict)
	Construct from mesh.
virtual	~basicFvGeometryScheme ()=default
	Destructor.
virtual tmp< surfaceScalarField >	weights () const
	Return linear difference weighting factors.
virtual tmp< surfaceScalarField >	deltaCoeffs () const
	Return cell-centre difference coefficients.
virtual tmp< surfaceScalarField >	nonOrthDeltaCoeffs () const
	Return non-orthogonal cell-centre difference coefficients.
virtual tmp< surfaceVectorField >	nonOrthCorrectionVectors () const
	Return non-orthogonality correction vectors.
Public Member Functions inherited from fvGeometryScheme
	TypeName ("fvGeometryScheme")
	Runtime type information.
	declareRunTimeSelectionTable (tmp, fvGeometryScheme, dict,(const fvMesh &mesh, const dictionary &dict),(mesh, dict))
	fvGeometryScheme (const fvMesh &mesh, const dictionary &dict)
	Construct from mesh.
virtual	~fvGeometryScheme ()=default
	Destructor.
const fvMesh &	mesh () const
	Return mesh reference.
virtual void	updateMesh (const mapPolyMesh &mpm)
	Update mesh for topology changes.
Public Member Functions inherited from refCount
constexpr	refCount () noexcept
	Default construct, initializing count to 0.
int	use_count () const noexcept
	Return the current reference count.
bool	unique () const noexcept
	Return true if the reference count is zero.
void	operator++ () noexcept
	Increment the reference count.
void	operator++ (int) noexcept
	Increment the reference count.
void	operator-- () noexcept
	Decrement the reference count.
void	operator-- (int) noexcept
	Decrement the reference count.

Protected Member Functions
label	clipFaceTet (const scalar minRatio, const vectorField &faceCentres, const vectorField &faceNormals, vectorField &faceCorrection) const
	Clip face-centre correction vector if new triangle area would get below min. Return number of clipped faces.
void	makePyrHeights (const pointField &cellCentres, const vectorField &faceCentres, const vectorField &faceNormals, scalarField &ownHeight, scalarField &neiHeight) const
	Calculate pyramid heights.
label	clipPyramids (const pointField &cellCentres, const vectorField &faceCentres, const vectorField &faceNormals, const scalarField &minOwnHeight, const scalarField &minNeiHeight, vectorField &correction) const
	Clip correction vector if new pyramid height would get below min. Return number of clipped cells.
tmp< pointField >	averageNeighbourCentres (const pointField &cellCentres, const vectorField &faceNormals, const scalarField &faceWeights) const
	Average neighbouring cell centres to minimise non-ortho.
tmp< pointField >	averageCentres (const pointField &cellCentres, const pointField &faceCentres, const vectorField &faceNormals) const
void	makeNonOrthoWeights (const pointField &cellCentres, const vectorField &faceNormals, scalarField &cosAngles, scalarField &faceWeights) const
	Make weights based on non-orthogonality.
Protected Member Functions inherited from highAspectRatioFvGeometryScheme
void	calcAspectRatioWeights (scalarField &cellWeight, scalarField &faceWeight) const
	Calculate cell and face weight. Is 0 for cell < minAspect, 1 for.
Protected Member Functions inherited from fvGeometryScheme
bool	setMeshPhi () const
	Set the mesh motion flux.

Protected Attributes
const label	nIters_
	Number of averaging iterations.
const scalar	relax_
	Blending between old-iteration cell centres and current average.
const scalar	minRatio_
	Clipping for pyramid heights - allowable shrinkage as fraction.
Protected Attributes inherited from highAspectRatioFvGeometryScheme
const scalar	minAspect_
const scalar	maxAspect_
Protected Attributes inherited from fvGeometryScheme
const fvMesh &	mesh_
	Hold reference to mesh.

Additional Inherited Members
Static Public Member Functions inherited from fvGeometryScheme
static tmp< fvGeometryScheme >	New (const fvMesh &mesh, const dictionary &dict, const word &defaultScheme)
	Return new tmp interpolation scheme.
Static Protected Member Functions inherited from highAspectRatioFvGeometryScheme
static void	makeAverageCentres (const polyMesh &mesh, const pointField &points, const pointField &faceAreas, const scalarField &magFaceAreas, pointField &faceCentres, pointField &cellCentres)
	Helper : calculate (weighted) average face and cell centres.

Detailed Description

Geometry calculation scheme to minimise non-orthogonality/.

Source files

Definition at line 48 of file averageNeighbourFvGeometryScheme.H.

Constructor & Destructor Documentation

◆ averageNeighbourFvGeometryScheme()

averageNeighbourFvGeometryScheme	(	const fvMesh &	mesh,
		const dictionary &	dict )

Construct from mesh.

Definition at line 544 of file averageNeighbourFvGeometryScheme.C.

References dict, fvGeometryScheme::mesh(), and nIters_.

Here is the call graph for this function:

◆ ~averageNeighbourFvGeometryScheme()

virtual ~averageNeighbourFvGeometryScheme ( )

virtualdefault

Destructor.

Member Function Documentation

◆ clipFaceTet()

Foam::label clipFaceTet	(	const scalar	minRatio,
		const vectorField &	faceCentres,
		const vectorField &	faceNormals,
		vectorField &	faceCorrection ) const

protected

Clip face-centre correction vector if new triangle area would get below min. Return number of clipped faces.

Definition at line 47 of file averageNeighbourFvGeometryScheme.C.

References f(), forAll, Foam::mag(), fvGeometryScheme::mesh_, n, nCorr, p, Foam::returnReduce(), and VectorSpace< Form, Cmpt, Ncmpts >::zero.

Referenced by movePoints().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ makePyrHeights()

void makePyrHeights	(	const pointField &	cellCentres,
		const vectorField &	faceCentres,
		const vectorField &	faceNormals,
		scalarField &	ownHeight,
		scalarField &	neiHeight ) const

protected

Calculate pyramid heights.

Definition at line 123 of file averageNeighbourFvGeometryScheme.C.

References fvGeometryScheme::mesh_, n, and List< T >::setSize().

Referenced by movePoints().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ clipPyramids()

Foam::label clipPyramids	(	const pointField &	cellCentres,
		const vectorField &	faceCentres,
		const vectorField &	faceNormals,
		const scalarField &	minOwnHeight,
		const scalarField &	minNeiHeight,
		vectorField &	correction ) const

protected

Clip correction vector if new pyramid height would get below min. Return number of clipped cells.

Definition at line 161 of file averageNeighbourFvGeometryScheme.C.

References Foam::correction(), fvGeometryScheme::mesh_, n, Foam::returnReduce(), and VectorSpace< Form, Cmpt, Ncmpts >::zero.

Referenced by movePoints().

Here is the call graph for this function:

Here is the caller graph for this function:

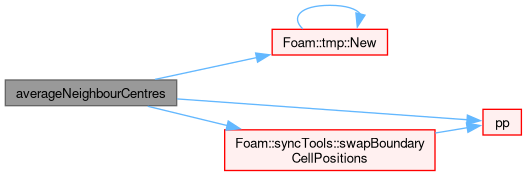

◆ averageNeighbourCentres()

Foam::tmp< Foam::pointField > averageNeighbourCentres	(	const pointField &	cellCentres,
		const vectorField &	faceNormals,
		const scalarField &	faceWeights ) const

protected

Average neighbouring cell centres to minimise non-ortho.

Definition at line 257 of file averageNeighbourFvGeometryScheme.C.

References forAll, fvGeometryScheme::mesh_, n, tmp< T >::New(), pbm, pp(), syncTools::swapBoundaryCellPositions(), and Foam::Zero.

Referenced by movePoints().

Here is the call graph for this function:

Here is the caller graph for this function:

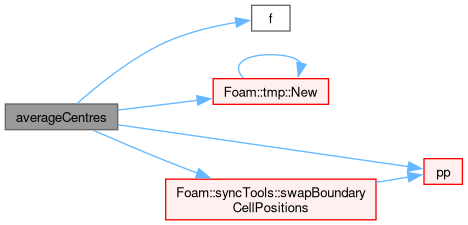

◆ averageCentres()

Foam::tmp< Foam::pointField > averageCentres	(	const pointField &	cellCentres,
		const pointField &	faceCentres,
		const vectorField &	faceNormals ) const

protected

Definition at line 366 of file averageNeighbourFvGeometryScheme.C.

References f(), forAll, fvGeometryScheme::mesh_, n, tmp< T >::New(), pbm, pp(), and syncTools::swapBoundaryCellPositions().

Referenced by movePoints().

Here is the call graph for this function:

Here is the caller graph for this function:

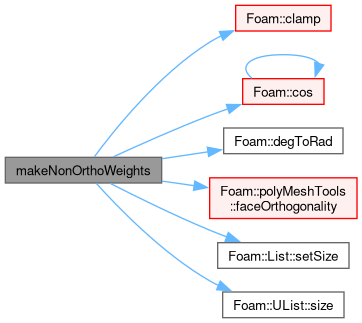

◆ makeNonOrthoWeights()

void makeNonOrthoWeights	(	const pointField &	cellCentres,
		const vectorField &	faceNormals,
		scalarField &	cosAngles,
		scalarField &	faceWeights ) const

protected

Make weights based on non-orthogonality.

Definition at line 499 of file averageNeighbourFvGeometryScheme.C.

References Foam::clamp(), Foam::cos(), Foam::degToRad(), polyMeshTools::faceOrthogonality(), forAll, fvGeometryScheme::mesh_, List< T >::setSize(), and UList< T >::size().

Referenced by movePoints().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ TypeName()

TypeName ( "averageNeighbour" )

Runtime type information.

References dict, and fvGeometryScheme::mesh().

Here is the call graph for this function:

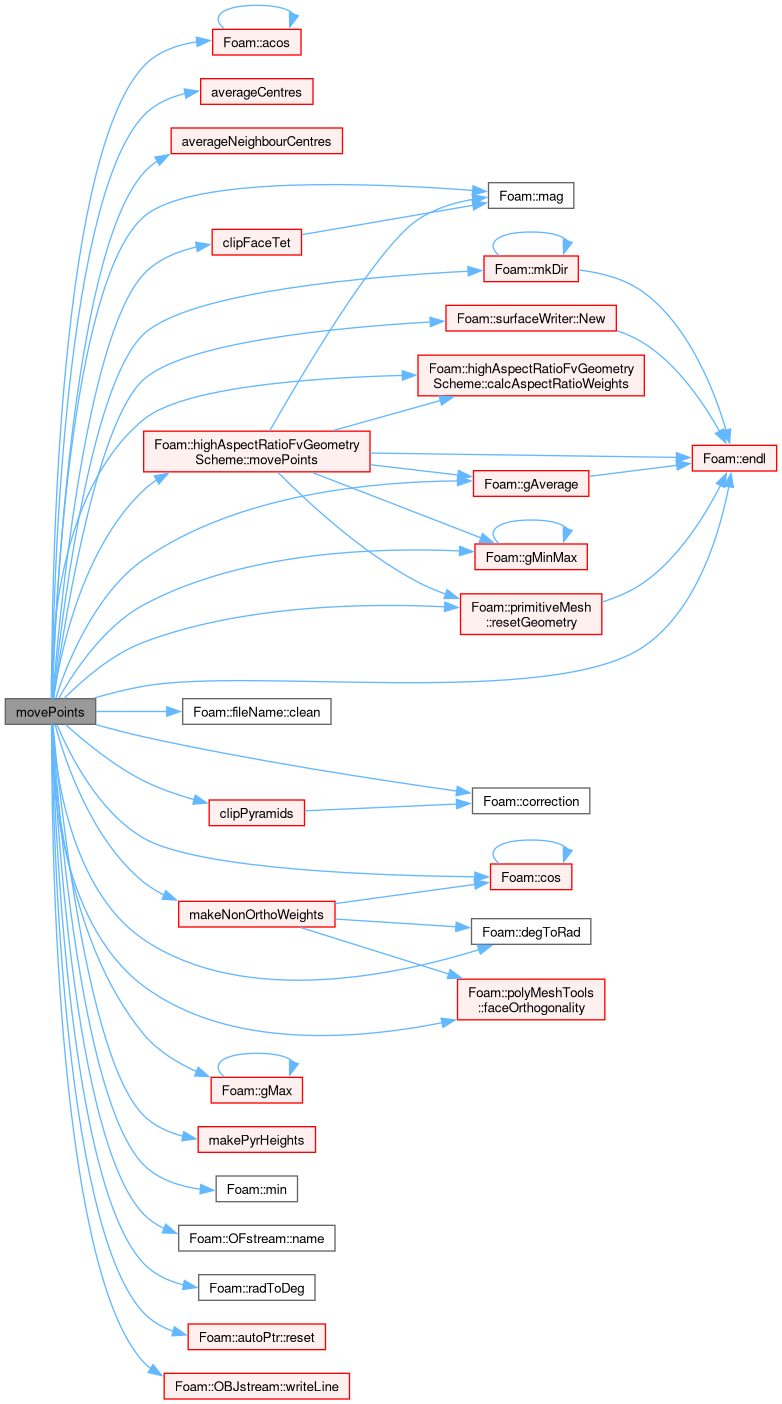

◆ movePoints()

void movePoints ( )

virtual

Do what is necessary if the mesh has moved.

Reimplemented from highAspectRatioFvGeometryScheme.

Definition at line 593 of file averageNeighbourFvGeometryScheme.C.

References Foam::acos(), averageCentres(), averageNeighbourCentres(), highAspectRatioFvGeometryScheme::calcAspectRatioWeights(), fileName::clean(), clipFaceTet(), clipPyramids(), Foam::correction(), Foam::cos(), Foam::degToRad(), Foam::endl(), polyMeshTools::faceOrthogonality(), forAll, Foam::gAverage(), Foam::gMax(), Foam::gMinMax(), limits, Foam::mag(), makeNonOrthoWeights(), makePyrHeights(), fvGeometryScheme::mesh_, Foam::min(), minRatio_, Foam::mkDir(), highAspectRatioFvGeometryScheme::movePoints(), OFstream::name(), surfaceWriter::New(), nIters_, functionObject::outputPrefix, Foam::Pout, Foam::radToDeg(), relax_, autoPtr< T >::reset(), primitiveMesh::resetGeometry(), and OBJstream::writeLine().

Here is the call graph for this function:

◆ updateGeom()

virtual bool updateGeom	(	const pointField &	points,
		const refPtr< pointField > &	oldPoints,
		pointField &	faceCentres,
		vectorField &	faceAreas,
		pointField &	cellCentres,
		scalarField &	cellVolumes ) const

inlinevirtual

Calculate geometry quantities using mesh topology and provided points. If oldPoints provided only does local update. Returns true if anything changed, false otherwise.

Reimplemented from highAspectRatioFvGeometryScheme.

Definition at line 197 of file averageNeighbourFvGeometryScheme.H.

References NotImplemented, and points.

Member Data Documentation

◆ nIters_

const label nIters_

protected

Number of averaging iterations.

Definition at line 73 of file averageNeighbourFvGeometryScheme.H.

Referenced by averageNeighbourFvGeometryScheme(), and movePoints().

◆ relax_

const scalar relax_

protected

Blending between old-iteration cell centres and current average.

Definition at line 78 of file averageNeighbourFvGeometryScheme.H.

Referenced by movePoints().

◆ minRatio_

const scalar minRatio_

protected

Clipping for pyramid heights - allowable shrinkage as fraction.

of original

Definition at line 85 of file averageNeighbourFvGeometryScheme.H.

Referenced by movePoints().
