Specialization of basicMultiComponentMixture for a mixture consisting of a number for molecular species. More...

#include <basicSpecieMixture.H>

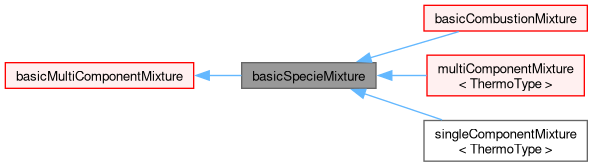

Inheritance diagram for basicSpecieMixture:

[legend]

Collaboration diagram for basicSpecieMixture:

Public Types
typedef basicSpecieMixture	basicMixtureType
	The base class of the mixture.
Public Types inherited from basicMultiComponentMixture
typedef basicMultiComponentMixture	basicMixtureType
	The base class of the mixture.
Public Types inherited from basicMixture
typedef basicMixture	basicMixtureType
	The base class of the mixture.

Public Member Functions
	TypeName ("basicSpecieMixture")
	Run time type information.
	basicSpecieMixture (const dictionary &thermoDict, const wordList &specieNames, const fvMesh &mesh, const word &phaseName)
	Construct from dictionary, species names, mesh and phase name.
virtual	~basicSpecieMixture ()=default
	Destructor.
virtual scalar	W (const label speciei) const =0
	Molecular weight of the given specie [kg/kmol].
virtual scalar	Hc (const label speciei) const =0
	Chemical enthalpy [J/kg].
virtual scalar	Cp (const label speciei, const scalar p, const scalar T) const =0
	Heat capacity at constant pressure [J/(kg K)].
virtual scalar	Cv (const label speciei, const scalar p, const scalar T) const =0
	Heat capacity at constant volume [J/(kg K)].
virtual scalar	HE (const label speciei, const scalar p, const scalar T) const =0
	Enthalpy/Internal energy [J/kg].
virtual scalar	Ha (const label speciei, const scalar p, const scalar T) const =0
	Absolute enthalpy [J/kg].
virtual scalar	Hs (const label speciei, const scalar p, const scalar T) const =0
	Sensible enthalpy [J/kg].
virtual scalar	S (const label speciei, const scalar p, const scalar T) const =0
	Entropy [J/(kg K)].
virtual scalar	Es (const label speciei, const scalar p, const scalar T) const =0
	Sensible internal energy [J/kg].
virtual scalar	G (const label speciei, const scalar p, const scalar T) const =0
	Gibbs free energy [J/kg].
virtual scalar	A (const label speciei, const scalar p, const scalar T) const =0
	Helmholtz free energy [J/kg].
virtual scalar	mu (const label speciei, const scalar p, const scalar T) const =0
	Dynamic viscosity [kg/m/s].
virtual scalar	kappa (const label speciei, const scalar p, const scalar T) const =0
	Thermal conductivity [W/m/K].
virtual scalar	alphah (const label speciei, const scalar p, const scalar T) const =0
	Thermal diffusivity of enthalpy [kg/m/s].
virtual scalar	rho (const label speciei, const scalar p, const scalar T) const =0
	Density [kg/m3].
virtual autoPtr< speciesCompositionTable >	specieComposition () const
	Species composition.
Public Member Functions inherited from basicMultiComponentMixture
	TypeName ("basicMultiComponentMixture")
	Run time type information.
	basicMultiComponentMixture (const dictionary &thermoDict, const wordList &specieNames, const fvMesh &mesh, const word &phaseName)
	Construct from dictionary, species names, mesh and phase name.
virtual	~basicMultiComponentMixture ()=default
	Destructor.
const speciesTable &	species () const
	Return the table of species.
bool	contains (const word &specieName) const
	Does the mixture include this specie?
bool	active (label speciei) const
	Return true for active species.
const List< bool > &	active () const
	Return the bool list of active species.
void	setActive (label speciei)
	Set speciei active.
void	setInactive (label speciei)
	Set speciei inactive.
PtrList< volScalarField > &	Y ()
	Return the mass-fraction fields.
const PtrList< volScalarField > &	Y () const
	Return the const mass-fraction fields.
volScalarField &	Y (const label i)
	Return the mass-fraction field for a specie given by index.
const volScalarField &	Y (const label i) const
	Return the const mass-fraction field for a specie given by index.
volScalarField &	Y (const word &specieName)
	Return the mass-fraction field for a specie given by name.
const volScalarField &	Y (const word &specieName) const
	Return the const mass-fraction field for a specie given by name.
Public Member Functions inherited from basicMixture
	basicMixture (const dictionary &, const fvMesh &, const word &)
	Construct from dictionary, mesh and phase name.

Additional Inherited Members
Protected Attributes inherited from basicMultiComponentMixture
speciesTable	species_
	Table of specie names.
List< bool >	active_
	List of specie active flags.
PtrList< volScalarField >	Y_
	Species mass fractions.

Detailed Description

Specialization of basicMultiComponentMixture for a mixture consisting of a number for molecular species.

Source files

Definition at line 54 of file basicSpecieMixture.H.

Member Typedef Documentation

◆ basicMixtureType

typedef basicSpecieMixture basicMixtureType

The base class of the mixture.

Definition at line 69 of file basicSpecieMixture.H.

Constructor & Destructor Documentation

◆ basicSpecieMixture()

basicSpecieMixture	(	const dictionary &	thermoDict,
		const wordList &	specieNames,
		const fvMesh &	mesh,
		const word &	phaseName )

Construct from dictionary, species names, mesh and phase name.

Definition at line 33 of file basicSpecieMixture.C.

References basicMultiComponentMixture::basicMultiComponentMixture(), mesh, and thermoDict.

Referenced by basicCombustionMixture::basicCombustionMixture(), multiComponentMixture< ThermoType >::multiComponentMixture(), multiComponentMixture< ThermoType >::multiComponentMixture(), and singleComponentMixture< ThermoType >::singleComponentMixture().

Here is the call graph for this function:

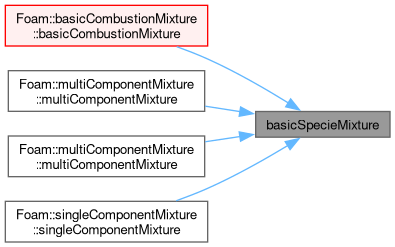

Here is the caller graph for this function:

◆ ~basicSpecieMixture()

virtual ~basicSpecieMixture ( )

virtualdefault

Destructor.

Member Function Documentation

◆ TypeName()

TypeName ( "basicSpecieMixture" )

Run time type information.

◆ W()

virtual scalar W ( const label speciei ) const

pure virtual

Molecular weight of the given specie [kg/kmol].

Implemented in SpecieMixture< multiComponentMixture< constIsoSolidTransportsensibleEnthalpyhConstThermorhoConstspecie > >, SpecieMixture< reactingMixture< constIsoSolidTransportsensibleEnthalpyhConstThermorhoConstspecie > >, and SpecieMixture< reactingMixture< constIsoSolidTransportsensibleEnthalpyhPowerThermorhoConstspecie > >.

Referenced by MultiComponentPhaseModel< BasePhaseModel, phaseThermo >::calculateMassFractions().

Here is the caller graph for this function:

◆ Hc()

virtual scalar Hc ( const label speciei ) const

pure virtual

Chemical enthalpy [J/kg].

Implemented in SpecieMixture< multiComponentMixture< constIsoSolidTransportsensibleEnthalpyhConstThermorhoConstspecie > >, SpecieMixture< reactingMixture< constIsoSolidTransportsensibleEnthalpyhConstThermorhoConstspecie > >, and SpecieMixture< reactingMixture< constIsoSolidTransportsensibleEnthalpyhPowerThermorhoConstspecie > >.

◆ Cp()

virtual scalar Cp	(	const label	speciei,
		const scalar	p,
		const scalar	T ) const

pure virtual

Heat capacity at constant pressure [J/(kg K)].

Implemented in SpecieMixture< multiComponentMixture< constIsoSolidTransportsensibleEnthalpyhConstThermorhoConstspecie > >, SpecieMixture< reactingMixture< constIsoSolidTransportsensibleEnthalpyhConstThermorhoConstspecie > >, and SpecieMixture< reactingMixture< constIsoSolidTransportsensibleEnthalpyhPowerThermorhoConstspecie > >.

References p, and Foam::T().

Here is the call graph for this function:

◆ Cv()

virtual scalar Cv	(	const label	speciei,
		const scalar	p,
		const scalar	T ) const

pure virtual

Heat capacity at constant volume [J/(kg K)].

Implemented in SpecieMixture< multiComponentMixture< constIsoSolidTransportsensibleEnthalpyhConstThermorhoConstspecie > >, SpecieMixture< reactingMixture< constIsoSolidTransportsensibleEnthalpyhConstThermorhoConstspecie > >, and SpecieMixture< reactingMixture< constIsoSolidTransportsensibleEnthalpyhPowerThermorhoConstspecie > >.

References p, and Foam::T().

Here is the call graph for this function:

◆ HE()

virtual scalar HE	(	const label	speciei,
		const scalar	p,
		const scalar	T ) const

pure virtual

Enthalpy/Internal energy [J/kg].

Implemented in SpecieMixture< multiComponentMixture< constIsoSolidTransportsensibleEnthalpyhConstThermorhoConstspecie > >, SpecieMixture< reactingMixture< constIsoSolidTransportsensibleEnthalpyhConstThermorhoConstspecie > >, and SpecieMixture< reactingMixture< constIsoSolidTransportsensibleEnthalpyhPowerThermorhoConstspecie > >.

References p, and Foam::T().

Here is the call graph for this function:

◆ Ha()

virtual scalar Ha	(	const label	speciei,
		const scalar	p,
		const scalar	T ) const

pure virtual

Absolute enthalpy [J/kg].

Implemented in SpecieMixture< multiComponentMixture< constIsoSolidTransportsensibleEnthalpyhConstThermorhoConstspecie > >, SpecieMixture< reactingMixture< constIsoSolidTransportsensibleEnthalpyhConstThermorhoConstspecie > >, and SpecieMixture< reactingMixture< constIsoSolidTransportsensibleEnthalpyhPowerThermorhoConstspecie > >.

References p, and Foam::T().

Here is the call graph for this function:

◆ Hs()

virtual scalar Hs	(	const label	speciei,
		const scalar	p,
		const scalar	T ) const

pure virtual

Sensible enthalpy [J/kg].

Implemented in SpecieMixture< multiComponentMixture< constIsoSolidTransportsensibleEnthalpyhConstThermorhoConstspecie > >, SpecieMixture< reactingMixture< constIsoSolidTransportsensibleEnthalpyhConstThermorhoConstspecie > >, and SpecieMixture< reactingMixture< constIsoSolidTransportsensibleEnthalpyhPowerThermorhoConstspecie > >.

References p, and Foam::T().

Here is the call graph for this function:

◆ S()

virtual scalar S	(	const label	speciei,
		const scalar	p,
		const scalar	T ) const

pure virtual

Entropy [J/(kg K)].

Implemented in SpecieMixture< multiComponentMixture< constIsoSolidTransportsensibleEnthalpyhConstThermorhoConstspecie > >, SpecieMixture< reactingMixture< constIsoSolidTransportsensibleEnthalpyhConstThermorhoConstspecie > >, and SpecieMixture< reactingMixture< constIsoSolidTransportsensibleEnthalpyhPowerThermorhoConstspecie > >.

References p, and Foam::T().

Here is the call graph for this function:

◆ Es()

virtual scalar Es	(	const label	speciei,
		const scalar	p,
		const scalar	T ) const

pure virtual

Sensible internal energy [J/kg].

Implemented in SpecieMixture< multiComponentMixture< constIsoSolidTransportsensibleEnthalpyhConstThermorhoConstspecie > >, SpecieMixture< reactingMixture< constIsoSolidTransportsensibleEnthalpyhConstThermorhoConstspecie > >, and SpecieMixture< reactingMixture< constIsoSolidTransportsensibleEnthalpyhPowerThermorhoConstspecie > >.

References p, and Foam::T().

Here is the call graph for this function:

◆ G()

virtual scalar G	(	const label	speciei,
		const scalar	p,
		const scalar	T ) const

pure virtual

Gibbs free energy [J/kg].

Implemented in SpecieMixture< multiComponentMixture< constIsoSolidTransportsensibleEnthalpyhConstThermorhoConstspecie > >, SpecieMixture< reactingMixture< constIsoSolidTransportsensibleEnthalpyhConstThermorhoConstspecie > >, and SpecieMixture< reactingMixture< constIsoSolidTransportsensibleEnthalpyhPowerThermorhoConstspecie > >.

References p, and Foam::T().

Here is the call graph for this function:

◆ A()

virtual scalar A	(	const label	speciei,
		const scalar	p,
		const scalar	T ) const

pure virtual

Helmholtz free energy [J/kg].

Implemented in SpecieMixture< multiComponentMixture< constIsoSolidTransportsensibleEnthalpyhConstThermorhoConstspecie > >, SpecieMixture< reactingMixture< constIsoSolidTransportsensibleEnthalpyhConstThermorhoConstspecie > >, and SpecieMixture< reactingMixture< constIsoSolidTransportsensibleEnthalpyhPowerThermorhoConstspecie > >.

References p, and Foam::T().

Here is the call graph for this function:

◆ mu()

virtual scalar mu	(	const label	speciei,
		const scalar	p,
		const scalar	T ) const

pure virtual

Dynamic viscosity [kg/m/s].

Implemented in SpecieMixture< multiComponentMixture< constIsoSolidTransportsensibleEnthalpyhConstThermorhoConstspecie > >, SpecieMixture< reactingMixture< constIsoSolidTransportsensibleEnthalpyhConstThermorhoConstspecie > >, and SpecieMixture< reactingMixture< constIsoSolidTransportsensibleEnthalpyhPowerThermorhoConstspecie > >.

References p, and Foam::T().

Here is the call graph for this function:

◆ kappa()

virtual scalar kappa	(	const label	speciei,
		const scalar	p,
		const scalar	T ) const

pure virtual

Thermal conductivity [W/m/K].

Implemented in SpecieMixture< multiComponentMixture< constIsoSolidTransportsensibleEnthalpyhConstThermorhoConstspecie > >, SpecieMixture< reactingMixture< constIsoSolidTransportsensibleEnthalpyhConstThermorhoConstspecie > >, and SpecieMixture< reactingMixture< constIsoSolidTransportsensibleEnthalpyhPowerThermorhoConstspecie > >.

References p, and Foam::T().

Here is the call graph for this function:

◆ alphah()

virtual scalar alphah	(	const label	speciei,
		const scalar	p,
		const scalar	T ) const

pure virtual

Thermal diffusivity of enthalpy [kg/m/s].

Implemented in SpecieMixture< multiComponentMixture< constIsoSolidTransportsensibleEnthalpyhConstThermorhoConstspecie > >, SpecieMixture< reactingMixture< constIsoSolidTransportsensibleEnthalpyhConstThermorhoConstspecie > >, and SpecieMixture< reactingMixture< constIsoSolidTransportsensibleEnthalpyhPowerThermorhoConstspecie > >.

References p, and Foam::T().

Here is the call graph for this function:

◆ rho()

virtual scalar rho	(	const label	speciei,
		const scalar	p,
		const scalar	T ) const

pure virtual

Density [kg/m3].

Implemented in SpecieMixture< multiComponentMixture< constIsoSolidTransportsensibleEnthalpyhConstThermorhoConstspecie > >, SpecieMixture< reactingMixture< constIsoSolidTransportsensibleEnthalpyhConstThermorhoConstspecie > >, and SpecieMixture< reactingMixture< constIsoSolidTransportsensibleEnthalpyhPowerThermorhoConstspecie > >.

References p, and Foam::T().

Referenced by ReactingMultiphaseCloud< Foam::DSMCCloud< dsmcParcel > >::cloudReset().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ specieComposition()

virtual autoPtr< speciesCompositionTable > specieComposition ( ) const

inlinevirtual

Species composition.

Reimplemented in reactingMixture< ThermoType >.

Definition at line 246 of file basicSpecieMixture.H.

References autoPtr< T >::New().

Here is the call graph for this function:

The documentation for this class was generated from the following files:

src/thermophysicalModels/reactionThermo/mixtures/basicSpecieMixture/basicSpecieMixture.H
src/thermophysicalModels/reactionThermo/mixtures/basicSpecieMixture/basicSpecieMixture.C
