Takes the description of the block and the list of curved edges and creates a list of points on edges together with the weighting factors. More...

#include <blockDescriptor.H>

Inheritance diagram for blockDescriptor:

[legend]

Collaboration diagram for blockDescriptor:

[legend]

Public Member Functions
	blockDescriptor (const blockDescriptor &)=default
	Copy construct.
void	operator= (const blockDescriptor &)=delete
	No copy assignment.
	blockDescriptor (const cellShape &bshape, const pointField &vertices, const blockEdgeList &edges, const blockFaceList &faces, const labelVector &density, const UList< gradingDescriptors > &expand=UList< gradingDescriptors >::null(), const word &zoneName=word::null)
	Construct from components. Optional zone name.
	blockDescriptor (const dictionary &dict, const label blockIndex, const pointField &vertices, const blockEdgeList &edges, const blockFaceList &faces, Istream &is)
	Construct from Istream.
const pointField &	vertices () const noexcept
	Reference to point field defining the block mesh.
const blockFaceList &	blockFaces () const noexcept
	Return reference to the list of curved faces.
const cellShape &	blockShape () const noexcept
	Return the block shape.
const labelVector &	density () const noexcept
	The mesh density (number of cells) in the i,j,k directions.
const List< gradingDescriptors > &	grading () const noexcept
	Expansion ratios in all directions.
const word &	zoneName () const noexcept
	Return the (optional) zone name.
const FixedList< label, 6 > &	curvedFaces () const noexcept
	Curved-face labels for each block-face (-1 for flat faces).
label	nCurvedFaces () const noexcept
	Number of curved faces in this block.
const point &	blockPoint (const label i) const
	Return block point for local label i.
label	facePointLabel (const direction facei, const label i, const label j) const
	Face vertex label offset for a particular i,j,k position on hex face (0-5).
bool	vertex (const label i, const label j, const label k) const
	True if point i,j,k addresses a block vertex.
bool	edge (const label i, const label j, const label k) const
	True if point i,j,k addresses a block edge.
int	edgesPointsWeights (pointField(&edgesPoints)[12], scalarList(&edgesWeights)[12]) const
	Calculate the points and weights for all edges.
bool	edgePointsWeights (const label edgei, pointField &edgePoints, scalarList &edgeWeights, const label nDiv, const gradingDescriptors &gd=gradingDescriptors()) const
	Calculate points and weights for specified edge, using the specified number of divisions and grading.
bool	edgePointsWeights (const label edgei, pointField &edgePoints, scalarList &edgeWeights) const
	Calculate points and weights for specified edge.
bool	flatFaceOrEdge (const label i, const label j, const label k) const
	Return true if point i,j,k addresses a block flat face or edge.

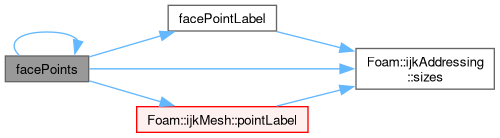

FixedList< pointField, 6 >	facePoints (const pointField &points) const
	Return the list of face-points for all of the faces of the block.
void	correctFacePoints (FixedList< pointField, 6 > &) const
	Correct the location of the given face-points.
InfoProxy< blockDescriptor >	info () const noexcept
	Return info proxy, used to print information to a stream.
Public Member Functions inherited from ijkMesh
	ijkMesh ()
	Construct zero-sized.
	ijkMesh (const labelVector &ijk)
	Construct with addressing.
	ijkMesh (const label nx, const label ny, const label nz)
	Construct with addressing.
label	nPoints () const
	The number of mesh points (nx+1)(ny+1)(nz+1) in the i-j-k mesh.
label	nCells () const
	The number of mesh cells (nxnynz) in the i-j-k mesh.
label	nFaces () const
	The total number of mesh faces in the i-j-k mesh.
label	nInternalFaces () const
	The number of internal faces in the i-j-k mesh.
label	nBoundaryFaces () const
	The number of boundary faces in the i-j-k mesh.
label	nBoundaryFaces (const direction shapeFacei) const
	The number of boundary faces on the box face.
label	cellLabel (const label i, const label j, const label k) const
	The linear cell index for an i-j-k position - same as index().
label	cellLabel (const labelVector &ijk) const
	The linear cell index for an i-j-k position - same as index().
label	pointLabel (const label i, const label j, const label k) const
	The linear point index for an i-j-k position.
label	pointLabel (const labelVector &ijk) const
	The linear point index for an i-j-k position.
hexCell	vertLabels (const label i, const label j, const label k) const
	The hex cell vertices for an i-j-k position.
hexCell	vertLabels (const labelVector &ijk) const
	The hex cell vertices for an i-j-k position.
Public Member Functions inherited from ijkAddressing
	ijkAddressing ()
	Construct zero-size addressing.
	ijkAddressing (const labelVector &ijk)
	Construct with addressing.
	ijkAddressing (const label ni, const label nj, const label nk)
	Construct with addressing components.
bool	empty () const noexcept
	Addressing is considered empty if any component is zero.
const labelVector &	sizes () const noexcept
	The (i,j,k) addressing dimensions.
labelVector &	sizes () noexcept
	Return the (i,j,k) dimensions for modification.
label	size () const noexcept
	Return the total ijk size.
label	size (const vector::components cmpt) const
	The addressing dimension in the given direction.
void	clear ()
	Reset to (0,0,0) sizing.
void	reset (const label ni, const label nj, const label nk)
	Change the sizing parameters.
void	reset (const labelVector &newSizes)
	Change the sizing parameters.
label	index (const label i, const label j, const label k) const
	Linear addressing index (offset) for an (i,j,k) position.
label	index (const labelVector &ijk) const
	Linear addressing index (offset) for an (i,j,k) position.
labelVector	index (const label idx) const
	The (i,j,k) indexing from linear addressing.
void	checkIndex (const label i, const label j, const label k, const bool allowExtra=false) const
	Check indices are within ni,nj,nk range.
void	checkIndex (const labelVector &ijk, const bool allowExtra=false) const
	Check indices are within ni,nj,nk range.
void	checkSizes () const
	Check that all components of sizes() are non-negative.
void	checkSizes (const labelVector &other) const
	Check that all components of sizes() match.
void	checkSizes (const label nTotal) const
	Check that the total size matches.

Static Public Member Functions
static void	write (Ostream &, const label blocki, const dictionary &)
	Write block index with dictionary lookup.

Detailed Description

Takes the description of the block and the list of curved edges and creates a list of points on edges together with the weighting factors.

For a given block, the correspondence between the ordering of vertex labels and face labels is shown below. For vertex numbering in the sequence 0 to 7 (block, centre): faces 0 (f0) and 1 are left and right, respectively; faces 2 and 3 are front and back; and faces 4 and 5 are bottom and top:

                7 ---- 6
          f5    |\     :\    f3
           |    | 4 ---- 5    \
           |    3.|....2 |     \
           |     \|     \|     f2
          f4      0 ---- 1
  Y  Z
   \ |          f0 ------ f1
    \|
     o--- X

Source files

Definition at line 82 of file blockDescriptor.H.

Constructor & Destructor Documentation

◆ blockDescriptor() [1/3]

blockDescriptor ( const blockDescriptor & )

default

Copy construct.

References blockDescriptor().

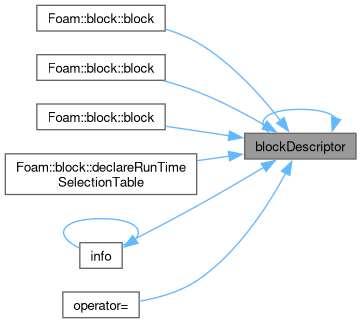

Referenced by block::block(), block::block(), block::block(), blockDescriptor(), block::declareRunTimeSelectionTable(), info(), and operator=().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ blockDescriptor() [2/3]

blockDescriptor	(	const cellShape &	bshape,
		const pointField &	vertices,
		const blockEdgeList &	edges,
		const blockFaceList &	faces,
		const labelVector &	density,
		const UList< gradingDescriptors > &	expand = UList<gradingDescriptors>::null(),
		const word &	zoneName = word::null )

Construct from components. Optional zone name.

Definition at line 189 of file blockDescriptor.C.

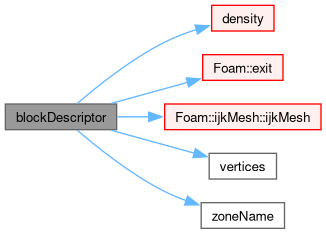

References density(), Foam::exit(), Foam::FatalError, FatalErrorInFunction, ijkMesh::ijkMesh(), vertices(), and zoneName().

Here is the call graph for this function:

◆ blockDescriptor() [3/3]

blockDescriptor	(	const dictionary &	dict,
		const label	blockIndex,
		const pointField &	vertices,
		const blockEdgeList &	edges,
		const blockFaceList &	faces,
		Istream &	is )

Construct from Istream.

Definition at line 222 of file blockDescriptor.C.

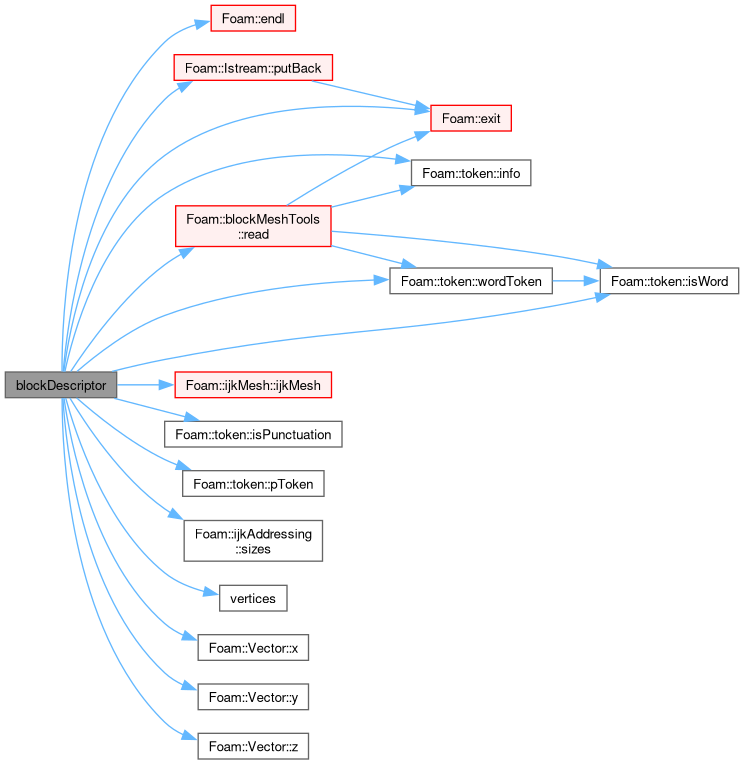

References token::BEGIN_LIST, dict, Foam::endl(), Foam::exit(), Foam::FatalError, FatalErrorInFunction, Foam::FatalIOError, FatalIOErrorInFunction, ijkMesh::ijkMesh(), token::info(), IOWarningInFunction, token::isPunctuation(), token::isWord(), token::pToken(), Istream::putBack(), Foam::blockMeshTools::read(), ijkAddressing::sizes(), vertices(), token::wordToken(), Vector< Cmpt >::x(), Vector< Cmpt >::y(), and Vector< Cmpt >::z().

Here is the call graph for this function:

Member Function Documentation

◆ operator=()

void operator= ( const blockDescriptor & )

delete

No copy assignment.

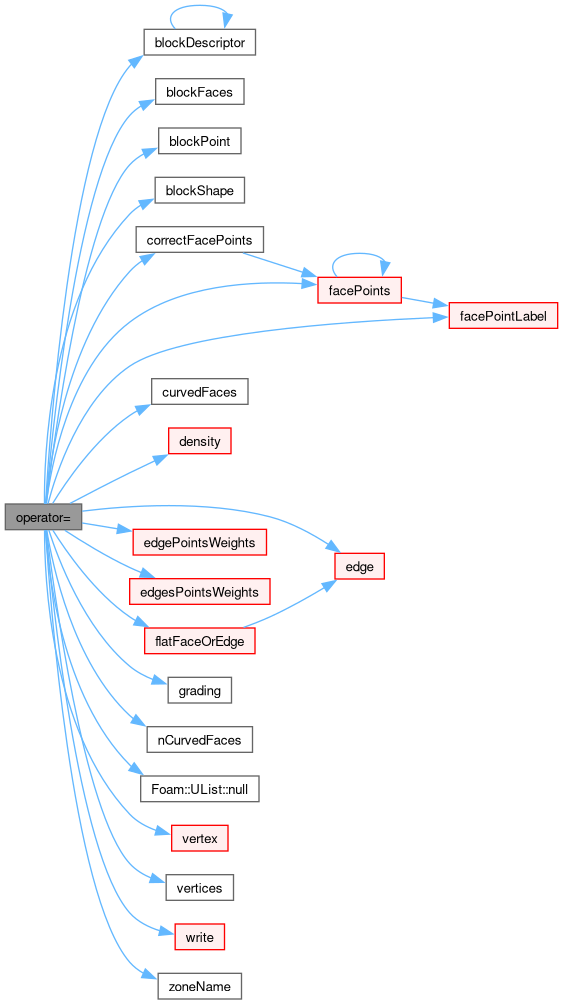

References blockDescriptor(), blockFaces(), blockPoint(), blockShape(), correctFacePoints(), curvedFaces(), density(), dict, edge(), edgePointsWeights(), edgesPointsWeights(), facePointLabel(), facePoints(), flatFaceOrEdge(), grading(), k, nCurvedFaces(), Foam::noexcept, UList< T >::null(), word::null, points, vertex(), vertices(), write(), and zoneName().

Here is the call graph for this function:

◆ vertices()

const Foam::pointField & vertices ( ) const

inlinenoexcept

Reference to point field defining the block mesh.

Definition at line 25 of file blockDescriptorI.H.

References Foam::noexcept.

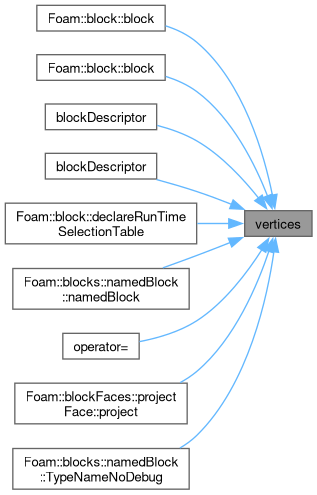

Referenced by block::block(), block::block(), blockDescriptor(), blockDescriptor(), block::declareRunTimeSelectionTable(), namedBlock::namedBlock(), operator=(), projectFace::project(), and namedBlock::TypeNameNoDebug().

Here is the caller graph for this function:

◆ blockFaces()

const Foam::blockFaceList & blockFaces ( ) const

inlinenoexcept

Return reference to the list of curved faces.

Definition at line 32 of file blockDescriptorI.H.

References Foam::noexcept.

Referenced by operator=().

Here is the caller graph for this function:

◆ blockShape()

const Foam::cellShape & blockShape ( ) const

inlinenoexcept

Return the block shape.

Definition at line 39 of file blockDescriptorI.H.

References Foam::noexcept.

Referenced by Foam::operator<<(), operator=(), and projectFace::project().

Here is the caller graph for this function:

◆ density()

const Foam::labelVector & density ( ) const

inlinenoexcept

The mesh density (number of cells) in the i,j,k directions.

Definition at line 46 of file blockDescriptorI.H.

References Foam::noexcept, and ijkAddressing::sizes().

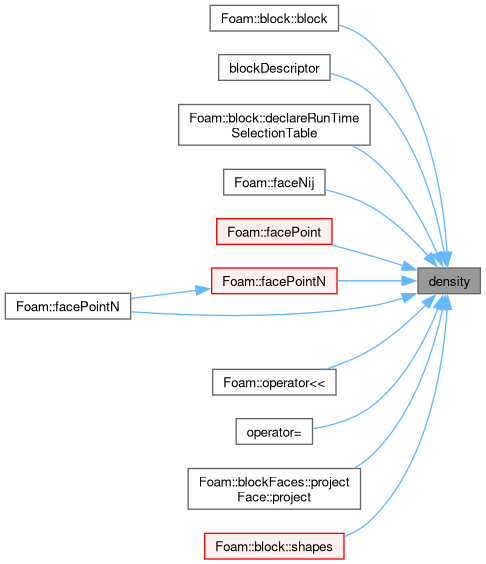

Referenced by block::block(), blockDescriptor(), block::declareRunTimeSelectionTable(), Foam::faceNij(), Foam::facePoint(), Foam::facePointN(), Foam::facePointN(), Foam::operator<<(), operator=(), projectFace::project(), and block::shapes().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ grading()

const Foam::List< Foam::gradingDescriptors > & grading ( ) const

inlinenoexcept

Expansion ratios in all directions.

Definition at line 53 of file blockDescriptorI.H.

References Foam::noexcept.

Referenced by Foam::operator<<(), and operator=().

Here is the caller graph for this function:

◆ zoneName()

const Foam::word & zoneName ( ) const

inlinenoexcept

Return the (optional) zone name.

Definition at line 59 of file blockDescriptorI.H.

References Foam::noexcept.

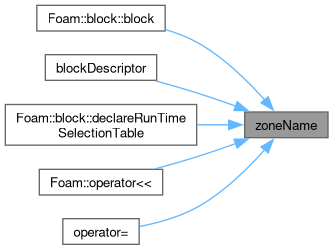

Referenced by block::block(), blockDescriptor(), block::declareRunTimeSelectionTable(), Foam::operator<<(), and operator=().

Here is the caller graph for this function:

◆ curvedFaces()

const Foam::FixedList< Foam::label, 6 > & curvedFaces ( ) const

inlinenoexcept

Curved-face labels for each block-face (-1 for flat faces).

Definition at line 66 of file blockDescriptorI.H.

References Foam::noexcept.

Referenced by operator=().

Here is the caller graph for this function:

◆ nCurvedFaces()

Foam::label nCurvedFaces ( ) const

inlinenoexcept

Number of curved faces in this block.

Definition at line 72 of file blockDescriptorI.H.

References Foam::noexcept.

Referenced by operator=().

Here is the caller graph for this function:

◆ blockPoint()

const Foam::point & blockPoint ( const label i ) const

inline

Return block point for local label i.

Definition at line 78 of file blockDescriptorI.H.

Referenced by operator=().

Here is the caller graph for this function:

◆ facePointLabel()

Foam::label facePointLabel	(	const direction	facei,
		const label	i,
		const label	j ) const

inline

Face vertex label offset for a particular i,j,k position on hex face (0-5).

Definition at line 84 of file blockDescriptorI.H.

References ijkAddressing::sizes(), x, and y.

Referenced by facePoints(), and operator=().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ vertex()

bool vertex	(	const label	i,
		const label	j,
		const label	k ) const

inline

True if point i,j,k addresses a block vertex.

Definition at line 121 of file blockDescriptorI.H.

References k, and ijkAddressing::sizes().

Referenced by operator=().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ edge()

bool edge	(	const label	i,
		const label	j,
		const label	k ) const

inline

True if point i,j,k addresses a block edge.

Definition at line 134 of file blockDescriptorI.H.

References k, and ijkAddressing::sizes().

Referenced by flatFaceOrEdge(), and operator=().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ edgesPointsWeights()

int edgesPointsWeights	(	pointField(&)	edgesPoints[12],
		scalarList(&)	edgesWeights[12] ) const

Calculate the points and weights for all edges.

Returns: the number of curved edges (0-12)

Definition at line 119 of file blockDescriptorEdges.C.

References hexCell::modelEdges(), and ijkAddressing::sizes().

Referenced by operator=().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ edgePointsWeights() [1/2]

bool edgePointsWeights	(	const label	edgei,
		pointField &	edgePoints,
		scalarList &	edgeWeights,
		const label	nDiv,
		const gradingDescriptors &	gd = gradingDescriptors() ) const
