projectCurveEdge Class Reference

Defines the edge from the projection onto a surface (single surface) or intersection of two surfaces. More...

#include <projectCurveEdge.H>

Inheritance diagram for projectCurveEdge:

Collaboration diagram for projectCurveEdge:

Public Member Functions
	TypeName ("projectCurve")
	Runtime type information.
	projectCurveEdge (const dictionary &dict, const label index, const searchableSurfaces &geometry, const pointField &points, Istream &is)
	Construct from Istream and point field.
virtual	~projectCurveEdge ()=default
	Destructor.
virtual point	position (const scalar) const
	The point position corresponding to the curve parameter.
virtual tmp< pointField >	position (const scalarList &) const
	The point positions corresponding to the curve parameters.
virtual scalar	length () const
	The length of the curve.
Public Member Functions inherited from blockEdge
	TypeName ("blockEdge")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, blockEdge, Istream,(const dictionary &dict, const label index, const searchableSurfaces &geometry, const pointField &points, Istream &is),(dict, index, geometry, points, is))
	blockEdge (const pointField &points, const edge &fromTo)
	Construct from components.
	blockEdge (const dictionary &dict, const label index, const pointField &points, Istream &is)
	Construct from Istream and point field.
virtual autoPtr< blockEdge >	clone () const
	Clone function.
virtual	~blockEdge ()=default
	Destructor.
bool	good () const noexcept
	True if first/last indices are unique and non-negative.
bool	valid () const noexcept
	Same as good().
label	start () const noexcept
	Index of start (first) point.
label	end () const noexcept
	Index of end (last) point.
const point &	firstPoint () const
	The location of the first point.
const point &	lastPoint () const
	The location of the last point.
int	compare (const blockEdge &e) const
	Compare the given start/end points with this block edge.
int	compare (const edge &e) const
	Compare the given start/end points with this block edge.
int	compare (const label start, const label end) const
	Compare the given start/end points with this block edge.
point	linearPosition (const scalar lambda) const
	The point position in the straight line.
void	write (Ostream &os, const dictionary &dict) const
	Write edge with variable back-substitution.

Additional Inherited Members
Static Public Member Functions inherited from blockEdge
static autoPtr< blockEdge >	New (const dictionary &dict, const label index, const searchableSurfaces &geometry, const pointField &points, Istream &is)
	New function which constructs and returns pointer to a blockEdge.
Protected Member Functions inherited from blockEdge
	blockEdge (const pointField &points, const label from, const label to)
	Construct from components.
Static Protected Member Functions inherited from blockEdge
static pointField	appendEndPoints (const pointField &p, const label from, const label to, const pointField &intermediate)
	Return a complete point field by appending the start/end points to the given list.
Protected Attributes inherited from blockEdge
const pointField &	points_
	The referenced point field.
const label	start_
	Index of the first point.
const label	end_
	Index of the last point.

Detailed Description

Defines the edge from the projection onto a surface (single surface) or intersection of two surfaces.

Source files

• projectCurveEdge.H
• projectCurveEdge.C

Definition at line 54 of file projectCurveEdge.H.

Constructor & Destructor Documentation

projectCurveEdge()

projectCurveEdge	(	const dictionary &	dict,
		const label	index,
		const searchableSurfaces &	geometry,
		const pointField &	points,
		Istream &	is )

Construct from Istream and point field.

Parameters

points

Referenced point field

Definition at line 45 of file projectCurveEdge.C.

References blockEdge::blockEdge(), dict, Foam::endl(), Foam::exit(), Foam::FatalIOError, FatalIOErrorInFunction, forAll, Foam::Info, Foam::isA(), names, points, and Foam::type().

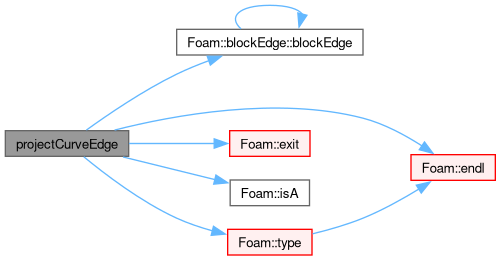

Here is the call graph for this function:

~projectCurveEdge()

virtual ~projectCurveEdge ( )

virtualdefault

Destructor.

Member Function Documentation

TypeName()

TypeName

(

"projectCurve"

)

Runtime type information.

References dict, and points.

position() [1/2]

Foam::point position ( const scalar ) const

virtual

The point position corresponding to the curve parameter.

0 <= lambda <= 1

Note

NotImplemented

Implements blockEdge.

Definition at line 83 of file projectCurveEdge.C.

References VectorSpace< Form, Cmpt, Ncmpts >::max, and NotImplemented.

position() [2/2]

Foam::tmp< Foam::pointField > position ( const scalarList & lambdas ) const

virtual

The point positions corresponding to the curve parameters.

0 <= lambda <= 1

Reimplemented from blockEdge.

Definition at line 91 of file projectCurveEdge.C.

References e, Foam::endl(), searchableSurfacesQueries::findNearest(), blockEdge::firstPoint(), forAll, Foam::Info, Foam::isA(), UList< T >::last(), blockEdge::lastPoint(), blockEdge::linearPosition(), Foam::mag(), Foam::magSqr(), Foam::name(), tmp< T >::New(), points, Foam::Pout, Foam::refCast(), autoPtr< T >::reset(), s(), UList< T >::size(), blockEdge::start(), Foam::sum(), linearInterpolationWeights::valueWeights(), and Foam::Zero.

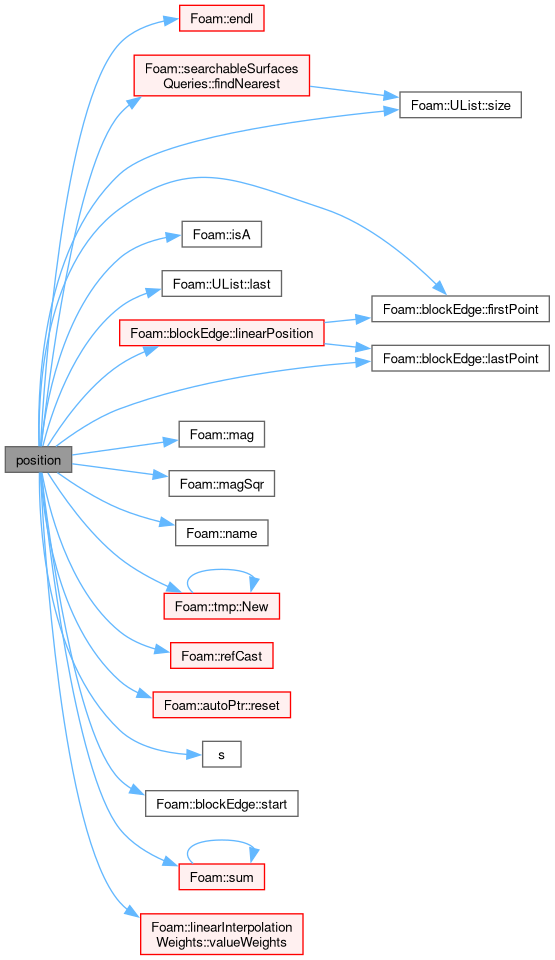

Here is the call graph for this function:

length()

Foam::scalar length ( ) const

virtual

The length of the curve.

Note

NotImplemented

Implements blockEdge.

Definition at line 264 of file projectCurveEdge.C.

References NotImplemented.

---

The documentation for this class was generated from the following files:

• src/mesh/blockMesh/blockEdges/projectCurveEdge/projectCurveEdge.H
• src/mesh/blockMesh/blockEdges/projectCurveEdge/projectCurveEdge.C
