Define a curved edge that is parameterized for 0<lambda<1 between the start/end points. More...

#include <blockEdge.H>

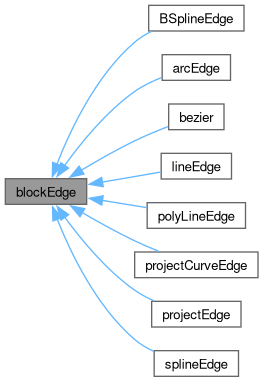

Inheritance diagram for blockEdge:

[legend]

Collaboration diagram for blockEdge:

Classes
class	iNew
	Class used for the read-construction of. More...

Public Member Functions
	TypeName ("blockEdge")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, blockEdge, Istream,(const dictionary &dict, const label index, const searchableSurfaces &geometry, const pointField &points, Istream &is),(dict, index, geometry, points, is))
	blockEdge (const pointField &points, const edge &fromTo)
	Construct from components.
	blockEdge (const dictionary &dict, const label index, const pointField &points, Istream &is)
	Construct from Istream and point field.
virtual autoPtr< blockEdge >	clone () const
	Clone function.
virtual	~blockEdge ()=default
	Destructor.
bool	good () const noexcept
	True if first/last indices are unique and non-negative.
bool	valid () const noexcept
	Same as good().
label	start () const noexcept
	Index of start (first) point.
label	end () const noexcept
	Index of end (last) point.
const point &	firstPoint () const
	The location of the first point.
const point &	lastPoint () const
	The location of the last point.
int	compare (const blockEdge &e) const
	Compare the given start/end points with this block edge.
int	compare (const edge &e) const
	Compare the given start/end points with this block edge.
int	compare (const label start, const label end) const
	Compare the given start/end points with this block edge.
point	linearPosition (const scalar lambda) const
	The point position in the straight line.
virtual point	position (const scalar lambda) const =0
	The point position corresponding to the curve parameter.
virtual tmp< pointField >	position (const scalarList &lambdas) const
	The point positions corresponding to the curve parameters.
virtual scalar	length () const =0
	The length of the curve.
void	write (Ostream &os, const dictionary &dict) const
	Write edge with variable back-substitution.

Static Public Member Functions
static autoPtr< blockEdge >	New (const dictionary &dict, const label index, const searchableSurfaces &geometry, const pointField &points, Istream &is)
	New function which constructs and returns pointer to a blockEdge.

Protected Member Functions
	blockEdge (const pointField &points, const label from, const label to)
	Construct from components.

Static Protected Member Functions
static pointField	appendEndPoints (const pointField &p, const label from, const label to, const pointField &intermediate)
	Return a complete point field by appending the start/end points to the given list.

Protected Attributes
const pointField &	points_
	The referenced point field.
const label	start_
	Index of the first point.
const label	end_
	Index of the last point.

Friends
Ostream &	operator<< (Ostream &os, const blockEdge &e)

Detailed Description

Define a curved edge that is parameterized for 0<lambda<1 between the start/end points.

Source files

Definition at line 60 of file blockEdge.H.

Constructor & Destructor Documentation

◆ blockEdge() [1/3]

blockEdge	(	const pointField &	points,
		const label	from,
		const label	to )

inlineprotected

Construct from components.

Deprecated: (2021-11) use constructor with edge

Parameters

points	Referenced point field
from	Start point in point field
to	End point in point field

Definition at line 105 of file blockEdge.H.

References blockEdge(), and points.

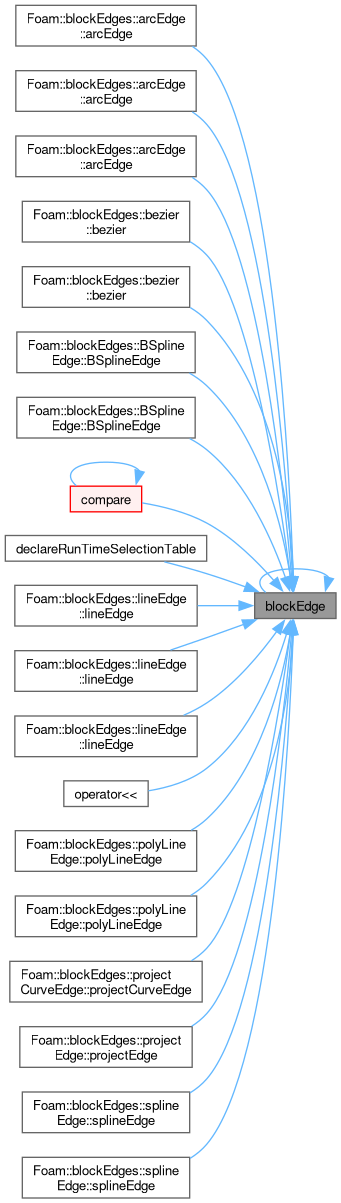

Referenced by arcEdge::arcEdge(), arcEdge::arcEdge(), arcEdge::arcEdge(), bezier::bezier(), bezier::bezier(), blockEdge(), BSplineEdge::BSplineEdge(), BSplineEdge::BSplineEdge(), compare(), declareRunTimeSelectionTable(), lineEdge::lineEdge(), lineEdge::lineEdge(), lineEdge::lineEdge(), operator<<, polyLineEdge::polyLineEdge(), polyLineEdge::polyLineEdge(), projectCurveEdge::projectCurveEdge(), projectEdge::projectEdge(), splineEdge::splineEdge(), and splineEdge::splineEdge().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ blockEdge() [2/3]

blockEdge	(	const pointField &	points,
		const edge &	fromTo )

Construct from components.

Parameters

points	Referenced point field
fromTo	Start/end in point field

Definition at line 37 of file blockEdge.C.

References end_, points, points_, and start_.

◆ blockEdge() [3/3]

blockEdge	(	const dictionary &	dict,
		const label	index,
		const pointField &	points,
		Istream &	is )

Construct from Istream and point field.

Parameters

points Referenced point field

Definition at line 49 of file blockEdge.C.

References dict, end_, points, points_, Foam::read(), and start_.

Here is the call graph for this function:

◆ ~blockEdge()

virtual ~blockEdge ( )

virtualdefault

Destructor.

References Foam::noexcept.

Member Function Documentation

◆ appendEndPoints()

Foam::pointField appendEndPoints	(	const pointField &	p,
		const label	from,
		const label	to,
		const pointField &	intermediate )

staticprotected

Return a complete point field by appending the start/end points to the given list.

Deprecated: (2020-10) use polyLine::concat

Parameters

p	Referenced point field
from	Start point in point field
to	End point in point field
intermediate	Intermediate points (knots)

Definition at line 102 of file blockEdge.C.

References polyLine::concat(), and p.

Here is the call graph for this function:

◆ TypeName()

TypeName ( "blockEdge" )

Runtime type information.

◆ declareRunTimeSelectionTable()

declareRunTimeSelectionTable	(	autoPtr	,
		blockEdge	,
		Istream	,
		(const dictionary &dict, const label index, const searchableSurfaces &geometry, const pointField &points, Istream &is)	,
		(dict, index, geometry, points, is)	)

References blockEdge(), dict, and points.

Here is the call graph for this function:

◆ clone()

Foam::autoPtr< Foam::blockEdge > clone ( ) const

virtual

Clone function.

Definition at line 63 of file blockEdge.C.

References NotImplemented.

◆ New()

Foam::autoPtr< Foam::blockEdge > New	(	const dictionary &	dict,
		const label	index,
		const searchableSurfaces &	geometry,
		const pointField &	points,
		Istream &	is )

static

New function which constructs and returns pointer to a blockEdge.

Definition at line 70 of file blockEdge.C.

References Foam::abort(), DebugInFunction, dict, Foam::endl(), Foam::FatalIOError, FatalIOErrorInLookup, and points.

Referenced by blockEdge::iNew::operator()().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ good()

bool good ( ) const

inlinenoexcept

True if first/last indices are unique and non-negative.

Definition at line 24 of file blockEdgeI.H.

References end_, Foam::noexcept, and start_.

Referenced by valid().

Here is the caller graph for this function:

◆ valid()

bool valid ( ) const

inlinenoexcept

Same as good().

Definition at line 229 of file blockEdge.H.

References good(), Foam::noexcept, and valid().

Referenced by valid().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ start()

Foam::label start ( ) const

inlinenoexcept

Index of start (first) point.

Definition at line 30 of file blockEdgeI.H.

References Foam::noexcept, and start_.

Referenced by compare(), projectCurveEdge::position(), projectEdge::position(), and projectEdge::position().

Here is the caller graph for this function:

◆ end()

Foam::label end ( ) const

inlinenoexcept

Index of end (last) point.

Definition at line 36 of file blockEdgeI.H.

References end_, and Foam::noexcept.

Referenced by compare().

Here is the caller graph for this function:

◆ firstPoint()

const Foam::point & firstPoint ( ) const

inline

The location of the first point.

Definition at line 42 of file blockEdgeI.H.

References points_, and start_.

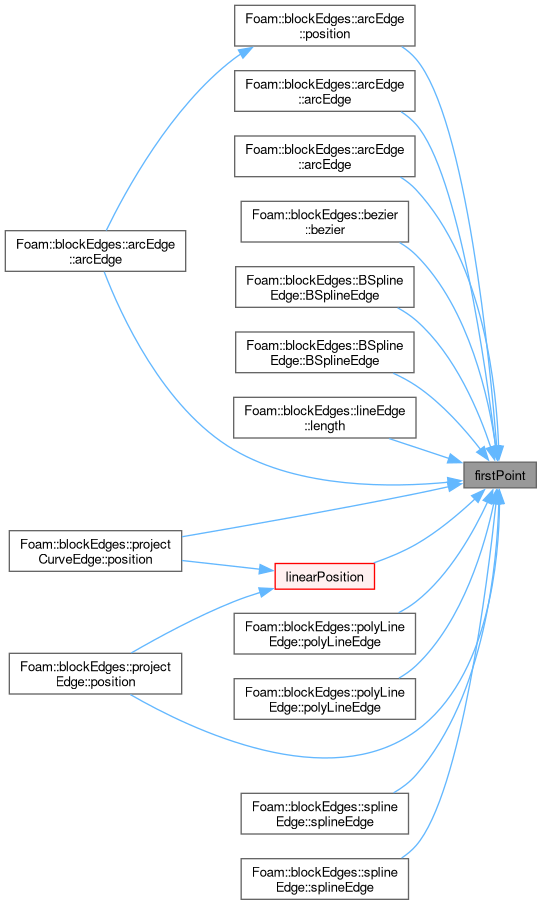

Referenced by arcEdge::arcEdge(), arcEdge::arcEdge(), arcEdge::arcEdge(), bezier::bezier(), BSplineEdge::BSplineEdge(), BSplineEdge::BSplineEdge(), lineEdge::length(), linearPosition(), polyLineEdge::polyLineEdge(), polyLineEdge::polyLineEdge(), arcEdge::position(), projectCurveEdge::position(), projectEdge::position(), splineEdge::splineEdge(), and splineEdge::splineEdge().

Here is the caller graph for this function:

◆ lastPoint()

const Foam::point & lastPoint ( ) const

inline

The location of the last point.

Definition at line 48 of file blockEdgeI.H.

References end_, and points_.

Referenced by arcEdge::arcEdge(), arcEdge::arcEdge(), arcEdge::arcEdge(), bezier::bezier(), BSplineEdge::BSplineEdge(), BSplineEdge::BSplineEdge(), lineEdge::length(), linearPosition(), polyLineEdge::polyLineEdge(), polyLineEdge::polyLineEdge(), arcEdge::position(), projectCurveEdge::position(), projectEdge::position(), splineEdge::splineEdge(), and splineEdge::splineEdge().

Here is the caller graph for this function:

◆ compare() [1/3]

int compare ( const blockEdge & e ) const

inline

Compare the given start/end points with this block edge.

Return:

0: different
+1: identical
-1: same edge, but different orientation

Definition at line 69 of file blockEdgeI.H.

References blockEdge(), compare(), and e.

Referenced by compare(), and compare().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ compare() [2/3]

int compare ( const edge & e ) const

inline

Compare the given start/end points with this block edge.

Return:

0: different
+1: identical
-1: same edge, but different orientation

Definition at line 75 of file blockEdgeI.H.

References compare(), and e.

Here is the call graph for this function:

◆ compare() [3/3]

int compare	(	const label	start,
		const label	end ) const

inline

Compare the given start/end points with this block edge.

Return:

0: different
+1: identical
-1: same edge, but different orientation

Definition at line 54 of file blockEdgeI.H.

References end(), end_, start(), and start_.

Here is the call graph for this function:

◆ linearPosition()

Foam::point linearPosition ( const scalar lambda ) const

inline

The point position in the straight line.

0 <= lambda <= 1

Definition at line 81 of file blockEdgeI.H.

References firstPoint(), InfoInFunction, lambda(), lastPoint(), and Foam::nl.

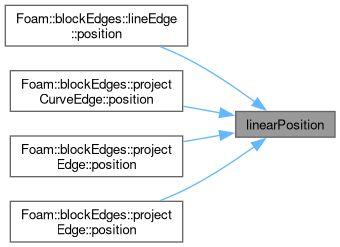

Referenced by lineEdge::position(), projectCurveEdge::position(), projectEdge::position(), and projectEdge::position().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ position() [1/2]

virtual point position ( const scalar lambda ) const

pure virtual

The point position corresponding to the curve parameter.

0 <= lambda <= 1

Implemented in arcEdge, bezier, BSplineEdge, lineEdge, polyLineEdge, projectCurveEdge, projectEdge, and splineEdge.

References lambda(), and position().

Referenced by position(), and position().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ position() [2/2]

Foam::tmp< Foam::pointField > position ( const scalarList & lambdas ) const

virtual

The point positions corresponding to the curve parameters.

0 <= lambda <= 1

Reimplemented in projectCurveEdge, and projectEdge.

Definition at line 117 of file blockEdge.C.

References forAll, tmp< T >::New(), points, position(), and UList< T >::size().

Here is the call graph for this function:

◆ length()

virtual scalar length ( ) const

pure virtual

The length of the curve.

Implemented in arcEdge, bezier, BSplineEdge, lineEdge, polyLineEdge, projectCurveEdge, projectEdge, and splineEdge.

References dict, length(), os(), and write().

Referenced by length().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ write()

void write	(	Ostream &	os,
		const dictionary &	dict ) const

Write edge with variable back-substitution.

Definition at line 130 of file blockEdge.C.

References dict, end_, Foam::endl(), os(), start_, Foam::tab, and blockVertex::write().

Referenced by length().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ operator<<

Ostream & operator<<	(	Ostream &	os,
		const blockEdge &	e )

friend

References blockEdge(), e, and os().

Member Data Documentation

◆ points_

const pointField& points_

protected

The referenced point field.

Definition at line 69 of file blockEdge.H.

Referenced by blockEdge(), blockEdge(), firstPoint(), and lastPoint().

◆ start_

const label start_

protected

Index of the first point.

Definition at line 74 of file blockEdge.H.

Referenced by arcEdge::arcEdge(), blockEdge(), blockEdge(), compare(), firstPoint(), good(), start(), and write().

◆ end_

const label end_

protected

Index of the last point.

Definition at line 79 of file blockEdge.H.

Referenced by arcEdge::arcEdge(), blockEdge(), blockEdge(), compare(), end(), good(), lastPoint(), and write().

The documentation for this class was generated from the following files:

src/mesh/blockMesh/blockEdges/blockEdge/blockEdge.H
src/mesh/blockMesh/blockEdges/blockEdge/blockEdge.C
src/mesh/blockMesh/blockEdges/blockEdge/blockEdgeI.H

Classes

Public Member Functions

Static Public Member Functions

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Friends

Detailed Description

Constructor & Destructor Documentation

◆ blockEdge() [1/3]

◆ blockEdge() [2/3]

◆ blockEdge() [3/3]

◆ ~blockEdge()

Member Function Documentation

◆ appendEndPoints()

◆ TypeName()

◆ declareRunTimeSelectionTable()

◆ clone()

◆ New()

◆ good()

◆ valid()

◆ start()

◆ end()

◆ firstPoint()

◆ lastPoint()

◆ compare() [1/3]

◆ compare() [2/3]

◆ compare() [3/3]

◆ linearPosition()

◆ position() [1/2]

◆ position() [2/2]

◆ length()

◆ write()

Friends And Related Symbol Documentation

◆ operator<<

Member Data Documentation

◆ points_

◆ start_

◆ end_
