cellDistFuncs Class Reference

Collection of functions used in wall distance calculation. More...

#include <cellDistFuncs.H>

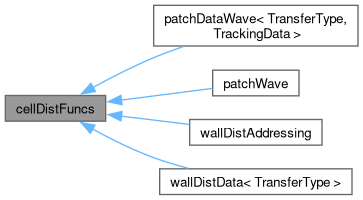

Inheritance diagram for cellDistFuncs:
Inheritance graph
[legend]

Public Member Functions

 ClassName ("cellDistFuncs")
 cellDistFuncs (const polyMesh &mesh)
 Construct from mesh.
const polyMesh & mesh () const
 Access mesh.
labelHashSet getPatchIDs (const UList< wordRe > &patchNames) const
 Return the set of patch IDs corresponding to the given names.
template<class Type>
labelHashSet getPatchIDs () const
 Get patchIDs of/derived off certain type (e.g. 'processorPolyPatch').
template<class PatchType>
scalar smallestDist (const point &p, const PatchType &patch, const labelUList &wallFaces, label &patchFacei) const
 Calculate smallest true distance (and patch face index).
template<class PatchType>
void getPointNeighbours (const PatchType &, const label patchFacei, DynamicList< label > &) const
 Get faces sharing point with face on patch.
label maxPatchSize (const labelHashSet &patchIDs) const
 Size of largest patch (out of supplied subset of patches).
label sumPatchSize (const labelHashSet &patchIDs) const
 Sum of patch sizes (out of supplied subset of patches).
void correctBoundaryFaceCells (const labelHashSet &patchIDs, scalarField &wallDistCorrected, Map< label > &nearestFace) const
 Correct all cells connected to boundary (via face). Sets values in.
void correctBoundaryPointCells (const labelHashSet &patchIDs, scalarField &wallDistCorrected, Map< label > &nearestFace) const
 Correct all cells connected to wall (via point). Sets values in.
void correctBoundaryCells (const labelList &patchIDs, const bool doPointCells, scalarField &wallDistCorrected, Map< label > &nearestFace) const
 Correct all cells connected to any of the patches in patchIDs. Sets.
template<class Type>
Foam::labelHashSet getPatchIDs () const
template<class PatchType>
Foam::scalar smallestDist (const point &p, const PatchType &patch, const labelUList &wallFaces, label &minFacei) const

Static Public Attributes

static bool useCombinedWallPatch = true
 Use combined-wall-patches wall distance v.s. v2406 per-patch distance. Default is true.

Detailed Description

Collection of functions used in wall distance calculation.

Source files

Definition at line 59 of file cellDistFuncs.H.

Constructor & Destructor Documentation

◆ cellDistFuncs()

cellDistFuncs ( const polyMesh & mesh)

Construct from mesh.

Definition at line 47 of file cellDistFuncs.C.

References mesh().

Here is the call graph for this function:

Member Function Documentation

◆ ClassName()

ClassName ( "cellDistFuncs" )

◆ mesh()

const polyMesh & mesh ( ) const
inline

Access mesh.

Definition at line 108 of file cellDistFuncs.H.

Referenced by cellDistFuncs(), wallDistAddressing::ClassName(), wallDistData< TransferType >::correct(), getPatchIDs(), patchDataWave< TransferType, TrackingData >::patchDataWave(), patchWave::patchWave(), wallDistAddressing::wallDistAddressing(), wallDistAddressing::wallDistAddressing(), and wallDistData< TransferType >::wallDistData().

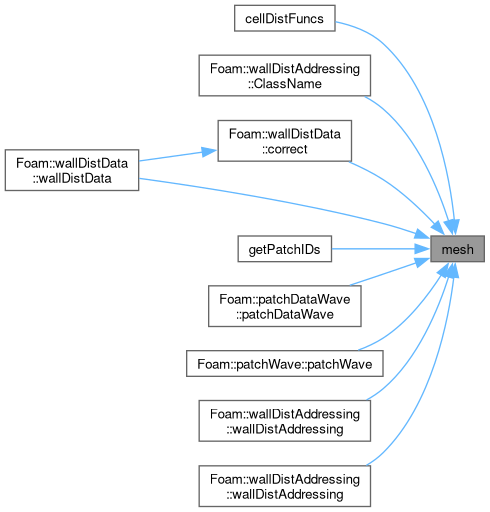

Here is the caller graph for this function:

◆ getPatchIDs() [1/3]

Foam::labelHashSet getPatchIDs ( const UList< wordRe > & patchNames) const

Return the set of patch IDs corresponding to the given names.

Definition at line 55 of file cellDistFuncs.C.

References polyMesh::boundaryMesh(), mesh, patchNames(), and polyBoundaryMesh::patchSet().

Referenced by wallDistData< TransferType >::correct().

Here is the call graph for this function:
Here is the caller graph for this function:

◆ getPatchIDs() [2/3]

template<class Type>
labelHashSet getPatchIDs ( ) const

Get patchIDs of/derived off certain type (e.g. 'processorPolyPatch').

Uses isA, not isType

◆ smallestDist() [1/2]

template<class PatchType>
scalar smallestDist ( const point & p,
const PatchType & patch,
const labelUList & wallFaces,
label & patchFacei ) const

Calculate smallest true distance (and patch face index).

from pt to faces wallFaces.

References p, and patchIDs.

Referenced by correctBoundaryCells(), correctBoundaryFaceCells(), and correctBoundaryPointCells().

Here is the caller graph for this function:

◆ getPointNeighbours()

template<class PatchType>
void getPointNeighbours ( const PatchType & patch,
const label patchFacei,
DynamicList< label > & neighbours ) const

Get faces sharing point with face on patch.

Definition at line 79 of file cellDistFuncsTemplates.C.

References Foam::abort(), DynamicList< T, SizeMin >::append(), DynamicList< T, SizeMin >::clear(), Foam::endl(), HashTable< T, Key, Hash >::erase(), f(), Foam::FatalError, FatalErrorInFunction, forAll, HashTable< T, Key, Hash >::found(), HashSet< Key, Hash >::insert(), DynamicList< T, SizeMin >::push_uniq(), SeriousErrorInFunction, HashTable< T, Key, Hash >::size(), and HashTable< T, Key, Hash >::toc().

Referenced by correctBoundaryCells(), and correctBoundaryFaceCells().

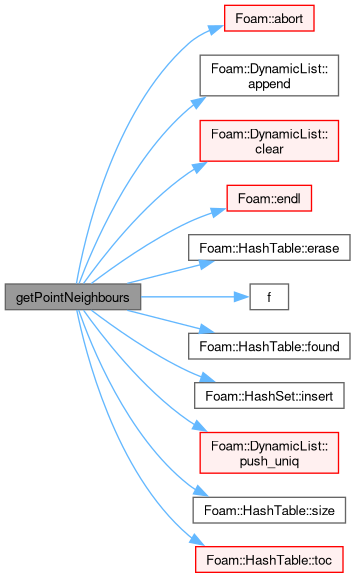

Here is the call graph for this function:
Here is the caller graph for this function:

◆ maxPatchSize()

Foam::label maxPatchSize ( const labelHashSet & patchIDs) const

Size of largest patch (out of supplied subset of patches).

Definition at line 65 of file cellDistFuncs.C.

References polyMesh::boundaryMesh(), forAll, Foam::max(), mesh, and patchIDs.

Referenced by correctBoundaryFaceCells().

Here is the call graph for this function:
Here is the caller graph for this function:

◆ sumPatchSize()

Foam::label sumPatchSize ( const labelHashSet & patchIDs) const

Sum of patch sizes (out of supplied subset of patches).

Used in sizing arrays.

Definition at line 86 of file cellDistFuncs.C.

References polyMesh::boundaryMesh(), forAll, mesh, patchIDs, and Foam::sum().

Referenced by patchDataWave< TransferType, TrackingData >::correct(), and patchWave::correct().

Here is the call graph for this function:
Here is the caller graph for this function:

◆ correctBoundaryFaceCells()

void correctBoundaryFaceCells ( const labelHashSet & patchIDs,
scalarField & wallDistCorrected,
Map< label > & nearestFace ) const

Correct all cells connected to boundary (via face). Sets values in.

wallDistCorrected. Sets nearest wallface in nearestFace.

Definition at line 108 of file cellDistFuncs.C.

References polyMesh::boundaryMesh(), primitiveMesh::cellCentres(), polyMesh::faceOwner(), forAll, getPointNeighbours(), HashTable< T, Key, Hash >::insert(), maxPatchSize(), mesh, patchIDs, pbm, and smallestDist().

Referenced by patchDataWave< TransferType, TrackingData >::correct(), patchWave::correct(), and wallDistAddressing::correct().

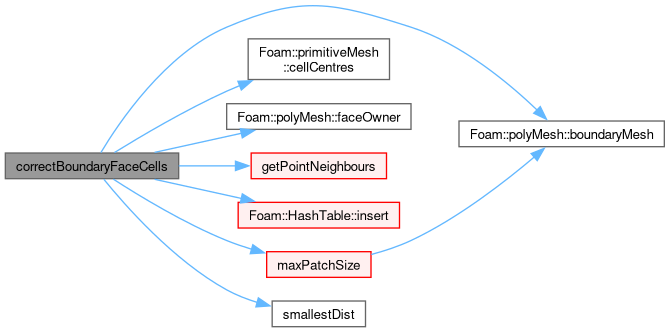

Here is the call graph for this function:
Here is the caller graph for this function:

◆ correctBoundaryPointCells()

void correctBoundaryPointCells ( const labelHashSet & patchIDs,
scalarField & wallDistCorrected,
Map< label > & nearestFace ) const

Correct all cells connected to wall (via point). Sets values in.

wallDistCorrected. Uses/sets nearest wallFace in nearestFace.

Definition at line 163 of file cellDistFuncs.C.

References polyMesh::boundaryMesh(), primitiveMesh::cellCentres(), forAll, HashTable< T, Key, Hash >::found(), HashTable< T, Key, Hash >::insert(), mesh, patchIDs, pbm, primitiveMesh::pointCells(), UList< T >::size(), smallestDist(), and bitSet::unset().

Referenced by patchDataWave< TransferType, TrackingData >::correct(), patchWave::correct(), and wallDistAddressing::correct().

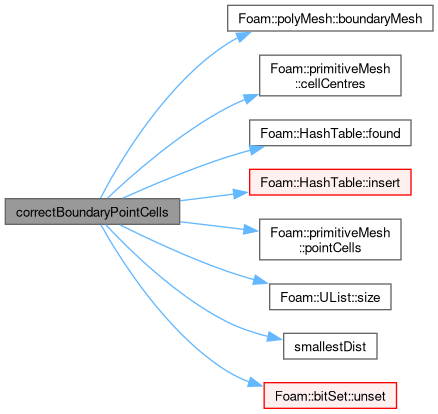

Here is the call graph for this function:

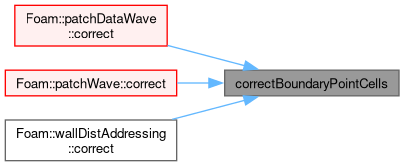

Here is the caller graph for this function:

◆ correctBoundaryCells()

void correctBoundaryCells ( const labelList & patchIDs,
const bool doPointCells,
scalarField & wallDistCorrected,
Map< label > & nearestFace ) const

Correct all cells connected to any of the patches in patchIDs. Sets.

  • cell values in wallDistCorrected
  • (mesh) face that contains the nearest point

Definition at line 237 of file cellDistFuncs.C.

References IndirectListBase< T, Addr >::addressing(), polyMesh::boundaryMesh(), primitiveMesh::cellCentres(), faceLabels(), forAll, HashTable< T, Key, Hash >::found(), getPointNeighbours(), HashTable< T, Key, Hash >::insert(), PrimitivePatch< FaceList, PointField >::localFaces(), mesh, PrimitivePatch< FaceList, PointField >::meshPoints(), patchIDs, primitiveMesh::pointCells(), PrimitivePatch< FaceList, PointField >::pointFaces(), UPtrList< T >::size(), smallestDist(), and bitSet::unset().

Referenced by patchDataWave< TransferType, TrackingData >::correct(), patchWave::correct(), and wallDistAddressing::correct().

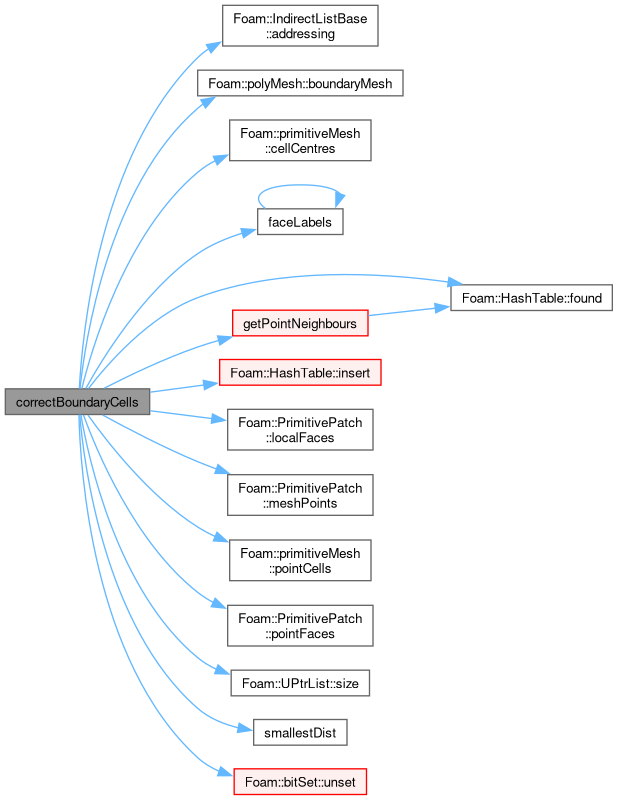

Here is the call graph for this function:

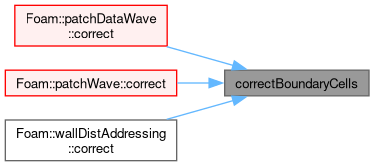

Here is the caller graph for this function:

◆ getPatchIDs() [3/3]

template<class Type>
Foam::labelHashSet getPatchIDs ( ) const

Definition at line 29 of file cellDistFuncsTemplates.C.

References polyMesh::boundaryMesh(), forAll, Foam::isA(), mesh(), and patchIDs.

Here is the call graph for this function:

◆ smallestDist() [2/2]

template<class PatchType>
Foam::scalar smallestDist ( const point & p,
const PatchType & patch,
const labelUList & wallFaces,
label & minFacei ) const

Definition at line 47 of file cellDistFuncsTemplates.C.

References PointHit< PointType >::distance(), p, and points.

Here is the call graph for this function:

Member Data Documentation

◆ useCombinedWallPatch

bool useCombinedWallPatch = true
static

Use combined-wall-patches wall distance v.s. v2406 per-patch distance. Default is true.

Definition at line 92 of file cellDistFuncs.H.

Referenced by patchDataWave< TransferType, TrackingData >::correct(), patchWave::correct(), wallDistAddressing::correct(), and registerOptSwitch().

The documentation for this class was generated from the following files:
