Neighbour processor patch. More...
#include <processorPolyPatch.H>
Public Member Functions | |

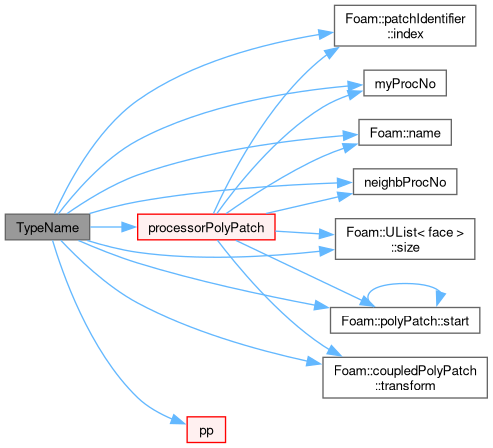

| TypeName ("processor") | |
| Runtime type information. | |

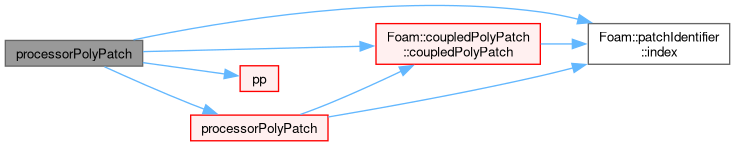

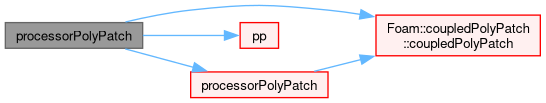

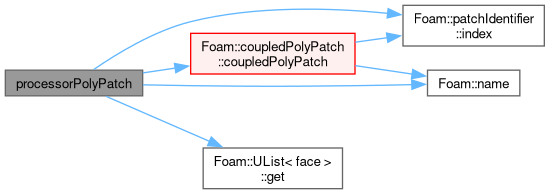

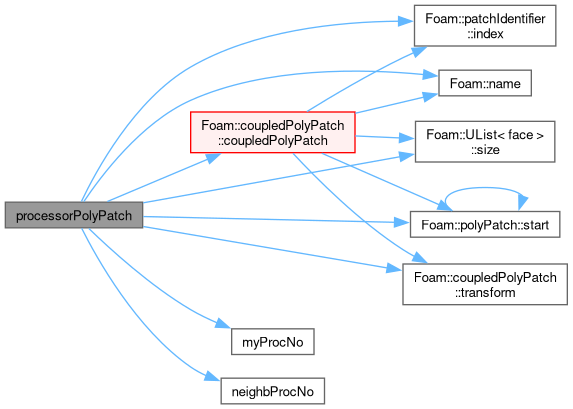

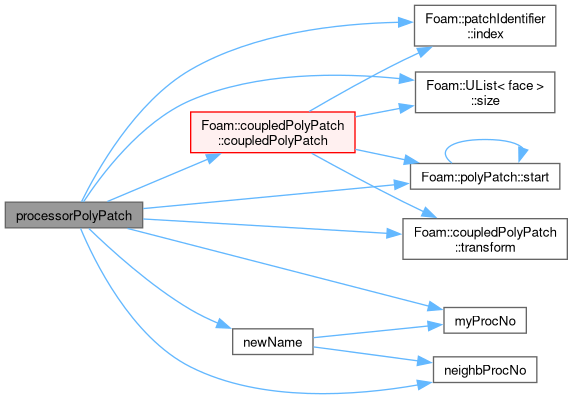

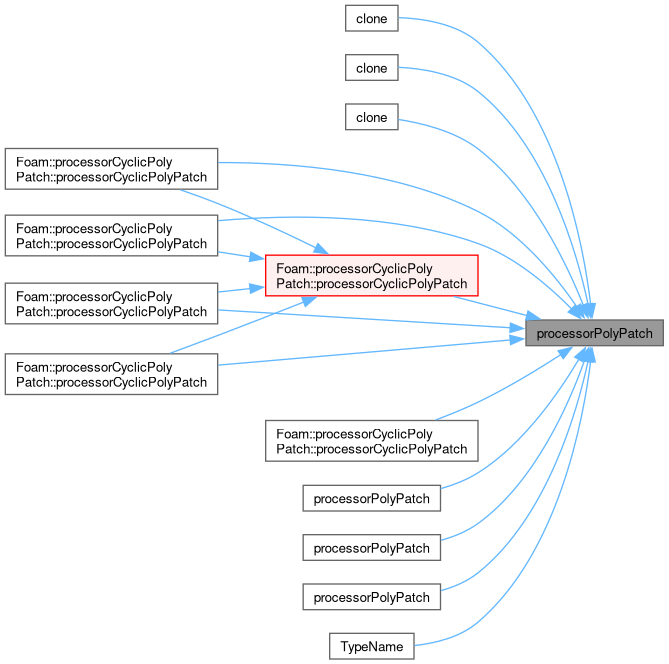

| processorPolyPatch (const label size, const label start, const label index, const polyBoundaryMesh &bm, const int myProcNo, const int neighbProcNo, const transformType transform=UNKNOWN, const word &patchType=typeName) | |
| Construct from components with automatically generated standard name. | |
| processorPolyPatch (const word &name, const dictionary &dict, const label index, const polyBoundaryMesh &, const word &patchType) | |
| Construct from dictionary. | |
| processorPolyPatch (const processorPolyPatch &, const polyBoundaryMesh &) | |
| Construct as copy, resetting the boundary mesh. | |
| processorPolyPatch (const processorPolyPatch &pp, const polyBoundaryMesh &bm, const label index, const label newSize, const label newStart) | |
| Construct as given the original patch and resetting the. | |
| processorPolyPatch (const processorPolyPatch &pp, const polyBoundaryMesh &bm, const label index, const labelUList &mapAddressing, const label newStart) | |
| Construct given the original patch and a map. | |
| virtual autoPtr< polyPatch > | clone (const polyBoundaryMesh &bm) const |
| Construct and return a clone, resetting the boundary mesh. | |
| virtual autoPtr< polyPatch > | clone (const polyBoundaryMesh &bm, const label index, const label newSize, const label newStart) const |
| Construct and return a clone, resetting the face list. | |
| virtual autoPtr< polyPatch > | clone (const polyBoundaryMesh &bm, const label index, const labelUList &mapAddressing, const label newStart) const |
| Construct and return a clone, resetting the face list. | |
| virtual | ~processorPolyPatch () |
| Destructor. | |
| virtual bool | coupled () const |
| Return true only if this is a parallel run. | |

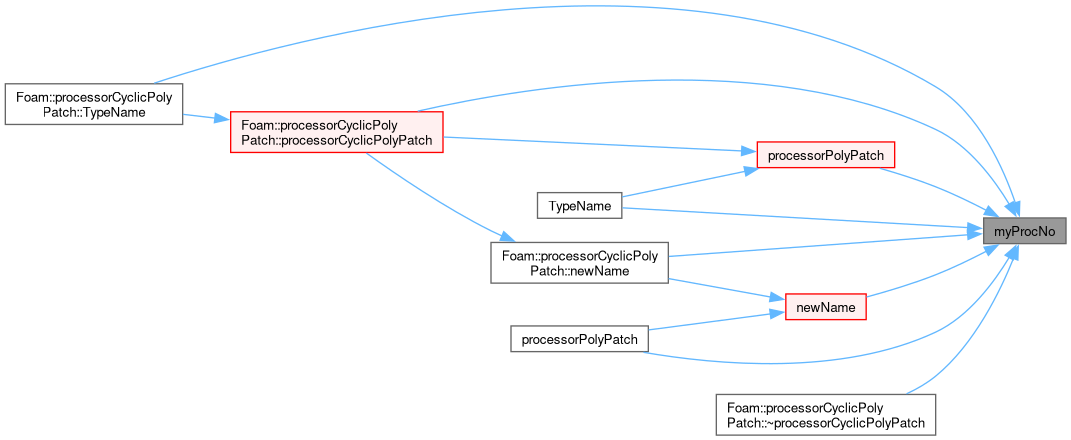

| int | myProcNo () const noexcept |
| Return processor number. | |

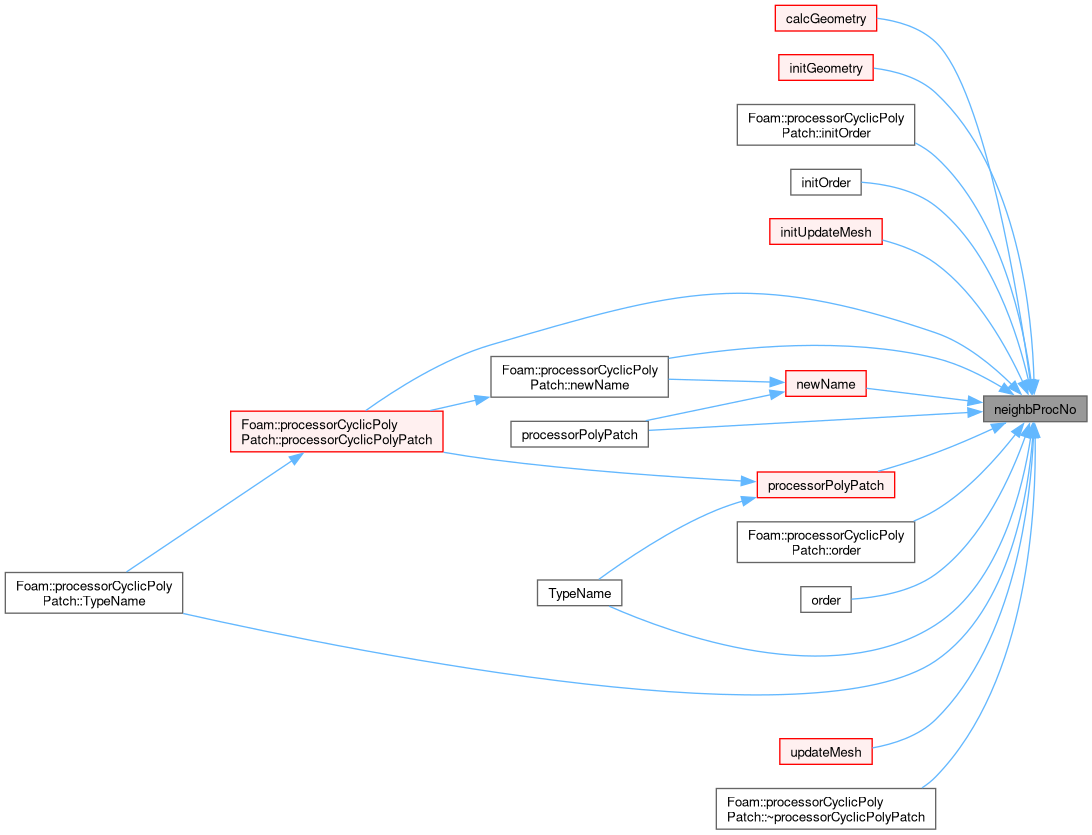

| int | neighbProcNo () const noexcept |
| Return neighbour processor number. | |
| virtual bool | owner () const |
| Does the processor own the patch ? | |
| bool | neighbour () const |
| Is the processor the patch neighbour ? | |
| const vectorField & | neighbFaceCentres () const noexcept |
| Return processor-neighbour patch face centres. | |
| const vectorField & | neighbFaceAreas () const noexcept |
| Return processor-neighbour patch face areas. | |
| const vectorField & | neighbFaceCellCentres () const noexcept |
| Return processor-neighbour patch neighbour cell centres. | |
| const labelList & | neighbPoints () const |
| Return neighbour point labels. WIP. | |
| const labelList & | neighbEdges () const |
| Return neighbour edge labels. WIP. | |
| virtual int | tag () const |
| Return message tag to use for communication. | |
| virtual label | comm () const |
| Return communicator used for communication. | |
| virtual void | transformPosition (pointField &l) const |
| Transform a patch-based position from other side to this side. | |
| virtual void | transformPosition (point &, const label facei) const |
| Transform a patch-based position from other side to this side. | |

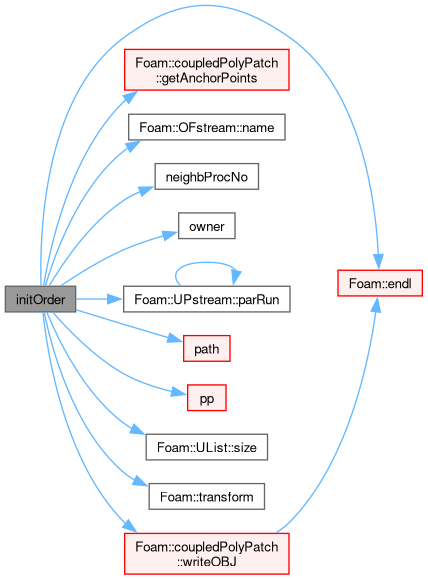

| virtual void | initOrder (PstreamBuffers &, const primitivePatch &) const |
| Initialize ordering for primitivePatch. Does not. | |

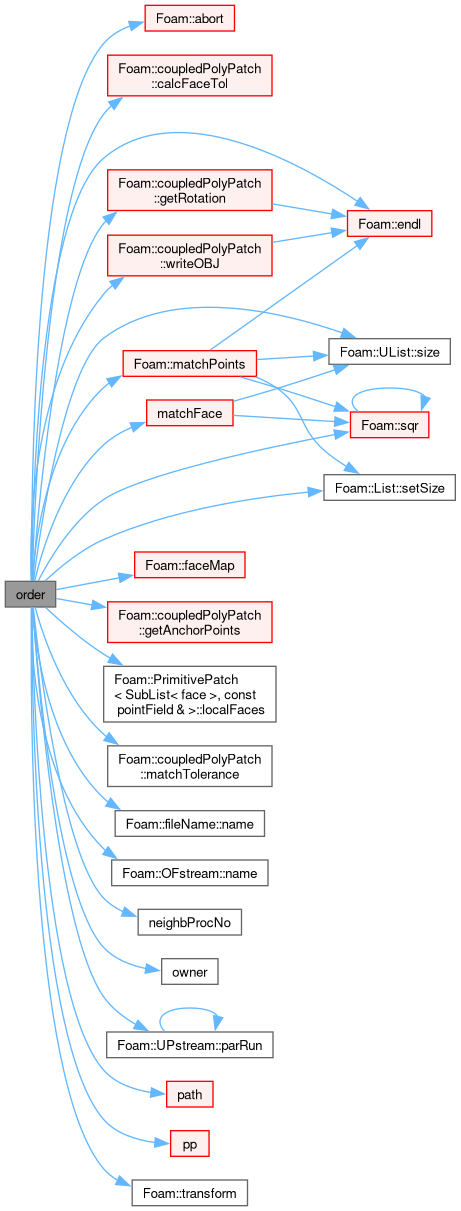

| virtual bool | order (PstreamBuffers &, const primitivePatch &, labelList &faceMap, labelList &rotation) const |
| Return new ordering for primitivePatch. | |
| virtual void | write (Ostream &) const |
| Write the polyPatch data as a dictionary. | |
| Public Member Functions inherited from coupledPolyPatch | |
| TypeName ("coupled") | |
| Runtime type information. | |
| coupledPolyPatch (const word &name, const label size, const label start, const label index, const polyBoundaryMesh &bm, const word &patchType, const transformType transform) | |
| Construct from components. | |
| coupledPolyPatch (const word &name, const dictionary &dict, const label index, const polyBoundaryMesh &bm, const word &patchType) | |
| Construct from dictionary. | |
| coupledPolyPatch (const coupledPolyPatch &, const polyBoundaryMesh &bm) | |
| Copy construct, resetting the boundary mesh. | |
| coupledPolyPatch (const coupledPolyPatch &, const labelList &faceCells) | |
| Copy construct, resetting the faceCells. | |
| coupledPolyPatch (const coupledPolyPatch &pp, const polyBoundaryMesh &bm, const label index, const label newSize, const label newStart) | |
| Construct given the original patch and resetting the face list and boundary mesh information. | |
| coupledPolyPatch (const coupledPolyPatch &pp, const polyBoundaryMesh &bm, const label index, const labelUList &mapAddressing, const label newStart) | |
| Construct given the original patch and a map. | |
| virtual | ~coupledPolyPatch () |
| Destructor. | |
| virtual label | referPatchID () const |
| The referring patchID (eg, for cyclics). | |
| virtual transformType | transform () const |
| Type of transform. | |
| virtual transformType & | transform () |
| Type of transform. | |
| virtual bool | separated () const |
| Are the planes separated. | |
| virtual const vectorField & | separation () const |
| If the planes are separated the separation vector. | |
| virtual bool | parallel () const |
| Are the cyclic planes parallel. | |
| virtual const tensorField & | forwardT () const |
| Return face transformation tensor. | |
| virtual const tensorField & | reverseT () const |
| Return neighbour-cell transformation tensor. | |
| virtual const boolList & | collocated () const |
| Are faces collocated. Either size 0,1 or length of patch. | |
| scalar | matchTolerance () const |
| Public Member Functions inherited from polyPatch | |
| TypeName ("patch") | |
| Runtime type information. | |
| declareRunTimeSelectionTable (autoPtr, polyPatch, word,(const word &name, const label size, const label start, const label index, const polyBoundaryMesh &bm, const word &patchType),(name, size, start, index, bm, patchType)) | |
| declareRunTimeSelectionTable (autoPtr, polyPatch, dictionary,(const word &name, const dictionary &dict, const label index, const polyBoundaryMesh &bm, const word &patchType),(name, dict, index, bm, patchType)) | |
| polyPatch (const word &name, const label size, const label start, const label index, const polyBoundaryMesh &bm, const word &patchType) | |
| Construct from components. | |
| polyPatch (const word &name, const label size, const label start, const label index, const polyBoundaryMesh &bm, const word &physicalType, const wordList &inGroups) | |
| Construct from components. | |
| polyPatch (const word &name, const dictionary &dict, const label index, const polyBoundaryMesh &bm, const word &patchType) | |
| Construct from dictionary. | |
| polyPatch (const polyPatch &, const polyBoundaryMesh &) | |
| Copy construct, resetting the boundary mesh. | |
| polyPatch (const polyPatch &pp, const polyBoundaryMesh &bm, const label index, const label newSize, const label newStart) | |
| Construct given the original patch and resetting the face list and boundary mesh information. | |
| polyPatch (const polyPatch &pp, const polyBoundaryMesh &bm, const label index, const labelUList &mapAddressing, const label newStart) | |
| Construct given the original patch and a map. | |
| polyPatch (const polyPatch &p) | |
| Copy construct. | |
| polyPatch (const polyPatch &p, const labelList &faceCells) | |
| Copy construct, setting faceCells. | |
| virtual autoPtr< polyPatch > | clone (const labelList &faceCells) const |
| Construct and return a clone, setting faceCells. | |
| virtual | ~polyPatch () |
| Destructor. | |
| virtual void | newInternalProcFaces (label &, label &) const |
| Return number of new internal of this polyPatch faces. | |
| virtual const labelUList & | nbrCells () const |
| Return nbrCells. | |
| virtual label | neighbPolyPatchID () const |
| Return nbr patchID. | |
| virtual refPtr< labelListList > | mapCollocatedFaces () const |
| Return mapped collocated faces. | |
| virtual bool | masterImplicit () const |
| Return implicit master. | |
| virtual word | neighbRegionID () const |
| Return neighbour region name. | |
| label | offset () const noexcept |
| The offset where this patch starts in the boundary face list. | |
| label | start () const noexcept |
| Return start label of this patch in the polyMesh face list. | |
| labelRange | range () const |
| Return start/size range of this patch. | |
| const polyBoundaryMesh & | boundaryMesh () const noexcept |
| Return boundaryMesh reference. | |
| template<class T> | |
| const UIndirectList< T > | patchInternalList (const UList< T > &internalValues) const |
| Extract face cell data. | |
| template<class T> | |
| const List< T >::subList | patchSlice (const UList< T > &values) const |
| This patch slice from the complete list, which has size mesh::nFaces(), using the number of patch faces. | |
| template<class T> | |
| const Field< T >::subField | patchSlice (const Field< T > &values) const |
| Slice Field to patch, using the number of patch faces. | |
| template<class T> | |
| const List< T >::subList | boundarySlice (const UList< T > &values) const |
| This patch slice from the list of boundary values, which has size mesh::nBoundaryFaces(), using the number of patch faces. | |
| const faceList::subList | faces () const |
| Return mesh faces for the patch. | |
| const labelList::subList | faceOwner () const |
| Return face owner for the patch. | |
| const vectorField::subField | faceCentres () const |
| Return face centres. | |
| const vectorField::subField | faceAreas () const |
| Return face normals. | |
| tmp< vectorField > | faceCellCentres () const |
| Return face cell centres. | |
| tmp< scalarField > | areaFraction (const pointField &points) const |
| Calculate the area fraction as the ratio of the stored face area and the area given by the face points. | |
| tmp< scalarField > | areaFraction () const |
| Return the cached area fraction. Usually only set for the non-overlap patches on ACMI. | |
| void | areaFraction (const scalar fraction) |
| Set uniform cached area fraction. | |
| void | areaFraction (const tmp< scalarField > &fraction) |
| Set cached area fraction (non-uniform). | |
| const labelUList & | faceCells () const |
| Return face-cell addressing. | |
| const labelList & | meshEdges () const |
| Return global edge index for local edges. | |
| virtual void | clearAddressing () |
| Clear addressing. | |
| label | whichFace (const label facei) const noexcept |
| Return label of face in patch from global face label. | |
| virtual bool | changeTopology () const |
| For dynamic mesh cases - return true if this patch will change the topology. | |
| virtual bool | setTopology (polyTopoChange &) |
| Collect topology changes in a polyTopoChange object. | |
| void | operator= (const polyPatch &p) |
| Copy assignment. | |
| Public Member Functions inherited from patchIdentifier | |
| patchIdentifier (const patchIdentifier &)=default | |
| Copy construct. | |
| patchIdentifier (patchIdentifier &&)=default | |
| Move construct. | |
| patchIdentifier & | operator= (const patchIdentifier &)=default |
| Copy assignment. | |
| patchIdentifier & | operator= (patchIdentifier &&)=default |
| Move assignment. | |
| virtual | ~patchIdentifier ()=default |
| Destructor. | |
| patchIdentifier () | |
| Default construct: name="", index=0. | |
| patchIdentifier (const word &name, const label index) | |
| Construct from mandatory components. | |
| patchIdentifier (const word &name, const label index, const word &physicalType, const wordList &inGroups=wordList()) | |
| Construct from components. | |
| patchIdentifier (const word &name, const dictionary &dict, const label index) | |
| Construct from dictionary. | |
| patchIdentifier (const patchIdentifier &ident, const label newIndex) | |
| Copy construct, resetting the index (if non-negative). | |
| patchIdentifier (patchIdentifier &&ident, const label newIndex) | |
| Move construct, resetting the index (if non-negative). | |
| const word & | name () const noexcept |
| The patch name. | |
| word & | name () noexcept |
| Modifiable patch name. | |
| label | index () const noexcept |
| The index of this patch in the boundaryMesh. | |
| label & | index () noexcept |
| Modifiable index of this patch in the boundaryMesh. | |
| const word & | physicalType () const noexcept |
| The (optional) physical type of the patch. | |
| word & | physicalType () noexcept |
| Modifiable (optional) physical type of the patch. | |
| const wordList & | inGroups () const noexcept |
| The (optional) groups that the patch belongs to. | |
| wordList & | inGroups () noexcept |
| Modifiable (optional) groups that the patch belongs to. | |
| bool | inGroup (const word &name) const |
| True if given name is in a group. | |
| void | addGroup (const word &name) |
| Add (unique) group for the patch. | |
| void | removeGroup (const word &name) |
| Remove group for the patch. | |
| void | write (Ostream &os) const |
| Write (physicalType, inGroups) dictionary entries (without surrounding braces). | |
| Public Member Functions inherited from PrimitivePatch< SubList< face >, const pointField & > | |
| PrimitivePatch (const SubList< face > &faces, const const pointField &&points) | |
| Construct from components. | |
| PrimitivePatch (SubList< face > &&faces, const const pointField &&points) | |
| Construct from components, transferring faces. | |
| PrimitivePatch (SubList< face > &faces, const pointField &&points, const bool reuse) | |
| Construct from components, reuse storage. | |
| PrimitivePatch (const PrimitivePatch< SubList< face >, const pointField & > &pp) | |
| Copy construct. | |
| virtual | ~PrimitivePatch () |
| Destructor. | |
| void | clearOut () |
| void | clearGeom () |
| void | clearTopology () |
| void | clearPatchMeshAddr () |
| void | swap (PrimitivePatch &)=delete |
| Suppress direct swapping, since storage containers may be const. | |
| const Field< point_type > & | points () const noexcept |
| Return reference to global points. | |
| label | nFaces () const noexcept |
| Number of faces in the patch. | |
| label | nPoints () const |
| Number of points supporting patch faces. | |
| label | nEdges () const |
| Number of edges in patch. | |
| const edgeList & | edges () const |
| Return list of edges, address into LOCAL point list. | |
| const edgeList::subList | internalEdges () const |
| Return sub-list of internal edges, address into LOCAL point list. | |
| const edgeList::subList | boundaryEdges () const |
| Return sub-list of boundary edges, address into LOCAL point list. | |
| label | nInternalEdges () const |
| Number of internal edges. | |
| label | nBoundaryEdges () const |
| Number of boundary edges == (nEdges() - nInternalEdges()). | |
| bool | isInternalEdge (const label edgei) const |
| Is internal edge? | |
| const labelList & | boundaryPoints () const |
| Return list of boundary points, address into LOCAL point list. | |
| const labelListList & | faceFaces () const |
| Return face-face addressing. | |
| const labelListList & | edgeFaces () const |
| Return edge-face addressing. | |
| const labelListList & | faceEdges () const |
| Return face-edge addressing. | |
| const labelListList & | pointEdges () const |
| Return point-edge addressing. | |
| const labelListList & | pointFaces () const |
| Return point-face addressing. | |
| const List< face_type > & | localFaces () const |
| Return patch faces addressing into local point list. | |
| labelList | boundaryFaces () const |
| Extract list of local faces corresponding to the boundary edges. | |
| labelList | uniqBoundaryFaces () const |
| Extract sorted list of unique local faces associated with the boundary edges. | |
| const labelList & | meshPoints () const |
| Return labelList of mesh points in patch. | |
| const Map< label > & | meshPointMap () const |
| Mesh point map. | |
| const Field< point_type > & | localPoints () const |
| Return pointField of points in patch. | |
| const labelList & | localPointOrder () const |
| Return orders the local points for most efficient search. | |
| label | whichPoint (const label gp) const |
| Given a global point index, return the local point index. | |
| edge | meshEdge (const label edgei) const |
| From patch edge to global edge using meshPoints. | |
| edge | meshEdge (const edge &e) const |
| From patch edge to global edge using meshPoints. | |
| label | findEdge (const edge &e) const |
| Search for edge (local point labels) and return its index in the edge list or -1 if not found. | |
| labelList | meshEdges (const edgeList &allEdges, const labelListList &cellEdges, const labelList &faceCells) const |
| Return labels of patch edges in the global edge list using cell addressing. | |
| labelList | meshEdges (const edgeList &allEdges, const labelListList &pointEdges) const |
| Return labels of patch edges into the global edge list using basic edge addressing. | |
| label | meshEdge (const label edgei, const edgeList &allEdges, const labelListList &pointEdges) const |
| Return label of the local patch edge into the global edge list using basic edge addressing. | |
| labelList | meshEdges (const labelUList &edgeLabels, const edgeList &allEdges, const labelListList &pointEdges) const |
| Return labels of specified patch edges into the global edge list using basic edge addressing. | |
| const Field< point_type > & | faceCentres () const |
| Return face centres for patch. | |
| const Field< point_type > & | faceAreas () const |
| Return face area vectors for patch. | |
| const Field< scalar > & | magFaceAreas () const |
| Return face area magnitudes for patch. | |
| const Field< point_type > & | faceNormals () const |
| Return face unit normals for patch. | |
| const Field< point_type > & | pointNormals () const |
| Return point normals for patch. | |
| Pair< point_type > | box () const |
| The enclosing (bounding) box for the patch points. | |
| scalar | sphere (const label facei) const |
| The enclosing (bounding) sphere radius^2 for specified face. | |
| bool | hasFaceAreas () const |
| bool | hasFaceCentres () const |
| bool | hasFaceNormals () const |
| bool | hasPointNormals () const |
| bool | hasBoundaryPoints () const |
| bool | hasEdges () const |
| bool | hasFaceFaces () const |
| bool | hasEdgeFaces () const |
| bool | hasFaceEdges () const |
| bool | hasPointEdges () const |
| bool | hasPointFaces () const |
| bool | hasMeshPoints () const |
| bool | hasMeshPointMap () const |
| List< objectHit > | projectPoints (const ToPatch &targetPatch, const Field< point_type > &projectionDirection, const intersection::algorithm=intersection::FULL_RAY, const intersection::direction=intersection::VECTOR) const |
| Project vertices of patch onto another patch. | |
| List< objectHit > | projectFaceCentres (const ToPatch &targetPatch, const Field< point_type > &projectionDirection, const intersection::algorithm=intersection::FULL_RAY, const intersection::direction=intersection::VECTOR) const |
| Project vertices of patch onto another patch. | |
| const labelListList & | edgeLoops () const |
| Return list of closed loops of boundary vertices. | |
| surfaceTopo | surfaceType (labelHashSet *badEdgesPtr=nullptr) const |
| Calculate surface type formed by patch, optionally recording the indices of illegal edges. | |
| bool | checkTopology (const bool report=false, labelHashSet *pointSetPtr=nullptr) const |
| Check surface formed by patch for manifoldness (see above). | |
| bool | checkPointManifold (const bool report=false, labelHashSet *pointSetPtr=nullptr) const |
| Checks primitivePatch for faces sharing point but not edge. | |
| void | operator= (const PrimitivePatch< SubList< face >, const pointField & > &rhs) |
| Copy assign faces. Leave points alone (could be a reference). | |
| void | operator= (PrimitivePatch< SubList< face >, const pointField & > &&rhs) |
| Move assign faces. Leave points alone (could be a reference). | |
| label | whichEdge (const edge &e) const |
| Identical to findEdge. | |
| Foam::List< Foam::objectHit > | projectPoints (const ToPatch &targetPatch, const Field< typename Foam::PrimitivePatch< SubList< face >, const pointField & >::point_type > &projectionDirection, const intersection::algorithm alg, const intersection::direction dir) const |
| Foam::List< Foam::objectHit > | projectFaceCentres (const ToPatch &targetPatch, const Field< typename Foam::PrimitivePatch< SubList< face >, const pointField & >::point_type > &projectionDirection, const intersection::algorithm alg, const intersection::direction dir) const |
| Public Member Functions inherited from PrimitivePatchBase | |
| ClassName ("PrimitivePatch") | |
| Runtime type information. | |
| PrimitivePatchBase ()=default | |
| Default construct. | |
| Public Member Functions inherited from SubList< face > | |
| SubList () noexcept=default | |
| Default construct, zero-sized and nullptr. | |
| SubList (const SubList< face > &) noexcept=default | |
| Copy construct, shallow copy. | |
| SubList (const UList< face > &list) noexcept | |
| Construct from UList, the entire size. | |
| SubList (const FixedList< face, N > &list) noexcept | |
| Construct from FixedList, the entire size. | |
| SubList (const UList< face > &list, const label len) | |
| Construct from UList and sub-list size, start at 0. | |
| SubList (const UList< face > &list, const label len, const label start) | |
| Construct from UList, sub-list size and start index. | |
| SubList (const UList< face > &list, const labelRange &range) | |
| Construct from UList and a (start,size) range. | |
| SubList (const labelRange &range, const UList< face > &list) | |
| Construct from UList and a (start,size) range, but bypassing run-time range checking. | |
| UList< face > & | reset (std::nullptr_t) noexcept |
| Reset to zero-sized and nullptr. | |
| UList< face > & | reset (const UList< face > &list) noexcept |
| Reset to use entire UList. | |
| UList< face > & | reset (const UList< face > &list, const label len) |
| Reset to use UList with sub-list size, start at 0. | |
| UList< face > & | reset (const UList< face > &list, const label len, const label start) |
| Reset to use UList with sub-list size and start index. | |
| UList< face > & | reset (const UList< face > &list, const labelRange &range) |
| Reset to use UList with a (start,size) range. | |
| UList< face > & | reset (const labelRange &range, const UList< face > &list) |
| Reset to use UList with a (start,size) range, but bypassing run-time range checking. | |
| operator const Foam::List< face > & () const | |
| Allow cast to a const List<T>&. | |
| void | operator= (const SubList< face > &list) |
| Copy assign entries (deep copy) from given sub-list. Sizes must match! | |
| void | operator= (const UList< face > &list) |
| Copy assign entries (deep copy) from given list. Sizes must match! | |
| void | operator= (const IndirectListBase< face, Addr > &list) |
| Copy assign entries from given indirect list. Sizes must match! | |
| void | operator= (const face &val) |
| Assign all entries to the given value. | |
| void | operator= (Foam::zero) |
| Assign all entries to zero. | |
| operator const Foam::List< face > & () const | |
| Allow cast to a const List<T>&. | |
| Public Member Functions inherited from UList< face > | |
| UList (const UList< face > &) noexcept=default | |
| Copy construct, shallow copy. | |
| UList (UList< face > &&) noexcept=default | |
| Move construct, shallow copy. | |
| UList< face > & | operator= (const UList< face > &)=delete |
| No copy assignment (default: shallow copy). | |
| UList< face > & | operator= (UList< face > &&) noexcept=default |
| Move assignment, shallow copy. | |
| constexpr | UList () noexcept |
| Default construct, zero-sized and nullptr. | |
| UList (face *__restrict__ ptr, const label len) noexcept | |
| Construct from components. | |
| UList (SubList< face > &&) noexcept | |
| Move construct from a SubList, shallow copy. | |
| label | fcIndex (const label i) const noexcept |
| The forward circular index. The next index in the list which returns to the first at the end of the list. | |
| label | rcIndex (const label i) const noexcept |
| The reverse circular index. The previous index in the list which returns to the last at the beginning of the list. | |
| const face & | fcValue (const label i) const |
| Return forward circular value (ie, next value in the list). | |
| face & | fcValue (const label i) |
| Return forward circular value (ie, next value in the list). | |
| const face & | rcValue (const label i) const |
| Return reverse circular value (ie, previous value in the list). | |
| face & | rcValue (const label i) |
| Return reverse circular value (ie, previous value in the list). | |
| const face * | cdata () const noexcept |
| Return pointer to the underlying array serving as data storage. | |
| face * | data () noexcept |
| Return pointer to the underlying array serving as data storage. | |
| const char * | cdata_bytes () const noexcept |
| Return pointer to the underlying array serving as data storage,. | |
| char * | data_bytes () noexcept |
| Return pointer to the underlying array serving as data storage,. | |
| face & | front () |
| Access first element of the list, position [0]. | |
| const face & | front () const |
| Access first element of the list. | |
| face & | back () |
| Access last element of the list, position [size()-1]. | |
| const face & | back () const |
| Access last element of the list, position [size()-1]. | |
| std::streamsize | size_bytes () const noexcept |
| Number of contiguous bytes for the List data. | |
| std::streamsize | byteSize () const |
| Number of contiguous bytes for the List data, runtime FatalError if type is not contiguous. | |
| void | checkStart (const label start) const |
| Check start is within valid range [0,size). | |
| void | checkSize (const label size) const |
| Check size is within valid range [0,size]. | |
| void | checkRange (const label start, const label len) const |
| Check that start and length define a valid range. | |
| void | checkIndex (const label i) const |
| Check index is within valid range [0,size). | |
| bool | uniform () const |
| True if all entries have identical values, and list is non-empty. | |
| bool | contains (const face &val) const |
| True if the value is contained in the list. | |
| bool | contains (const face &val, label pos, label len=-1) const |
| Is the value contained in the list? | |
| label | find (const face &val) const |
| Find index of the first occurrence of the value. | |
| label | find (const face &val, label pos, label len=-1) const |
| Find index of the first occurrence of the value. | |
| label | rfind (const face &val, label pos=-1) const |
| Find index of the last occurrence of the value. | |
| void | moveFirst (const label i) |
| Move element to the first position. | |
| void | moveLast (const label i) |
| Move element to the last position. | |
| void | swapFirst (const label i) |
| Swap element with the first element. Fatal on an empty list. | |
| void | swapLast (const label i) |
| Swap element with the last element. Fatal on an empty list. | |
| void | shallowCopy (face *__restrict__ ptr, const label len) noexcept |
| Copy the pointer and size. | |
| void | shallowCopy (std::nullptr_t) noexcept |
| Copy nullptr and zero size. | |
| void | shallowCopy (const UList< face > &list) noexcept |
| Copy the pointer and size held by the given UList. | |
| void | deepCopy (const UList< face > &list) |
| Copy elements of the given UList. Sizes must match! | |
| void | deepCopy (const IndirectListBase< face, Addr > &list) |
| Copy elements of the given indirect list. Sizes must match! | |
| SubList< face > | slice (const label pos, label len=-1) |
| Return SubList slice (non-const access) - no range checking. | |
| const SubList< face > | slice (const label pos, label len=-1) const |
| Return SubList slice (const access) - no range checking. | |
| SubList< face > | slice (const labelRange &range) |
| Return SubList slice (non-const access) - with range checking. | |
| const SubList< face > | slice (const labelRange &range) const |
| Return SubList slice (const access) - with range checking. | |
| face & | operator[] (const label i) |
| Return element of UList. | |
| const face & | operator[] (const label i) const |
| Return element of constant UList. | |
| operator const Foam::List< face > & () const | |
| Allow cast to a const List<T>&. | |
| void | operator= (const face &val) |
| Assignment of all entries to the given value. | |
| void | operator= (Foam::zero) |
| Assignment of all entries to zero. | |
| iterator | begin () noexcept |
| Return an iterator to begin traversing the UList. | |
| iterator | end () noexcept |
| Return an iterator to end traversing the UList. | |
| iterator | begin (const label i) noexcept |
| Return iterator at offset i from begin, clamped to [0,size] range. | |
| const_iterator | cbegin () const noexcept |
| Return const_iterator to begin traversing the constant UList. | |
| const_iterator | cend () const noexcept |
| Return const_iterator to end traversing the constant UList. | |
| const_iterator | begin () const noexcept |
| Return const_iterator to begin traversing the constant UList. | |
| const_iterator | end () const noexcept |
| Return const_iterator to end traversing the constant UList. | |
| const_iterator | cbegin (const label i) const noexcept |
| Return const_iterator at offset i from begin, clamped to [0,size] range. | |
| const_iterator | begin (const label i) const noexcept |
| Return const_iterator at offset i from begin, clamped to [0,size] range. | |
| reverse_iterator | rbegin () |
| Return reverse_iterator to begin reverse traversing the UList. | |
| reverse_iterator | rend () |
| Return reverse_iterator to end reverse traversing the UList. | |
| const_reverse_iterator | crbegin () const |
| Return const_reverse_iterator to begin reverse traversing the UList. | |
| const_reverse_iterator | crend () const |
| Return const_reverse_iterator to end reverse traversing the UList. | |
| const_reverse_iterator | rbegin () const |
| Return const_reverse_iterator to begin reverse traversing the UList. | |
| const_reverse_iterator | rend () const |
| Return const_reverse_iterator to end reverse traversing the UList. | |
| bool | empty () const noexcept |
| True if List is empty (ie, size() is zero). | |
| label | size () const noexcept |
| The number of elements in the container. | |
| label | capacity () const noexcept |
| Size of the underlying storage. | |
| void | swap (UList< face > &list) noexcept |
| Swap content with another UList of the same type in constant time. | |
| bool | operator== (const UList< face > &list) const |
| Equality operation on ULists of the same type. | |
| bool | operator!= (const UList< face > &list) const |
| The opposite of the equality operation. Takes linear time. | |
| bool | operator< (const UList< face > &list) const |
| Compare two ULists lexicographically. Takes linear time. | |
| bool | operator> (const UList< face > &list) const |
| Compare two ULists lexicographically. Takes linear time. | |
| bool | operator<= (const UList< face > &list) const |
| Return true if !(a > b). Takes linear time. | |
| bool | operator>= (const UList< face > &list) const |
| Return true if !(a < b). Takes linear time. | |
| Istream & | readList (Istream &is) |
| Read List contents from Istream. | |
| void | writeEntry (const word &keyword, Ostream &os) const |
| Write the List as a dictionary entry with keyword. | |
| Ostream & | writeList (Ostream &os, const label shortLen=0) const |
| Write List, with line-breaks in ASCII when length exceeds shortLen. | |
| bool | all () const |
| True if all entries are 'true' or if the list is empty. | |
| bool | any () const |
| True if any entries are 'true'. | |
| bool | none () const |
| True if no entries are 'true'. | |
| bool | test (const label i) const |
Test bool value at specified position, always false for out-of-range access. | |
| bool | get (const label i) const |
Return bool value at specified position, always false for out-of-range access. | |
| bool | unset (const label i) |
Unset the bool entry at specified position, always false for out-of-range access. | |
| std::string_view | view () const |
| Return a string_view of the charList. Content is non-modifiable. | |
| face & | first () |
| Access first element of the list, position [0]. | |
| const face & | first () const |
| Access first element of the list. | |
| face & | last () |
| Access last element of the list, position [size()-1]. | |
| const face & | last () const |
| Access last element of the list, position [size()-1]. | |
| bool | found (const face &val, label pos=0) const |
| Same as contains(). | |
| auto | expr () const |
| Wrap value as expression. | |
| void | operator= (const Expression::ListExpression< E > &expr) |
| Assign values from expression. | |
| operator const Foam::List< face > & () const | |
| Allow cast to a const List<T>&. | |
Static Public Member Functions | |

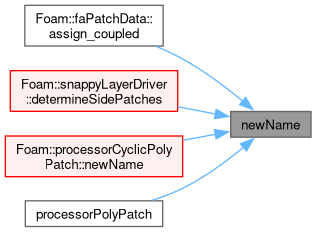

| static word | newName (const label myProcNo, const label neighbProcNo) |
| Return the name of a processorPolyPatch ("procBoundary..") constructed from the pair of processor IDs. | |

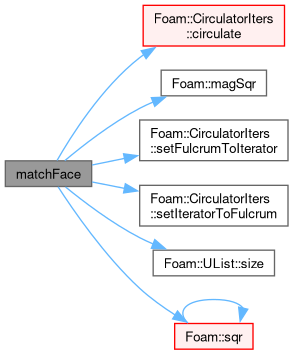

| static label | matchFace (const face &localFace, const pointField &localPts, const face &masterFace, const pointField &masterPts, const bool sameOrientation, const scalar absTolSqr, scalar &matchDistSqr) |
| Returns rotation. | |
| Static Public Member Functions inherited from coupledPolyPatch | |
| static scalarField | calcFaceTol (const UList< face > &faces, const pointField &points, const pointField &faceCentres) |
| Calculate typical tolerance per face. Is currently max distance. | |
| Static Public Member Functions inherited from polyPatch | |
| static autoPtr< polyPatch > | New (const word &patchType, const word &name, const label size, const label start, const label index, const polyBoundaryMesh &bm) |
| Return pointer to a new patch created on freestore from components. | |
| static autoPtr< polyPatch > | New (const word &name, const dictionary &dict, const label index, const polyBoundaryMesh &bm) |
| Return pointer to a new patch created on freestore from dictionary. | |
| static autoPtr< polyPatch > | New (const word &patchType, const word &name, const dictionary &dict, const label index, const polyBoundaryMesh &bm) |
| Return pointer to a new patch created on freestore from dictionary. | |
| static bool | constraintType (const word &patchType) |
| Return true if the given type is a constraint type. | |
| static wordList | constraintTypes () |
| Return a list of all the constraint patch types. | |
| Static Public Member Functions inherited from patchIdentifier | |
| static word | defaultName (const label n=-1) |
| Default patch name: "patch" or "patchN". | |
| Static Public Member Functions inherited from SubList< face > | |
| static const SubList< face > & | null () noexcept |
| Return a null SubList (reference to a nullObject). Behaves like an empty SubList. | |
| Static Public Member Functions inherited from UList< face > | |
| static const UList< face > & | null () noexcept |
| Return a null UList (reference to a nullObject). Behaves like an empty UList. | |
| static constexpr label | max_size () noexcept |
| The size of the largest possible UList. | |
Protected Member Functions | |
| processorPolyPatch (const word &name, const label size, const label start, const label index, const polyBoundaryMesh &bm, const int myProcNo, const int neighbProcNo, const transformType transform=UNKNOWN, const word &patchType=typeName) | |
| Construct from components with specified name. | |

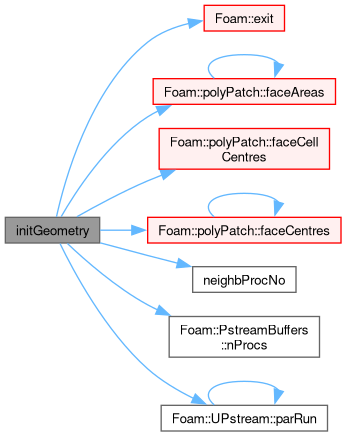

| void | initGeometry (PstreamBuffers &) |
| Initialise the calculation of the patch geometry. | |

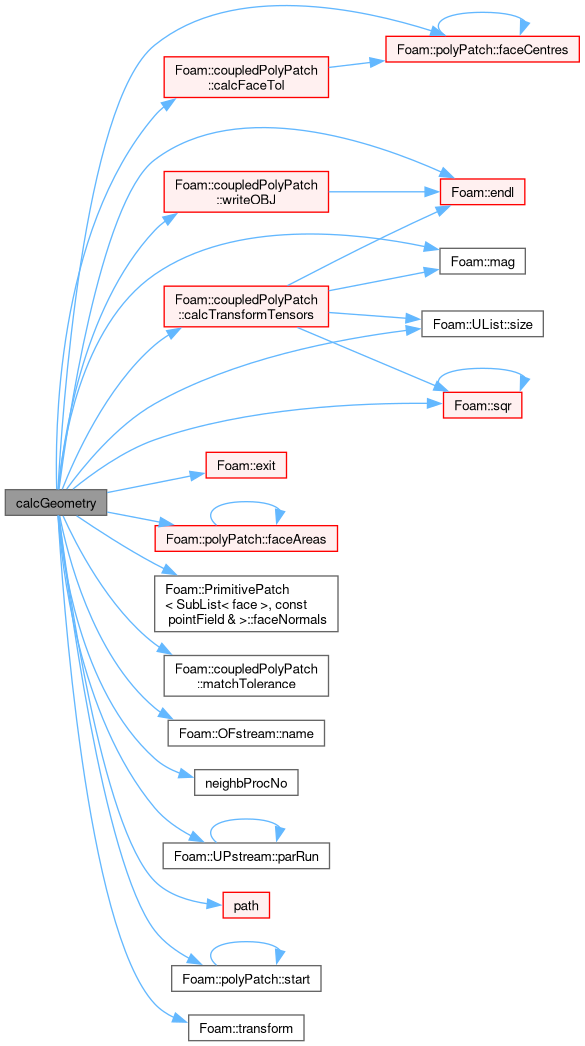

| void | calcGeometry (PstreamBuffers &) |
| Calculate the patch geometry. | |
| virtual void | calcGeometry (const primitivePatch &referPatch, const pointField &thisCtrs, const vectorField &thisAreas, const pointField &thisCc, const pointField &nbrCtrs, const vectorField &nbrAreas, const pointField &nbrCc) |
| Calculate the patch geometry with externally. | |
| void | initMovePoints (PstreamBuffers &, const pointField &) |
| Initialise the patches for moving points. | |
| void | movePoints (PstreamBuffers &, const pointField &) |
| Correct patches after moving points. | |

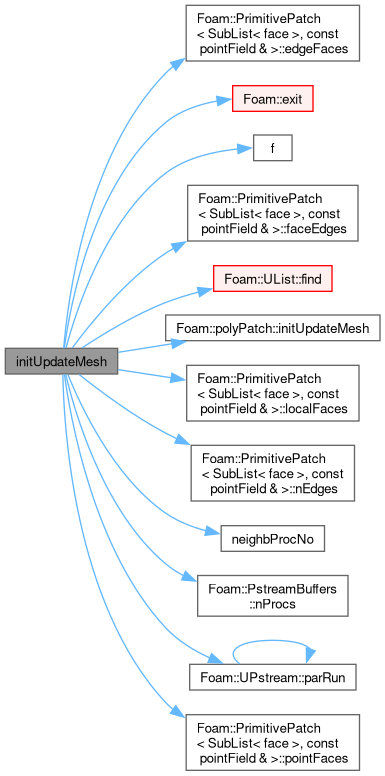

| virtual void | initUpdateMesh (PstreamBuffers &) |
| Initialise the update of the patch topology. | |

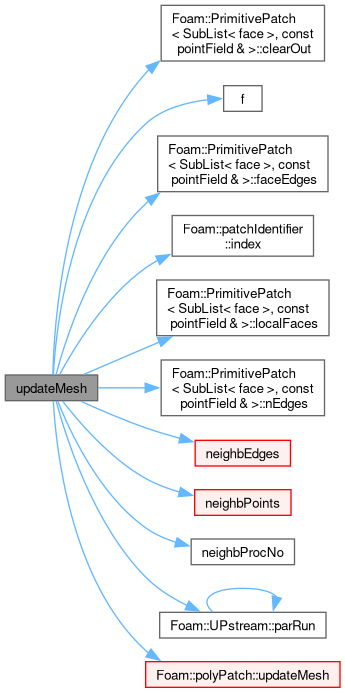

| virtual void | updateMesh (PstreamBuffers &) |
| Update of the patch topology. | |
| Protected Member Functions inherited from coupledPolyPatch | |
| void | calcTransformTensors (const vectorField &Cf, const vectorField &Cr, const vectorField &nf, const vectorField &nr, const scalarField &smallDist, const scalar absTol, const transformType=UNKNOWN) const |
| Calculate the transformation tensors. | |
| Protected Member Functions inherited from polyPatch | |
| virtual void | clearGeom () |
| Clear geometry. | |
| virtual void | movePoints (const Field< point_type > &) |
| Inherit movePoints from primitivePatch. | |
| Protected Member Functions inherited from UList< face > | |
| void | setAddressableSize (const label n) noexcept |
| Set addressed size to be inconsistent with allocated storage. | |
| void | size (const label n) |
| Older name for setAddressableSize. | |
| void | writeEntry (Ostream &os) const |
| Write the UList with its compound type. | |
| labelRange | validateRange (const labelRange &requestedRange) const |
| Return a validated (start,size) subset range, which means that it always addresses a valid section of the list. | |
| void | fill_uniform (const face &val) |
| Assign all entries to the given value. | |
| void | fill_uniform (Foam::zero) |
| Assign all entries to zero. | |
Additional Inherited Members | |
| Public Types inherited from coupledPolyPatch | |
| enum | transformType { UNKNOWN , ROTATIONAL , TRANSLATIONAL , COINCIDENTFULLMATCH , NOORDERING } |
| Public Types inherited from PrimitivePatch< SubList< face >, const pointField & > | |
| enum | surfaceTopo |
| Enumeration defining the surface type. Used in check routines. More... | |
| typedef std::remove_reference< SubList< face > >::type::value_type | face_type |
| The face type. | |
| typedef std::remove_reference< const pointField & >::type::value_type | point_type |
| The point type. | |
| typedef SubList< face > | FaceListType |
| The face list type. | |
| typedef const pointField & | PointFieldType |
| The point field type. | |
| typedef face_type | FaceType |
| Deprecated(2020-03) prefer face_type typedef. | |
| Public Types inherited from UList< face > | |
| typedef face | value_type |
| The value type the list contains. | |
| typedef face * | pointer |
| The pointer type for non-const access to value_type items. | |
| typedef const face * | const_pointer |
| The pointer type for const access to value_type items. | |
| typedef face & | reference |
| The type used for storing into value_type objects. | |
| typedef const face & | const_reference |
| The type used for reading from constant value_type objects. | |
| typedef face * | iterator |
| Random access iterator for traversing a UList. | |
| typedef const face * | const_iterator |
| Random access iterator for traversing a UList. | |
| typedef label | size_type |
| The type to represent the size of a UList. | |
| typedef label | difference_type |
| The difference between iterator objects. | |
| typedef std::reverse_iterator< iterator > | reverse_iterator |
| Reverse iterator (non-const access). | |
| typedef std::reverse_iterator< const_iterator > | const_reverse_iterator |
| Reverse iterator (const access). | |
| using | is_List |
| Have unique tag. | |
| Static Public Attributes inherited from coupledPolyPatch | |
| static const Enum< transformType > | transformTypeNames |
| Static Public Attributes inherited from polyPatch | |
| static int | disallowGenericPolyPatch |
| Debug switch to disallow the use of genericPolyPatch. | |
| Static Protected Member Functions inherited from coupledPolyPatch | |
| static void | writeOBJ (Ostream &os, const point &pt) |
| Write point in OBJ format. | |
| static void | writeOBJ (Ostream &, const pointField &, const labelList &) |
| Write selected points in OBJ format. | |
| static void | writeOBJ (const fileName &, const UList< face > &, const pointField &) |
| Write patch. | |
| static void | writeOBJ (Ostream &os, const point &p0, const point &p1, label &vertI) |
| Write edge in OBJ format. | |
| static pointField | getAnchorPoints (const UList< face > &, const pointField &, const transformType) |
| Get a unique anchor point for all faces. | |
| static label | getRotation (const pointField &points, const face &f, const point &anchor, const scalar tol) |
| Get the number of vertices face f needs to be rotated such that. | |
Neighbour processor patch.
Note: morph patch face ordering tries to do a geometric ordering. (assumes faces coincident) Hence will have problems when cyclics are present.
Definition at line 54 of file processorPolyPatch.H.
|
protected |
Construct from components with specified name.
Definition at line 62 of file processorPolyPatch.C.
References coupledPolyPatch::coupledPolyPatch(), patchIdentifier::index(), myProcNo(), Foam::name(), neighbProcNo(), UList< face >::size(), polyPatch::start(), and coupledPolyPatch::transform().
Referenced by clone(), clone(), clone(), processorCyclicPolyPatch::processorCyclicPolyPatch(), processorCyclicPolyPatch::processorCyclicPolyPatch(), processorCyclicPolyPatch::processorCyclicPolyPatch(), processorCyclicPolyPatch::processorCyclicPolyPatch(), processorCyclicPolyPatch::processorCyclicPolyPatch(), processorCyclicPolyPatch::processorCyclicPolyPatch(), processorPolyPatch(), processorPolyPatch(), processorPolyPatch(), and TypeName().
| processorPolyPatch | ( | const label | size, |
| const label | start, | ||
| const label | index, | ||
| const polyBoundaryMesh & | bm, | ||
| const int | myProcNo, | ||
| const int | neighbProcNo, | ||
| const transformType | transform = UNKNOWN, | ||
| const word & | patchType = typeName ) |
Construct from components with automatically generated standard name.
Definition at line 84 of file processorPolyPatch.C.
References coupledPolyPatch::coupledPolyPatch(), patchIdentifier::index(), myProcNo(), neighbProcNo(), newName(), UList< face >::size(), polyPatch::start(), and coupledPolyPatch::transform().
| processorPolyPatch | ( | const word & | name, |
| const dictionary & | dict, | ||
| const label | index, | ||
| const polyBoundaryMesh & | bm, | ||
| const word & | patchType ) |
Construct from dictionary.
Definition at line 114 of file processorPolyPatch.C.
References coupledPolyPatch::coupledPolyPatch(), dict, UList< face >::get(), patchIdentifier::index(), and Foam::name().
| processorPolyPatch | ( | const processorPolyPatch & | pp, |
| const polyBoundaryMesh & | bm ) |
Construct as copy, resetting the boundary mesh.
Definition at line 132 of file processorPolyPatch.C.
References coupledPolyPatch::coupledPolyPatch(), pp(), and processorPolyPatch().
| processorPolyPatch | ( | const processorPolyPatch & | pp, |
| const polyBoundaryMesh & | bm, | ||
| const label | index, | ||
| const label | newSize, | ||
| const label | newStart ) |
Construct as given the original patch and resetting the.
face list and boundary mesh information
Definition at line 147 of file processorPolyPatch.C.
References coupledPolyPatch::coupledPolyPatch(), patchIdentifier::index(), pp(), and processorPolyPatch().
| processorPolyPatch | ( | const processorPolyPatch & | pp, |
| const polyBoundaryMesh & | bm, | ||
| const label | index, | ||
| const labelUList & | mapAddressing, | ||
| const label | newStart ) |
Construct given the original patch and a map.
Definition at line 165 of file processorPolyPatch.C.
References coupledPolyPatch::coupledPolyPatch(), patchIdentifier::index(), pp(), and processorPolyPatch().
|
virtual |
Destructor.
Definition at line 185 of file processorPolyPatch.C.
|
protectedvirtual |
Initialise the calculation of the patch geometry.
Implements coupledPolyPatch.
Definition at line 194 of file processorPolyPatch.C.
References Foam::exit(), polyPatch::faceAreas(), polyPatch::faceCellCentres(), polyPatch::faceCentres(), Foam::FatalError, FatalErrorInFunction, name, neighbProcNo(), Foam::nl, PstreamBuffers::nProcs(), and UPstream::parRun().
Referenced by processorCyclicPolyPatch::initGeometry(), and initMovePoints().
|
protectedvirtual |
Calculate the patch geometry.
Implements coupledPolyPatch.
Definition at line 218 of file processorPolyPatch.C.
References coupledPolyPatch::calcFaceTol(), coupledPolyPatch::calcTransformTensors(), Foam::endl(), Foam::exit(), polyPatch::faceAreas(), polyPatch::faceCentres(), PrimitivePatch< SubList< face >, const pointField & >::faceNormals(), Foam::FatalError, FatalErrorInFunction, forAll, Foam::mag(), coupledPolyPatch::matchTolerance(), mesh, OFstream::name(), name, neighbProcNo(), UPstream::parRun(), path(), points, Foam::Pout, UList< face >::size(), Foam::sqr(), polyPatch::start(), Foam::transform(), and coupledPolyPatch::writeOBJ().
Referenced by processorCyclicPolyPatch::calcGeometry(), and movePoints().
|
inlineprotectedvirtual |
Calculate the patch geometry with externally.
provided geometry
Implements coupledPolyPatch.
Reimplemented in processorCyclicPolyPatch.
Definition at line 130 of file processorPolyPatch.H.
References NotImplemented.
|
protectedvirtual |
Initialise the patches for moving points.
Implements coupledPolyPatch.
Definition at line 337 of file processorPolyPatch.C.
References initGeometry(), polyPatch::movePoints(), and p.
|
protectedvirtual |
Correct patches after moving points.
Implements coupledPolyPatch.
Definition at line 348 of file processorPolyPatch.C.
References calcGeometry().
|
protectedvirtual |
Initialise the update of the patch topology.
Implements coupledPolyPatch.
Reimplemented in processorCyclicPolyPatch.
Definition at line 358 of file processorPolyPatch.C.
References PrimitivePatch< SubList< face >, const pointField & >::edgeFaces(), Foam::exit(), f(), PrimitivePatch< SubList< face >, const pointField & >::faceEdges(), Foam::FatalError, FatalErrorInFunction, UList< T >::find(), polyPatch::initUpdateMesh(), PrimitivePatch< SubList< face >, const pointField & >::localFaces(), name, PrimitivePatch< SubList< face >, const pointField & >::nEdges(), neighbProcNo(), Foam::nl, nPoints, PstreamBuffers::nProcs(), UPstream::parRun(), and PrimitivePatch< SubList< face >, const pointField & >::pointFaces().
Referenced by processorCyclicPolyPatch::initUpdateMesh().
|
protectedvirtual |
Update of the patch topology.
Implements coupledPolyPatch.
Reimplemented in processorCyclicPolyPatch.
Definition at line 415 of file processorPolyPatch.C.
References PrimitivePatch< SubList< face >, const pointField & >::clearOut(), f(), PrimitivePatch< SubList< face >, const pointField & >::faceEdges(), forAll, patchIdentifier::index(), PrimitivePatch< SubList< face >, const pointField & >::localFaces(), PrimitivePatch< SubList< face >, const pointField & >::nEdges(), neighbEdges(), neighbPoints(), neighbProcNo(), nPoints, UPstream::parRun(), and polyPatch::updateMesh().
Referenced by processorCyclicPolyPatch::updateMesh().
| TypeName | ( | "processor" | ) |
Runtime type information.
References dict, Foam::GlobalIOList< Tuple2< scalar, vector > >::typeName, patchIdentifier::index(), myProcNo(), Foam::name(), neighbProcNo(), pp(), processorPolyPatch(), UList< face >::size(), polyPatch::start(), coupledPolyPatch::transform(), and coupledPolyPatch::UNKNOWN.
|
inlinevirtual |
Construct and return a clone, resetting the boundary mesh.
Reimplemented from polyPatch.
Reimplemented in processorCyclicPolyPatch.
Definition at line 236 of file processorPolyPatch.H.
References processorPolyPatch().
|
inlinevirtual |
Construct and return a clone, resetting the face list.
and boundary mesh
Reimplemented from polyPatch.
Reimplemented in processorCyclicPolyPatch.
Definition at line 246 of file processorPolyPatch.H.
References patchIdentifier::index(), and processorPolyPatch().
|
inlinevirtual |
Construct and return a clone, resetting the face list.
and boundary mesh
Reimplemented from polyPatch.
Reimplemented in processorCyclicPolyPatch.
Definition at line 272 of file processorPolyPatch.H.
References patchIdentifier::index(), and processorPolyPatch().
|
static |
Return the name of a processorPolyPatch ("procBoundary..") constructed from the pair of processor IDs.
Definition at line 45 of file processorPolyPatch.C.
References myProcNo(), and neighbProcNo().
Referenced by faPatchData::assign_coupled(), snappyLayerDriver::determineSidePatches(), processorCyclicPolyPatch::newName(), and processorPolyPatch().
|
inlinevirtual |
Return true only if this is a parallel run.
Reimplemented from coupledPolyPatch.
Definition at line 318 of file processorPolyPatch.H.
References UPstream::parRun().
|
inlinenoexcept |
Return processor number.
Definition at line 326 of file processorPolyPatch.H.
References Foam::noexcept.
Referenced by processorCyclicPolyPatch::newName(), newName(), processorCyclicPolyPatch::processorCyclicPolyPatch(), processorPolyPatch(), processorPolyPatch(), processorCyclicPolyPatch::TypeName(), TypeName(), and processorCyclicPolyPatch::~processorCyclicPolyPatch().
|
inlinenoexcept |
Return neighbour processor number.
Definition at line 334 of file processorPolyPatch.H.
References Foam::noexcept.
Referenced by calcGeometry(), initGeometry(), processorCyclicPolyPatch::initOrder(), initOrder(), initUpdateMesh(), processorCyclicPolyPatch::newName(), newName(), processorCyclicPolyPatch::order(), order(), processorCyclicPolyPatch::processorCyclicPolyPatch(), processorPolyPatch(), processorPolyPatch(), processorCyclicPolyPatch::TypeName(), TypeName(), updateMesh(), and processorCyclicPolyPatch::~processorCyclicPolyPatch().
|
inlinevirtual |
Does the processor own the patch ?
Implements coupledPolyPatch.
Reimplemented in processorCyclicPolyPatch.
Definition at line 342 of file processorPolyPatch.H.
Referenced by initOrder(), neighbour(), and order().
|
inlinevirtual |
Is the processor the patch neighbour ?
Reimplemented from coupledPolyPatch.
Definition at line 350 of file processorPolyPatch.H.
References owner().
|
inlinenoexcept |
Return processor-neighbour patch face centres.
Definition at line 358 of file processorPolyPatch.H.
References Foam::noexcept.
Referenced by processorCyclicPolyPatch::calcGeometry().
|
inlinenoexcept |
Return processor-neighbour patch face areas.
Definition at line 366 of file processorPolyPatch.H.
References Foam::noexcept.
Referenced by processorCyclicPolyPatch::calcGeometry().
|
inlinenoexcept |
Return processor-neighbour patch neighbour cell centres.
Definition at line 374 of file processorPolyPatch.H.
References Foam::noexcept.
Referenced by processorCyclicPolyPatch::calcGeometry().
| const Foam::labelList & neighbPoints | ( | ) | const |
Return neighbour point labels. WIP.
Definition at line 527 of file processorPolyPatch.C.
References Foam::abort(), Foam::FatalError, FatalErrorInFunction, and name.
Referenced by updateMesh().
| const Foam::labelList & neighbEdges | ( | ) | const |
Return neighbour edge labels. WIP.
Definition at line 539 of file processorPolyPatch.C.
References Foam::abort(), Foam::FatalError, FatalErrorInFunction, and name.
Referenced by updateMesh().
|
inlinevirtual |
Return message tag to use for communication.
Reimplemented in processorCyclicPolyPatch.
Definition at line 392 of file processorPolyPatch.H.
References UPstream::msgType().
|
inlinevirtual |
Return communicator used for communication.
Definition at line 400 of file processorPolyPatch.H.
References polyPatch::boundaryMesh(), polyMesh::comm(), and polyBoundaryMesh::mesh().
|
inlinevirtual |
Transform a patch-based position from other side to this side.
Implements coupledPolyPatch.
Reimplemented in processorCyclicPolyPatch.
Definition at line 408 of file processorPolyPatch.H.
|
inlinevirtual |
Transform a patch-based position from other side to this side.
Implements coupledPolyPatch.
Reimplemented in processorCyclicPolyPatch.
Definition at line 414 of file processorPolyPatch.H.
|
virtual |
Initialize ordering for primitivePatch. Does not.
refer to *this (except for name() and type() etc.)
Implements coupledPolyPatch.
Reimplemented in processorCyclicPolyPatch.
Definition at line 551 of file processorPolyPatch.C.
References coupledPolyPatch::COINCIDENTFULLMATCH, Foam::endl(), forAll, coupledPolyPatch::getAnchorPoints(), mesh, OFstream::name(), name, neighbProcNo(), coupledPolyPatch::NOORDERING, owner(), UPstream::parRun(), path(), Foam::Pout, pp(), UList< T >::size(), Foam::transform(), coupledPolyPatch::writeOBJ(), and Foam::Zero.
|
static |
Returns rotation.
-1 : no match 0 : match >0 : match if rotated clockwise by this amount
Definition at line 635 of file processorPolyPatch.C.
References CirculatorBase::ANTICLOCKWISE, b, CirculatorIters< Container, Const >::circulate(), CirculatorBase::CLOCKWISE, Foam::magSqr(), CirculatorIters< Container, Const >::setFulcrumToIterator(), CirculatorIters< Container, Const >::setIteratorToFulcrum(), UList< T >::size(), and Foam::sqr().
Referenced by order().
|
virtual |
Return new ordering for primitivePatch.
Ordering is -faceMap: for every face index of the new face -rotation:for every new face the clockwise shift of the original face. Return false if nothing changes (faceMap is identity, rotation is 0), true otherwise.
Implements coupledPolyPatch.
Reimplemented in processorCyclicPolyPatch.
Definition at line 741 of file processorPolyPatch.C.
References Foam::abort(), coupledPolyPatch::calcFaceTol(), coupledPolyPatch::COINCIDENTFULLMATCH, Foam::endl(), Foam::faceMap(), Foam::FatalError, FatalErrorInFunction, forAll, coupledPolyPatch::getAnchorPoints(), coupledPolyPatch::getRotation(), PrimitivePatch< SubList< face >, const pointField & >::localFaces(), matchFace(), Foam::matchPoints(), coupledPolyPatch::matchTolerance(), mesh, fileName::name(), OFstream::name(), name, neighbProcNo(), Foam::nl, coupledPolyPatch::NOORDERING, owner(), UPstream::parRun(), path(), Foam::Pout, pp(), pts, SeriousErrorInFunction, List< T >::setSize(), UList< T >::size(), Foam::sqr(), Foam::transform(), coupledPolyPatch::writeOBJ(), and Foam::Zero.
|
virtual |
Write the polyPatch data as a dictionary.
Reimplemented from coupledPolyPatch.
Reimplemented in processorCyclicPolyPatch.
Definition at line 1134 of file processorPolyPatch.C.
References os(), and coupledPolyPatch::write().
Referenced by processorCyclicPolyPatch::write().
1.16.1
