The cellTable persistent data saved as a Map<dictionary>. More...

#include <cellTable.H>

Inheritance diagram for cellTable:

Collaboration diagram for cellTable:

Public Member Functions
	cellTable (const cellTable &)=delete
	No copy construct.
	cellTable () noexcept=default
	Default construct.
	cellTable (const objectRegistry &obr, const word &name="cellTable", const fileName &instance="constant")
	Read construct from registry, name, instance.
	~cellTable ()=default
	Destructor.
label	push_back (const dictionary &dict)
	Add to the end, return index.
label	maxIndex () const
	The max table index, -1 if empty.
label	findIndex (const word &name) const
	The index corresponding to entry with 'Label' of given name, or -1 if not found.

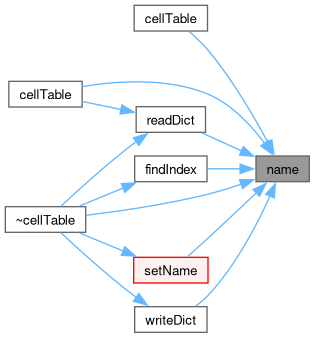

word	name (const label id) const
	The 'Label' name corresponding to id, or cellTable_ID if not otherwise defined.
Map< word >	names () const
	Return the extracted Map of (id => name).
Map< word >	names (const wordRes &patterns) const
	Return the extracted Map of (id => names) selected by patterns.

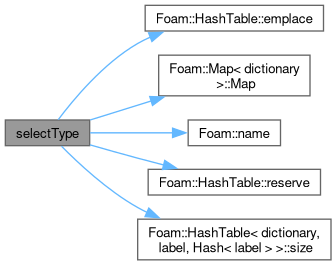

Map< word >	selectType (const word &materialType) const
	Return the extracted Map of (id => name) for materialType (fluid \| solid \| shell).
Map< word >	fluids () const
	Return a Map of (id => name) for fluids.
Map< word >	shells () const
	Return a Map of (id => name) for shells.
Map< word >	solids () const
	Return a Map of (id => name) for solids.

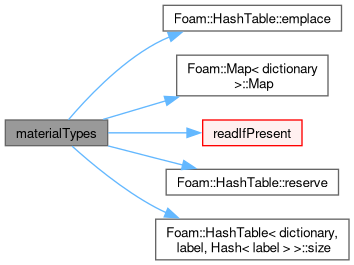

Map< word >	materialTypes () const
	Return a Map of (id => fluid\|solid\|shell).
void	setMaterial (const label, const word &)
	Assign material Type.
void	setName (const label, const word &)
	Assign name.
void	setName (const label)
	Assign default name if not already set.

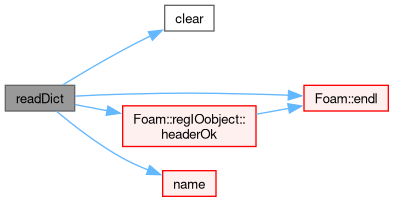

void	readDict (const objectRegistry &, const word &name="cellTable", const fileName &instance="constant")
	Read constant/cellTable.

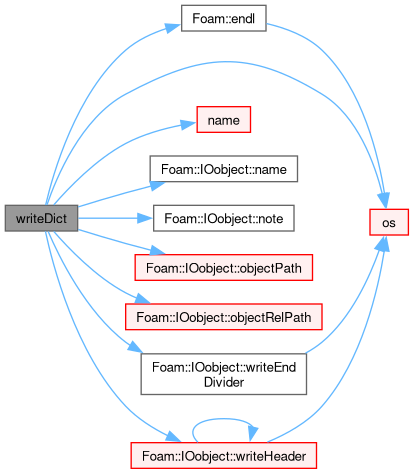

void	writeDict (const objectRegistry &, const word &name="cellTable", const fileName &instance="constant") const
	Write constant/cellTable for later reuse.
void	operator= (const cellTable &)
	Assignment.
void	operator= (const Map< dictionary > &)
	Assign from Map<dictionary>.
void	operator= (const polyMesh &)
	Assign from cellZones.

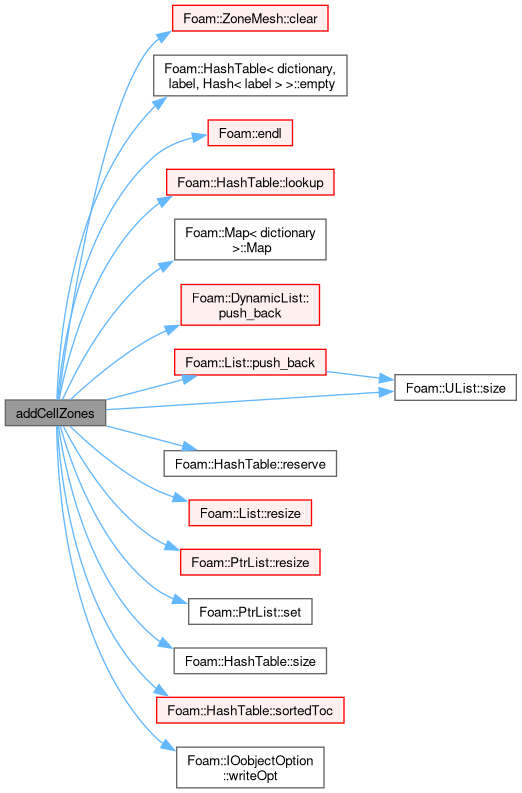

void	addCellZones (polyMesh &, const labelList &tableIds) const
	Classify tableIds into cellZones according to the cellTable.

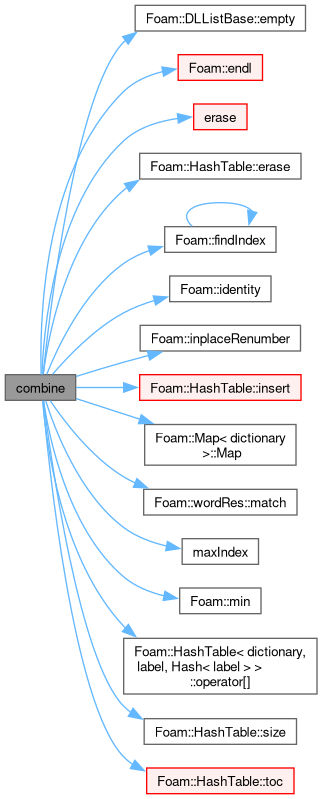

void	combine (const dictionary &mapDict, labelList &tableIds)
	Combine tableIds together.
label	append (const dictionary &dict)
	Add to the end, return index.
Public Member Functions inherited from Map< dictionary >
void	operator= (const this_type &rhs)
	Copy assign.
void	operator= (std::initializer_list< std::pair< label, dictionary > > rhs)
	Copy assign from an initializer list.
void	operator= (this_type &&rhs)
	Move assign.
constexpr	Map () noexcept=default
	Default construct: empty without allocation (capacity=0).
Public Member Functions inherited from HashTable< dictionary, label, Hash< label > >
Foam::List< label >	sortedToc (const Compare &comp) const
Foam::List< label >	tocKeys (const UnaryPredicate &pred, const bool invert) const
Foam::List< label >	tocValues (const UnaryPredicate &pred, const bool invert) const
Foam::List< label >	tocEntries (const BinaryPredicate &pred, const bool invert) const
Foam::label	countKeys (const UnaryPredicate &pred, const bool invert) const
Foam::label	countValues (const UnaryPredicate &pred, const bool invert) const
Foam::label	countEntries (const BinaryPredicate &pred, const bool invert) const
Foam::label	erase (InputIter first, InputIter last)
Foam::label	erase (const FixedList< label, N > &keys)
Foam::label	erase (const HashTable< AnyType, label, AnyHash > &other)
Foam::label	retain (const HashTable< AnyType, label, AnyHash > &other)
Foam::label	filterKeys (const UnaryPredicate &pred, const bool pruning)
Foam::label	filterValues (const UnaryPredicate &pred, const bool pruning)
Foam::label	filterEntries (const BinaryPredicate &pred, const bool pruning)
constexpr	HashTable () noexcept
	Default construct: empty without allocation (capacity=0).
	~HashTable ()
	Destructor.
bool	empty () const noexcept
	True if the hash table is empty.
label	size () const noexcept
	The number of elements in table.
label	capacity () const noexcept
	The size of the underlying table (the number of buckets).
dictionary &	at (const label &key)
	Find and return a hashed entry. FatalError if it does not exist.
bool	contains (const label &key) const
	True if hashed key is contained (found) in table.
iterator	find (const label &key)
	Find and return an iterator set at the hashed entry.
const_iterator	cfind (const label &key) const
	Find and return an const_iterator set at the hashed entry.
const dictionary &	lookup (const label &key, const dictionary &deflt) const
	Return hashed entry if it exists, or return the given default.
List< label >	toc () const
	The table of contents (the keys) in unsorted order.
UPtrList< const node_type >	csorted () const
	Const access to the hash-table contents in sorted order (sorted by keys).
UPtrList< node_type >	sorted ()
	Non-const access to the hash-table contents in sorted order (sorted by keys).
bool	emplace (const label &key, Args &&... args)
	Emplace insert a new entry, not overwriting existing entries.
bool	emplace_set (const label &key, Args &&... args)
	Emplace set an entry, overwriting any existing entries.
bool	insert (const label &key, const dictionary &obj)
	Copy insert a new entry, not overwriting existing entries.
bool	set (const label &key, const dictionary &obj)
	Copy assign a new entry, overwriting existing entries.
void	clear ()
	Remove all entries from table.
void	clearStorage ()
	Remove all entries from table and the table itself.
void	setCapacity (label newCapacity)
	Change the hash table capacity (number of buckets).
void	resize (label newCapacity)
	Rehash the hash table with new number of buckets. Currently identical to setCapacity().
void	reserve (label numEntries)
	Reserve space for at least the specified number of elements (not the number of buckets) and regenerates the hash table.
void	swap (HashTable< dictionary, label, Hash > &rhs) noexcept
	Swap contents into this table.
void	transfer (HashTable< dictionary, label, Hash > &rhs)
	Transfer contents into this table.
void	merge (HashTable< dictionary, label, Hash > &source)
	Attempts to extract entries from source parameter and insert them into `this`, does not overwrite existing entries. The source will contains any items that could not be merged.
dictionary &	operator[] (const label &key)
	Find and return a hashed entry. FatalError if it does not exist.
dictionary &	operator() (const label &key)
	Return existing entry or create a new entry.
void	operator= (const this_type &rhs)
	Copy assign.
bool	operator== (const this_type &rhs) const
	Equality. Tables are equal if all keys and values are equal, independent of order or underlying storage size.
bool	operator!= (const this_type &rhs) const
	The opposite of the equality operation.
this_type &	operator+= (const this_type &rhs)
	Add entries into this HashTable.
const_iterator_pair< const_key_iterator, this_type >	keys () const
	A const iterator begin/end pair for iterating over keys.
iterator	begin ()
	iterator set to the beginning of the HashTable
const_iterator	cbegin () const
	const_iterator set to the beginning of the HashTable
iterator	end () noexcept
	iterator to signal the end (for any HashTable)
constexpr const_iterator	cend () const noexcept
	const_iterator to signal the end (for any HashTable)
Ostream &	printInfo (Ostream &os) const
	Print information.
Ostream &	writeKeys (Ostream &os, const label shortLen=0) const
	Write unordered keys (list), with line-breaks when length exceeds shortLen.
bool	found (const label &key) const
	Same as contains().
Public Member Functions inherited from HashTableCore
	ClassName ("HashTable")
	Declare type-name (with debug switch).
constexpr	HashTableCore () noexcept=default
	Default construct.

Additional Inherited Members
Public Types inherited from Map< dictionary >
typedef Map< dictionary >	this_type
	The template instance used for this Map.
typedef HashTable< dictionary, label, Hash< label > >	parent_type
	The template instance used for the parent HashTable.
using	iterator
using	const_iterator
Public Types inherited from HashTable< dictionary, label, Hash< label > >
typedef HashTable< dictionary, label, Hash >	this_type
	The template instance used for this HashTable.
using	node_type
	A table entry (node) that encapsulates the key/val tuple with an additional linked-list entry for hash collisions.
typedef label	key_type
	The second template parameter, type of keys used.
typedef dictionary	mapped_type
	The first template parameter, type of objects contained.
typedef dictionary	value_type
	Same as mapped_type for OpenFOAM HashTables.
typedef Hash	hasher
	The third template parameter, the hash index method.
typedef dictionary *	pointer
	Pointer type for storing into value_type objects.
typedef dictionary &	reference
	Reference to the stored value_type.
typedef const dictionary *	const_pointer
	Const pointer type for the stored value_type.
typedef const dictionary &	const_reference
	Const reference to the stored value_type.
typedef label	difference_type
	The type to represent the difference between two iterators.
typedef label	size_type
	The type that can represent the size of a HashTable.
using	key_iterator
	Forward iterator returning the key.
using	const_key_iterator
	Forward const iterator returning the key.
Static Public Member Functions inherited from HashTableCore
static label	canonicalSize (const label size) noexcept
	Return a canonical (power-of-two) of the requested size.
Static Public Attributes inherited from HashTableCore
static constexpr int32_t	maxTableSize = (1 << (32-3))
	Maximum allowable internal table size (must be a power of two!).

Detailed Description

The cellTable persistent data saved as a Map<dictionary>.

The meshReader supports cellTable information.

The constant/cellTable file is an IOMap<dictionary> that is used to save the information persistently. It contains the cellTable information of the following form:

    (
        ID
        {
            Label           WORD;
            MaterialType    WORD;
            MaterialId      INT;
            PorosityId      INT;
            ColorIdx        INT;
            ...
        }
    ...
    )

If the Label is missing, a value cellTable_{ID} will be inferred. If the MaterialType is missing, the value fluid will be inferred.

Source files

Definition at line 77 of file cellTable.H.

Constructor & Destructor Documentation

◆ cellTable() [1/3]

cellTable ( const cellTable & )

delete

No copy construct.

References cellTable().

Referenced by cellTable(), cellTable(), operator=(), and ~cellTable().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ cellTable() [2/3]

cellTable ( )

defaultnoexcept

Default construct.

References cellTable(), name(), and Foam::noexcept.

Here is the call graph for this function:

◆ cellTable() [3/3]

cellTable	(	const objectRegistry &	obr,
		const word &	name = "cellTable",
		const fileName &	instance = "constant" )

explicit

Read construct from registry, name, instance.

Definition at line 107 of file cellTable.C.

References name(), and readDict().

Here is the call graph for this function:

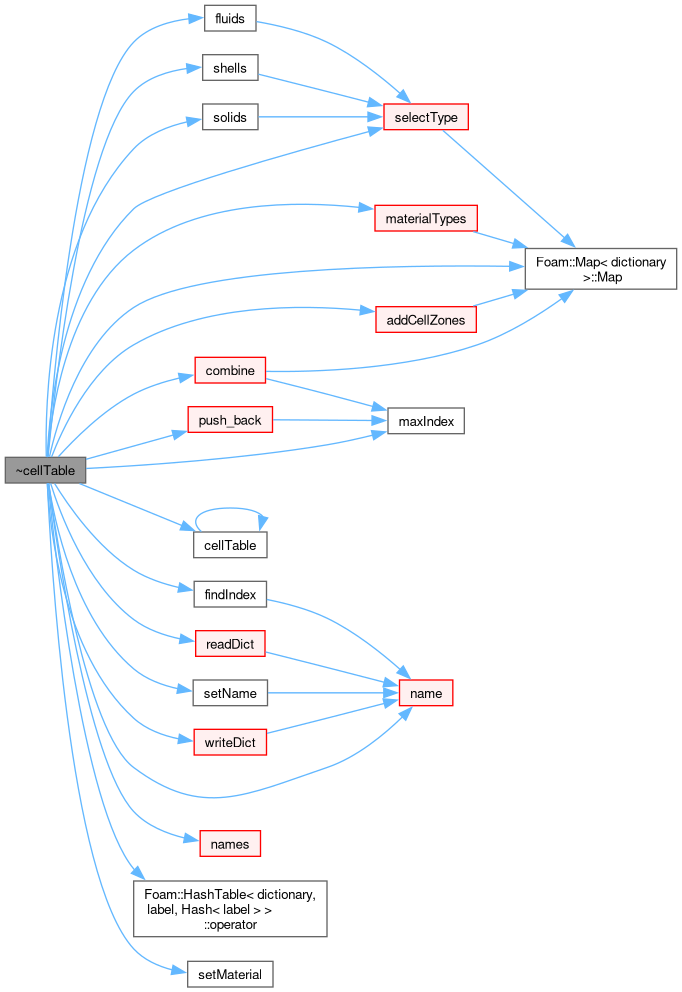

◆ ~cellTable()

~cellTable ( )

default

Destructor.

References addCellZones(), cellTable(), combine(), dict, findIndex(), fluids(), Map< dictionary >::Map(), materialTypes(), maxIndex(), name(), names(), HashTable< dictionary, label, Hash< label > >::operator, push_back(), readDict(), selectType(), setMaterial(), setName(), shells(), solids(), and writeDict().

Here is the call graph for this function:

Member Function Documentation

◆ push_back()

Foam::label push_back ( const dictionary & dict )

Add to the end, return index.

Definition at line 135 of file cellTable.C.

References dict, insert(), and maxIndex().

Referenced by append(), and ~cellTable().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ maxIndex()

Foam::label maxIndex ( ) const

The max table index, -1 if empty.

Definition at line 120 of file cellTable.C.

References forAllConstIters.

Referenced by combine(), push_back(), and ~cellTable().

Here is the caller graph for this function:

◆ findIndex()

Foam::label findIndex ( const word & name ) const

The index corresponding to entry with 'Label' of given name, or -1 if not found.

Definition at line 175 of file cellTable.C.

References dict, forAllConstIters, and name().

Referenced by ~cellTable().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ name()

Foam::word name ( const label id ) const

The 'Label' name corresponding to id, or cellTable_ID if not otherwise defined.

Definition at line 156 of file cellTable.C.

References HashTable< dictionary, label, Hash< label > >::cfind(), and Foam::name().

Referenced by cellTable(), cellTable(), findIndex(), readDict(), setName(), writeDict(), and ~cellTable().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ names() [1/2]

Foam::Map< Foam::word > names ( ) const

Return the extracted Map of (id => name).

Definition at line 144 of file cellTable.C.

References Foam::names_impl().

Referenced by ~cellTable().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ names() [2/2]

Foam::Map< Foam::word > names ( const wordRes & patterns ) const

Return the extracted Map of (id => names) selected by patterns.

Definition at line 150 of file cellTable.C.

References Foam::names_impl().

Here is the call graph for this function:

◆ selectType()

Foam::Map< Foam::word > selectType ( const word & materialType ) const

Return the extracted Map of (id => name) for materialType (fluid | solid | shell).

Definition at line 217 of file cellTable.C.

References defaultMaterial_, dict, HashTable< T, Key, Hash >::emplace(), forAllConstIters, Map< dictionary >::Map(), Foam::name(), HashTable< T, Key, Hash >::reserve(), and HashTable< dictionary, label, Hash< label > >::size().

Referenced by fluids(), shells(), solids(), and ~cellTable().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ fluids()

Foam::Map< Foam::word > fluids ( ) const

Return a Map of (id => name) for fluids.

Definition at line 246 of file cellTable.C.

References selectType().

Referenced by ~cellTable().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ shells()

Foam::Map< Foam::word > shells ( ) const

Return a Map of (id => name) for shells.

Definition at line 258 of file cellTable.C.

References selectType().

Referenced by ~cellTable().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ solids()

Foam::Map< Foam::word > solids ( ) const

Return a Map of (id => name) for solids.

Definition at line 252 of file cellTable.C.

References selectType().

Referenced by ~cellTable().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ materialTypes()

Foam::Map< Foam::word > materialTypes ( ) const

Return a Map of (id => fluid|solid|shell).

Definition at line 197 of file cellTable.C.

References defaultMaterial_, HashTable< T, Key, Hash >::emplace(), forAllConstIters, Map< dictionary >::Map(), readIfPresent(), HashTable< T, Key, Hash >::reserve(), and HashTable< dictionary, label, Hash< label > >::size().

Referenced by ~cellTable().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setMaterial()

void setMaterial	(	const label	id,
		const word &	matlType )

Assign material Type.

Definition at line 264 of file cellTable.C.

Referenced by ~cellTable().

Here is the caller graph for this function:

◆ setName() [1/2]

void setName	(	const label	id,
		const word &	name )

Assign name.

Definition at line 270 of file cellTable.C.

References name().

Referenced by setName(), and ~cellTable().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setName() [2/2]

void setName ( const label id )

Assign default name if not already set.

Definition at line 276 of file cellTable.C.

References HashTable< dictionary, label, Hash< label > >::find(), found, Foam::name(), and setName().

Here is the call graph for this function:

◆ readDict()

void readDict	(	const objectRegistry &	obr,
		const word &	name = "cellTable",
		const fileName &	instance = "constant" )

Read constant/cellTable.

Definition at line 287 of file cellTable.C.

References clear(), Foam::endl(), regIOobject::headerOk(), Foam::Info, name(), IOobjectOption::NO_REGISTER, IOobjectOption::NO_WRITE, and IOobjectOption::READ_IF_PRESENT.

Referenced by cellTable(), and ~cellTable().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ writeDict()

void writeDict	(	const objectRegistry &	obr,
		const word &	name = "cellTable",
		const fileName &	instance = "constant" ) const

Write constant/cellTable for later reuse.

Definition at line 322 of file cellTable.C.

References Foam::endl(), Foam::Info, name(), IOobject::name(), IOobjectOption::NO_READ, IOobjectOption::NO_REGISTER, IOobjectOption::NO_WRITE, IOobject::note(), IOobject::objectPath(), IOobject::objectRelPath(), os(), IOobject::writeEndDivider(), and IOobject::writeHeader().

Referenced by ~cellTable().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ operator=() [1/3]

void operator= ( const cellTable & rhs )

Assignment.

Definition at line 359 of file cellTable.C.

References cellTable(), Map< T >::operator=(), and Foam::rhs().

Here is the call graph for this function:

◆ operator=() [2/3]

void operator= ( const Map< dictionary > & rhs )

Assign from Map<dictionary>.

Definition at line 366 of file cellTable.C.

References Map< dictionary >::Map(), Map< T >::operator=(), and Foam::rhs().

Here is the call graph for this function:

◆ operator=() [3/3]

void operator= ( const polyMesh & mesh )

Assign from cellZones.

Definition at line 373 of file cellTable.C.

References HashTable< T, Key, Hash >::clear(), dict, dictionary, forAll, HashTable< T, Key, Hash >::insert(), Map< dictionary >::Map(), mesh, Map< T >::operator=(), and UList< T >::size().

Here is the call graph for this function:

◆ addCellZones()

void addCellZones	(	polyMesh &	mesh,
		const labelList &	tableIds ) const

Classify tableIds into cellZones according to the cellTable.

Definition at line 418 of file cellTable.C.

References IOobjectOption::AUTO_WRITE, ZoneMesh< ZoneType, MeshType >::clear(), HashTable< dictionary, label, Hash< label > >::empty(), Foam::endl(), forAll, Foam::Info, HashTable< T, Key, Hash >::lookup(), Map< dictionary >::Map(), mesh, names, DynamicList< T, SizeMin >::push_back(), List< T >::push_back(), HashTable< T, Key, Hash >::reserve(), List< T >::resize(), PtrList< T >::resize(), PtrList< T >::set(), HashTable< T, Key, Hash >::size(), UList< T >::size(), HashTable< T, Key, Hash >::sortedToc(), and IOobjectOption::writeOpt().

Referenced by ~cellTable().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ combine()

void combine	(	const dictionary &	mapDict,
		labelList &	tableIds )

Combine tableIds together.

each dictionary entry is a wordList

Definition at line 507 of file cellTable.C.

References DLListBase::empty(), Foam::endl(), erase(), HashTable< T, Key, Hash >::erase(), Foam::findIndex(), forAllConstIters, Foam::identity(), Foam::Info, Foam::inplaceRenumber(), HashTable< T, Key, Hash >::insert(), Map< dictionary >::Map(), wordRes::match(), maxIndex(), Foam::min(), names, HashTable< dictionary, label, Hash< label > >::operator[](), HashTable< T, Key, Hash >::size(), and HashTable< T, Key, Hash >::toc().

Referenced by ~cellTable().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ append()

label append ( const dictionary & dict )

inline

Add to the end, return index.

Definition at line 257 of file cellTable.H.

References append(), dict, and push_back().

Referenced by append().

Here is the call graph for this function:

Here is the caller graph for this function:

The documentation for this class was generated from the following files:

src/conversion/common/tables/cellTable.H
src/conversion/common/tables/cellTable.C

Public Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ cellTable() [1/3]

◆ cellTable() [2/3]

◆ cellTable() [3/3]

◆ ~cellTable()

Member Function Documentation

◆ push_back()

◆ maxIndex()

◆ findIndex()

◆ name()

◆ names() [1/2]

◆ names() [2/2]

◆ selectType()

◆ fluids()

◆ shells()

◆ solids()

◆ materialTypes()

◆ setMaterial()

◆ setName() [1/2]

◆ setName() [2/2]

◆ readDict()

◆ writeDict()

◆ operator=() [1/3]

◆ operator=() [2/3]

◆ operator=() [3/3]

◆ addCellZones()

◆ combine()

◆ append()
