A simple alphatPhaseChangeJayatillekeWallFunctionFvPatchScalarField with a fixed volumetric phase-change mass flux. More...

#include <alphatFixedDmdtWallBoilingWallFunctionFvPatchScalarField.H>

Inheritance diagram for alphatFixedDmdtWallBoilingWallFunctionFvPatchScalarField:

[legend]

Collaboration diagram for alphatFixedDmdtWallBoilingWallFunctionFvPatchScalarField:

[legend]

Public Member Functions
	TypeName ("compressible::alphatFixedDmdtWallBoilingWallFunction")
	Runtime type information.
	alphatFixedDmdtWallBoilingWallFunctionFvPatchScalarField (const fvPatch &, const DimensionedField< scalar, volMesh > &)
	Construct from patch and internal field.
	alphatFixedDmdtWallBoilingWallFunctionFvPatchScalarField (const fvPatch &, const DimensionedField< scalar, volMesh > &, const dictionary &)
	Construct from patch, internal field and dictionary.
	alphatFixedDmdtWallBoilingWallFunctionFvPatchScalarField (const alphatFixedDmdtWallBoilingWallFunctionFvPatchScalarField &, const fvPatch &, const DimensionedField< scalar, volMesh > &, const fvPatchFieldMapper &)
	Construct by mapping given alphatFixedDmdtWallBoilingWallFunctionFvPatchScalarField onto a new patch.
	alphatFixedDmdtWallBoilingWallFunctionFvPatchScalarField (const alphatFixedDmdtWallBoilingWallFunctionFvPatchScalarField &)
	Construct as copy.
	alphatFixedDmdtWallBoilingWallFunctionFvPatchScalarField (const alphatFixedDmdtWallBoilingWallFunctionFvPatchScalarField &, const DimensionedField< scalar, volMesh > &)
	Construct as copy setting internal field reference.
virtual tmp< fvPatchField< scalar > >	clone () const
	Return a clone.
virtual tmp< fvPatchField< scalar > >	clone (const DimensionedField< scalar, volMesh > &iF) const
	Clone with an internal field reference.
virtual bool	activePhasePair (const phasePairKey &) const
	Is there phase change mass transfer for this phasePair.
virtual const scalarField &	dmdt (const phasePairKey &) const
	Return the rate of phase-change for specific phase pair.
virtual const scalarField &	mDotL (const phasePairKey &) const
	Return the rate of phase-change for specific phase pair.
virtual void	updateCoeffs ()
	Update the coefficients associated with the patch field.
virtual void	write (Ostream &) const
	Write.
Public Member Functions inherited from alphatPhaseChangeJayatillekeWallFunctionFvPatchScalarField
	TypeName ("compressible::alphatPhaseChangeJayatillekeWallFunction")
	Runtime type information.
	alphatPhaseChangeJayatillekeWallFunctionFvPatchScalarField (const fvPatch &, const DimensionedField< scalar, volMesh > &)
	Construct from patch and internal field.
	alphatPhaseChangeJayatillekeWallFunctionFvPatchScalarField (const fvPatch &, const DimensionedField< scalar, volMesh > &, const dictionary &)
	Construct from patch, internal field and dictionary.
	alphatPhaseChangeJayatillekeWallFunctionFvPatchScalarField (const alphatPhaseChangeJayatillekeWallFunctionFvPatchScalarField &, const fvPatch &, const DimensionedField< scalar, volMesh > &, const fvPatchFieldMapper &)
	Construct by mapping given alphatPhaseChangeJayatillekeWallFunctionFvPatchScalarField onto a new patch.
	alphatPhaseChangeJayatillekeWallFunctionFvPatchScalarField (const alphatPhaseChangeJayatillekeWallFunctionFvPatchScalarField &)
	Construct as copy.
	alphatPhaseChangeJayatillekeWallFunctionFvPatchScalarField (const alphatPhaseChangeJayatillekeWallFunctionFvPatchScalarField &, const DimensionedField< scalar, volMesh > &)
	Construct as copy setting internal field reference.
Public Member Functions inherited from alphatPhaseChangeWallFunctionFvPatchScalarField
	TypeName ("compressible::alphatPhaseChangeWallFunction")
	Runtime type information.
	alphatPhaseChangeWallFunctionFvPatchScalarField (const fvPatch &, const DimensionedField< scalar, volMesh > &)
	Construct from patch and internal field.
	alphatPhaseChangeWallFunctionFvPatchScalarField (const fvPatch &, const DimensionedField< scalar, volMesh > &, const dictionary &)
	Construct from patch, internal field and dictionary.
	alphatPhaseChangeWallFunctionFvPatchScalarField (const alphatPhaseChangeWallFunctionFvPatchScalarField &, const fvPatch &, const DimensionedField< scalar, volMesh > &, const fvPatchFieldMapper &)
	Construct by mapping given alphatPhaseChangeWallFunctionFvPatchScalarField onto a new patch.
	alphatPhaseChangeWallFunctionFvPatchScalarField (const alphatPhaseChangeWallFunctionFvPatchScalarField &)
	Construct as copy.
	alphatPhaseChangeWallFunctionFvPatchScalarField (const alphatPhaseChangeWallFunctionFvPatchScalarField &, const DimensionedField< scalar, volMesh > &)
	Construct as copy setting internal field reference.
virtual const scalarField &	dmdt () const
	Return the rate of phase-change.
virtual const scalarField &	mDotL () const
	Return the enthalpy source due to phase-change.
virtual scalarField	dmdt (const word &) const
	Return the rate of phase-change for specific phase.
virtual scalarField	mDotL (const word &) const
	Return the enthalpy source due to phase-change for specific phase.

Additional Inherited Members
Protected Member Functions inherited from alphatPhaseChangeJayatillekeWallFunctionFvPatchScalarField
void	checkType ()
	Check the type of the patch.
tmp< scalarField >	Psmooth (const scalarField &Prat) const
	'P' function
tmp< scalarField >	yPlusTherm (const scalarField &P, const scalarField &Prat) const
	Calculate y+ at the edge of the thermal laminar sublayer.
tmp< scalarField >	calcAlphat (const scalarField &prevAlphat) const
	Update turbulent thermal diffusivity.
Protected Attributes inherited from alphatPhaseChangeJayatillekeWallFunctionFvPatchScalarField
scalar	Prt_
	Turbulent Prandtl number.
scalar	Cmu_
	Empirical model coefficient.
scalar	kappa_
	Von Karman constant.
scalar	E_
	Wall roughness parameter.
Protected Attributes inherited from alphatPhaseChangeWallFunctionFvPatchScalarField
scalarField	dmdt_
	Rate of phase-change.
scalarField	mDotL_
	Latent heat of the phase-change.
Static Protected Attributes inherited from alphatPhaseChangeJayatillekeWallFunctionFvPatchScalarField
static scalar	tolerance_ = 0.01
	Absolute tolerance.
static label	maxIters_ = 10
	Maximum number of iterations.

Detailed Description

A simple alphatPhaseChangeJayatillekeWallFunctionFvPatchScalarField with a fixed volumetric phase-change mass flux.

Usage

Example of the boundary condition specification:

<patch>
{
    // Mandatory entries
    type         compressible::alphatFixedDmdtWallBoilingWallFunction;
    vaporPhase   <word>;

    // Optional entries
    relax        <scalar>;
    fixedDmdt    <scalar>;
    L            <scalar>;

    // Inherited entries
    ...
}

where the entries mean:

Property	Description	Type	Reqd	Deflt
`type`	Type name: compressible::alphatFixedDmdtWallBoilingWallFunction	word	yes	-
`vaporPhase`	Name of the vapor phase	word	yes	-
`relax`	Relaxation factor for dmdt	scalar	no	1.0
`fixedDmdt`	Volumetric phase-change mass flux in near wall cells	scalar	no	0.0
`L`	Latent heat	scalar	no	0.0

The inherited entries are elaborated in: -Foam::compressible:: alphatPhaseChangeJayatillekeWallFunctionFvPatchScalarField Source files alphatFixedDmdtWallBoilingWallFunctionFvPatchScalarField.H alphatFixedDmdtWallBoilingWallFunctionFvPatchScalarField.C

Definition at line 131 of file alphatFixedDmdtWallBoilingWallFunctionFvPatchScalarField.H.

Constructor & Destructor Documentation

◆ alphatFixedDmdtWallBoilingWallFunctionFvPatchScalarField() [1/5]

alphatFixedDmdtWallBoilingWallFunctionFvPatchScalarField	(	const fvPatch &	p,
		const DimensionedField< scalar, volMesh > &	iF )

Construct from patch and internal field.

Definition at line 35 of file alphatFixedDmdtWallBoilingWallFunctionFvPatchScalarField.C.

References alphatPhaseChangeJayatillekeWallFunctionFvPatchScalarField::alphatPhaseChangeJayatillekeWallFunctionFvPatchScalarField(), alphatPhaseChangeJayatillekeWallFunctionFvPatchScalarField::checkType(), and p.

Referenced by alphatFixedDmdtWallBoilingWallFunctionFvPatchScalarField(), alphatFixedDmdtWallBoilingWallFunctionFvPatchScalarField(), alphatFixedDmdtWallBoilingWallFunctionFvPatchScalarField(), and TypeName().

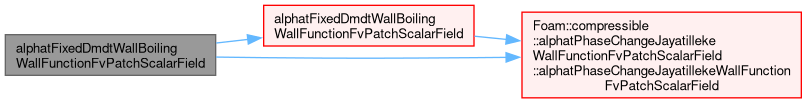

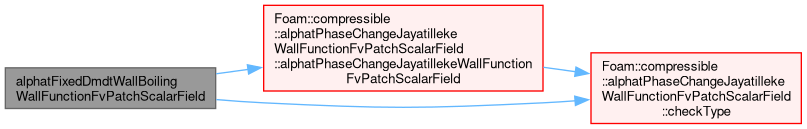

Here is the call graph for this function:

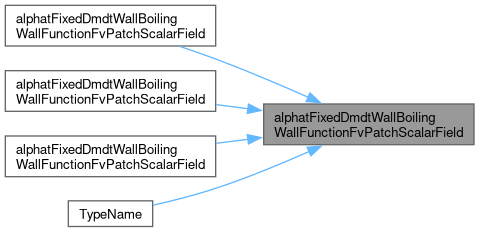

Here is the caller graph for this function:

◆ alphatFixedDmdtWallBoilingWallFunctionFvPatchScalarField() [2/5]

alphatFixedDmdtWallBoilingWallFunctionFvPatchScalarField	(	const fvPatch &	p,
		const DimensionedField< scalar, volMesh > &	iF,
		const dictionary &	dict )

Construct from patch, internal field and dictionary.

Definition at line 52 of file alphatFixedDmdtWallBoilingWallFunctionFvPatchScalarField.C.

References alphatPhaseChangeJayatillekeWallFunctionFvPatchScalarField::alphatPhaseChangeJayatillekeWallFunctionFvPatchScalarField(), dict, and p.

Here is the call graph for this function:

◆ alphatFixedDmdtWallBoilingWallFunctionFvPatchScalarField() [3/5]

alphatFixedDmdtWallBoilingWallFunctionFvPatchScalarField	(	const alphatFixedDmdtWallBoilingWallFunctionFvPatchScalarField &	psf,
		const fvPatch &	p,
		const DimensionedField< scalar, volMesh > &	iF,
		const fvPatchFieldMapper &	mapper )

Construct by mapping given alphatFixedDmdtWallBoilingWallFunctionFvPatchScalarField onto a new patch.

Definition at line 68 of file alphatFixedDmdtWallBoilingWallFunctionFvPatchScalarField.C.

References alphatFixedDmdtWallBoilingWallFunctionFvPatchScalarField(), alphatPhaseChangeJayatillekeWallFunctionFvPatchScalarField::alphatPhaseChangeJayatillekeWallFunctionFvPatchScalarField(), and p.

Here is the call graph for this function:

◆ alphatFixedDmdtWallBoilingWallFunctionFvPatchScalarField() [4/5]

alphatFixedDmdtWallBoilingWallFunctionFvPatchScalarField ( const alphatFixedDmdtWallBoilingWallFunctionFvPatchScalarField & psf )

Construct as copy.

Definition at line 91 of file alphatFixedDmdtWallBoilingWallFunctionFvPatchScalarField.C.

References alphatFixedDmdtWallBoilingWallFunctionFvPatchScalarField(), and alphatPhaseChangeJayatillekeWallFunctionFvPatchScalarField::alphatPhaseChangeJayatillekeWallFunctionFvPatchScalarField().

Here is the call graph for this function:

◆ alphatFixedDmdtWallBoilingWallFunctionFvPatchScalarField() [5/5]

alphatFixedDmdtWallBoilingWallFunctionFvPatchScalarField	(	const alphatFixedDmdtWallBoilingWallFunctionFvPatchScalarField &	psf,
		const DimensionedField< scalar, volMesh > &	iF )

Construct as copy setting internal field reference.

Definition at line 105 of file alphatFixedDmdtWallBoilingWallFunctionFvPatchScalarField.C.

References alphatFixedDmdtWallBoilingWallFunctionFvPatchScalarField(), and alphatPhaseChangeJayatillekeWallFunctionFvPatchScalarField::alphatPhaseChangeJayatillekeWallFunctionFvPatchScalarField().

Here is the call graph for this function:

Member Function Documentation

◆ TypeName()

TypeName ( "compressible::alphatFixedDmdtWallBoilingWallFunction" )

Runtime type information.

References alphatFixedDmdtWallBoilingWallFunctionFvPatchScalarField().

Here is the call graph for this function:

◆ clone() [1/2]

virtual tmp< fvPatchField< scalar > > clone ( ) const

inlinevirtual

Return a clone.

Reimplemented from alphatPhaseChangeJayatillekeWallFunctionFvPatchScalarField.

Definition at line 220 of file alphatFixedDmdtWallBoilingWallFunctionFvPatchScalarField.H.

References fvPatchField< Type >::Clone().

Here is the call graph for this function:

◆ clone() [2/2]

virtual tmp< fvPatchField< scalar > > clone ( const DimensionedField< scalar, volMesh > & iF ) const

inlinevirtual

Clone with an internal field reference.

Reimplemented from alphatPhaseChangeJayatillekeWallFunctionFvPatchScalarField.

Definition at line 228 of file alphatFixedDmdtWallBoilingWallFunctionFvPatchScalarField.H.

References fvPatchField< Type >::Clone().

Here is the call graph for this function:

◆ activePhasePair()

bool activePhasePair ( const phasePairKey & phasePair ) const

virtual

Is there phase change mass transfer for this phasePair.

Reimplemented from alphatPhaseChangeWallFunctionFvPatchScalarField.

Definition at line 122 of file alphatFixedDmdtWallBoilingWallFunctionFvPatchScalarField.C.

Referenced by dmdt(), and mDotL().

Here is the caller graph for this function:

◆ dmdt()

const scalarField & dmdt ( const phasePairKey & phasePair ) const

virtual

Return the rate of phase-change for specific phase pair.

Reimplemented from alphatPhaseChangeWallFunctionFvPatchScalarField.

Definition at line 134 of file alphatFixedDmdtWallBoilingWallFunctionFvPatchScalarField.C.

References Foam::abort(), activePhasePair(), alphatPhaseChangeWallFunctionFvPatchScalarField::dmdt_, Foam::FatalError, FatalErrorInFunction, and alphatPhaseChangeWallFunctionFvPatchScalarField::mDotL_.

Here is the call graph for this function:

◆ mDotL()

const scalarField & mDotL ( const phasePairKey & phasePair ) const

virtual

Return the rate of phase-change for specific phase pair.

Reimplemented from alphatPhaseChangeWallFunctionFvPatchScalarField.

Definition at line 150 of file alphatFixedDmdtWallBoilingWallFunctionFvPatchScalarField.C.

References Foam::abort(), activePhasePair(), Foam::FatalError, FatalErrorInFunction, and alphatPhaseChangeWallFunctionFvPatchScalarField::mDotL_.

Here is the call graph for this function:

◆ updateCoeffs()

void updateCoeffs ( )

virtual

Update the coefficients associated with the patch field.

Reimplemented from alphatPhaseChangeJayatillekeWallFunctionFvPatchScalarField.

Definition at line 166 of file alphatFixedDmdtWallBoilingWallFunctionFvPatchScalarField.C.

References alphatPhaseChangeJayatillekeWallFunctionFvPatchScalarField::calcAlphat(), alphatPhaseChangeWallFunctionFvPatchScalarField::dmdt_, alphatPhaseChangeWallFunctionFvPatchScalarField::mDotL_, and Foam::operator==().

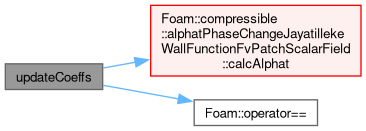

Here is the call graph for this function:

◆ write()

void write ( Ostream & os ) const

virtual

Write.

Reimplemented from alphatPhaseChangeJayatillekeWallFunctionFvPatchScalarField.

Definition at line 184 of file alphatFixedDmdtWallBoilingWallFunctionFvPatchScalarField.C.

References alphatPhaseChangeWallFunctionFvPatchScalarField::dmdt_, os(), fvPatchField< Type >::write(), and fvPatchField< Type >::writeValueEntry().

Here is the call graph for this function:

The documentation for this class was generated from the following files:

src/phaseSystemModels/reactingEuler/multiphaseSystem/derivedFvPatchFields/alphatFixedDmdtWallBoilingWallFunction/alphatFixedDmdtWallBoilingWallFunctionFvPatchScalarField.H
src/phaseSystemModels/reactingEuler/multiphaseSystem/derivedFvPatchFields/alphatFixedDmdtWallBoilingWallFunction/alphatFixedDmdtWallBoilingWallFunctionFvPatchScalarField.C

Public Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ alphatFixedDmdtWallBoilingWallFunctionFvPatchScalarField() [1/5]

◆ alphatFixedDmdtWallBoilingWallFunctionFvPatchScalarField() [2/5]

◆ alphatFixedDmdtWallBoilingWallFunctionFvPatchScalarField() [3/5]

◆ alphatFixedDmdtWallBoilingWallFunctionFvPatchScalarField() [4/5]

◆ alphatFixedDmdtWallBoilingWallFunctionFvPatchScalarField() [5/5]

Member Function Documentation

◆ TypeName()

◆ clone() [1/2]

◆ clone() [2/2]

◆ activePhasePair()

◆ dmdt()

◆ mDotL()

◆ updateCoeffs()

◆ write()
