Base class for writing coordSet(s) and tracks with fields. More...

#include <coordSetWriter.H>

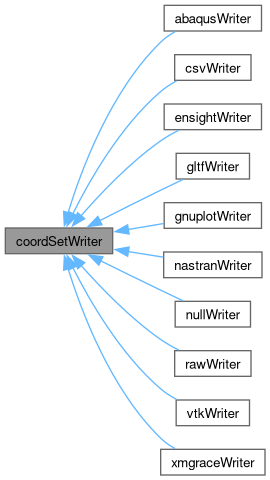

Inheritance diagram for coordSetWriter:

[legend]

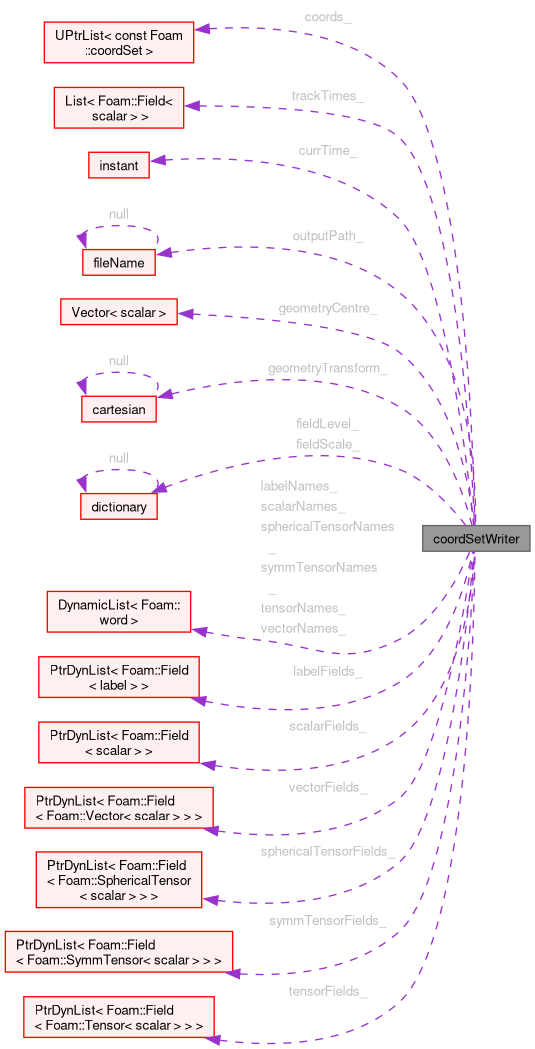

Collaboration diagram for coordSetWriter:

[legend]

Public Member Functions
	TypeName ("coordSetWriter")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, coordSetWriter, word,(),())
	declareRunTimeSelectionTable (autoPtr, coordSetWriter, wordDict,(const dictionary &writeOptions),(writeOptions))
	coordSetWriter ()
	Default construct.
	coordSetWriter (const dictionary &options)
	Default construct with specified options.
virtual	~coordSetWriter ()
	Destructor. Calls close().
virtual bool	buffering () const
	True if the format uses internal buffering (eg, column output).
virtual bool	buffering (const bool on)
	Turn internal buffering on/off (only if supported by the writer).
virtual bool	enabled () const
	The writer is enabled. If the writer is not enabled, it may be possible for the caller to skip various preparatory operations.
virtual bool	needsUpdate () const
	Does the writer need an update (eg, lagging behind other changes).
virtual bool	wroteData () const
	Geometry or fields written since the last open?
virtual bool	expire ()
	Mark that content changed and the writer will need an update, and set nFields = 0.
virtual void	clear ()
	Close any open output, remove coordSet associations and expire the writer.
virtual void	setCoordinates (const coordSet *coords)
	Set coordinates, can also be nullptr.
virtual void	setCoordinates (const coordSet &coords)
	Set coordinates.
virtual void	setTracks (const UPtrList< coordSet > &tracks)
	Set track coordinates.
virtual void	setTrackTimes (const UList< scalarField > &times)
	Set track times.
label	numPoints () const
	The number of associated points (local processor).
label	numTracks () const
	The number of coordinate tracks.
bool	hasCoords () const
	Writer is associated with content.
bool	empty () const
	Writer is not associated with content.
bool	is_open () const noexcept
	Test if outputPath has been set.
label	nFields () const noexcept
	The number of expected output fields.
label	nFields (const label n) noexcept
	Set the number of expected output fields.
bool	useTracks () const noexcept
	Prefer tracks to points during single set writing.
bool	useTracks (const bool on) noexcept
	Enable/disable tracks preference.

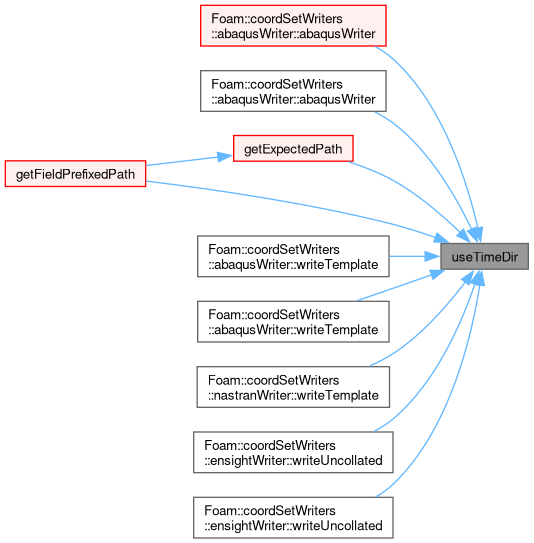

bool	useTimeDir () const noexcept
	Should a time directory be spliced into the output path?
bool	useTimeDir (const bool on) noexcept
	Enable/disable use of spliced output path.
bool	verbose () const noexcept
	Get output verbosity.
bool	verbose (bool on) noexcept
	Enable/disable verbose output.
bool	hasTime () const
	True if there is a known time.
const word &	timeName () const
	The current time value/name.

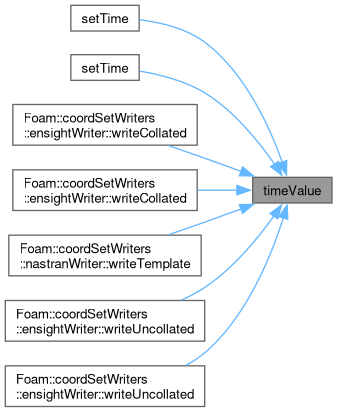

scalar	timeValue () const
	The current time value/name.
void	setTime (const instant &inst)
	Set the current time.
void	setTime (scalar timeValue)
	Set current time from timeValue, auto generating the name.
void	setTime (scalar timeValue, const word &timeName)
	Set current time from timeValue and timeName.
void	unsetTime ()
	Clear the current time.

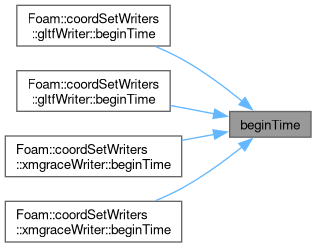

virtual void	beginTime (const Time &t)
	Begin a time-step.
virtual void	beginTime (const instant &inst)
	Begin a time-step.
virtual void	endTime ()
	End a time-step.
virtual fileName	path () const =0
	Expected (characteristic) output file name - information only. Return empty when is_open() is false.

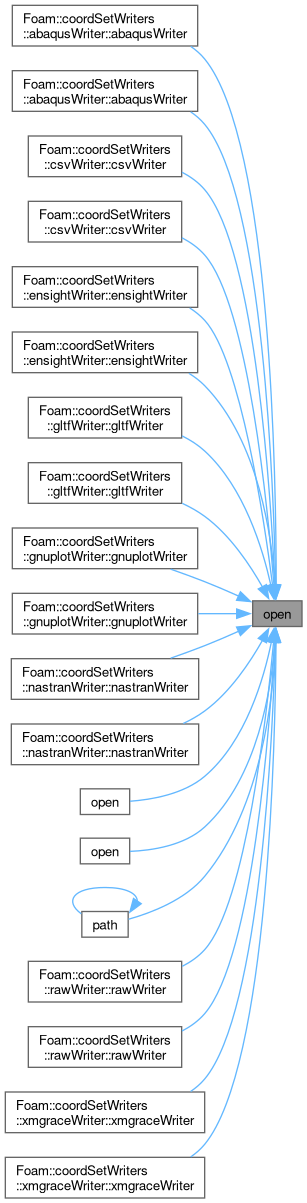

virtual void	open (const fileName &outputPath)
	Write separate geometry to file.
virtual void	open (const coordSet &coords, const fileName &outputPath)
	Open from components.
virtual void	open (const UPtrList< coordSet > &tracks, const fileName &outputPath)
	Open from components.

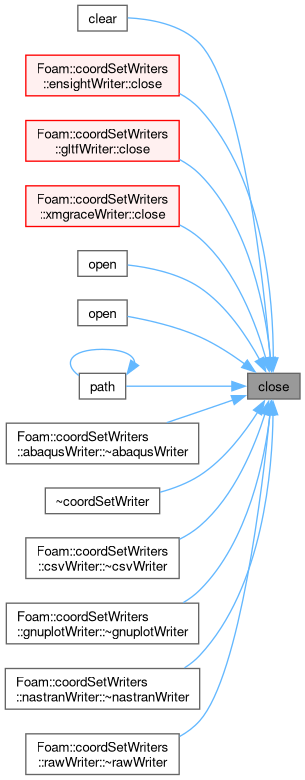

virtual void	close (bool force=false)
	Finish output, performing any necessary cleanup.
virtual InfoProxy< coordSetWriter >	info () const
	Return info proxy, used to print information to a stream.
virtual fileName	write (const word &fieldName, const Field< label > &field)=0
	Write field of label (point data).
virtual fileName	write (const word &fieldName, const List< Field< label > > &fieldValues)=0
	Write track fields of label (point data).
virtual fileName	write (const word &fieldName, const Field< scalar > &field)=0
	Write field of scalar (point data).
virtual fileName	write (const word &fieldName, const List< Field< scalar > > &fieldValues)=0
	Write track fields of scalar (point data).
virtual fileName	write (const word &fieldName, const Field< vector > &field)=0
	Write field of vector (point data).
virtual fileName	write (const word &fieldName, const List< Field< vector > > &fieldValues)=0
	Write track fields of vector (point data).
virtual fileName	write (const word &fieldName, const Field< sphericalTensor > &field)=0
	Write field of sphericalTensor (point data).
virtual fileName	write (const word &fieldName, const List< Field< sphericalTensor > > &fieldValues)=0
	Write track fields of sphericalTensor (point data).
virtual fileName	write (const word &fieldName, const Field< symmTensor > &field)=0
	Write field of symmTensor (point data).
virtual fileName	write (const word &fieldName, const List< Field< symmTensor > > &fieldValues)=0
	Write track fields of symmTensor (point data).
virtual fileName	write (const word &fieldName, const Field< tensor > &field)=0
	Write field of tensor (point data).
virtual fileName	write (const word &fieldName, const List< Field< tensor > > &fieldValues)=0
	Write track fields of tensor (point data).
template<class Type>
Foam::tmp< Foam::Field< Type > >	adjustFieldTemplate (const word &fieldName, const tmp< Field< Type > > &tfield) const
template<class Type>
Foam::UPtrList< const Foam::Field< Type > >	repackageFields (const Field< Type > &field)
template<class Type>
Foam::UPtrList< const Foam::Field< Type > >	repackageFields (const UList< Field< Type > > &fieldValues)

Static Public Member Functions
static dictionary	formatOptions (const dictionary &dict, const word &formatName, const word &entryName="formatOptions")
	Same as fileFormats::getFormatOptions.
static dictionary	formatOptions (const dictionary &dict, const dictionary &setDict, const word &formatName, const word &entryName="formatOptions")
	Same as fileFormats::getFormatOptions.
static bool	supportedType (const word &writeType)
	True if New is likely to succeed for this writeType.
static autoPtr< coordSetWriter >	New (const word &writeFormat)
	Return a reference to the selected writer.
static autoPtr< coordSetWriter >	New (const word &writeFormat, const dictionary &writeOptions)
	Return a reference to the selected writer.
static word	suffix (const word &fldName, const word &fileExt=word::null)
	Name suffix based on fieldName (underscore separator).
static word	suffix (const wordList &fieldNames, const word &fileExt=word::null)
	Name suffix based on fieldNames (underscore separator).

Protected Member Functions

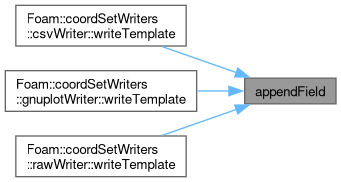

void	appendField (const word &fieldName, const Field< label > &vals)
void	appendField (const word &fieldName, const Field< scalar > &vals)
void	appendField (const word &fieldName, const Field< vector > &vals)
void	appendField (const word &fieldName, const Field< sphericalTensor > &vals)
void	appendField (const word &fieldName, const Field< symmTensor > &vals)
void	appendField (const word &fieldName, const Field< tensor > &vals)

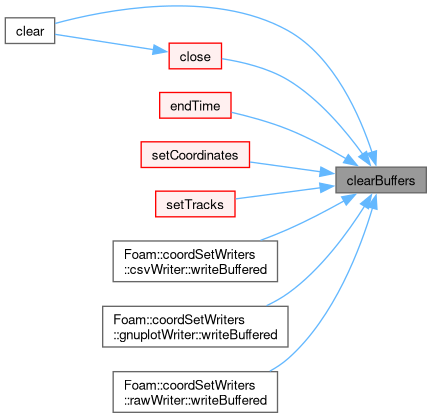

void	clearBuffers ()
	Clear out buffering.

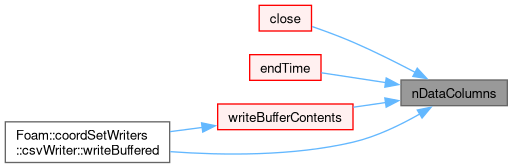

label	nDataColumns () const
	The number of buffer data columns, after splitting into components.
virtual bool	writeBuffered ()
	Write buffered data.

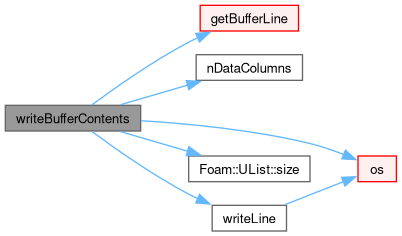

void	writeBufferContents (Ostream &os, const coordSet &coords, const char *sep) const
	Write buffered data.

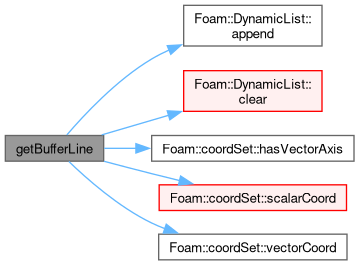

void	getBufferLine (DynamicList< scalar > &buf, const coordSet &coords, const label pointi) const
	Get buffered data line (components).

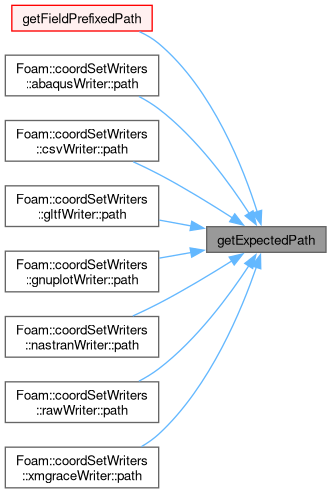

fileName	getExpectedPath (const word &fileExt=word::null) const
	Get expected (characteristic) output file name - information only.

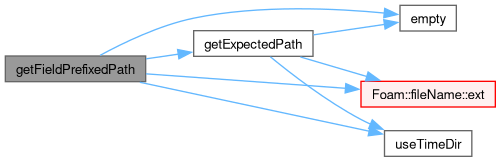

fileName	getFieldPrefixedPath (const word &fieldName, const word &fileExt=word::null) const
	Get field-prefixed output file name.

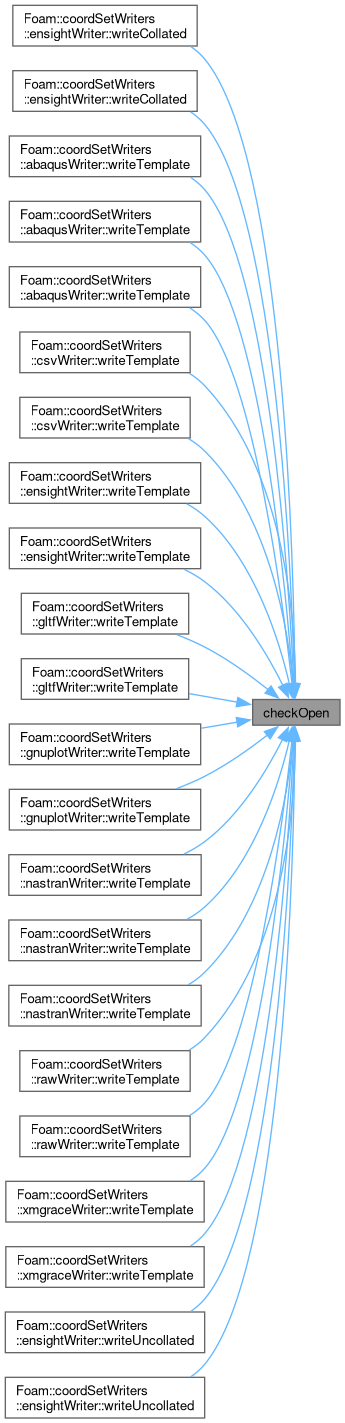

void	checkOpen () const
	Verify that the outputPath_ has been set or FatalError.
virtual bool	merge () const
	Perform any merging if not already upToDate (parallel) or simply mark as being up-to-date.
template<class Type>
tmp< Field< Type > >	adjustFieldTemplate (const word &fieldName, const tmp< Field< Type > > &tfield) const
template<class Type>
fileName	writeTemplate (const word &fieldName, const Field< Type > &values)
	Dummy templated write operation.
template<class Type>
fileName	writeTemplate (const word &fieldName, const List< Field< Type > > &fieldValues)
	Dummy templated write operation. Multiple tracks.
	coordSetWriter (const coordSetWriter &)=delete
	No copy construct.
void	operator= (const coordSetWriter &)=delete
	No copy assignment.

Static Protected Member Functions
static void	writeLine (Ostream &, const UList< word > &, const char *sep)
	Write line contents (eg, buffered).
static void	writeLine (Ostream &, const UList< scalar > &, const char *sep)
	Write line contents (eg, buffered).
template<class Type>
static UPtrList< const Field< Type > >	repackageFields (const Field< Type > &field)
	Repackage field into a UPtrList.
template<class Type>
static UPtrList< const Field< Type > >	repackageFields (const UList< Field< Type > > &fieldValues)
	Repackage multiple fields into a UPtrList.
template<class Type>
static void	writeTable (Ostream &os, const coordSet &coords, const UList< Type > &values, const char *sep)
	Write coordinates and values.

Protected Attributes
UPtrList< const coordSet >	coords_
	Reference to coordinate set(s).
List< scalarField >	trackTimes_
	Track times (eg, streamlines), one per coords_ entry.
bool	upToDate_
	The content is up-to-date?
bool	wroteGeom_
	Track if geometry has been written since the last open.
bool	buffering_
	Writer with buffering output.
bool	useTracks_
	Prefer tracks to points during single set writing.
bool	useTimeDir_
	Insert additional time sub-directory in the output path.
bool	verbose_
	Additional output verbosity.
label	nFields_
	The number of fields.
instant	currTime_
	The current time value/name.
fileName	outputPath_
	The full output directory and file (coords) name.
scalar	geometryScale_
	Output geometry scaling after rotate/translate.
point	geometryCentre_
	The centre of rotation (untranslate, translate).
coordSystem::cartesian	geometryTransform_
	Local coordinate system transformation.
dictionary	fieldLevel_
	Field level to remove (on output).
dictionary	fieldScale_
	Field scaling (on output).
DynamicList< word >	labelNames_
PtrDynList< Field< label > >	labelFields_
DynamicList< word >	scalarNames_
PtrDynList< Field< scalar > >	scalarFields_
DynamicList< word >	vectorNames_
PtrDynList< Field< vector > >	vectorFields_
DynamicList< word >	sphericalTensorNames_
PtrDynList< Field< sphericalTensor > >	sphericalTensorFields_
DynamicList< word >	symmTensorNames_
PtrDynList< Field< symmTensor > >	symmTensorFields_
DynamicList< word >	tensorNames_
PtrDynList< Field< tensor > >	tensorFields_

Friends
Ostream &	operator<< (Ostream &os, const InfoProxy< coordSetWriter > &iproxy)
	Output info proxy.

Detailed Description

Base class for writing coordSet(s) and tracks with fields.

Example:

    coordSet coords(...);

    // Construct writer of xmgr type
    autoPtr<coordSetWriter> writer(coordSetWriter::New("vtk"));

    writer.open(coords, path/name);

    writer.write("density", rho);
    writer.write("velocity", U);

Source files

Definition at line 82 of file coordSetWriter.H.

Constructor & Destructor Documentation

◆ coordSetWriter() [1/3]

coordSetWriter ( const coordSetWriter & )

protecteddelete

No copy construct.

References coordSetWriter().

Referenced by abaqusWriter::abaqusWriter(), abaqusWriter::abaqusWriter(), coordSetWriter(), coordSetWriter(), csvWriter::csvWriter(), csvWriter::csvWriter(), declareRunTimeSelectionTable(), declareRunTimeSelectionTable(), ensightWriter::ensightWriter(), ensightWriter::ensightWriter(), gltfWriter::gltfWriter(), gltfWriter::gltfWriter(), gnuplotWriter::gnuplotWriter(), gnuplotWriter::gnuplotWriter(), info(), nastranWriter::nastranWriter(), nastranWriter::nastranWriter(), nullWriter::nullWriter(), operator=(), rawWriter::rawWriter(), rawWriter::rawWriter(), xmgraceWriter::xmgraceWriter(), and xmgraceWriter::xmgraceWriter().

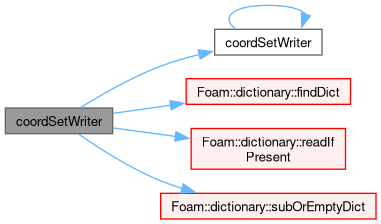

Here is the call graph for this function:

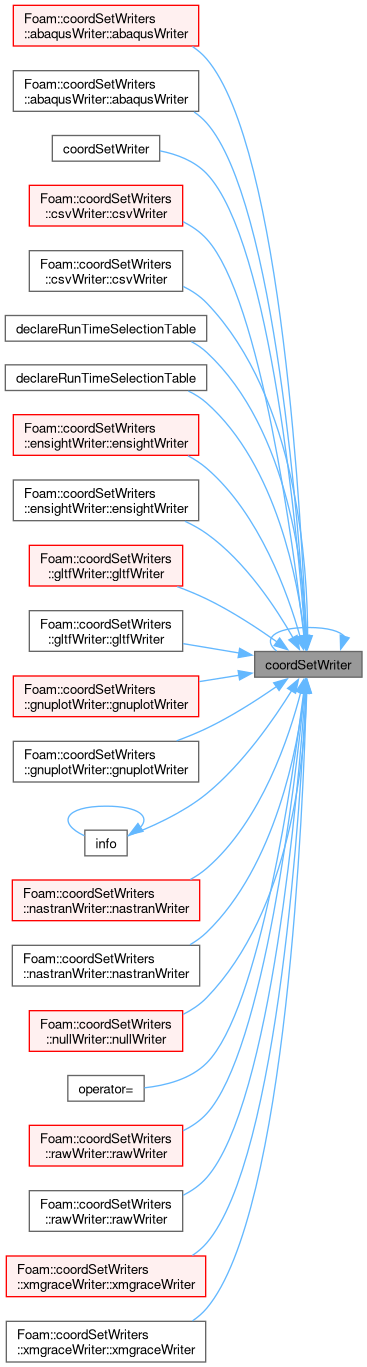

Here is the caller graph for this function:

◆ coordSetWriter() [2/3]

coordSetWriter ( )

Default construct.

Definition at line 100 of file coordSetWriter.C.

References buffering_, coords_, currTime_, fieldLevel_, fieldScale_, geometryCentre_, geometryScale_, geometryTransform_, nFields_, outputPath_, trackTimes_, upToDate_, useTimeDir_, useTracks_, verbose_, wroteGeom_, and Foam::Zero.

◆ coordSetWriter() [3/3]

coordSetWriter ( const dictionary & options )

explicit

Default construct with specified options.

Definition at line 122 of file coordSetWriter.C.

References coordSetWriter(), fieldLevel_, fieldScale_, dictionary::findDict(), geometryCentre_, geometryScale_, geometryTransform_, IOobjectOption::LAZY_READ, keyType::LITERAL, dictionary::readIfPresent(), dictionary::subOrEmptyDict(), verbose_, and Foam::Zero.

Here is the call graph for this function:

◆ ~coordSetWriter()

~coordSetWriter ( )

virtual

Destructor. Calls close().

Definition at line 153 of file coordSetWriter.C.

References close().

Here is the call graph for this function:

Member Function Documentation

◆ appendField() [1/6]

void appendField	(	const word &	fieldName,
		const Field< label > &	vals )

inlineprotected

Definition at line 190 of file coordSetWriter.H.

Referenced by csvWriter::writeTemplate(), gnuplotWriter::writeTemplate(), and rawWriter::writeTemplate().

Here is the caller graph for this function:

◆ appendField() [2/6]

void appendField	(	const word &	fieldName,
		const Field< scalar > &	vals )

inlineprotected

Definition at line 191 of file coordSetWriter.H.

◆ appendField() [3/6]

void appendField	(	const word &	fieldName,
		const Field< vector > &	vals )

inlineprotected

Definition at line 192 of file coordSetWriter.H.

◆ appendField() [4/6]

void appendField	(	const word &	fieldName,
		const Field< sphericalTensor > &	vals )

inlineprotected

Definition at line 193 of file coordSetWriter.H.

◆ appendField() [5/6]

void appendField	(	const word &	fieldName,
		const Field< symmTensor > &	vals )

inlineprotected

Definition at line 194 of file coordSetWriter.H.

◆ appendField() [6/6]

void appendField	(	const word &	fieldName,
		const Field< tensor > &	vals )

inlineprotected

Definition at line 195 of file coordSetWriter.H.

References word::null, and os().

Here is the call graph for this function:

◆ writeLine() [1/2]

void writeLine	(	Ostream &	os,
		const UList< word > &	values,
		const char *	sep )

staticprotected

Write line contents (eg, buffered).

Definition at line 25 of file coordSetWriterBuffers.C.

References forAll, Foam::nl, and os().

Referenced by writeBufferContents(), and csvWriter::writeBuffered().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ writeLine() [2/2]

void writeLine	(	Ostream &	os,
		const UList< scalar > &	values,
		const char *	sep )

staticprotected

Write line contents (eg, buffered).

Definition at line 44 of file coordSetWriterBuffers.C.

References forAll, Foam::nl, and os().

Here is the call graph for this function:

◆ clearBuffers()

void clearBuffers ( )

protected

Clear out buffering.

Definition at line 63 of file coordSetWriterBuffers.C.

References doLocalCode.

Referenced by clear(), close(), endTime(), setCoordinates(), setTracks(), csvWriter::writeBuffered(), gnuplotWriter::writeBuffered(), and rawWriter::writeBuffered().

Here is the caller graph for this function:

◆ nDataColumns()

Foam::label nDataColumns ( ) const

protected

The number of buffer data columns, after splitting into components.

Definition at line 82 of file coordSetWriterBuffers.C.

References doLocalCode.

Referenced by close(), endTime(), writeBufferContents(), and csvWriter::writeBuffered().

Here is the caller graph for this function:

◆ writeBuffered()

bool writeBuffered ( )

protectedvirtual

Write buffered data.

Reimplemented in csvWriter, gnuplotWriter, and rawWriter.

Definition at line 149 of file coordSetWriterBuffers.C.

Referenced by close(), and endTime().

Here is the caller graph for this function:

◆ writeBufferContents()

void writeBufferContents	(	Ostream &	os,
		const coordSet &	coords,
		const char *	sep ) const

protected

Write buffered data.

Definition at line 155 of file coordSetWriterBuffers.C.

References getBufferLine(), nDataColumns(), os(), UList< T >::size(), and writeLine().

Referenced by csvWriter::writeBuffered(), and rawWriter::writeBuffered().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getBufferLine()

void getBufferLine	(	DynamicList< scalar > &	buf,
		const coordSet &	coords,
		const label	pointi ) const

protected

Get buffered data line (components).

Definition at line 102 of file coordSetWriterBuffers.C.

References DynamicList< T, SizeMin >::append(), DynamicList< T, SizeMin >::clear(), doLocalCode, coordSet::hasVectorAxis(), p, coordSet::scalarCoord(), and coordSet::vectorCoord().

Referenced by writeBufferContents().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getExpectedPath()

Foam::fileName getExpectedPath ( const word & fileExt = word::null ) const

protected

Get expected (characteristic) output file name - information only.

Definition at line 388 of file coordSetWriter.C.

References empty(), fileName::ext(), outputPath_, timeName, and useTimeDir().

Referenced by getFieldPrefixedPath(), abaqusWriter::path(), csvWriter::path(), gltfWriter::path(), gnuplotWriter::path(), nastranWriter::path(), rawWriter::path(), and xmgraceWriter::path().

Here is the call graph for this function:

Here is the caller graph for this function:

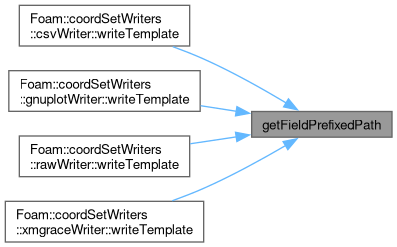

◆ getFieldPrefixedPath()

Foam::fileName getFieldPrefixedPath	(	const word &	fieldName,
		const word &	fileExt = word::null ) const

protected

Get field-prefixed output file name.

Eg, dir/U_name.raw

Definition at line 414 of file coordSetWriter.C.

References empty(), fileName::ext(), getExpectedPath(), outputPath_, timeName, and useTimeDir().

Referenced by csvWriter::writeTemplate(), gnuplotWriter::writeTemplate(), rawWriter::writeTemplate(), and xmgraceWriter::writeTemplate().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ checkOpen()

void checkOpen ( ) const

protected

Verify that the outputPath_ has been set or FatalError.

Definition at line 446 of file coordSetWriter.C.

References Foam::exit(), Foam::FatalError, FatalErrorInFunction, is_open(), Foam::nl, and Foam::type().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ merge()

bool merge ( ) const

protectedvirtual

Perform any merging if not already upToDate (parallel) or simply mark as being up-to-date.

Definition at line 457 of file coordSetWriter.C.

References upToDate_, and wroteGeom_.

Referenced by ensightWriter::writeCollated(), and ensightWriter::writeUncollated().

Here is the caller graph for this function:

◆ adjustFieldTemplate() [1/2]

template<class Type>

tmp< Field< Type > > adjustFieldTemplate	(	const word &	fieldName,
		const tmp< Field< Type > > &	tfield ) const

protected

Referenced by abaqusWriter::writeTemplate().

Here is the caller graph for this function:

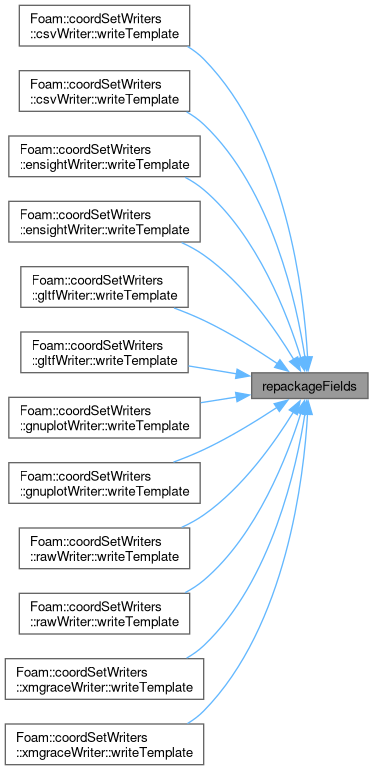

◆ repackageFields() [1/4]

template<class Type>

UPtrList< const Field< Type > > repackageFields ( const Field< Type > & field )

staticprotected

Repackage field into a UPtrList.

References field().

Referenced by csvWriter::writeTemplate(), csvWriter::writeTemplate(), ensightWriter::writeTemplate(), ensightWriter::writeTemplate(), gltfWriter::writeTemplate(), gltfWriter::writeTemplate(), gnuplotWriter::writeTemplate(), gnuplotWriter::writeTemplate(), rawWriter::writeTemplate(), rawWriter::writeTemplate(), xmgraceWriter::writeTemplate(), and xmgraceWriter::writeTemplate().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ repackageFields() [2/4]

template<class Type>

UPtrList< const Field< Type > > repackageFields ( const UList< Field< Type > > & fieldValues )

staticprotected

Repackage multiple fields into a UPtrList.

References os().

Here is the call graph for this function:

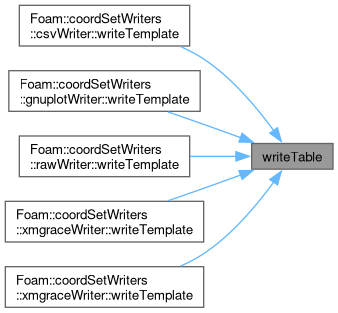

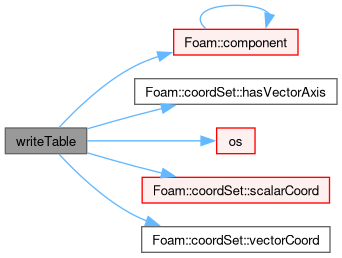

◆ writeTable()

template<class Type>

void writeTable	(	Ostream &	os,
		const coordSet &	coords,
		const UList< Type > &	values,
		const char *	sep )

staticprotected

Write coordinates and values.

Definition at line 157 of file coordSetWriterTemplates.C.

References Foam::component(), forAll, coordSet::hasVectorAxis(), Foam::nl, os(), p, coordSet::scalarCoord(), and coordSet::vectorCoord().

Referenced by csvWriter::writeTemplate(), gnuplotWriter::writeTemplate(), rawWriter::writeTemplate(), xmgraceWriter::writeTemplate(), and xmgraceWriter::writeTemplate().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ writeTemplate() [1/2]

template<class Type>

fileName writeTemplate	(	const word &	fieldName,
		const Field< Type > &	values )

inlineprotected

Dummy templated write operation.

if (!wroteGeom_) { return this->write(); }

Parameters

fieldName	Name of field
values	Local field values to write

Definition at line 327 of file coordSetWriter.H.

References fileName::null.

◆ writeTemplate() [2/2]

template<class Type>

fileName writeTemplate	(	const word &	fieldName,
		const List< Field< Type > > &	fieldValues )

inlineprotected

Dummy templated write operation. Multiple tracks.

Definition at line 344 of file coordSetWriter.H.

References fileName::null.

◆ operator=()

void operator= ( const coordSetWriter & )

protecteddelete

No copy assignment.

References coordSetWriter().

Here is the call graph for this function:

◆ TypeName()

TypeName ( "coordSetWriter" )

Runtime type information.

◆ declareRunTimeSelectionTable() [1/2]

declareRunTimeSelectionTable	(	autoPtr	,
		coordSetWriter	,
		word	,
		()	,
		()	)

References coordSetWriter().

Here is the call graph for this function:

◆ declareRunTimeSelectionTable() [2/2]

declareRunTimeSelectionTable	(	autoPtr	,
		coordSetWriter	,
		wordDict	,
		(const dictionary &writeOptions)	,
		(writeOptions)	)

References coordSetWriter(), dict, and word::null.

Here is the call graph for this function:

◆ formatOptions() [1/2]

Foam::dictionary formatOptions	(	const dictionary &	dict,
		const word &	formatName,
		const word &	entryName = "formatOptions" )

static

Same as fileFormats::getFormatOptions.

Definition at line 75 of file coordSetWriter.C.

References dict, and Foam::fileFormats::getFormatOptions().

Referenced by ParticleZoneInfo< CloudType >::ParticleZoneInfo().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ formatOptions() [2/2]

Foam::dictionary formatOptions	(	const dictionary &	dict,
		const dictionary &	setDict,
		const word &	formatName,
		const word &	entryName = "formatOptions" )

static

Same as fileFormats::getFormatOptions.

Definition at line 86 of file coordSetWriter.C.

References dict, and Foam::fileFormats::getFormatOptions().

Here is the call graph for this function:

◆ supportedType()

bool supportedType ( const word & writeType )

static

True if New is likely to succeed for this writeType.

Definition at line 26 of file coordSetWriterNew.C.

◆ New() [1/2]

Foam::autoPtr< Foam::coordSetWriter > New ( const word & writeFormat )

static

Return a reference to the selected writer.

Definition at line 36 of file coordSetWriterNew.C.

References Foam::exit(), Foam::FatalError, and FatalErrorInLookup.

Referenced by ParticleZoneInfo< CloudType >::ParticleZoneInfo(), particleDistribution::read(), regionSizeDistribution::read(), and streamLineBase::read().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ New() [2/2]

Foam::autoPtr< Foam::coordSetWriter > New	(	const word &	writeFormat,
		const dictionary &	writeOptions )

static

Return a reference to the selected writer.

Select with extra write option

Definition at line 57 of file coordSetWriterNew.C.

References Foam::exit(), Foam::FatalError, and FatalErrorInLookup.

Here is the call graph for this function:

◆ suffix() [1/2]

Foam::word suffix	(	const word &	fldName,
		const word &	fileExt = word::null )

static

Name suffix based on fieldName (underscore separator).

Definition at line 38 of file coordSetWriter.C.

References word::ext().

Here is the call graph for this function:

◆ suffix() [2/2]

Foam::word suffix	(	const wordList &	fieldNames,
		const word &	fileExt = word::null )

static

Name suffix based on fieldNames (underscore separator).

Definition at line 55 of file coordSetWriter.C.

References word::ext().

Here is the call graph for this function:

◆ buffering() [1/2]

bool buffering ( ) const

virtual

True if the format uses internal buffering (eg, column output).

Reimplemented in nullWriter.

Definition at line 177 of file coordSetWriterBuffers.C.

References buffering_.

◆ buffering() [2/2]

bool buffering ( const bool on )

virtual

Turn internal buffering on/off (only if supported by the writer).

Reimplemented in csvWriter, gnuplotWriter, rawWriter, and xmgraceWriter.

Definition at line 184 of file coordSetWriterBuffers.C.

References buffering_.

◆ enabled()

virtual bool enabled ( ) const

inlinevirtual

The writer is enabled. If the writer is not enabled, it may be possible for the caller to skip various preparatory operations.

This method is primarily useful for the null writer

Reimplemented in nullWriter.

Definition at line 502 of file coordSetWriter.H.

◆ needsUpdate()

bool needsUpdate ( ) const

virtual

Does the writer need an update (eg, lagging behind other changes).

Reimplemented in nullWriter.

Definition at line 349 of file coordSetWriter.C.

References upToDate_.

◆ wroteData()

bool wroteData ( ) const

virtual

Geometry or fields written since the last open?

Reimplemented in nullWriter.

Definition at line 355 of file coordSetWriter.C.

References wroteGeom_.

◆ expire()

bool expire ( )

virtual

Mark that content changed and the writer will need an update, and set nFields = 0.

May also free up unneeded data. Return false if it was previously already expired.

Definition at line 361 of file coordSetWriter.C.

References coords_, trackTimes_, upToDate_, and wroteGeom_.

Referenced by clear(), setCoordinates(), and setTracks().

Here is the caller graph for this function:

◆ clear()

void clear ( )

virtual

Close any open output, remove coordSet associations and expire the writer.

Definition at line 265 of file coordSetWriter.C.

References clearBuffers(), close(), coords_, expire(), and trackTimes_.

Here is the call graph for this function:

◆ setCoordinates() [1/2]

void setCoordinates ( const coordSet * coords )

virtual

Set coordinates, can also be nullptr.

Reimplemented in nullWriter.

Definition at line 275 of file coordSetWriter.C.

References clearBuffers(), coords_, expire(), and trackTimes_.

Referenced by open(), and setCoordinates().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setCoordinates() [2/2]

void setCoordinates ( const coordSet & coords )

virtual

Set coordinates.

Reimplemented in nullWriter.

Definition at line 293 of file coordSetWriter.C.

References setCoordinates().

Here is the call graph for this function:

◆ setTracks()

void setTracks ( const UPtrList< coordSet > & tracks )

virtual

Set track coordinates.

Reimplemented in nullWriter.

Definition at line 299 of file coordSetWriter.C.

References clearBuffers(), coords_, expire(), forAll, UPtrList< T >::get(), UPtrList< T >::size(), trackTimes_, and useTracks_.

Referenced by open().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setTrackTimes()

void setTrackTimes ( const UList< scalarField > & times )

virtual

Set track times.

Definition at line 316 of file coordSetWriter.C.

References coords_, UList< T >::size(), and trackTimes_.

Here is the call graph for this function:

◆ numPoints()

Foam::label numPoints ( ) const

The number of associated points (local processor).

Definition at line 329 of file coordSetWriter.C.

References coords_, and forAll.

◆ numTracks()

Foam::label numTracks ( ) const

The number of coordinate tracks.

Definition at line 343 of file coordSetWriter.C.

References coords_.

◆ hasCoords()

bool hasCoords ( ) const

Writer is associated with content.

Definition at line 377 of file coordSetWriter.C.

References coords_.

◆ empty()

bool empty ( ) const

Writer is not associated with content.

Definition at line 383 of file coordSetWriter.C.

References coords_.

Referenced by getExpectedPath(), getFieldPrefixedPath(), abaqusWriter::writeTemplate(), nastranWriter::writeTemplate(), ensightWriter::writeUncollated(), and ensightWriter::writeUncollated().

Here is the caller graph for this function:

◆ is_open()

bool is_open ( ) const

inlinenoexcept

Test if outputPath has been set.

Definition at line 23 of file coordSetWriterI.H.

References Foam::noexcept, and outputPath_.

Referenced by checkOpen().

Here is the caller graph for this function:

◆ nFields() [1/2]

Foam::label nFields ( ) const

inlinenoexcept

The number of expected output fields.

Currently only used by the legacy VTK format.

Definition at line 29 of file coordSetWriterI.H.

References nFields_, and Foam::noexcept.

◆ nFields() [2/2]

Foam::label nFields ( const label n )

inlinenoexcept

Set the number of expected output fields.

Currently only used by the legacy VTK format.

Returns: old value

Definition at line 35 of file coordSetWriterI.H.

References n, and nFields_.

◆ useTracks() [1/2]

bool useTracks ( ) const

inlinenoexcept

Prefer tracks to points during single set writing.

Definition at line 43 of file coordSetWriterI.H.

References Foam::noexcept, and useTracks_.

◆ useTracks() [2/2]

bool useTracks ( const bool on )

inlinenoexcept

Enable/disable tracks preference.

Returns: old value

Definition at line 49 of file coordSetWriterI.H.

References useTracks_.

◆ useTimeDir() [1/2]

bool useTimeDir ( ) const

inlinenoexcept

Should a time directory be spliced into the output path?

Definition at line 57 of file coordSetWriterI.H.

References Foam::noexcept, and useTimeDir_.

Referenced by abaqusWriter::abaqusWriter(), abaqusWriter::abaqusWriter(), getExpectedPath(), getFieldPrefixedPath(), abaqusWriter::writeTemplate(), abaqusWriter::writeTemplate(), nastranWriter::writeTemplate(), ensightWriter::writeUncollated(), and ensightWriter::writeUncollated().

Here is the caller graph for this function:

◆ useTimeDir() [2/2]

bool useTimeDir ( const bool on )

inlinenoexcept

Enable/disable use of spliced output path.

Returns: old value

Definition at line 63 of file coordSetWriterI.H.

References useTimeDir_.

◆ verbose() [1/2]

bool verbose ( ) const

inlinenoexcept

Get output verbosity.

Definition at line 71 of file coordSetWriterI.H.

References Foam::noexcept, and verbose_.

◆ verbose() [2/2]

bool verbose ( bool on )

inlinenoexcept

Enable/disable verbose output.

Returns: old value

Definition at line 77 of file coordSetWriterI.H.

References verbose_.

◆ hasTime()

bool hasTime ( ) const

inline

True if there is a known time.

Definition at line 85 of file coordSetWriterI.H.

References currTime_.

◆ timeName()

const Foam::word & timeName ( ) const

inline

The current time value/name.

Definition at line 91 of file coordSetWriterI.H.

References currTime_.

Referenced by setTime().

Here is the caller graph for this function:

◆ timeValue()

Foam::scalar timeValue ( ) const

inline

The current time value/name.

Definition at line 97 of file coordSetWriterI.H.

References currTime_.

Referenced by setTime(), setTime(), ensightWriter::writeCollated(), ensightWriter::writeCollated(), nastranWriter::writeTemplate(), ensightWriter::writeUncollated(), and ensightWriter::writeUncollated().

Here is the caller graph for this function:

◆ setTime() [1/3]

void setTime ( const instant & inst )

Set the current time.

Definition at line 161 of file coordSetWriter.C.

References currTime_.

◆ setTime() [2/3]

void setTime ( scalar timeValue )

Set current time from timeValue, auto generating the name.

Definition at line 167 of file coordSetWriter.C.

References currTime_, and timeValue().

Here is the call graph for this function:

◆ setTime() [3/3]

void setTime	(	scalar	timeValue,
		const word &	timeName )

Set current time from timeValue and timeName.

Definition at line 173 of file coordSetWriter.C.

References currTime_, timeName(), and timeValue().

Here is the call graph for this function:

◆ unsetTime()

void unsetTime ( )

Clear the current time.

Definition at line 180 of file coordSetWriter.C.

References currTime_.

Referenced by endTime().

Here is the caller graph for this function:

◆ beginTime() [1/2]

void beginTime ( const Time & t )

virtual

Begin a time-step.

Reimplemented in gltfWriter, vtkWriter, and xmgraceWriter.

Definition at line 187 of file coordSetWriter.C.

References setTime(), Time::timeName(), and dimensioned< Type >::value().

Referenced by gltfWriter::beginTime(), gltfWriter::beginTime(), xmgraceWriter::beginTime(), and xmgraceWriter::beginTime().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ beginTime() [2/2]

void beginTime ( const instant & inst )

virtual

Begin a time-step.

Reimplemented in gltfWriter, vtkWriter, and xmgraceWriter.

Definition at line 193 of file coordSetWriter.C.

References setTime().

Here is the call graph for this function:

◆ endTime()

void endTime ( )

virtual

End a time-step.

Reimplemented in gltfWriter, vtkWriter, and xmgraceWriter.

Definition at line 199 of file coordSetWriter.C.

References clearBuffers(), nDataColumns(), unsetTime(), and writeBuffered().

Referenced by gltfWriter::endTime(), and xmgraceWriter::endTime().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ path()

virtual fileName path ( ) const

pure virtual

Expected (characteristic) output file name - information only. Return empty when is_open() is false.

Implemented in abaqusWriter, csvWriter, ensightWriter, gltfWriter, gnuplotWriter, nastranWriter, nullWriter, rawWriter, vtkWriter, and xmgraceWriter.

References close(), open(), and path().

Referenced by path().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ open() [1/3]

void open ( const fileName & outputPath )

virtual

Write separate geometry to file.

/ TBD: virtual fileName write() = 0;

Open for output on specified path, using existing content

Reimplemented in nullWriter.

Definition at line 214 of file coordSetWriter.C.

References outputPath_, and wroteGeom_.

Referenced by abaqusWriter::abaqusWriter(), abaqusWriter::abaqusWriter(), csvWriter::csvWriter(), csvWriter::csvWriter(), ensightWriter::ensightWriter(), ensightWriter::ensightWriter(), gltfWriter::gltfWriter(), gltfWriter::gltfWriter(), gnuplotWriter::gnuplotWriter(), gnuplotWriter::gnuplotWriter(), nastranWriter::nastranWriter(), nastranWriter::nastranWriter(), open(), open(), path(), rawWriter::rawWriter(), rawWriter::rawWriter(), xmgraceWriter::xmgraceWriter(), and xmgraceWriter::xmgraceWriter().

Here is the caller graph for this function:

◆ open() [2/3]

void open	(	const coordSet &	coords,
		const fileName &	outputPath )

virtual

Open from components.

Definition at line 221 of file coordSetWriter.C.

References close(), open(), and setCoordinates().

Here is the call graph for this function:

◆ open() [3/3]

void open	(	const UPtrList< coordSet > &	tracks,
		const fileName &	outputPath )

virtual

Open from components.

Definition at line 233 of file coordSetWriter.C.

References close(), open(), and setTracks().

Here is the call graph for this function:

◆ close()

void close ( bool force = false )

virtual

Finish output, performing any necessary cleanup.

Optional force disassociation with any coordSet(s)

Reimplemented in ensightWriter, gltfWriter, vtkWriter, and xmgraceWriter.

Definition at line 245 of file coordSetWriter.C.

References clearBuffers(), coords_, Foam::Info, nDataColumns(), Foam::nl, outputPath_, trackTimes_, verbose_, writeBuffered(), and wroteGeom_.

Referenced by clear(), ensightWriter::close(), gltfWriter::close(), xmgraceWriter::close(), open(), open(), path(), abaqusWriter::~abaqusWriter(), ~coordSetWriter(), csvWriter::~csvWriter(), gnuplotWriter::~gnuplotWriter(), nastranWriter::~nastranWriter(), and rawWriter::~rawWriter().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ info()

virtual InfoProxy< coordSetWriter > info ( ) const

inlinevirtual

Return info proxy, used to print information to a stream.

Definition at line 744 of file coordSetWriter.H.

References coordSetWriter(), and info().

Referenced by info().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ write() [1/12]

virtual fileName write	(	const word &	fieldName,
		const Field< label > &	field )

pure virtual

Write field of label (point data).

Parameters

fieldName	Name of field
field	Field values

◆ write() [2/12]

virtual fileName write	(	const word &	fieldName,
		const List< Field< label > > &	fieldValues )

pure virtual

Write track fields of label (point data).

Parameters

fieldName	Name of field
fieldValues	Per-track values

◆ write() [3/12]

virtual fileName write	(	const word &	fieldName,
		const Field< scalar > &	field )

pure virtual

Write field of scalar (point data).

Parameters

fieldName	Name of field
field	Field values

◆ write() [4/12]

virtual fileName write	(	const word &	fieldName,
		const List< Field< scalar > > &	fieldValues )

pure virtual

Write track fields of scalar (point data).

Parameters

fieldName	Name of field
fieldValues	Per-track values

◆ write() [5/12]

virtual fileName write	(	const word &	fieldName,
		const Field< vector > &	field )

pure virtual

Write field of vector (point data).

Parameters

fieldName	Name of field
field	Field values

◆ write() [6/12]

virtual fileName write	(	const word &	fieldName,
		const List< Field< vector > > &	fieldValues )

pure virtual

Write track fields of vector (point data).

Parameters

fieldName	Name of field
fieldValues	Per-track values

◆ write() [7/12]

virtual fileName write	(	const word &	fieldName,
		const Field< sphericalTensor > &	field )

pure virtual

Write field of sphericalTensor (point data).

Parameters

fieldName	Name of field
field	Field values

◆ write() [8/12]

virtual fileName write	(	const word &	fieldName,
		const List< Field< sphericalTensor > > &	fieldValues )

pure virtual

Write track fields of sphericalTensor (point data).

Parameters

fieldName	Name of field
fieldValues	Per-track values

◆ write() [9/12]

virtual fileName write	(	const word &	fieldName,
		const Field< symmTensor > &	field )

pure virtual

Write field of symmTensor (point data).

Parameters

fieldName	Name of field
field	Field values

◆ write() [10/12]

virtual fileName write	(	const word &	fieldName,
		const List< Field< symmTensor > > &	fieldValues )

pure virtual

Write track fields of symmTensor (point data).

Parameters

fieldName	Name of field
fieldValues	Per-track values

◆ write() [11/12]

virtual fileName write	(	const word &	fieldName,
		const Field< tensor > &	field )

pure virtual

Write field of tensor (point data).

Parameters

fieldName	Name of field
field	Field values

◆ write() [12/12]

virtual fileName write	(	const word &	fieldName,
		const List< Field< tensor > > &	fieldValues )

pure virtual

Write track fields of tensor (point data).

Parameters

fieldName	Name of field
fieldValues	Per-track values

◆ adjustFieldTemplate() [2/2]

template<class Type>

Foam::tmp< Foam::Field< Type > > adjustFieldTemplate	(	const word &	fieldName,
		const tmp< Field< Type > > &	tfield ) const

Definition at line 26 of file coordSetWriterTemplates.C.

References Foam::equal(), fieldLevel_, fieldScale_, geometryTransform_, Foam::Info, Foam::is_rotational_vectorspace_v, Foam::is_vectorspace_v, tmp< T >::ref(), keyType::REGEX, tmp< T >::reset(), Foam::transform(), and verbose_.

Here is the call graph for this function:

◆ repackageFields() [3/4]

template<class Type>

Foam::UPtrList< const Foam::Field< Type > > repackageFields ( const Field< Type > & field )

Definition at line 133 of file coordSetWriterTemplates.C.

References field(), and UPtrList< T >::set().

Here is the call graph for this function:

◆ repackageFields() [4/4]

template<class Type>

Foam::UPtrList< const Foam::Field< Type > > repackageFields ( const UList< Field< Type > > & fieldValues )

Definition at line 144 of file coordSetWriterTemplates.C.

References forAll, and UPtrList< T >::set().

Here is the call graph for this function:

◆ operator<<

Ostream & operator<<	(	Ostream &	os,
		const InfoProxy< coordSetWriter > &	iproxy )

friend

Output info proxy.

References os().

Member Data Documentation

◆ coords_

UPtrList<const coordSet> coords_

protected

Reference to coordinate set(s).

Definition at line 91 of file coordSetWriter.H.

◆ trackTimes_

List<scalarField> trackTimes_

protected

Track times (eg, streamlines), one per coords_ entry.

Definition at line 96 of file coordSetWriter.H.

Referenced by clear(), close(), coordSetWriter(), expire(), setCoordinates(), setTracks(), setTrackTimes(), gltfWriter::writeTemplate(), and gltfWriter::writeTemplate_animate().

◆ upToDate_

bool upToDate_

mutableprotected

The content is up-to-date?

Definition at line 101 of file coordSetWriter.H.

Referenced by coordSetWriter(), expire(), merge(), needsUpdate(), ensightWriter::writeCollated(), and ensightWriter::writeCollated().

◆ wroteGeom_

bool wroteGeom_

mutableprotected

Track if geometry has been written since the last open.

Definition at line 106 of file coordSetWriter.H.

◆ buffering_

bool buffering_

mutableprotected

Writer with buffering output.

//- Writing in parallel (via master) bool parallel_;

Definition at line 114 of file coordSetWriter.H.

Referenced by buffering(), buffering(), csvWriter::buffering(), gnuplotWriter::buffering(), rawWriter::buffering(), xmgraceWriter::buffering(), coordSetWriter(), csvWriter::csvWriter(), csvWriter::csvWriter(), gnuplotWriter::gnuplotWriter(), gnuplotWriter::gnuplotWriter(), rawWriter::rawWriter(), rawWriter::rawWriter(), csvWriter::writeTemplate(), gnuplotWriter::writeTemplate(), rawWriter::writeTemplate(), xmgraceWriter::writeTemplate(), xmgraceWriter::xmgraceWriter(), and xmgraceWriter::xmgraceWriter().

◆ useTracks_

bool useTracks_

protected

Prefer tracks to points during single set writing.

Definition at line 119 of file coordSetWriter.H.

Referenced by coordSetWriter(), setTracks(), useTracks(), useTracks(), abaqusWriter::writeTemplate(), csvWriter::writeTemplate(), csvWriter::writeTemplate(), ensightWriter::writeTemplate(), gnuplotWriter::writeTemplate(), nastranWriter::writeTemplate(), rawWriter::writeTemplate(), rawWriter::writeTemplate(), xmgraceWriter::writeTemplate(), and xmgraceWriter::writeTemplate().

◆ useTimeDir_

bool useTimeDir_

protected

Insert additional time sub-directory in the output path.

Definition at line 124 of file coordSetWriter.H.

Referenced by coordSetWriter(), useTimeDir(), and useTimeDir().

◆ verbose_

bool verbose_

protected

◆ nFields_

label nFields_

protected

The number of fields.

Definition at line 134 of file coordSetWriter.H.

Referenced by coordSetWriter(), nFields(), nFields(), and vtkWriter::writeTemplate().

◆ currTime_

instant currTime_

protected

The current time value/name.

Definition at line 139 of file coordSetWriter.H.

Referenced by coordSetWriter(), hasTime(), setTime(), setTime(), setTime(), timeName(), timeValue(), unsetTime(), ensightWriter::writeCollated(), ensightWriter::writeCollated(), ensightWriter::writeUncollated(), and ensightWriter::writeUncollated().

◆ outputPath_

fileName outputPath_

protected

The full output directory and file (coords) name.

Definition at line 144 of file coordSetWriter.H.

Referenced by close(), coordSetWriter(), getExpectedPath(), getFieldPrefixedPath(), is_open(), open(), ensightWriter::path(), ensightWriter::writeCollated(), ensightWriter::writeCollated(), abaqusWriter::writeTemplate(), nastranWriter::writeTemplate(), rawWriter::writeTemplate(), ensightWriter::writeUncollated(), and ensightWriter::writeUncollated().

◆ geometryScale_

scalar geometryScale_

protected

Output geometry scaling after rotate/translate.

Definition at line 149 of file coordSetWriter.H.

Referenced by coordSetWriter(), and coordSetWriter().

◆ geometryCentre_

point geometryCentre_

protected

The centre of rotation (untranslate, translate).

Definition at line 154 of file coordSetWriter.H.

Referenced by coordSetWriter(), and coordSetWriter().

◆ geometryTransform_

coordSystem::cartesian geometryTransform_

protected

Local coordinate system transformation.

Definition at line 159 of file coordSetWriter.H.

Referenced by adjustFieldTemplate(), coordSetWriter(), and coordSetWriter().

◆ fieldLevel_

dictionary fieldLevel_

protected

Field level to remove (on output).

Definition at line 164 of file coordSetWriter.H.

Referenced by adjustFieldTemplate(), coordSetWriter(), and coordSetWriter().

◆ fieldScale_

dictionary fieldScale_

protected

Field scaling (on output).

Definition at line 169 of file coordSetWriter.H.

Referenced by adjustFieldTemplate(), coordSetWriter(), and coordSetWriter().

◆ labelNames_

DynamicList<word> labelNames_

protected

Definition at line 190 of file coordSetWriter.H.

Referenced by csvWriter::writeBuffered().

◆ labelFields_

PtrDynList<Field<label> > labelFields_

protected

Definition at line 190 of file coordSetWriter.H.

◆ scalarNames_

DynamicList<word> scalarNames_

protected

Definition at line 191 of file coordSetWriter.H.

Referenced by csvWriter::writeBuffered().

◆ scalarFields_

PtrDynList<Field<scalar> > scalarFields_

protected

Definition at line 191 of file coordSetWriter.H.

◆ vectorNames_

DynamicList<word> vectorNames_

protected

Definition at line 192 of file coordSetWriter.H.

◆ vectorFields_

PtrDynList<Field<vector> > vectorFields_

protected

Definition at line 192 of file coordSetWriter.H.

◆ sphericalTensorNames_

DynamicList<word> sphericalTensorNames_

protected

Definition at line 193 of file coordSetWriter.H.

◆ sphericalTensorFields_

PtrDynList<Field<sphericalTensor> > sphericalTensorFields_

protected

Definition at line 193 of file coordSetWriter.H.

◆ symmTensorNames_

DynamicList<word> symmTensorNames_

protected

Definition at line 194 of file coordSetWriter.H.

◆ symmTensorFields_

PtrDynList<Field<symmTensor> > symmTensorFields_

protected

Definition at line 194 of file coordSetWriter.H.

◆ tensorNames_

DynamicList<word> tensorNames_

protected

Definition at line 195 of file coordSetWriter.H.

◆ tensorFields_

PtrDynList<Field<tensor> > tensorFields_

protected

Definition at line 195 of file coordSetWriter.H.

The documentation for this class was generated from the following files:

src/meshTools/coordSet/writers/common/coordSetWriter.H
src/meshTools/coordSet/writers/common/coordSetWriter.C
src/meshTools/coordSet/writers/common/coordSetWriterBuffers.C
src/meshTools/coordSet/writers/common/coordSetWriterI.H
src/meshTools/coordSet/writers/common/coordSetWriterNew.C
src/meshTools/coordSet/writers/common/coordSetWriterTemplates.C

Public Member Functions

Static Public Member Functions

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Friends

Detailed Description

Constructor & Destructor Documentation

◆ coordSetWriter() [1/3]

◆ coordSetWriter() [2/3]

◆ coordSetWriter() [3/3]

◆ ~coordSetWriter()

Member Function Documentation

◆ appendField() [1/6]

◆ appendField() [2/6]

◆ appendField() [3/6]

◆ appendField() [4/6]

◆ appendField() [5/6]

◆ appendField() [6/6]

◆ writeLine() [1/2]

◆ writeLine() [2/2]

◆ clearBuffers()

◆ nDataColumns()

◆ writeBuffered()

◆ writeBufferContents()

◆ getBufferLine()

◆ getExpectedPath()

◆ getFieldPrefixedPath()

◆ checkOpen()

◆ merge()

◆ adjustFieldTemplate() [1/2]

◆ repackageFields() [1/4]

◆ repackageFields() [2/4]

◆ writeTable()

◆ writeTemplate() [1/2]

◆ writeTemplate() [2/2]

◆ operator=()

◆ TypeName()

◆ declareRunTimeSelectionTable() [1/2]

◆ declareRunTimeSelectionTable() [2/2]

◆ formatOptions() [1/2]

◆ formatOptions() [2/2]

◆ supportedType()

◆ New() [1/2]

◆ New() [2/2]

◆ suffix() [1/2]

◆ suffix() [2/2]

◆ buffering() [1/2]

◆ buffering() [2/2]

◆ enabled()

◆ needsUpdate()

◆ wroteData()

◆ expire()

◆ clear()

◆ setCoordinates() [1/2]

◆ setCoordinates() [2/2]

◆ setTracks()

◆ setTrackTimes()

◆ numPoints()

◆ numTracks()

◆ hasCoords()

◆ empty()

◆ is_open()

◆ nFields() [1/2]

◆ nFields() [2/2]

◆ useTracks() [1/2]

◆ useTracks() [2/2]

◆ useTimeDir() [1/2]

◆ useTimeDir() [2/2]

◆ verbose() [1/2]

◆ verbose() [2/2]

◆ hasTime()

◆ timeName()

◆ timeValue()

◆ setTime() [1/3]

◆ setTime() [2/3]

◆ setTime() [3/3]

◆ unsetTime()

◆ beginTime() [1/2]

◆ beginTime() [2/2]
