A coordSet(s) writer in glTF v2 format, which is particularly useful for writing track data. More...

#include <gltfCoordSetWriter.H>

Inheritance diagram for gltfWriter:

Collaboration diagram for gltfWriter:

[legend]

Public Types
enum class	fieldOption : char { NONE , UNIFORM , FIELD }
	Field option used for colours. More...

Public Member Functions
	TypeNameNoDebug ("gltf")
	Runtime type information (no debug).
	gltfWriter ()
	Default construct.
	gltfWriter (const dictionary &options)
	Default construct with specified options.
	gltfWriter (const coordSet &coords, const fileName &outputPath, const dictionary &options=dictionary())
	Construct from components.
	gltfWriter (const UPtrList< coordSet > &tracks, const fileName &outputPath, const dictionary &options=dictionary())
	Construct from components.
virtual	~gltfWriter ()
	Destructor. Calls close().
virtual fileName	path () const
	Expected (characteristic) output file name - information only.
virtual void	close (bool force=false)
	Close and reset, clears backend.
virtual void	beginTime (const Time &t)
	Begin time step. Clears existing backend.
virtual void	beginTime (const instant &inst)
	Begin time step. Clears existing backend.
virtual void	endTime ()
	End time step. Clears existing backend.
	declareCoordSetWriterWriteMethod (label)
	declareCoordSetWriterWriteMethod (scalar)
	declareCoordSetWriterWriteMethod (vector)
	declareCoordSetWriterWriteMethod (sphericalTensor)
	declareCoordSetWriterWriteMethod (symmTensor)
	declareCoordSetWriterWriteMethod (tensor)
template<class Type>

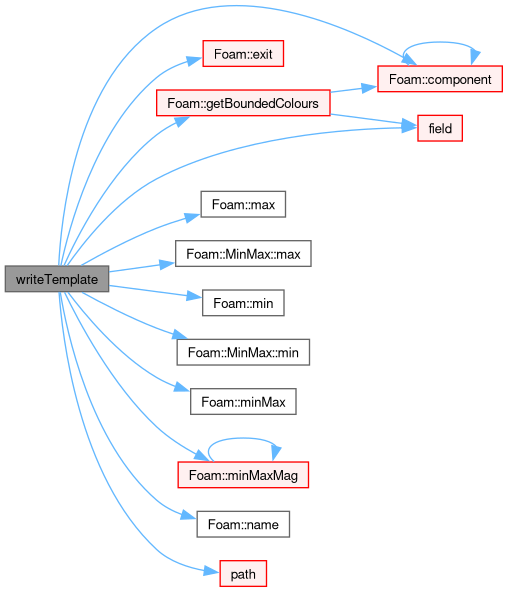

Foam::fileName	writeTemplate (const word &fieldName, const UPtrList< const Field< Type > > &fieldPtrs)
template<class Type>

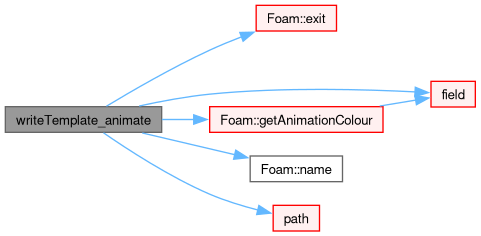

Foam::fileName	writeTemplate_animate (const word &fieldName, const UPtrList< const Field< Type > > &fieldPtrs)
template<class Type>
Foam::fileName	writeTemplate (const word &fieldName, const Field< Type > &values)
template<class Type>
Foam::fileName	writeTemplate (const word &fieldName, const List< Field< Type > > &fieldValues)
Public Member Functions inherited from coordSetWriter
	TypeName ("coordSetWriter")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, coordSetWriter, word,(),())
	declareRunTimeSelectionTable (autoPtr, coordSetWriter, wordDict,(const dictionary &writeOptions),(writeOptions))
	coordSetWriter ()
	Default construct.
	coordSetWriter (const dictionary &options)
	Default construct with specified options.
virtual	~coordSetWriter ()
	Destructor. Calls close().
virtual bool	buffering () const
	True if the format uses internal buffering (eg, column output).
virtual bool	buffering (const bool on)
	Turn internal buffering on/off (only if supported by the writer).
virtual bool	enabled () const
	The writer is enabled. If the writer is not enabled, it may be possible for the caller to skip various preparatory operations.
virtual bool	needsUpdate () const
	Does the writer need an update (eg, lagging behind other changes).
virtual bool	wroteData () const
	Geometry or fields written since the last open?
virtual bool	expire ()
	Mark that content changed and the writer will need an update, and set nFields = 0.
virtual void	clear ()
	Close any open output, remove coordSet associations and expire the writer.
virtual void	setCoordinates (const coordSet *coords)
	Set coordinates, can also be nullptr.
virtual void	setCoordinates (const coordSet &coords)
	Set coordinates.
virtual void	setTracks (const UPtrList< coordSet > &tracks)
	Set track coordinates.
virtual void	setTrackTimes (const UList< scalarField > &times)
	Set track times.
label	numPoints () const
	The number of associated points (local processor).
label	numTracks () const
	The number of coordinate tracks.
bool	hasCoords () const
	Writer is associated with content.
bool	empty () const
	Writer is not associated with content.
bool	is_open () const noexcept
	Test if outputPath has been set.
label	nFields () const noexcept
	The number of expected output fields.
label	nFields (const label n) noexcept
	Set the number of expected output fields.
bool	useTracks () const noexcept
	Prefer tracks to points during single set writing.
bool	useTracks (const bool on) noexcept
	Enable/disable tracks preference.
bool	useTimeDir () const noexcept
	Should a time directory be spliced into the output path?
bool	useTimeDir (const bool on) noexcept
	Enable/disable use of spliced output path.
bool	verbose () const noexcept
	Get output verbosity.
bool	verbose (bool on) noexcept
	Enable/disable verbose output.
bool	hasTime () const
	True if there is a known time.
const word &	timeName () const
	The current time value/name.
scalar	timeValue () const
	The current time value/name.
void	setTime (const instant &inst)
	Set the current time.
void	setTime (scalar timeValue)
	Set current time from timeValue, auto generating the name.
void	setTime (scalar timeValue, const word &timeName)
	Set current time from timeValue and timeName.
void	unsetTime ()
	Clear the current time.
virtual void	open (const fileName &outputPath)
	Write separate geometry to file.
virtual void	open (const coordSet &coords, const fileName &outputPath)
	Open from components.
virtual void	open (const UPtrList< coordSet > &tracks, const fileName &outputPath)
	Open from components.
virtual InfoProxy< coordSetWriter >	info () const
	Return info proxy, used to print information to a stream.
virtual fileName	write (const word &fieldName, const Field< label > &field)=0
	Write field of label (point data).
virtual fileName	write (const word &fieldName, const List< Field< label > > &fieldValues)=0
	Write track fields of label (point data).
virtual fileName	write (const word &fieldName, const Field< scalar > &field)=0
	Write field of scalar (point data).
virtual fileName	write (const word &fieldName, const List< Field< scalar > > &fieldValues)=0
	Write track fields of scalar (point data).
virtual fileName	write (const word &fieldName, const Field< vector > &field)=0
	Write field of vector (point data).
virtual fileName	write (const word &fieldName, const List< Field< vector > > &fieldValues)=0
	Write track fields of vector (point data).
virtual fileName	write (const word &fieldName, const Field< sphericalTensor > &field)=0
	Write field of sphericalTensor (point data).
virtual fileName	write (const word &fieldName, const List< Field< sphericalTensor > > &fieldValues)=0
	Write track fields of sphericalTensor (point data).
virtual fileName	write (const word &fieldName, const Field< symmTensor > &field)=0
	Write field of symmTensor (point data).
virtual fileName	write (const word &fieldName, const List< Field< symmTensor > > &fieldValues)=0
	Write track fields of symmTensor (point data).
virtual fileName	write (const word &fieldName, const Field< tensor > &field)=0
	Write field of tensor (point data).
virtual fileName	write (const word &fieldName, const List< Field< tensor > > &fieldValues)=0
	Write track fields of tensor (point data).
template<class Type>
Foam::tmp< Foam::Field< Type > >	adjustFieldTemplate (const word &fieldName, const tmp< Field< Type > > &tfield) const
template<class Type>
Foam::UPtrList< const Foam::Field< Type > >	repackageFields (const Field< Type > &field)
template<class Type>
Foam::UPtrList< const Foam::Field< Type > >	repackageFields (const UList< Field< Type > > &fieldValues)

Static Public Attributes
static const Enum< fieldOption >	fieldOptionNames_
	Strings corresponding to the field options.

Additional Inherited Members
Static Public Member Functions inherited from coordSetWriter
static dictionary	formatOptions (const dictionary &dict, const word &formatName, const word &entryName="formatOptions")
	Same as fileFormats::getFormatOptions.
static dictionary	formatOptions (const dictionary &dict, const dictionary &setDict, const word &formatName, const word &entryName="formatOptions")
	Same as fileFormats::getFormatOptions.
static bool	supportedType (const word &writeType)
	True if New is likely to succeed for this writeType.
static autoPtr< coordSetWriter >	New (const word &writeFormat)
	Return a reference to the selected writer.
static autoPtr< coordSetWriter >	New (const word &writeFormat, const dictionary &writeOptions)
	Return a reference to the selected writer.
static word	suffix (const word &fldName, const word &fileExt=word::null)
	Name suffix based on fieldName (underscore separator).
static word	suffix (const wordList &fieldNames, const word &fileExt=word::null)
	Name suffix based on fieldNames (underscore separator).
Protected Member Functions inherited from coordSetWriter
void	appendField (const word &fieldName, const Field< label > &vals)
void	appendField (const word &fieldName, const Field< scalar > &vals)
void	appendField (const word &fieldName, const Field< vector > &vals)
void	appendField (const word &fieldName, const Field< sphericalTensor > &vals)
void	appendField (const word &fieldName, const Field< symmTensor > &vals)
void	appendField (const word &fieldName, const Field< tensor > &vals)
void	clearBuffers ()
	Clear out buffering.
label	nDataColumns () const
	The number of buffer data columns, after splitting into components.
virtual bool	writeBuffered ()
	Write buffered data.
void	writeBufferContents (Ostream &os, const coordSet &coords, const char *sep) const
	Write buffered data.
void	getBufferLine (DynamicList< scalar > &buf, const coordSet &coords, const label pointi) const
	Get buffered data line (components).
fileName	getExpectedPath (const word &fileExt=word::null) const
	Get expected (characteristic) output file name - information only.
fileName	getFieldPrefixedPath (const word &fieldName, const word &fileExt=word::null) const
	Get field-prefixed output file name.
void	checkOpen () const
	Verify that the outputPath_ has been set or FatalError.
virtual bool	merge () const
	Perform any merging if not already upToDate (parallel) or simply mark as being up-to-date.
template<class Type>
tmp< Field< Type > >	adjustFieldTemplate (const word &fieldName, const tmp< Field< Type > > &tfield) const
template<class Type>
fileName	writeTemplate (const word &fieldName, const Field< Type > &values)
	Dummy templated write operation.
template<class Type>
fileName	writeTemplate (const word &fieldName, const List< Field< Type > > &fieldValues)
	Dummy templated write operation. Multiple tracks.
	coordSetWriter (const coordSetWriter &)=delete
	No copy construct.
void	operator= (const coordSetWriter &)=delete
	No copy assignment.
Static Protected Member Functions inherited from coordSetWriter
static void	writeLine (Ostream &, const UList< word > &, const char *sep)
	Write line contents (eg, buffered).
static void	writeLine (Ostream &, const UList< scalar > &, const char *sep)
	Write line contents (eg, buffered).
template<class Type>
static UPtrList< const Field< Type > >	repackageFields (const Field< Type > &field)
	Repackage field into a UPtrList.
template<class Type>
static UPtrList< const Field< Type > >	repackageFields (const UList< Field< Type > > &fieldValues)
	Repackage multiple fields into a UPtrList.
template<class Type>
static void	writeTable (Ostream &os, const coordSet &coords, const UList< Type > &values, const char *sep)
	Write coordinates and values.
Protected Attributes inherited from coordSetWriter
UPtrList< const coordSet >	coords_
	Reference to coordinate set(s).
List< scalarField >	trackTimes_
	Track times (eg, streamlines), one per coords_ entry.
bool	upToDate_
	The content is up-to-date?
bool	wroteGeom_
	Track if geometry has been written since the last open.
bool	buffering_
	Writer with buffering output.
bool	useTracks_
	Prefer tracks to points during single set writing.
bool	useTimeDir_
	Insert additional time sub-directory in the output path.
bool	verbose_
	Additional output verbosity.
label	nFields_
	The number of fields.
instant	currTime_
	The current time value/name.
fileName	outputPath_
	The full output directory and file (coords) name.
scalar	geometryScale_
	Output geometry scaling after rotate/translate.
point	geometryCentre_
	The centre of rotation (untranslate, translate).
coordSystem::cartesian	geometryTransform_
	Local coordinate system transformation.
dictionary	fieldLevel_
	Field level to remove (on output).
dictionary	fieldScale_
	Field scaling (on output).
DynamicList< word >	labelNames_
PtrDynList< Field< label > >	labelFields_
DynamicList< word >	scalarNames_
PtrDynList< Field< scalar > >	scalarFields_
DynamicList< word >	vectorNames_
PtrDynList< Field< vector > >	vectorFields_
DynamicList< word >	sphericalTensorNames_
PtrDynList< Field< sphericalTensor > >	sphericalTensorFields_
DynamicList< word >	symmTensorNames_
PtrDynList< Field< symmTensor > >	symmTensorFields_
DynamicList< word >	tensorNames_
PtrDynList< Field< tensor > >	tensorFields_

Detailed Description

A coordSet(s) writer in glTF v2 format, which is particularly useful for writing track data.

Two files are generated:

filename.bin : a binary file containing all scene entities
filename.gltf : a JSON file that ties fields to the binary data

The output can contain both geometry and fields, with additional support for colours using a user-supplied colour map, and animation of particle tracks.

Controls are provided via the optional formatOptions dictionary.

For non-particle track data:

formatOptions
{
    gltf
    {
        // Apply colours flag (yes | no ) [optional]
        colour      yes;

        // List of options per field
        fieldInfo
        {
            p
            {
                // Colour map [optional]
                colourMap       <colourMap>;

                // Colour map minimum and maximum limits [optional]
                // Uses field min and max if not specified
                min             0;
                max             1;

                // Alpha channel [optional] (<scalar>)
                alpha           0.5;
            }
        }
    }
}
\verbatim

For particle tracks:

\verbatim
formatOptions
{
    gltf
    {
        // Apply colours flag (yes | no) [optional]
        colour      yes;

        // Animate tracks (yes | no) [optional]
        animate     yes;

        // Animation properties [optional]
        animationInfo
        {
            // Colour map [optional]
            colourMap       <colourMap>;

            // Colour [optional] (<vector> | uniform | field)
            colour          (1 0 0); // RGB in range [0-1]

            //colour          uniform;
            //colourValue     (1 0 0); // RGB in range [0-1]

            //colour          field;
            //colourField     d;

            // Colour map minimum and maximum limits [optional]
            // Note: for colour = field option
            // Uses field min and max if not specified
            min             0;
            max             1;

            // Alpha channel [optional] (<scalar>)
            alpha           0.5;
        }
    }
}

Note: When writing particle animations, the particle field and colour properties correspond to initial particle state (first data point) and cannot be animated (limitation of the file format).

For more information on the specification see https://www.khronos.org/registry/glTF/

Source files

Definition at line 142 of file gltfCoordSetWriter.H.
