csvTableReader< Type > Class Template Reference

Reads an interpolation table from a file - CSV-format. More...

#include <csvTableReader.H>

Inheritance diagram for csvTableReader< Type >:

Collaboration diagram for csvTableReader< Type >:

Public Member Functions
	TypeName ("csv")
	Declare type-name, virtual type (with debug switch).
	csvTableReader (const dictionary &dict)
	Construct from dictionary.
virtual autoPtr< tableReader< Type > >	clone () const
	Construct and return a copy.
virtual	~csvTableReader ()=default
	Destructor.
virtual void	operator() (const fileName &fName, List< Tuple2< scalar, Type > > &data)
	Read 1D table.
virtual void	operator() (const fileName &fName, List< Tuple2< scalar, List< Tuple2< scalar, Type > > > > &data)
	Read 2D table - NotImplemented.
virtual void	write (Ostream &os) const
	Write the remaining parameters.
Public Member Functions inherited from tableReader< Type >
	TypeName ("tableReader")
	Declare type-name, virtual type (with debug switch).
	declareRunTimeSelectionTable (autoPtr, tableReader, dictionary,(const dictionary &dict),(dict))
	tableReader ()=default
	Default construct.
	tableReader (const dictionary &dict)
	Construct from dictionary.
virtual	~tableReader ()=default
	Destructor.

Additional Inherited Members
Static Public Member Functions inherited from tableReader< Type >
static autoPtr< tableReader >	New (const dictionary &spec)
	Return a reference to the selected tableReader.

Detailed Description

template<class Type>
class Foam::csvTableReader< Type >

Reads an interpolation table from a file - CSV-format.

Source files

• csvTableReader.H
• tableReader.C

Definition at line 49 of file csvTableReader.H.

Constructor & Destructor Documentation

csvTableReader()

template<class Type>

csvTableReader

(

const dictionary &

dict

)

Construct from dictionary.

Definition at line 91 of file csvTableReader.C.

References dict, and tableReader< Type >::tableReader().

Referenced by clone().

Here is the call graph for this function:

Here is the caller graph for this function:

~csvTableReader()

template<class Type>

virtual ~csvTableReader ( )

virtualdefault

Destructor.

References os().

Here is the call graph for this function:

Member Function Documentation

TypeName()

template<class Type>

TypeName

(

"csv"

)

Declare type-name, virtual type (with debug switch).

References dict.

clone()

template<class Type>

virtual autoPtr< tableReader< Type > > clone ( ) const

inlinevirtual

Construct and return a copy.

Implements tableReader< Type >.

Definition at line 112 of file csvTableReader.H.

References csvTableReader().

Here is the call graph for this function:

operator()() [1/2]

template<class Type>

void operator() ( const fileName & fName, List< Tuple2< scalar, Type > > & data )

virtual

Read 1D table.

Implements tableReader< Type >.

Definition at line 107 of file csvTableReader.C.

References DynamicList< T, SizeMin >::clear(), Foam::exit(), Foam::FatalError, FatalErrorInFunction, Foam::fileHandler, Foam::findMax(), ISstream::getLine(), IOstream::good(), Foam::max(), n, Foam::nl, Foam::pos(), DynamicList< T, SizeMin >::push_back(), UList< T >::size(), and x.

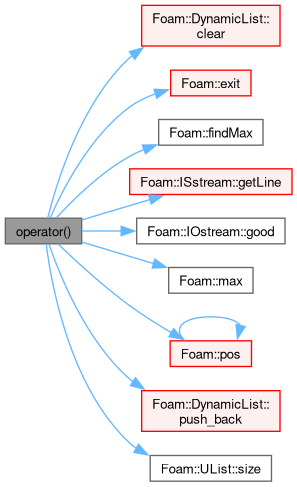

Here is the call graph for this function:

operator()() [2/2]

template<class Type>

void operator() ( const fileName & fName, List< Tuple2< scalar, List< Tuple2< scalar, Type > > > > & data )

virtual

Read 2D table - NotImplemented.

Implements tableReader< Type >.

Definition at line 187 of file csvTableReader.C.

References NotImplemented.

write()

template<class Type>

void write ( Ostream & os ) const

virtual

Write the remaining parameters.

Reimplemented from tableReader< Type >.

Definition at line 198 of file csvTableReader.C.

References IOstreamOption::ASCII, os(), and tableReader< Type >::write().

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• src/OpenFOAM/interpolations/interpolationTable/tableReaders/csv/csvTableReader.H
• src/OpenFOAM/interpolations/interpolationTable/tableReaders/csv/csvTableReader.C
