tableReader< Type > Class Template Reference

Base class to read table data for the interpolationTable. More...

#include <tableReader.H>

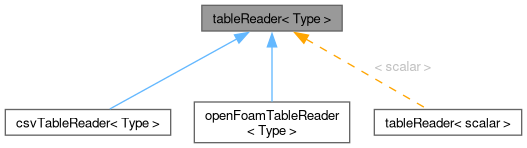

Inheritance diagram for tableReader< Type >:

Public Member Functions
	TypeName ("tableReader")
	Declare type-name, virtual type (with debug switch).
	declareRunTimeSelectionTable (autoPtr, tableReader, dictionary,(const dictionary &dict),(dict))
	tableReader ()=default
	Default construct.
	tableReader (const dictionary &dict)
	Construct from dictionary.
virtual autoPtr< tableReader< Type > >	clone () const =0
	Construct and return a clone.
virtual	~tableReader ()=default
	Destructor.
virtual void	operator() (const fileName &fName, List< Tuple2< scalar, Type > > &data)=0
	Read 1D table.
virtual void	operator() (const fileName &fName, List< Tuple2< scalar, List< Tuple2< scalar, Type > > > > &tbl)=0
	Read 2D table.
virtual void	write (Ostream &os) const
	Write additional information.

Static Public Member Functions
static autoPtr< tableReader >	New (const dictionary &spec)
	Return a reference to the selected tableReader.

Detailed Description

template<class Type>
class Foam::tableReader< Type >

Base class to read table data for the interpolationTable.

Source files

• tableReader.H
• tableReader.C

Definition at line 56 of file tableReader.H.

Constructor & Destructor Documentation

tableReader() [1/2]

template<class Type>

tableReader ( )

default

Default construct.

References dict.

Referenced by csvTableReader< Type >::csvTableReader(), declareRunTimeSelectionTable(), and openFoamTableReader< Type >::openFoamTableReader().

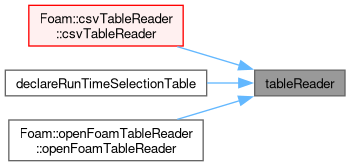

Here is the caller graph for this function:

tableReader() [2/2]

template<class Type>

tableReader

(

const dictionary &

dict

)

Construct from dictionary.

Definition at line 58 of file tableReader.C.

~tableReader()

template<class Type>

virtual ~tableReader ( )

virtualdefault

Destructor.

Member Function Documentation

TypeName()

template<class Type>

TypeName

(

"tableReader< Type >"

)

Declare type-name, virtual type (with debug switch).

declareRunTimeSelectionTable()

template<class Type>

declareRunTimeSelectionTable	(	autoPtr	,
		tableReader< Type >	,
		dictionary	,
		(const dictionary &dict)	,
		(dict)	)

References dict, and tableReader().

Here is the call graph for this function:

clone()

template<class Type>

virtual autoPtr< tableReader< Type > > clone ( ) const

pure virtual

Construct and return a clone.

Implemented in csvTableReader< Type >, and openFoamTableReader< Type >.

New()

template<class Type>

Foam::autoPtr< Foam::tableReader< Type > > New ( const dictionary & spec )

static

Return a reference to the selected tableReader.

Definition at line 27 of file tableReader.C.

References Foam::exit(), Foam::FatalIOError, FatalIOErrorInLookup, and dictionary::getOrDefault().

Here is the call graph for this function:

operator()() [1/2]

template<class Type>

virtual void operator() ( const fileName & fName, List< Tuple2< scalar, Type > > & data )

pure virtual

Read 1D table.

Implemented in csvTableReader< Type >, and openFoamTableReader< Type >.

operator()() [2/2]

template<class Type>

virtual void operator() ( const fileName & fName, List< Tuple2< scalar, List< Tuple2< scalar, Type > > > > & tbl )

pure virtual

Read 2D table.

Implemented in csvTableReader< Type >, and openFoamTableReader< Type >.

References os().

Here is the call graph for this function:

write()

template<class Type>

void write ( Ostream & os ) const

virtual

Write additional information.

Reimplemented in csvTableReader< Type >.

Definition at line 65 of file tableReader.C.

References os().

Referenced by csvTableReader< Type >::write().

Here is the call graph for this function:

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• src/OpenFOAM/interpolations/interpolationTable/tableReaders/tableReader.H
• src/OpenFOAM/interpolations/interpolationTable/tableReaders/tableReader.C
